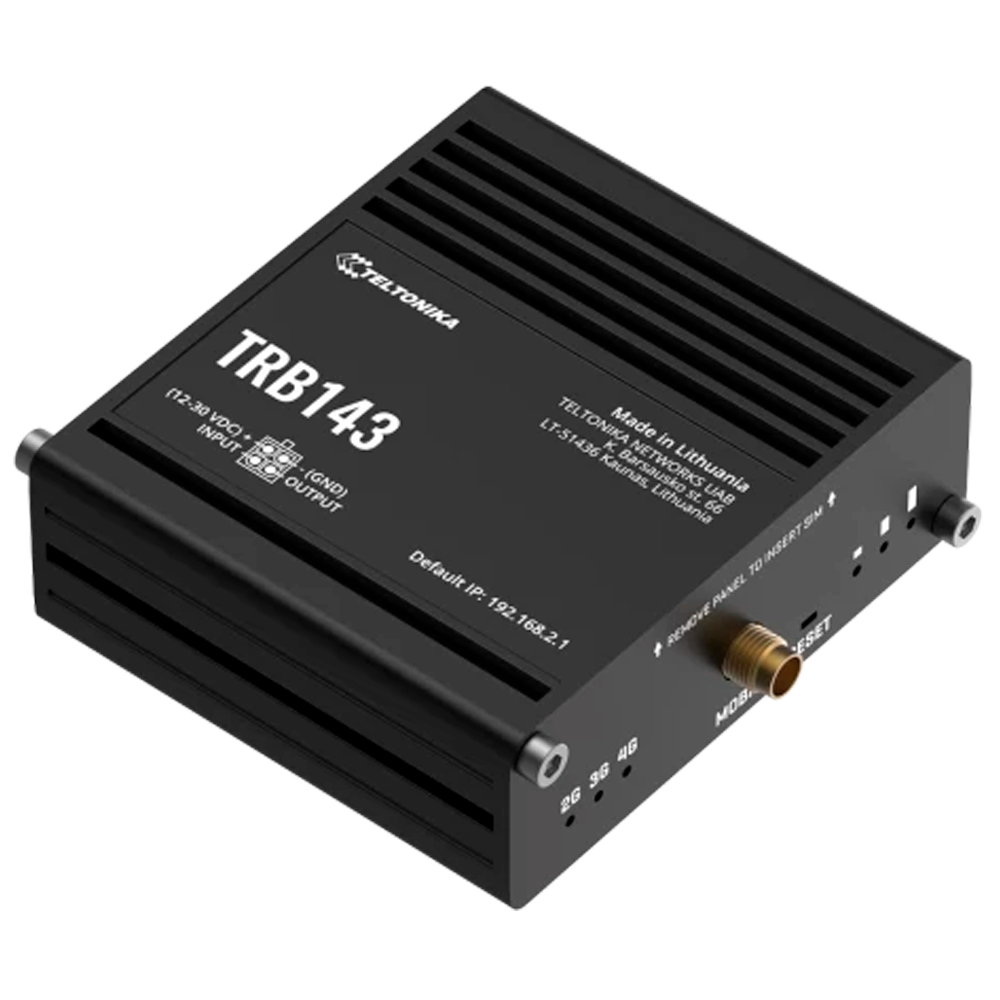

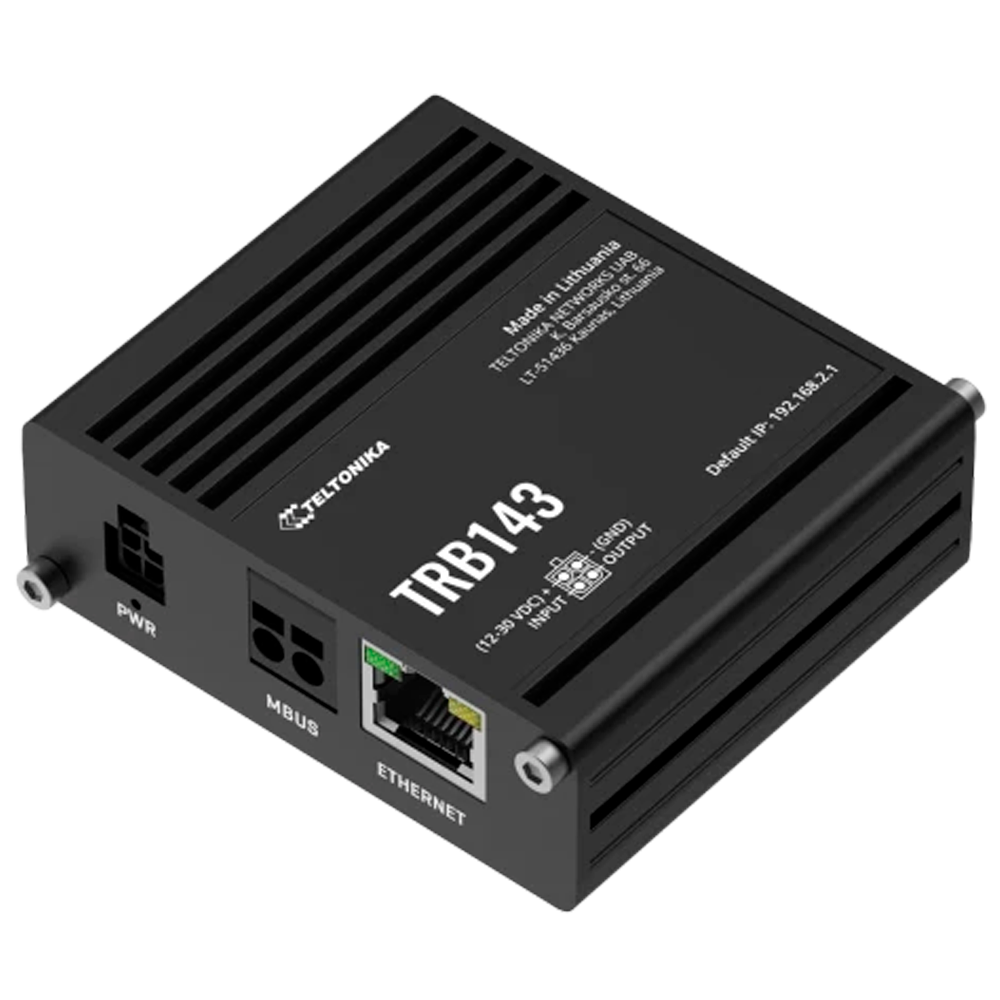

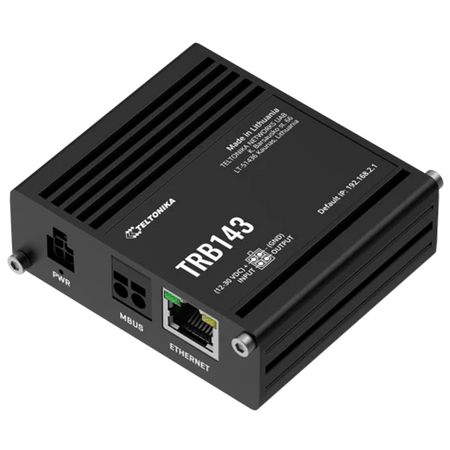

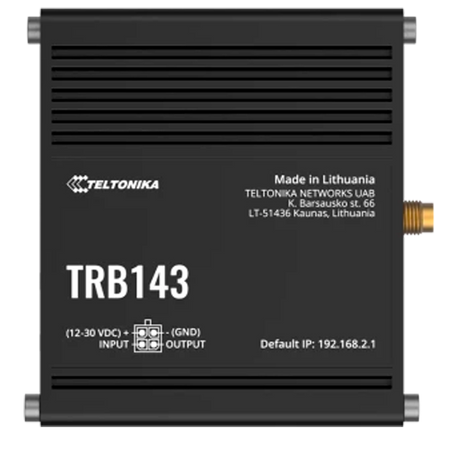

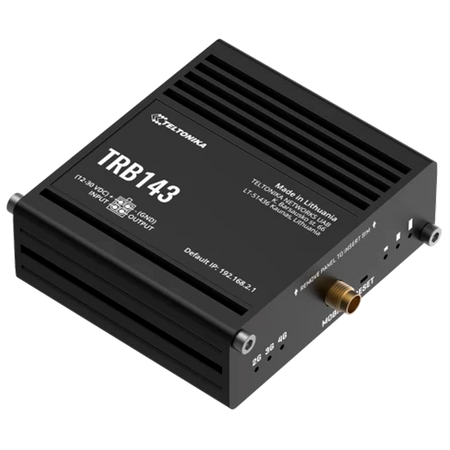

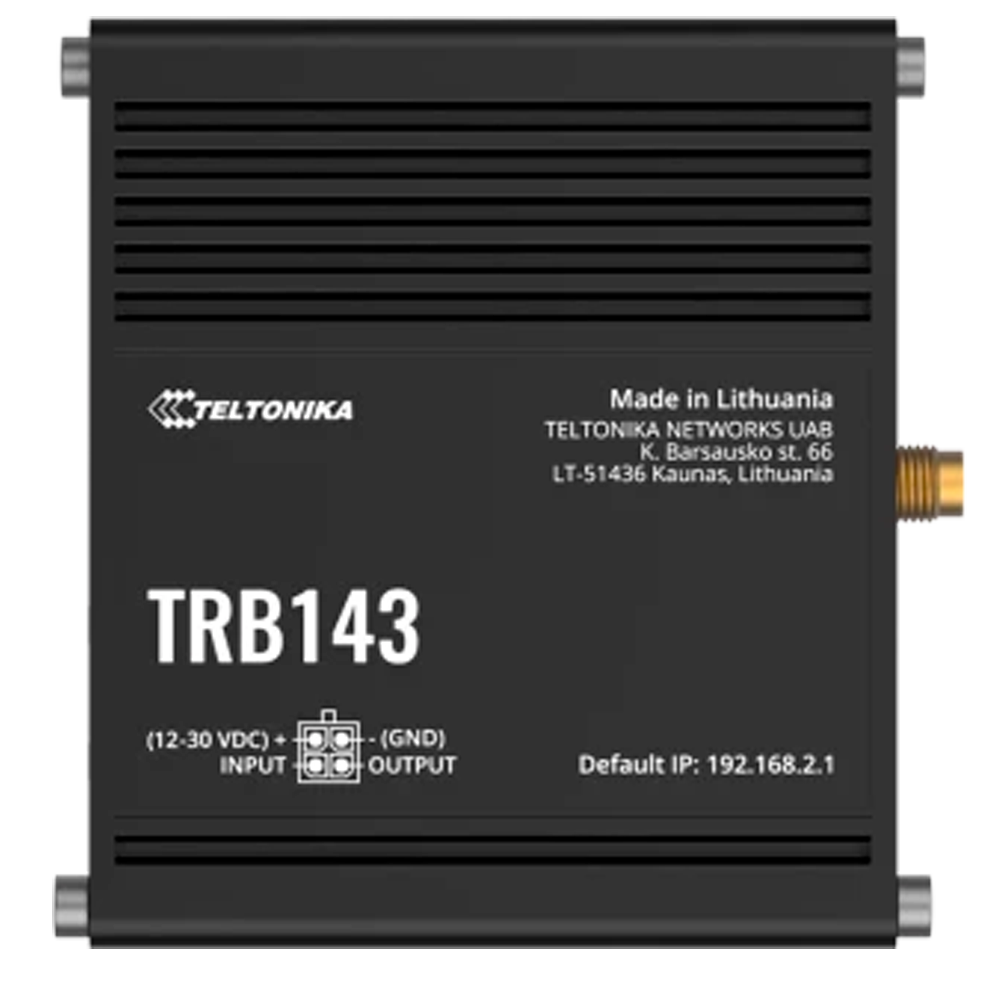

Teltonika 4G LTE Cat 4 Industrial Router - M-Bus interface for meter reading
Teltonika 4G LTE Cat 4 Industrial Router - M-Bus interface for meter reading
Regular price
€317,74
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Teltonika 4G LTE Cat 4 Industrial Router - M-Bus interface for meter reading - 10/100/1000 Mbps Gigabit Ethernet port - Advanced VPN: IPsec, OpenVPN, and WireGuard - 1 digital and 1 analog I/O port - RMS and RutOS (OpenWrt) remote management
📋 SPECIFICATIONS:
• Brand: Teltonika
• Device: Industrial LTE Gateway
• CPU: ARM Cortex-A7 (1.2 GHz)
• RAM: 128 MB, DDR3
• Flash: 512 MB, SPI Flash
• Mobile network: 4G LTE Cat 4, 3G, 2G
• Mobile speed: 150 Mbps DL / 50 Mbps UL
• 4G bands (LTE-FDD): B1, B3, B5, B7, B8, B20
• Ethernet: 1 x RJ45 10/100/1000 Mbps
• SIM slot: 1 x Mini SIM card slot (2FF)

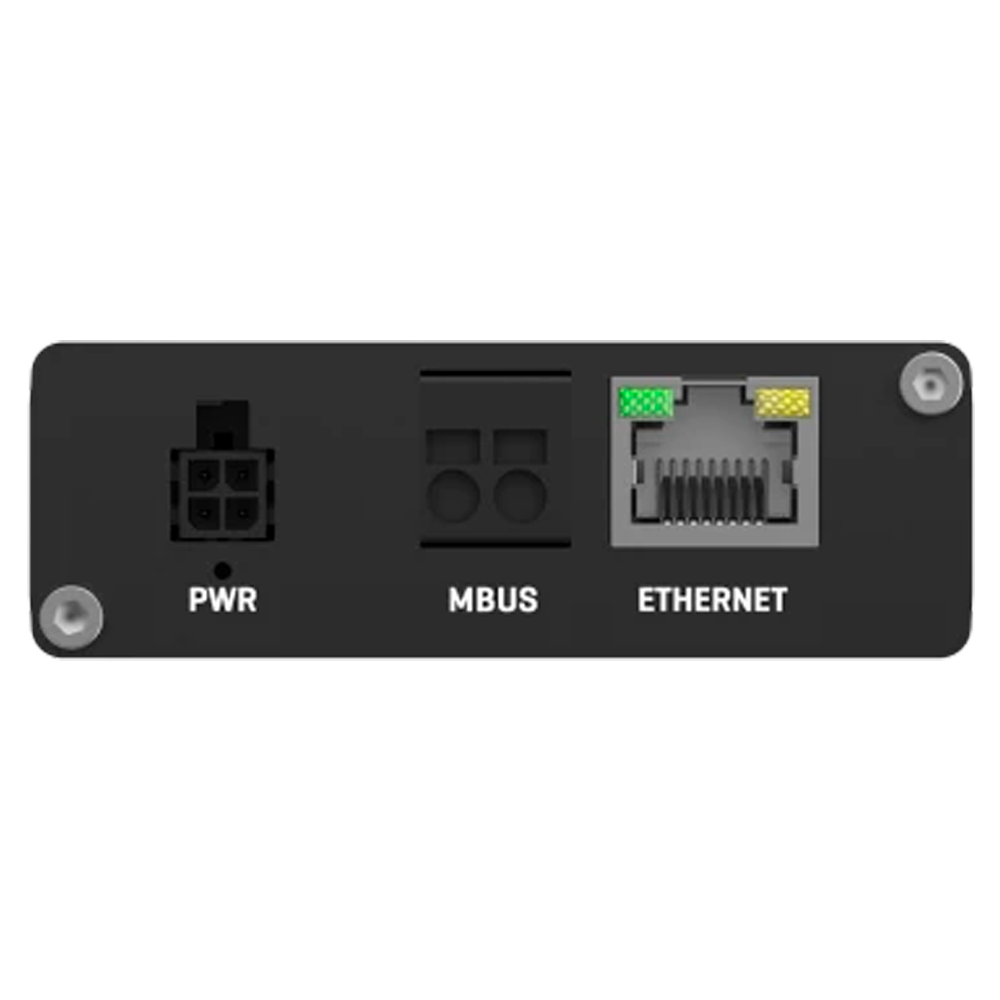

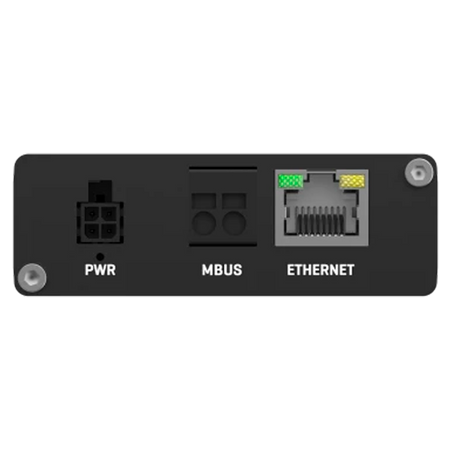

• M-Bus interface: 1 x M-Bus (2-pin terminal block)
• M-Bus capacity: Supports up to 250 slave devices
• USB: 1 x Micro USB (configuration and virtual network)
• Digital I/O: 1 x Digital input + 1 x Digital output
• Analog I/O: 1 x Analog input (0-30V)

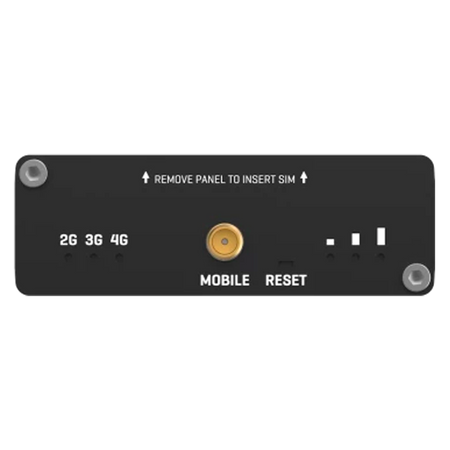

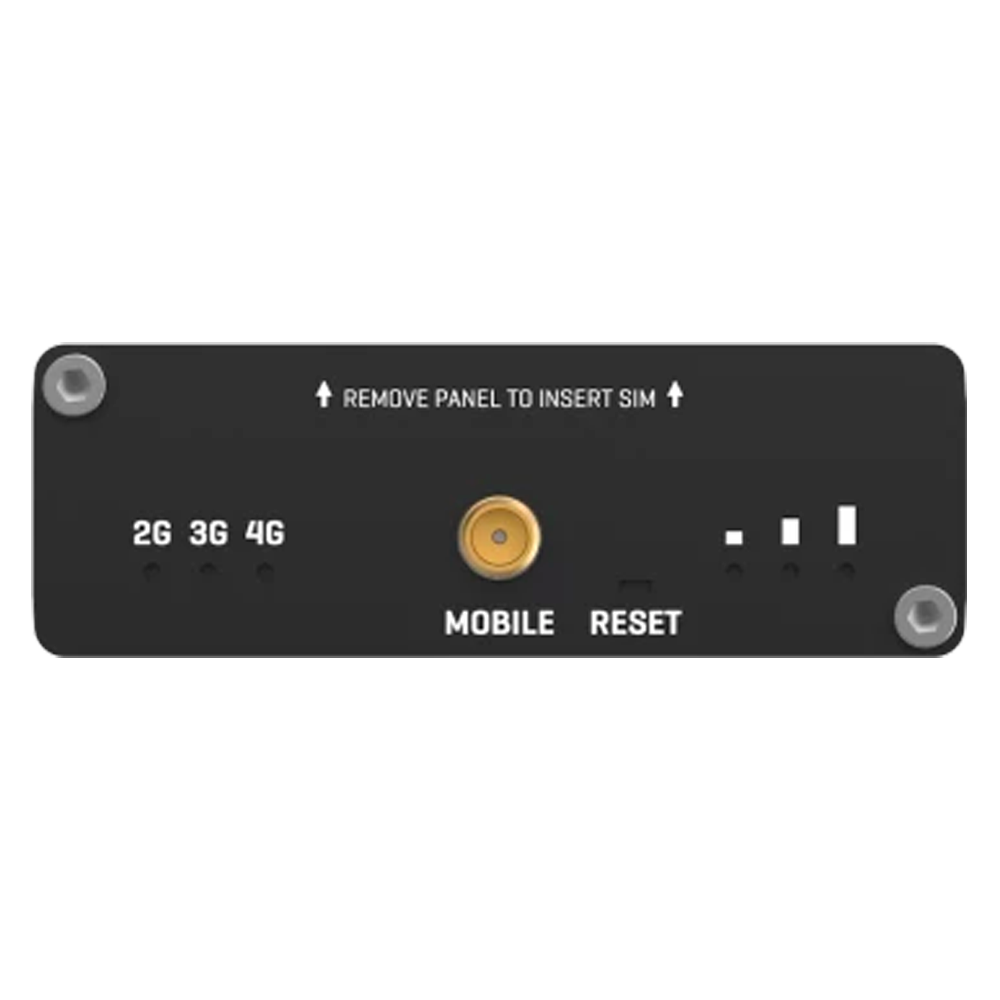

• Antennas: 1 x SMA connector for mobile antenna
• Operating System: RutOS (OpenWrt based)
• Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP/S, SSL/TLS, ARP, SSH, DHCP, SNMP, MQTT
• IIoT protocols: Modbus TCP, Modbus RTU, M-Bus
• VPN: OpenVPN, IPsec, GRE, L2TP, PPTP, ZeroTier, WireGuard
• Security: Firewall, DDoS protection, Port scanning, Web filter, Access control
• Watchdog: Integrated hardware watchdog
• Power supply: 12 - 30 VDC (4-pin connector)
• Power consumption: Standby: < 1.2 W; Maximum: < 5 W
• Material: Aluminum
• Protection: IP30
• Operating temp.: -40 °C to +75 °C
• Operating humidity: 10% to 90% (non-condensing)
• Dimensions: 74.5 x 25 x 64.4 mm
• Weight: 145 g
• Color: Metallic gray
📦 INCLUDED:
• 1x TRB143 Industrial Gateway • 1x 18W power supply • 1x Mobile antenna (magnetic, SMA male connector, 3m cable) • 1x Micro-USB cable (0.8 m) • 1x Ethernet cable (1.5 m) • 1x Hex key • 1x Quick Start Guide (QSG)
| Device | Industrial LTE Gateway |
|---|---|
| CPU | ARM Cortex-A7 (1.2 GHz) |
| RAM | 128 MB, DDR3 |
| Flash | 512 MB, SPI Flash |
| Mobile network | 4G LTE Cat 4, 3G, 2G |
| Mobile speed | 150 Mbps DL / 50 Mbps UL |
| 4G bands (LTE-FDD) | B1, B3, B5, B7, B8, B20 |
| Ethernet | 1 x RJ45 10/100/1000 Mbps |
| SIM slot | 1 x Mini SIM slot (2FF) |
| M-Bus interface | 1 x M-Bus (2-pin terminal block) |
| M-Bus capacity | Supports up to 250 slave devices |
| USB | 1 x Micro USB (Configuration and virtual network) |
| Digital I/O | 1 x Digital input + 1 x Digital output |
| Analog I/O | 1 x Analog input (0-30V) |
| Antennas | 1 x SMA connector for mobile antenna |
| Operating System | RutOS (based on OpenWrt) |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP/S, SSL/TLS, ARP, SSH, DHCP, SNMP, MQTT |
| IIoT protocols | Modbus TCP, Modbus RTU, M-Bus |
| VPN | OpenVPN, IPsec, GRE, L2TP, PPTP, ZeroTier, WireGuard |
| Security | Firewall, DDoS protection, Port scanning, Web filter, Access control |
| Watchdog | Integrated hardware watchdog |
| Power supply | 12 - 30 VDC (4-pin connector) |
| Power consumption | Standby: < 1.2 W; Maximum: < 5 W |
| Material | Aluminum |
| Protection | IP30 |
| Operating temp. | -40 °C to +75 °C |
| Operating humidity | 10% to 90% (non-condensing) |
| Dimensions | 74.5 x 25 x 64.4 mm |
| Weight | 145 g |
| Color | Metallic gray |
