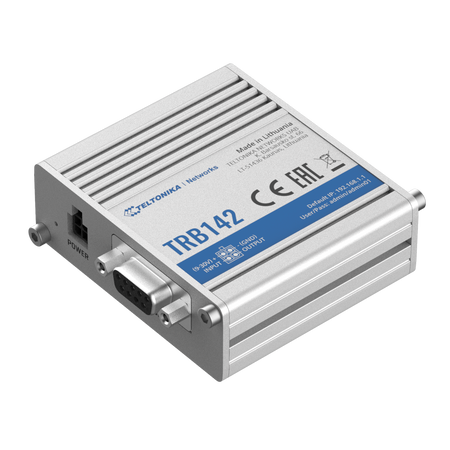

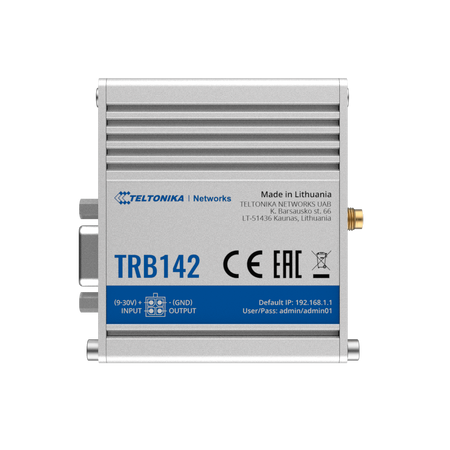

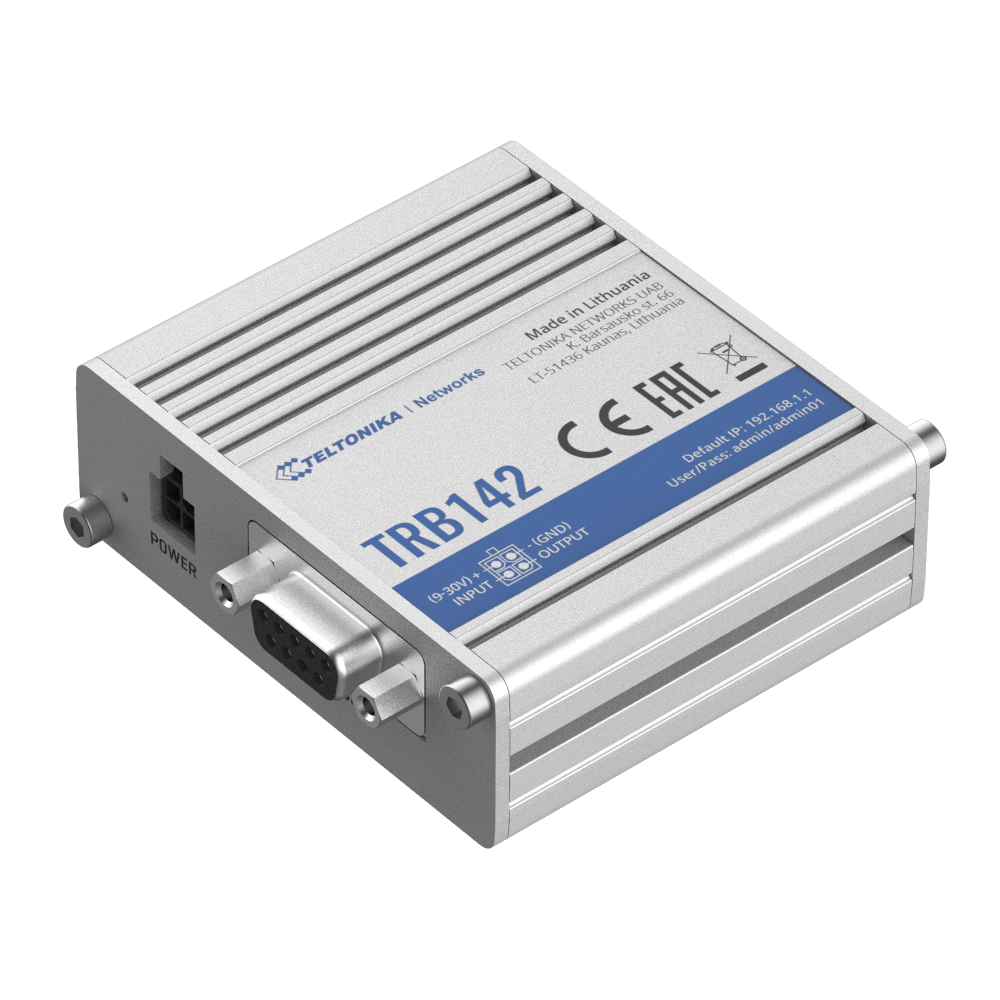

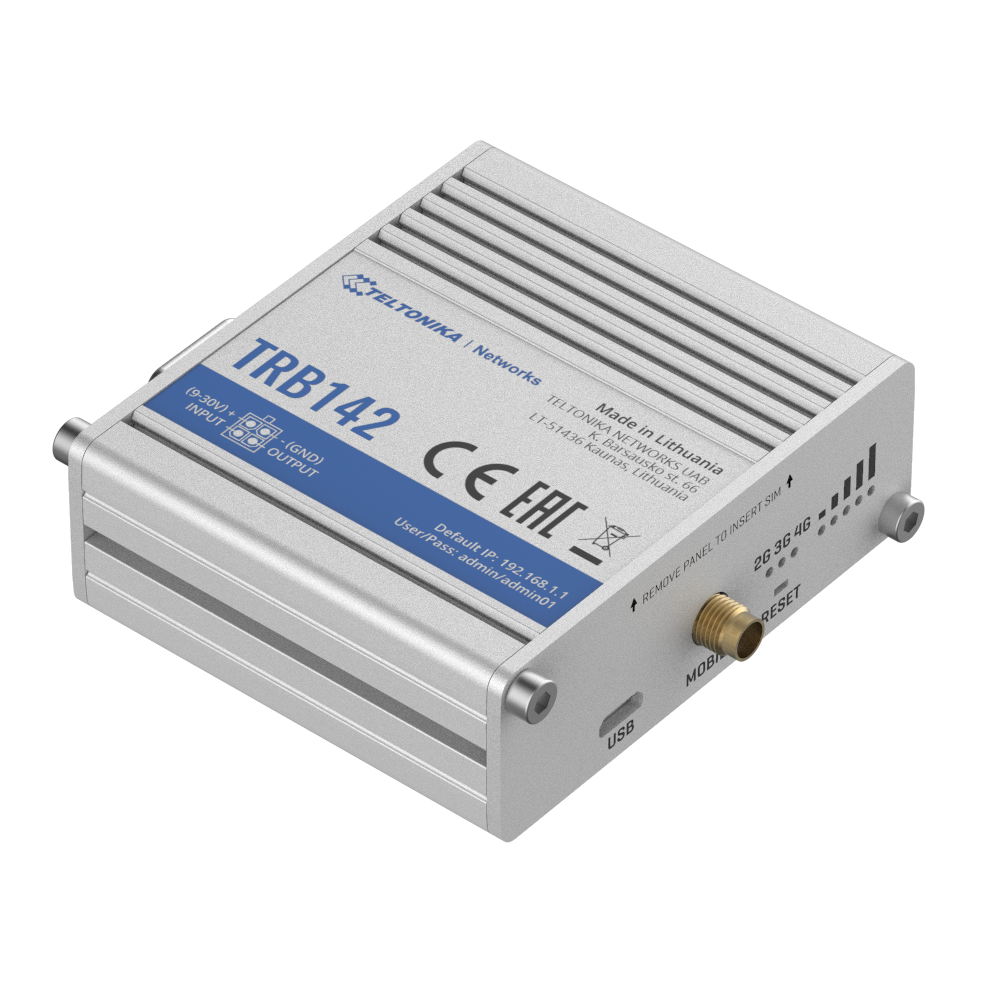

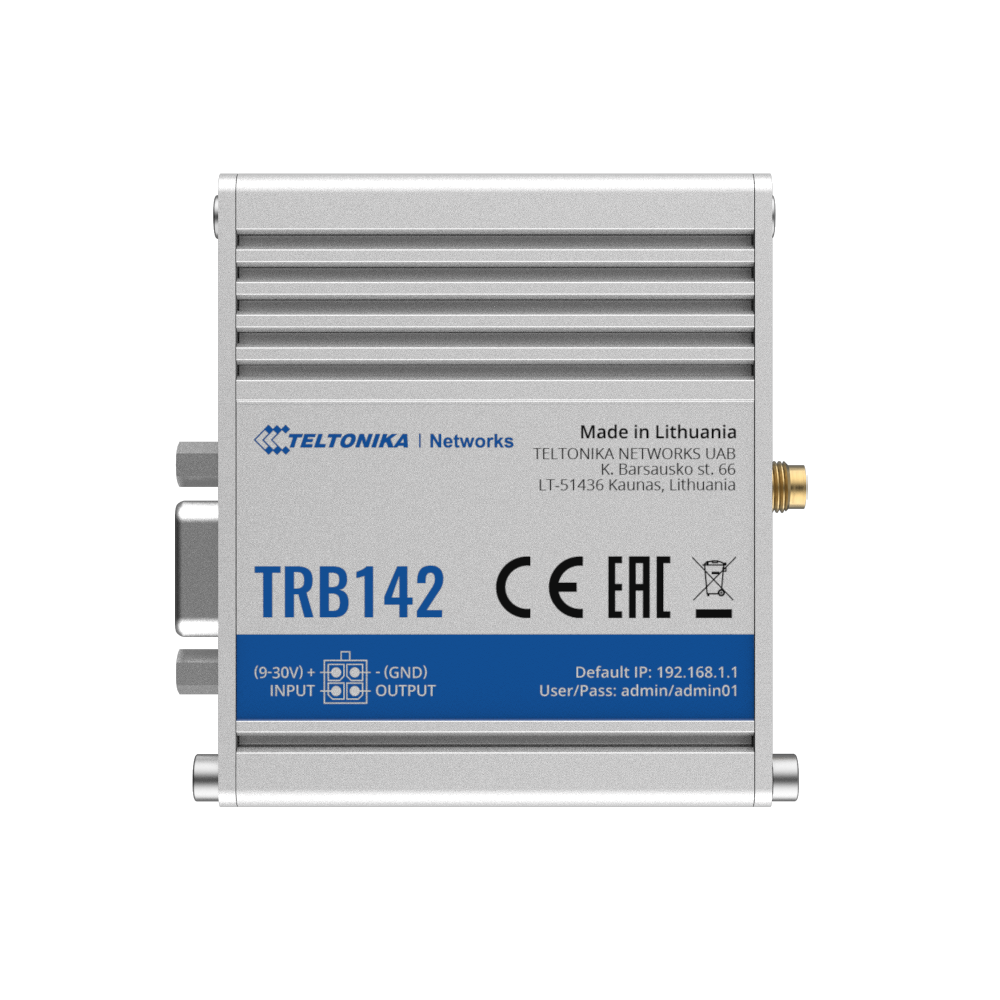

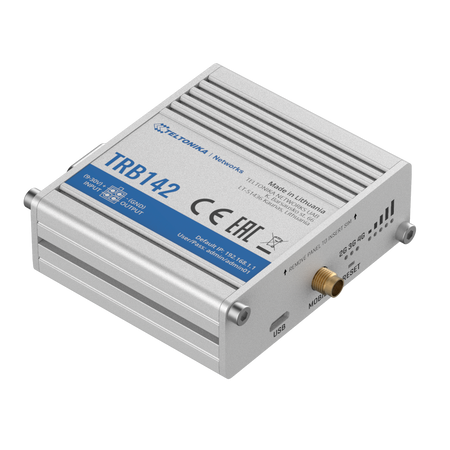

Teltonika Industrial 4G LTE Cat 1 Gateway
Regular price
€199,68
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Teltonika Industrial 4G LTE Cat 1 Gateway - Reliable connectivity with low-power 4G LTE - Integrated RS232 industrial serial interface - Advanced VPN: IPsec, OpenVPN, and WireGuard - 2 configurable digital I/O ports - Hardware Watchdog and RMS remote management
📋 SPECIFICATIONS:
• Brand: Teltonika
• Device: Industrial LTE Gateway
• CPU: ARM Cortex-A7 (1.2 GHz)
• RAM: 128 MB, DDR3
• Flash: 512 MB, SPI Flash
• Mobile network: 4G LTE Cat 1, 3G, 2G
• Mobile speed: 10 Mbps DL / 5 Mbps UL
• 4G bands (LTE-FDD): B1, B3, B5, B7, B8, B20

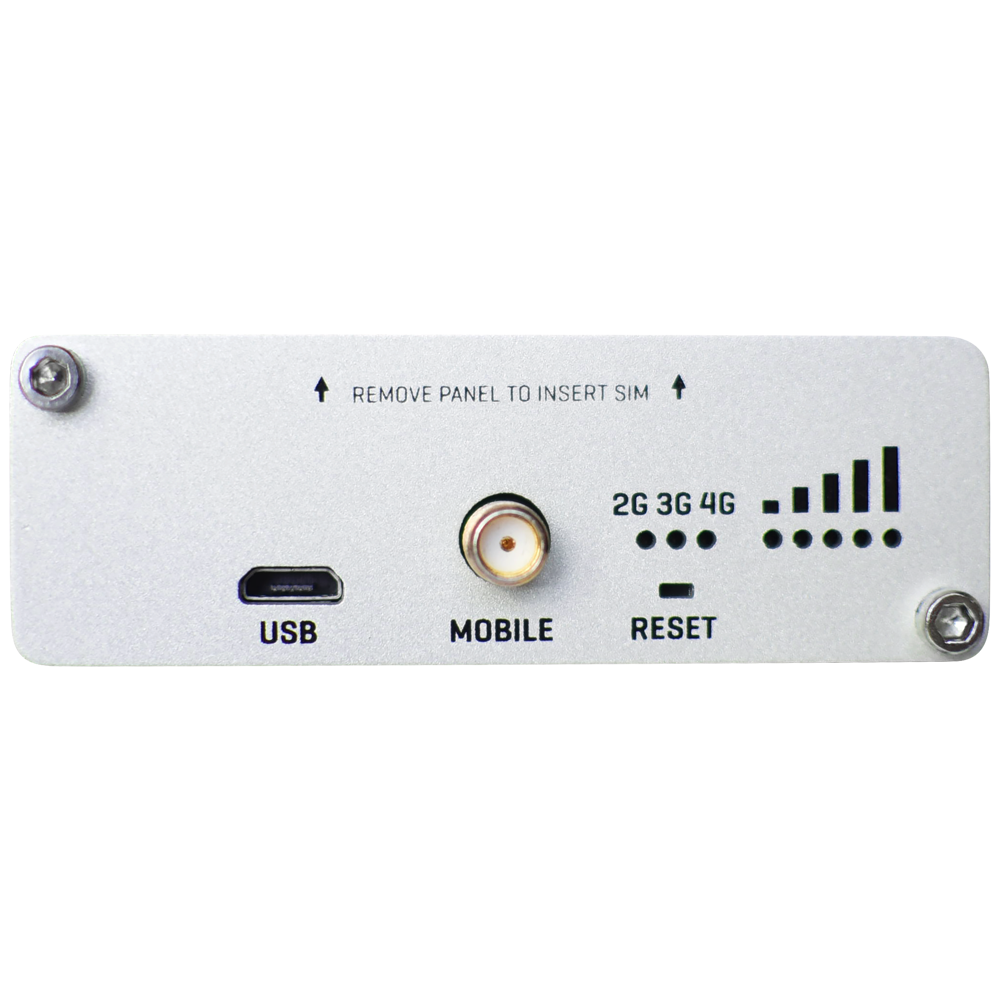

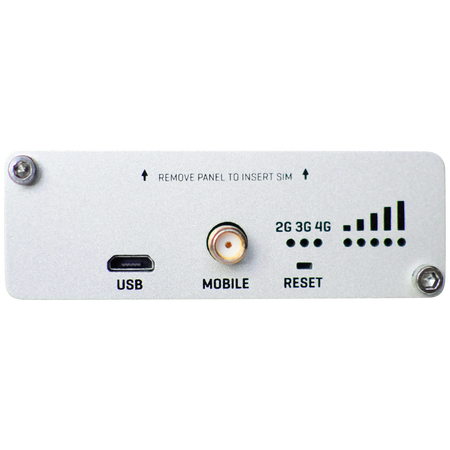

• USB port: 1 x Micro USB (Configuration and virtual network)

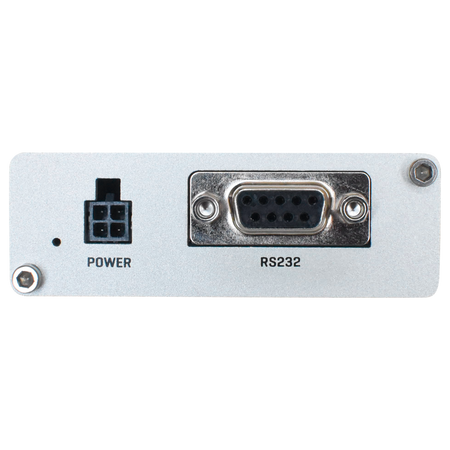

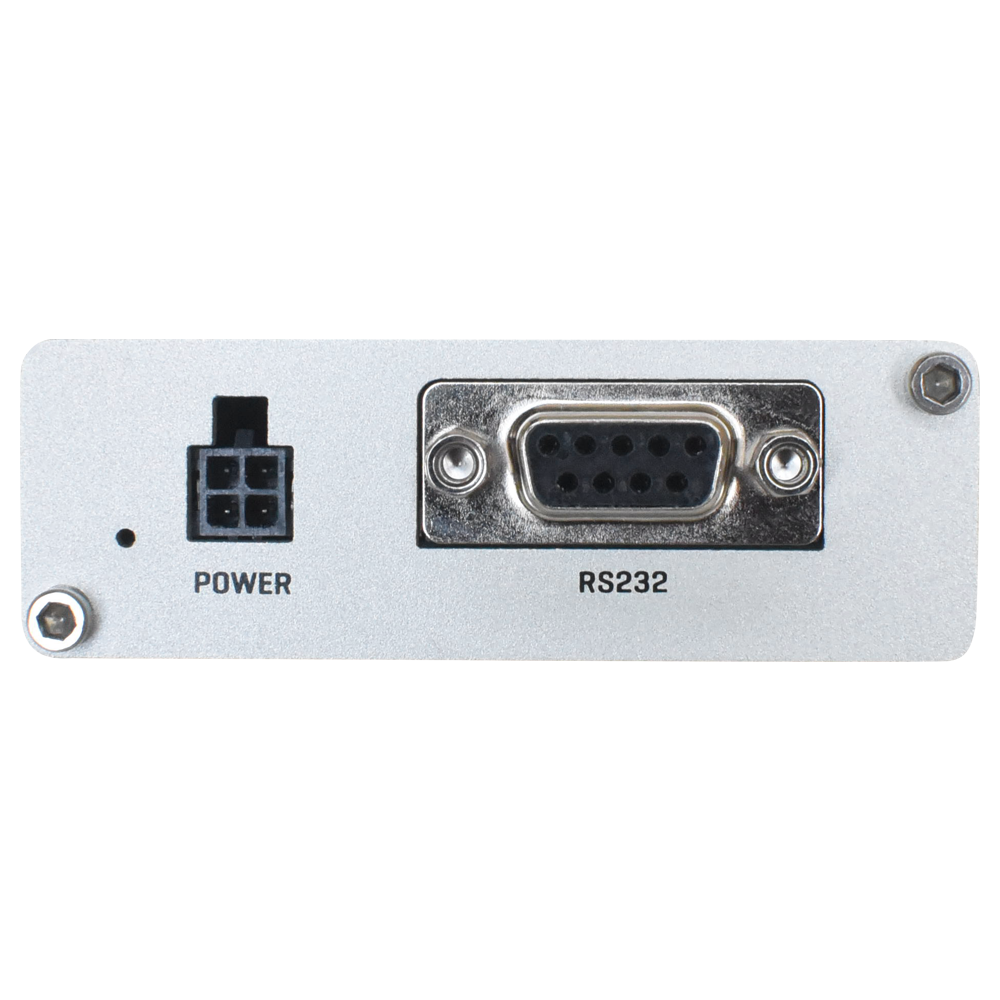

• Serial interface: 1 x RS232 (5-pin terminal block)
• Serial functions: Console, Serial over IP, Modem, Modbus gateway
• Digital I/O: 2 x Digital Inputs/Outputs (configurable)
• Antennas: 1 x SMA connector for mobile antenna
• Operating System: RutOS (OpenWrt based)
• Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP/S, SSL/TLS, ARP, SSH, DHCP, SNMP, MQTT
• IIoT protocols: Modbus TCP, Modbus RTU
• VPN: OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, ZeroTier, WireGuard
• Security: Firewall, DDoS protection, Port scanning, Web filter, Access control
• Watchdog: Integrated Hardware Watchdog
• Power supply: 9 - 30 VDC (4-pin connector)
• Power consumption: Idle: < 1.2 W; Max: < 5 W
• Material: Aluminum
• Ingress protection: IP30
• Operating temp.: -40 °C to +75 °C
• Operating humidity: 10% to 90% (non-condensing)
• Dimensions: 74.5 x 25 x 64.4 mm
• Weight: 135 g
• Color: Metallic Gray
📦 INCLUDED:
• 1x TRB142 Gateway • 1x Mobile antenna (magnetic, SMA male connector, 3m cable) • 1x Micro-USB cable (0.8 m) • 1x Hex key • 1x Quick Start Guide (QSG)
| Device | Industrial LTE Gateway |
|---|---|
| CPU | ARM Cortex-A7 (1.2 GHz) |
| RAM | 128 MB, DDR3 |
| Flash | 512 MB, SPI Flash |
| Mobile network | 4G LTE Cat 1, 3G, 2G |
| Mobile speed | 10 Mbps DL / 5 Mbps UL |
| 4G bands (LTE-FDD) | B1, B3, B5, B7, B8, B20 |
| USB port | 1 x Micro USB (Configuration and virtual network) |
| Serial interface | 1 x RS232 (5-pin terminal block) |
| Serial functions | Console, Serial over IP, Modem, Modbus gateway |
| Digital I/O | 2 x Digital Inputs/Outputs (configurable) |
| Antennas | 1 x SMA connector for mobile antenna |
| Operating system | RutOS (OpenWrt based) |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP/S, SSL/TLS, ARP, SSH, DHCP, SNMP, MQTT |
| IIoT protocols | Modbus TCP, Modbus RTU |
| VPN | OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, ZeroTier, WireGuard |
| Security | Firewall, DDoS protection, Port scan, Web filter, Access control |
| Watchdog | Built-in hardware watchdog |
| Power supply | 9 - 30 VDC (4-pin connector) |
| Power consumption | Standby: < 1.2 W; Maximum: < 5 W |
| Material | Aluminum |
| Protection | IP30 |
| Operating temp. | -40 °C to +75 °C |
| Operating humidity | 10% to 90% (non-condensing) |
| Dimensions | 74.5 x 25 x 64.4 mm |
| Weight | 135 g |
| Color | Metallic grey |
