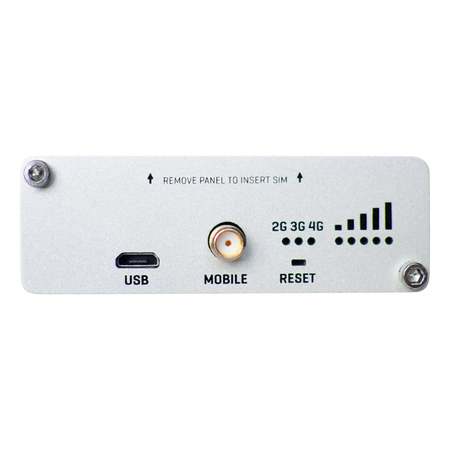

Teltonika 4G LTE Cat 4 Industrial Gateway
Regular price
€223,67
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Teltonika 4G LTE Cat 4 Industrial Gateway - Automatic failover between mobile and wired network - Passive PoE power supply via LAN1 - VPN: IPsec, OpenVPN, WireGuard, and ZeroTier - 1 x 10/100/1000 Mbps Gigabit Ethernet port - Modbus, OPC UA, DNP3, and DLMS support
📋 SPECIFICATIONS:
• Brand: Teltonika
• Installation: DIN rail, wall, or flat surface
• CPU: ARM Cortex-A7 (1.2 GHz)
• RAM: 128 MB (DDR2)
• Flash: 512 MB (SPI Flash)
• Mobile technology: 4G LTE Cat 4, 3G, 2G
• Mobile speeds: 150 Mbps DL / 50 Mbps UL
• 4G bands (LTE-FDD): B1, B3, B7, B8, B20, B28A
• 4G bands (LTE-TDD): B38, B40, B41
• 3G bands: B1, B8
• Ethernet ports: 1 x RJ45 10/100/1000 Mbps
• SIM slot: 1 x Mini SIM (2FF), 1.8 V/3 V
• Digital inputs: 1 x Digital input (0-6V low, 8-30V high)
• Digital outputs: 1 x Digital output (open collector, 30V, 300mA)
• USB: 1 x Micro USB (Virtual network interface)
• Antennas: 1 x SMA connector for LTE
• VPN: OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc
• IIoT protocols: Modbus TCP, OPC UA, DNP3, DLMS
• Firewall: Port forward, traffic rules, custom rules, NAT, NAT64
• Management: WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS
• Power supply: 9 - 30 VDC (4-pin connector)
• Passive PoE: Supported via LAN1 (Mode B, 9-30 VDC)
• Operating temperature: -40°C to 75°C
• Protection: IP30 (Aluminum housing)
• Dimensions: 74.5 x 25 x 64.4 mm
• Weight: 134 g
• Color: Metallic gray
📦 INCLUDED:
• 1x TRB140 Gateway • 1x 9W Power supply • 1x Mobile antenna (magnetic mount, SMA, 3m) • 1x Micro-USB cable (0.8 m) • 1x LAN cable • 1x Hex key • 1x Quick Start Guide (QSG)
| Installation | DIN rail, wall or flat surface mounting |
|---|---|
| CPU | ARM Cortex-A7 (1.2 GHz) |
| RAM | 128 MB (DDR2) |
| Flash | 512 MB (SPI Flash) |
| Mobile technology | 4G LTE Cat 4, 3G, 2G |
| Mobile speed | 150 Mbps DL / 50 Mbps UL |
| 4G bands (LTE-FDD) | B1, B3, B7, B8, B20, B28A |
| 4G bands (LTE-TDD) | B38, B40, B41 |
| 3G bands | B1, B8 |
| Ethernet ports | 1 x RJ45 10/100/1000 Mbps |
| SIM slot | 1 x Mini SIM (2FF), 1.8 V/3 V |
| Digital inputs | 1 x Digital input (0-6V low, 8-30V high) |
| Digital outputs | 1 x Digital output (open collector, 30V, 300mA) |
| USB | 1 x Micro USB (virtual network interface) |
| Antennas | 1 x SMA connector for LTE |
| VPN | OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc |
| IIoT protocols | Modbus TCP, OPC UA, DNP3, DLMS |
| Firewall | Port forward, traffic rules, custom rules, NAT, NAT64 |
| Management | WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS |
| Power supply | 9 - 30 VDC (4-pin connector) |
| Passive PoE | Supported via LAN1 (Mode B, 9-30 VDC) |
| Operating temperature | -40°C to 75°C |
| Protection | IP30 (Aluminum housing) |
| Dimensions | 74.5 x 25 x 64.4 mm |
| Weight | 134 g |
| Color | Metallic gray |
