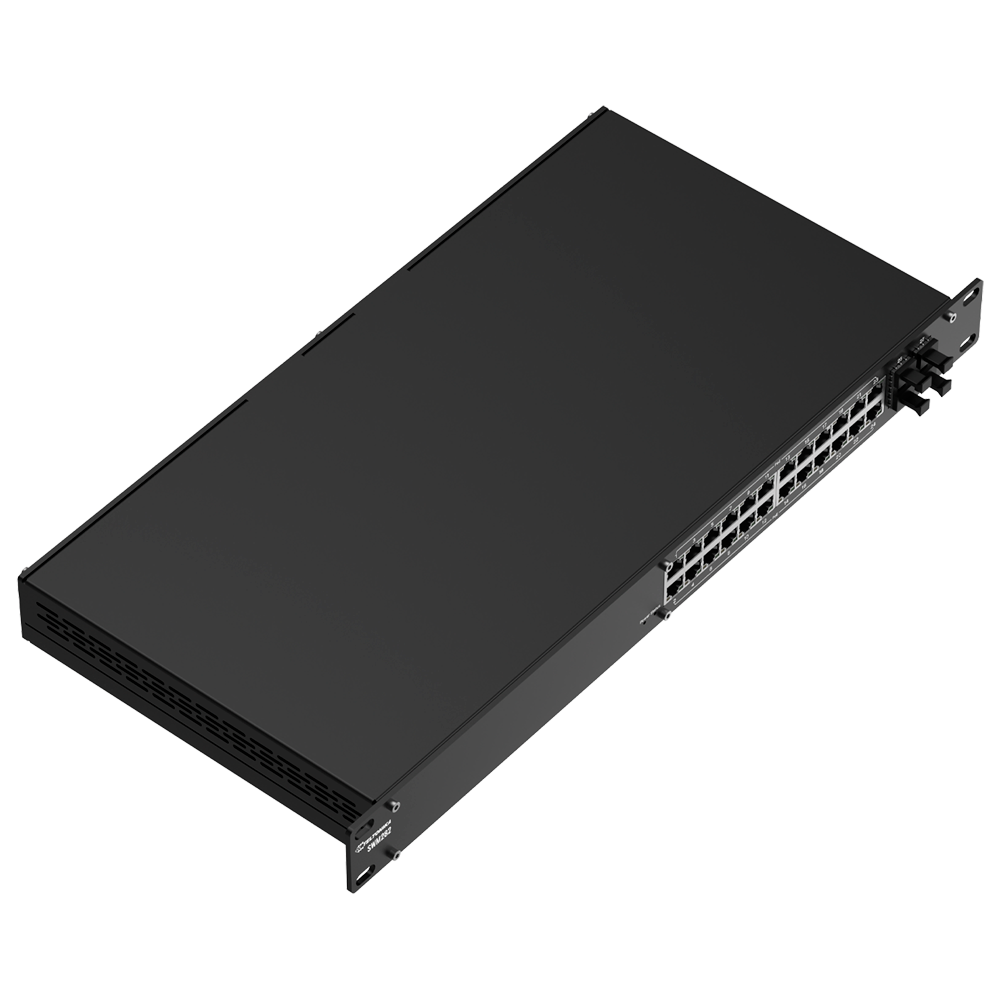

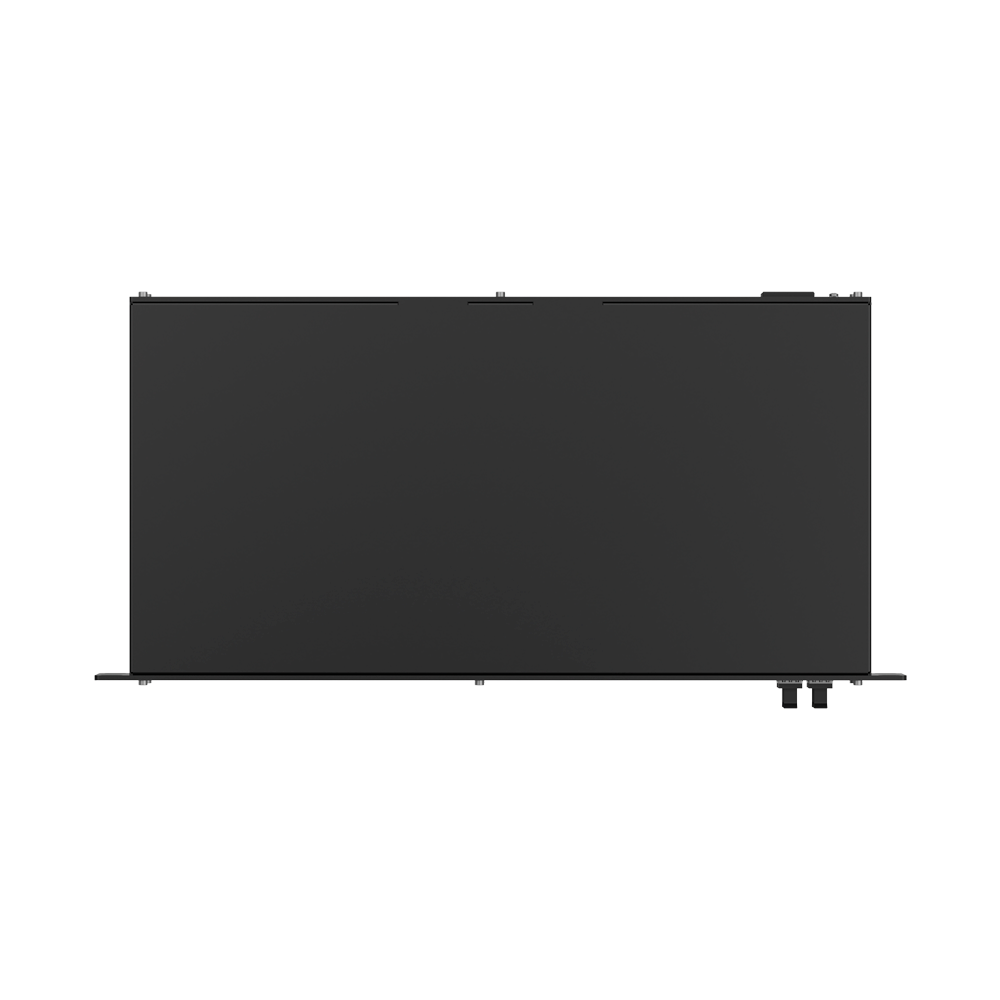

Teltonika SWM282 L2+ Managed Industrial Switch
Regular price
€560,53
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

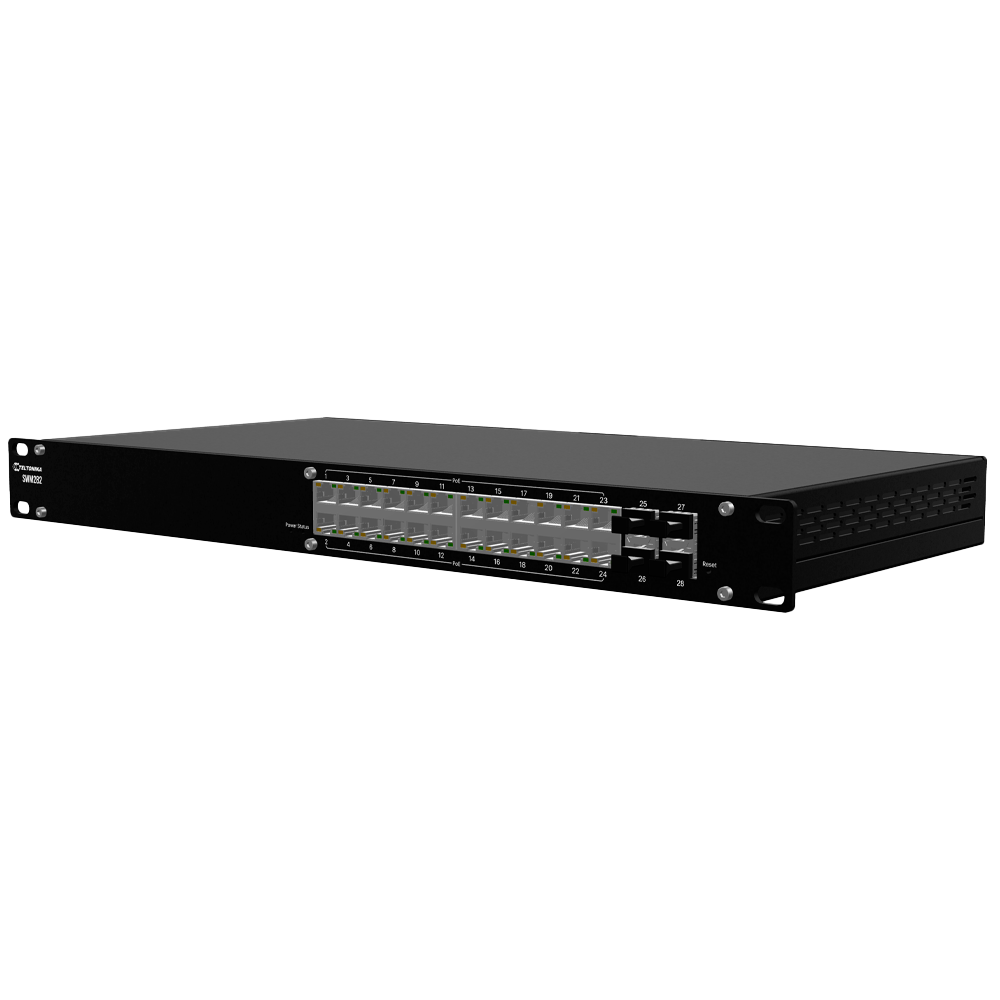

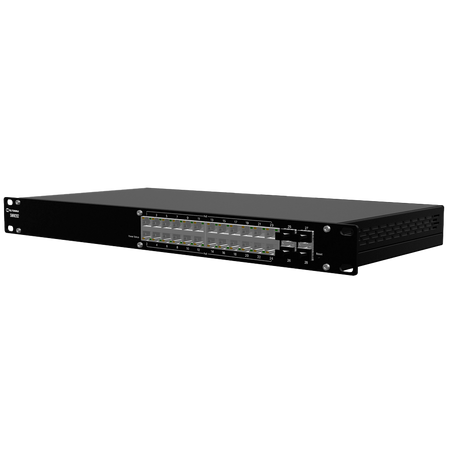

Teltonika SWM282 L2+ Managed Industrial Switch - 24 Gigabit RJ45 ports with full PoE+ support - 4 independent SFP slots for fiber optics - 30W PoE+ power per port / 300W total - Industrial protocols: Profinet and EtherNet/IP - SwmOS Linux system and 2 years of RMS management
📋 SPECIFICATIONS:
• Brand: Teltonika Networks
• Commercial model: SWM282

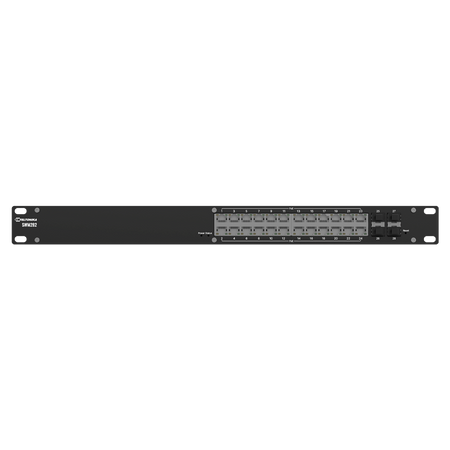

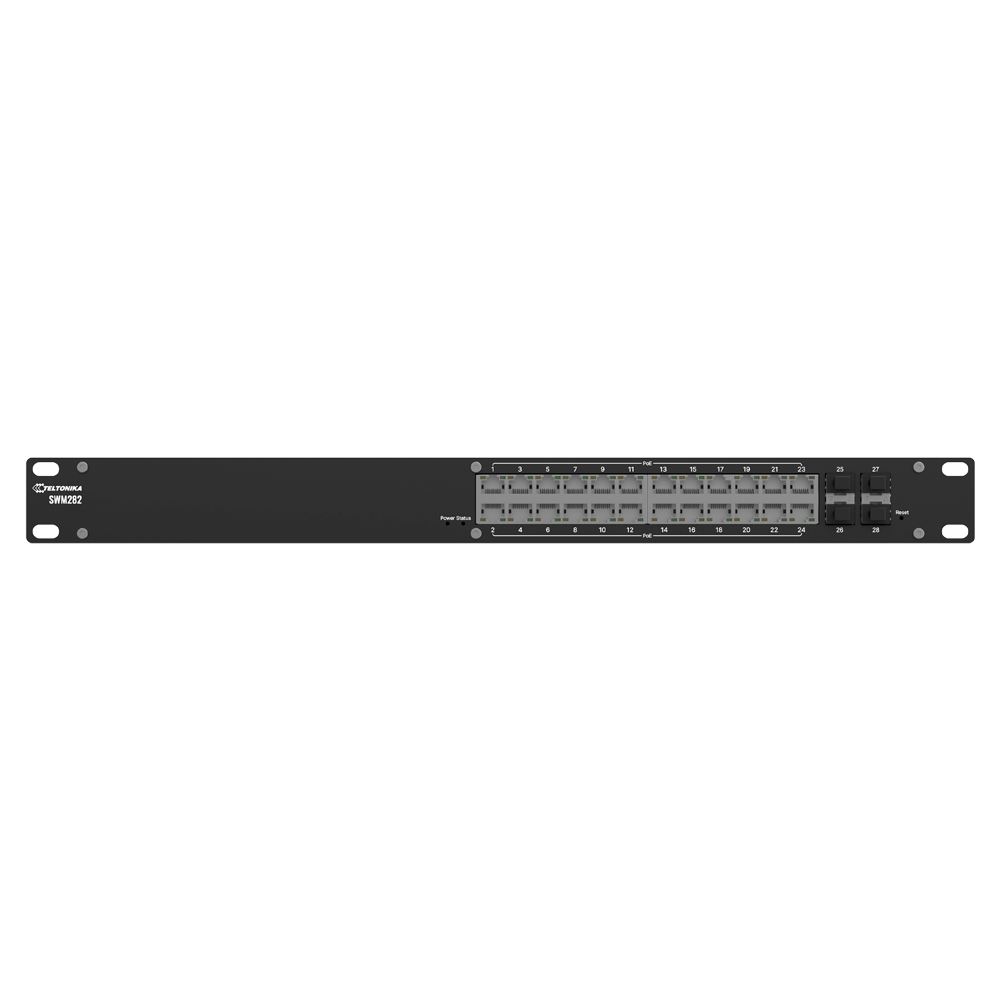

• Total network interfaces: 24 × 10/100/1000Mbps RJ45, 4 × 1GE SFP (independent fiber optic slots)
• Switching capacity: 56 Gbps (Non-blocking)
• Packet forwarding rate: 83.33 Mpps
• Processor (CPU): Realtek, 500 MHz (MIPS-4KEc architecture)
• RAM memory: 128 MB DDR3
• Flash memory (storage memory): 16 MB Serial Flash
• MAC address table: 8000 entries
• Jumbo Frame size (MTU): 10000 bytes
• Packet buffer: 512 KB
• PoE standards: IEEE 802.3af (PoE), IEEE 802.3at (PoE+), Alternative A
• PoE supported ports: 24 Gigabit RJ45 ports (Ports 1 to 24)
• Total PoE budget: 300 W (Maximum 30 W per PSE port)
• Smart PoE functions: Ping Reboot (Automatic detection and reboot of unresponsive PoE devices), PoE management
• Industrial protocols: Profinet (Conformance Class B optional), EtherNet/IP, MRP (Client and Manager), SNMP V2/V3, LLDP
• Layer 2 capacity (L2 Features): STP / RSTP, Loop protection, Port isolation, IEEE 802.1Q VLAN, Forwarding table, Multicast Querier
• Layer 3 capacity (L3 Features): Static routing (IPv4/IPv6), Dynamic routing (OSPF v2, BGP, RIP v1/v2, EIGRP), DHCPv6 client
• Network / DHCP settings: DHCP Server, DHCP Client, DHCP Static leases with wildcard support in MAC addresses
• Quality of Service (QoS): Port priority, DSCP, TOS and 802.1p / SP, WFQ, WRR algorithms / Storm control and rate limiting
• Traffic management (Shaper): Port-based traffic shaper
• Security and authentication: PAM (Pre-shared key), Radius, TACACS+, MAC filter per port, IP blocking, 802.1x access control
• System analysis: Cable diagnostic tool, Ping, Traceroute, Nslookup
• Network operating system: SwmOS (Linux-based system on OpenWrt with Package Manager for additional software)
• Management platforms: Native Web UI, configurable Web API (beta), FOTA, RMS (Remote Management System) with 2 years included
• Chassis material: Anodized aluminum housing and panels with IP30 protection rating

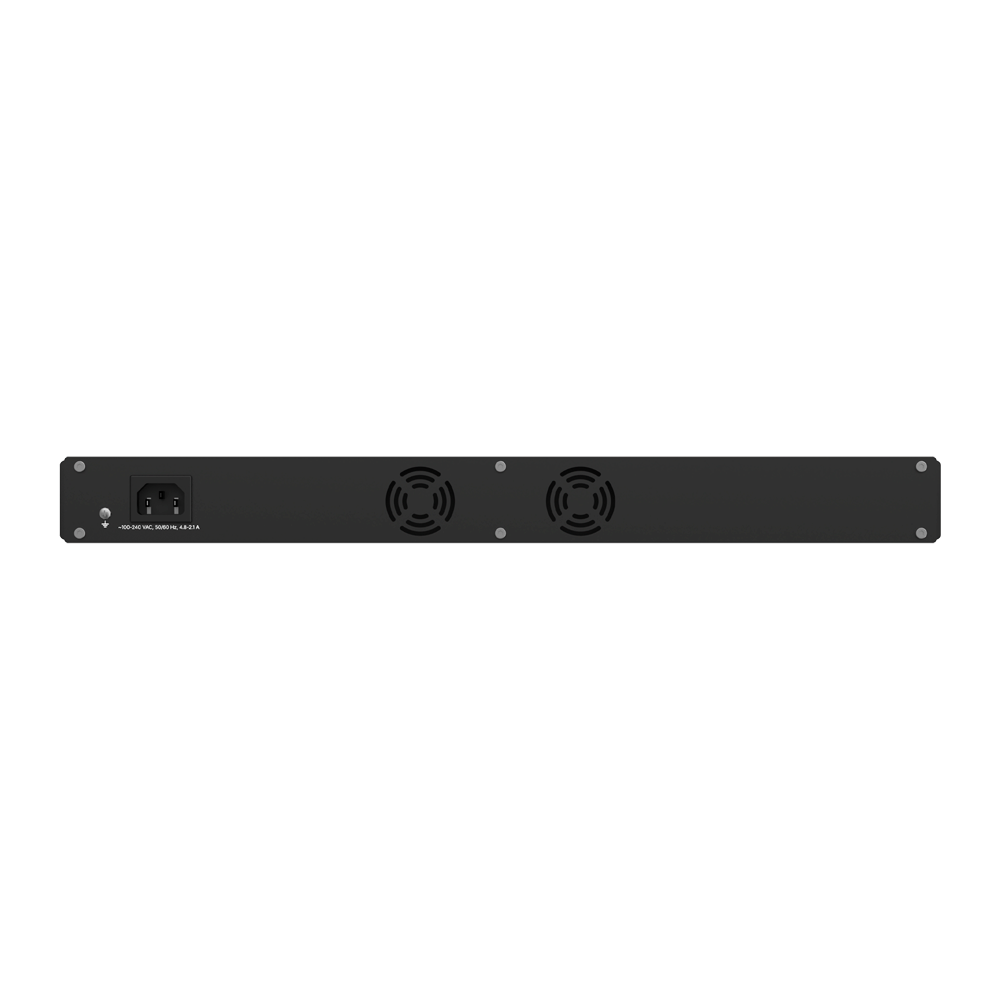

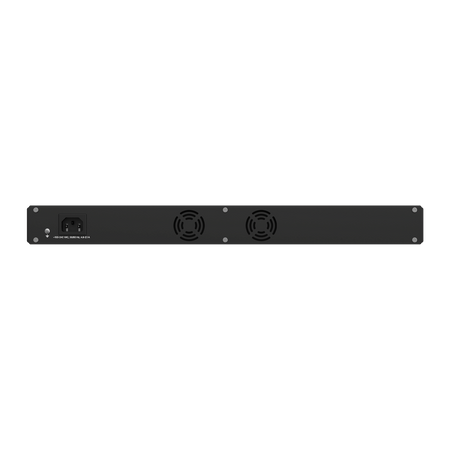

• Cooling system: Active air cooling via 2 × internal fans (side-to-rear flow)
• Mounting options: Rack or desktop installation (rack kit included)
• Cable support: Hot swapping (supported on service ports and power connector)
• Reliability (MTBF): 200,000 hours of continuous operation
• Electrostatic discharge (ESD) protection: Air discharge: 8 kV / Contact discharge: 6 kV
• Surge protection: Service ports: ± 6 kV (common mode) / Power connector: ± 6 kV (common mode and differential mode)
• Power supply: Integrated AC power supply with C14 connector (Range: 100-240 V AC, 50/60 Hz)
• Power consumption: Idle state: 9 W / Maximum system consumption: 330 W (with full PoE load)
• Operating temperature: 0 °C to 50 °C
• Operating humidity: 10% to 90% RH (non-condensing)
• Dimensions (W × H × D): 483 mm x 44 mm x 234 mm (1U standard design)
• Net weight: 2291 g (without packaging)
📦 INCLUDED:
• 1x SWM282 L2+ Managed Industrial Switch
• 1x Standard 19-inch rack mounting kit
• 1x AC power cable with C14 connector
• 1x Quick start guide and user manual
| Commercial model | SWM282 |
|---|---|
| Total network interfaces | 24 × 10/100/1000Mbps RJ45, 4 × 1GE SFP (independent fiber optic slots) |
| Switching capacity | 56 Gbps (non-blocking) |
| Packet forwarding rate | 83.33 Mpps |
| Processor (CPU) | Realtek, 500 MHz (MIPS-4KEc architecture) |
| RAM memory | 128 MB DDR3 |
| Flash memory (storage memory) | 16 MB Serial Flash |
| MAC address table | 8000 entries |
| Jumbo Frame size (MTU) | 10000 bytes |
| Packet buffer | 512 KB |
| PoE standards | IEEE 802.3af (PoE), IEEE 802.3at (PoE+), Alternative A |
| PoE-supported ports | 24 Gigabit RJ45 ports (ports 1 to 24) |
| Total PoE budget | 300 W (maximum 30 W per PSE port) |
| Intelligent PoE functions | Ping Reboot (automatic detection and reboot of unresponsive PoE devices), PoE Management |
| Industrial protocols | Profinet (Conformance Class B optional), EtherNet/IP, MRP (Client and Manager), SNMP V2/V3, LLDP |
| Layer 2 capabilities (L2 features) | STP / RSTP, Loop protection, Port isolation, IEEE 802.1Q VLAN, Forwarding table, Multicast Querier |
| Layer 3 capabilities (L3 features) | Static routing (IPv4/IPv6), Dynamic routing (OSPF v2, BGP, RIP v1/v2, EIGRP), DHCPv6 client |
| Network settings / DHCP | DHCP Server, DHCP Client, DHCP Static leases with support for MAC address wildcards |
| Quality of Service (QoS) | Priority per port, DSCP, TOS and 802.1p / Algorithms SP, WFQ, WRR / Storm control and rate limiting |
| Traffic management (Shaper) | Traffic Shaper based on network port |
| Security and authentication | PAM (Pre-shared key), Radius, TACACS+, MAC filtering per port, IP blocking, 802.1x access control |
| System analysis | Cable diagnostic tool, Ping, Traceroute, Nslookup |
| Network operating system | SwmOS (Linux-based system on OpenWrt with Package Manager for additional software) |
| Management platforms | Native Web UI, configurable Web API (beta), FOTA, RMS (Remote Management System) with 2 years included |
| Chassis material | Anodized aluminum housing and panels with IP30 protection rating |
| Cooling system | Active air cooling via 2 × internal fans (side-to-rear flow) |
| Mounting options | Rack or desktop installation (rack kit included) |
| Cable support | Hot swapping (supported on service ports and power connector) |
| Reliability (MTBF) | 200,000 hours of continuous operation |
| Electrostatic discharge (ESD) protection | Air discharge: 8 kV / Contact discharge: 6 kV |
| Surge protection | Service ports: ± 6 kV (common mode) / Power connector: ± 6 kV (common mode and differential mode) |
| Power supply | Integrated AC power supply with C14 connector (Range: 100-240 V AC, 50/60 Hz) |
| Power consumption | Idle state: 9 W / Maximum system consumption: 330 W (with full PoE load) |
| Operating temperature | 0 °C to 50 °C |
| Operating humidity | 10% to 90% RH (non-condensing) |
| Dimensions (W × H × D) | 483 mm x 44 mm x 234 mm (Standard 1U design) |
| Net weight | 2291 g (excluding packaging) |
