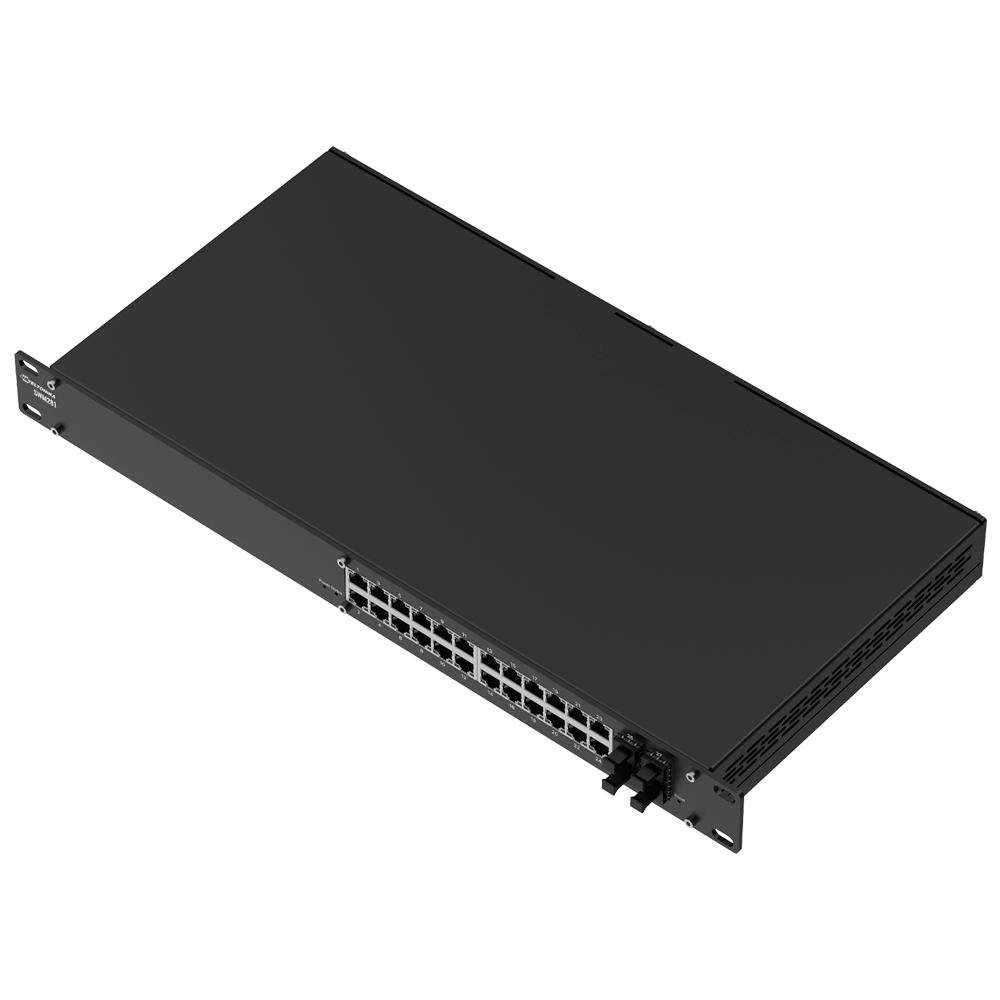

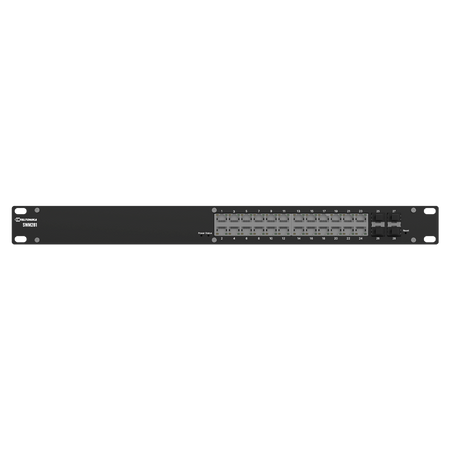

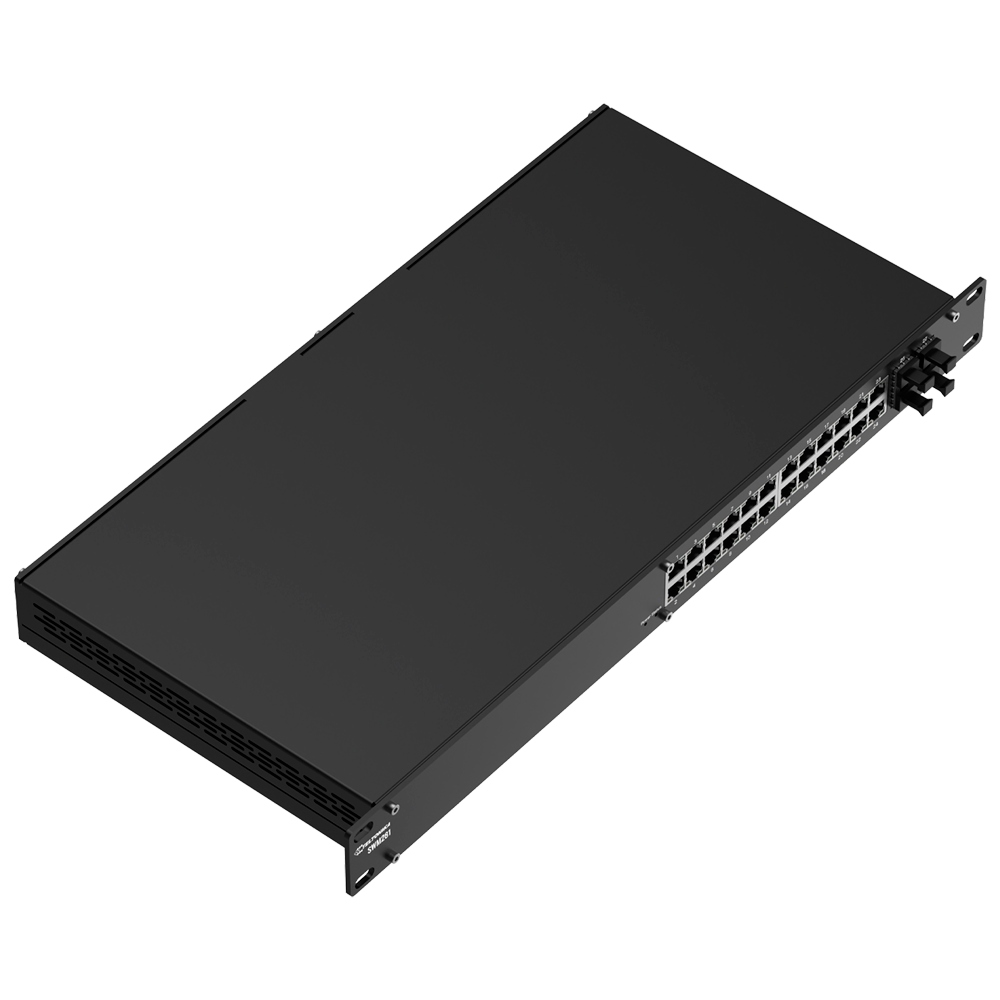

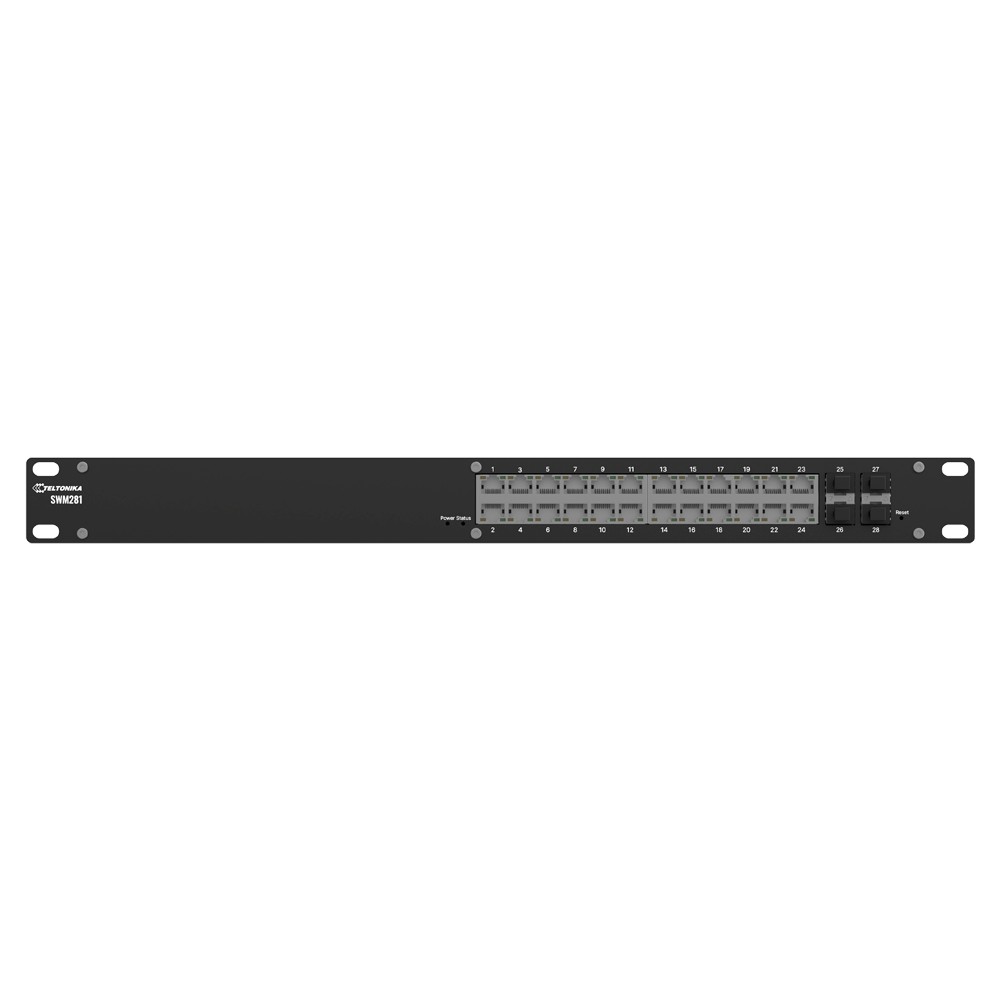

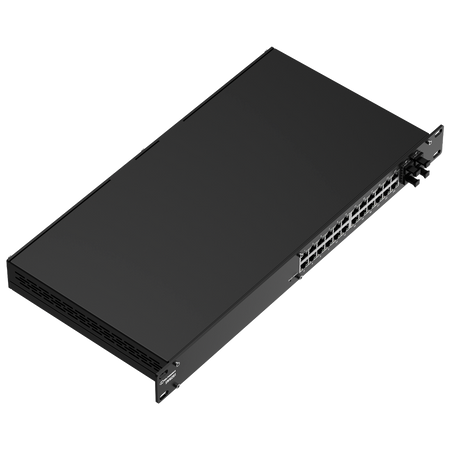

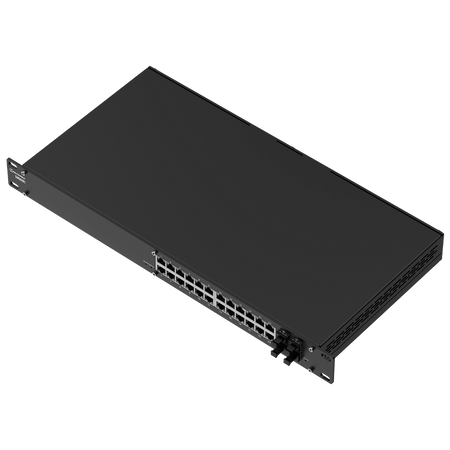

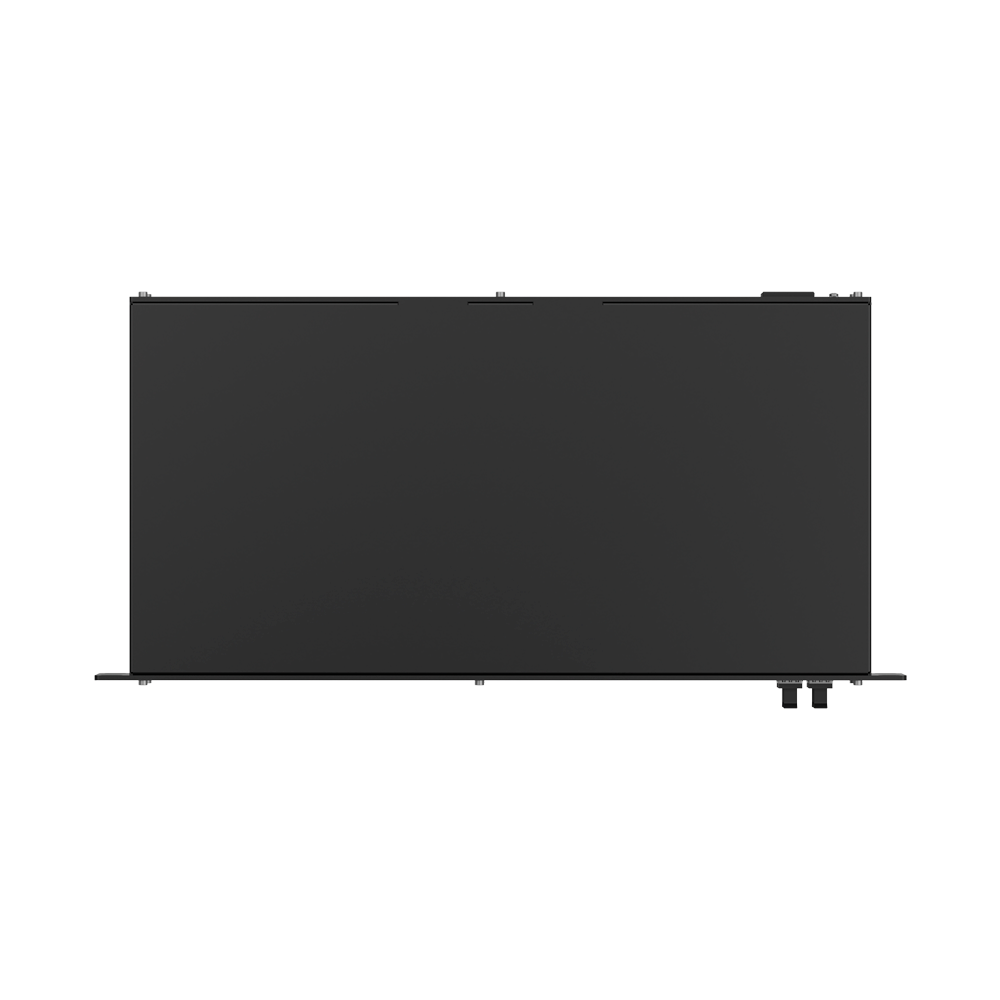

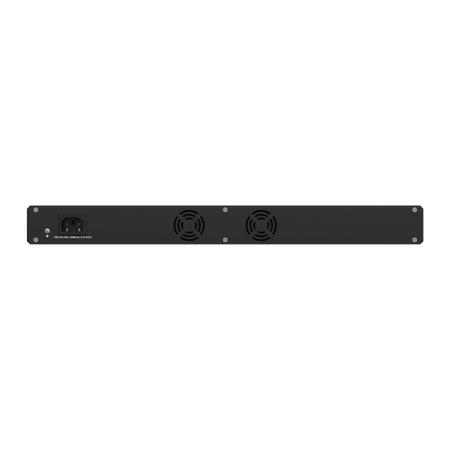

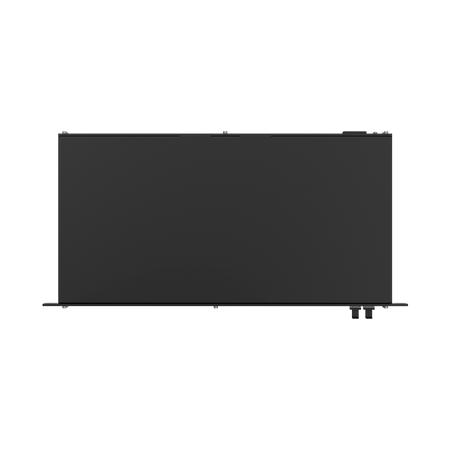

Teltonika SWM281 L2+ Managed Industrial Switch
Regular price
€331,57
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Teltonika SWM281 L2+ Managed Industrial Switch - 24 High-speed Gigabit Ethernet RJ45 ports - 4 Independent SFP slots for fiber optics - Industrial protocols: Profinet and EtherNet/IP - SwmOS Linux system and 2 years of RMS management - Rugged aluminum metal fanless chassis
📋 SPECIFICATIONS:
• Brand: Teltonika Networks
• Commercial model: SWM281
• Total network interfaces: 24 × 10/100/1000Mbps RJ45, 4 × 1GE SFP (independent fiber optic slots)
• Switching capacity: 56 Gbps (Non-blocking)
• Packet forwarding rate: 83.33 Mpps
• Processor (CPU): Realtek, 500 MHz (MIPS-4KEc architecture)
• RAM memory: 128 MB DDR3
• Flash memory (storage memory): 16 MB Serial Flash
• MAC address table: 8000 entries
• Jumbo Frame size (MTU): 10000 bytes
• Packet buffer: 512 KB
• Industrial protocols: Profinet (Conformance Class B optional), EtherNet/IP, MRP (Client and Manager), SNMP V2/V3, LLDP
• Layer 2 capabilities (L2 Features): STP / RSTP, Loop protection, Port isolation, VLAN IEEE 802.1Q, Forwarding table, Multicast Querier
• Layer 3 capabilities (L3 Features): Static routing (IPv4/IPv6), Dynamic routing (OSPF v2, BGP, RIP v1/v2, EIGRP), DHCPv6 client
• Network settings / DHCP: DHCP Server, DHCP Client, DHCP Static leases with wildcard support for MAC addresses
• Quality of Service (QoS): Port priority, DSCP, TOS and 802.1p / SP, WFQ, WRR algorithms / Storm control and rate limiting
• Traffic management (Shaper): Traffic shaper based on the network port
• Security and authentication: PAM (Pre-shared key), Radius, TACACS+, MAC filter per port, IP blocking, 802.1x access control
• System analysis: Cable diagnostic tool, Ping, Traceroute, Nslookup
• Network operating system: SwmOS (Linux-based system on OpenWrt with Package Manager for additional software)
• Management platforms: Native Web UI, configurable Web API (beta), FOTA, RMS (Remote Management System) with 2 years included
• Chassis material: Anodized aluminum housing and panels with IP30 protection rating
• Cooling system: Passive, fanless (Fanless design / Natural cooling / Totally silent)
• Mounting options: Rack or desktop installation (rack kit included)
• Cable support: Hot swapping (supported on service ports and power connector)
• Reliability (MTBF): 200,000 hours of continuous operation

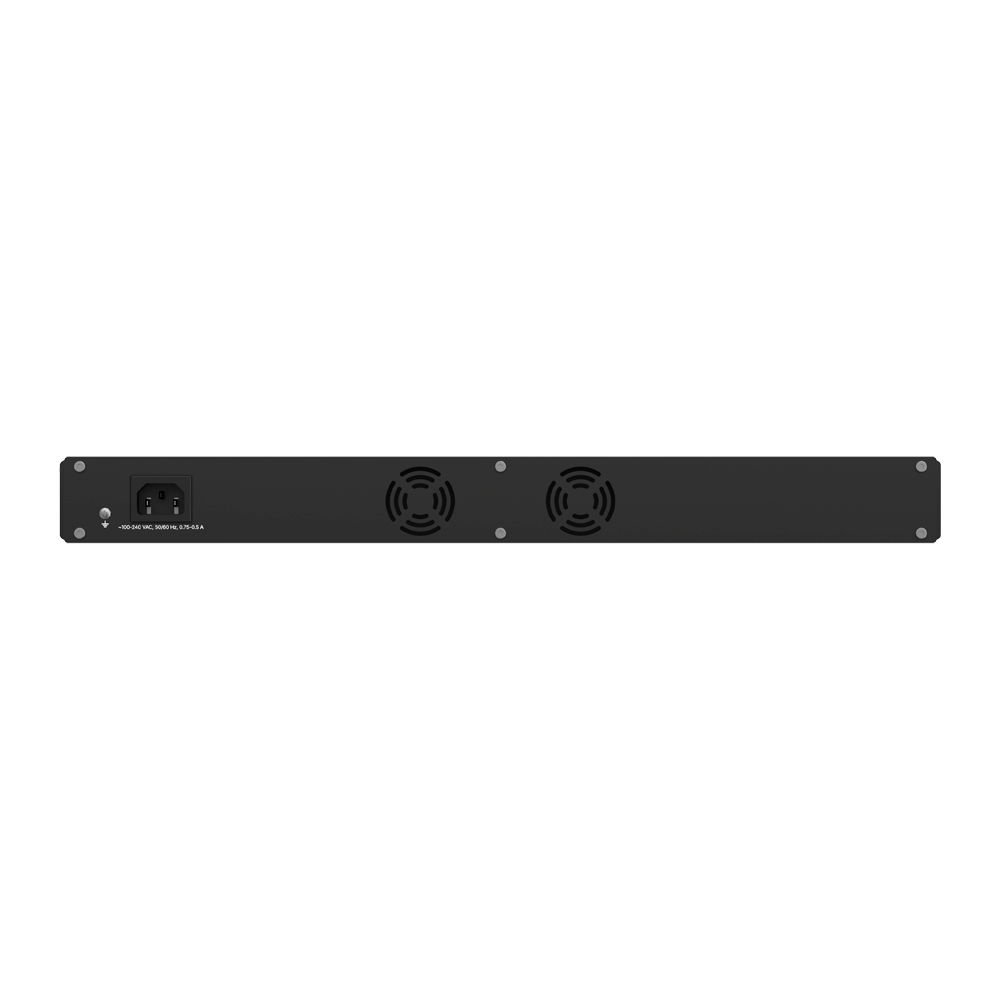

• Power supply: Integrated AC power supply with C14 connector (Range: 100-240 V AC, 50/60 Hz)
• Power consumption: Idle state: 5.5 W / Maximum system consumption: 20 W
• Operating temperature: 0 °C to 50 °C
• Operating humidity: 10% to 90% RH (non-condensing)
• Dimensions (W × H × D): 483 mm x 44 mm x 234 mm (1U standard design)
• Net weight: 1853 g (without packaging)
📦 INCLUDED:
• 1x Industrial Managed L2+ Switch SWM281• 1x Mounting kit for 19-inch standard rack• 1x AC power cable with C14 connector• 1x Quick start guide and user manual
| Commercial model | SWM281 |
|---|---|
| Total network interfaces | 24 × 10/100/1000Mbps RJ45, 4 × 1GE SFP (independent fiber optic slots) |
| Switching capacity | 56 Gbps (Non-blocking) |
| Packet forwarding rate | 83.33 Mpps |
| Processor (CPU) | Realtek, 500 MHz (MIPS-4KEc architecture) |
| RAM memory | 128 MB DDR3 |
| Flash memory (storage memory) | 16 MB Serial Flash |
| MAC address table | 8000 entries |
| Jumbo Frame size (MTU) | 10000 bytes |
| Packet buffer | 512 KB |
| Industrial protocols | Profinet (Conformance Class B optional), EtherNet/IP, MRP (Client and Manager), SNMP V2/V3, LLDP |
| Layer 2 capabilities (L2 Features) | STP / RSTP, Loop protection, Port isolation, VLAN IEEE 802.1Q, Forwarding table, Multicast Querier |
| Layer 3 capabilities (L3 Features) | Static routing (IPv4/IPv6), Dynamic routing (OSPF v2, BGP, RIP v1/v2, EIGRP), DHCPv6 client |
| Network settings / DHCP | DHCP Server, DHCP Client, DHCP Static leases with support for wildcards in MAC addresses |
| Quality of Service (QoS) | Port, DSCP, TOS, and 802.1p priority / SP, WFQ, WRR algorithms / Storm control and rate limiting |
| Traffic management (Shaper) | Port-based Traffic Shaper |
| Security and authentication | PAM (Pre-shared key), Radius, TACACS+, Port MAC filtering, IP blocking, 802.1x access control |
| System analysis | Cable diagnostic tool, Ping, Traceroute, Nslookup |
| Network operating system | SwmOS (Linux-based system on OpenWrt with Package Manager for additional software) |
| Management platforms | Native Web UI, configurable Web API (beta), FOTA, RMS (Remote Management System) with 2 years included |
| Chassis material | Anodized aluminum housing and panels with IP30 protection rating |
| Cooling system | Passive, fanless (Fanless design / Natural cooling / Totally silent) |
| Mounting options | Rack or desktop installation (rack kit included) |
| Cable support | Hot swapping (supported on service ports and power connector) |
| Reliability (MTBF) | 200,000 hours of continuous operation |
| Power supply | Integrated AC power supply with C14 connector (Range: 100-240 V AC, 50/60 Hz) |
| Power consumption | Idle state: 5.5 W / Maximum system consumption: 20 W |
| Operating temperature | 0 °C to 50 °C |
| Operating humidity | 10% to 90% RH (non-condensing) |
| Dimensions (W × H × D) | 483 mm x 44 mm x 234 mm (Standard 1U design) |
| Net weight | 1853 g (without packaging) |
