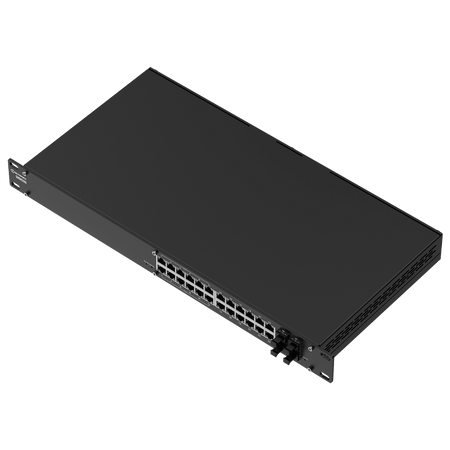

Teltonika SWM280 L2+ Managed Industrial Switch
Regular price
€524,11
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Teltonika SWM280 L2+ Managed Industrial Switch - 24 Gigabit RJ45 ports with 12 PoE+ outputs - 4 dedicated SFP slots for fiber optics - PoE+ power of 30W per port / 300W total - Industrial protocols: Profinet and EtherNet/IP - SwmOS Linux system and 2 years of RMS management
📋 SPECIFICATIONS:
• Brand: Teltonika Networks

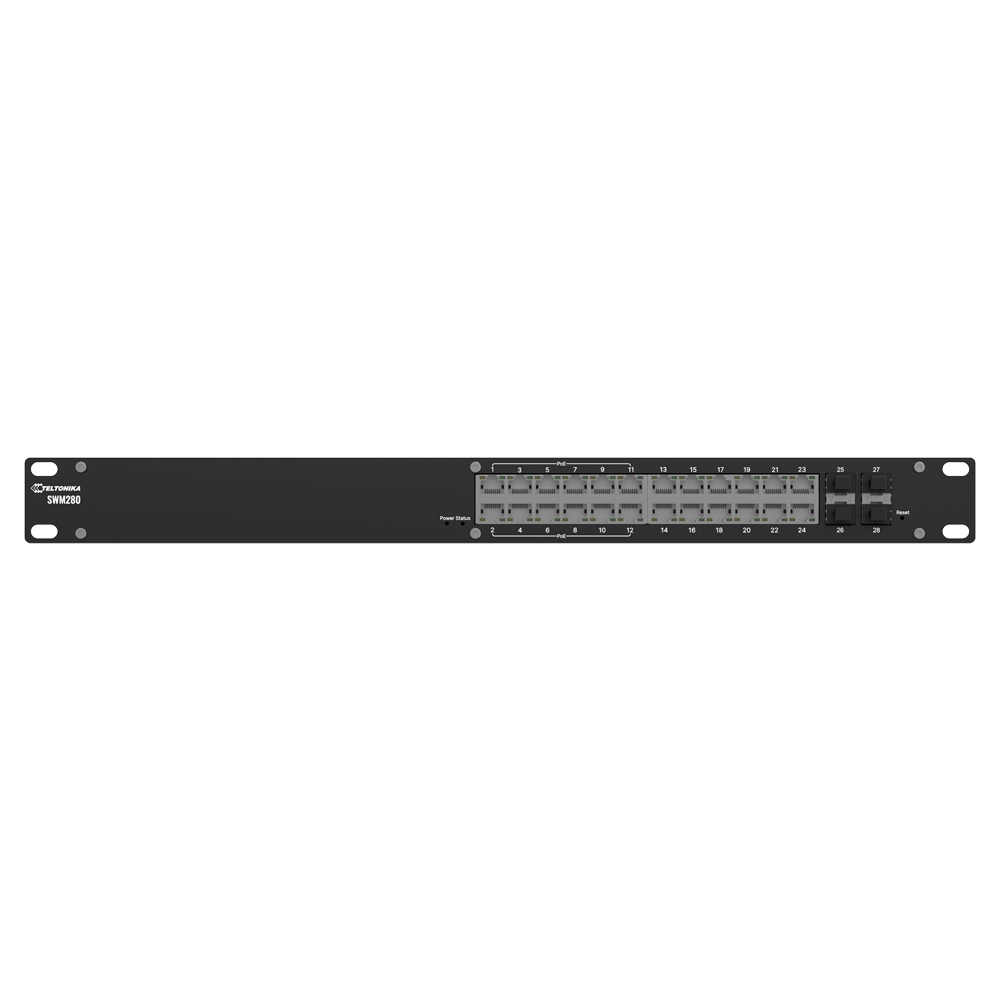

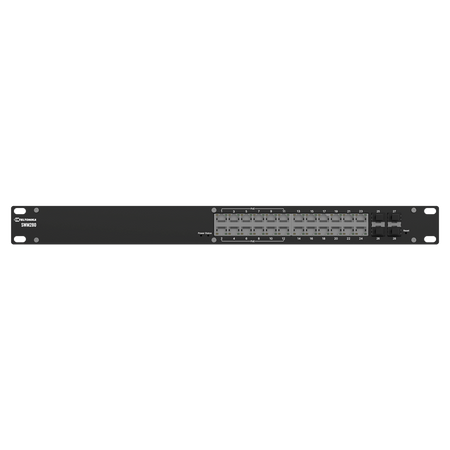

• Total network interfaces: 24 × 10/100/1000Mbps RJ45, 4 × 1GE SFP (independent fiber optic slots)
• Switching capacity: 56 Gbps (Non-blocking)
• Packet forwarding rate: 83.33 Mpps
• Processor (CPU): Realtek, 500 MHz (MIPS-4KEc architecture)
• RAM memory: 128 MB DDR3
• Flash memory (storage memory): 16 MB Serial Flash
• MAC address table: 8000 entries
• Jumbo Frame size (MTU): 10000 bytes
• Packet buffer: 512 KB
• PoE standards: IEEE 802.3af (PoE), IEEE 802.3at (PoE+), Alternative A
• PoE-supported ports: 12 Gigabit RJ45 ports (Ports 1 to 12)
• Total PoE budget: 300 W (Maximum 30 W per PSE port)
• PoE smart features: Ping Reboot (Automatic detection and reboot of frozen PoE devices), PoE management
• Industrial protocols: Profinet (Conformance Class B optional), EtherNet/IP, MRP (Client and Manager)
• Layer 2 capabilities (L2 Features): STP / RSTP, Loop protection, Port isolation, VLAN, Forwarding table, Multicast Querier
• Layer 3 capabilities (L3 Features): Static routing (IPv4/IPv6), Dynamic routing (OSPF v2, BGP, RIP v1/v2, EIGRP)
• Network / DHCP settings: DHCP Server, DHCP Client, DHCP Static leases with MAC address wildcard support, DHCPv6 client
• Quality of Service (QoS): Port-based priority, DSCP, TOS, and 802.1p / SP, WFQ, WRR algorithms / Storm control and rate limiting
• Security and authentication: PAM (Pre-shared key), Radius, TACACS+, Port-based MAC filtering, IP blocking, 802.1x access control
• System analysis: Cable diagnostic tool, Ping, Traceroute, Nslookup
• Network operating system: SwmOS (OpenWrt-based Linux system with Busybox shell, Lua, C, C++ support)
• Management platforms: Native Web UI, configurable Web API (beta), FOTA, RMS (Remote Management System)
• Chassis material: Anodized aluminum housing and panels with IP30 protection rating

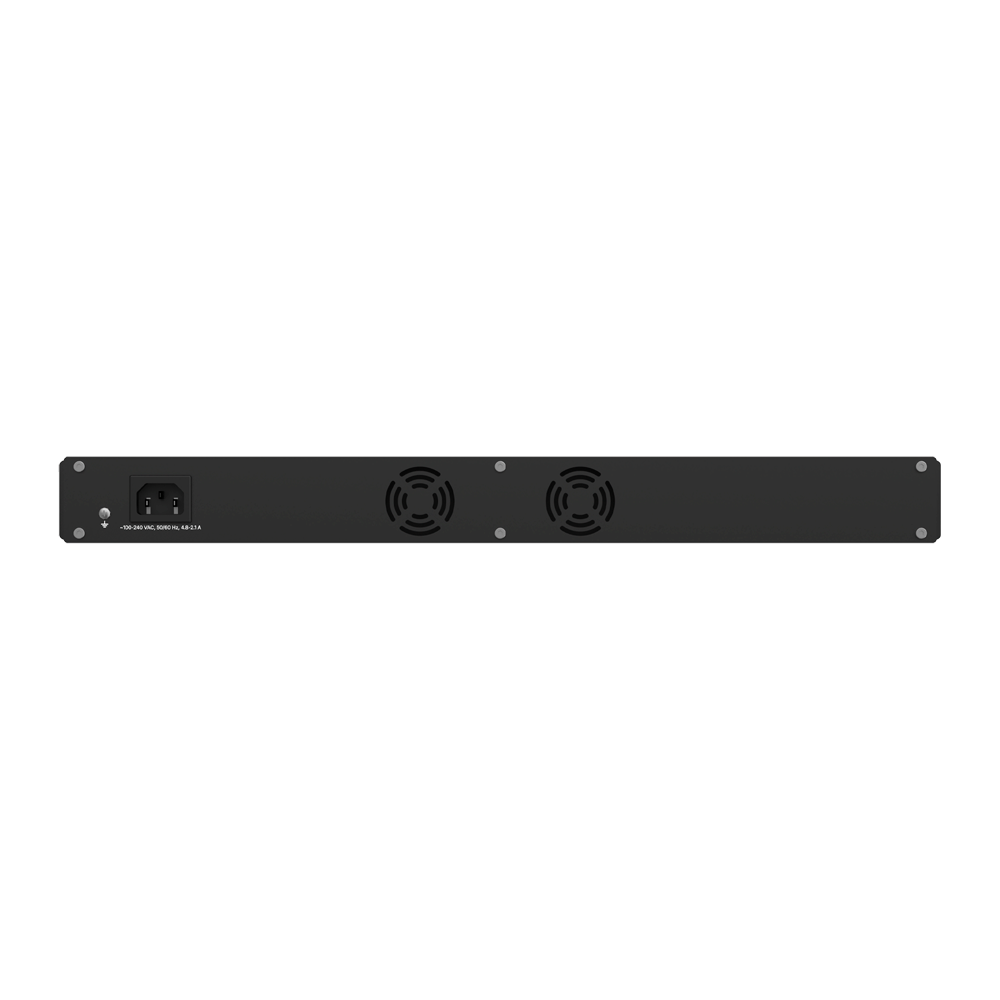

• Cooling system: Active air cooling via 2 × internal fans (side-to-rear flow)
• Noise level: < 45 dB at 25 °C
• Mounting options: Rack or desktop installation (rack kit included)

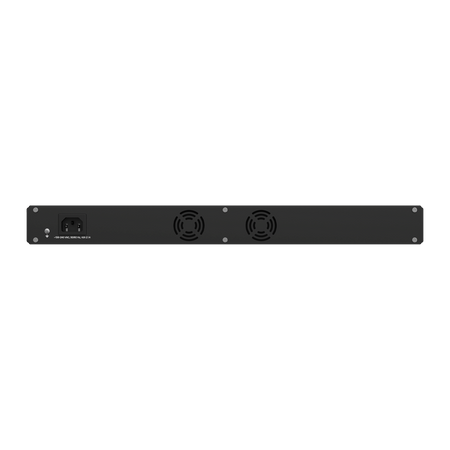

• Power supply: Integrated AC power supply with C14 connector (Range: 100-240 V AC, 50/60 Hz, Max. 0.6 A)
• Power consumption: Idle: 7.5 W / Maximum system consumption: 325 W (with full PoE load)
• Operating temperature: 0 °C to 50 °C
• Operating humidity: 10% to 90% RH (non-condensing)
• Dimensions (W × H × D): 483 mm x 44 mm x 234 mm (Standard 1U design)
• Net weight: 1842 g (without packaging)
📦 INCLUDED:
• 1x SWM280 Industrial Managed L2+ Switch• 1x 19-inch standard rack mount kit• 1x AC power cable with C14 connector• 1x Quick start guide and user manual
| Total network interfaces | 24 × 10/100/1000Mbps RJ45, 4 × 1GE SFP (independent fiber optic slots) |
|---|---|
| Switching capacity | 56 Gbps (Non-blocking) |
| Packet forwarding rate | 83.33 Mpps |
| Processor (CPU) | Realtek, 500 MHz (MIPS-4KEc architecture) |
| RAM memory | 128 MB DDR3 |
| Flash memory (storage memory) | 16 MB Serial Flash |
| MAC address table | 8000 entries |
| Jumbo Frame size (MTU) | 10000 bytes |
| Packet buffer | 512 KB |
| PoE standards | IEEE 802.3af (PoE), IEEE 802.3at (PoE+), Alternative A |
| PoE-supported ports | 12 Gigabit RJ45 ports (Ports 1 to 12) |
| Total PoE budget | 300 W (Maximum 30 W per PSE port) |
| Smart PoE functions | Ping Reboot (automatic detection and reboot of unresponsive PoE devices), PoE management |
| Industrial protocols | Profinet (Conformance Class B optional), EtherNet/IP, MRP (Client and Manager) |
| Layer 2 capabilities (L2 features) | STP / RSTP, Loop protection, Port isolation, VLAN, Forwarding table, Multicast Querier |
| Layer 3 capabilities (L3 features) | Static routing (IPv4/IPv6), Dynamic routing (OSPF v2, BGP, RIP v1/v2, EIGRP) |
| Network settings / DHCP | DHCP Server, DHCP Client, DHCP Static leases with MAC address wildcard support, DHCPv6 client |
| Quality of Service (QoS) | Priority per port, DSCP, TOS and 802.1p / SP, WFQ, WRR algorithms / Storm control and rate limiting |
| Security and authentication | PAM (Pre-shared key), Radius, TACACS+, MAC filter per port, IP blocking, 802.1x access control |
| System analysis | Cable diagnostic tool, Ping, Traceroute, Nslookup |
| Network operating system | SwmOS (Linux-based system on OpenWrt with Busybox shell, support for Lua, C, C++) |
| Management platforms | Native Web UI, configurable Web API (beta), FOTA, RMS (Remote Management System) |
| Chassis material | Anodized aluminum housing and panels with IP30 rating |
| Cooling system | Active air cooling via 2 × internal fans (side-to-rear airflow) |
| Noise level | < 45 dB at 25 °C |
| Mounting options | Rack or desktop installation (rack kit included) |
| Power supply | Integrated AC power supply with C14 connector (Range: 100-240 V AC, 50/60 Hz, Max. 0.6 A) |
| Power consumption | Idle state: 7.5 W / Maximum system consumption: 325 W (with full PoE load) |
| Operating temperature | 0 °C to 50 °C |
| Operating humidity | 10% to 90% RH (non-condensing) |
| Dimensions (W × H × D) | 483 mm x 44 mm x 234 mm (Standard 1U design) |
| Net weight | 1842 g (excluding packaging) |
