TELTONIKA

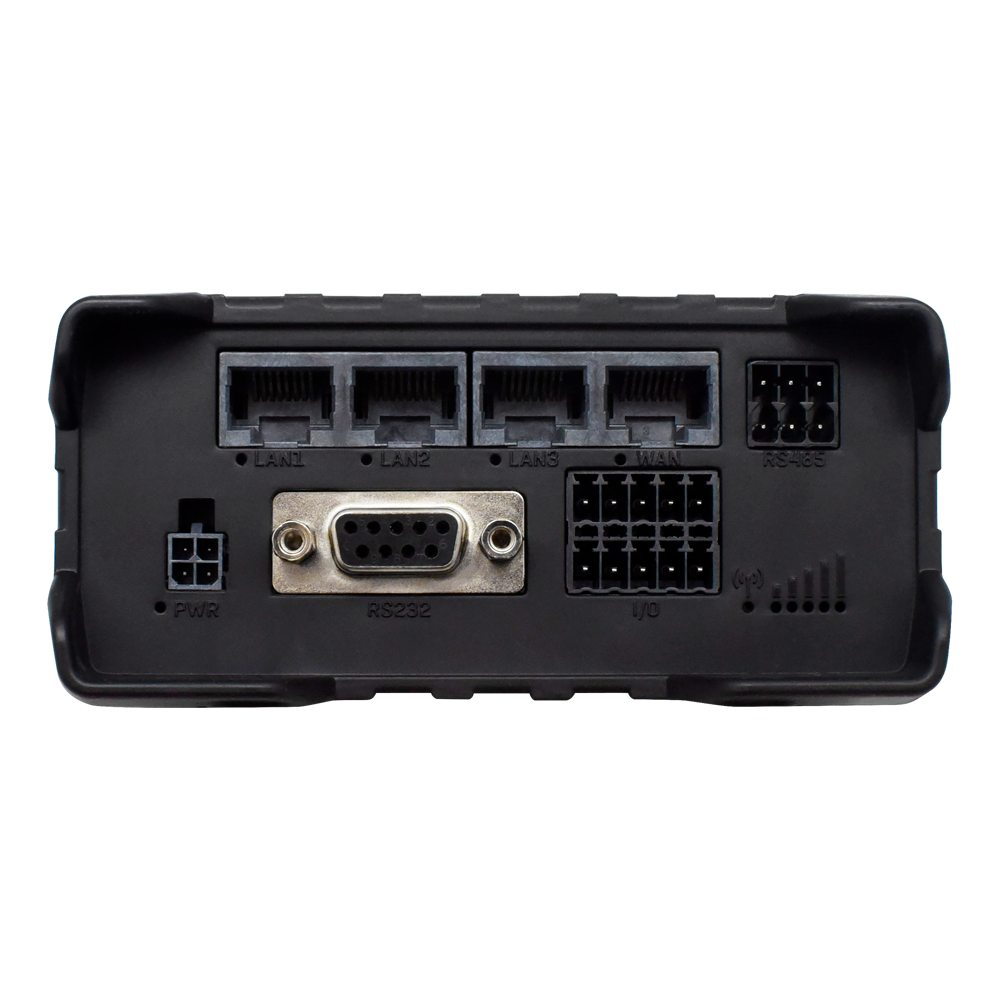

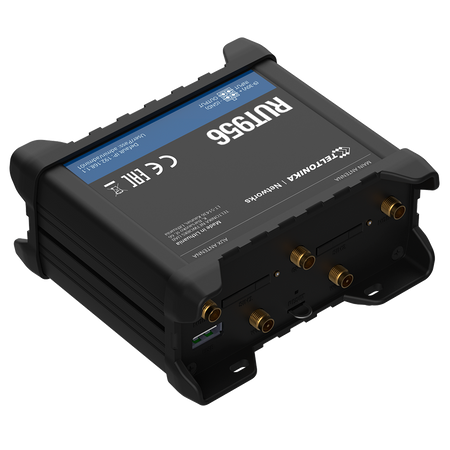

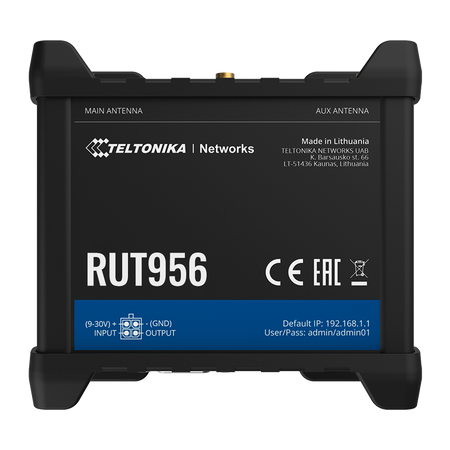

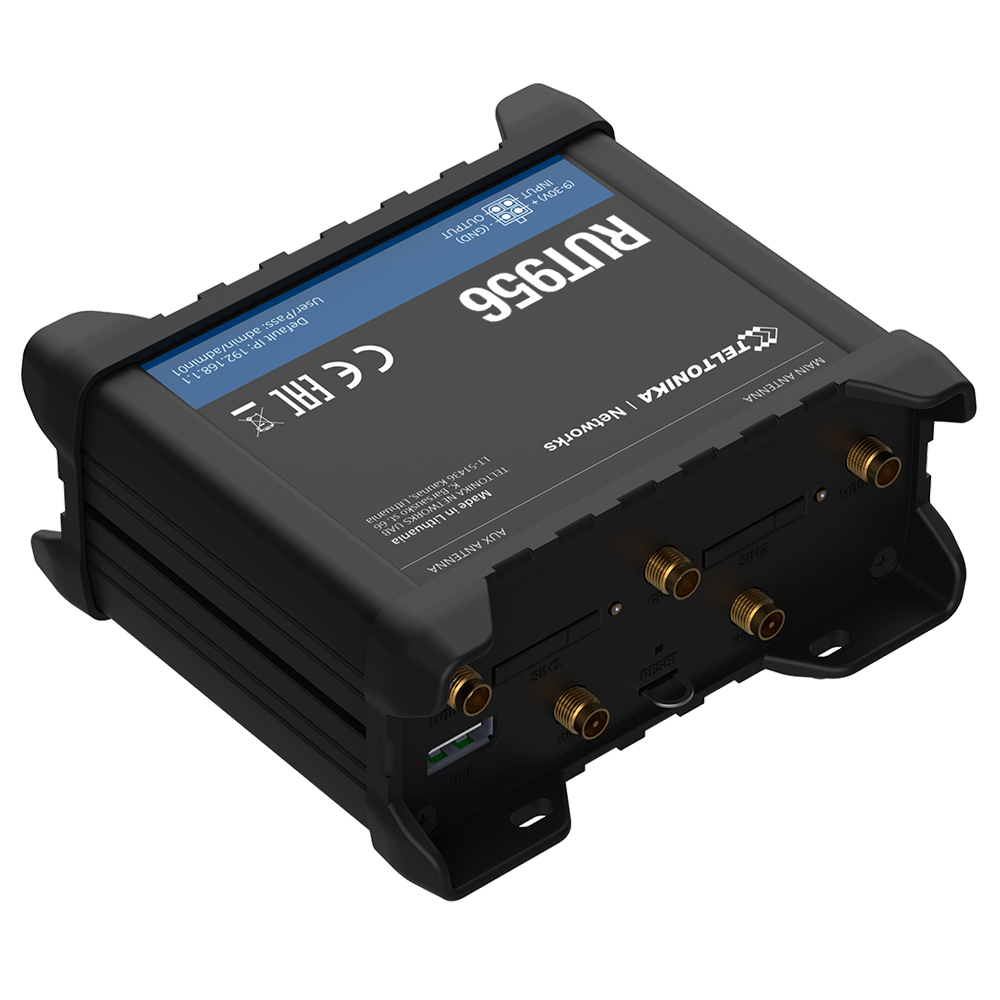

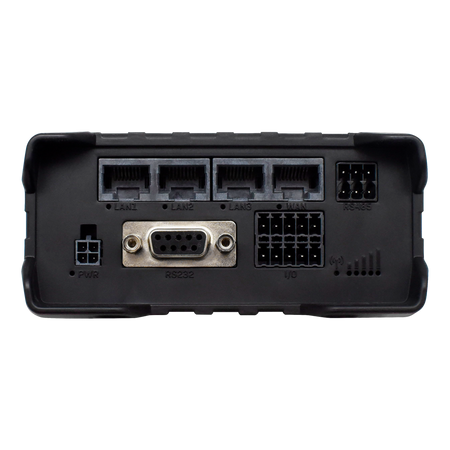

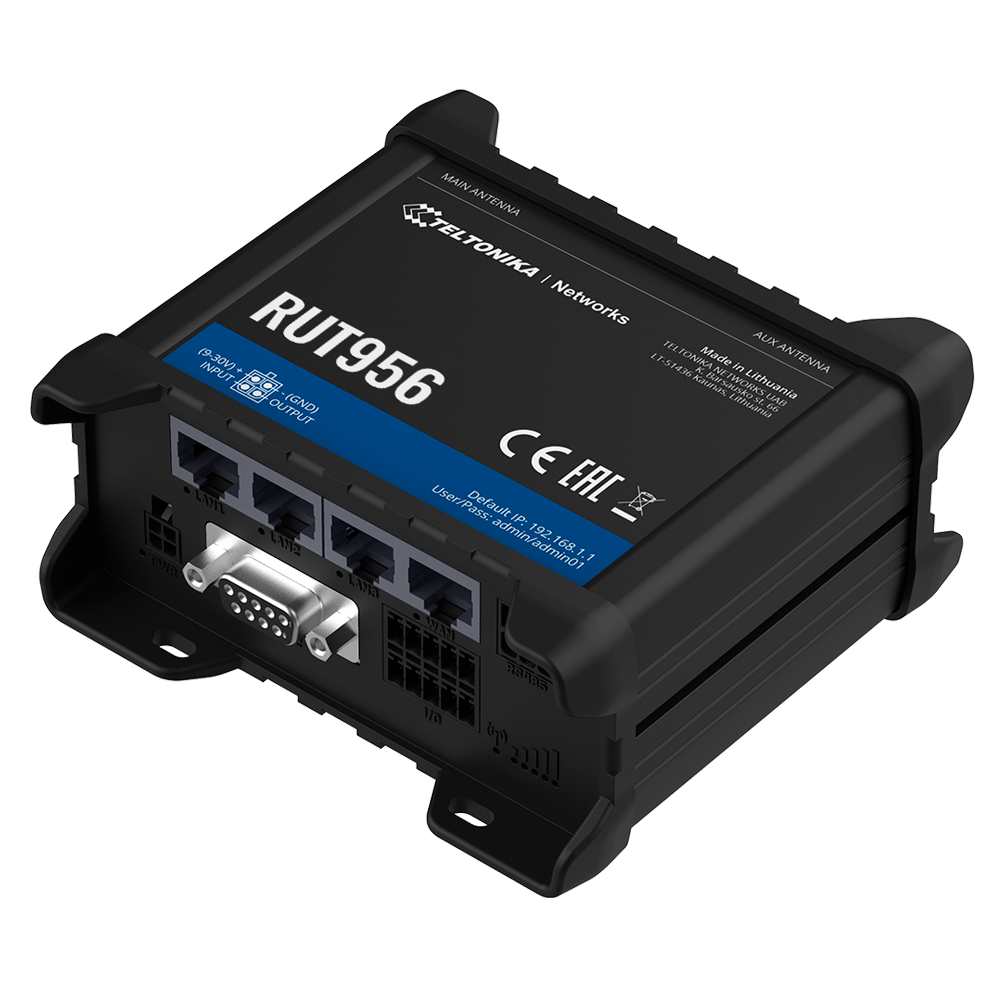

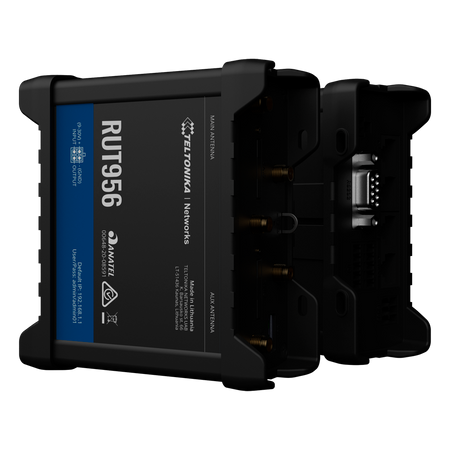

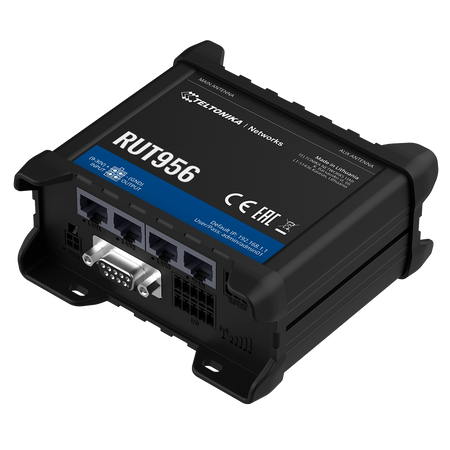

Teltonika 4G LTE Cat 4 (150/50 Mbps) industrial router - Integrated RS232 and RS485 serial interfaces

SKU: TK-RUT956
(0)
In stock
Usually shipped within 24 hours
€436,95 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

Industrial 4G LTE Cat 4 (150/50 Mbps) router - Integrated RS232 and RS485 serial interfaces - Resilience with dual SIM and automatic failover - GNSS positioning: GPS, GLONASS and Galileo - Multiple I/O: analog and digital - Secure remote management via Teltonika RMS

📋 SPECIFICATIONS:
• Brand: Teltonika
• Device type: Industrial cellular router
• Mobile communication module: 4G LTE Cat 4 (150 Mbps DL, 50 Mbps UL), 3G, 2G
• 3GPP standard: Release 11
• SIM: 2 x Mini SIM slots (2FF), 1.8V/3V
• eSIM: Supported (Consumer type), up to 7 profiles
• WiFi: 802.11b/g/n (Wi-Fi 4) up to 100 users
• Ethernet ports: 1 x WAN 10/100 Mbps, 3 x LAN 10/100 Mbps
• Serial interfaces: 1 x RS232 (DB9), 1 x RS485 (6-pin industrial)
• Inputs / Outputs: 2 Inputs and 2 Outputs (10-pin), 1 Input and 1 Output (4-pin DC)
• GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS
• CPU: Mediatek, 580 MHz, MIPS 24KEC
• RAM memory: 128 MB, DDR2
• Flash memory: 16 MB, SPI Flash
• SD slot: Internal micro SD card up to 2 TB (depending on batch)
• USB: 1 x USB A 2.0
• OS: RutOS (based on OpenWrt Linux)
• VPN: OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, ZeroTier, WireGuard, Tinc
• Network protocols: TCP, UDP, IPv4/v6, HTTP/S, FTP, SMTP, SSH, SNMP, MQTT, VXLAN
• IIoT protocols: BACnet (Router), OPC UA, Modbus TCP/RTU, DNP3, DLMS
• Security: SPI Firewall, DDoS prevention, VLAN, Web filter, Let's Encrypt
• Management: Web UI, CLI, SSH, SMS, TR-069, MQTT, SNMP, RMS
• Power supply: 9 - 30 VDC; passive PoE support via LAN1
• Power consumption: Idle: < 2 W / Max: < 7 W
• Protection: Aluminum housing, plastic panels (IP30)
• Operating temperature: -40 °C to 75 °C
• Dimensions: 110 x 50 x 100 mm
• Weight: 287 g

📦 INCLUDED:
• 1x RUT956 Router • 1x 9W Power supply (PSU) • 2x Mobile antennas (magnetic, SMA male) • 2x WiFi antennas (magnetic, RP-SMA male) • 1x GNSS antenna (adhesive, SMA male connector) • 1x Set of connectors (RS485, I/O) • 1x Ethernet cable (1.5 m) • 1x SIM adapter kit and Quick Start Guide
Device type Industrial cellular router
Mobile communication module 4G LTE Cat 4 (150 Mbps DL, 50 Mbps UL), 3G, 2G
3GPP standard Release 11
SIM 2 x Mini SIM slots (2FF), 1.8V/3V
eSIM Supported (Consumer type), up to 7 profiles
WiFi 802.11b/g/n (Wi-Fi 4) up to 100 users
Ethernet ports 1 x WAN 10/100 Mbps, 3 x LAN 10/100 Mbps
Serial interfaces 1 x RS232 (DB9), 1 x RS485 (6-pin industrial)
Inputs / Outputs 2 Inputs and 2 Outputs (10-pin), 1 Input and 1 Output (4-pin DC)
GNSS GPS, GLONASS, BeiDou, Galileo, QZSS
CPU Mediatek, 580 MHz, MIPS 24KEC
RAM memory 128 MB, DDR2
Flash memory 16 MB, SPI Flash
SD slot Internal micro SD card up to 2 TB (depending on batch)
USB 1 x USB A 2.0
OS RutOS (based on OpenWrt Linux)
VPN OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, ZeroTier, WireGuard, Tinc
Network protocols TCP, UDP, IPv4/v6, HTTP/S, FTP, SMTP, SSH, SNMP, MQTT, VXLAN
IIoT protocols BACnet (Router), OPC UA, Modbus TCP/RTU, DNP3, DLMS
Security SPI Firewall, DDoS prevention, VLAN, Web filter, Let's Encrypt
Management Web UI, CLI, SSH, SMS, TR-069, MQTT, SNMP, RMS
Power supply 9 - 30 VDC; passive PoE support via LAN1
Power consumption Standby: &lt; 2 W / Maximum: &lt; 7 W
Protection Aluminum housing, plastic panels (IP30)
Operating temperature -40 °C to 75 °C
Dimensions 110 x 50 x 100 mm
Weight 287 g
