TELTONIKA

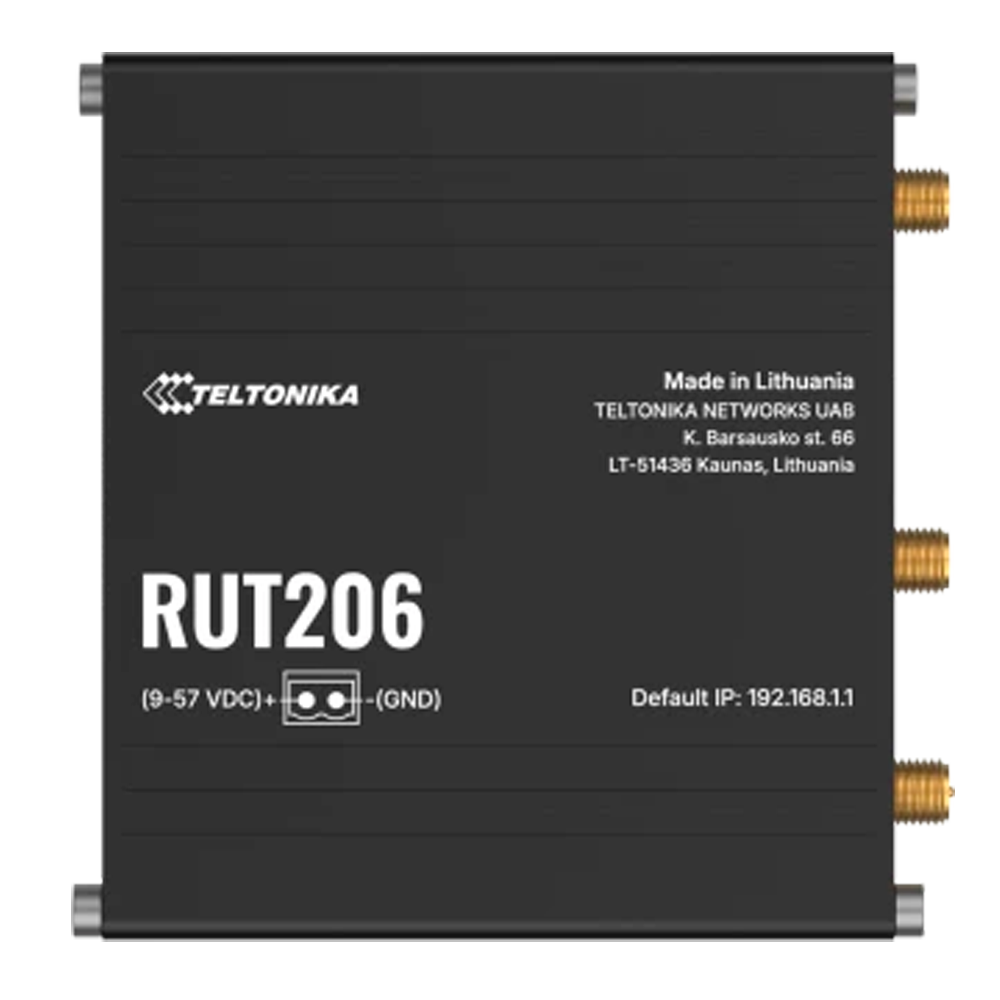

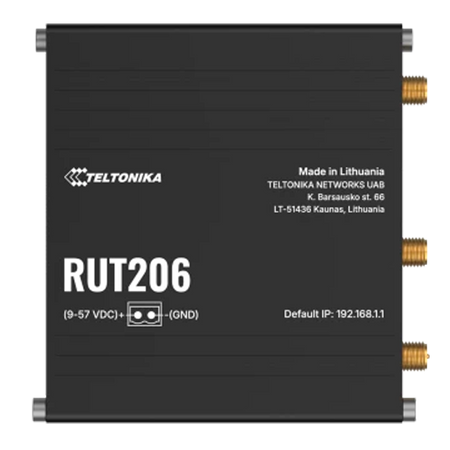

Teltonika 4G LTE Cat 4 (150/50 Mbps) Industrial Router - Integrated RS232 and RS485 serial interfaces - 128 MB

SKU: TK-RUT206
(0)
In stock
Usually shipped within 24 hours
€252,95 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

4G LTE Cat 4 Industrial Router (150/50 Mbps) - Integrated RS232 and RS485 serial interfaces - 802.3af Active PoE In support for power supply - Micro SD slot up to 2 TB for storage - Dual SIM slot for automatic failover - BACnet, MQTT and OPC UA protocol support

📋 SPECIFICATIONS:
• Brand: Teltonika
• Mobile communication module: 4G LTE Cat 4 (150 Mbps DL / 50 Mbps UL), 3G, 2G
• 3GPP Release: Release 9
• SIM slots: 2 x Mini SIM (2FF), 1.8 V/3 V, dual tray
• WiFi: 802.11b/g/n (Wi-Fi 4) up to 50 users
• Ethernet ports: 2 x RJ45 10/100 Mbps (1 x WAN, 1 x LAN)
• Serial interfaces: 1 x RS232, 1 x RS485 (6-pin terminal block)
• PoE In: Active 802.3af Class 0 on LAN port
• SD Card: Internal Micro SD slot up to 2 TB (Samba share)
• CPU: Mediatek, 580 MHz, MIPS 24KEc
• RAM: 128 MB, DDR2
• Flash Storage: 32 MB, NOR Flash
• VPN: OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, ZeroTier, WireGuard, Tinc
• Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP/S, SFTP, FTP, SMTP, SSL, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, SNMP, MQTT, WOL, VXLAN
• IIoT protocols: BACnet (Router), OPC UA (Client/Server), Modbus TCP/RTU, DNP3
• Security: SPI Firewall, DDoS prevention, VLAN, WEB filter, 802.1x
• Management: Web UI, CLI, SSH, SMS, TR-069, JSON-RPC, MQTT, SNMP, RMS
• Power supply: 9 - 57 VDC (2-pin industrial connector)
• PoE (passive): Supported 16 - 57 VDC (pair 4,5 + / 7,8 -)
• Power consumption: Standby: < 2 W; Maximum: < 3.5 W
• Housing material: Anodized aluminum (panels and frame)
• IP rating: IP30
• Operating temperature: -40 °C to +75 °C
• Operating humidity: 10% to 90% (non-condensing)
• Dimensions: 83 x 25 x 83 mm
• Weight: 132 g

📦 INCLUDED:
• 1x RUT206 Industrial Router• 1x Power Supply Unit (PSU)• 2x Mobile antennas (SMA male)• 1x Wi-Fi antenna (RP-SMA male)• 1x 6-pin terminal block• 1x Ethernet cable (1.5 m)• 1x SIM adapter kit and Quick Start Guide
Mobile module 4G LTE Cat 4 (150 Mbps DL / 50 Mbps UL), 3G, 2G
3GPP Release Release 9
SIM slot 2 x Mini SIM (2FF), 1.8 V/3 V, dual tray
WiFi 802.11b/g/n (Wi-Fi 4) up to 50 users
Ethernet ports 2 x RJ45 10/100 Mbps (1 x WAN, 1 x LAN)
Serial interfaces 1 x RS232, 1 x RS485 (6-pin terminal block)
PoE In Passive 802.3af Class 0 on LAN port
SD card Internal Micro SD slot up to 2 TB (Samba share)
CPU Mediatek, 580 MHz, MIPS 24KEc
RAM 128 MB, DDR2
Flash storage 32 MB, NOR Flash
VPN OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, ZeroTier, WireGuard, Tinc
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP/S, SFTP, FTP, SMTP, SSL, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, SNMP, MQTT, WOL, VXLAN
IIoT protocols BACnet (Router), OPC UA (Client/Server), Modbus TCP/RTU, DNP3
Security SPI firewall, DDoS prevention, VLAN, WEB filter, 802.1x
Management Web UI, CLI, SSH, SMS, TR-069, JSON-RPC, MQTT, SNMP, RMS
Power supply 9 - 57 VDC (2-pin industrial connector)
PoE (passive) Supported 16 - 57 VDC (pairs 4,5 + / 7,8 -)
Power consumption Standby: &lt; 2 W; Maximum: &lt; 3.5 W
Housing material Anodized aluminum (panels and chassis)
IP rating IP30
Operating temperature -40 °C to +75 °C
Operating humidity 10% to 90% (non-condensing)
Dimensions 83 x 25 x 83 mm
Weight 132 g
