Teltonika 1-Wire RFID card reader
Couldn't load pickup availability
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Do you have any questions?
Ask an expert!

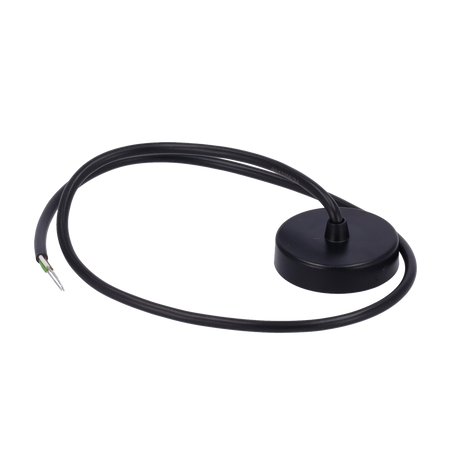

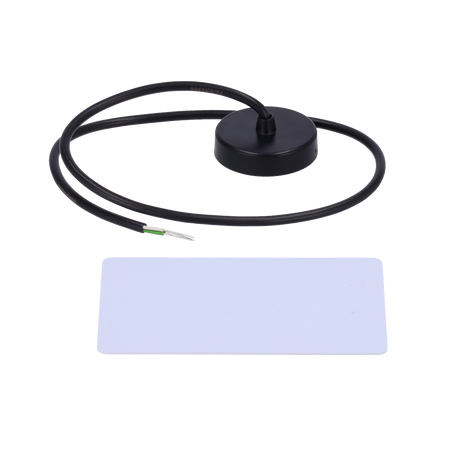

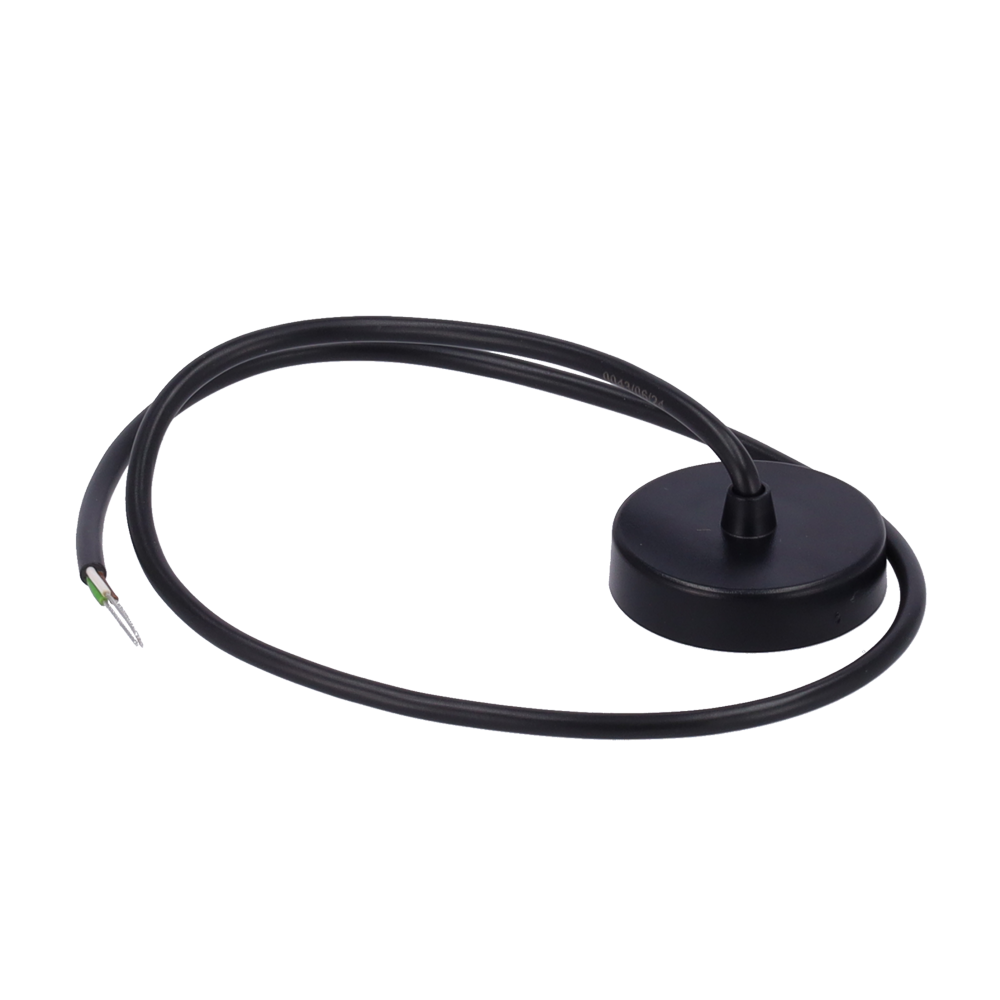

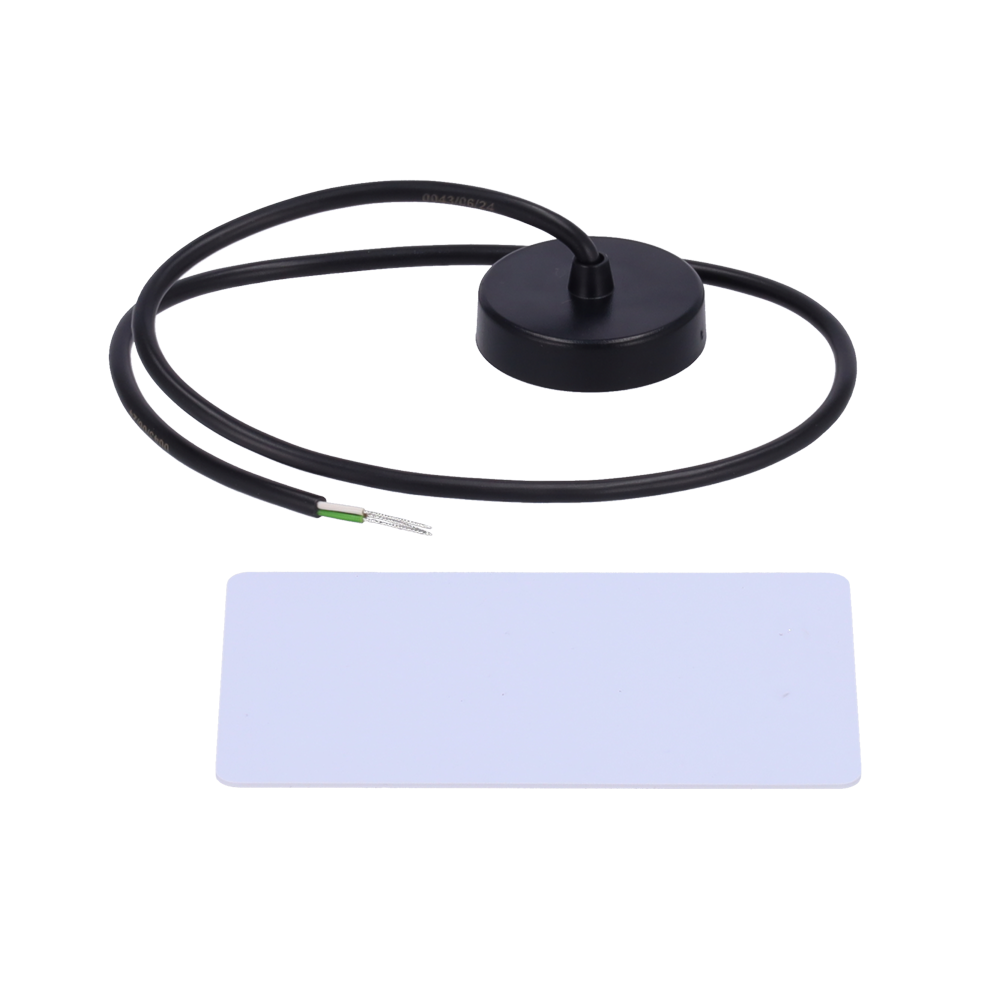

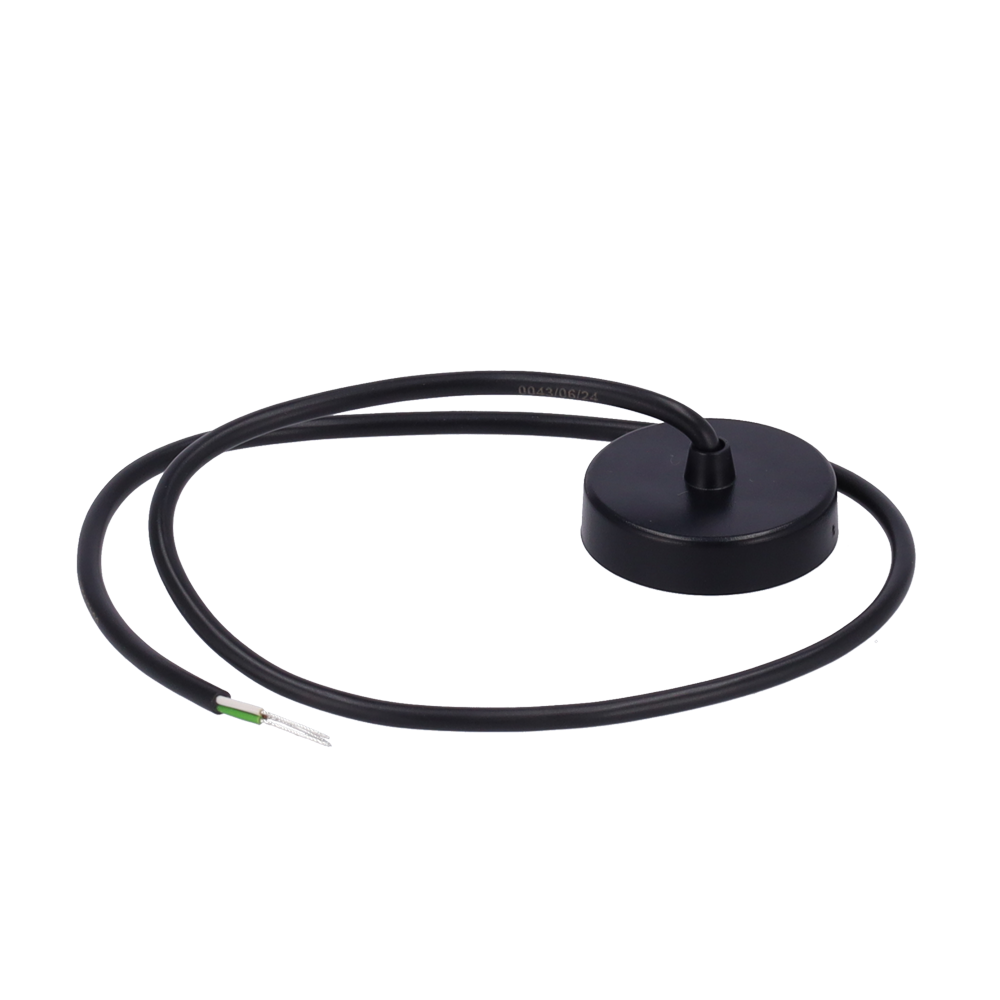

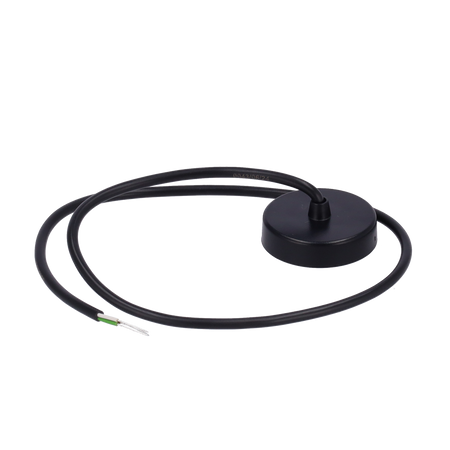

1-Wire RFID card reader - For driver identification and vehicle immobilization - Card included
📋 SPECIFICATIONS:
• Mounting method: M12 metric thread
• Cable length: 40 cm
• Antenna surface: 6.8 cm²
• Supply voltage: 6.5 - 30 VDC

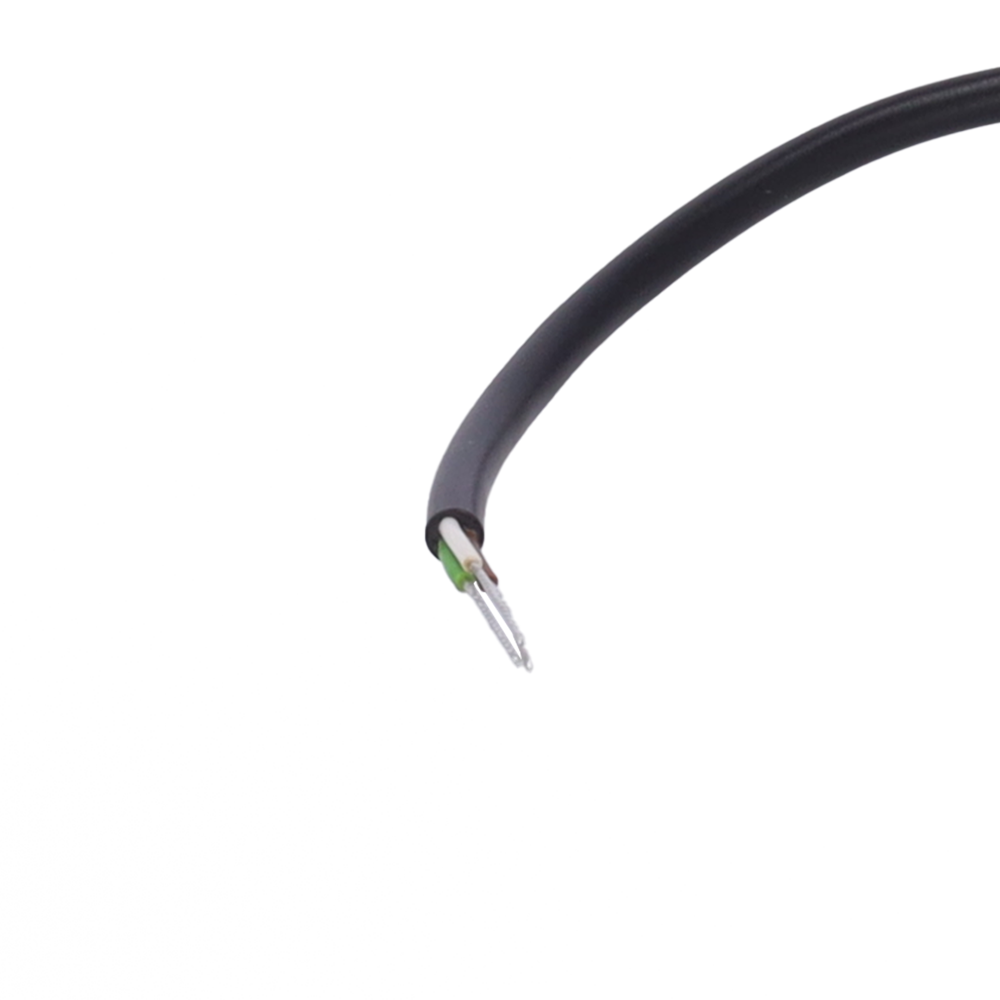

• White wire color: 1-Wire Data (Dallas Data - Sends iButton ID)
• Brown wire color: VCC (+ / Sensor power)
• Green wire color: GND (- / Common system ground)
• Operating temperature: From -20 ºC to +55 ºC
• Operating humidity: Up to 70%
• PIN 1 assignment: 1-Wire Data
• PIN 2 assignment: VCC (+)
• PIN 3 assignment: GND (-)
• Data interface: 1-Wire
• Frequency standard: 125 kHz
• Transponder type: Manchester, 64 cycles per bit
• Reading range: 4 cm
• Reading frequency during identification: 6 times per second
• Reading frequency per interval: 2 times per second (when the transponder is in front of the reader)
• Supported 1-Wire commands: 0x33 (0x0F) - Read ROM
• Alternative 1-Wire commands: 0xF0 - Search ROM
• IO value conversion: Direct emulation of RFID values in iButton format in the tracker firmware
• Application areas: Immobilizer, Authorized driving, Auto Geofencing
📦 INCLUDED:
• Teltonika 1-Wire RFID reader.• Integrated 40 cm color-coded connection cable.ERROR! IMPROPER FORMAT
| Mounting method | M12 metric thread |
|---|---|
| Cable length | 40 cm |
| Antenna surface | 6.8 cm² |
| Supply voltage | 6.5 - 30 VDC |
| White wire color | 1-Wire Data (Dallas Data - Sends iButton ID) |
| Brown wire color | VCC (+ / Sensor power supply) |
| Green wire color | GND (- / Common system ground) |
| Operating temperature | -20 ºC to +55 ºC |
| Operating humidity | Up to 70% |
| PIN 1 assignment | 1-Wire Data |
| PIN 2 assignment | VCC (+) |
| PIN 3 assignment | GND (-) |
| Data interface | 1-Wire |
| Frequency standard | 125 kHz |
| Transponder type | Manchester, 64 cycles per bit |
| Reading range | 4 cm |
| Reading frequency during identification | 6 times per second |
| Reading frequency per interval | 2 times per second (when the transponder is in front of the reader) |
| Supported 1-Wire commands | 0x33 (0x0F) - Read ROM |
| Alternative 1-Wire commands | 0xF0 - Search ROM |
| IO value conversion | Direct emulation of RFID values in iButton format in the tracker firmware |
| Fields of application | Immobilizer, Authorized driving, Auto Geofencing |
