TK-PR3PUEU3
TK-PR3PUEU3

Note: actual colors may vary slightly from the images due to different monitor settings and lighting conditions during shooting.

TELTONIKA

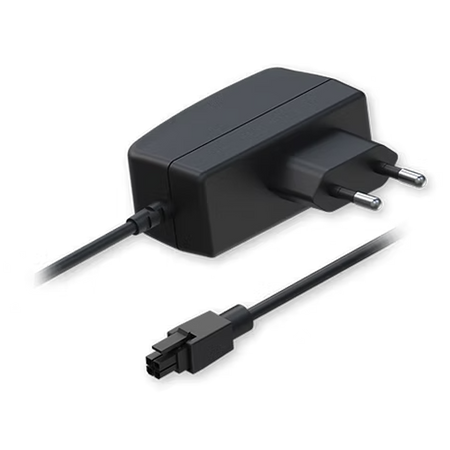

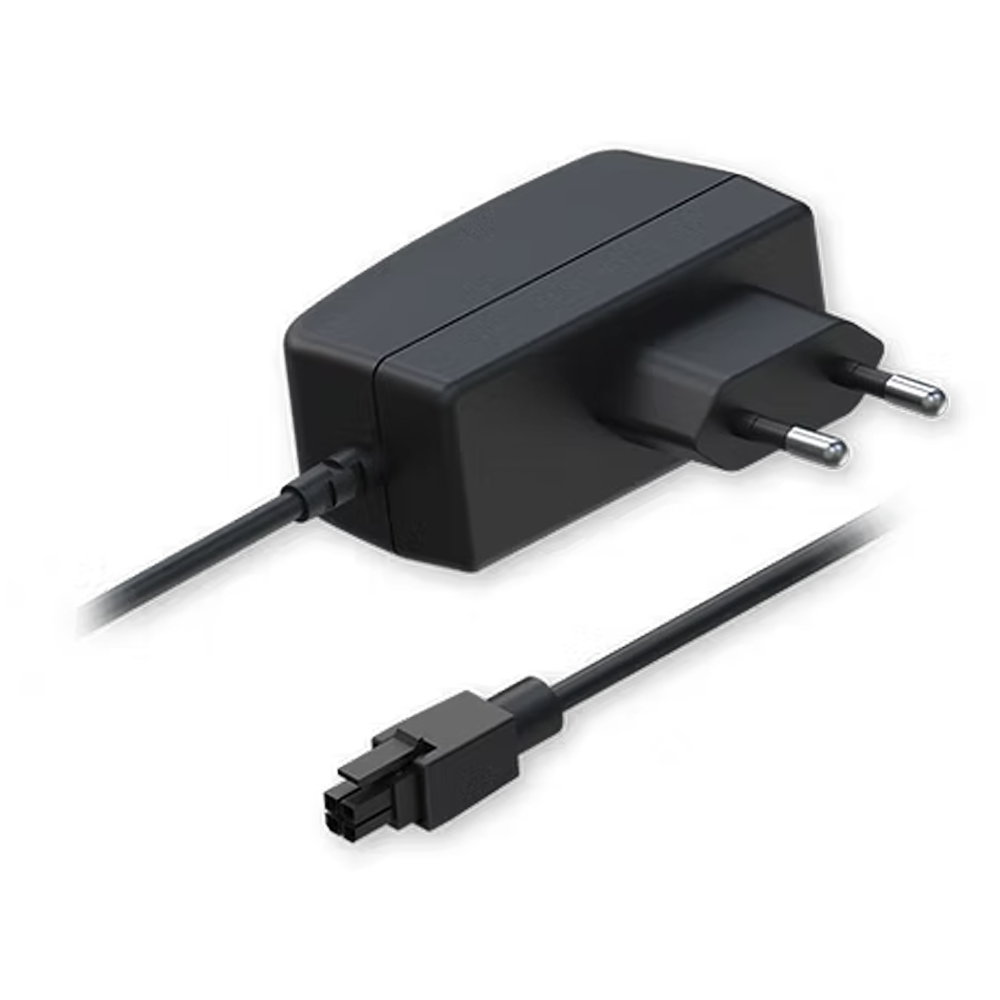

Teltonika power supply with 9 VDC stabilized output voltage

SKU: TK-PR3PUEU3
(0)
Out of stock
€12,68 Final price
-2% €13,00 €12,68 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

Teltonika Power Supply - 9 VDC stabilized output voltage - 1.0 A effective rated output current - Special 4-pin industrial output connector - Built-in short-circuit protection - Compact design with European-type plug

📋 SPECIFICATIONS:
• Product category: External power adapter
• Rated input voltage: 100 – 240 VAC
• Input frequency: 50 / 60 Hz
• Max input current: 0.5 A
• Rated output voltage: 9 VDC
• Max output current: 1.0 A
• Absolute input limits: Maximum voltage tolerance between 90 and 264 VAC
• Absolute input frequency: Absolute operating range between 47 and 63 Hz
• Inrush current: Initial peak current (Inrush current) of 60 A
• Absolute output limits: Voltage tolerance range from 8.55 to 9.45 VDC
• Power protection: Integrated short circuit protection
• Isolation test: HIPOT (Dielectric isolation between primary and secondary) of 4242 VDC
• Input connector: Standard European Union plug (EU Type C)
• Output connector: Special 4-pin connector with 3 mm pitch
• Compatibility ecosystem: RUT200, RUT202, RUT241, RUT260, RUT261, RUT271, RUT281, RUT301
• Additional RUT devices: RUT901, RUT906, RUT951, RUT951 PoE+, RUT956, RUT976, RUT981, RUT986
• Compatible TRB devices: TRB140, TRB141, TRB142, TRB145, TRB160, TRB501
• Environmental compliance: Certification regarding the RoHS directive on the restriction of substances
• Safety certifications: IEC 62368-1:2018 (CB Scheme), EN 62368-1:2014+A11:2017
• EMC certifications: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021
• Add. noise standards: EN 61000-3-3; EN 55035:2017+A11:2020; CISPR 32:2015; CISPR 35:2016
• Hardware reliability: MTBF estimated at 50,000 hours of continuous operation
• Operating temperature: Controlled temperature range between -10 °C and 40 °C
• Storage temperature: Warehouse storage range from -20 °C to 70 °C
• Operating humidity: Support for dry and semi-dry environments (non-condensing)
• Charger net weight: 94 grams structural weight

📦 INCLUDED:
• 1x Teltonika TK-PR3PUEU3 Power Supply (4-pin connector)
Product category External power adapter
Nominal input voltage 100 – 240 VAC
Input frequency 50 / 60 Hz
Max. input current 0.5 A
Nominal output voltage 9 VDC
Max. output current 1.0 A
Absolute input limits Maximum voltage tolerance between 90 and 264 VAC
Absolute input frequency Absolute operating range between 47 and 63 Hz
Inrush current Initial peak (inrush) current of 60 A
Absolute output limits Voltage tolerance range from 8.55 to 9.45 VDC
Power protection Built-in short circuit protection
Isolation test HIPOT (dielectric isolation between primary and secondary) of 4242 VDC
Input connector Standard European Union socket (EU Type C)
Output connector Special 4-pin connector with 3 mm pitch
Compatibility ecosystem RUT200, RUT202, RUT241, RUT260, RUT261, RUT271, RUT281, RUT301
Additional RUT devices RUT901, RUT906, RUT951, RUT951 PoE+, RUT956, RUT976, RUT981, RUT986
Compatible TRB devices TRB140, TRB141, TRB142, TRB145, TRB160, TRB501
Environmental compliance RoHS directive certification regarding the limitation of substances
Safety certifications IEC 62368-1:2018 (CB Scheme), EN 62368-1:2014+A11:2017
EMC certifications EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021
Additional noise standards EN 61000-3-3; EN 55035:2017+A11:2020; CISPR 32:2015; CISPR 35:2016
Hardware reliability Estimated MTBF of 50,000 hours of continuous operation
Operating temperature Controlled temperature range between -10 °C and 40 °C
Storage temperature Storage range from -20 °C to 70 °C
Operating humidity Support for dry and semi-dry environments (non-condensing)
Net charger weight 94 grams structural weight
