Power supply for Teltonika
Regular price
€20,75
Final price
Regular price
-6%
€22,00
Sale price
€20,75
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

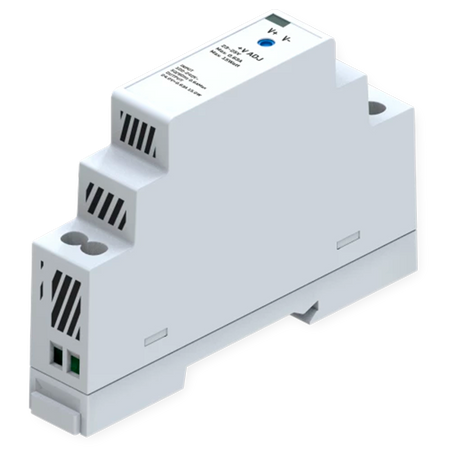

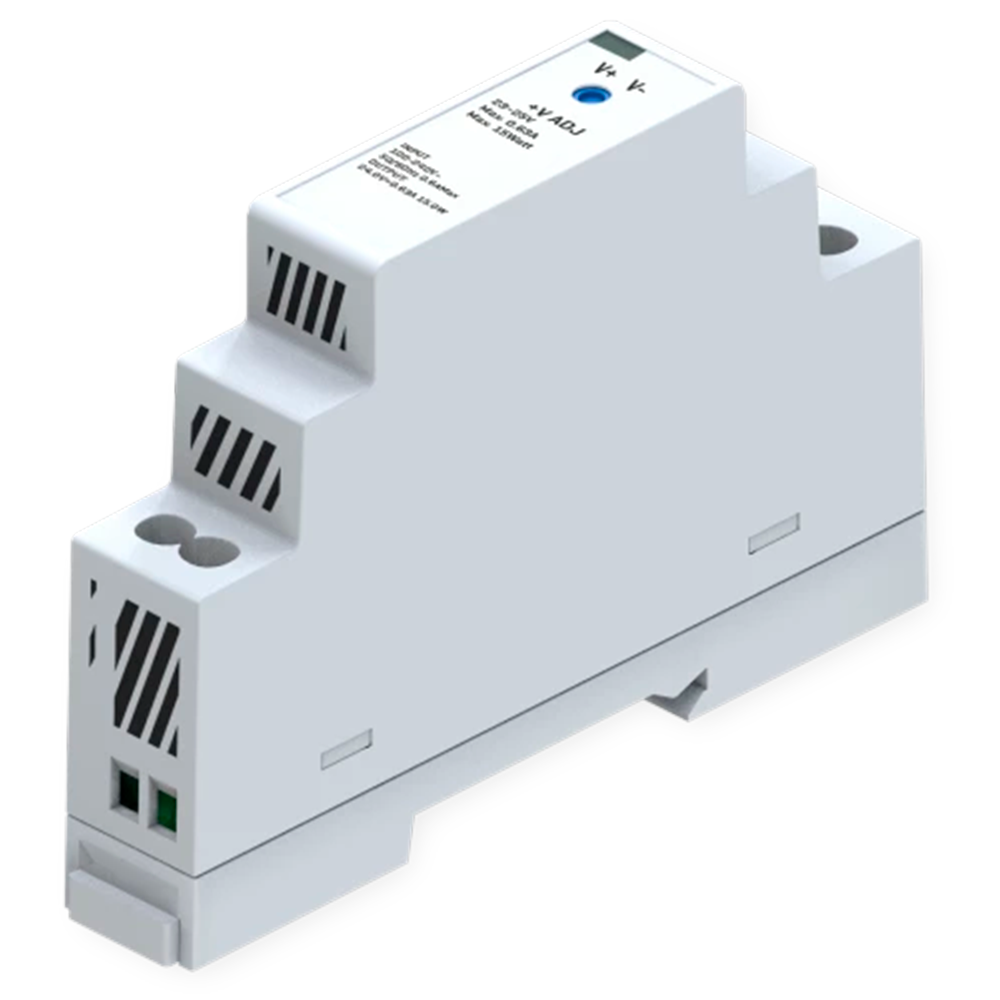

Power supply for Teltonika - Compact format designed for DIN rail - Maximum output power of 15W (24V / 0.63A) - Flexible AC input with 90-264 VAC range - Electrical insulation HIPOT tested at 3 kV AC - Full protection against short circuits
📋 SPECIFICATIONS:
• Brand: Teltonika
• Component type: Industrial power supply for DIN rail
• Mounting format: DIN Rail
• Maximum output power: 15 W
• Nominal output voltage: 24 VDC
• Absolute output range: 21.6 VDC – 29 VDC
• Output current: 0.63 A
• Output connector type: Screw terminal
• Nominal input voltage: 90 V AC to 264 V AC
• Absolute input range: 85 V AC to 264 V AC
• Input frequency: 50 / 60 Hz (Absolute range: 47 Hz to 63 Hz)
• Input current: 0.5 A
• Inrush current: 45 A
• Input connector type: Screw terminal
• Dielectric insulation (HIPOT): Primary to Secondary: 3 kVAC
• Electronic protections: Overload, Overvoltage and Short circuit protection
• Safety certifications: Safety: EN 62368-1:2014+A11:2017, BS EN 62368-1:2014+A11:2017
• Physical dimensions: 18 x 90 x 58 mm
• Net weight: 78 g
• Chassis color: White
• Device compatibility: • RUTM20 / RUTM30; • TRB236 / TRB246 / TRB247 / TRB256; • TSW010 / TSW030 / TSW114 / TSW210 / TSW212 / TSW304
📦 INCLUDED:
• 1x Teltonika TK-PR321NP0 DIN rail power supply
| Component type | Industrial DIN rail power supply |
|---|---|
| Mounting format | DIN Rail |
| Maximum output power | 15 W |
| Nominal output voltage | 24 VDC |
| Absolute output range | 21.6 VDC – 29 VDC |
| Output current | 0.63 A |
| Output connector type | Screw terminal |
| Nominal input voltage | 90 V AC to 264 V AC |
| Absolute input range | 85 V AC to 264 V AC |
| Input frequency | 50 / 60 Hz (Absolute range: 47 Hz to 63 Hz) |
| Input current | 0.5 A |
| Inrush current | 45 A |
| Input connector type | Screw terminal |
| Dielectric isolation (HIPOT) | Primary to Secondary: 3 kVAC |
| Electronic protections | Overload, Overvoltage and Short circuit protection |
| Safety certifications | Safety: EN 62368-1:2014+A11:2017, BS EN 62368-1:2014+A11:2017 |
| Physical dimensions | 18 x 90 x 58 mm |
| Net weight | 78 g |
| Housing color | White |
| Device compatibility | • RUTM20 / RUTM30 • TRB236 / TRB246 / TRB247 / TRB256 • TSW010 / TSW030 / TSW114 / TSW210 / TSW212 / TSW304 |
Same-day shipping if you order before 12:00 PM! In most cases, we rely on couriers with 24-hour service so your order arrives on time.
For orders under €200, the shipping fee is €15.90. For deliveries to remote areas or islands, couriers apply a surcharge to cover transport costs.
The legal warranty lasts 2 years for private individuals (consumers) and 1 year for VAT holders (professionals or companies)
