Teltonika 5G Combo LTE/Wi-Fi/GNSS Antenna
Regular price
€209,83
Final price
Regular price
-3%
€216,00
Sale price
€209,83
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

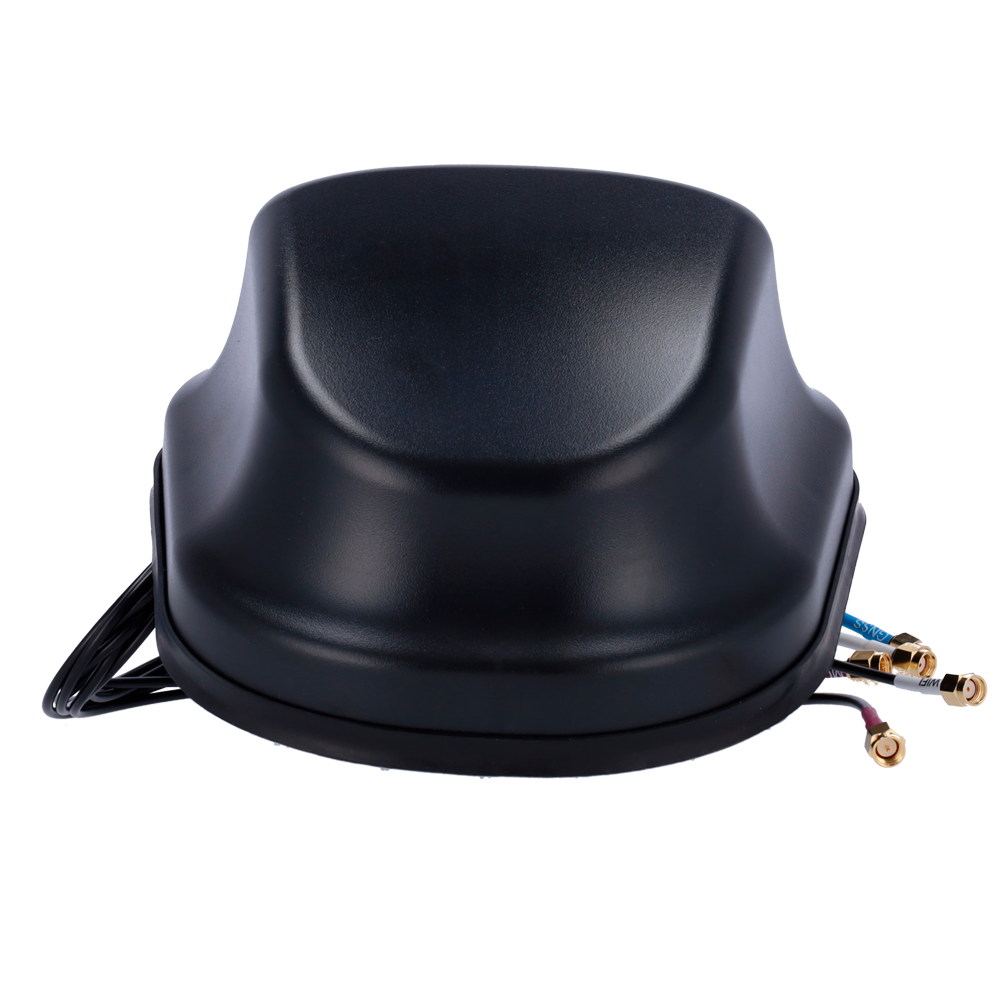

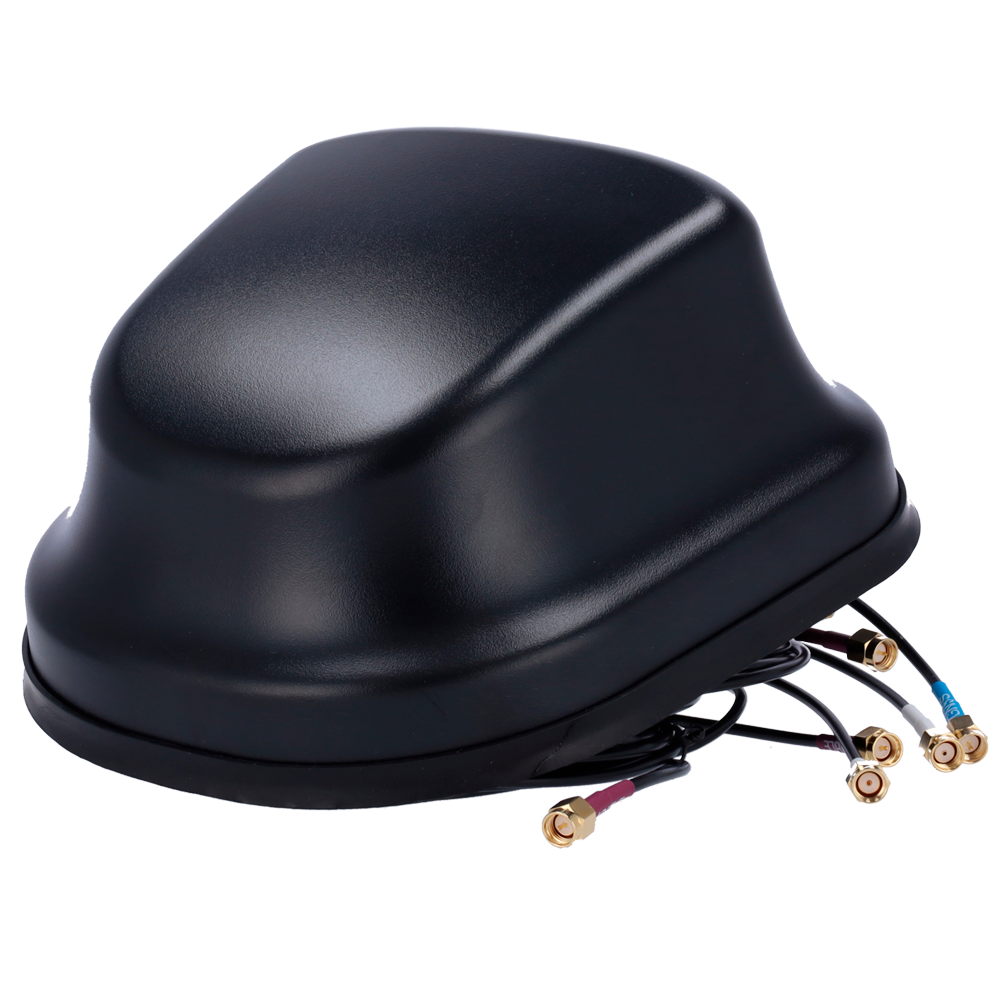

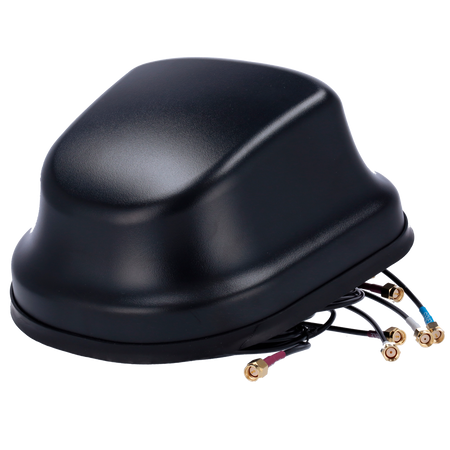

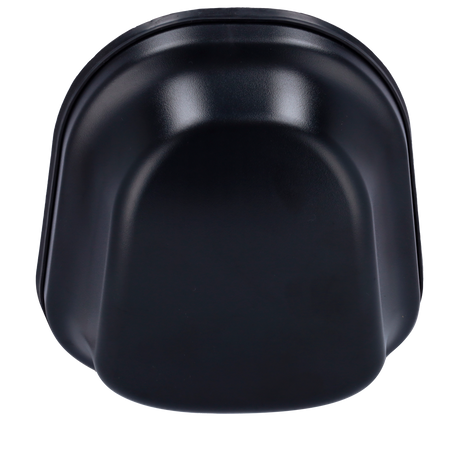

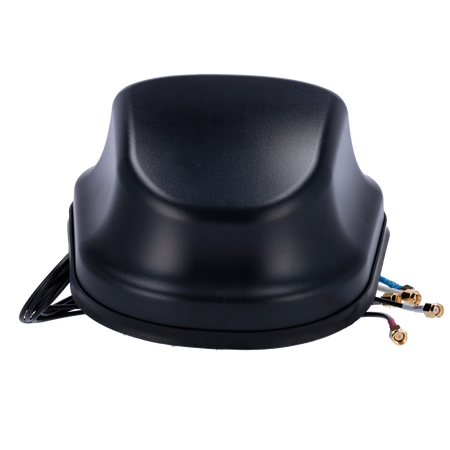

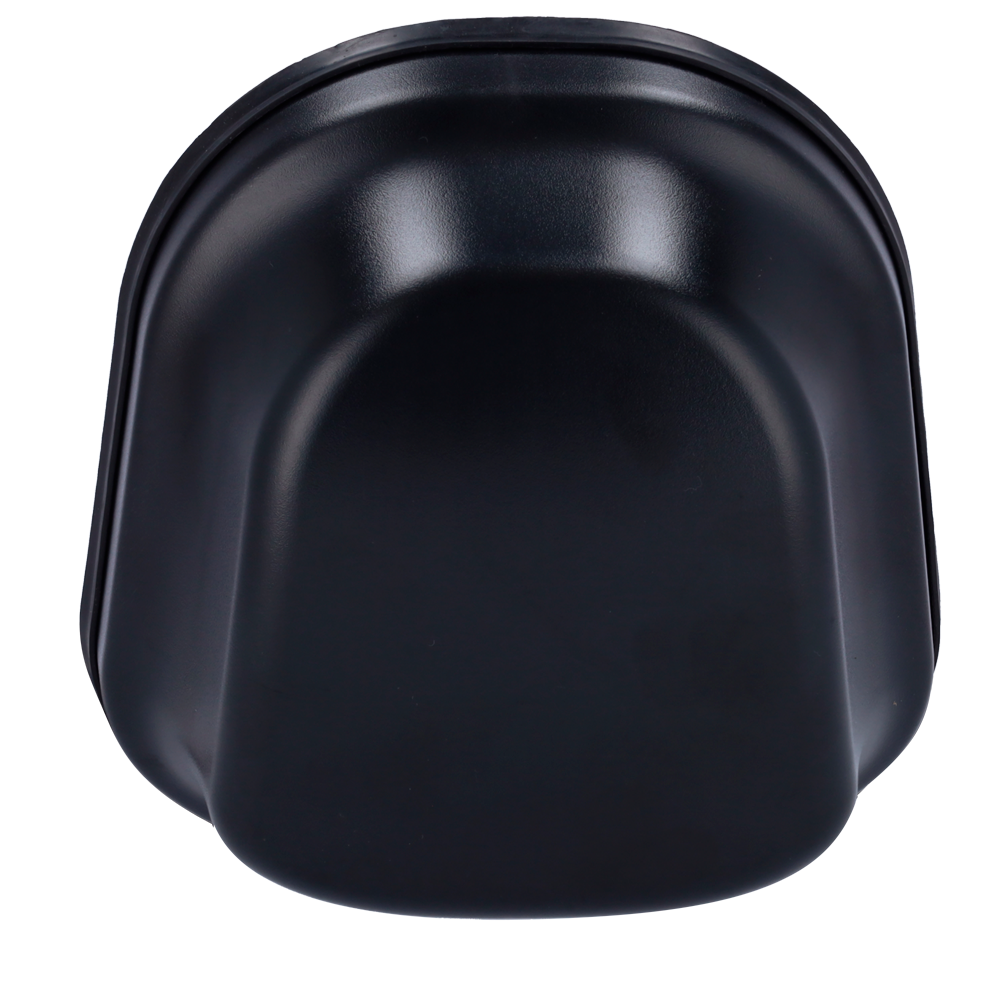

Teltonika Antenna - 5G Combo LTE/Wi-Fi/GNSS - Vehicle roof mount - SMA connectors - IP67 outdoor certification - 3 meter LMR100 cables
📋 SPECIFICATIONS:

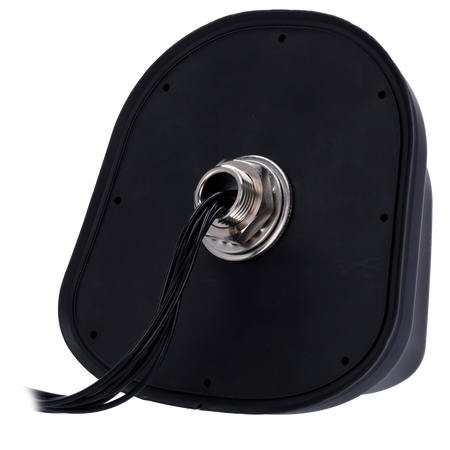

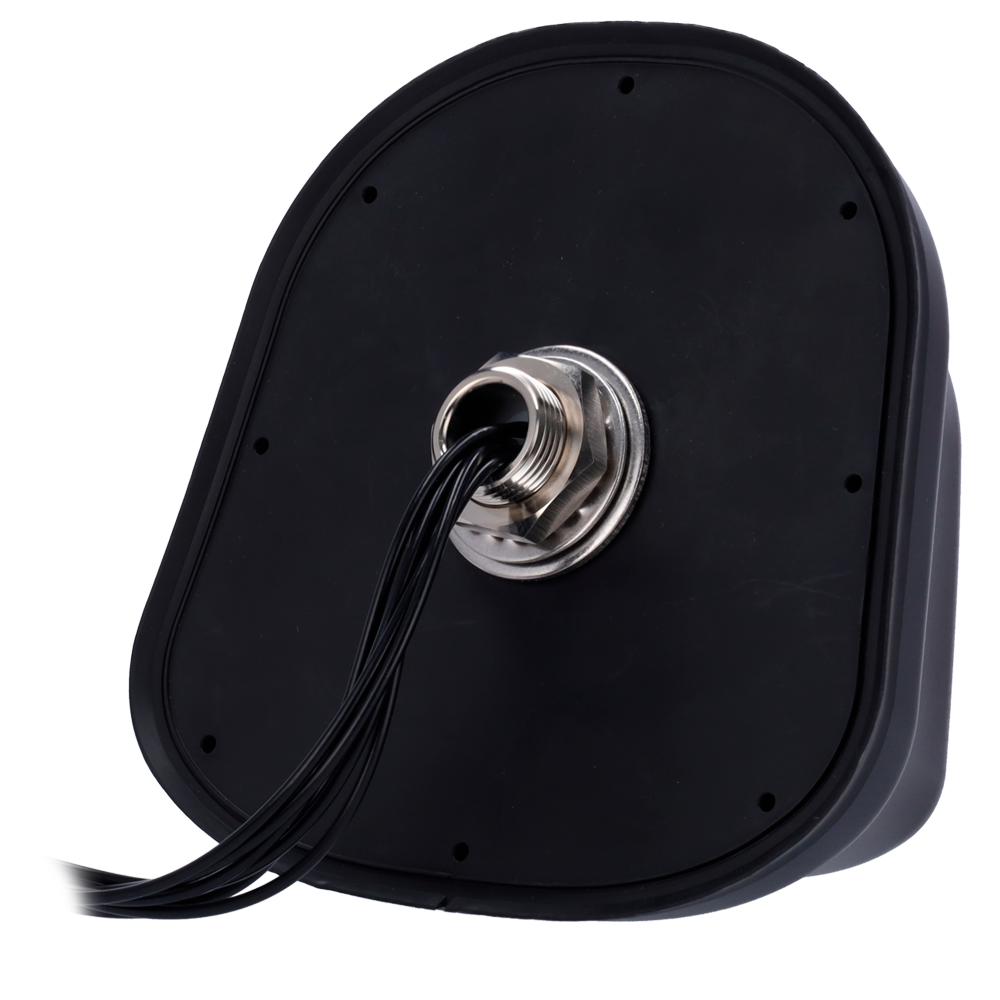

• Mounting: Roof mount (screw-on)
• LTE Antennas: Frequency Range: 617-960/1710-2690/2900-4200 MHz; Polarization: Linear; Gain: 4dBi; V.S.W.R < 3.0; Impedance: 50 ohm; 4x SMA Male connectors
• Wi-Fi Antennas: Frequency: 2400-2483.5/4900-5925 MHz; Polarization: Linear; Gain: 4dBi; V.S.W.R < 2.5; Impedance: 50 ohm; 2x RP-SMA Male connectors
• GNSS Antenna: Frequency: 1164-1300/1559-1610 MHz; Polarization: RHCP; Impedance: 50 ohm; LNA Gain: 40±2 dB; Voltage 3-12 VDC; Power consumption < 60mA; LNA V.S.W.R < 2.0; 1x SMA Male connector

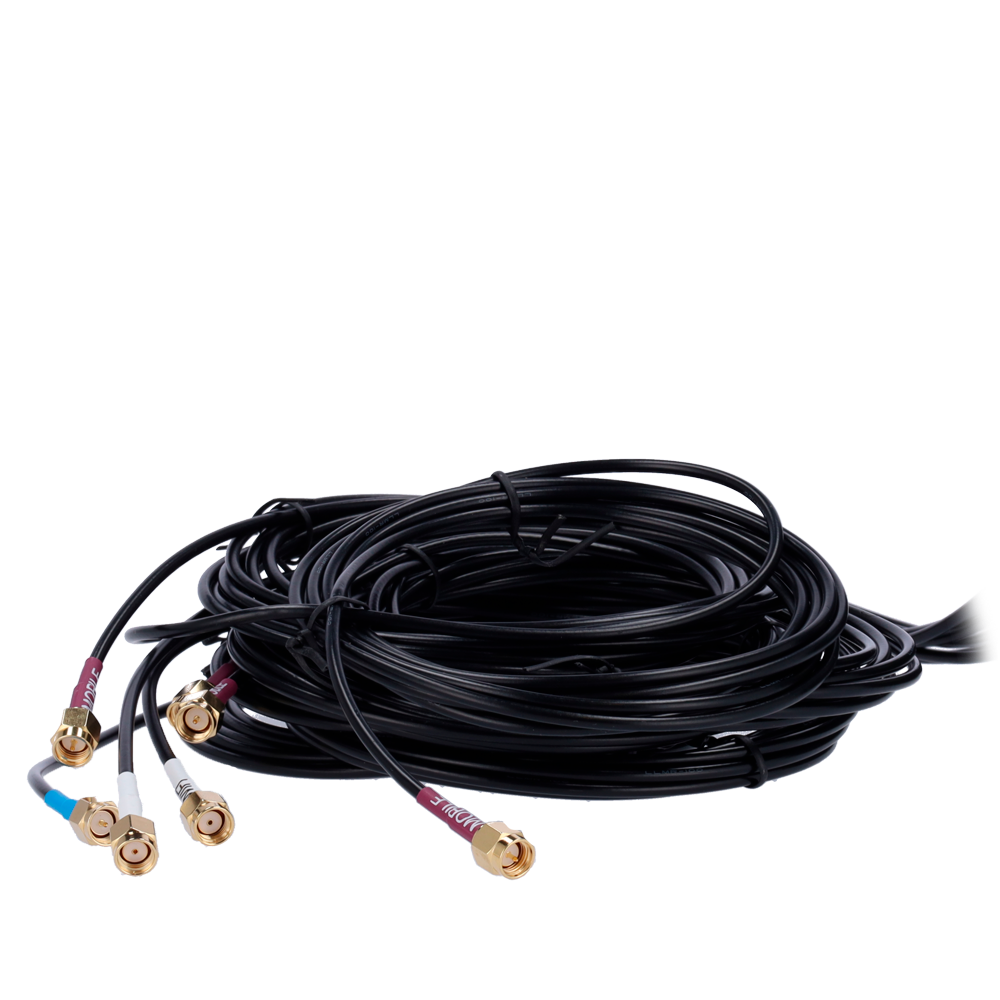

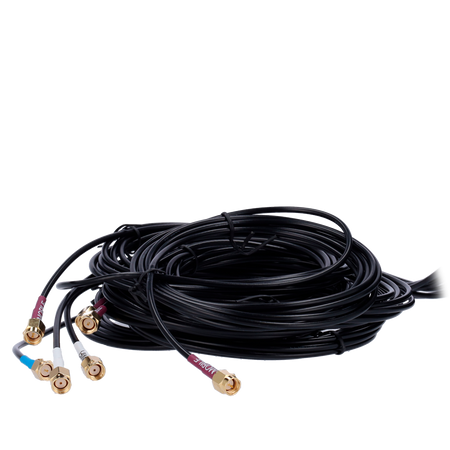

• Cables: 7x LMR100, 3 meters
• Dimensions: 189 x 182 x 85 mm
• Weight: 960 ± 30 g
📦 INCLUDED:
• 5G Combo antenna
| Mounting | Roof mount (screw-on) |
|---|---|
| LTE Antennas | Frequency Range: 617-960/1710-2690/2900-4200 MHz Polarization: Linear Gain: 4dBi V.S.W.R < 3.0 Impedance: 50 ohm Connectors: 4x SMA Male |
| Wi-Fi Antennas | Frequency: 2400-2483.5/4900-5925 MHz Polarization: Linear Gain: 4dBi V.S.W.R < 2.5 Impedance: 50 ohm Connectors: 2x RP-SMA Male |
| GNSS Antenna | Frequency: 1164-1300/1559-1610 MHz Polarization: RHCP Impedance: 50 ohm LNA Gain: 40±2 dB Voltage: 3-12 VDC Power consumption: < 60mA LNA V.S.W.R < 2.0 Connector: 1x SMA Male |
| Cables | 7x LMR100, 3 meters |
| Dimensions | 189 x 182 x 85 mm |
| Weight | 960 ± 30 g |
