TELTONIKA

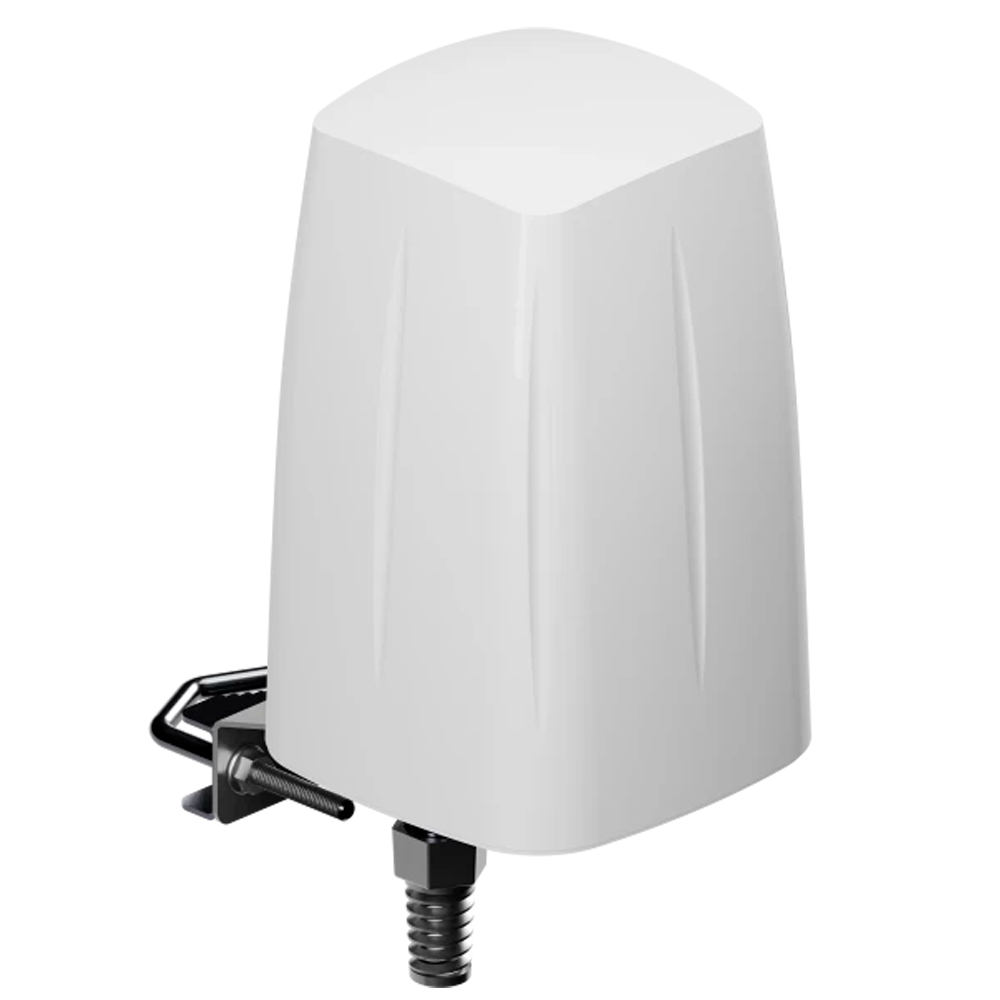

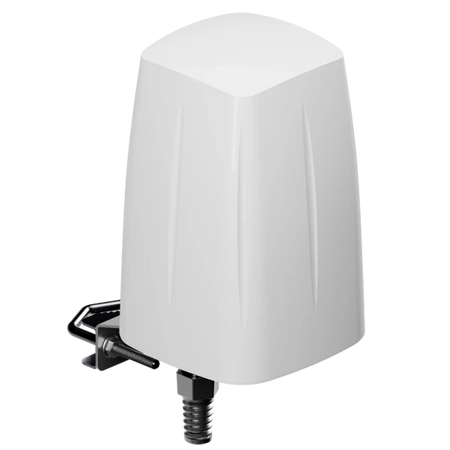

Teltonika Industrial Outdoor Antenna - 5G Combo LTE/Wi-Fi/GNSS

SKU: TK-PR1ICA70
(0)
In stock
Usually shipped within 24 hours
€298,00 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

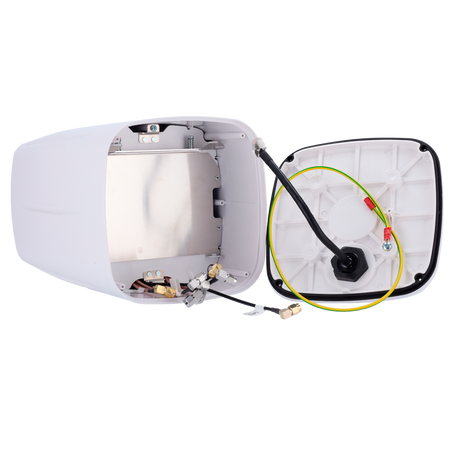

Teltonika industrial outdoor antenna - 5G Combo LTE/Wi-Fi/GNSS - Pole mount - SMA connectors - IP67 outdoor rating - Antenna + mounting housing

📋 SPECIFICATIONS:

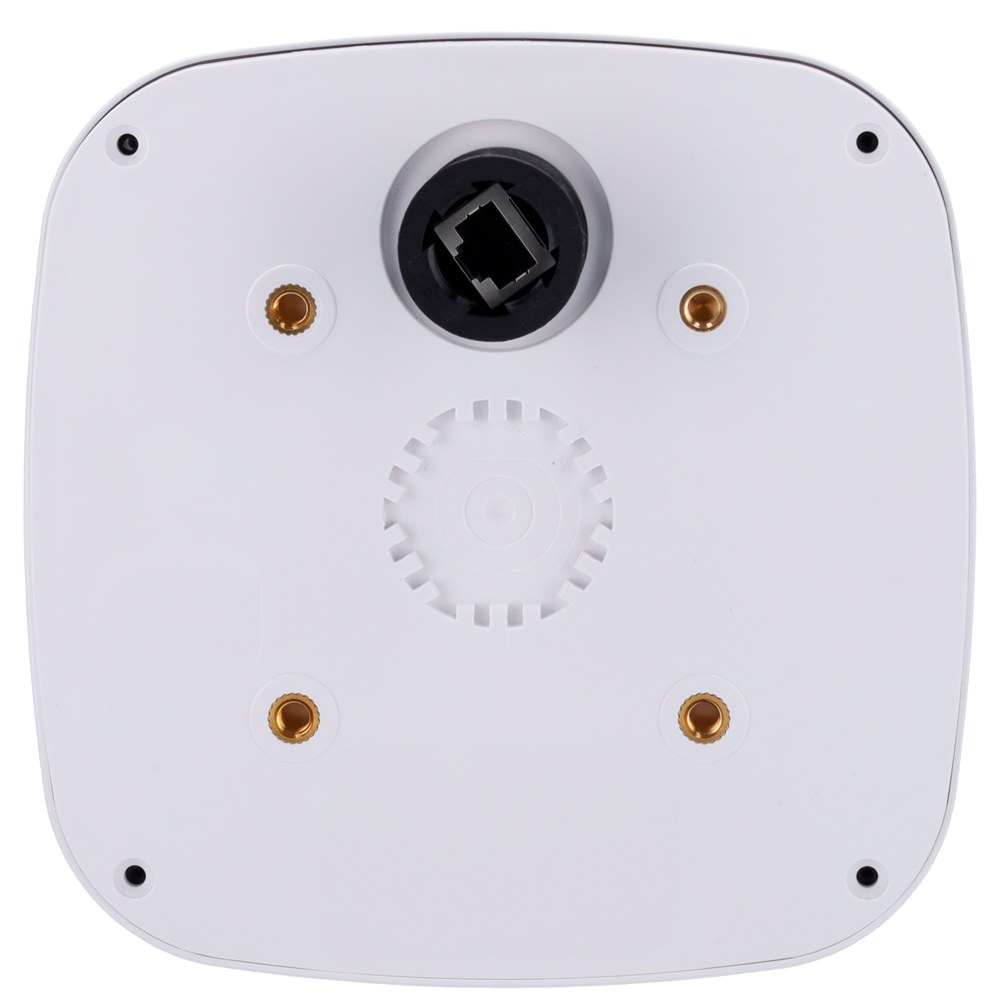

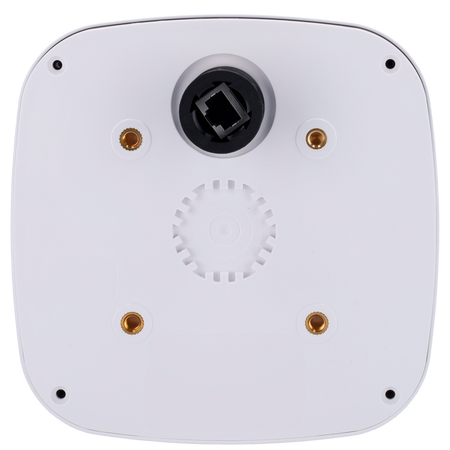

• Mounting: Pole or wall mount (screwed); (Screws not included)
• LTE Antennas: Frequency Range: 617-960/1700-2700/3300-4300 MHz; Polarization: Vertical; Gain: 4.5dBi (Max); V.S.W.R < 2.5; Impedance: 50 ohm; 4x SMA Male connectors
• Wi-Fi Antennas: Frequency: 2400-2500/4700-6000 MHz; Polarization: Vertical; Gain: 7.5dBi; V.S.W.R < 2.0; Impedance: 50 ohm; 2x RP-SMA Male connectors
• GNSS Antenna: Frequency: 1560-1610 MHz; Polarization: RHCP; Gain: 28 dBi; V.S.W.R < 2.0; Impedance: 50 ohm; Voltage 2.5-6.5 VDC; Current consumption 2.5-6.5 mA; 1x SMA Male connector

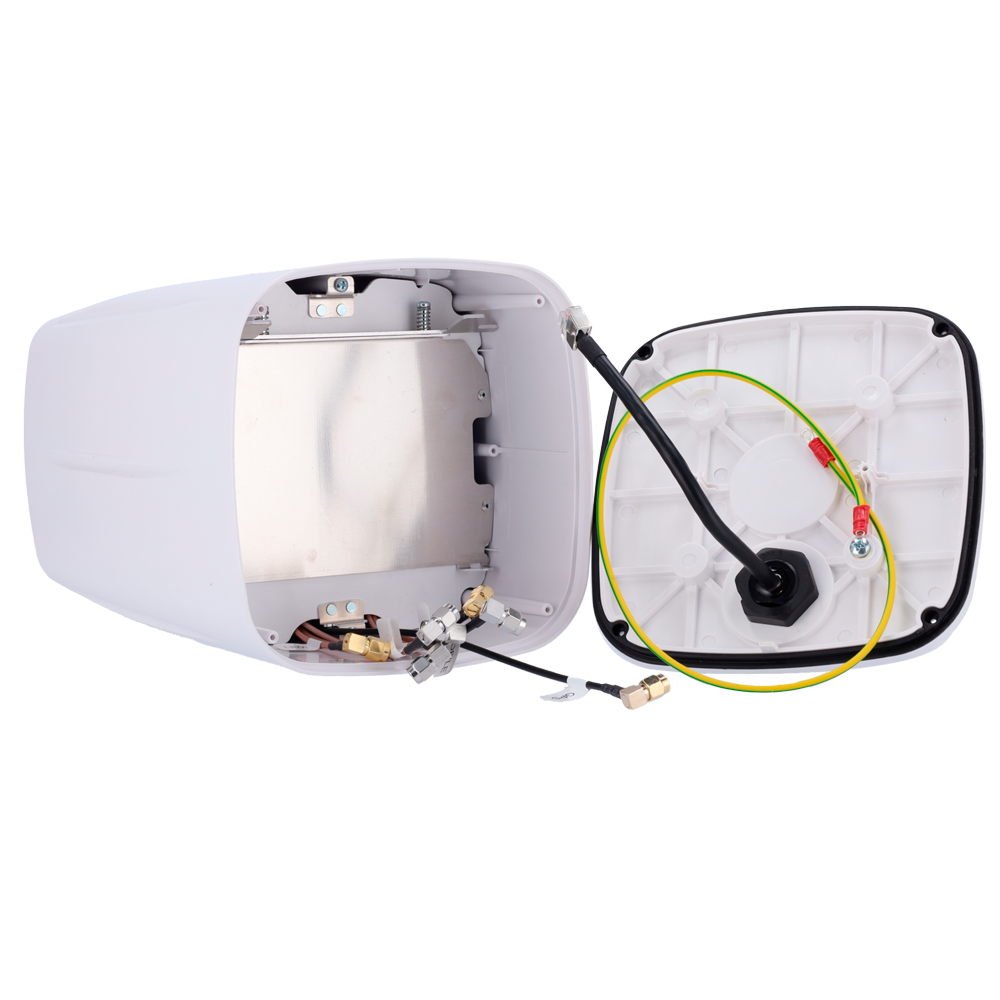

• Cables: 6x RG316; 1x RG174
• Protection rating: IP67
• Dimensions: 160 x 240 x 189 mm
• Operating temperature: -40º C ~ +75º C
• Weight: 1500 g

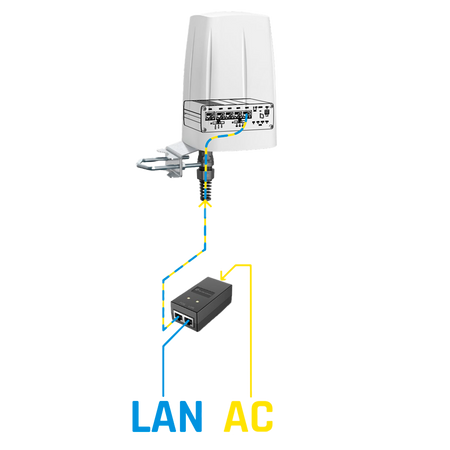

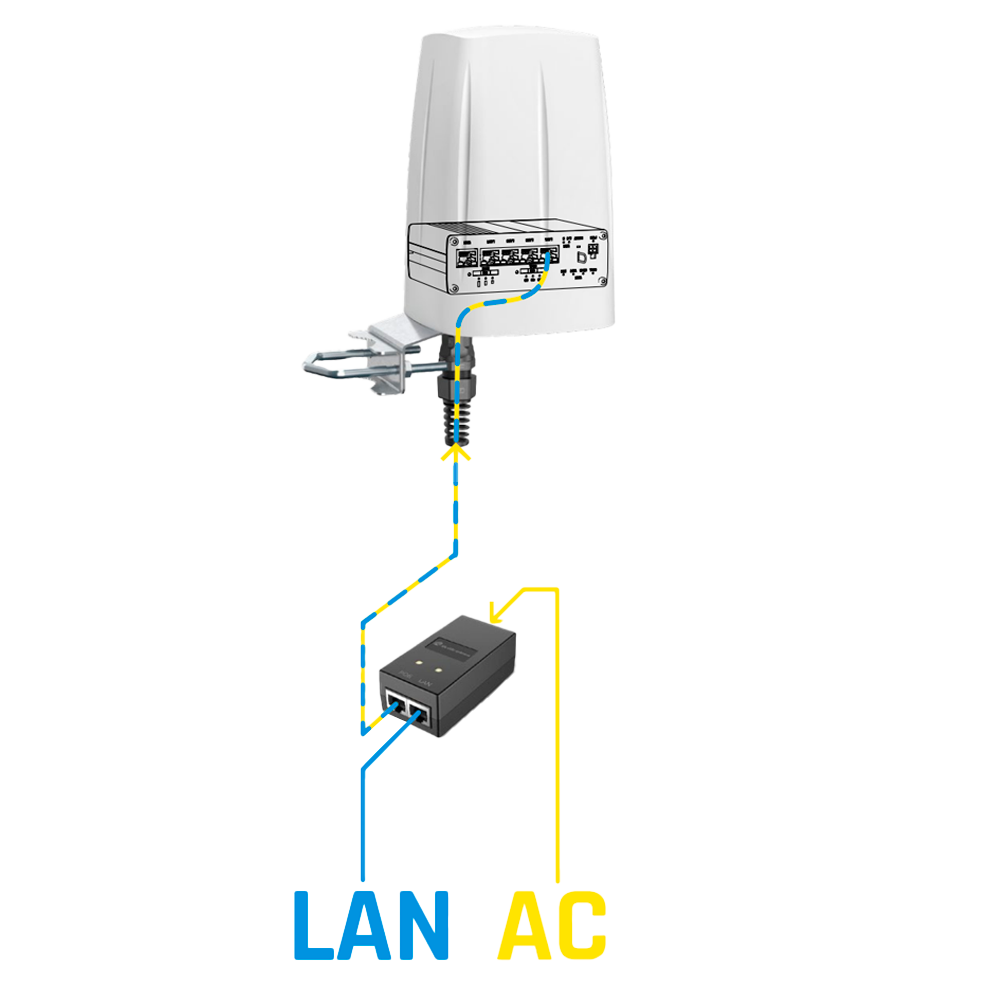

• Power supply: The indoor Teltonika must be powered via passive PoE, through the LAN1 port with at least the TK-PR324EUB adapter (not included)

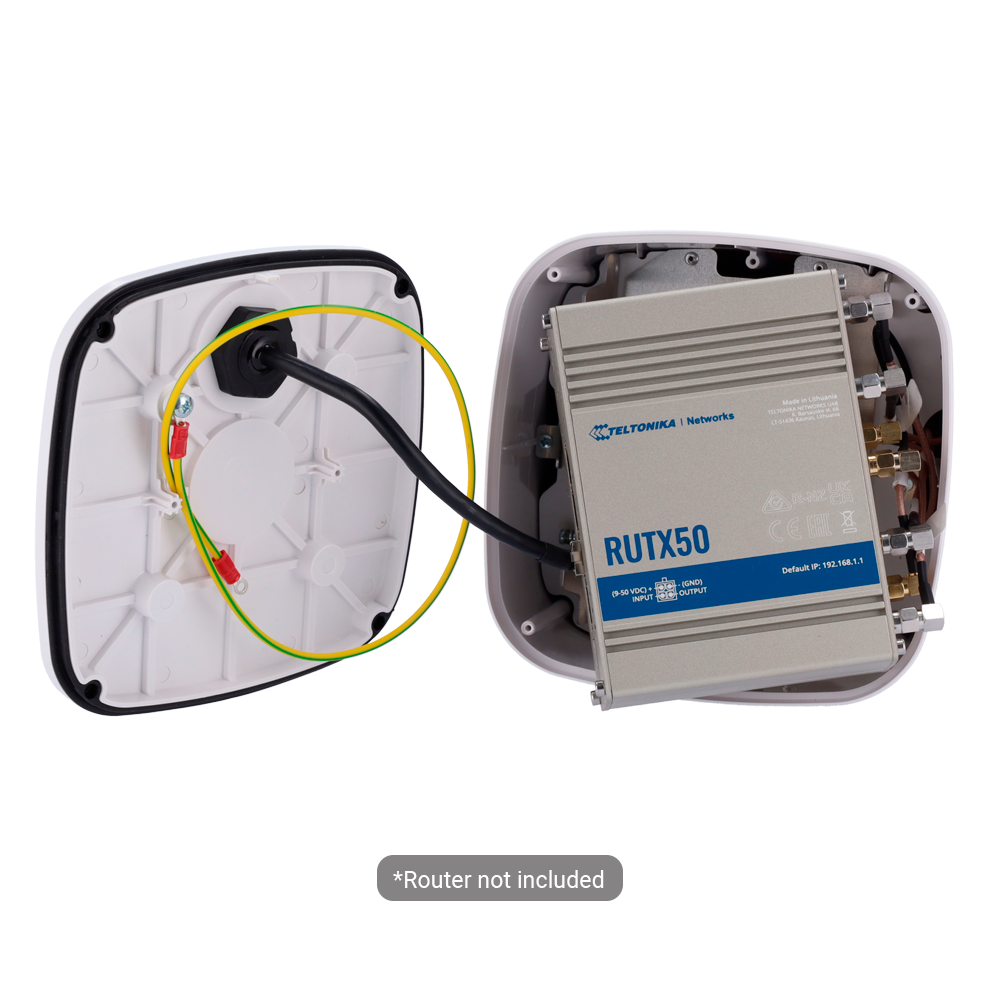

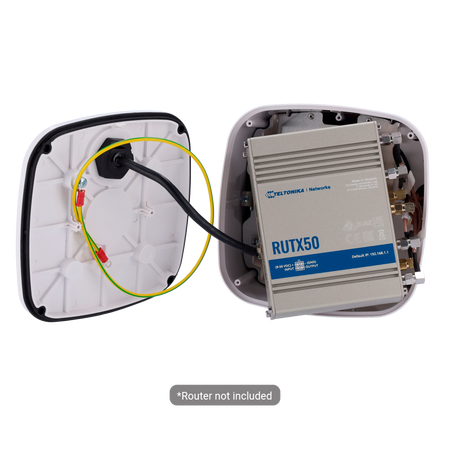

• Compatibility: Compatible with models TK-RUTM50, TK-RUTX50, TK-RUTX12

📦 INCLUDED:
• 5G Combo outdoor antenna
Mounting Pole or wall mounting (screwed) (Screws not included)
LTE Antennas Frequency Range: 617-960/1700-2700/3300-4300 MHz Polarization: Vertical Gain: 4.5dBi (Max) V.S.W.R &lt; 2.5 Impedance: 50 ohm Connectors: 4x SMA Male
Wi-Fi Antennas Frequency: 2400-2500/4700-6000 MHz Polarization: Vertical Gain: 7.5dBi V.S.W.R &lt; 2.0 Impedance: 50 ohm Connectors: 2x RP-SMA Male
GNSS Antenna Frequency: 1560-1610 MHz Polarization: RHCP Gain: 28 dBi V.S.W.R &lt; 2.0 Impedance: 50 ohm Voltage: 2.5-6.5 VDC Current consumption: 2.5-6.5 mA Connector: 1x SMA Male
Cables 6x RG316 1x RG174
Protection rating IP67
Dimensions 160 x 240 x 189 mm
Operating temperature -40º C ~ +75º C
Weight 1500 g
Power supply The indoor Teltonika must be powered via passive PoE, through the LAN1 port with at least the TK-PR324EUB adapter (not included)
Compatibility Compatible with TK-RUTM50, TK-RUTX50, TK-RUTX12 models
