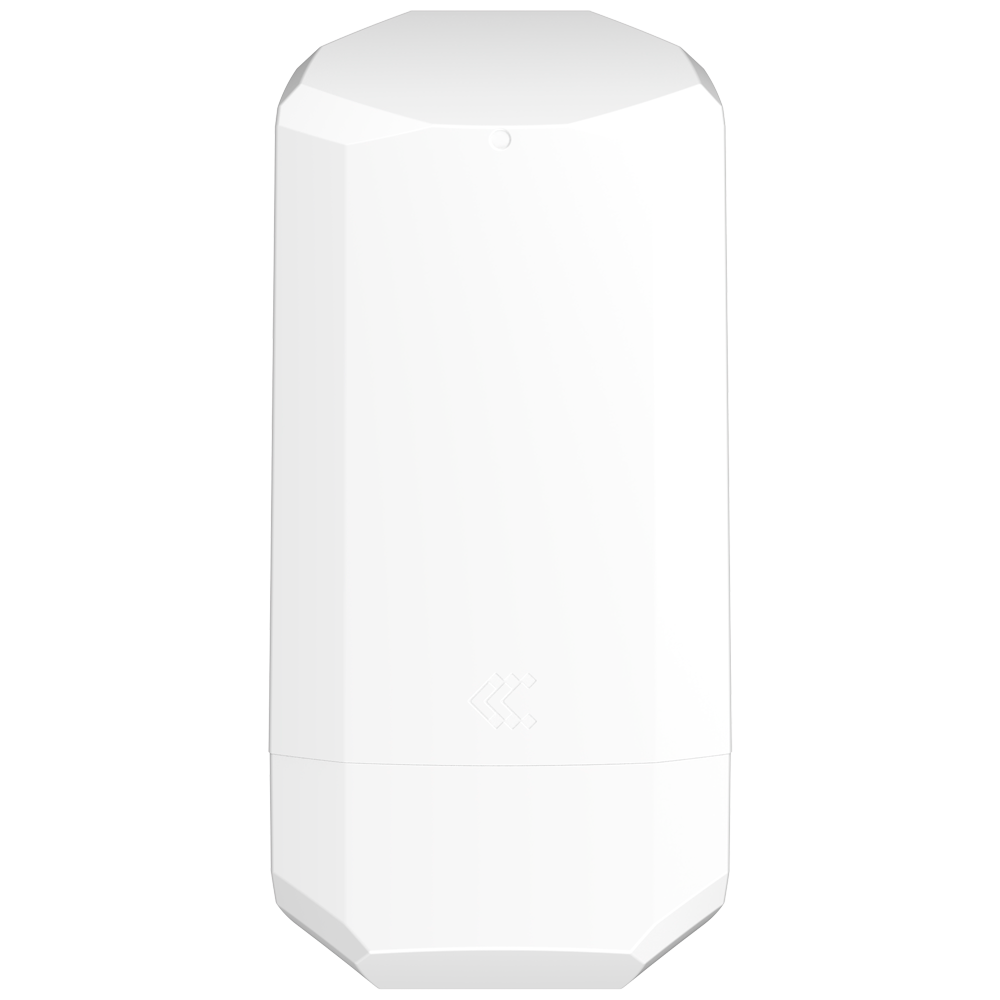

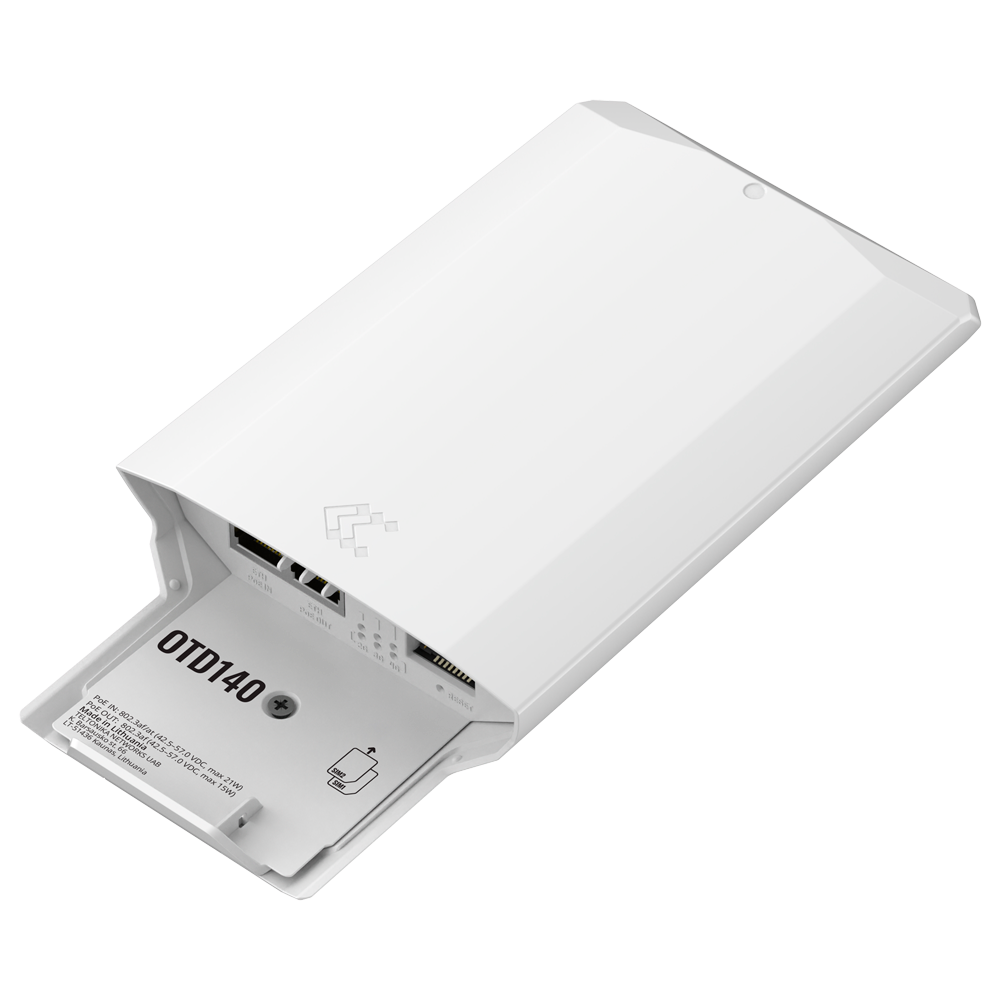

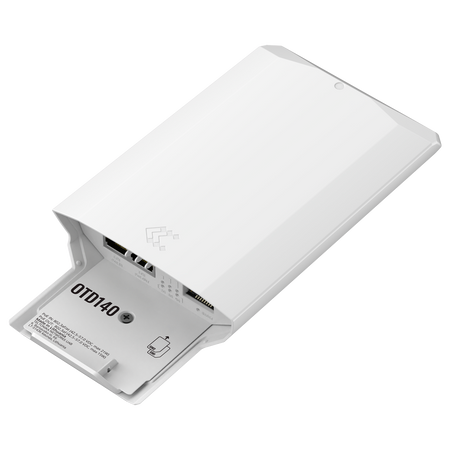

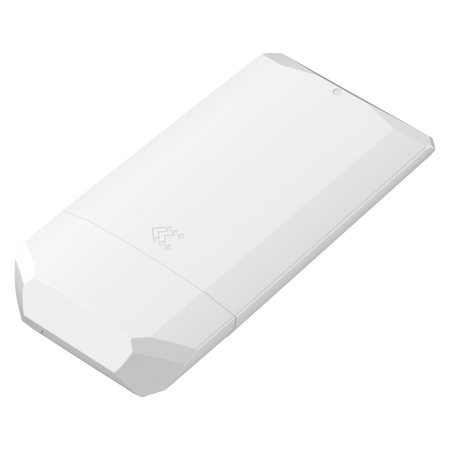

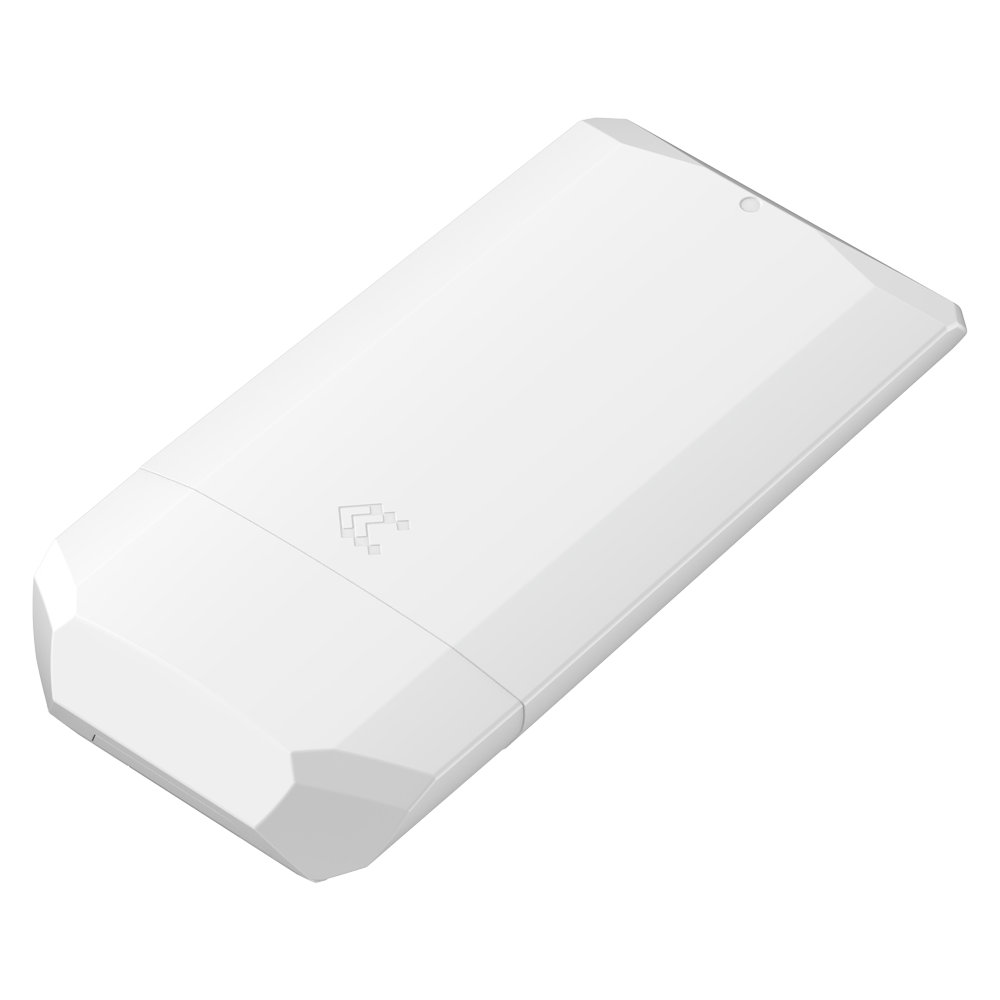

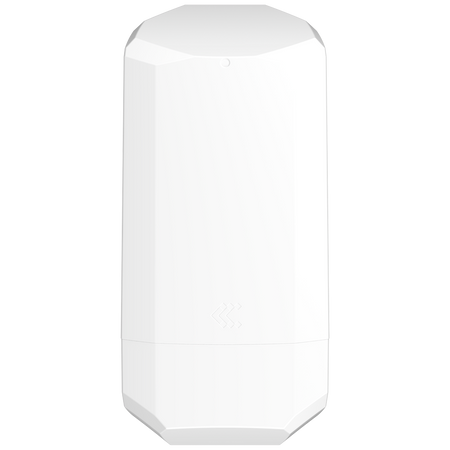

Teltonika IP55 rated outdoor 4G LTE router
Regular price
€236,12
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Outdoor 4G LTE router with IP55 protection - 4G LTE Cat 4 speeds up to 150 Mbps - Integrated PoE-in and PoE-out support - Resilience with dual SIM and automatic failover - Pole or wall installation with included mount - Advanced support for VPN protocols and RutOS
📋 SPECIFICATIONS:
• Brand: Teltonika Networks
• Device Type: Industrial outdoor 4G router
• Mobile communication module: 4G LTE Cat 4 (150 Mbps DL / 50 Mbps UL), 3G, 2G
• 3GPP standard: Release 9

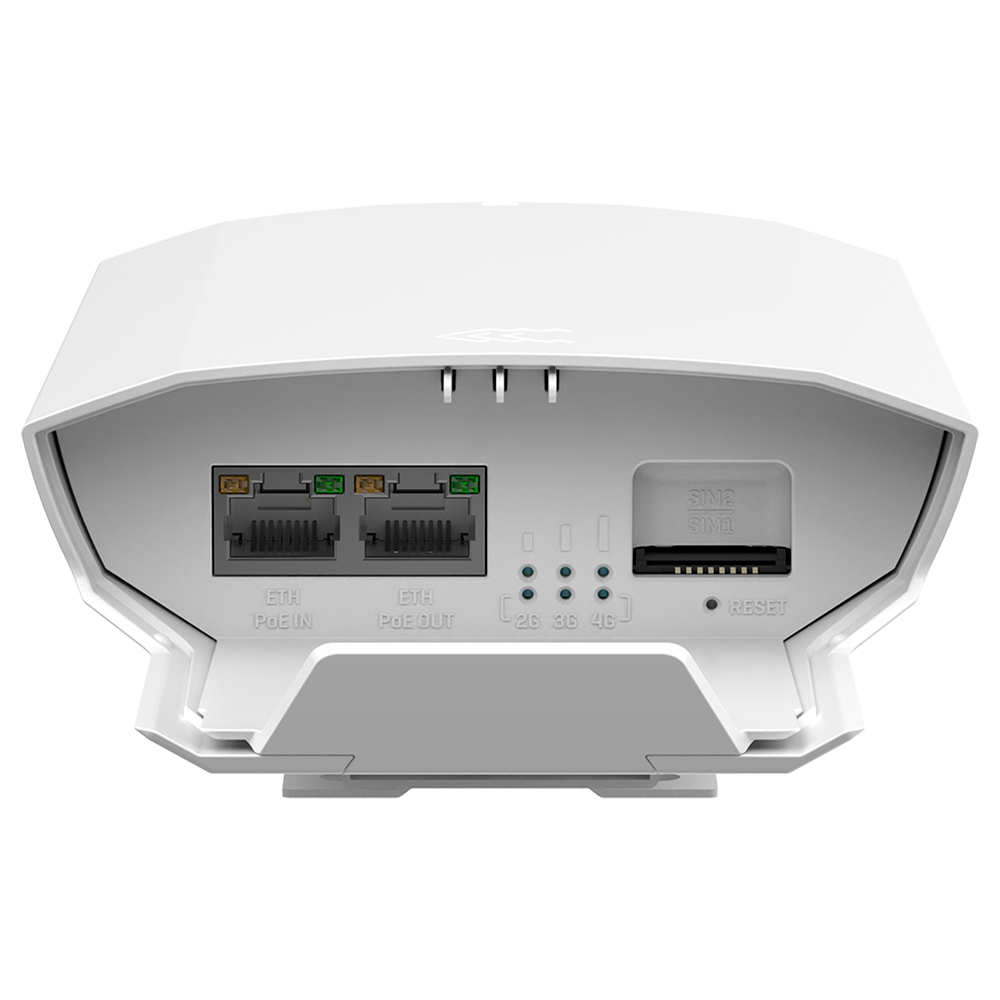

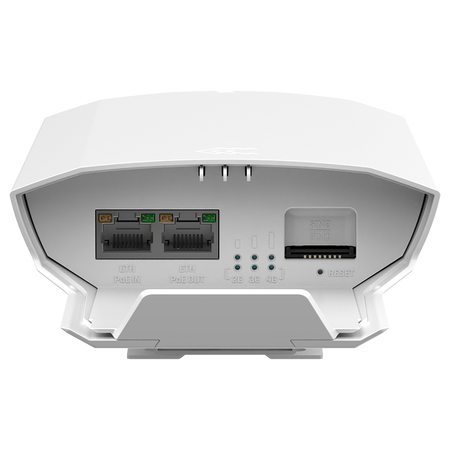

• Ethernet ports: 2 x RJ45 10/100 Mbps (configurable as WAN)
• PoE In: Supported on ETH1 (802.3af/at, 42.5 - 57 VDC)
• PoE Out: Supported on ETH2 (802.3af Alt B, up to 15W)
• SIM slots: 2 x Mini SIM (2FF), 1.8 V/3 V
• Antennas: 2 x Internal (698-960/1710-2690MHz, 4.5 dBi)
• CPU: Mediatek, 580 MHz, MIPS 24KEC
• RAM: 128 MB
• Flash Storage: 16 MB
• OS: RutOS (based on Linux OpenWrt)
• VPN: OpenVPN, IPsec, GRE, PPTP, L2TP, WireGuard, ZeroTier
• Network protocols: TCP, UDP, IPv4, IPv6, HTTP/S, SFTP, FTP, MQTT, SNMP
• IIoT protocols: Modbus TCP (Master/Slave), DNP3, OPC UA, DLMS
• Security: SPI Firewall, DDoS prevention, VLAN, Web filter
• Management: Web UI, CLI, SSH, SMS, TR-069, JSON-RPC, RMS
• Power supply: Via PoE In on RJ45 port
• Power consumption: Standby: 2.5 W / Maximum: 6 W (21 W with PoE Out)
• Housing material: Plastic (PC+ASA)
• Protection: IP55 (Dust-tight and water-jet resistant)
• Operating temperature: -40 °C to +75 °C
• Operating humidity: 10% to 90% (non-condensing)
• Mounting: Included bracket for wall or pole mounting
• Dimensions: 110 x 49.30 x 235 mm
• Weight: 315 g
📦 INCLUDED:
• 1x OTD140 4G router • 1x Mounting bracket (pole and wall) • 1x Quick Start Guide (QSG)
| Device type | Industrial 4G outdoor router |
|---|---|
| Mobile communication module | 4G LTE Cat 4 (150 Mbps DL / 50 Mbps UL), 3G, 2G |
| 3GPP standard | Release 9 |
| Ethernet ports | 2 x RJ45 10/100 Mbps (configurable as WAN) |
| PoE In | Supported on ETH1 (802.3af/at, 42.5 - 57 VDC) |
| PoE Out | Supported on ETH2 (802.3af Alt B, up to 15W) |
| SIM slots | 2 x Mini SIM (2FF), 1.8 V/3 V |
| Antennas | 2 x Internal (698-960/1710-2690MHz, 4.5 dBi) |
| CPU | Mediatek, 580 MHz, MIPS 24KEC |
| RAM | 128 MB |
| Flash Storage | 16 MB |
| OS | RutOS (Linux OpenWrt based) |
| VPN | OpenVPN, IPsec, GRE, PPTP, L2TP, WireGuard, ZeroTier |
| Network protocols | TCP, UDP, IPv4, IPv6, HTTP/S, SFTP, FTP, MQTT, SNMP |
| IIoT protocols | Modbus TCP (Master/Slave), DNP3, OPC UA, DLMS |
| Security | SPI Firewall, DDoS prevention, VLAN, WEB filter |
| Management | Web UI, CLI, SSH, SMS, TR-069, JSON-RPC, RMS |
| Power supply | Via PoE In on RJ45 port |
| Power consumption | Idle: 2.5 W / Max: 6 W (21 W with PoE Out) |
| Housing material | Plastic (PC+ASA) |
| Protection | IP55 (Dust and water jet resistant) |
| Operating temp. | -40 °C to +75 °C |
| Operating humidity | 10% to 90% (non-condensing) |
| Mounting | Bracket included for wall or pole mounting |
| Dimensions | 110 x 49.30 x 235 mm |
| Weight | 315 g |
Same-day shipping if you order before 12:00 PM! In most cases, we rely on couriers with 24-hour service so your order arrives on time.
For orders under €200, the shipping fee is €15.90. For deliveries to remote areas or islands, couriers apply a surcharge to cover transport costs.
The legal warranty lasts 2 years for private individuals (consumers) and 1 year for VAT holders (professionals or companies)
