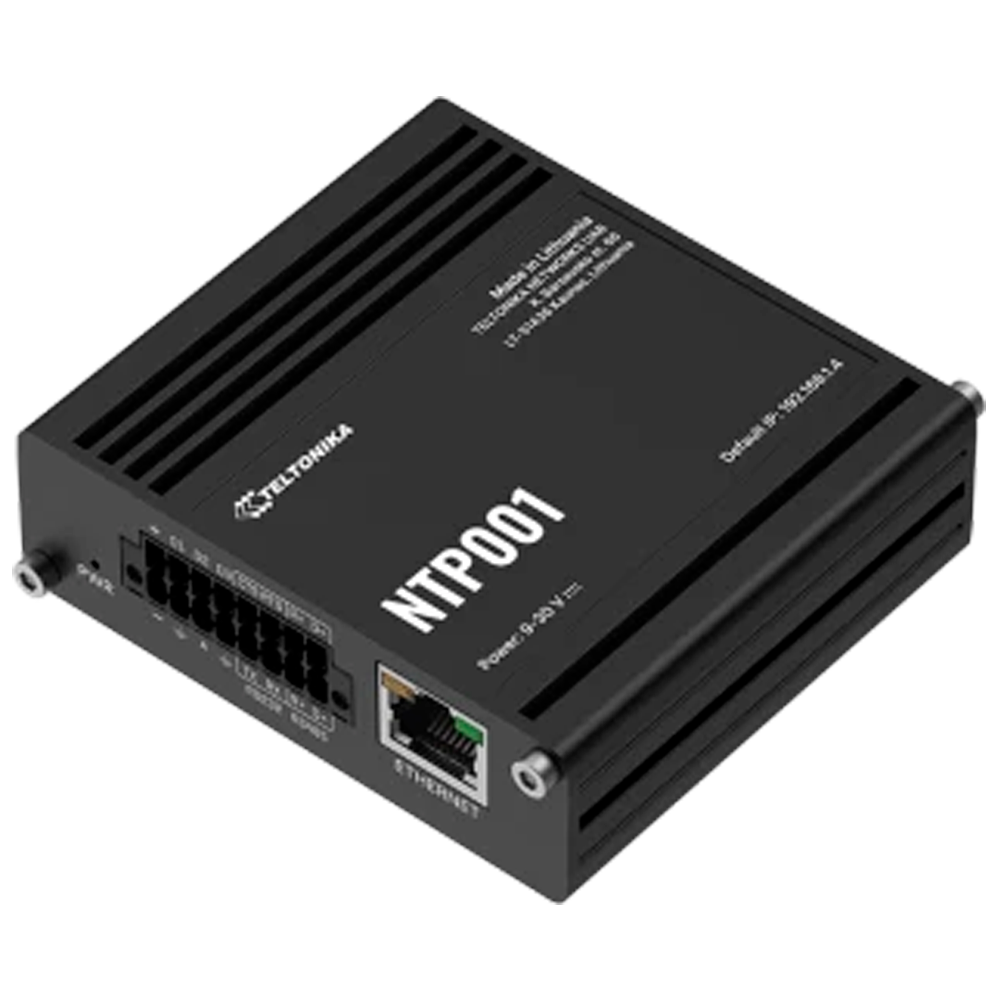

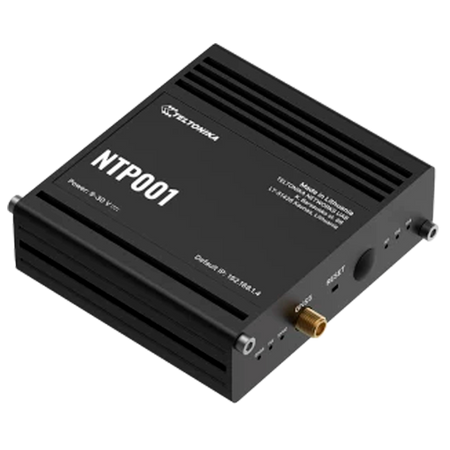

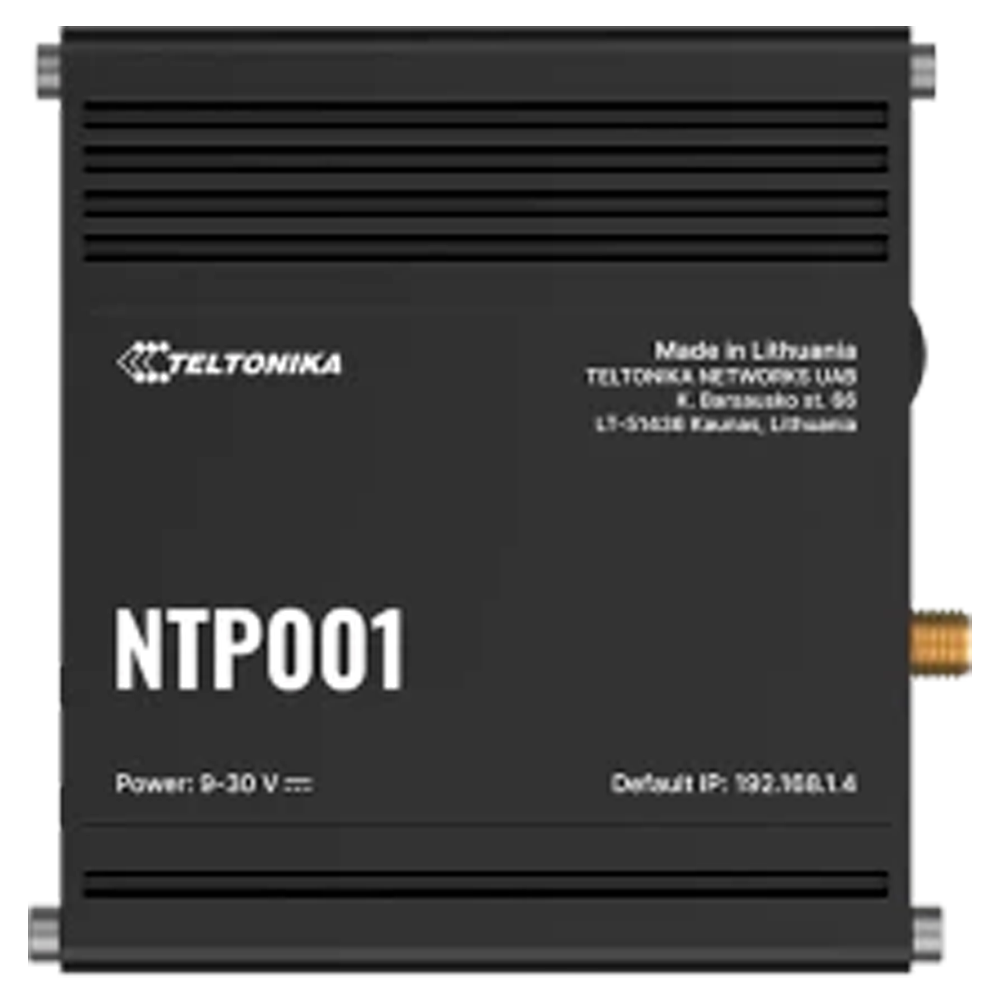

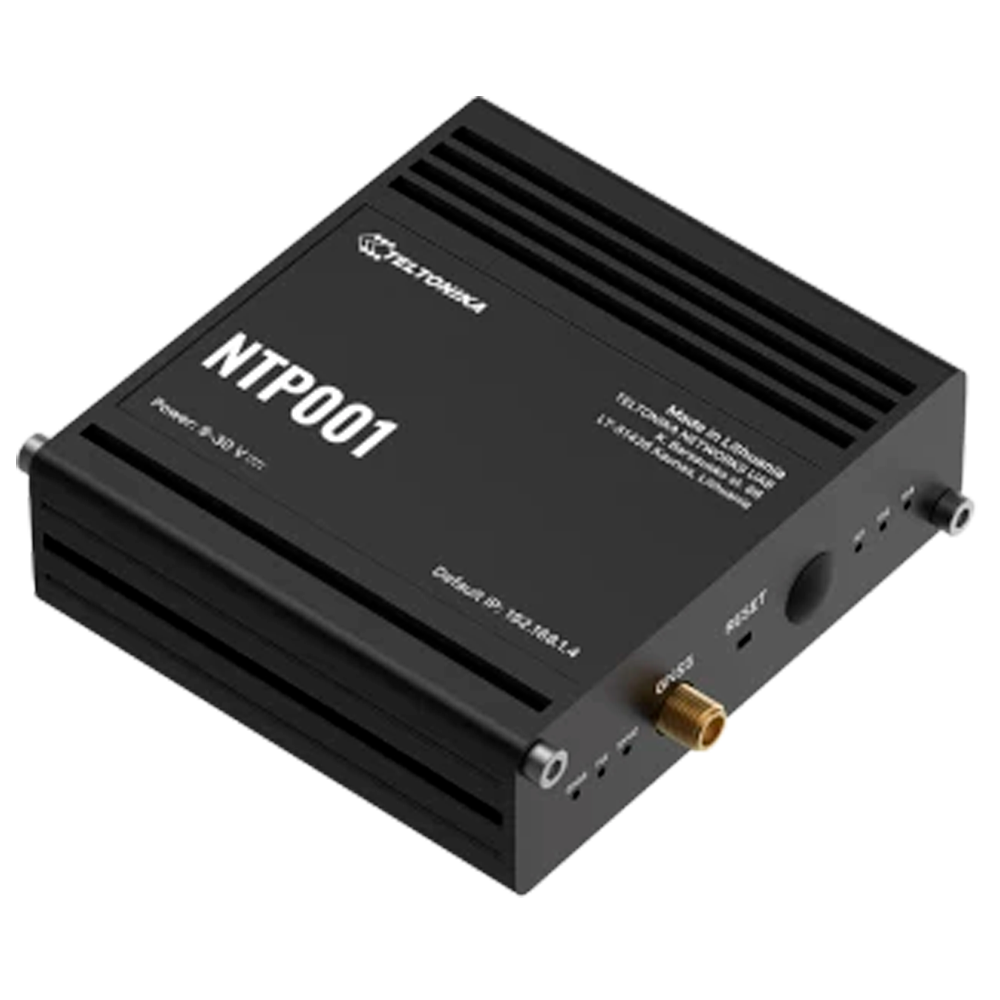

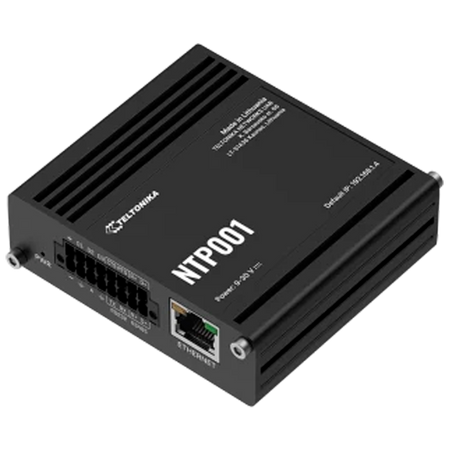

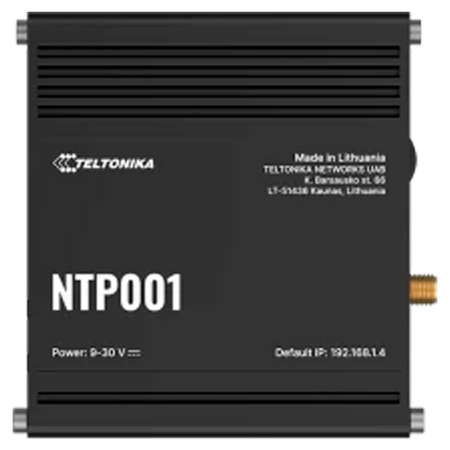

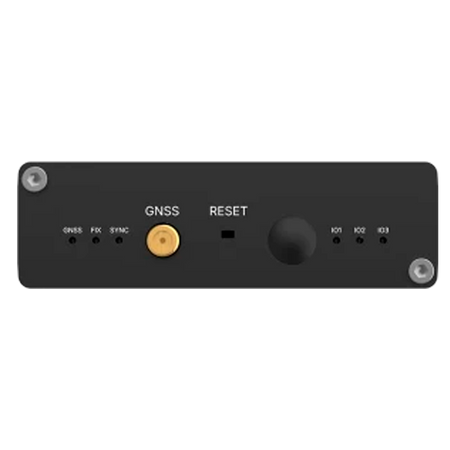

Teltonika Industrial GNSS NTP Synchronization Server
Regular price
€207,06
Final price
Regular price
-14%
€240,00
Sale price
€207,06
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Teltonika Industrial GNSS NTP Synchronization Server - Precise Stratum 1 synchronization via GNSS - NTPv4 protocols and Modbus TCP/RTU support - Advanced security: PSK, X.509 and RADIUS - 1 x 10/100 Ethernet port and serial interfaces - Remote management and OpenWrt-based RutOS
📋 SPECIFICATIONS:
• Brand: Teltonika
• Device type: GNSS NTP Synchronization Server
• Installation: DIN rail, wall or flat surface
• CPU: Mediatek, 580 MHz, MIPS 24KEC
• RAM: 128 MB, DDR2
• Flash: 16 MB, NOR Flash
• Ethernet: 1 x RJ45 10/100 Mbps (auto MDI/MDIX)
• NTP protocol: NTPv4, Stratum 1 Time Server
• NTP accuracy: Ethernet NTP ±1ms global
• NTP performance: >300 requests per second
• GNSS: GPS, GLONASS, Galileo, BDS
• GNSS sensitivity: Acquisition -146 dBm, Tracking -157 dBm
• Serial interfaces: 1 x RS232 + 1 x RS485 (Terminal Block)
• Digital I/O: 3 x Inputs + 3 x Outputs (Open Collector)
• Analog input: 1 x Analog input (Terminal Block)
• Security: Pre-shared key, X.509, TACACS+, RADIUS
• Network protocols: TCP, UDP, IPv4, IPv6, ICMP, DNS, HTTP/S, SSL/TLS, ARP, SSH, DHCP, SNMP, MQTT
• Modbus: Server/Client (RTU and TCP)
• Operating System: RutOS (Linux-based OpenWrt)
• Power supply: 9 - 30 VDC (2-pin connector)
• Power consumption: Idle: < 2 W, Maximum: < 3.5 W
• Power protection: Surge, reverse polarity, overvoltage
• Casing: Anodized aluminum (IP30 protection)
• Operating temperature: -40°C to 75°C
• Operating humidity: 10% to 90% (non-condensing)
• Dimensions: 82.6 x 25 x 83 mm
• Weight: 180 g
• Color: Black
📦 INCLUDED:
• 1x NTP001 GNSS Synchronization Server • 1x 16-pin terminal block • 1x Quick Start Guide (QSG) • 1x Box
| Device type | GNSS NTP synchronization server |
|---|---|
| Installation | DIN rail, wall, or flat surface |
| CPU | Mediatek, 580 MHz, MIPS 24KEC |
| RAM | 128 MB, DDR2 |
| Flash | 16 MB, NOR Flash |
| Ethernet | 1 x RJ45 10/100 Mbps (auto MDI/MDIX) |
| NTP protocol | NTPv4, Stratum 1 Time Server |
| NTP accuracy | Ethernet NTP ±1ms global |
| NTP performance | >300 requests per second |
| GNSS | GPS, GLONASS, Galileo, BDS |
| GNSS sensitivity | Acquisition -146 dBm, Tracking -157 dBm |
| Serial interfaces | 1 x RS232 + 1 x RS485 (Terminal Block) |
| Digital I/O | 3 x Inputs + 3 x Outputs (Open Collector) |
| Analog input | 1 x Analog input (Terminal Block) |
| Security | Pre-shared key, X.509, TACACS+, RADIUS |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, DNS, HTTP/S, SSL/TLS, ARP, SSH, DHCP, SNMP, MQTT |
| Modbus | Server/Client (RTU and TCP) |
| Operating System | RutOS (Linux-based OpenWrt) |
| Power supply | 9 - 30 VDC (2-pin connector) |
| Power consumption | Idle: < 2 W, Maximum: < 3.5 W |
| Power protection | Overvoltage, reverse polarity, surge protection |
| Casing | Anodized aluminum (IP30 protection) |
| Operating temperature | -40°C to 75°C |
| Operating humidity | 10% to 90% (non-condensing) |
| Dimensions | 82.6 x 25 x 83 mm |
| Weight | 180 g |
| Color | Black |
