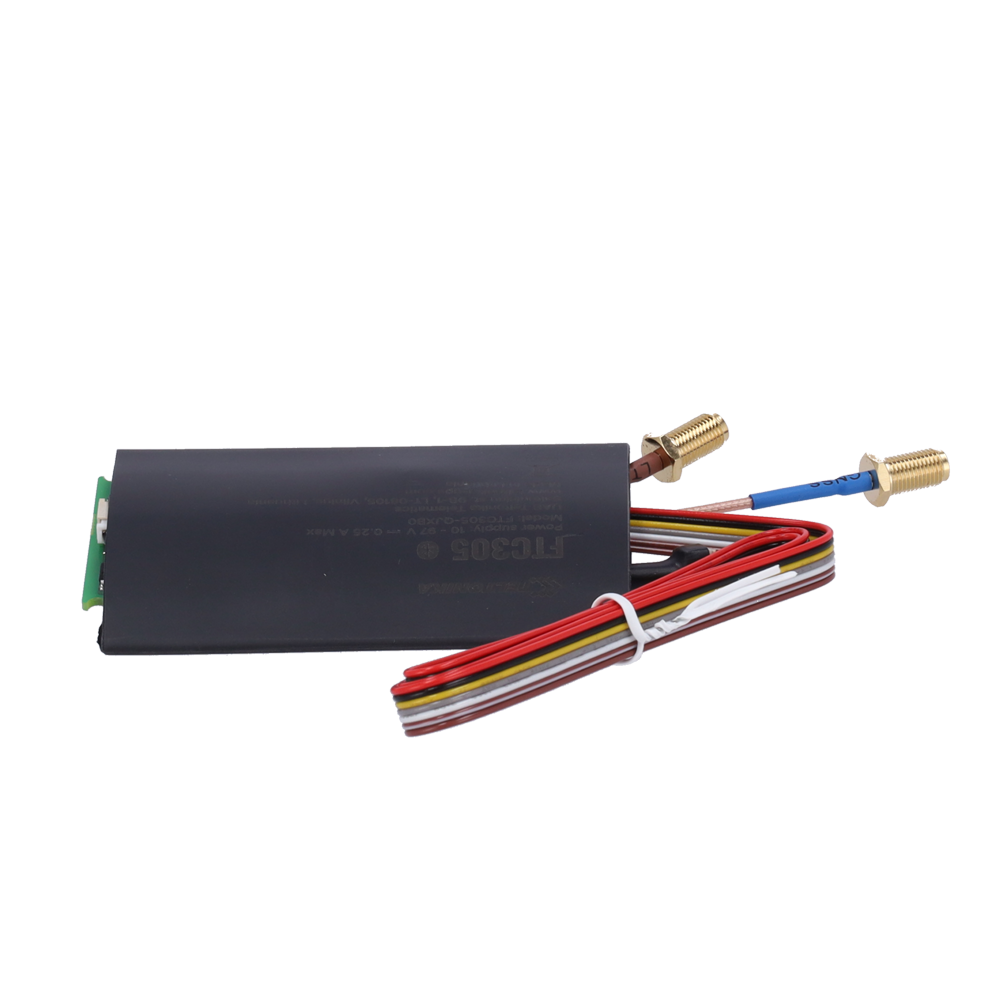

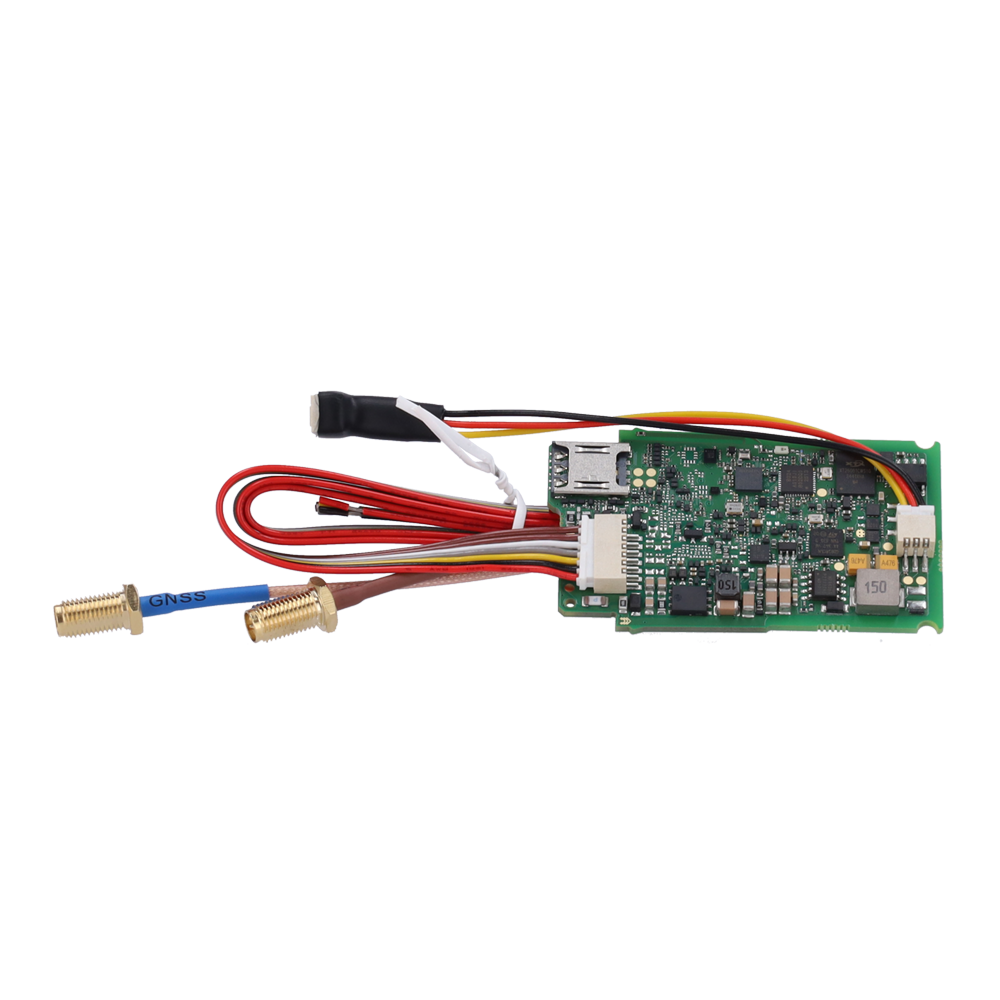

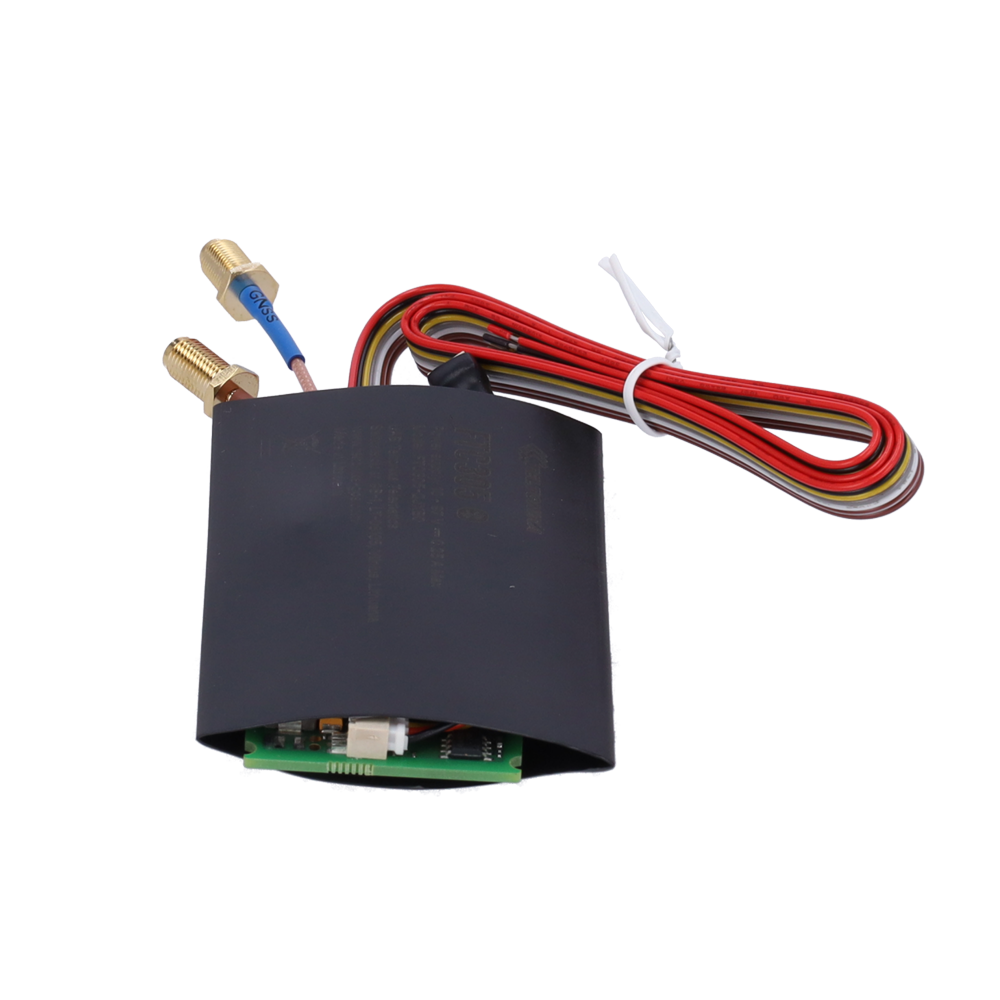

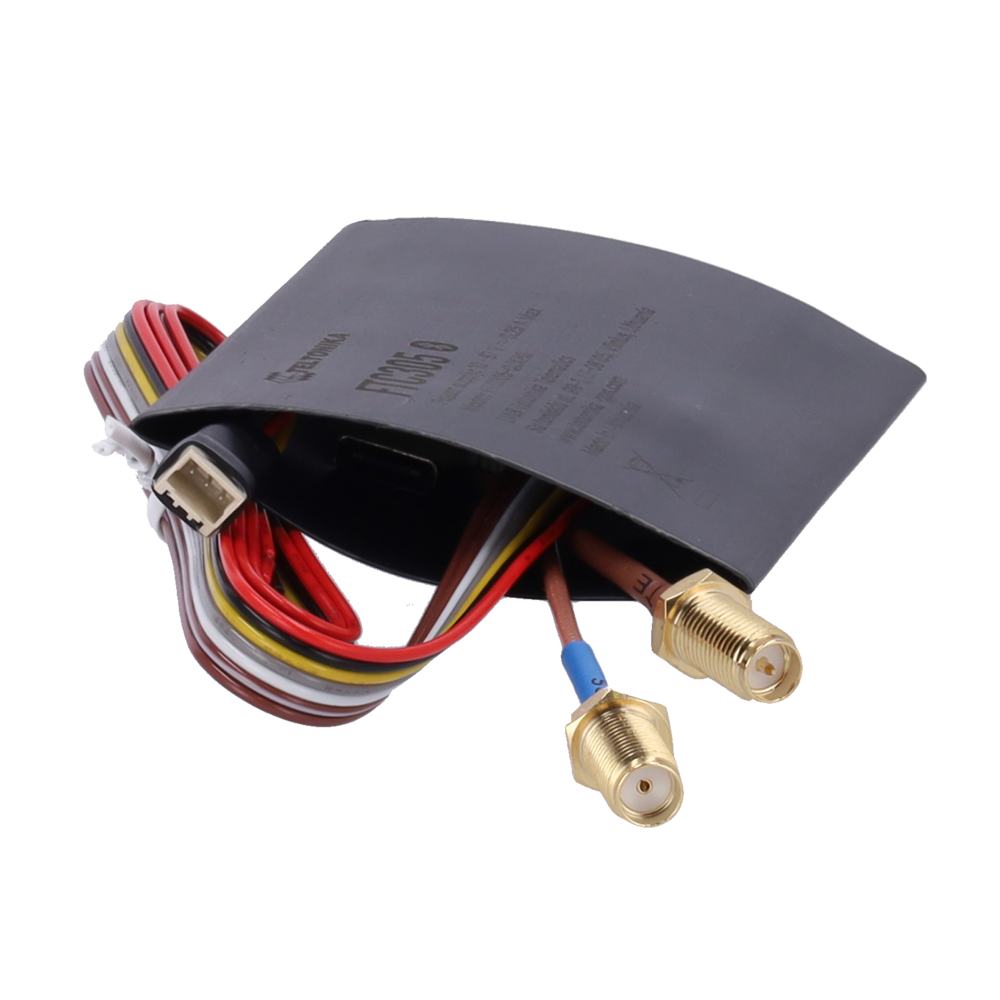

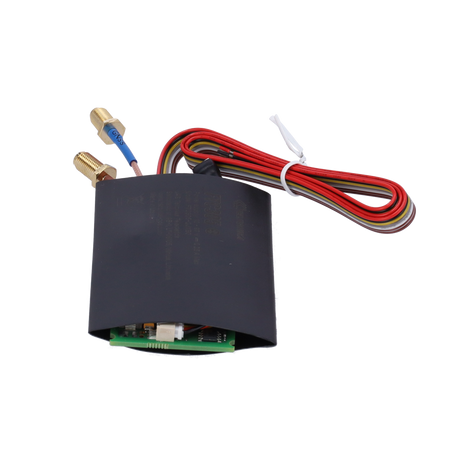

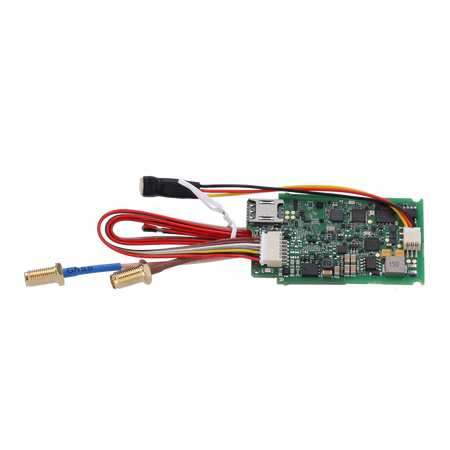

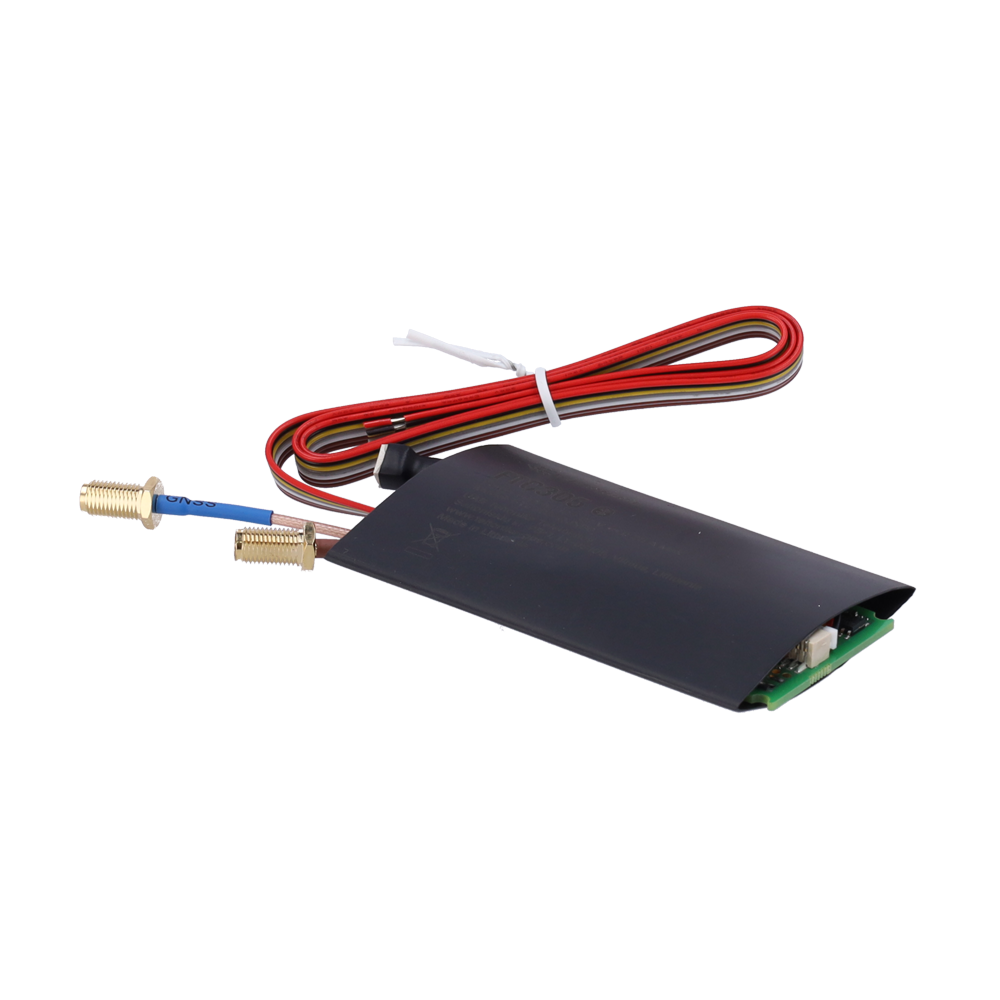

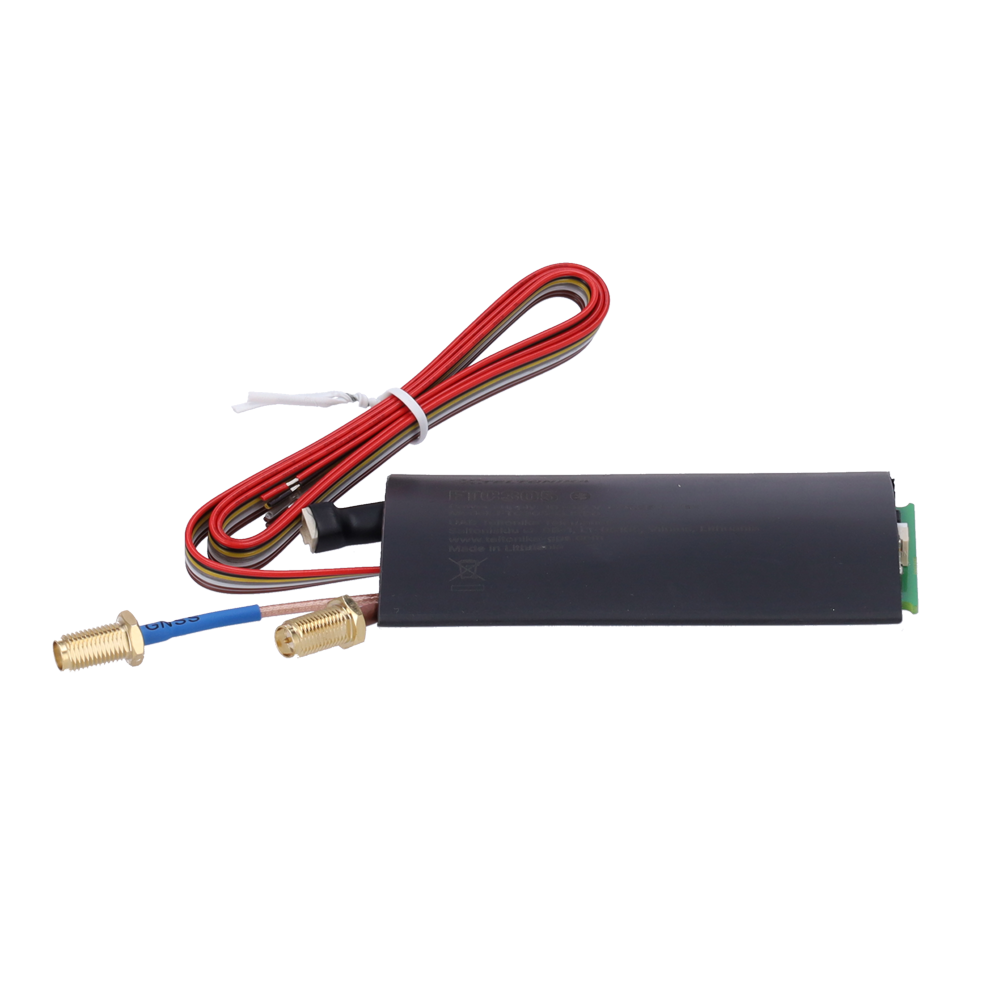

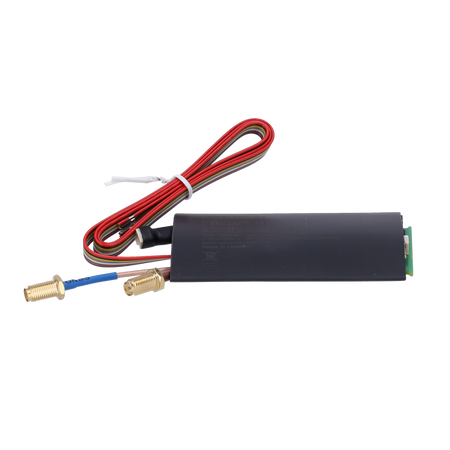

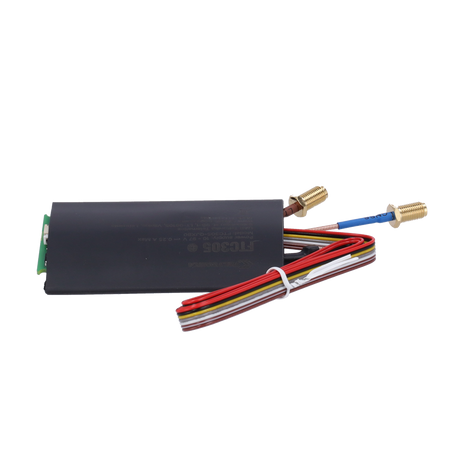

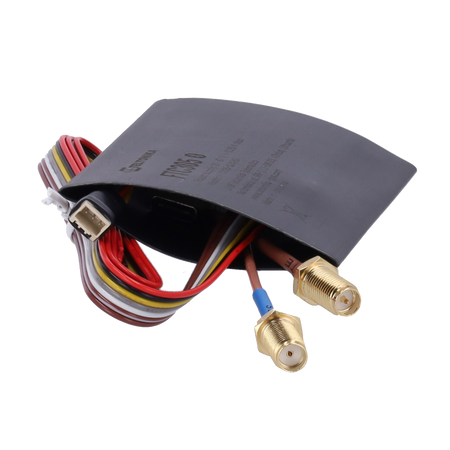

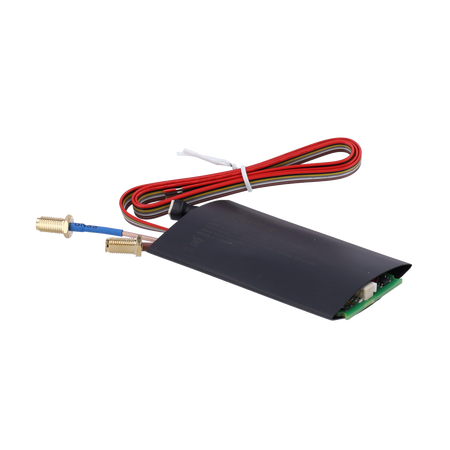

Teltonika 4G LTE Cat1 compact tracker
Couldn't load pickup availability
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Do you have any questions?
Ask an expert!
Compact 4G LTE Cat1 tracker - CAN reading for e-mobility - Compatible with high-voltage transport - IP67 dust and water protection - Industrial design
📋 SPECIFICATIONS:
• Technology: LTE CAT 1/GSM/GPRS/GNSS/BLUETOOTH® LE
• GNSS: GPS, GLONASS, GALILEO, BEIDOU
• Receiver: L1: 75 channels
• Tracker sensitivity: -165 dBM
• Positioning accuracy: < 1.8 m CEP
• Speed accuracy: < 0.1 m/s (with a margin of error of +/- 15%)
• Hot start: < 1 s
• Warm start: < 25 s
• Cellular technology: LTE CAT 1/GSM
• 2G bands: GSM: B2/B3/B5/B8
• 4G bands: B1/B3/B5/B7/B8/B20/B28
• Data transfer: LTE FDD (CAT 1): Max. 10 Mbps (download) / Max. 5 Mbps (upload); GSM (GPRS): Max. 85.6 Kbps (download) / Max. 85.6 Kbps (upload)
• Transmit power: Class 4 for GSM900: 33 dBm ± 2 dB; Class 1 for DCS1800: 30 dBm ± 2 dB; Class 3 for LTE-FDD: 23 dBm ± 2 dB
• Supported data: SMS (TEXT, PDU), Network protocols (TCP, UDP)
• Input voltage: 10 - 97 V DC
• Internal backup battery: Cased version: 380 mAh 3.7 V Li-Ion battery (1.41 Wh)
• Internal fuse: 3 A
• Power consumption: At 12 V < 40 mA (nominal without load); At 12 V < 0.25 A Max. (Full charge/Peak)
• BLE: 5.3
• Dimensions: Cased version: 69 x 41 x 20.9 mm (length x width x height)
• Weight: Cased version: 76.8 g
• Operating temperature: -30 °C to +85 °C
• Storage temperature: -30 °C to +85 °C
• Relative humidity: 65 ± 20% non-condensing
• Protection: Cased version: IP67
• Battery charging temperature: 0 °C to +45 °C
• Battery discharge temperature: -20 °C to +60 °C
• Battery storage temperature: Cased version: -10 °C to +25 °C for 3 months or more
• Digital inputs: x1
• Digital outputs: x2
• CAN Bus: x1
• GNSS antenna: Internal high gain
• Cellular antenna: Internal high gain
• USB: Type C 2.0
• LED indicators: x2 status LEDs
• SIM: Nano-SIM
• Memory: 128 MB internal flash memory
• Supported codec: Extended Codec 8
• Sensors: Accelerometer
• Use cases: Green driving, overspeeding detection, jamming detection, disconnection detection, collision detection, manual CAN data reading, manual CAN commands
• Time synchronization: GNSS, NITZ, NTP
• Ignition detection: Digital input 1, accelerometer, external power voltage
📦 INCLUDED:
• Tracker
| Technology | LTE CAT 1/GSM/GPRS/GNSS/BLUETOOTH® LE |
|---|---|
| GNSS | GPS, GLONASS, GALILEO, BEIDOU |
| Receiver | L1: 75 Channel |
| Tracking sensitivity | -165 dBM |
| Position accuracy | < 1.8 m CEP |
| Velocity accuracy | < 0.1 m/s (with +/- 15% error margin) |
| Hot start | < 1 s |
| Warm start | < 25 s |
| Cellular technology | LTE CAT 1/GSM |
| 2G bands | GSM: B2/B3/B5/B8 |
| 4G bands | B1/B3/B5/B7/B8/B20/B28 |
| Data transfer | LTE FDD (CAT 1): Max. 10 Mbps (downlink) / Max. 5 Mbps (uplink) GSM (GPRS): Max. 85.6 Kbps (downlink) / Max. 85.6 Kbps (uplink) |
| Transmit power | Class 4 for GSM900: 33 dBm ± 2 dB Class 1 for DCS1800: 30 dBm ± 2 dB Class 3 for LTE-FDD: 23 dBm ± 2 dB |
| Supported data | SMS (TEXT, PDU), Network protocols (TCP, UDP) |
| Input voltage | 10 - 97 V DC |
| Internal backup battery | Cased version: 380 mAh 3.7 V Li-ion battery (1.41 Wh) |
| Internal fuse | 3 A |
| Power consumption | At 12 V < 40 mA (nominal without load) At 12 V < 0.25 A Max. (Full charge/Peak) |
| BLE | 5.3 |
| Dimensions | Cased version: 69 x 41 x 20.9 mm (length x width x height) |
| Weight | Cased version: 76.8 g |
| Operating temperature | -30 °C to +85 °C |
| Storage temperature | -30 °C to +85 °C |
| Relative humidity | 65 ± 20% non-condensing |
| Protection | Cased version: IP67 |
| Battery charging temperature | 0 °C to +45 °C |
| Battery discharge temperature | -20 °C to +60 °C |
| Battery storage temperature | Cased version: -10 °C to +25 °C for 3 months or more |
| Digital inputs | x1 |
| Digital outputs | x2 |
| CAN Bus | x1 |
| GNSS antenna | Internal high gain |
| Cellular antenna | Internal high gain |
| USB | Type C 2.0 |
| LED indicators | x2 status LEDs |
| SIM | Nano-SIM |
| Memory | 128 MB internal flash memory |
| Supported codec | Extended Codec 8 |
| Sensors | Accelerometer |
| Use scenarios | Eco driving, overspeeding detection, jamming detection, disconnection detection, collision detection, manual CAN data reading, manual CAN commands |
| Time synchronization | GNSS, NITZ, NTP |
| Ignition detection | Digital Input 1, accelerometer, external power voltage |
