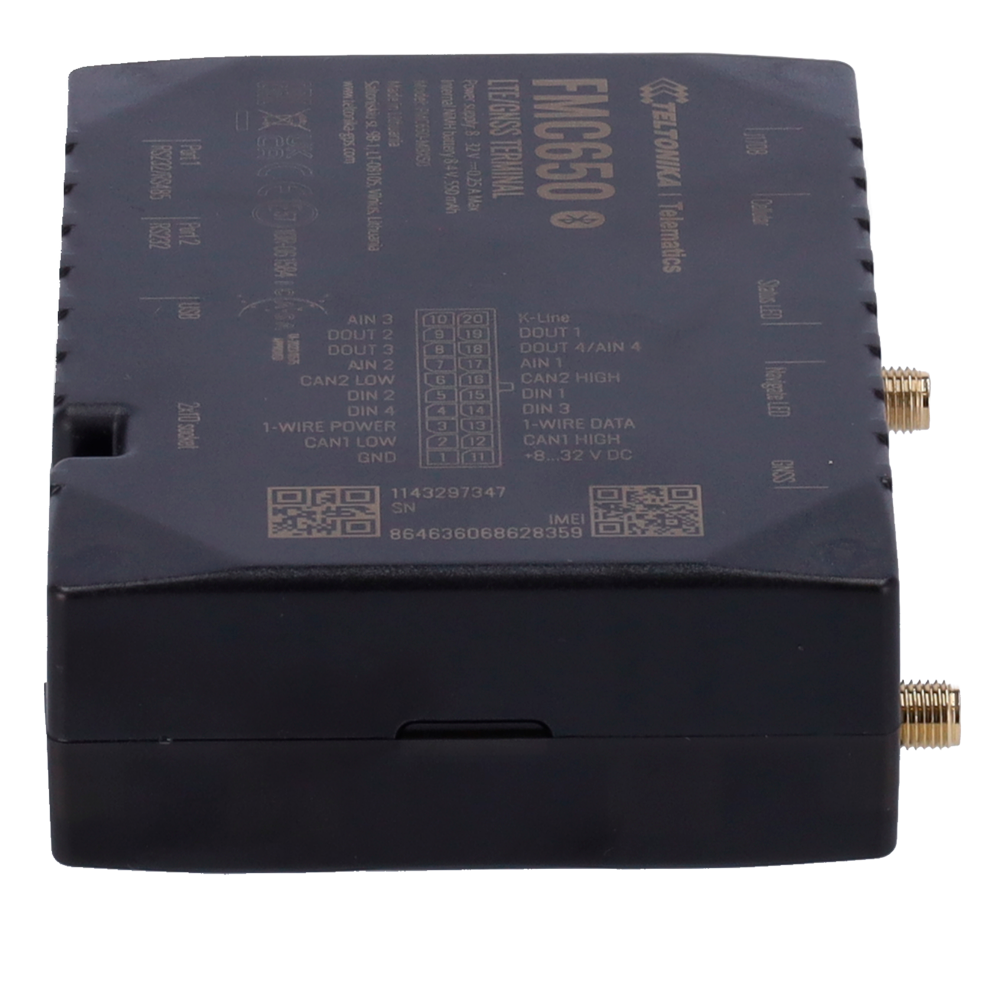

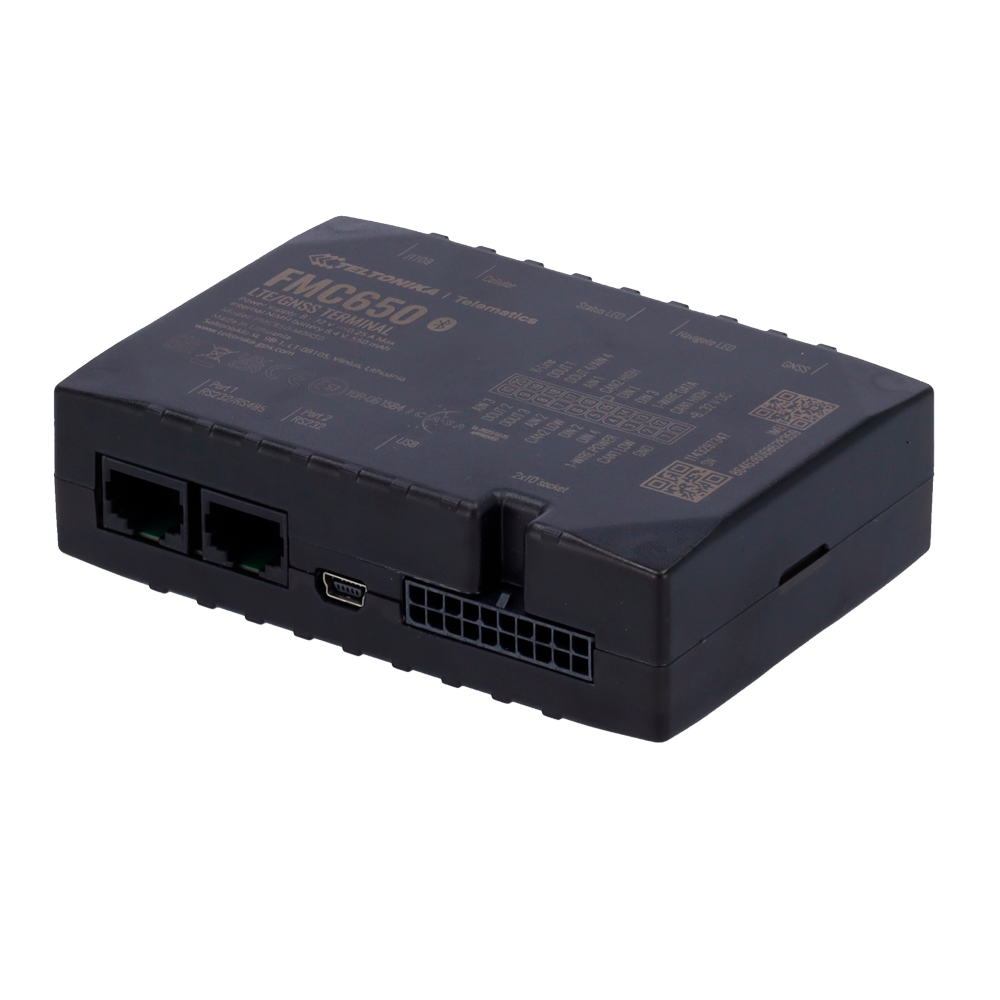

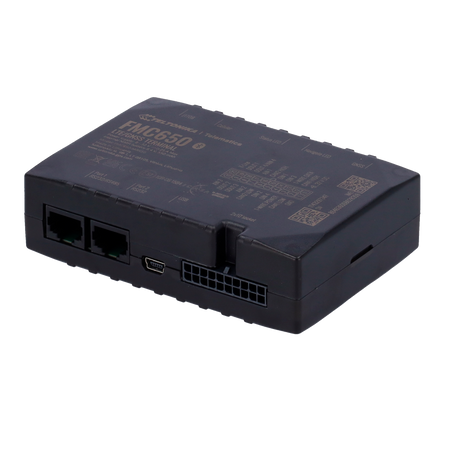

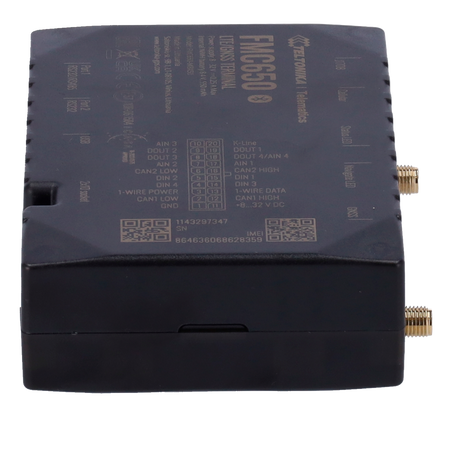

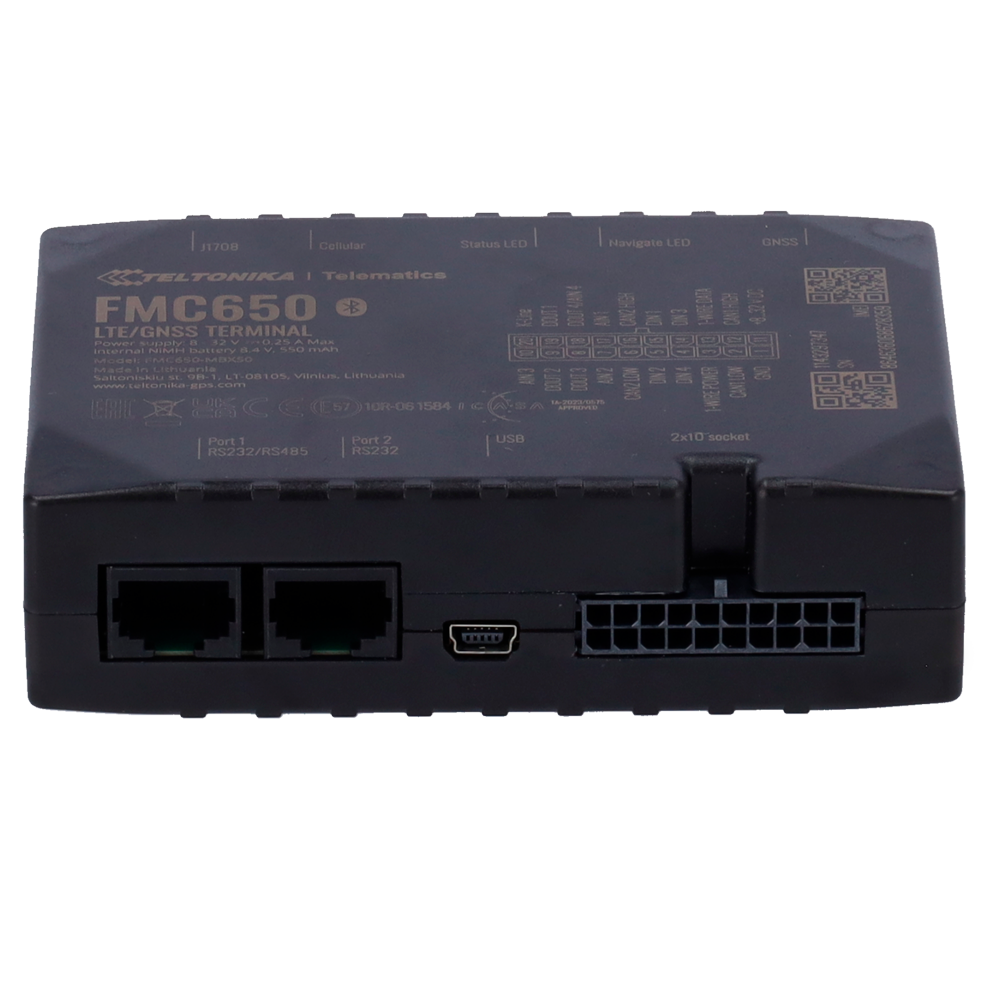

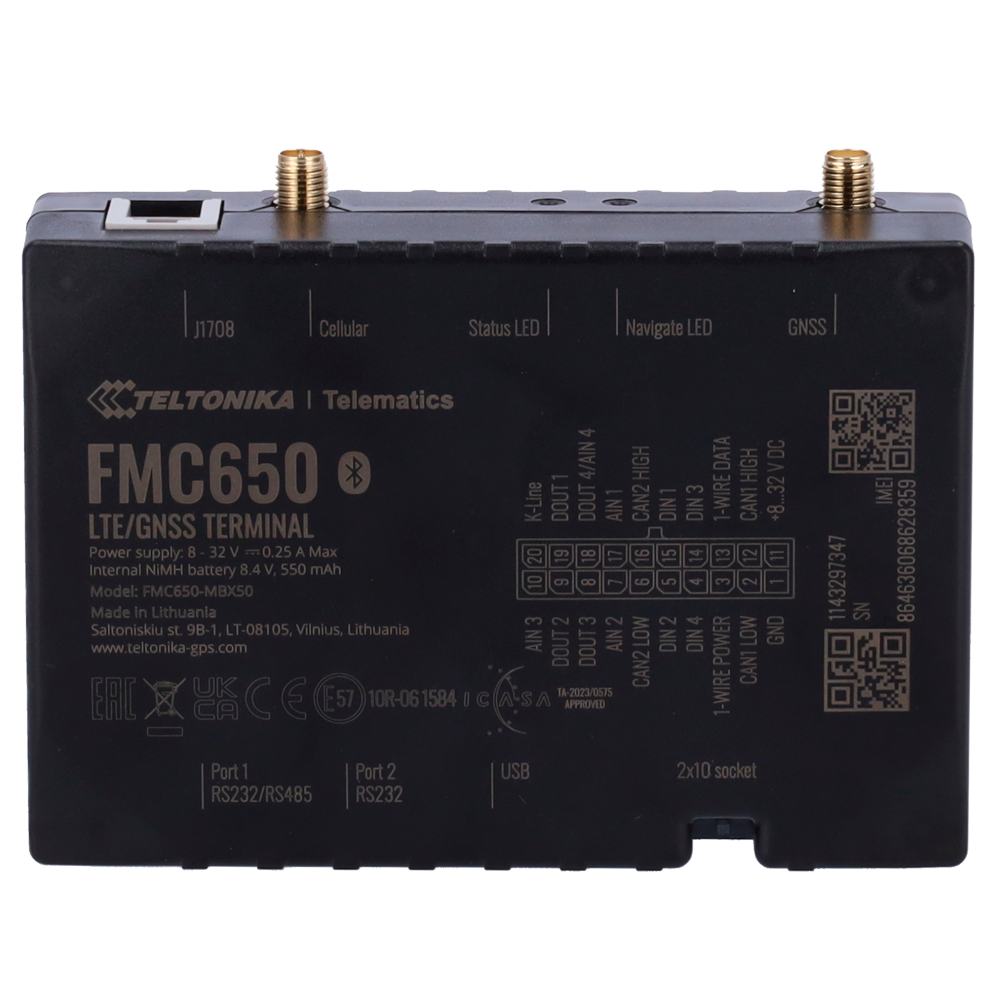

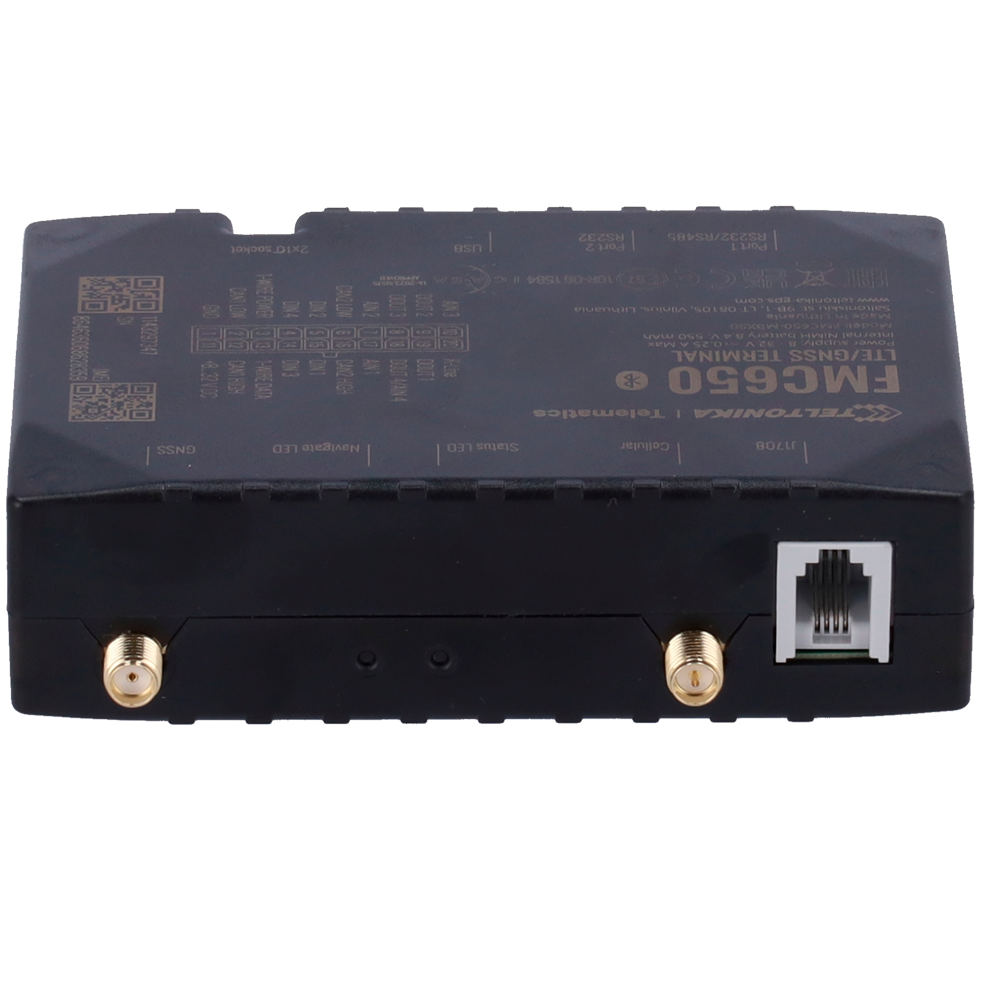

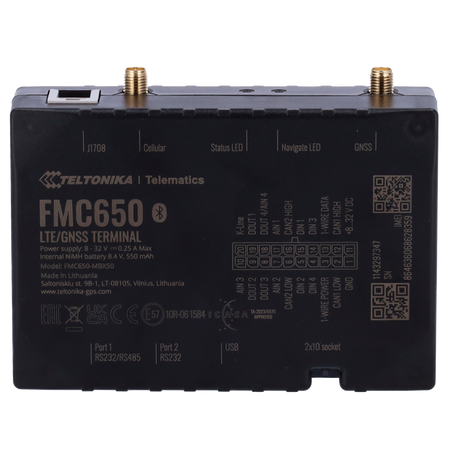

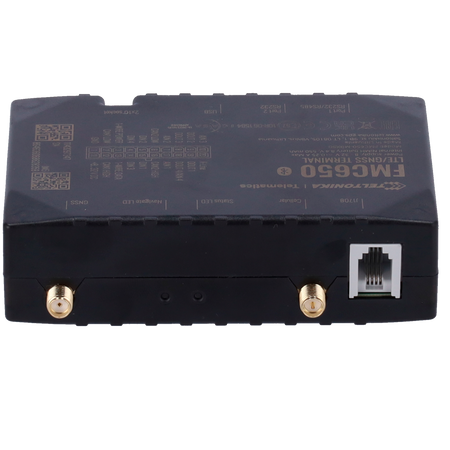

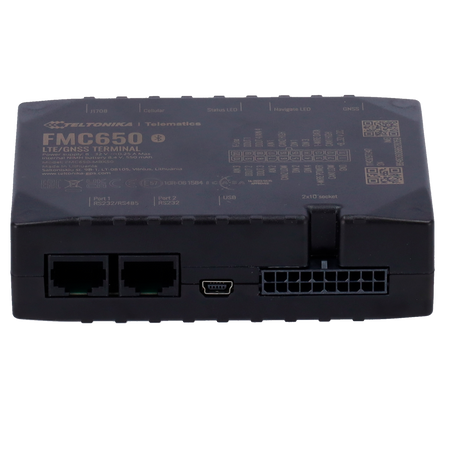

Teltonika Advanced 4G Tracker with 2G backup
Couldn't load pickup availability
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Do you have any questions?
Ask an expert!
Advanced Tracker - 4G connection with 2G fallback - Real-time tachograph reading - CAN reading for heavy vehicles - Multiple inputs - Dual SIM and E-SIM
📋 SPECIFICATIONS:
• Technology: LTE (Cat 1) / 2G (GSM/GPRS)
• GNSS Module: Airoha AG3335MB
• GNSS: GPS, GLONASS, GALILEO, BEIDOU, QZSS
• Receiver: Dual GNSS L1 and L5 receiver
• Tracking sensitivity: -165 dBm
• Position accuracy: < 2.5 CEP
• Hot start: 1 s
• Warm start: < 25 s
• Cold start: < 32 s
• Cellular technology: LTE Cat 1, GSM
• 2G bands: B2/B3/B5/B8
• 4G bands: LTE-FDD: B1/B3/B7/B8/B20/B28; LTE-TDD: B38/B40/B41
• Data transfer: LTE FDD: Max 10Mbps (DL)/Max 5Mbps (UL) LTE TDD: Max 8Mbps (DL)/Max 2Mbps (UL) GPRS: Max 85.6Kbps (DL)/Max 85.6Kbps (UL)
• Supported data: SMS (text/data)
• Input voltage: 8-32 V DC with overvoltage protection (compatible with pulse 5a and 5b) and reverse polarity protection
• Internal backup battery: 550 mAh, 8.4 V Ni-MH battery
• Power consumption at 12V DC: At 12 V < 4 mA (Deep Sleep); At 12 V < 11 mA (Online Deep Sleep); At 12 V < 32 mA (GPS Sleep); At 12 V < 45 mA (nominal no-load); At 12 V < 0.25 A max. (at full load/peak)
• Power consumption at 24V: At 24 V < 2.9 mA (Deep Sleep); At 24 V < 7 mA (Online Deep Sleep); At 24 V < 17 mA (GPS Sleep); At 24 V < 35 mA (nominal no-load)
• BLE module: BlueNRG-232
• BLE type: 5.0 + LE
• Compatible peripherals: Temperature and humidity sensor, compatible with universal Bluetooth® LE sensors
• Dimensions: 104.1 x 76.8 x 31.5 mm
• Weight: 197 g
• Operating temperature: -40 °C to +85 °C - Operation; -40 °C to +85 °C - Storage
• Relative humidity: 5% to 95% non-condensing
• IP rating: IP41
• Battery temperature: -20 °C to +45°C in storage mode
• Interfaces: Digital inputs - x4; Digital outputs - x4; Analog inputs - x4; 1-wire - x1; RS232 - x2; RS485 - x1; CANJ1939 - x2; J1708 - x1; K-line - x1
• Antennas: External high-gain GNSS antenna (L1+L5); External high-gain GSM antenna
• USB: 2.0 Mini-USB: the device can be powered via USB for easy configuration
• LED indicators: x2 status LEDs
• SIM: 2x SIM card (Dual-SIM) or 1x eSIM
• Memory: 16 MB internal flash memory and external Micro SD card up to 32 GB
• Switchable CAN: Compatible with CAN1 and CAN2 lines
• Movement detection: Internal accelerometer
• Scenarios: Eco driving, speeding detection, jamming detection, excessive idling detection, towing detection, crash detection, immobilizer, iButton reading notification
• Features: Auto geofence, manual geofence, trip detection, odometer, DDD data download and online tachograph, offline tracking
• Supported peripherals: Garmin, RFID RS232, RFID 1-Wire, iButton 1-Wire, 1-Wire temperature, LV-CAN200, ALL-CAN300, CAN FMS (J1939, J1708), K-line data, Continental tire pressure sensor, Iridium SBD (Iridium Edge/TSM232), Carrier freezer, log mode, NMEA, TCP ASCII/Binary, temperature and humidity sensor, universal BLE sensor compatibility
• Sleep modes: GPS Sleep, Online Deep Sleep, Deep Sleep
• Configuration and FW update: FOTA Web, FOTA, Teltonika Configurator
• SMS: Configuration, Events, DOUT control, Debug
• GPRS commands: Configuration, DOUT control, debug
• Time synchronization: GNSS, NITZ, NTP
• Fuel monitoring: LLS (analog), Digital LLS (RS232, RS485), LV-CAN200, CAN FMS, ultrasonic level sensor
• Ignition detection: Digital input, accelerometer, external power voltage
• RS485 voltage: -7V to +12V
• Certifications: CE-RED, UKCA, E-mark, RCM, Pulse 5a, SIRIM QAS, ICASA, CITC

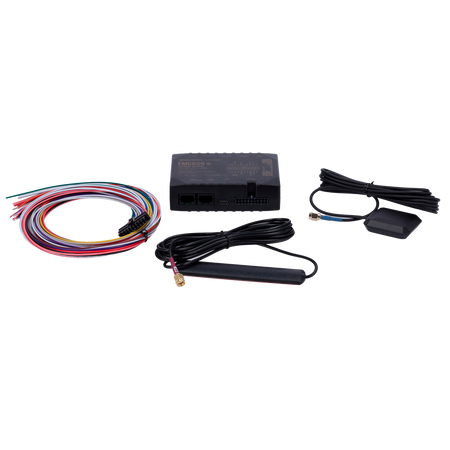

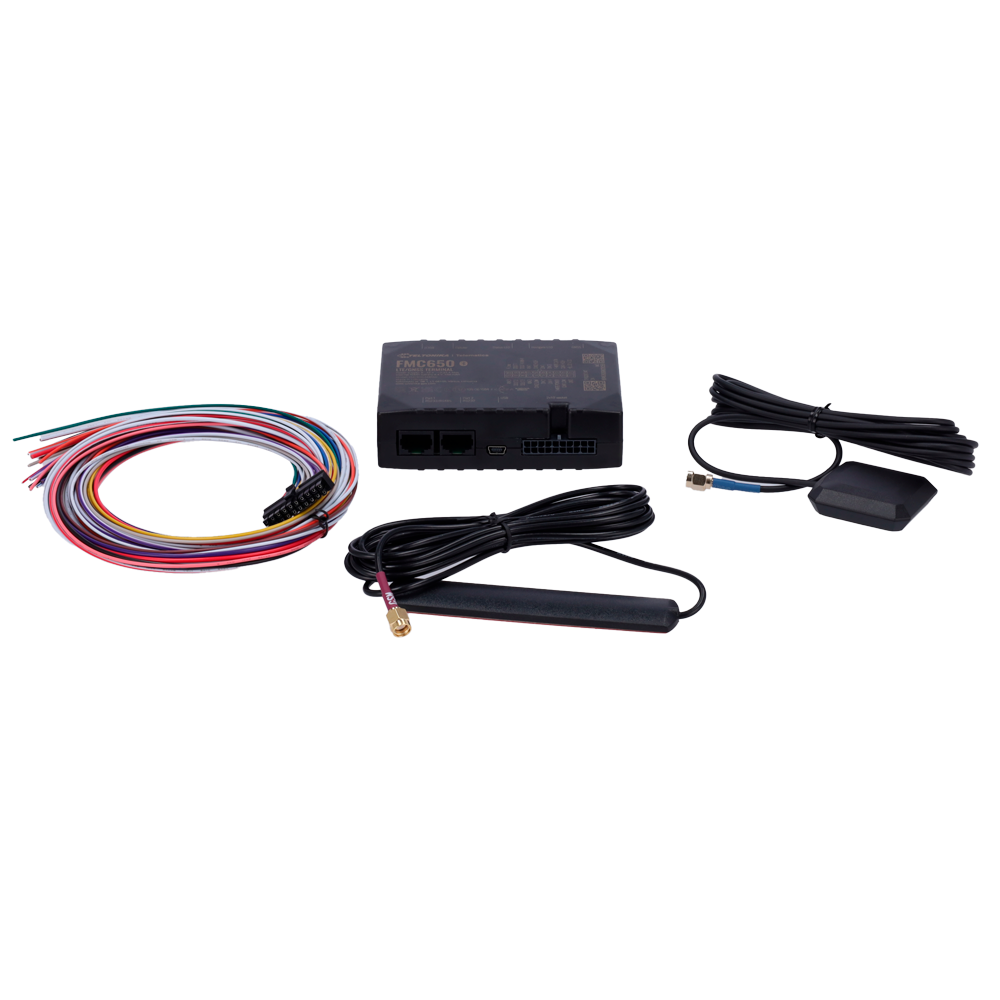

📦 INCLUDED:
• Device• Connection cable
| Technology | LTE(Cat1)/ 2G(GSM/GPRS) |
|---|---|
| GNSS module | Airoha AG3335MB |
| GNSS | GPS, GLONASS, GALILEO, BEIDOU, QZSS |
| Receiver | Dual L1 and L5 GNSS receiver |
| Tracking sensitivity | -165 dBm |
| Position accuracy | < 2.5 CEP |
| Hot start | 1 s |
| Warm start | < 25 s |
| Cold start | < 32 s |
| Cellular technology | LTE Cat 1, GSM |
| 2G bands | B2/B3/B5/B8 |
| 4G bands | LTE-FDD:B1/B3/B7/B8/B20/B28 LTE-TDD:B38/B40/B41 |
| Data transfer | LTE FDD: Max 10Mbps (DL)/Max 5Mbps (UL) LTE TDD Max 8Mbps (DL)/Max 2Mbps (UL) GPRS: Max 85.6Kbps (DL)/Max 85.6Kbps (UL) |
| Data support | SMS (text/data) |
| Input voltage | 8-32 V DC with overvoltage protection (compatible with 5a and 5b pulses) and reverse polarity protection). |
| Internal backup battery | 550 mAh 8.4 V Ni-Mh battery |
| Power consumption at 12V DC | At 12 V < 4 mA (long-term standby) At 12 V < 11 mA (online standby) At 12 V < 32 mA (GPS standby) At 12 V < 45 mA (nominal no load) At 12 V < 0.25 A max. (at full load/peak) |
| Power consumption at 24V | At 24 V < 2.9 mA (long-term standby) At 24 V < 7 mA (online standby) At 24 V < 17 mA (GPS standby) At 24 V < 35 mA (nominal no load) |
| BLE module | Blu NRG232 |
| BLE type | 5.0 + LE |
| Compatible peripherals | Temperature and humidity sensor, compatible with universal BLUETOOTH® LE sensors |
| Dimensions | 104.1 x 76.8 x 31.5 mm |
| Weight | 197 g |
| Operating temperatures | -40 °C to +85 °C - Operating -40 °C to +85 °C - Storage |
| Relative humidity | 5% to 95% non-condensing |
| IP rating | IP41 |
| Battery temperature | -20 °C to +45°C in storage mode |
| Interfaces | Digital inputs - x4 Digital outputs - x4 Analog inputs - x4 1-wire - x1 RS232 - x2 RS485 - x1 CANJ1939 - x2 J1708 - x1 K-line - x1 |
| Antennas | External high-gain GNSS antenna (L1+L5) External high-gain GSM antenna |
| USB | 2.0 Mini-USB: device can be powered via USB for easy configuration |
| LED indicators | x2 status LEDs |
| SIM | 2x SIM card (Dual-SIM) or 1x eSIM |
| Memory | 16 MB internal flash memory and external Micro SD card up to 32 GB |
| Switchable CAN | Compatible with CAN1 and CAN2 lines |
| Motion detection | Internal accelerometer |
| Scenarios | Eco driving, overspeeding detection, jam detection, excessive idling detection, towing detection, crash detection, immobilizer, iButton reading notification |
| Functionality | Auto geofence, manual geofence, trip detection, odometer, DDD data and online tachograph download, offline tracking |
| Supported peripherals | Garmin, RFID RS232, RFID 1-Wire, iButton 1-Wire, 1-Wire temperature, LV-CAN200, ALL-CAN300, CAN FMS (J1939, J1708), K-line data, Continental tire pressure sensor, Iridium SBD (Iridium Edge/TSM232), Carrier freezer, log mode, NMEA, TCP ASCII/Binary, temperature and humidity sensor, universal BLE sensor compatibility |
| Sleep modes | GPS Sleep, Online Deep Sleep, Deep Sleep |
| Configuration and FW update | FOTA Web, FOTA, Teltonika Configurator |
| SMS | Configuration, Events, DOUT control, Debug |
| GPRS commands | Configuration, DOUT control, debug |
| Time synchronization | GNSS, NITZ, NTP |
| Fuel monitoring | LLS (analog), Digital LLS (RS232, RS485), LV-CAN200, CAN FMS, ultrasonic level sensor |
| Ignition detection | Digital input, accelerometer, external power voltage |
| RS485 voltage | -7V to +12V |
| Regulation | CE-RED, UKCA, E-mark, RCM, Pulse 5a, SIRIM QAS, ICASA, CITC |
