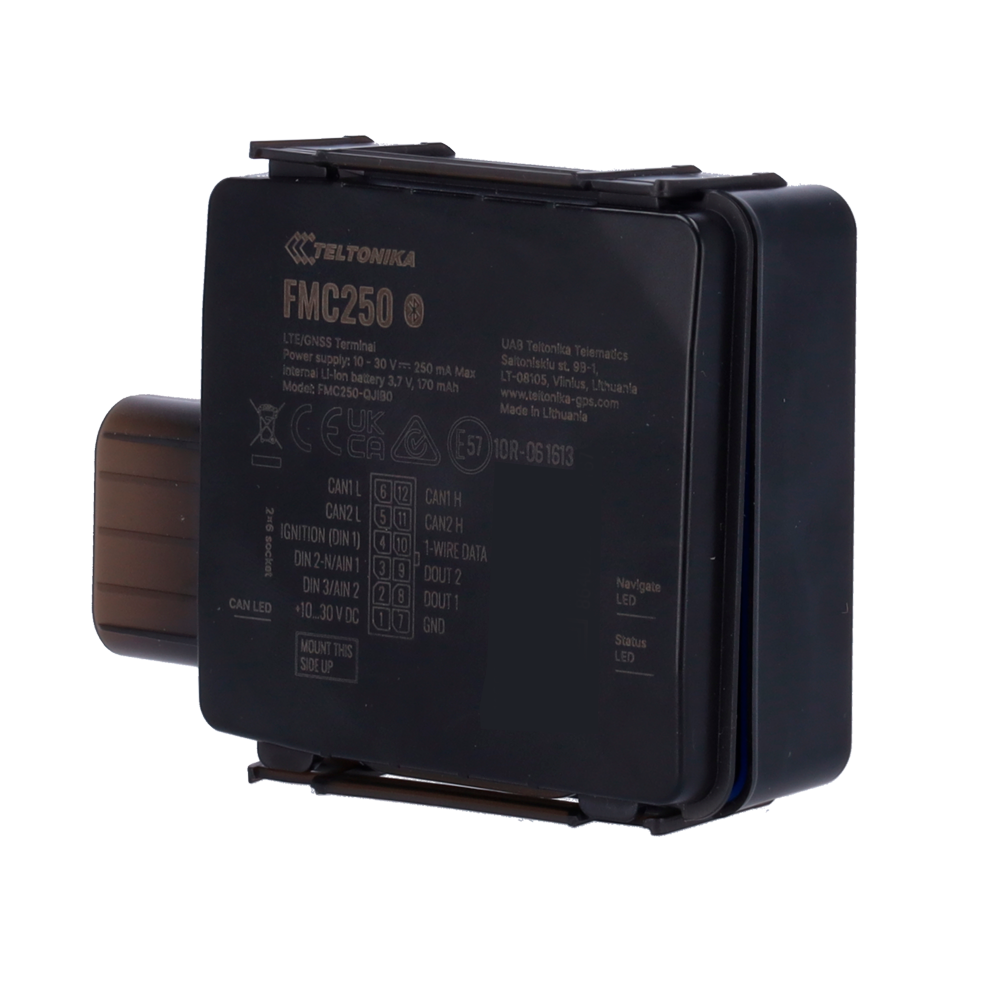

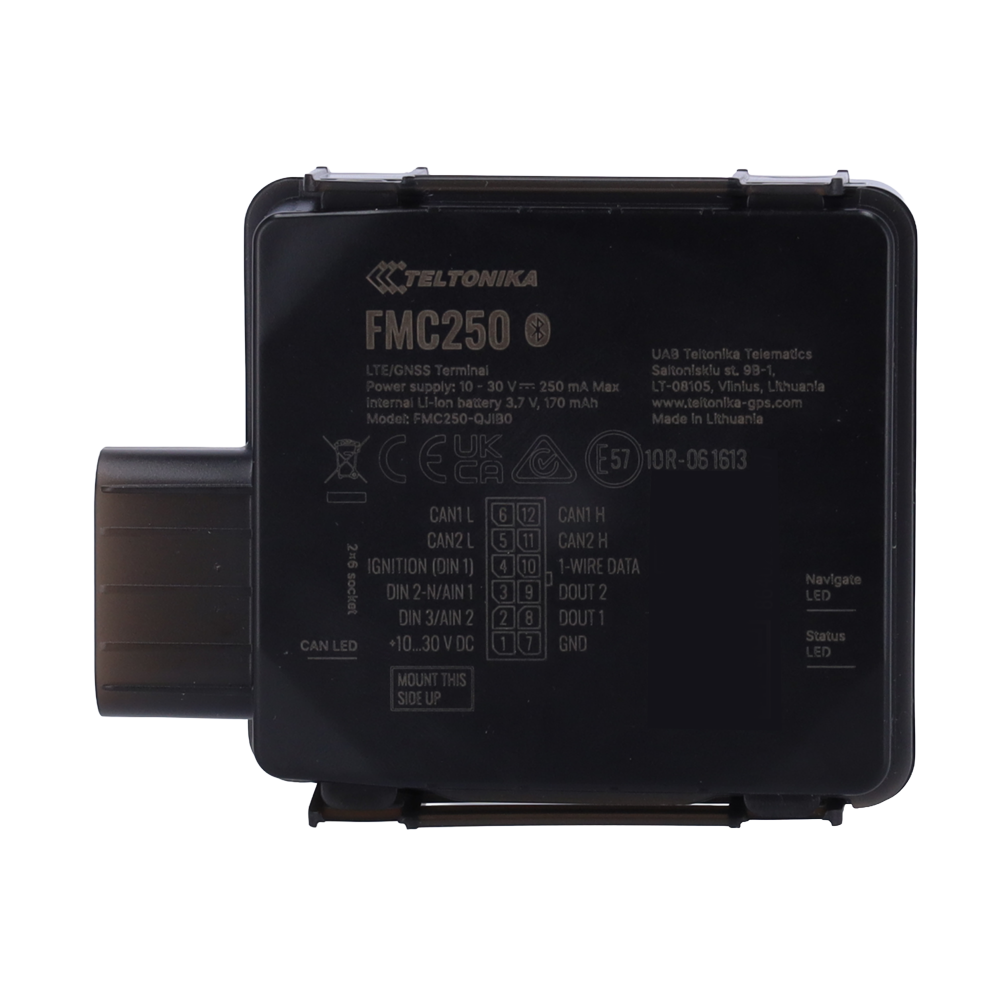

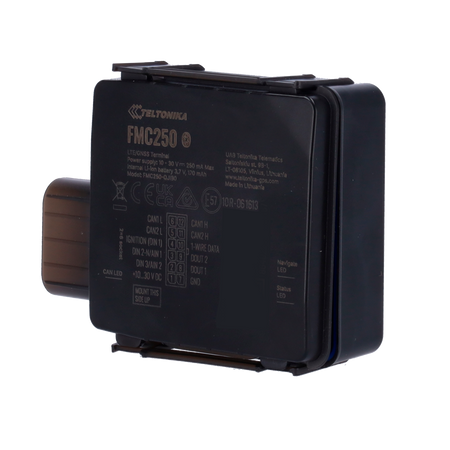

Teltonika IP67 water-resistant tracker
Couldn't load pickup availability
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Do you have any questions?
Ask an expert!
IP67 water-resistant tracker - 4G CAT 1 coverage - CAN reading for electric vehicles - Internal antennas and battery
📋 SPECIFICATIONS:
• Technology: LTE Cat 1/GSM/GPRS/GNSS/BLUETOOTH® LE
• GNSS: GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS
• Receiver: Tracking: 33
• Tracking sensitivity: -165 dBM
• Position accuracy: < 2.5 CEP
• Velocity accuracy: < 0.1 m/s (with a margin of error of +/- 15%)
• Hot start: < 1 s
• Warm start: < 25 s
• Cold start: < 35 s
• Cellular technology: LTE CAT 1, GSM
• 2G bands: B2/B3/B5/B8
• 4G bands: LTE FDD: B1/B3/B7/B8/B20/B28
• Data transfer: GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B
• Supported data: SMS (text/data)
• Input voltage: 10 - 30 V DC with overvoltage protection
• Battery: 170 mAh, 3.7 V Li-ion battery (0.63 Wh)
• BLE: 4.0 + LE
• Dimensions: 70.5 x 67.0 x 25.6 mm (L x W x H); 85.0 x 67.0 x 25.6 mm (L x W x H) (length with female connector)
• Weight: 73.5 g
• Digital inputs: x3
• Negative inputs: 1 (Digital input 2)
• Impulse inputs: 2 (Digital input 1, Digital input 2)
• Digital outputs: x2
• Analog inputs: x2
• CAN interfaces: x2
• 1-Wire: x1
• Antennas: Internal GNSS and GSM antenna
• USB: Micro-USB 2.0
• LED indicators: 3 status LED indicators
• SIM: Micro SIM or eSIM
• Memory: 128 MB internal flash memory
• Supported temperatures: Operating temperature -40 °C to +85 °C; Storage temperature without battery -40 °C to +85 °C
• Relative humidity: 5% to 95% non-condensing
• Protection: IP67
• Battery temperature: Charging 0 °C to +45 °C; Discharging -20 °C to +60 °C; Storage: -20 °C to +45 °C for 1 month; -20 °C to +35 °C for 6 months
• CAN data: Fuel level (dashboard), Total fuel consumption, Vehicle speed (wheels), Distance traveled, Engine RPM, Accelerator pedal position
• Motion sensor: Accelerometer
• Usage scenarios: Green driving, Overspeed detection, Jamming detection, GNSS fuel counter, DOUT control via call, Excessive idling detection, Immobilizer, iButton reading notification, Disconnection detection, Towing detection, Crash detection, Auto geofence, Manual geofence, Trip
• Sleep modes: GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
• Configuration and FW: FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile app (Configuration)
• SMS: Configuration, Events, DOUT control, Debug
• GPRS commands: Configuration, DOUT control, debug
• Time synchronization: GPS, NITZ, NTP
• Ignition detection: Digital input 1, accelerometer, external power voltage, engine RPM
• Regulations: CE/RED, E-Mark, RCM, RoHS, REACH
📦 INCLUDED:
• Tracker• Internal battery
| Technology | LTE Cat 1/GSM/GPRS/GNSS/BLUETOOTH® LE |
|---|---|
| GNSS | GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS |
| Receiver | Tracking: 33 |
| Tracking sensitivity | -165 dBM |
| Position accuracy | < 2.5 CEP |
| Velocity accuracy | < 0.1 m/s (with a margin of error of +/- 15%) |
| Hot start | < 1 s |
| Warm start | < 25 s |
| Cold start | < 35 s |
| Cellular technology | LTE CAT 1, GSM |
| 2G bands | B2/B3/B5/B8 |
| 4G bands | LTE FDD: B1/B3/B7/B8/B20/B28 |
| Data transfer | GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B |
| Supported data | SMS (text/data) |
| Input voltage | 10 - 30 V DC with overvoltage protection |
| Battery | 170 mAh 3.7 V Li-ion battery (0.63 Wh) |
| BLE | 4.0 + LE |
| Dimensions | 70.5 x 67.0 x 25.6 mm (length x width x height) 85.0 x 67.0 x 25.6 mm (length x width x height) (length with female connector) |
| Weight | 73.5 g |
| Digital inputs | x3 |
| Negative inputs | 1 (Digital input 2) |
| Impulse inputs | 2 (Digital input 1, Digital input 2) |
| Digital outputs | x2 |
| Analog inputs | x2 |
| CAN interfaces | x2 |
| 1-wire | x1 |
| Antennas | Internal GNSS and GSM antenna |
| USB | 2.0 Micro-USB |
| LED indicators | x3 status LED indicators |
| SIM | Micro SIM or eSIM |
| Memory | 128 MB internal flash memory |
| Supported temperatures | Operating temperature -40 °C to +85 °C Storage temperature without battery -40 °C to +85 °C |
| Relative humidity | 5% to 95% non-condensing |
| Protection | IP67 |
| Battery temperature | Charging -0 °C to +45 °C Discharging -20 °C to +60 °C Storage: -20 °C to +45 °C for 1 month -20 °C to +35 °C for 6 months |
| CAN data | Fuel level (dashboard), Total fuel consumption, Vehicle speed (wheels), Distance traveled, Engine RPM, Accelerator pedal position |
| Motion sensor | Accelerometer |
| Usage scenarios | Green driving, Overspeeding detection, Jamming detection, GNSS fuel counter, DOUT control via call, Excessive idling detection, Immobilizer, iButton read notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip |
| Sleep modes | GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep |
| Configuration and FW | FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile app (Configuration) |
| SMS | Configuration, Events, DOUT control, Debug |
| GPRS commands | Configuration, DOUT control, Debug |
| Time synchronization | GPS, NITZ, NTP |
| Ignition detection | Digital input 1, accelerometer, external power voltage, engine RPM |
| Regulations | CE/RED, E-Mark, RCM, RoHS, REACH |
