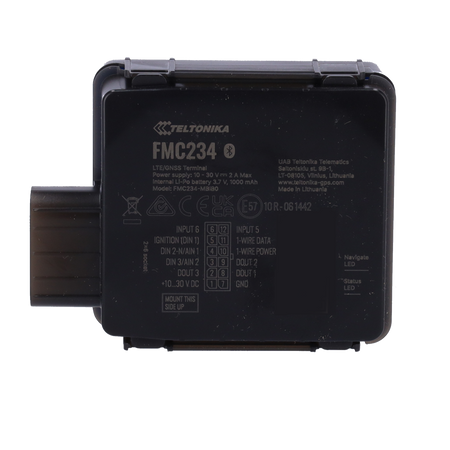

Teltonika 1A high-capacity battery

1A high-capacity battery - IP67 protection - 4G LTE CAT 1 - 3 integrated inputs and 3 outputs

📋 SPECIFICATIONS:

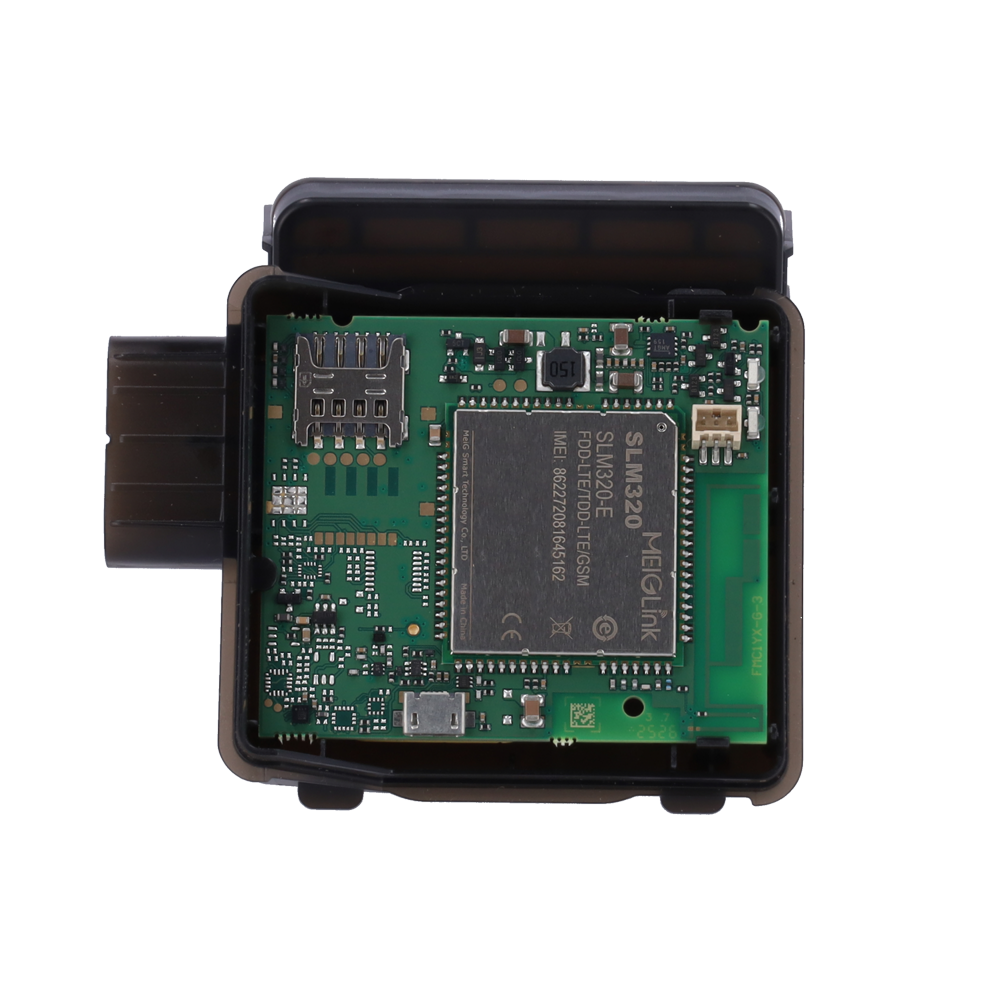

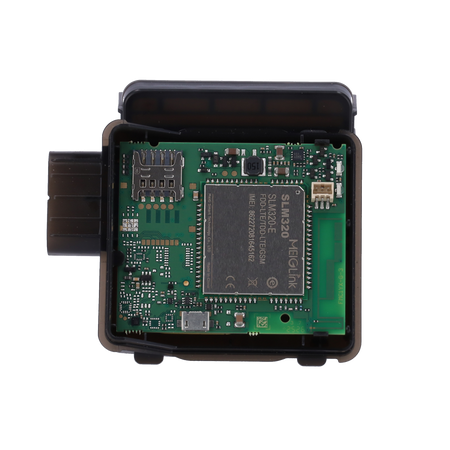

• Name: FMC234-MBIB0: MeiG SLM320-E with Teltonika TM2500
• Technology: LTE(CaT1)/2G(GSM/GPRS)/GNSS/BLUETOOTH® LE
• Constellations: GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS
• Receiver: 33 channels
• Tracking sensitivity: -165 dBM
• Position accuracy: < 2.5 CEP
• Velocity accuracy: < 0.1 m/s (with an error margin of +/; 15%)
• Hot start: < 1 s
• Warm start: < 25 s
• Cold start: < 35 s
• Technology: LTE Cat 1, GSM
• 2G bands: FMC234-MBIB0: GSM: B2/B3/B5/B8
• 4G bands: FMC234-MBIB0: LTE FDD: B1/B3/B7/B8/B20/B28 LTE-TDD:B38/B40/B41
• Data transfer: LTE: LTE FDD: Max 10Mbps (DL)/Max 5Mbps (UL); LTE TDD: Max 8Mbps (DL)/Max 2Mbps (UL); GSM: GPRS: Max 85.6Kbps (DL)/Max 85.6Kbps (UL)
• Transmit power: Class 4 for GSM850/900: 23±2 dBm; Class 1 for GSM1800/1900: 20±2 dBm; Class 3 for LTE-TDD: 23±2.7 dBm; Class 3 for LTE-FDD: 23±2.7 dBm
• Data support: SMS (text/data)
• Input voltage range: 10 - 30 V DC with overvoltage protection
• Internal backup battery: 1000 mAh, 3.7 V (3.7 Wh) rechargeable Li-Po battery
• Internal fuse: 3 A, 125 V
• Power consumption: At 12 V < 3 mA (Ultra deep sleep mode); At 12 V < 5 mA (Deep sleep mode); At 12 V < 16 mA (Online deep sleep mode); At 12 V < 18 mA (GPS sleep mode); At 12 V < 33 mA (nominal without load); At 12 V < 2 A max. (full load / peak)
• Specification: 4.0 + LE sensors
• Compatible peripherals: Temperature and humidity sensor, OBDII adapter, Inateck barcode scanner, universal Bluetooth® LE sensors

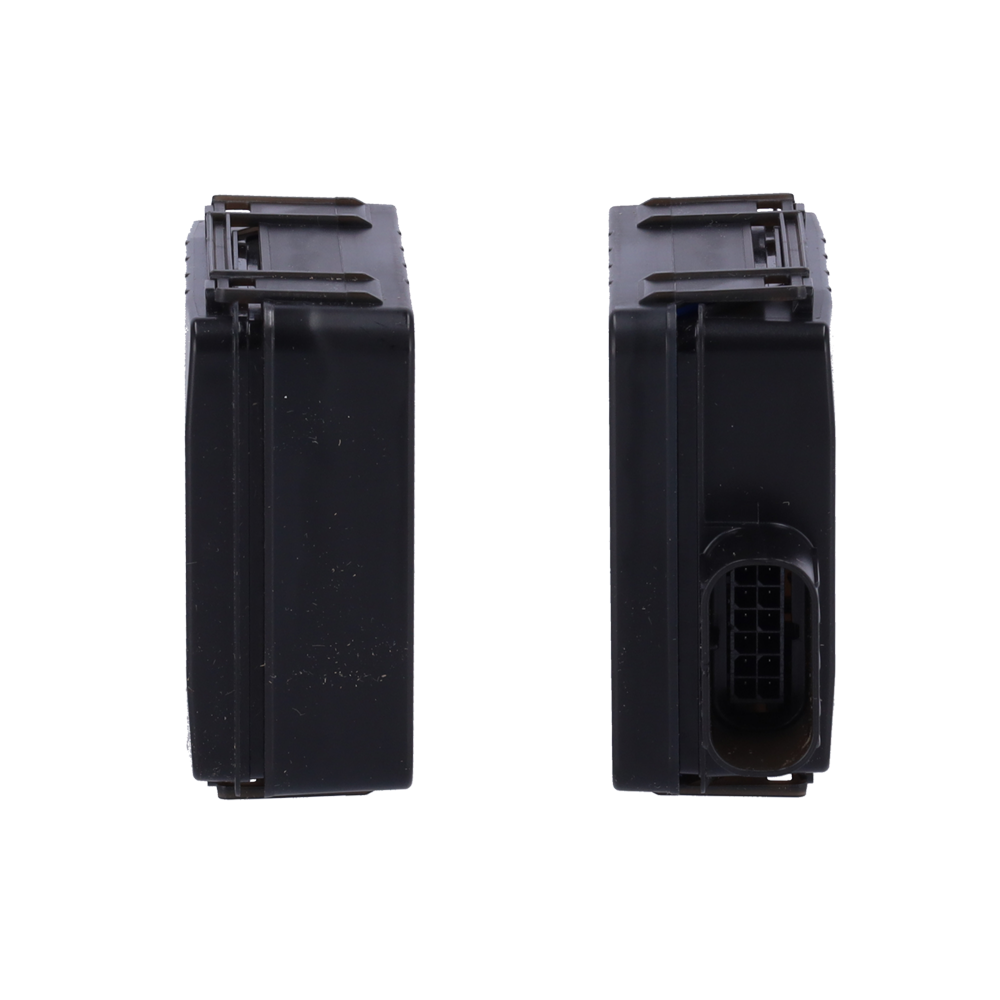

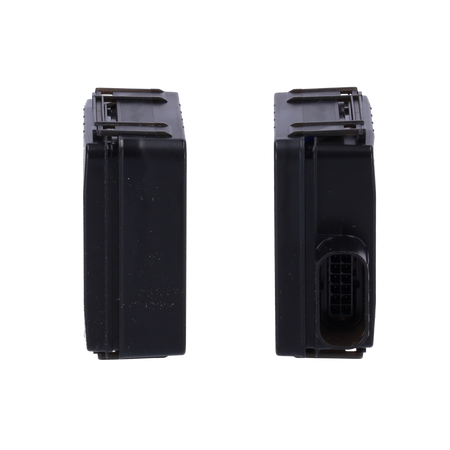

• Dimensions: 70.5 x 67.0 x 25.6 mm (length x width x height); 85.0 x 67.0 x 25.6 mm (length x width x height) (length with connector)
• Weight: 91.8g
• Operating temperature (without battery): -20 °C to +85 °C
• Storage temperature (without battery): -20 °C to +85 °C
• Operating temperature (with battery): -20 °C to +60 °C
• Storage temperature (with battery): -20 °C to +60 °C
• Relative humidity: 5% to 95% non-condensing
• Protection: IP67
• Battery charging temperature: 0 °C to +45 °C
• Battery discharge temperature: -20 °C to +60 °C
• Battery storage temperature: -20 °C to +45 °C for 1 month; -20 °C to +35 °C for 6 months
• Digital inputs: 3 inputs
• Negative inputs: 1 (Digital input 2)
• Impulse inputs: 2 (Digital input 1, Digital input 2)
• Digital outputs: 3 outputs
• Analog inputs: 2 inputs
• CAN adapter input: 1 input

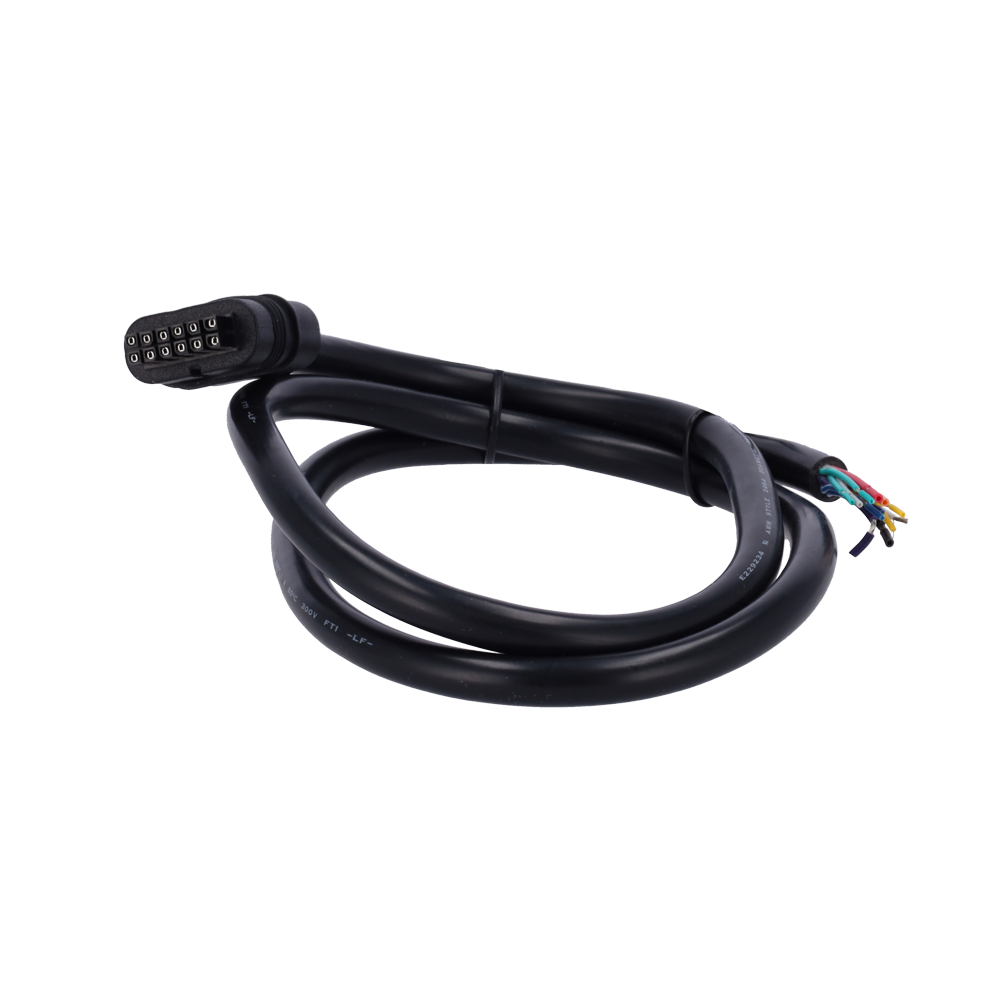

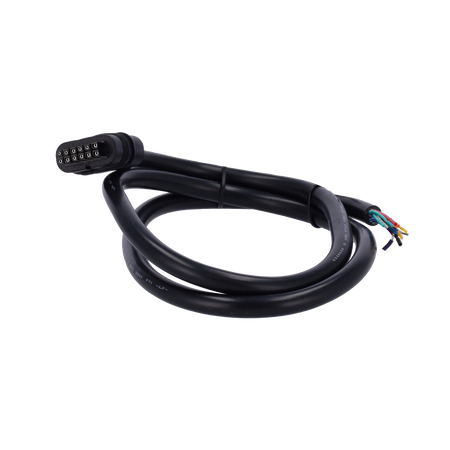

• 1 Cable: x 1
• GNSS antenna: Internal high gain antenna
• GSM antenna: Internal high gain antenna
• USB: Micro USB 2.0
• LED indicator: 2 status LEDs
• SIM: Micro SIM or eSIM
• Memory: 128 MB internal flash memory
• Sensors: Internal accelerometer
• Scenarios: Green driving, Overspeeding detection, GNSS fuel counter, DOUT control via call, Excessive idling detection, Immobilizer, iButton read notification, Disconnection detection, Trailer detection, Crash detection, Auto Geofence, Manual Geofence, Trip, Lock.
• Sleep modes: GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
• Configuration and firmware update: FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth® wireless technology), FMBT mobile app; (Configuration)
• SMS: Configuration, Events, DOUT control, Debug
• GPRS commands: Configuration, DOUT control, debug
• Time synchronization: GNSS, NITZ, NTP
• Fuel monitoring: LLS (analog), LV-CAN200, ALL-CAN300, CAN-CONTROL, OBDII dongle
• Ignition detection: Digital input 1, accelerometer, external power voltage, engine RPM (CAN adapters, OBDII dongles)
• Regulations: CE RED, E-Mark, Pulse 5A, RoHS, IP rating
