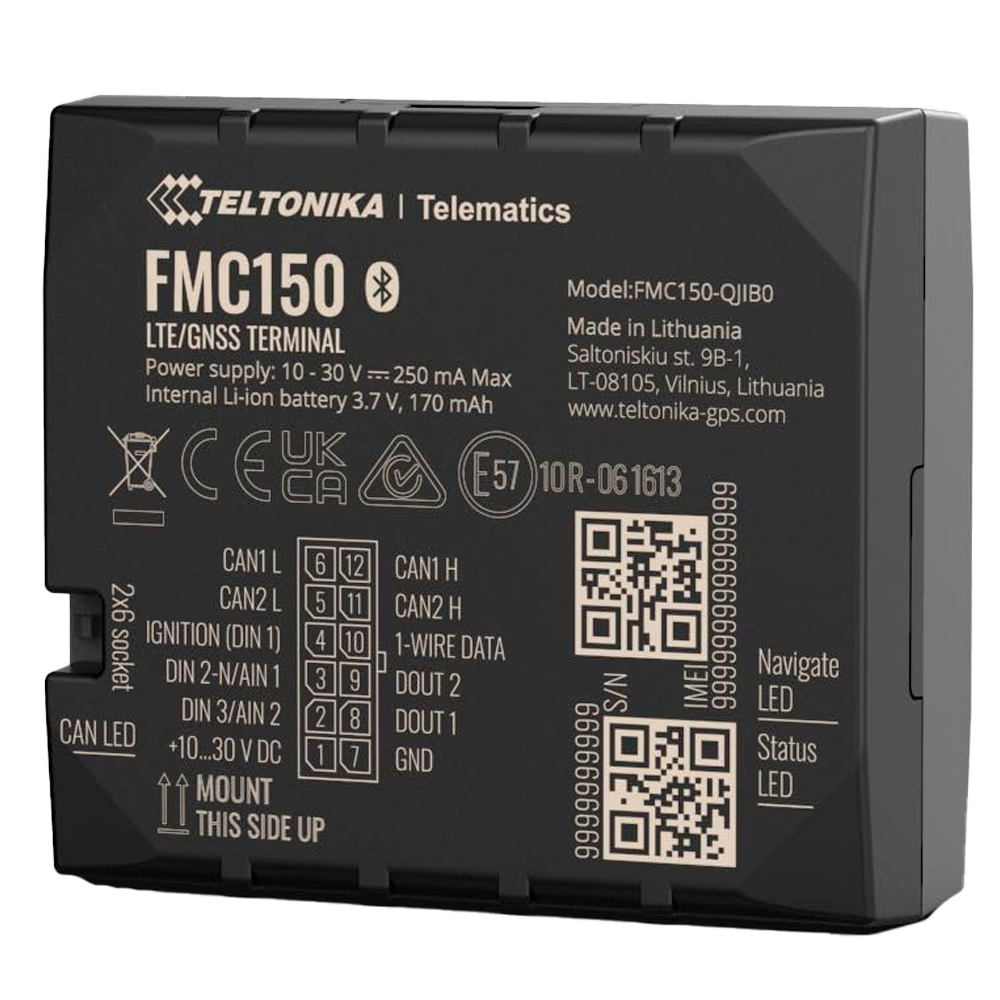

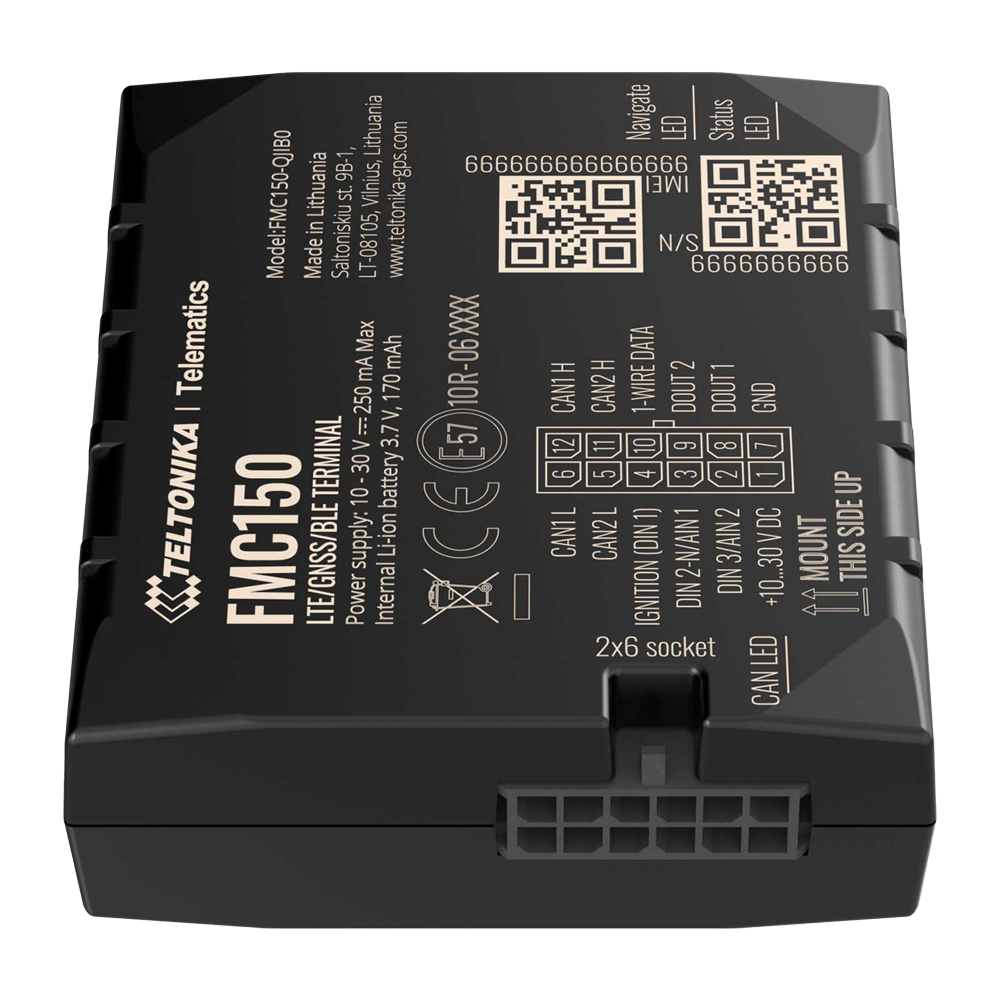

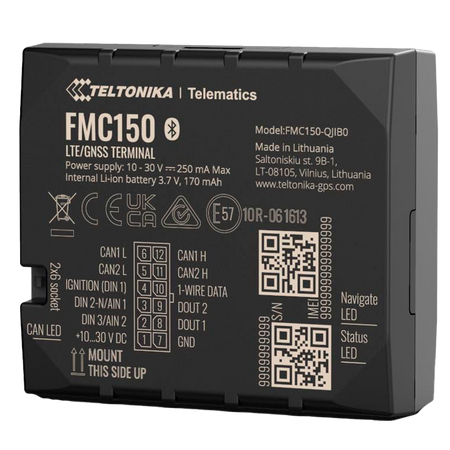

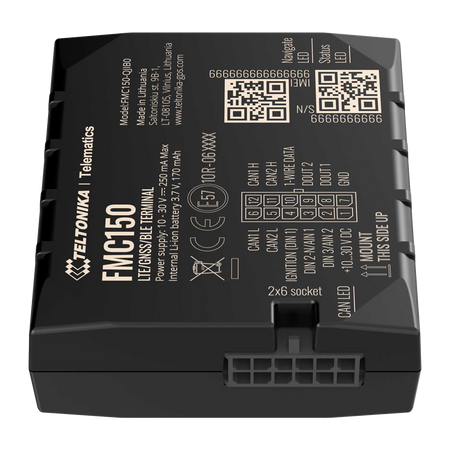

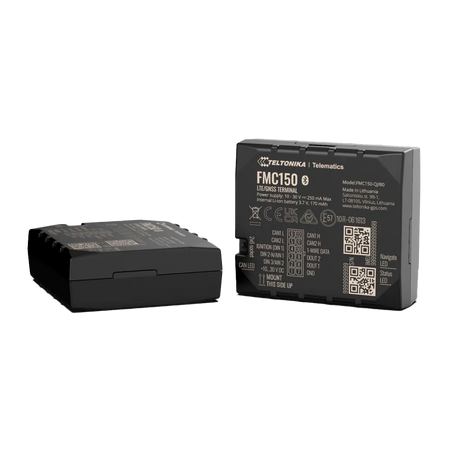

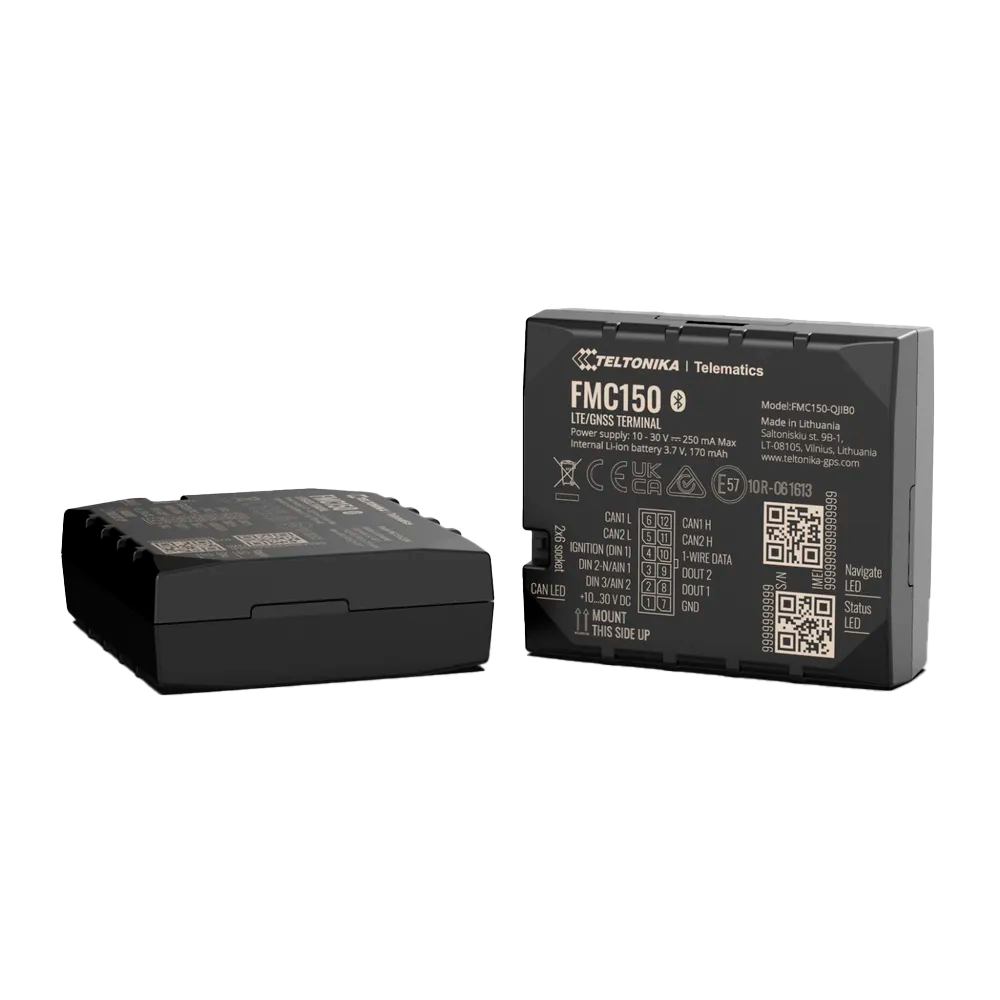

Advanced Teltonika vehicle tracker - 4G and BLE for TK-EYE
Couldn't load pickup availability
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Do you have any questions?
Ask an expert!

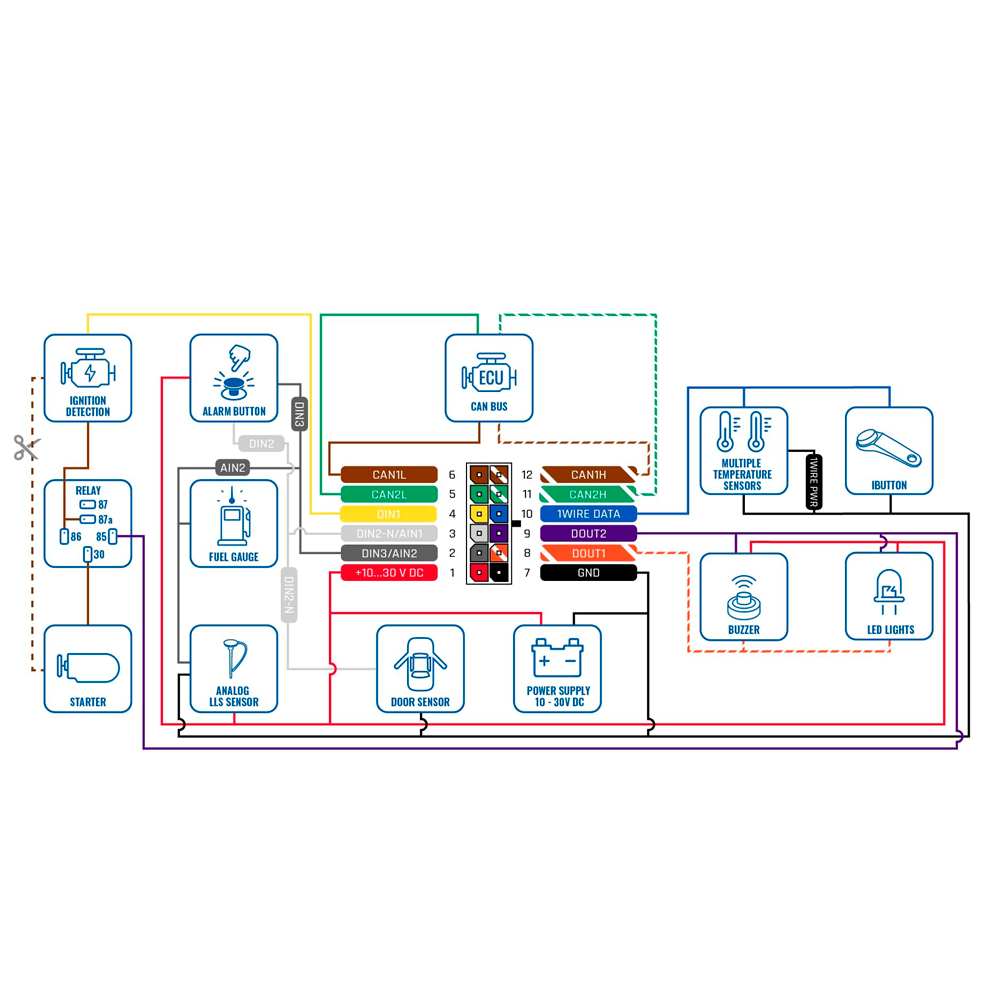

Advanced vehicle tracker - Internal wiring connection - Hidden installation under the dashboard - 4G and BLE for TK-EYE - Micro-SIM - D/A inputs and outputs | CAN bus reading
📋 SPECIFICATIONS:
• Brand: Teltonika
• Model: FMC150
• Installation: Internal vehicle wiring connection
• Positioning: GNSS: GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS
• Mobile connectivity: 4G (LTE Cat1), 2G (GSM/GPRS)
• Bluetooth connectivity: BLE 4.0 for TK-EYE
• Connection interface: 1 x Micro-SIM, 1 x Micro-USB 2.0 (configuration)
• Indicators: Status, connectivity, and CAN bus LEDs
• Sensors: Accelerometer
• Inputs: 3 x Digital input (2 configurable as Analog input): negative and pulse; 2 x CAN bus input; 1 x 1-Wire input
• Outputs: 2 x Digital output
• Functions: Efficient driving, Overspeeding, Forced uncoupling, Collision detection, Power-saving mode, Immobilizer, Anti-jamming
• Specific functions: CAN bus data reading: fuel level, fuel consumption, odometer, speed, distance traveled, RPM
• Configuration and management: FOTA Web, Teltonika Configurator (USB and BLE)
• Power supply: 10-30 V DC with overvoltage protection; Integrated 3.7 V / 170 mAh Li-Ion battery
• Material: Plastic
• Protection: Suitable for indoor use (IP41)
• Operating temp.: -40 ºC ~ +85 ºC
• Operating humidity: 5% ~ 95% (non-condensing)
• Dimensions: 65 (H) x 56.6 (W) x 20.6 (D) mm
• Vehicle management: Ideal for integration with the AIKO fleet management platform
• Recommended scenarios: Fleet management, Heavy vehicles, Refrigerated vehicles, Car sharing
📦 INCLUDED:
• Teltonika tracker• Connector with cables
| Model | FMC150 |
|---|---|
| Installation | Internal vehicle wiring connection |
| Positioning | GNSS: GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS |
| Mobile connectivity | 4G (LTE Cat1), 2G (GSM/GPRS) |
| Bluetooth connectivity | BLE 4.0 for TK-EYE |
| Connection interface | 1 x Micro-SIM, 1 x Micro-USB 2.0 (configuration) |
| Indicators | Status, connectivity, and CAN bus LEDs |
| Sensors | Accelerometer |
| Inputs | 3 x Digital input (2 configurable as analog input): negative and pulse 2 x CAN bus input 1 x 1-Wire input |
| Outputs | 2 x Digital output |
| Functions | Efficient driving, Overspeeding, Unplug detection, Crash detection, Power saving mode, Immobilizer, Jamming detection |
| Specific functions | CAN bus data reading: fuel level, fuel consumption, odometer, speed, distance traveled, RPM |
| Configuration and management | FOTA Web, Teltonika Configurator (USB and BLE) |
| Power supply | 10-30 V DC with overvoltage protection Integrated 3.7 V / 170 mAh Li-Ion battery |
| Material | Plastic |
| Protection | Suitable for indoor use (IP41) |
| Operating temp. | -40 ºC ~ +85 ºC |
| Operating humidity | 5% ~ 95% (non-condensing) |
| Dimensions | 65 (H) x 56.6 (W) x 20.6 (D) mm |
| Vehicle management | Ideal for integration with the AIKO fleet management platform |
| Recommended scenarios | Fleet management, Heavy-duty vehicles, Refrigerated vehicles, Vehicle sharing |
