Fuel monitoring and much more Teltonika

Fuel monitoring and much more - Significant roaming cost reduction - Precise fuel consumption control

📋 SPECIFICATIONS:

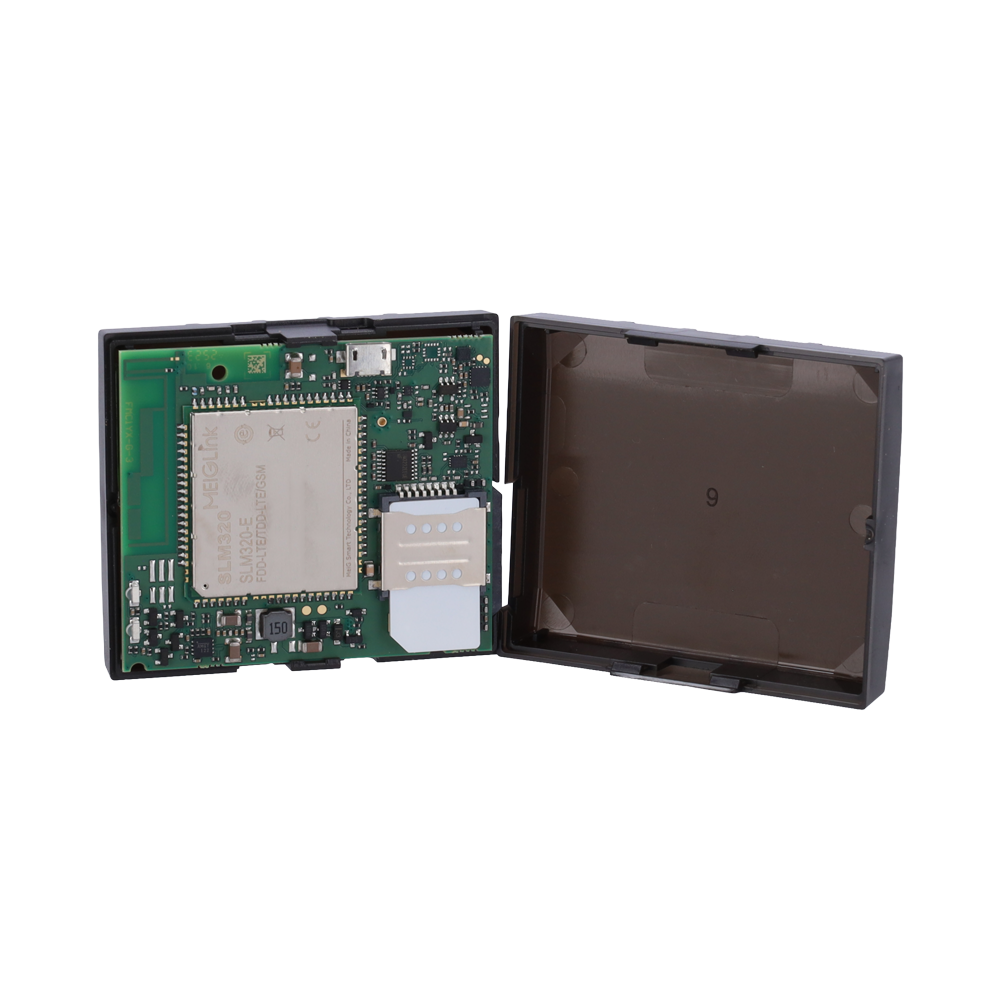

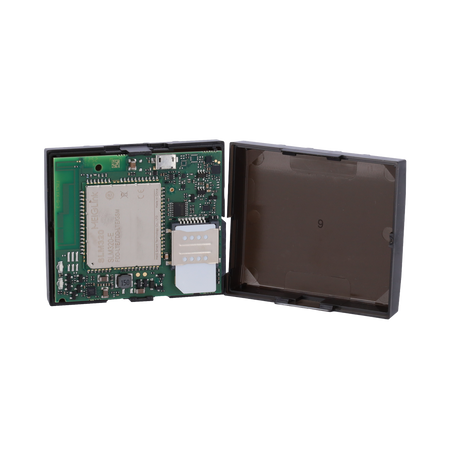

• Name: FMC125-MBIB0: MeiG SLM320-E with Teltonika TM2500
• Technology: LTE(CaT1)/2G(GSM/GPRS)/GNSS/BLUETOOTH® LE
• GNSS: GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS
• Receiver: Tracking: 33
• Tracking sensitivity: -165 dBM
• Positioning accuracy: < 2.5 CEP
• Velocity accuracy: < 0.1 m/s (with a margin of error of +/- 15%)
• Hot / Warm / Cold start: < 1 s / < 25 s / < 35 s
• Technology: LTE Cat 1, GSM
• 2G bands: GSM: B2/B3/B5/B8
• 4G bands: LTE FDD: B1/B3/B7/B8/B20/B28 LTE-TDD:B38/B40/B41
• Data transfer: LTE: LTE FDD: Max. 10 Mbps (downlink) / Max. 5 Mbps (uplink); LTE TDD: Max. 8 Mbps (downlink) / Max. 2 Mbps (uplink); GSM: GPRS: Max. 85.6 Kbps (downlink) / Max. 85.6 Kbps (uplink)
• Supported data: SMS (text/data)
• Input voltage: 10 - 30 V DC with overvoltage protection
• Internal backup battery: 170 mAh, 3.7 V, (0.63 Wh) Li-ion battery
• Ultra deep sleep: At 12V < 4mA
• Deep sleep: At 12V < 6mA
• Online deep sleep: At 12V < 12mA
• GPS Sleep: At 12V < 19mA
• Nominal (no load): At 12V < 36mA
• Full load / peak: At 12V < 1A Max.
• Specifications: 4.0 + LE
• Compatible peripherals: Temperature and humidity sensor, OBDII adapter, Inateck barcode scanner, compatible with universal Bluetooth® LE sensors.
• Dimensions: 65 x 56.6 x 20.6 mm (L x W x H)
• Weight: 55 g
• Operating temperature (without battery): -20 °C to +85 °C
• Storage temperature (without battery): -20 °C to +85 °C
• Operating temperature (with battery): -20 °C to +40 °C
• Storage temperature (with battery): -20 °C to +40 °C
• Relative humidity: 5% to 95% non-condensing
• Protection: IP 41
• Battery charging temperature: 0 °C to +45 °C
• Battery discharge temperature: -20 °C to +60 °C
• Battery storage temperature: -20 °C to +45 °C for 1 month; -20 °C to +35 °C for 6 months
• Digital inputs: x2 inputs
• Digital outputs: x1 output
• Analog inputs: x1 input
• CAN adapter input: x1 input
• 1-wire: x1 input
• RS232: x1 input
• RS485: x1 input
• GNSS antenna: Internal high gain antenna
• GSM antenna: Internal high gain antenna
• USB: Micro-USB 2.0 connector
• LED indicator: x2 status LEDs
• SIM: 2 SIM cards (dual SIM)
• Memory: 128 MB internal flash memory
• Sensors: Accelerometer
• Scenarios: Green driving, overspeeding detection, GNSS fuel counter, DOUT control via call, excessive idling detection, immobilizer, iButton read notification, disconnection detection, trailer detection, crash detection, auto geofence, manual geofence, trip, jam detection*.
• Sleep modes: GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
• Configuration and firmware update: FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth® wireless technology), FMBT mobile application (configuration)
• SMS: Configuration, Events, DOUT control, Debug
• GPRS commands: Configuration, DOUT control, debug
• Time synchronization: GNSS, NITZ, NTP
• Fuel monitoring: LLS (analog), digital LLS (RS232, RS485), LV-CAN200, ALL-CAN300, CAN-CONTROL, OBDII adapter
• Ignition detection: Digital input 1, accelerometer, external power voltage, engine RPM (CAN adapters, OBDII dongle)
• RS232 modes: Log mode, NMEA, LLS, LCD, RFID HID/MF7, Garmin FMI, TCP ASCII/binary
• RS485 modes: Log mode, NMEA, LLS, TCP ASCII/binary
• RS485 input voltage range on pin A or B (common mode voltage): -7V to +12V
• RS232 input voltage range (common mode voltage): +/-15V
• RS232 input voltage range (maximum operating voltage): +/-25V
• Regulations: CE-RED, E-mark, Anatel, RCM, CITC, JATE, TELEC, SIRIM QAS, TRC, TRA, SIRA, ICASA, NTC, NBTC
