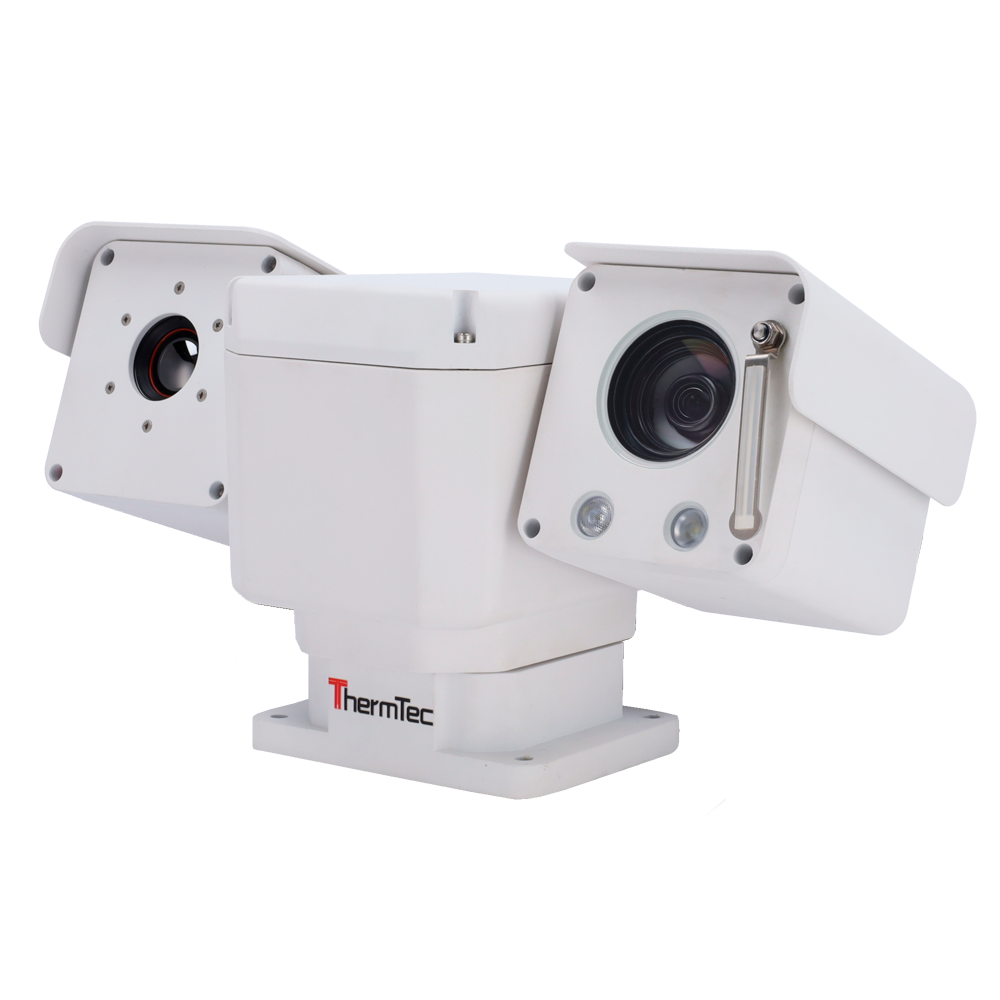

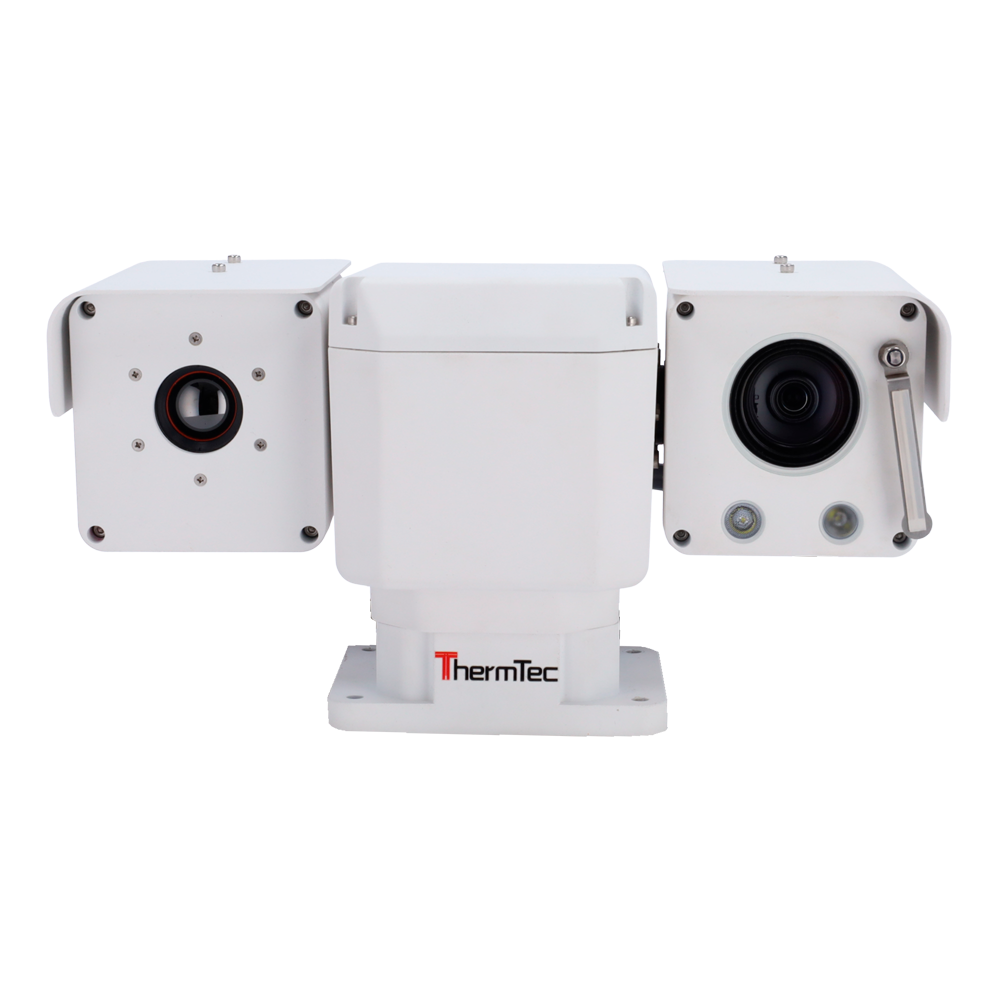

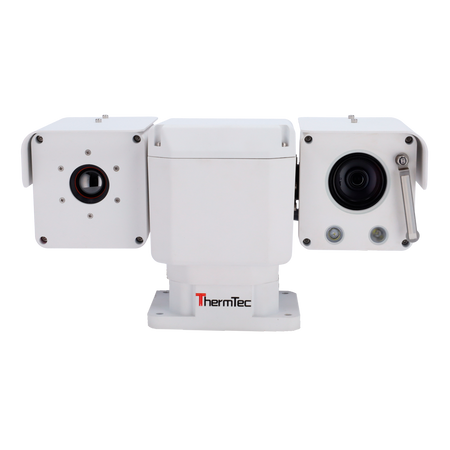

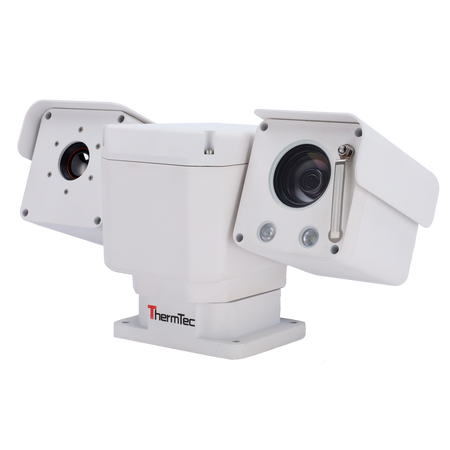

ThermTec IP mini PTZ dual thermal camera
Regular price
€8.393,11
Final price
Regular price
-2%
€8.600,00
Sale price
€8.393,11
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
ThermTec mini PTZ dual thermal IP camera - 640x512 VOx thermal sensor - 25mm lens - 4MPx optical sensor - 16mm lens - Thermal sensitivity ≤35mK - Thermal accuracy ± 8ºC - Intrusion and temperature detection
📋 SPECIFICATIONS:
• Brand: ThermTec
• Thermal sensor: 640x512/12µm VOx
• Spectral range: 8 ~ 14µm
• Optical sensor: 4 MPx 1/2.8" Progressive Scan CMOS
• Main Stream frame rate: 1280x720, 768x576, 640x480, 384x288, 352x288 (25fps)(therm) / 2592x1536, 1920x1080, 1280x720 (25fps)(vis)
• Sub Stream Rate: 768x576, 640x480, 384x288, 352x288 (25fps)(therm) / 1280x720, 768x576, 640x480 (25fps) (vis)
• Compression: H.265 / H.264
• Lens: 25mm (therm) / 16mm (vis)
• Angle: H: 17.5º (therm) / H: 21° (vis)
• Thermal sensitivity: ≤35mK
• Detectable temperature range: -20 ℃ to 150 ℃ (-4 ℉ to 302 ℉)
• Accuracy: ± 8ºC
• Image enhancements: AGC, NUC, IDE, HDE, DNR
• Detection range: Human detection (1.8x0.5 m): 1042 m; Vehicle detection (4x1.4 m): 2917 m; Human recognition (1.8x0.5 m): 261 m; Vehicle recognition (4x1.4 m): 729 m; Human identification (1.8x0.5 m): 130 m; Vehicle identification (4x1.4 m): 365 m
• Smart functions: Temperature detection, motion detection
• Alarms: 1 Output / 1 Input
• Network interface: 1x Ethernet 10/100M BaseT
• Remote access: WEB interface, VMS
• Interoperability: ONVIF, SDK, CGI
• Power supply: 12 VDC / 15W
• Operating temp.: -20ºC ~ +60ºC
• Protection rating: IP66
• Dimensions: 400mm×150mm×105mm
• Weight: ≤2.2Kg
📦 INCLUDED:

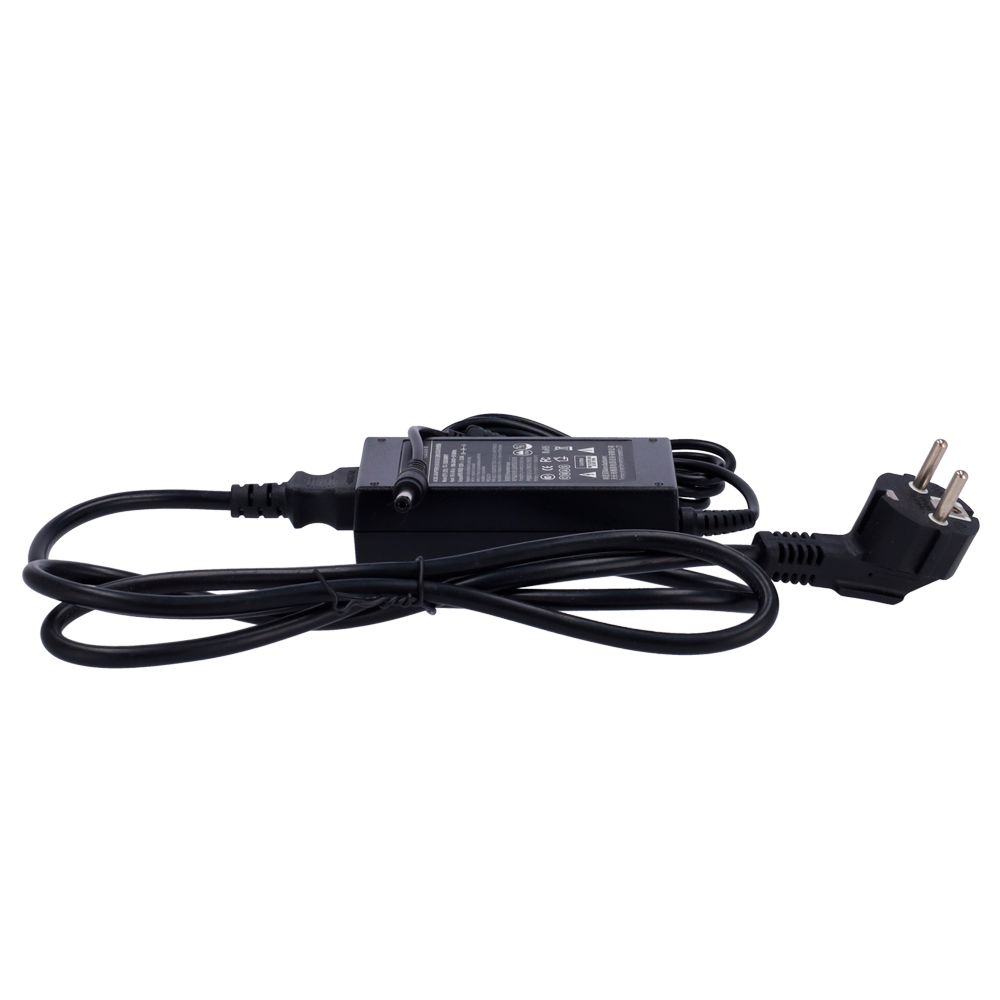

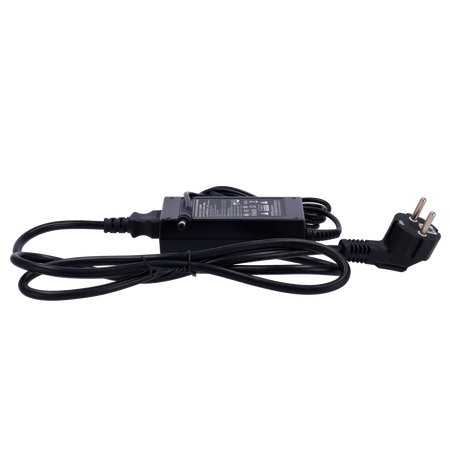

• Dual-lens mini PTZ IP thermal camera • 12V DC power supply • Installation material • User instructions
| Thermal sensor | 640x512/12µm VOx |
|---|---|
| Spectral range | 8 ~ 14µm |
| Optical sensor | 4 MPx 1/2.8" Progressive Scan CMOS |
| Main Stream frame rate | 1280x720, 768x576, 640x480, 384x288, 352x288 (25fps)(therm) / 2592x1536, 1920x1080, 1280x720 (25fps)(vis) |
| Sub Stream Rate | 768x576, 640x480, 384x288, 352x288 (25fps)(therm) / 1280x720, 768x576, 640x480 (25fps) (vis) |
| Compression | H.265 / H.264 |
| Lens | 25mm (therm) / 16mm (vis) |
| Angle | H: 17.5º (therm) / H: 21° (vis) |
| Thermal sensitivity | ≤35mK |
| Detectable temperature range | -20 ℃ to 150 ℃ (-4 ℉ to 302 ℉) |
| Accuracy | ± 8ºC |
| Image enhancement | AGC, NUC, IDE, HDE, DNR |
| Detection range | Human detection (1.8x0.5 m): 1042 m, Vehicle detection (4x1.4 m): 2917 m, Human recognition (1.8x0.5 m): 261 m, Vehicle recognition (4x1.4 m): 729 m, Human identification (1.8x0.5 m): 130 m, Vehicle identification (4x1.4 m): 365 m |
| Smart functions | Temperature detection, motion detection |
| Alarms | 1 Output / 1 Input |
| Network interface | 1x Ethernet 10/100M BaseT |
| Remote access | WEB interface, VMS |
| Interoperability | ONVIF, SDK, CGI |
| Power supply | 12 VDC / 15W |
| Operating temp. | -20º C ~ +60º C |
| Protection rating | IP66 |
| Dimensions | 400mm×150mm×105mm |
| Weight | ≤2.2Kg |
Same-day shipping if you order before 12:00 PM! In most cases, we rely on couriers with 24-hour service so your order arrives on time.
For orders under €200, the shipping fee is €15.90. For deliveries to remote areas or islands, couriers apply a surcharge to cover transport costs.
The legal warranty lasts 2 years for private individuals (consumers) and 1 year for VAT holders (professionals or companies)
