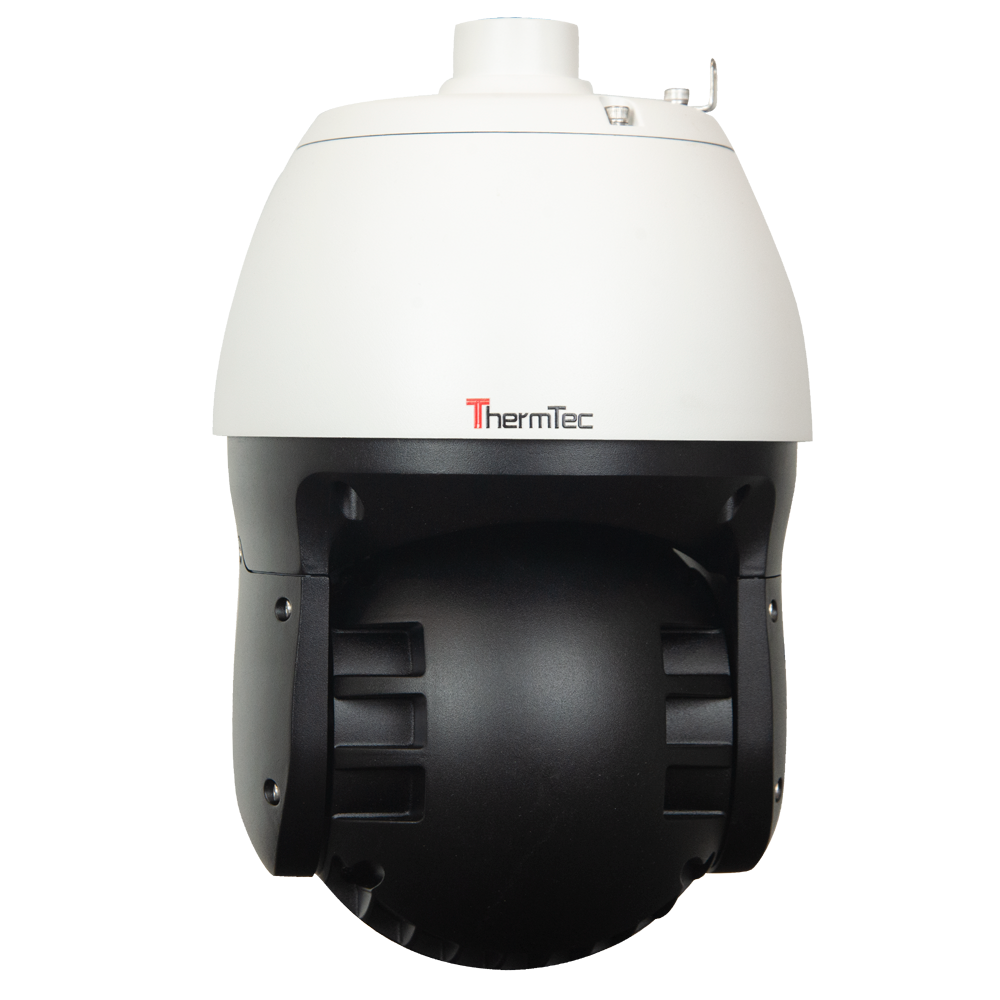

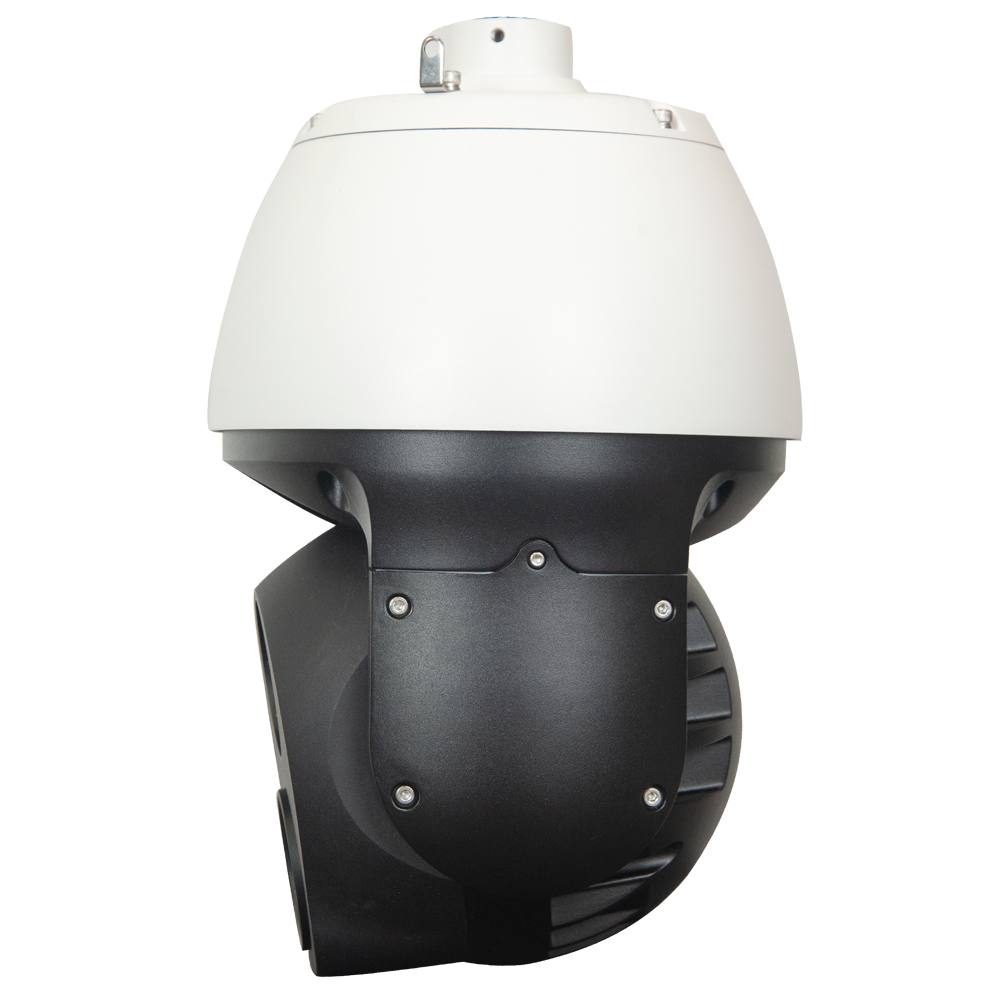

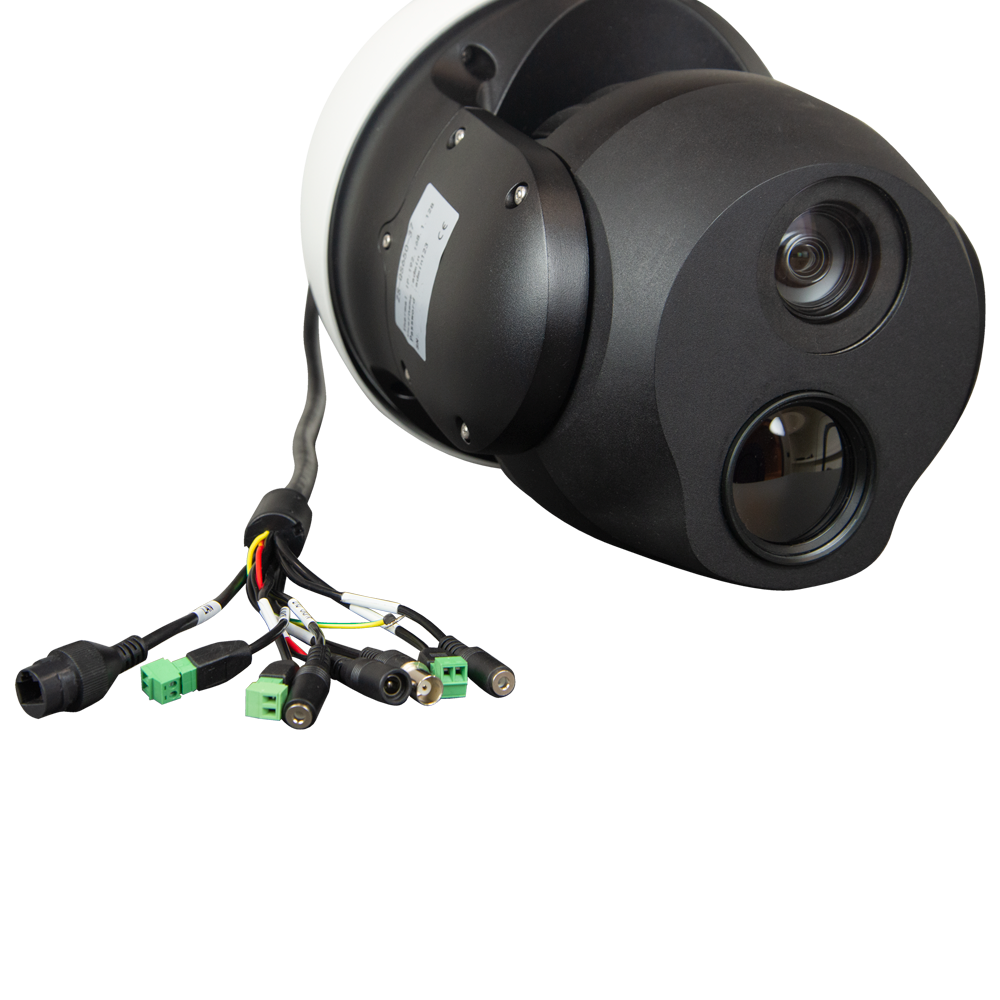

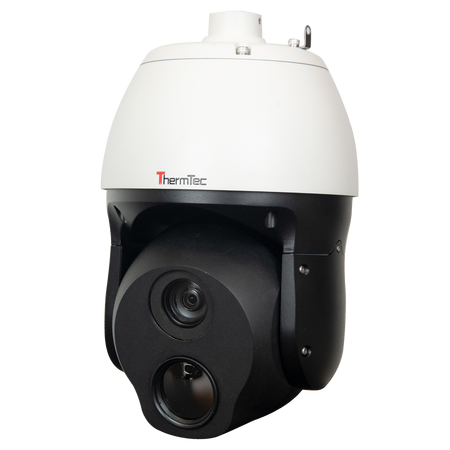

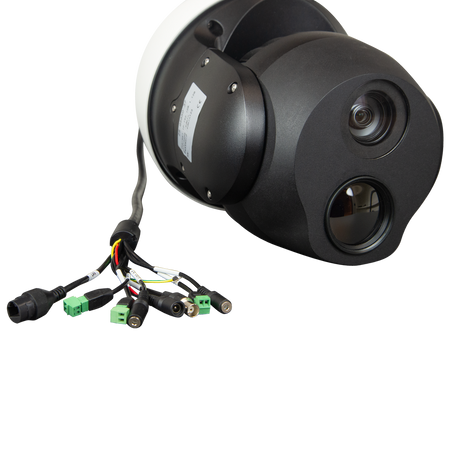

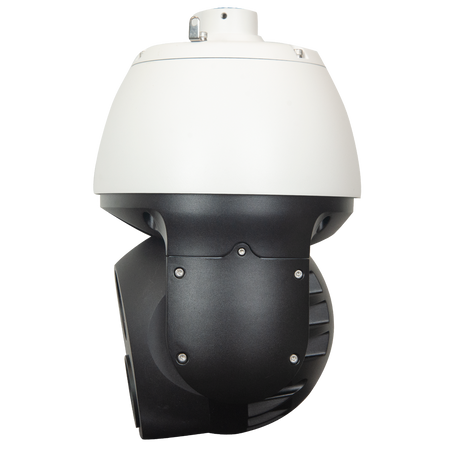

ThermTec Dual High Speed IP PTZ Thermal Camera
ThermTec Dual High Speed IP PTZ Thermal Camera
Regular price
€8.116,42
Final price
Regular price
-12%
€9.200,00
Sale price
€8.116,42
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

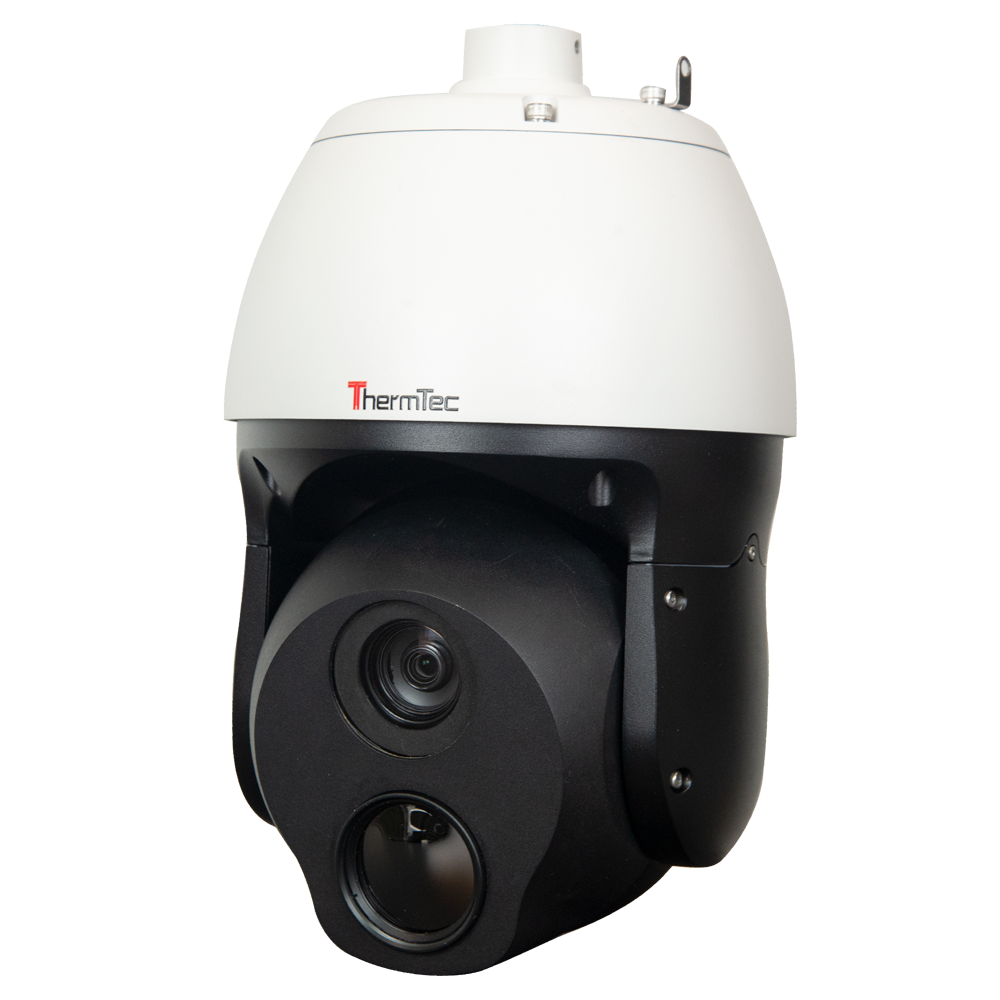

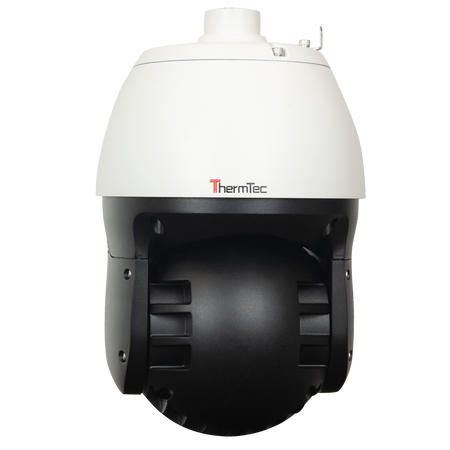

ThermTec High Speed IP Dual PTZ Thermal Camera - 640x512 VOx thermal sensor - 50mm lens - 2MPx optical sensor - 5.5 - 180mm lens - Thermal sensitivity ≤35mK - Thermal accuracy ± 8ºC - Intrusion and temperature detection
📋 SPECIFICATIONS:
• Brand: ThermTec
• Thermal sensor: 640x512/12µm VOx
• Spectral range: 8 ~ 14µm
• Optical sensor: 2 MPx 1/2.8" Progressive Scan CMOS
• Main Stream frame rate: 1280x720, 768x576, 640x480, 384x288, 352x288 (25fps)(therm) / 1920x1080, 1280x720 (25fps)(vis)
• Sub Stream Rate: 768x576, 640x480, 384x288, 352x288 (25fps)(therm) / 1280x720, 768x576, 640x480 (25fps) (vis)
• Compression: H.265 / H.264
• Lens: 50mm (therm) / motorized autofocus 5.5 ~ 180mm (vis) 33X
• Field of view: H: 8.8º (therm) / H: 60.5° - 2.3° (vis)
• Pan/Tilt range: Horizontal: 0°~360° (endless), vertical: 110° (-20° ~ +90°)
• Manual speed: Horizontal: 0.01°~60° /s, Vertical: 0.01°~30° /s
• Actuator: Stepper motor
• Repeatability: ±0.01°
• Presets: 200 presets
• Thermal sensitivity: ≤35mK
• Detectable temperature range: -20 ℃ to 150 ℃ (-4 ℉ to 302 ℉)
• Accuracy: ± 8ºC
• Image enhancements: AGC, NUC, IDE, HDE, DNR
• Detection range: Human detection (1.8x0.5 m): 2083 m; Vehicle detection (4x1.4 m): 5833 m; Human recognition (1.8x0.5 m): 521 m; Vehicle recognition (4x1.4 m): 1458 m; Human identification (1.8x0.5 m): 260 m; Vehicle identification (4x1.4 m): 729 m
• Intelligent functions: Temperature detection, motion detection
• Audio: 1 input / 1 output
• Alarms: 1 Output / 1 Input
• Network interface: 1x Ethernet 10/100M BaseT
• Others: RS-485
• Remote access: WEB interface, VMS
• Interoperability: ONVIF, SDK, CGI
• Power supply: 12 VDC / 5A / 30W
• Operating temp.: -20º C ~ +60º C
• Protection rating: IP66
• Dimensions: 230mm x 430mm
• Weight: 8Kg

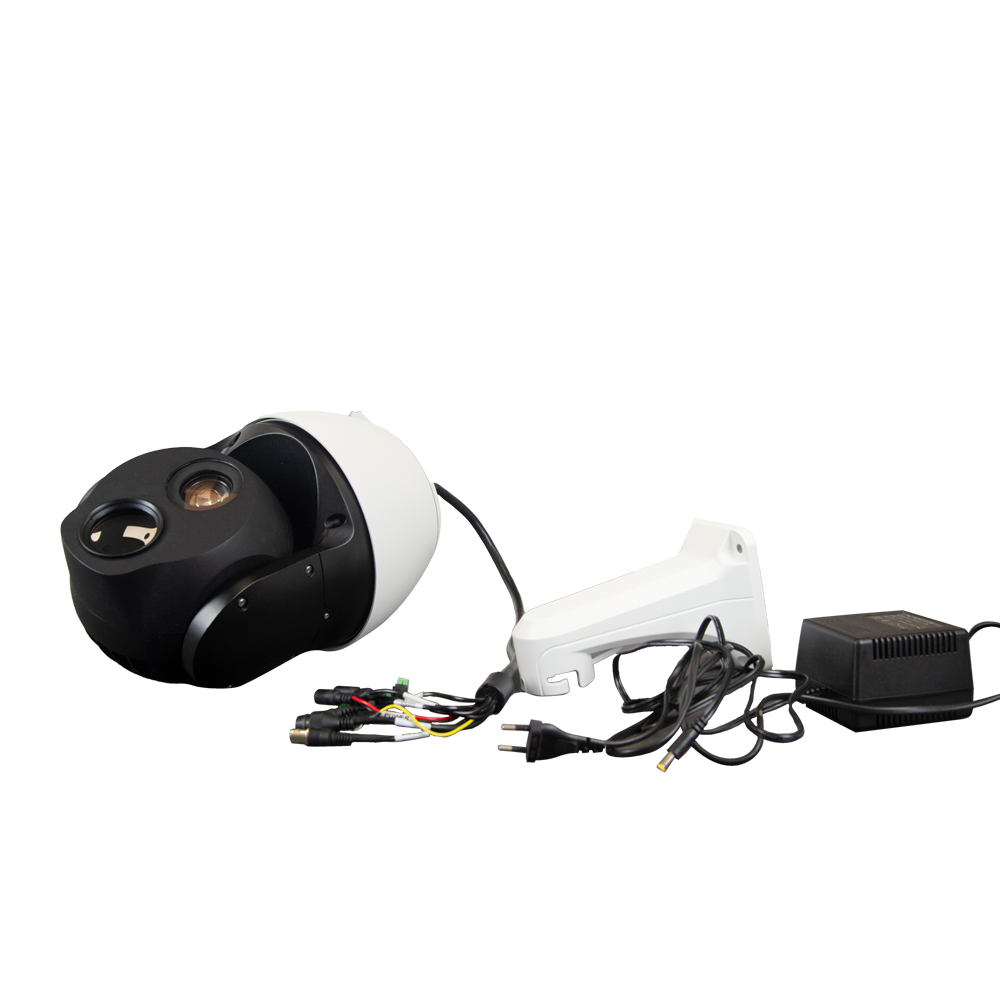

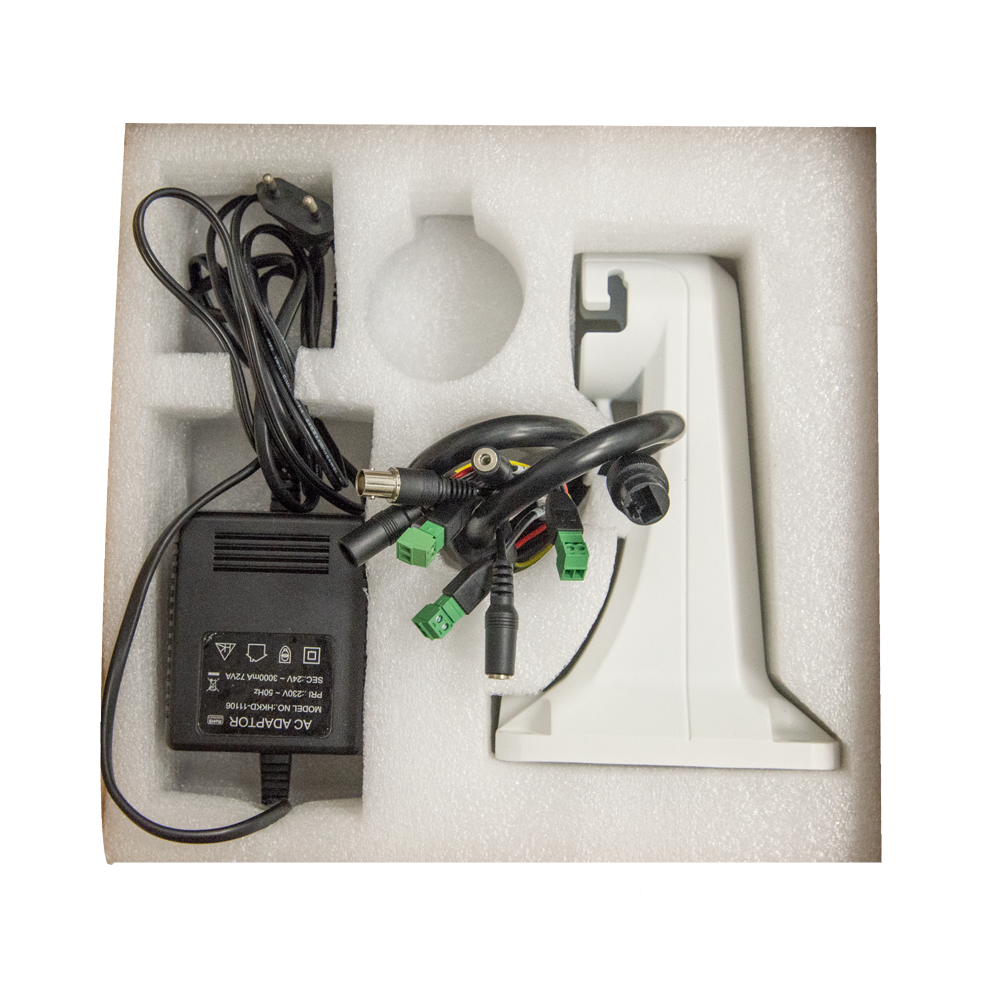

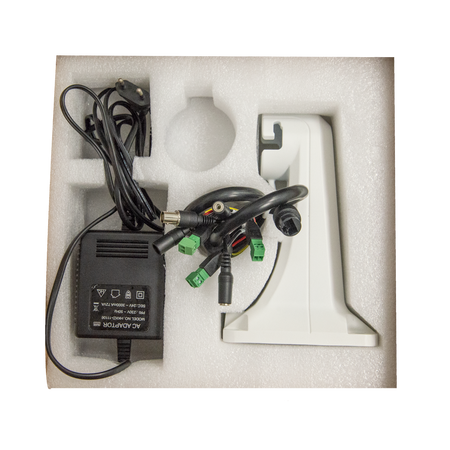

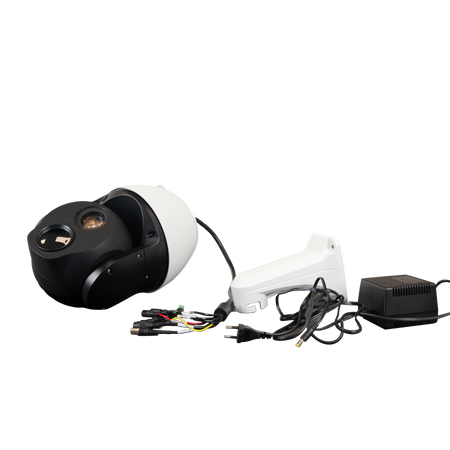

📦 INCLUDED:
• High Speed IP Dual PTZ Thermal Camera• 24V DC Power supply• Installation material• User manual
| Thermal sensor | 640x512/12µm VOx |
|---|---|
| Spectral range | 8 ~ 14µm |
| Optical sensor | 2 MPx 1/2.8" Progressive Scan CMOS |
| Main Stream frame rate | 1280x720, 768x576, 640x480, 384x288, 352x288 (25fps)(therm) / 1920x1080, 1280x720 (25fps)(vis) |
| Sub Stream rate | 768x576, 640x480, 384x288, 352x288 (25fps)(therm) / 1280x720, 768x576, 640x480 (25fps)(vis) |
| Compression | H.265 / H.264 |
| Lens | 50mm (therm) / 5.5 ~ 180mm motorized autofocus (vis) 33X |
| Angle | H: 8.8º (therm) / H: 60.5° - 2.3° (vis) |
| Pan/Tilt range | Horizontal: 0°~360° (endless), vertical: 110° (-20° ~ +90°) |
| Manual speed | Horizontal: 0.01°~60°/s, vertical: 0.01°~30°/s |
| Actuator | Stepper motor |
| Repeatability | ±0.01° |
| Presets | 200 presets |
| Thermal sensitivity | ≤35mK |
| Temperature detection range | -20 ℃ to 150 ℃ (-4 ℉ to 302 ℉) |
| Accuracy | ± 8ºC |
| Image enhancements | AGC, NUC, IDE, HDE, DNR |
| Detection range | Human detection (1.8x0.5 m): 2083 m, Vehicle detection (4x1.4 m): 5833 m, Human recognition (1.8x0.5 m): 521 m, Vehicle recognition (4x1.4 m): 1458 m, Human identification (1.8x0.5 m): 260 m, Vehicle identification (4x1.4 m): 729 m |
| Intelligent functions | Temperature detection, motion detection |
| Audio | 1 input / 1 output |
| Alarms | 1 output / 1 input |
| Network interface | 1x Ethernet 10/100M BaseT |
| Other | RS-485 |
| Remote access | WEB interface, VMS |
| Interoperability | ONVIF, SDK, CGI |
| Power supply | 12 VDC / 5A / 30W |
| Operating temp. | -20º C ~ +60º C |
| Protection level | IP66 |
| Dimensions | 230mm x 430mm |
| Weight | 8Kg |
