THERMTEC

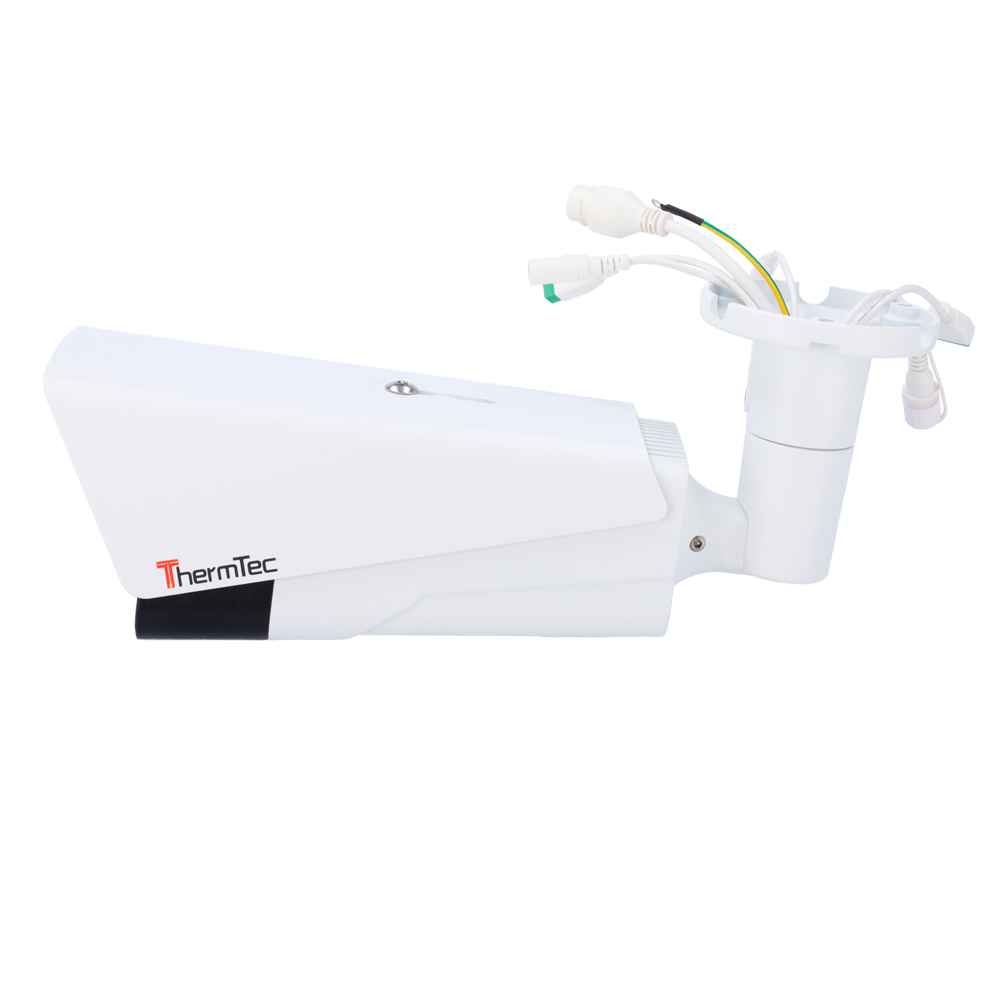

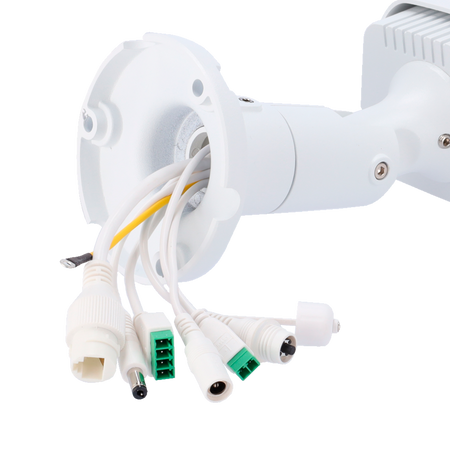

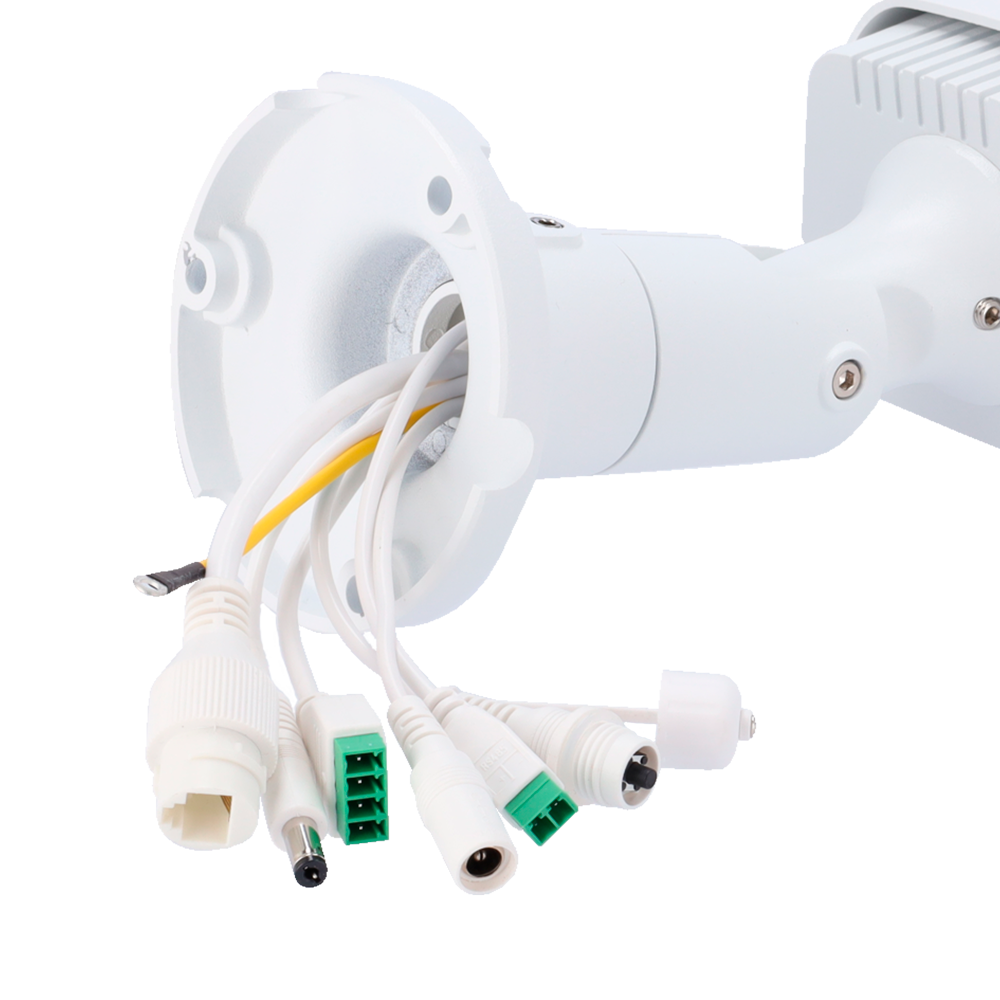

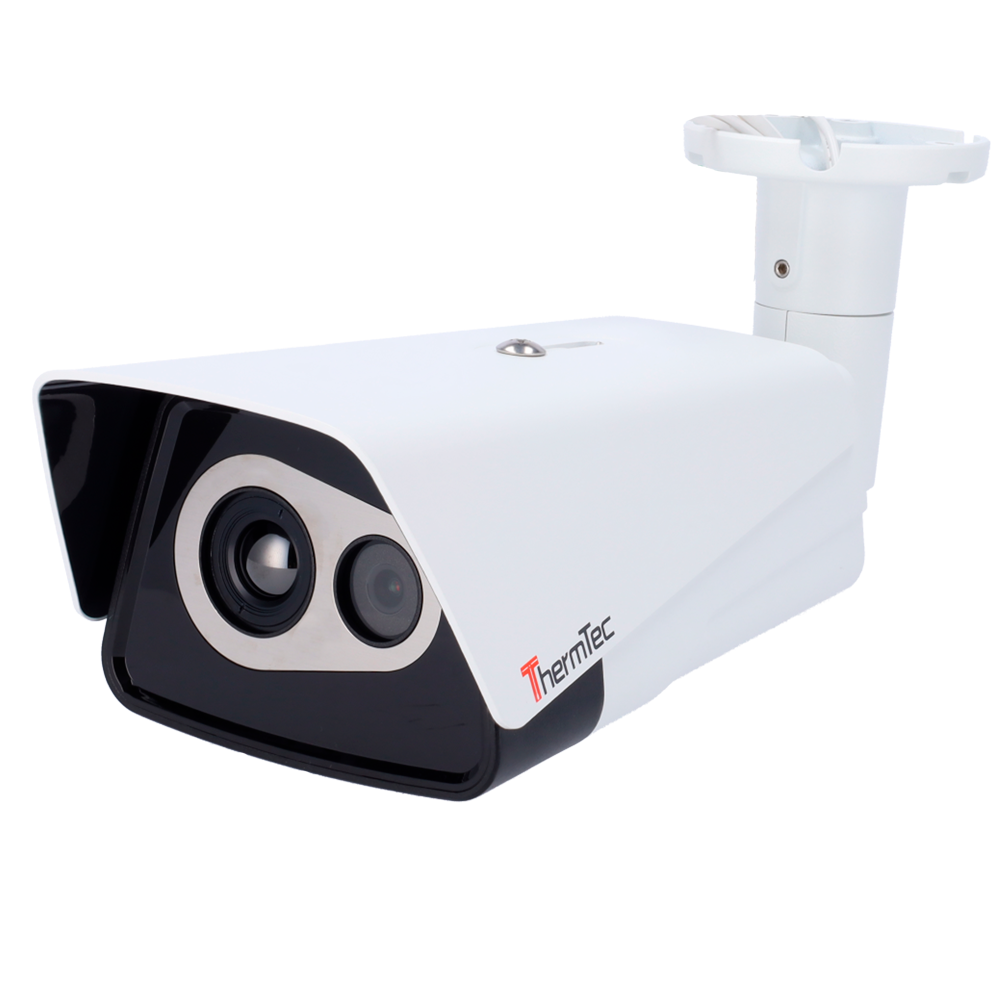

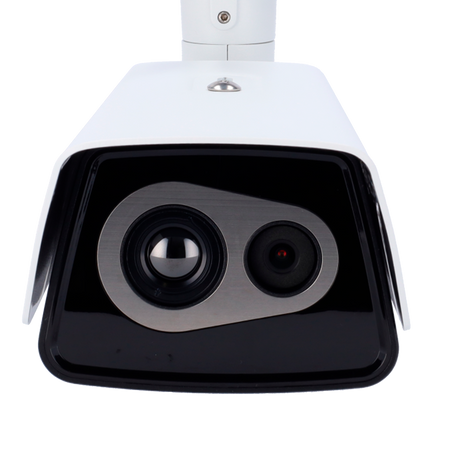

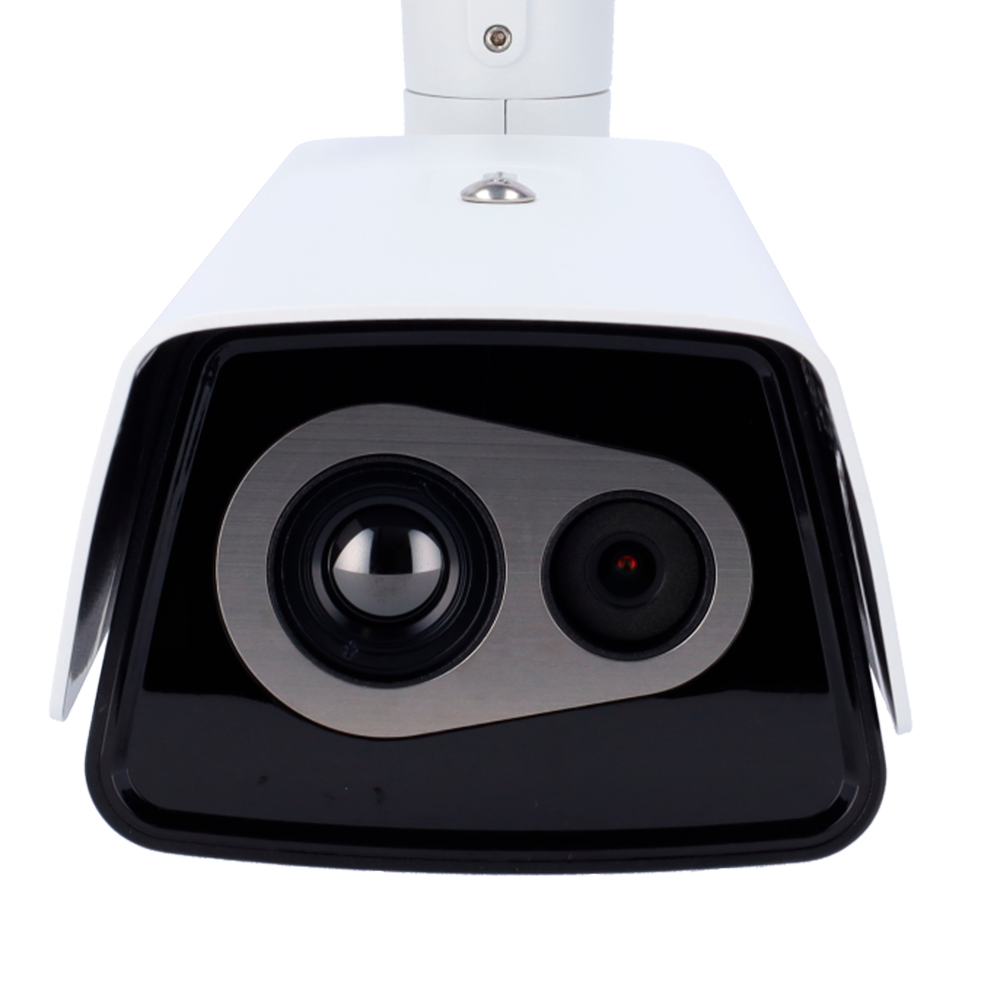

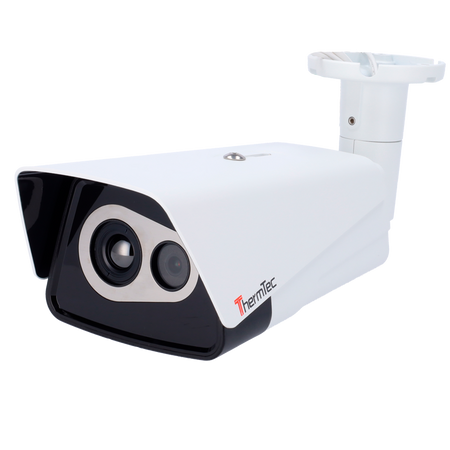

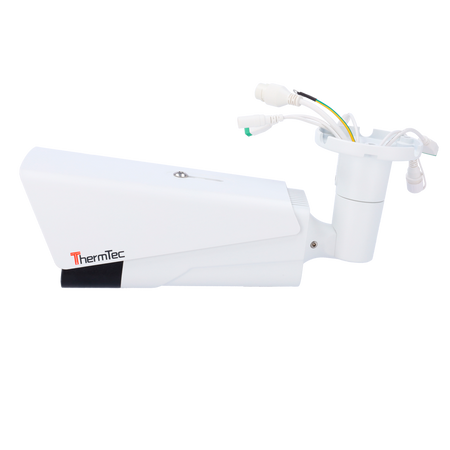

ThermTec Dual IP Thermal Camera - 640x512 VOx | 35mm Lens

SKU: THERMTEC-HM635
(0)
In stock
Usually shipped within 24 hours
€3.435,64 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

ThermTec Dual IP Thermal Camera - 640x512 VOx | 35mm lens - 12μm pixel pitch - Thermal sensitivity ≤35mK - 1/2.8” 4 Mp optical sensor

📋 SPECIFICATIONS:
• Brand: ThermTec
• Thermal sensor: 640x512 Vanadium Oxide
• Thermal focus: Motorized
• Optical sensor: 1/2.8” Progressive Scan CMOS 4 Megapixel
• Main Stream frame rate: Therm: 1280x720 / 768x576 / 640x480 / 384x288 (25fps); Opt: 2592x1536 / 1920x1080 / 1280x720 (25fps)
• Sub Stream frame rate: Therm: 768x576 / 640x480 / 352x288 / 384x288 (25fps); Opt: 1280x720 / 768x576 / 640x480 / 384x288 (25fps)
• Image fusion: Supported
• Compression: H.265 / H.264
• Image enhancement: DWDR, 3DNR, BLC, HLC AGC, ROI, Privacy Mask
• Lens: 35mm (Therm) / 12mm (Opt)
• Thermal angle of view: 12.5°×10° (Therm)
• Thermal sensitivity: ≤35mK (0.05ºC)
• Thermal measurement range: -20~150ºC / ±8ºC
• Spectral range: 8~14μm
• Detector Pitch: 12μm
• Audio: Not available
• Alarms: 1 IN / 1 OUT
• Internal memory: EMMC up to 16GB
• Network interface: Ethernet 10/100M BaseT
• Remote access: WEB interface
• Interoperability: ONVIF Profile S/T
• Power supply: 12VDC, max.15W / PoE (802.3af)
• Operating temp.: -20ºC~+60ºC
• Protection rating: Waterproof IP66, TVS
• Dimensions: 356 x 145 x 162 mm
• Weight: ≤2200 g.

📦 INCLUDED:

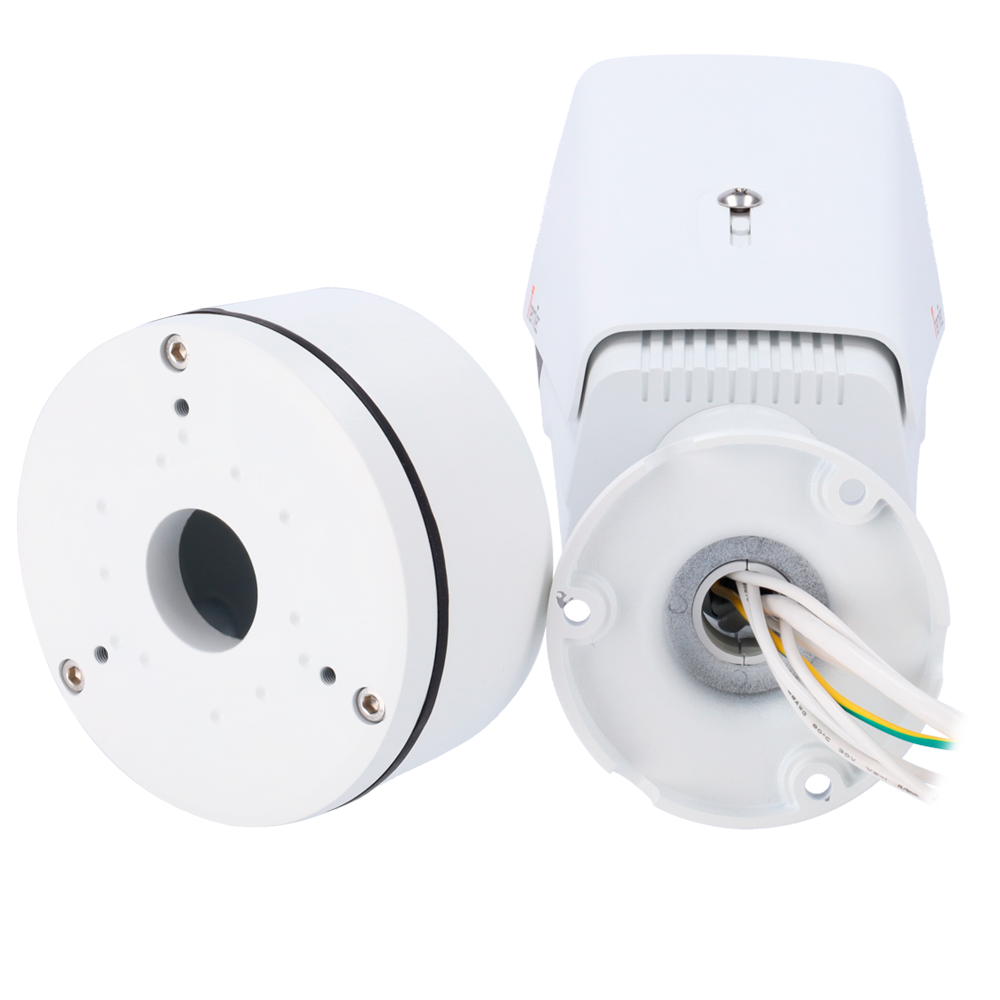

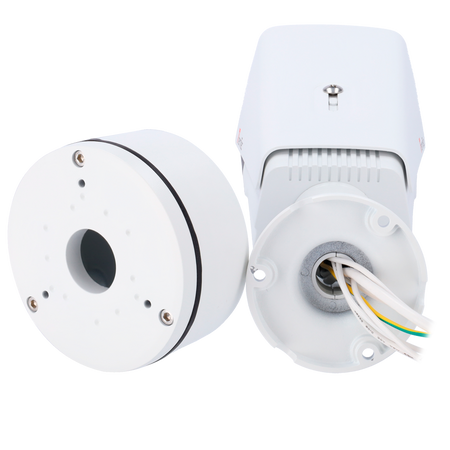

• ThermTec Dual IP thermal camera• Installation material• Junction box
Thermal sensor 640x512 Vanadium Oxide
Thermal focus Motorized
Optical sensor 1/2.8” Progressive Scan CMOS 4 Megapixel
Main Stream frame rate Term: 1280x720 / 768x576 / 640x480 / 384x288 (25fps) Opt: 2592x1536 / 1920x1080 / 1280x720 (25fps)
Sub Stream frame rate Term: 768x576 / 640x480 / 352x288 / 384x288 (25fps) Opt: 1280x720 / 768x576 / 640x480 / 384x288 (25fps)
Image fusion Supported
Compression H.265 / H.264
Image enhancement DWDR, 3DNR, BLC, HLC, AGC, ROI, Privacy Mask
Lens 35mm (Term) / 12mm (Opt)
Thermal field of view 12.5°×10° (Term)
Thermal sensitivity ≤35mK (0.05 ºC)
Thermal measurement range -20~150ºC / ±8ºC
Spectral range 8~14μm
Detector pitch 12μm
Audio Not available
Alarms 1 IN / 1 OUT
Internal memory EMMC up to 16GB
Network interface Ethernet 10/100M BaseT
Remote access WEB interface
Interoperability ONVIF Profile S/T
Power supply 12VDC, max.15W / PoE (802.3af)
Operating temp. -20ºC~+60ºC
Protection rating Waterproof IP66, TVS
Dimensions 356 x 145 x 162 mm
Weight ≤2200 g.
