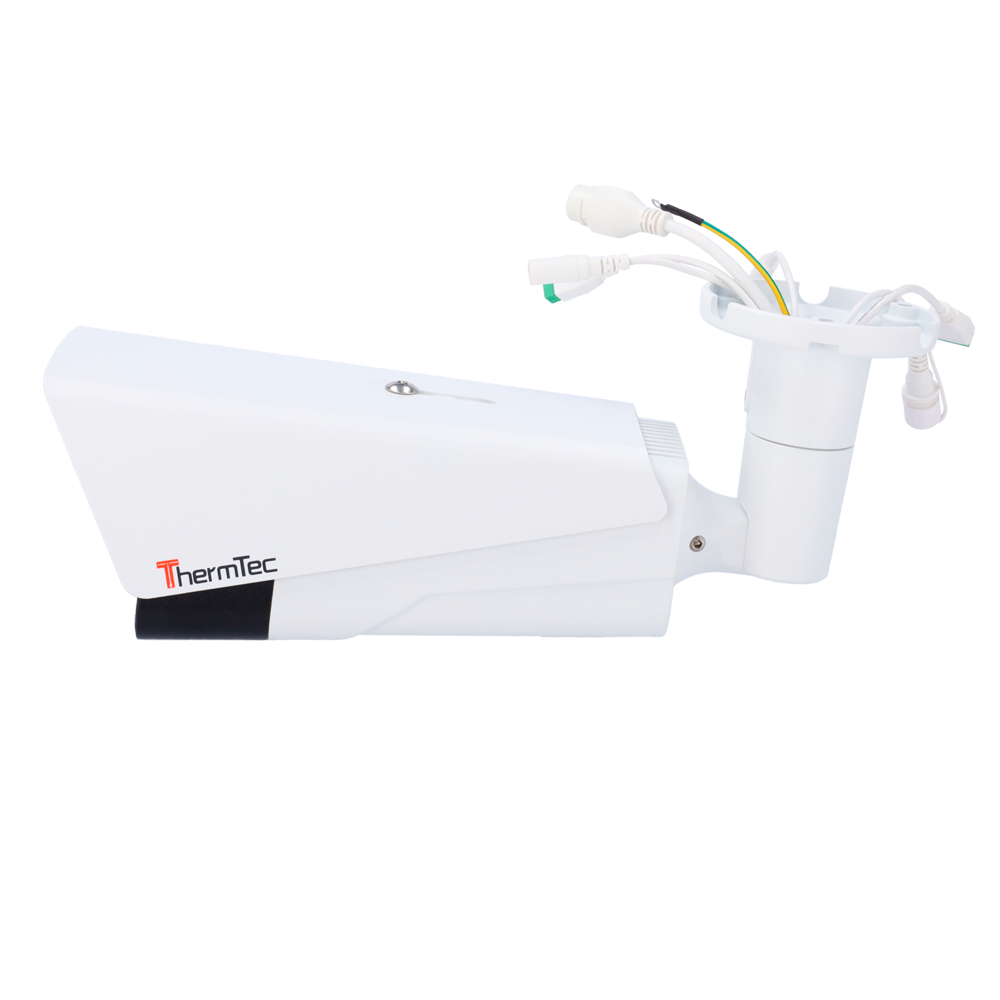

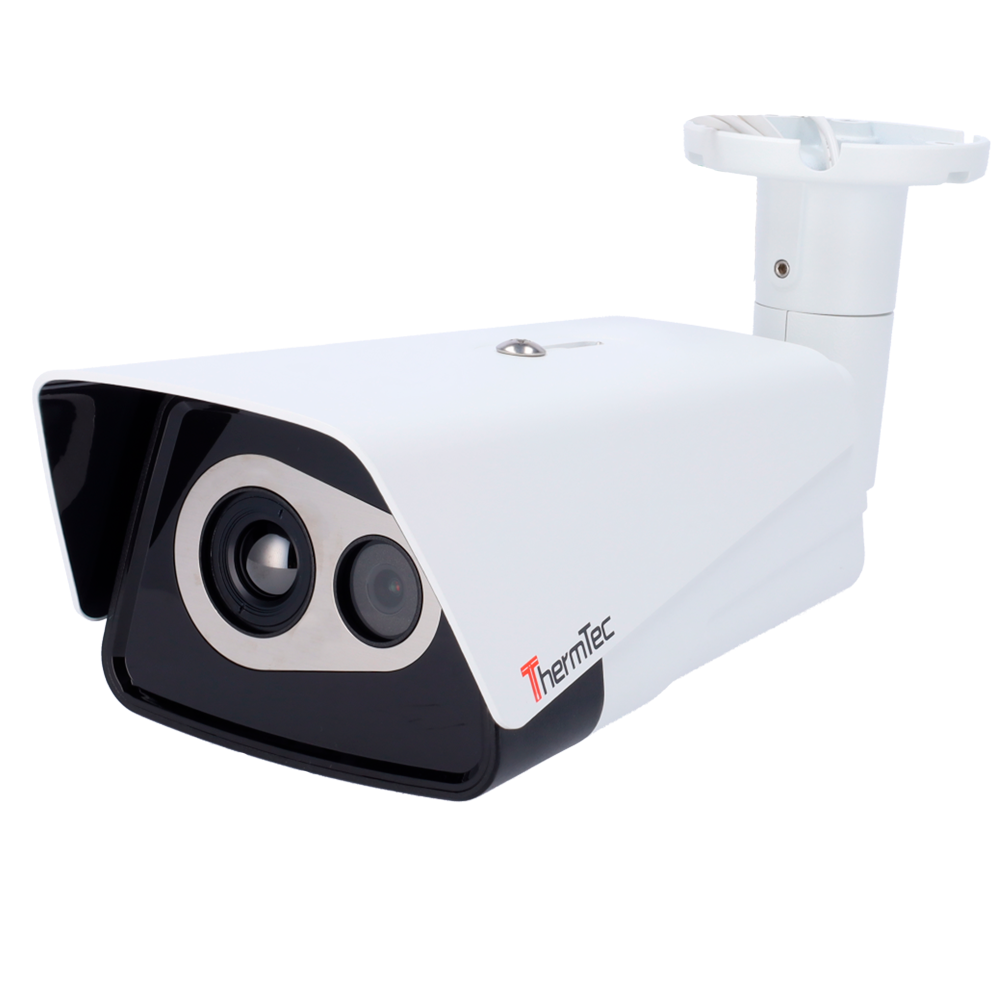

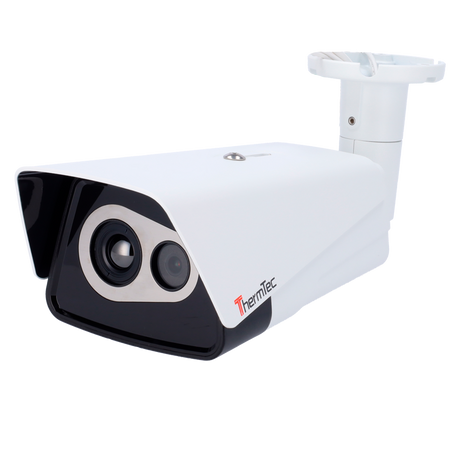

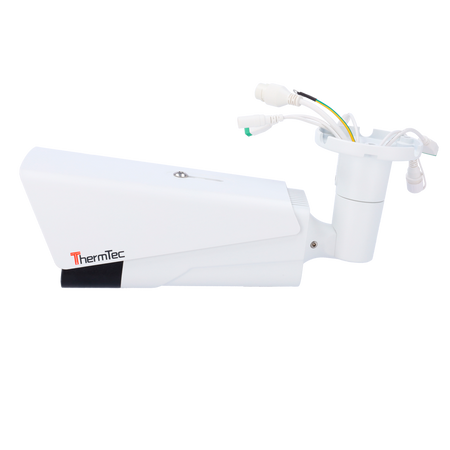

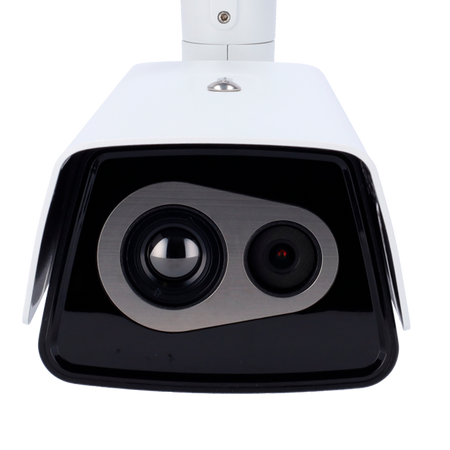

ThermTec Dual IP Thermal Camera - 640x512 VOx | 17mm Lens
ThermTec Dual IP Thermal Camera - 640x512 VOx | 17mm Lens
Regular price
€2.513,32
Final price
Regular price
-16%
€3.000,00
Sale price
€2.513,32
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
ThermTec Dual IP Thermal Camera - 640x512 VOx | 17mm Lens - Pixel pitch 12μm - Thermal sensitivity ≤35mK - 1/2.8” 4 Mp Optical sensor
📋 SPECIFICATIONS:
• Brand: ThermTec
• Thermal sensor: 640x512 Vanadium oxide
• Thermal focus: Motorized
• Optical sensor: 1/2.8” Progressive Scan CMOS 4 Megapixel
• Main Stream frame rate: Therm: 1280x720 / 768x576 / 640x480 / 384x288 (25fps); Opt: 2592x1536 / 1920x1080 / 1280x720 (25fps)
• Sub Stream frame rate: Therm: 768x576 / 640x480 / 352x288 / 384x288 (25fps); Opt: 1280x720 / 768x576 / 640x480 / 384x288 (25fps)
• Image fusion: Supported
• Compression: H.265 / H.264
• Image enhancement: DWDR, 3DNR, BLC, HLC AGC, ROI, Privacy Mask

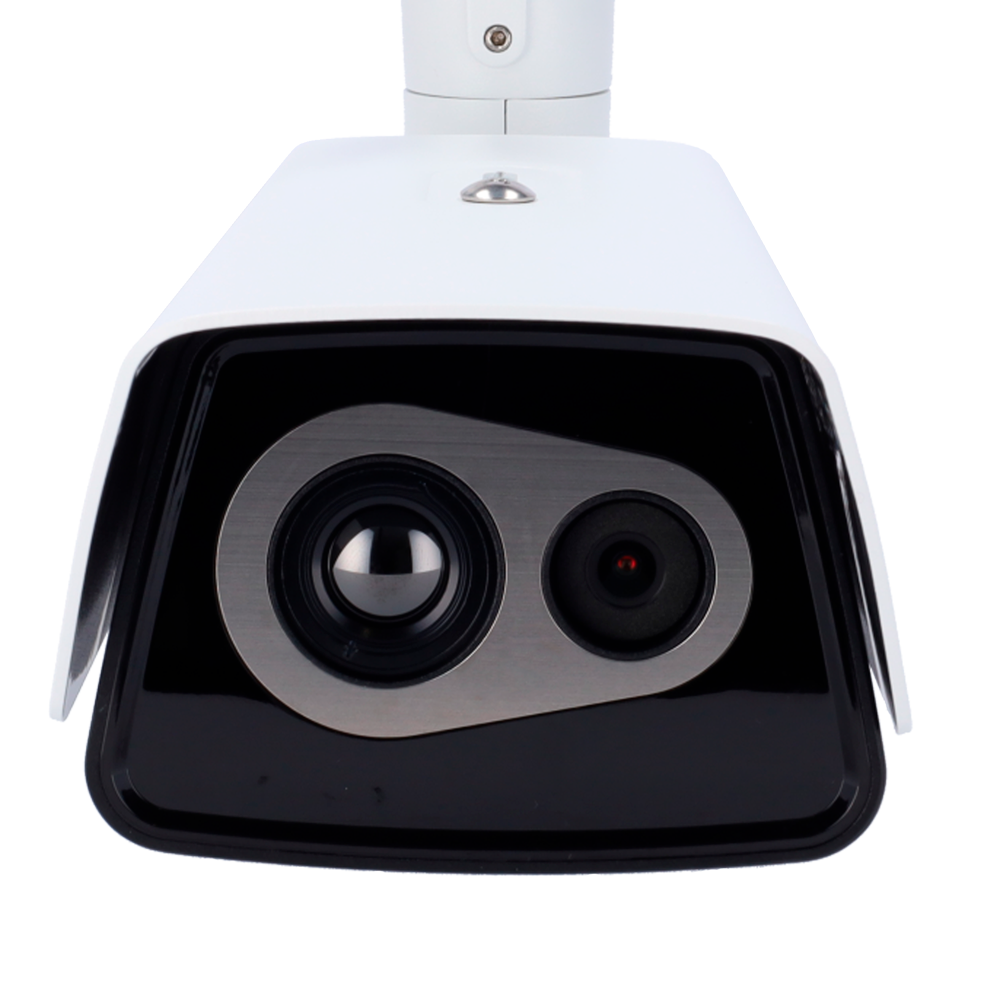

• Lens: 17mm (Therm) / 12mm (Opt)
• Thermal field of view: 25.7°×20.6° (Therm)
• Thermal sensitivity: ≤35mK (0.05ºC)
• Thermal measurement range: -20~150ºC / ±8ºC
• Spectral range: 8~14μm
• Detector Pitch: 12μm
• Audio: Not available

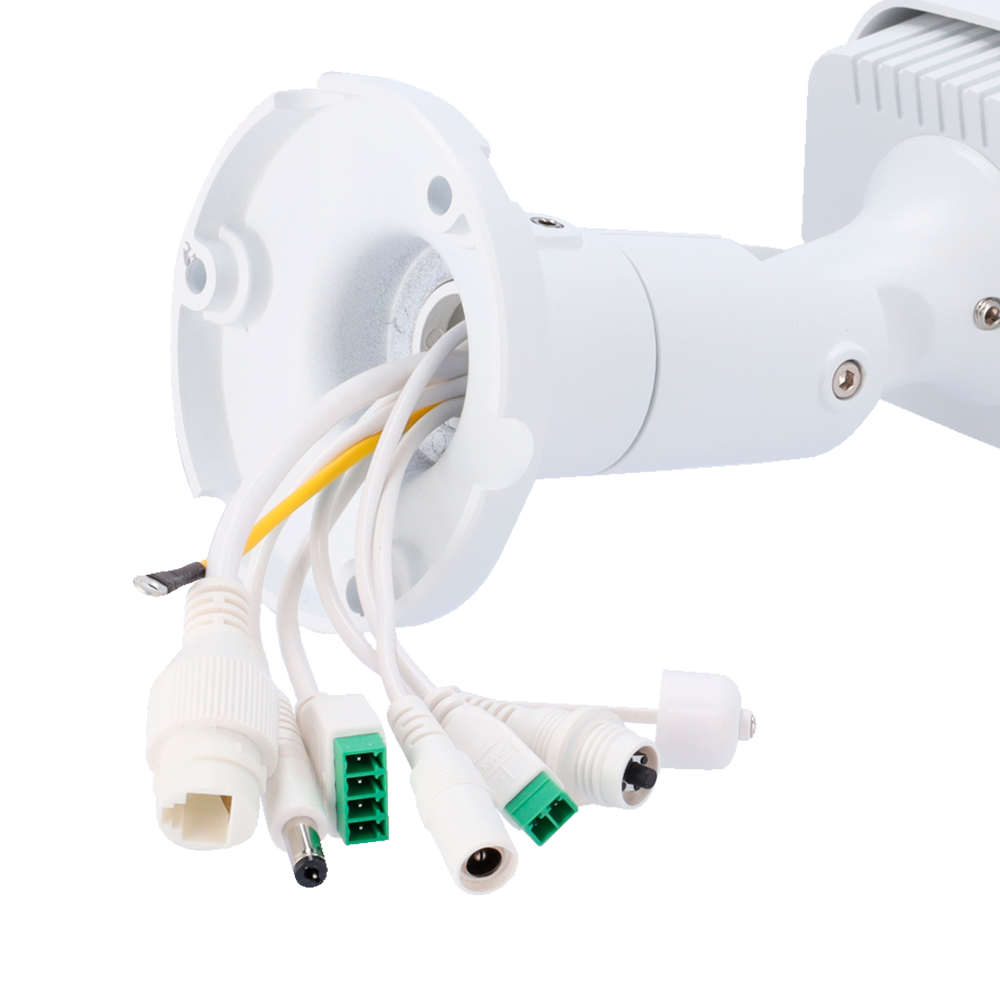

• Alarms: 1 IN / 1 OUT
• Internal memory: EMMC up to 16GB
• Network interface: Ethernet 10/100M BaseT
• Remote access: WEB interface
• Interoperability: ONVIF Profile S/T
• Power supply: 12VDC, max.15W / PoE (802.3af)
• Operating temp: -20ºC~+60ºC
• Protection rating: Waterproof IP66, TVS
• Dimensions: 356 x 145 x 162 mm
• Weight: ≤2200 g.
📦 INCLUDED:

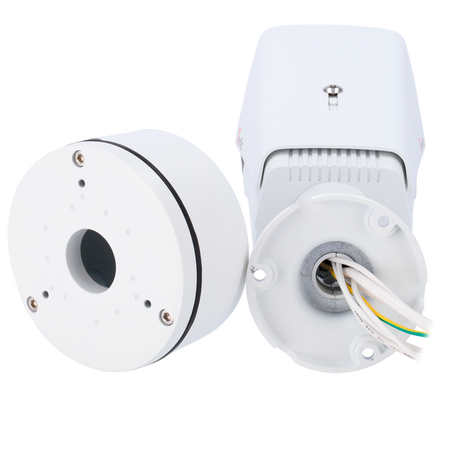

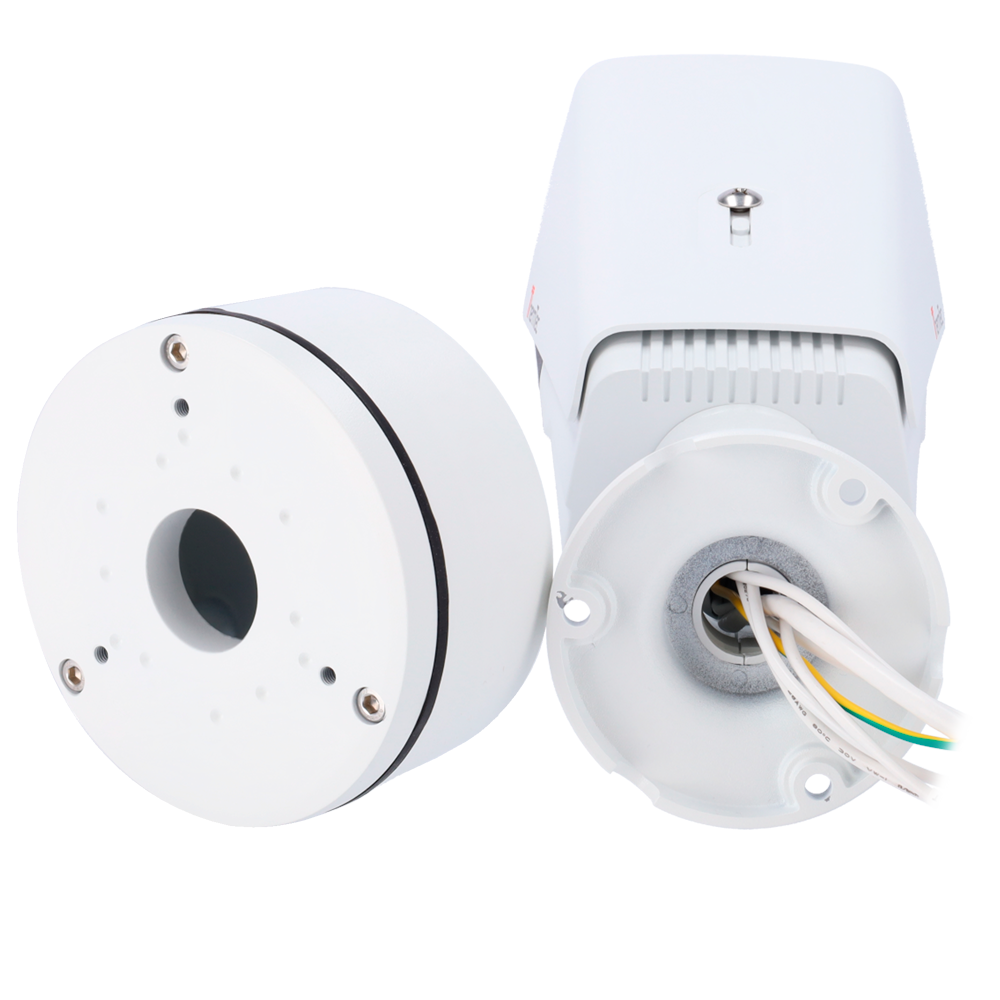

• ThermTec Dual IP thermal camera• Installation hardware• Junction box
| Thermal sensor | 640x512 Vanadium Oxide |
|---|---|
| Thermal focus | Motorized |
| Optical sensor | 1/2.8” Progressive Scan CMOS 4 Megapixel |
| Frame rate Main Stream | Term: 1280x720 / 768x576 / 640x480 / 384x288 (25fps) Opt: 2592x1536 / 1920x1080 / 1280x720 (25fps) |
| Frame rate Sub Stream | Term: 768x576 / 640x480 / 352x288 / 384x288 (25fps) Opt: 1280x720 / 768x576 / 640x480 / 384x288 (25fps) |
| Image fusion | Supported |
| Compression | H.265 / H.264 |
| Image enhancement | DWDR, 3DNR, BLC, HLC, AGC, ROI, Privacy Mask |
| Lens | 17mm (Term) / 12mm (Opt) |
| Thermal viewing angle | 25.7°×20.6° (Term) |
| Thermal sensitivity | ≤35mK (0.05 º C) |
| Thermal measurement range | -20~150ºC / ±8ºC |
| Spectral range | 8~14μm |
| Detector Pitch | 12μm |
| Audio | Not available |
| Alarms | 1 IN / 1 OUT |
| Internal storage | EMMC up to 16GB |
| Network interface | Ethernet 10/100M BaseT |
| Remote access | WEB interface |
| Interoperability | ONVIF Profile S/T |
| Power supply | 12VDC, max.15W / PoE (802.3af) |
| Operating temp. | -20ºC~+60ºC |
| Protection rating | Waterproof IP66, TVS |
| Dimensions | 356 x 145 x 162 mm |
| Weight | ≤2200 g. |
