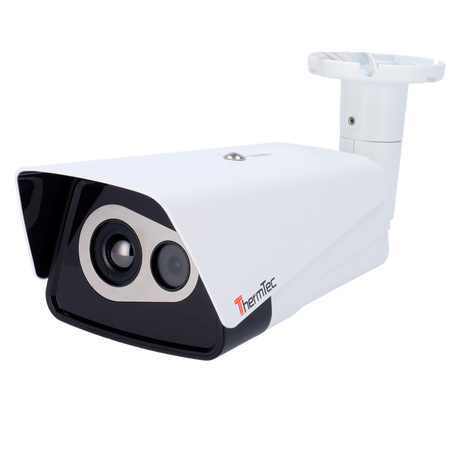

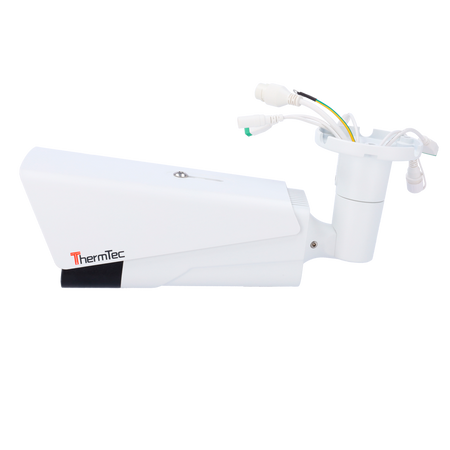

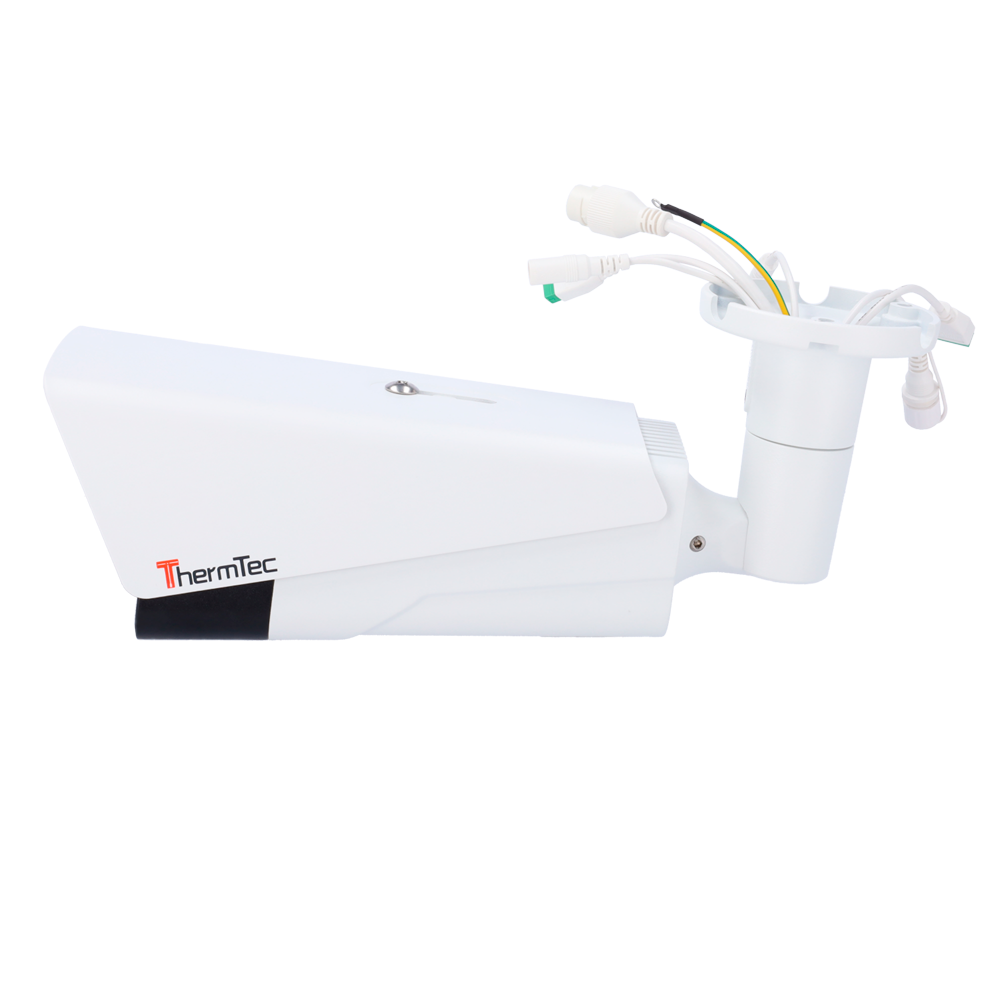

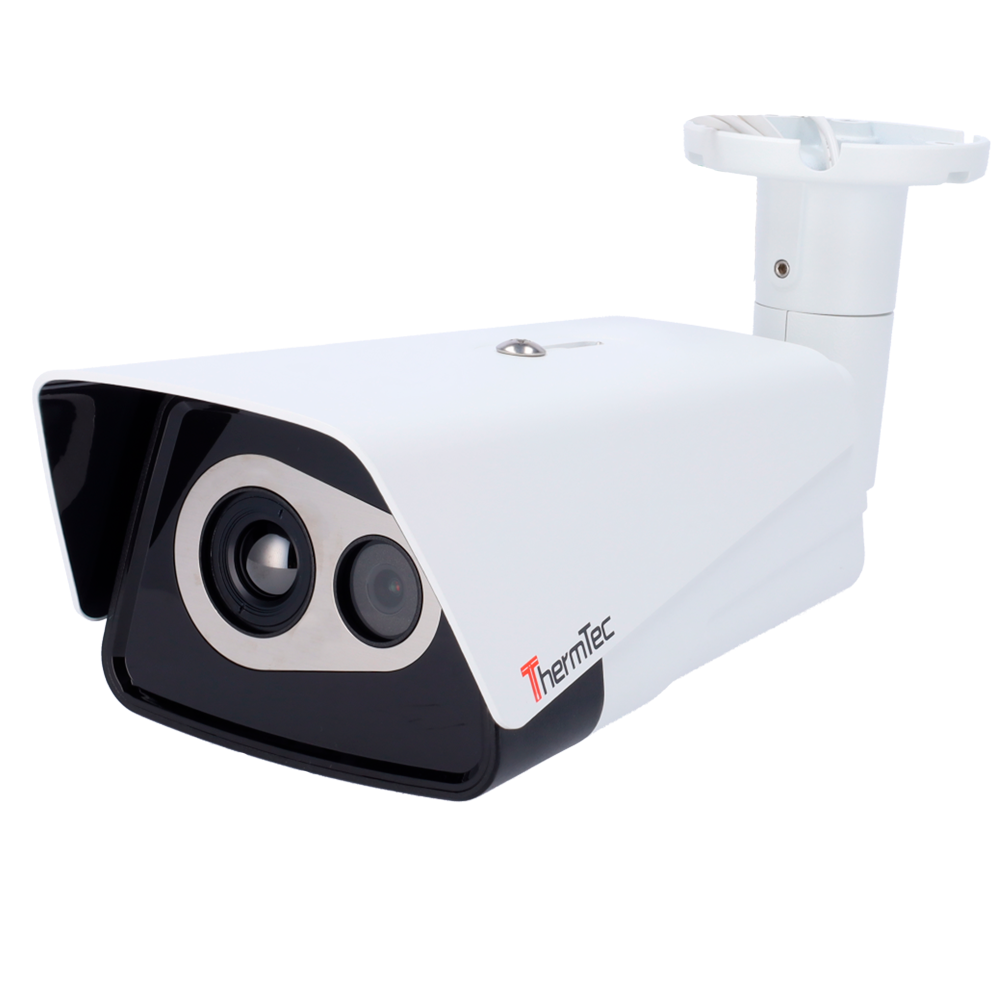

ThermTec Dual IP Thermal Camera - 384x288 VOx | 35mm Lens
ThermTec Dual IP Thermal Camera - 384x288 VOx | 35mm Lens
Regular price
€2.017,58
Final price
Regular price
-8%
€2.200,00
Sale price
€2.017,58
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

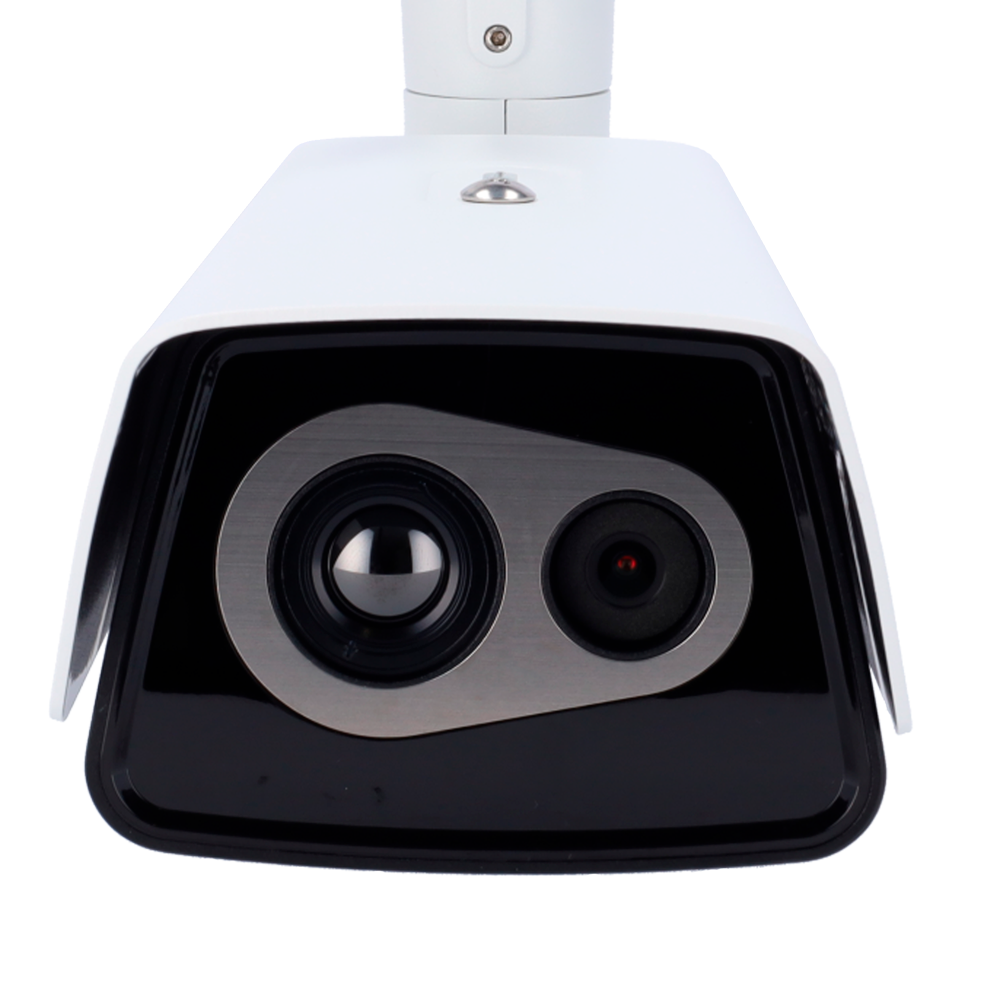

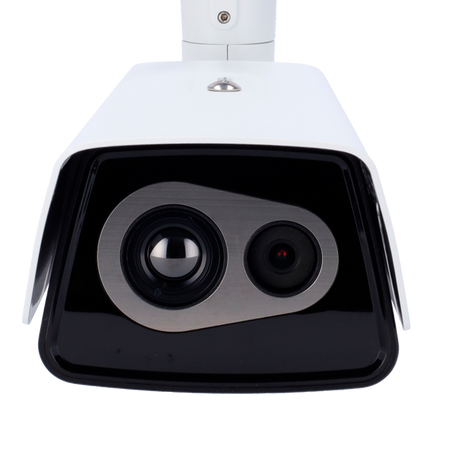

ThermTec Dual IP Thermal Camera - 384x288 VOx | 35mm lens - 12μm pixel pitch - Thermal sensitivity ≤35mK - 1/2.8” 4 MP optical sensor - Temperature measurement
📋 SPECIFICATIONS:
• Brand: ThermTec
• Thermal sensor: 384x288 Vanadium Oxide
• Thermal focus: Motorized
• Optical sensor: 1/2.8” Progressive Scan CMOS 4 Megapixel
• Main Stream frame rate: Therm: 768x576 / 640x480 / 384x288 (25fps); Opt: 2592x1536 / 1920x1080 / 1280x720 (25fps)
• Sub Stream frame rate: Therm: 640x480 / 352x288 / 384x288 (25fps); Opt: 1280x720 / 768x576 / 640x480 / 384x288 (25fps)
• Image fusion: Supported
• Compression: H.265 / H.264
• Image enhancement: DWDR, 3DNR, BLC, HLC AGC, ROI
• Lens: 35 mm (Therm) / 16 mm (Opt)
• Thermal field of view: 7.5°×5.7° (Therm)
• Thermal sensitivity: ≤35mK (0.05 º C)
• Thermal measurement range: -20 ~ 150 º C / ± 8 º C
• Spectral range: 8~14μm
• Detector pitch: 12μm
• Audio: Not available

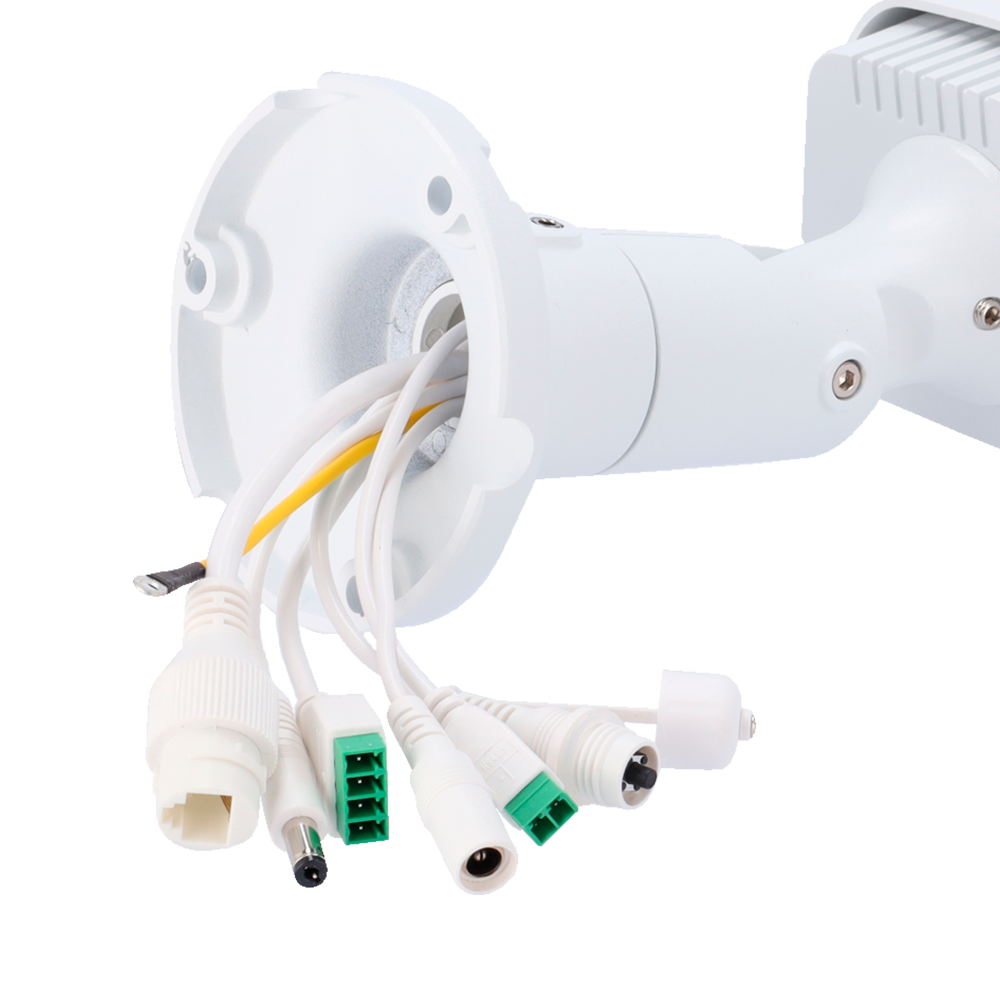

• Alarms: 1 IN / 1 OUT
• Internal memory: EMMC up to 16GB
• Network interface: Ethernet 10/100M BaseT
• Remote access: WEB interface, Safire Control Center, Safire Connect and NVR
• Interoperability: ONVIF
• Power supply: 12VDC, max.15W / PoE+ (802.3at); 1-OUT, up to 15W
• Operating temp.: -20º C ~ +60º C
• Protection rating: Waterproof IP66
• Dimensions: 376 (D) x 142.82 (H) x 102.78 (W) mm
• Weight: 1800 g
📦 INCLUDED:

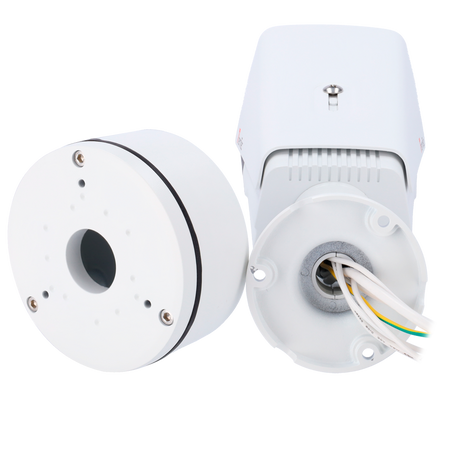

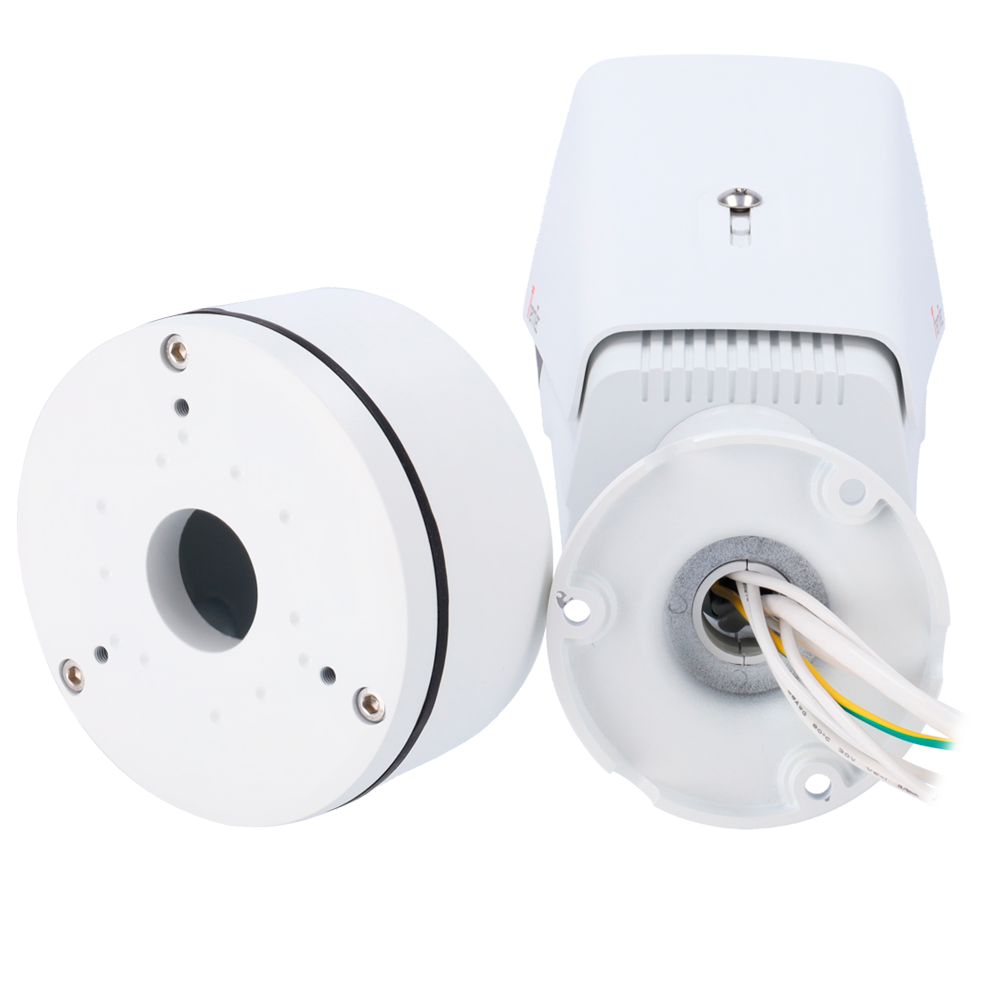

• ThermTec Dual IP thermal camera • Installation material • User instructions • Connection box • 12V DC power supply
| Thermal sensor | 384x288 Vanadium Oxide |
|---|---|
| Thermal focus | Motorized |
| Optical sensor | 1/2.8” Progressive Scan CMOS 4 Megapixel |
| Frame rate Main Stream | Term: 768x576 / 640x480 / 384x288 (25fps) Opt: 2592x1536 / 1920x1080 / 1280x720 (25fps) |
| Frame rate Sub Stream | Term: 640x480 / 352x288 / 384x288 (25fps) Opt: 1280x720 / 768x576 / 640x480 / 384x288 (25fps) |
| Image fusion | Supported |
| Compression | H.265 / H.264 |
| Image enhancement | DWDR, 3DNR, BLC, HLC AGC, ROI |
| Lens | 35 mm (Term) / 16 mm (Opt) |
| Thermal field of view | 7.5°×5.7° (Term) |
| Thermal sensitivity | ≤35mK (0.05 ºC) |
| Thermal measurement range | -20 ~150 ºC / ± 8 ºC |
| Spectral range | 8~14μm |
| Detector pitch | 12μm |
| Audio | Not available |
| Alarms | 1 IN / 1 OUT |
| Internal memory | EMMC up to 16GB |
| Network interface | Ethernet 10/100M BaseT |
| Remote access | WEB interface, Safire Control Center, Safire Connect and NVR |
| Interoperability | ONVIF |
| Power supply | 12VDC, max.15W / PoE+ (802.3at) 1-OUT, up to 15W |
| Operating temp. | -20ºC ~ +60ºC |
| Protection rating | Waterproof IP66 |
| Dimensions | 376 (D) x 142.82 (H) x 102.78 (W) mm |
| Weight | 1800 g |
