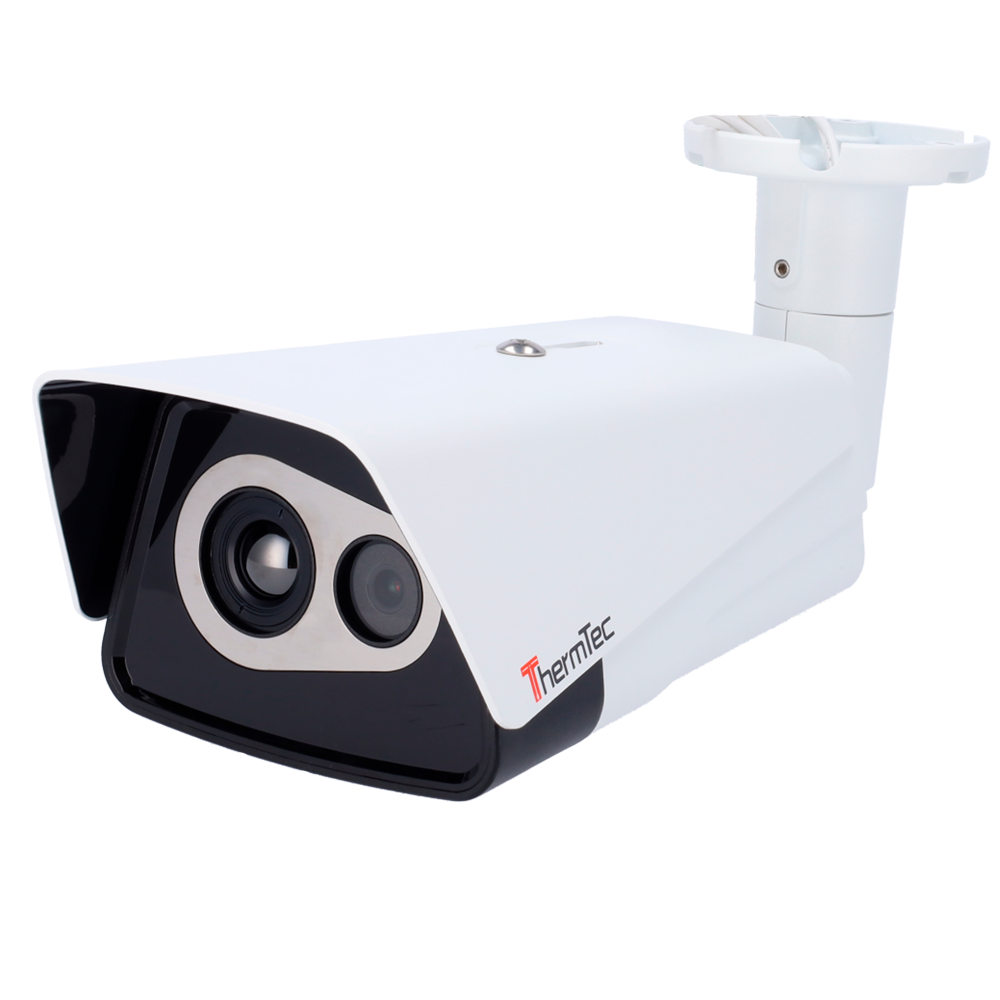

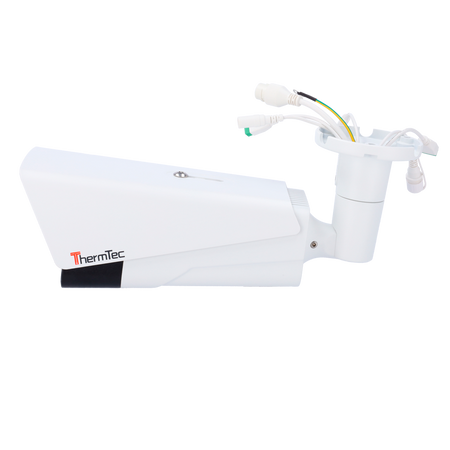

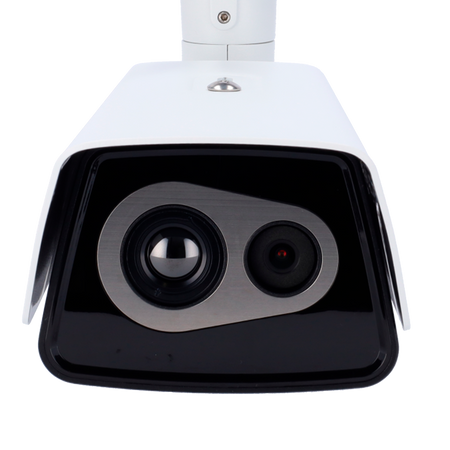

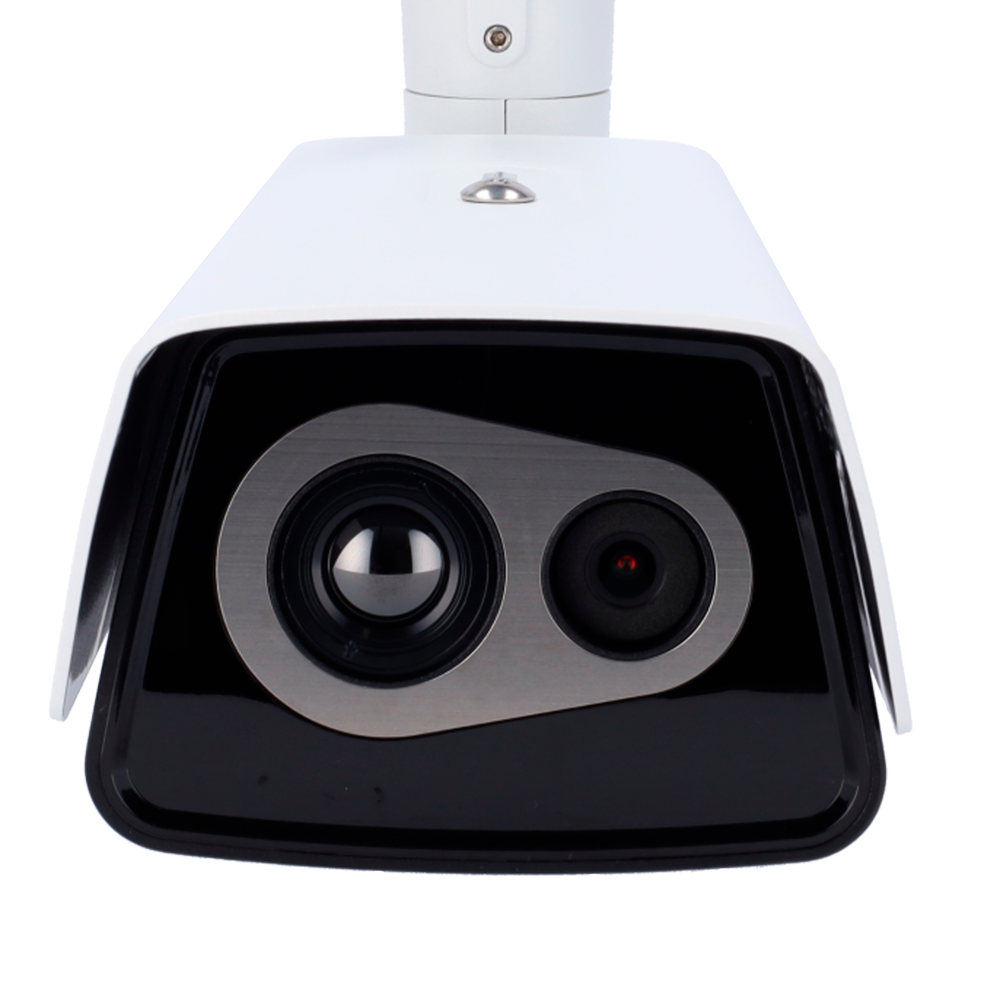

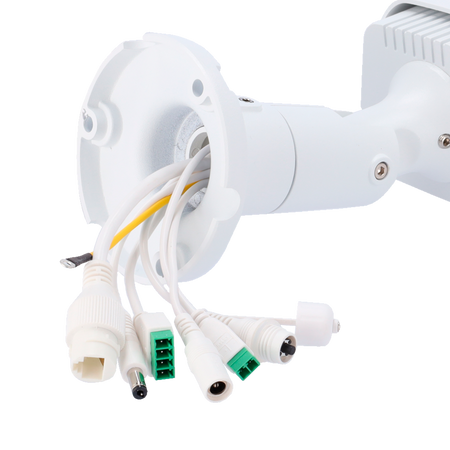

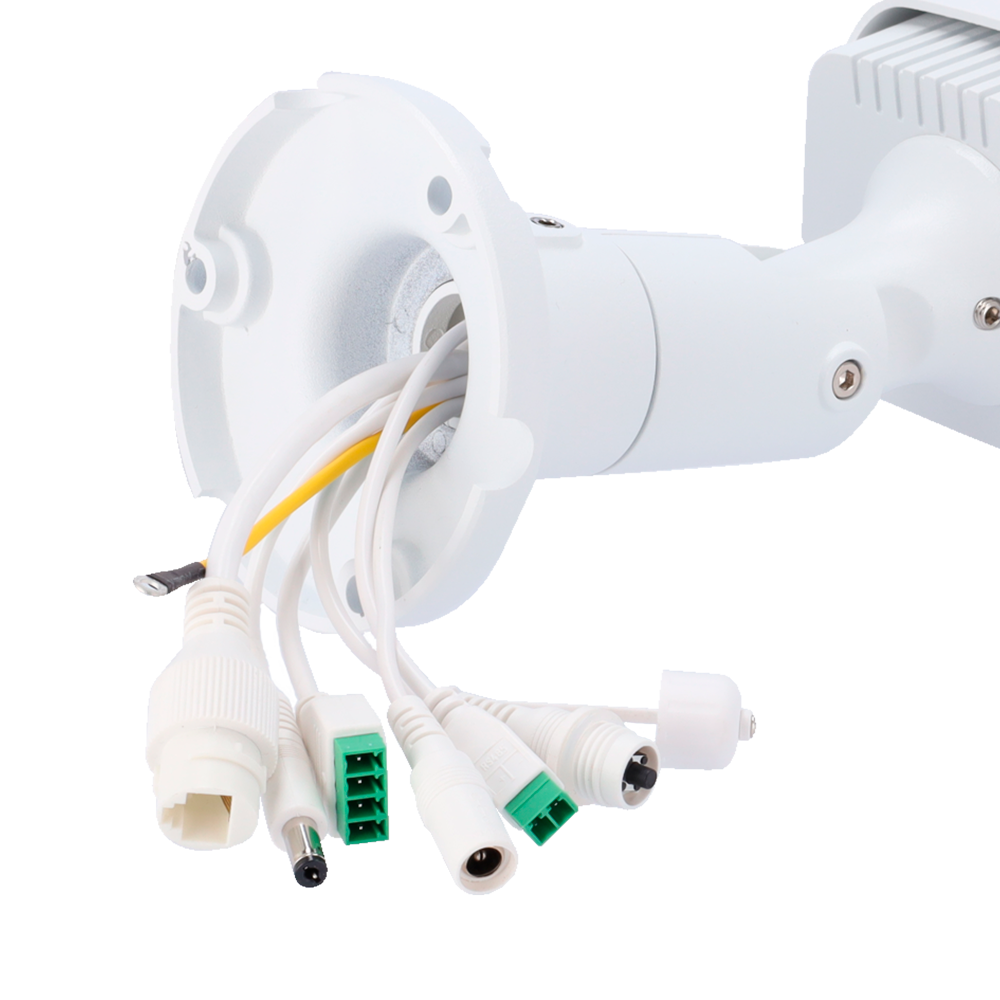

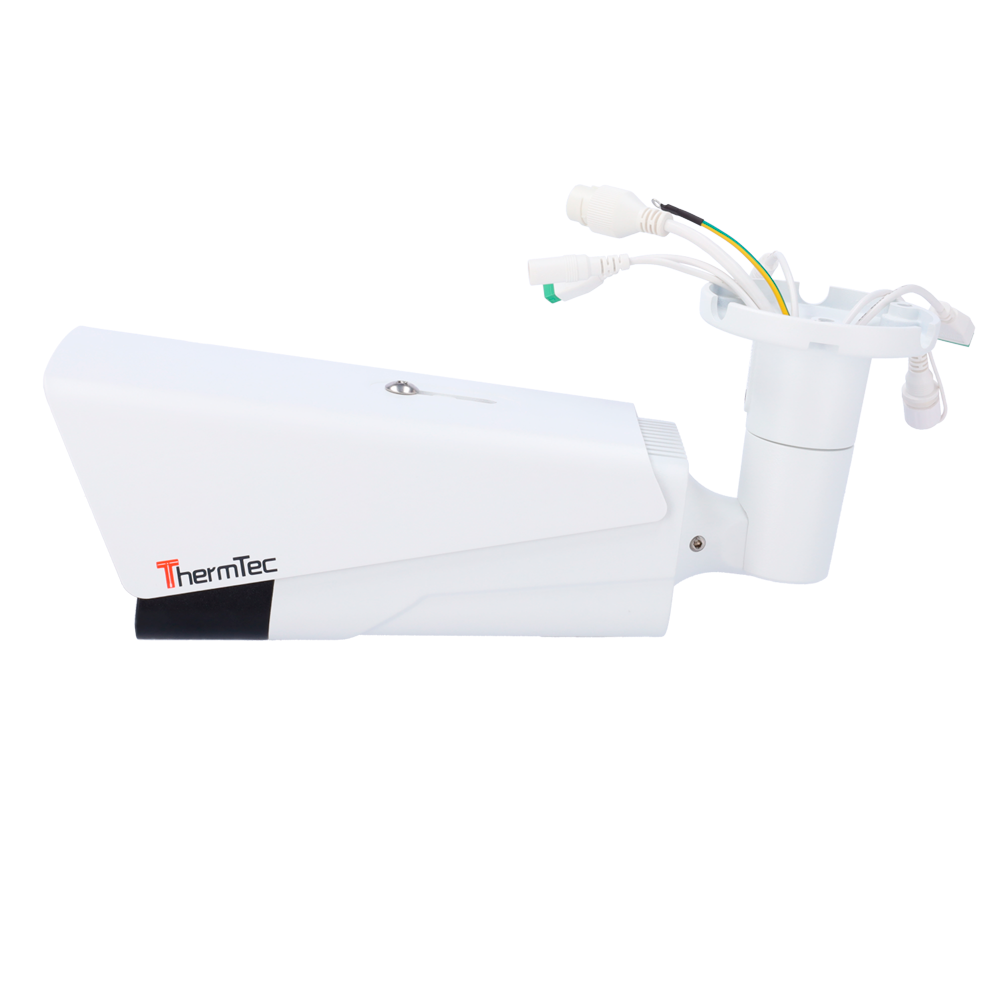

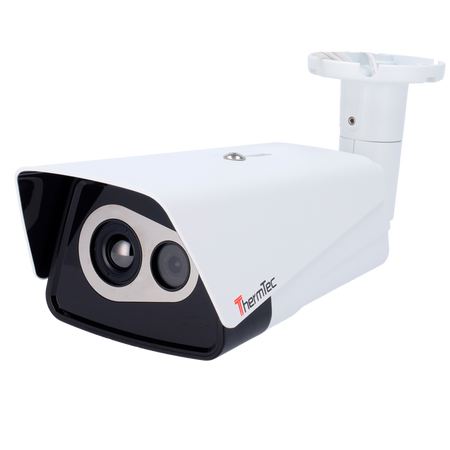

ThermTec Dual IP Thermal Camera - 384x288 VOx | 10mm Lens

SKU: THERMTEC-HM310
(0)
In stock
Usually shipped within 24 hours
€1.660,18 Final price
-8% €1.800,00 €1.660,18 Final price
Ready to use

Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.

Free shipping on orders over €200
100% Secure Payments
Industry-leading quality

Do you have any questions?

Feel free to write to us

Ask an expert!

WhatsApp Telegram Email

Ti rispondiamo entro 24 ore. Per una risposta subito, l'assistente in basso a destra.

ThermTec Dual IP Thermal Camera - 384x288 VOx | 10mm Lens - 12μm Pixel pitch - Thermal sensitivity ≤35mK - 1/2.8” 4 MP Optical sensor - Temperature measurement

📋 SPECIFICATIONS:
• Brand: ThermTec
• Thermal sensor: 384x288 Vanadium Oxide
• Thermal focus: Motorized
• Optical sensor: 1/2.8” Progressive Scan CMOS 4 Megapixel
• Main Stream frame rate: Term: 768x576 / 640x480 / 384x288 (25fps); Opt: 2592x1536 / 1920x1080 / 1280x720 (25fps)
• Sub Stream frame rate: Term: 640x480 / 352x288 / 384x288 (25fps); Opt: 1280x720 / 768x576 / 640x480 / 384x288 (25fps)
• Image fusion: Supported
• Compression: H.265 / H.264
• Image enhancement: DWDR, 3DNR, BLC, HLC AGC, ROI
• Lens: 10 mm (Term) / 8 mm (Opt)
• Thermal viewing angle: 26°×19.6° (Term)
• Thermal sensitivity: ≤35mK (0.05 º C)
• Thermal measurement range: -20 ~150 º C / ± 8 º C
• Spectral range: 8~14μm
• Detector Pitch: 12μm
• Audio: Not available
• Alarms: 1 IN / 1 OUT
• Internal memory: EMMC up to 16GB
• Network interface: Ethernet 10/100M BaseT
• Remote access: WEB interface, Safire Control Center, Safire Connect and NVR
• Interoperability: ONVIF
• Power supply: 12VDC, max.15W / PoE+ (802.3at); 1-OUT, up to 15W
• Operating temp.: -20º C ~ +60º C
• Protection rating: Waterproof IP66
• Dimensions: 376 (D) x 142.82 (H) x 102.78 (W) mm
• Weight: 1800 g

📦 INCLUDED:

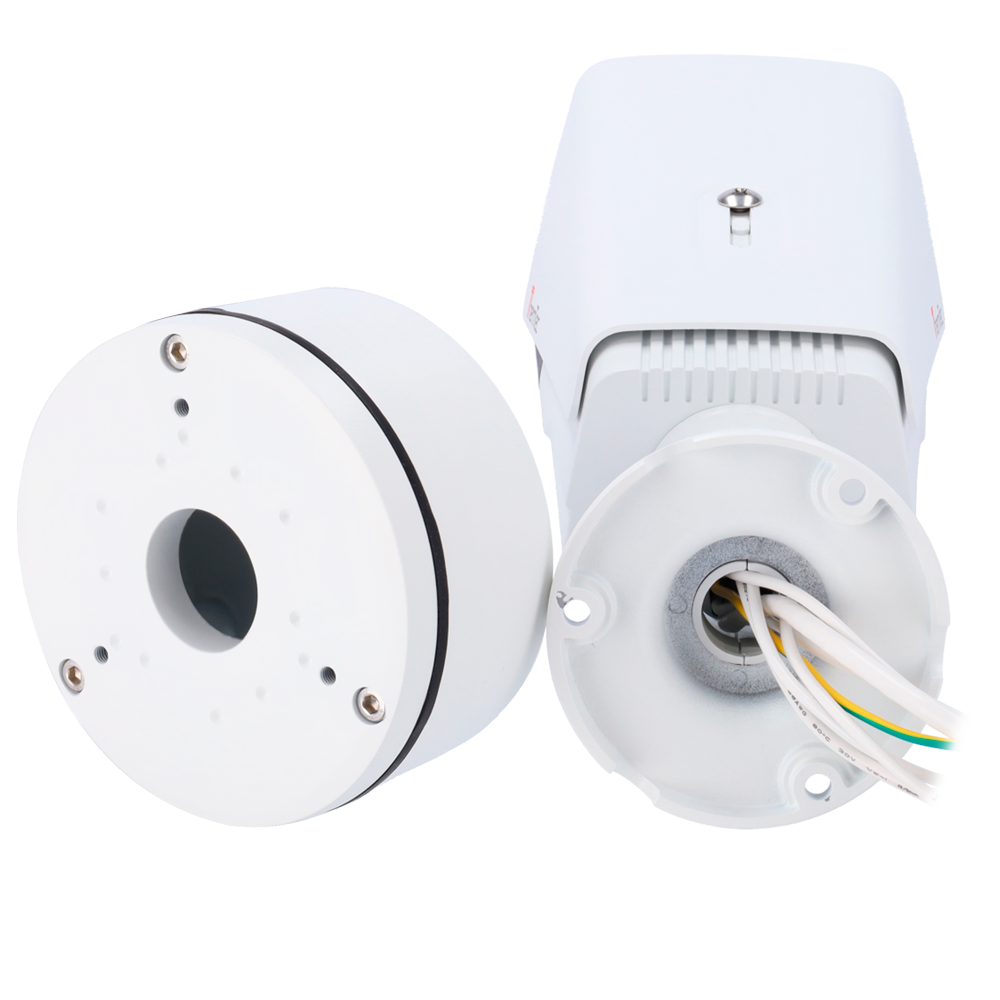

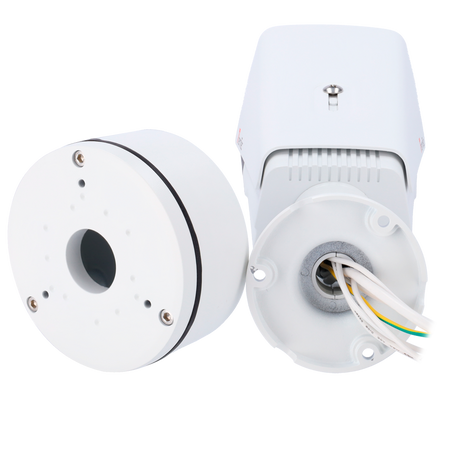

• ThermTec Dual IP Thermal Camera• Installation material• User instructions• Connection box• 12V DC power supply
Thermal sensor 384x288 Vanadium Oxide
Thermal focus Motorized
Optical sensor 1/2.8” Progressive Scan CMOS 4 Megapixel
Frame rate Main Stream Therm: 768x576 / 640x480 / 384x288 (25fps) Opt: 2592x1536 / 1920x1080 / 1280x720 (25fps)
Frame rate Sub Stream Therm: 640x480 / 352x288 / 384x288 (25fps) Opt: 1280x720 / 768x576 / 640x480 / 384x288 (25fps)
Image Fusion Supported
Compression H.265 / H.264
Image enhancement DWDR, 3DNR, BLC, HLC AGC, ROI
Lens 10 mm (Therm) / 8 mm (Opt)
Thermal field of view 26°×19.6° (Therm)
Thermal sensitivity ≤35mK (0.05 ºC)
Thermal measurement range -20 ~150 ºC / ± 8 ºC
Spectral range 8~14μm
Detector Pitch 12μm
Audio Not available
Alarms 1 IN / 1 OUT
Internal memory EMMC up to 16GB
Network interface Ethernet 10/100M BaseT
Remote access WEB interface, Safire Control Center, Safire Connect and NVR
Interoperability ONVIF
Power supply 12VDC, max.15W / PoE+ (802.3at) 1-OUT, up to 15W
Operating temp. -20ºC ~ +60ºC
Protection rating Waterproof IP66
Dimensions 376 (D) x 142.82 (H) x 102.78 (W) mm
Weight 1800 g
