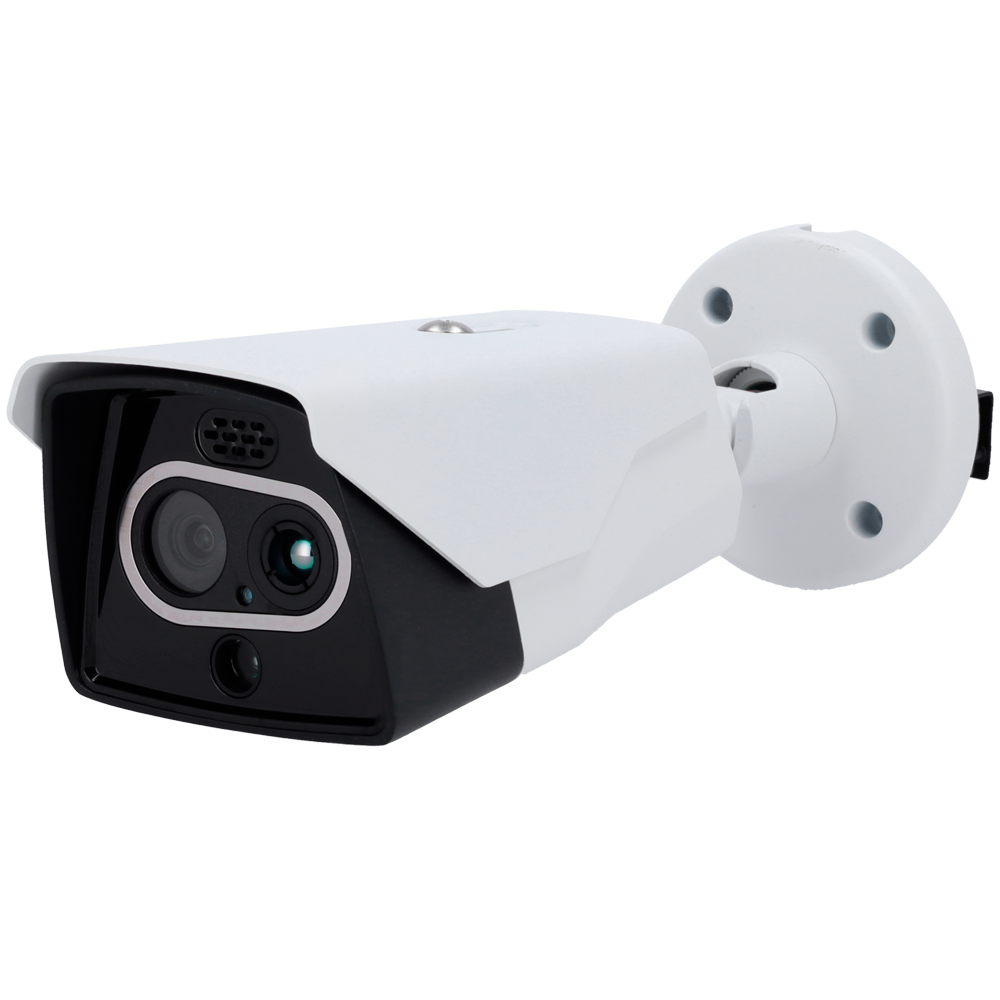

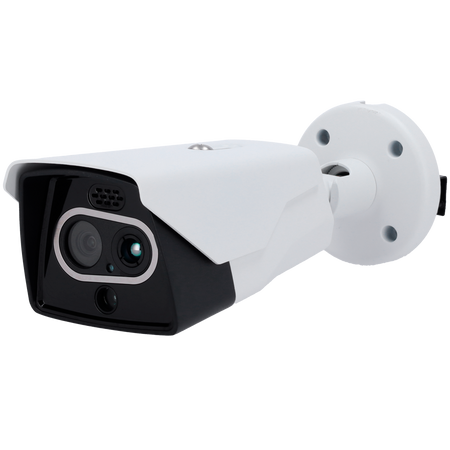

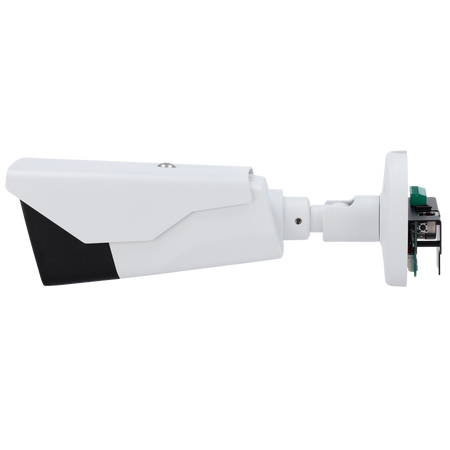

Thermtec HM2 series IP thermal camera - 256x192 12μm VOx FPA thermal sensor | 10mm lens
Thermtec HM2 series IP thermal camera - 256x192 12μm VOx FPA thermal sensor | 10mm lens
Regular price
€604,12
Final price
Regular price
-6%
€644,00
Sale price
€604,12
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

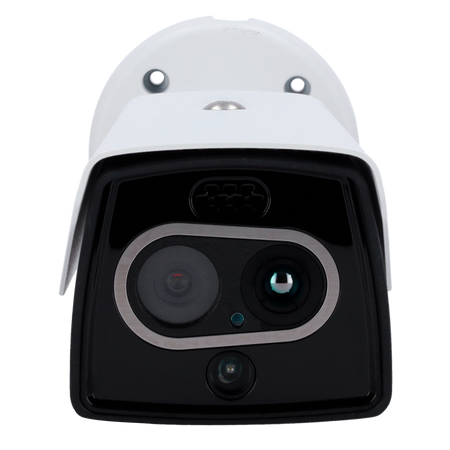

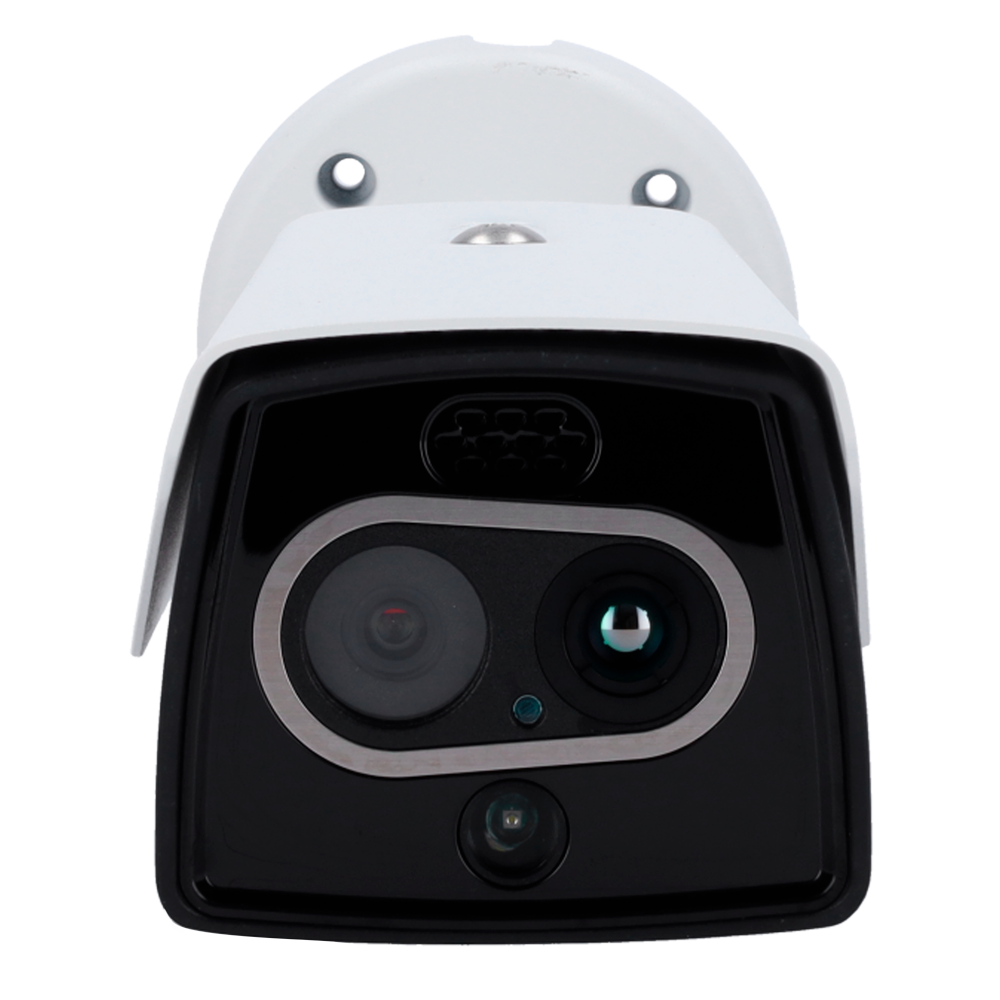

Thermtec HM2 series IP thermal camera - VOx FPA 256x192 12μm thermal sensor | 10mm lens - 1/2.8" CMOS visible sensor | 4Mpx | 8mm lens - Thermal sensitivity ≤35mK - Temperature measurement range -20ºC~150ºC/±2ºC - Temperature measurement, fire detection, VCA
📋 SPECIFICATIONS:
• Brand: Thermtec
• Range: HM2
• Thermal sensor: Uncooled VOx FPA
• Thermal sensor resolution: 256 x 192
• Pixel pitch: 12μm
• Thermal lens: 10mm
• Thermal sensitivity: ≤35mK
• Thermal measurement range: -20ºC~150ºC / ±2ºC
• Spectral range: LWIR 8~14μm
• Thermal field of view: 17° (H) x 13° (V)
• Visible sensor: 1/2.8" Progressive Scan CMOS
• Visible sensor resolution: 2592 x 1536 (4Mpx)
• Visible lens: 8mm
• Infrared illuminator: 20m max.
• Main Stream frame rate: Visible: 25fps (2592×1536, 1920×1080, 1280x720); Thermal: 25fps (768x576, 640x480, 384x288, 352x288)
• Sub Stream Rate: Visible: 25fps (1280x720, 768x576, 640x480, 352x288, 256x192); Thermal: 25fps (768x576, 640x480, 384x288, 352x288)
• Compression: H.265 / H.264
• VCA: Motion detection, line crossing, intrusion detection, area entry/exit; Fire detection and temperature measurement
• Temperature rules: Point, line and area, multiple rules simultaneously

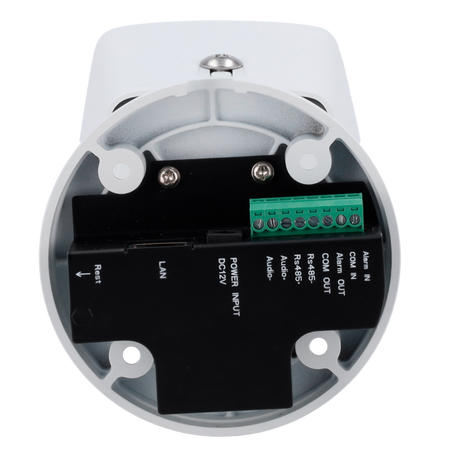

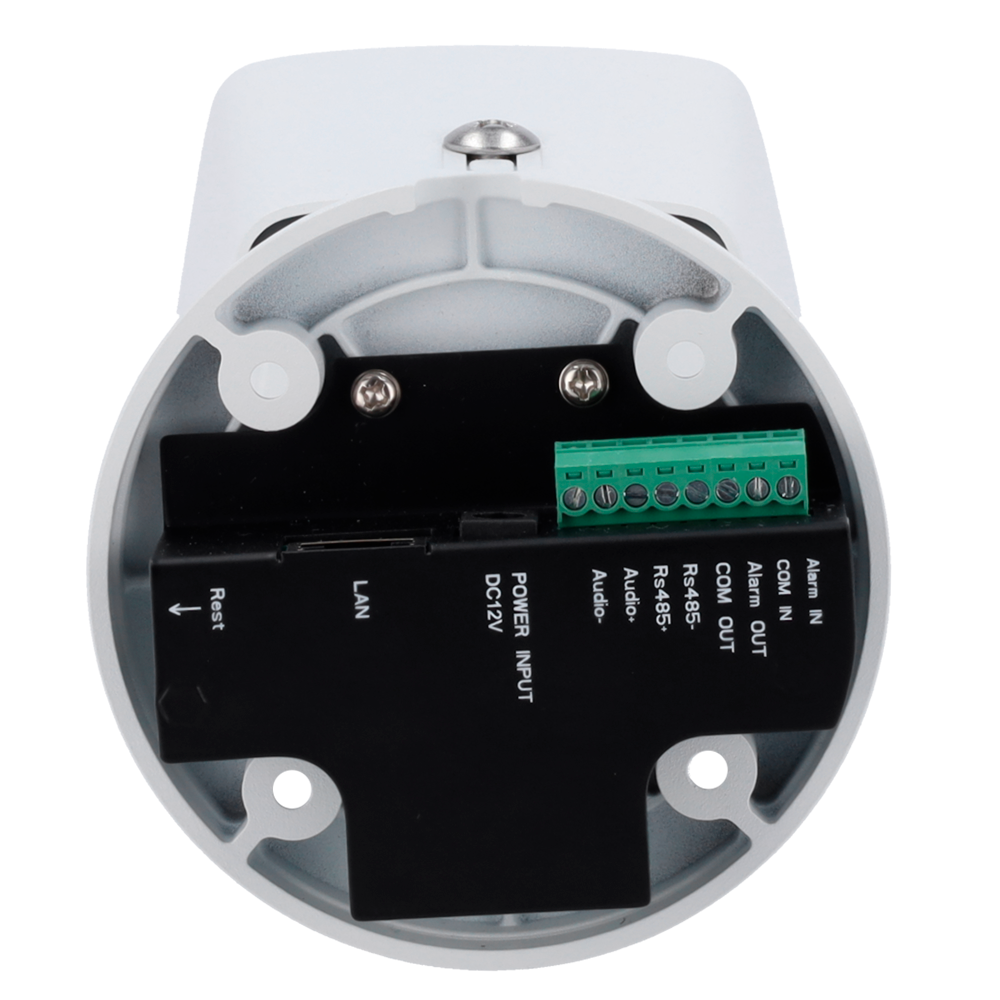

• Alarms: 1 input / 1 relay
• Network interface: 10/100 BaseT Ethernet
• Remote access: Web browser, Thermtec VMS software
• Interoperability: ONVIF, API, SDK
• Power supply: DC 12V, 3W max.; PoE IEEE802.3af
• Operating temp.: -20ºC~+75ºC, <95% RH
• Protection rating: IP66 waterproof; TVS 6000V lightning protection

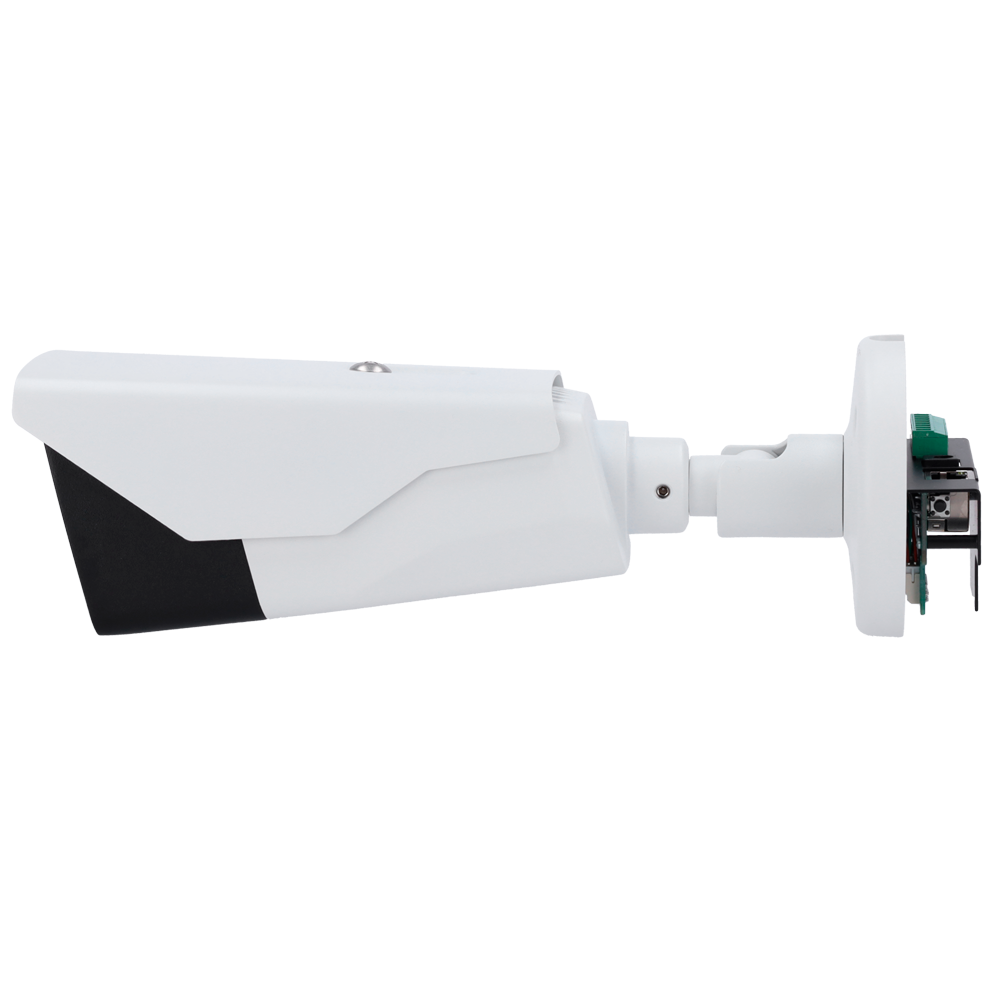

• Dimensions: 277mm × 92mm × 90mm
• Weight: ≤1.6Kg
📦 INCLUDED:

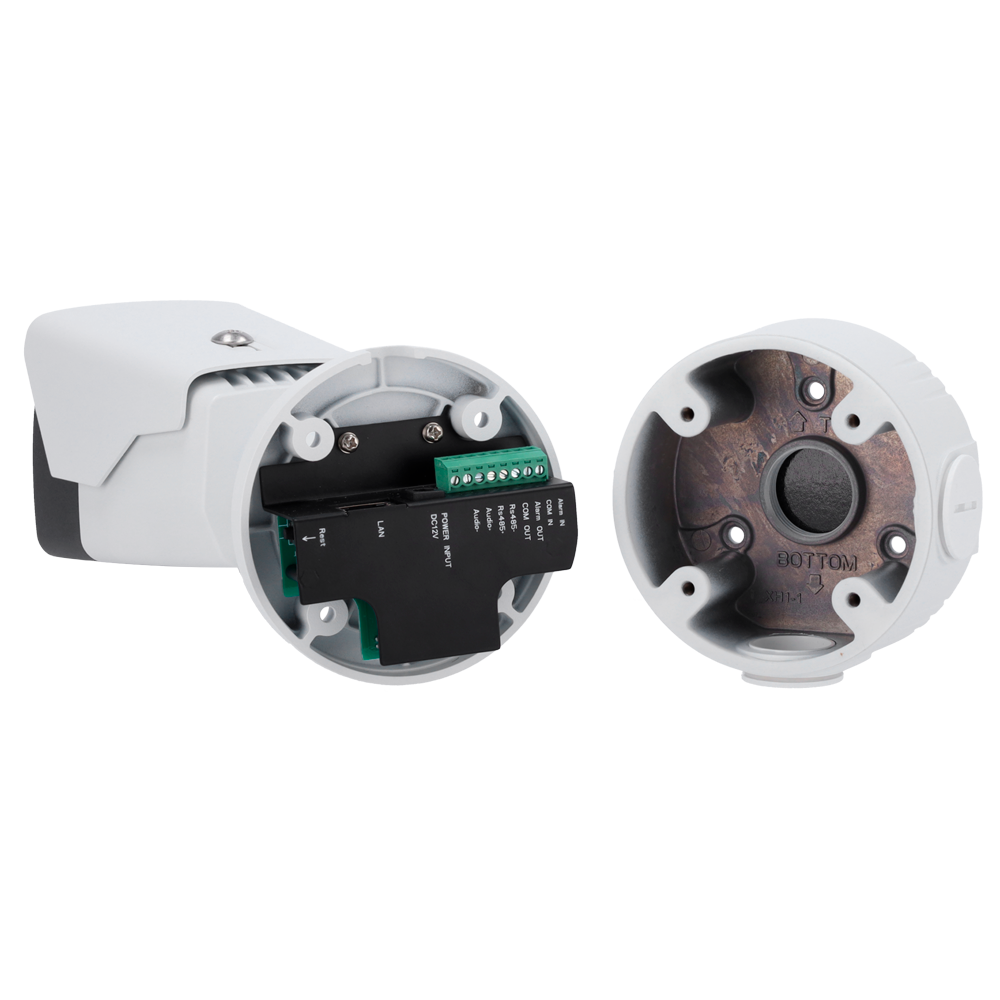

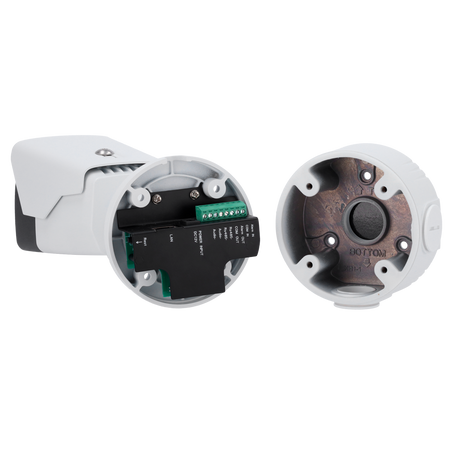

• Thermtec HM2 series dual IP thermal camera• Installation hardware• Junction box
| Range | HM2 |
|---|---|
| Thermal sensor | Uncooled VOx FPA |
| Thermal sensor resolution | 256 x 192 |
| Pixel pitch | 12μm |
| Thermal lens | 10mm |
| Thermal sensitivity | ≤35mK |
| Thermal measurement range | -20ºC~150ºC / ±2ºC |
| Spectral range | LWIR 8~14μm |
| Thermal field of view | 17° (H) x 13° (V) |
| Visible sensor | 1/2.8" Progressive Scan CMOS |
| Visible sensor resolution | 2592 x 1536 (4Mpx) |
| Visible lens | 8mm |
| Infrared illuminator | 20m maximum |
| Main Stream frame rate | Visible: 25fps (2592×1536, 1920×1080, 1280x720) Thermal: 25fps (768x576, 640x480, 384x288, 352x288) |
| Sub Stream rate | Visible: 25fps (1280x720, 768x576, 640x480, 352x288, 256x192) Thermal: 25fps (768x576, 640x480, 384x288, 352x288) |
| Compression | H.265 / H.264 |
| VCA | Motion detection, line crossing, intrusion detection, region entry/exit, fire detection and temperature measurement |
| Temperature rules | Point, line, and area, multiple rules simultaneously |
| Alarms | 1 input / 1 relay |
| Network interface | Ethernet 10/100 BaseT |
| Remote access | Web browser, Thermtec VMS software |
| Interoperability | ONVIF, API, SDK |
| Power supply | DC 12V, 3W max. PoE IEEE802.3af |
| Operating temp. | -20ºC~+75ºC, <95% RH |
| Protection rating | Waterproof IP66, 6000V TVS lightning protection |
| Dimensions | 277mm × 92mm × 90mm |
| Weight | ≤1.6kg |
