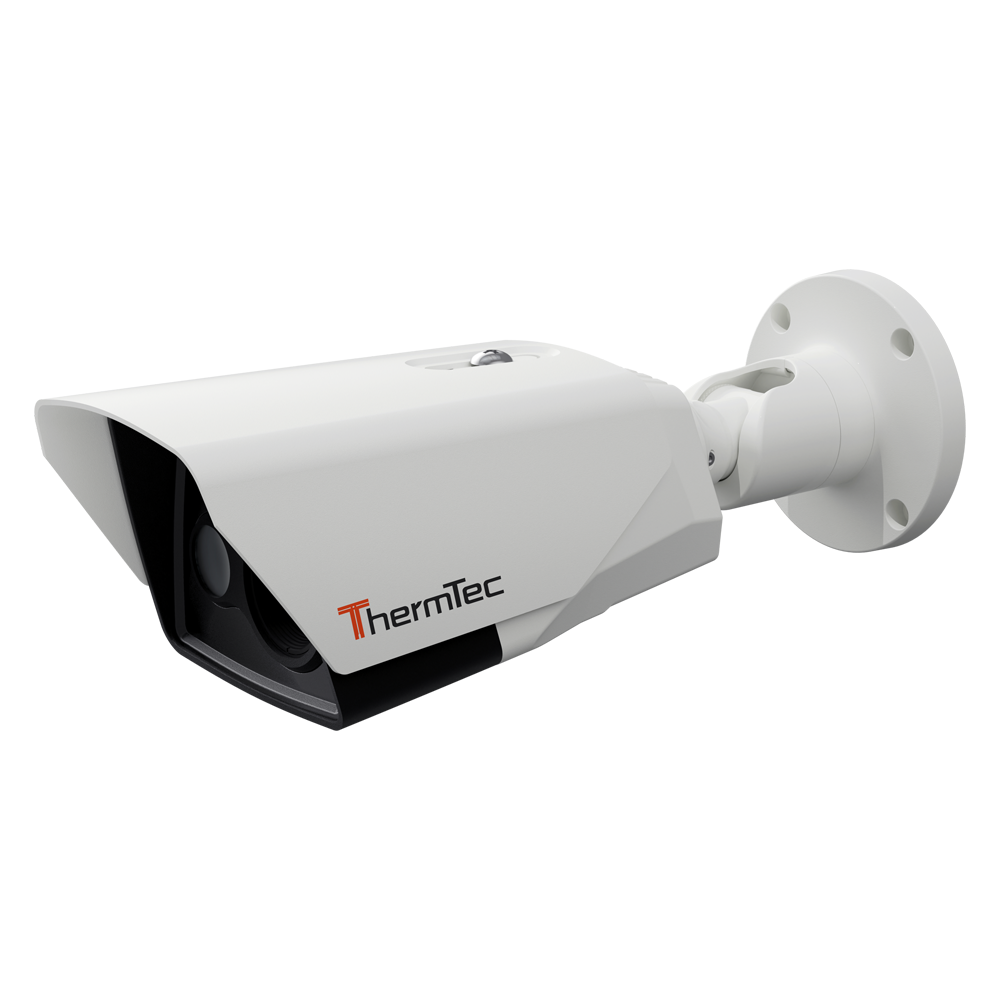

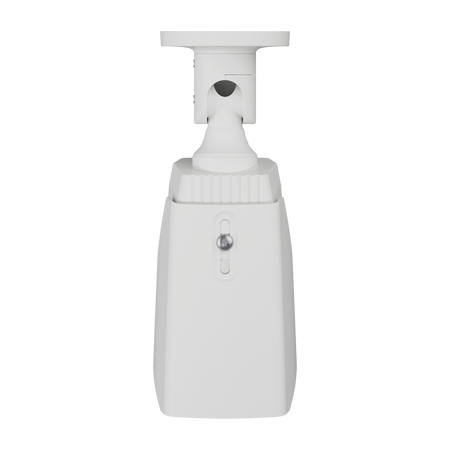

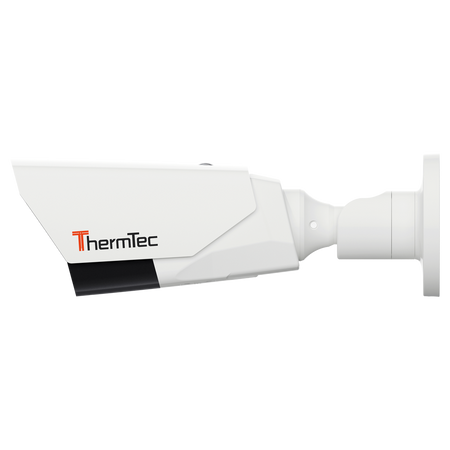

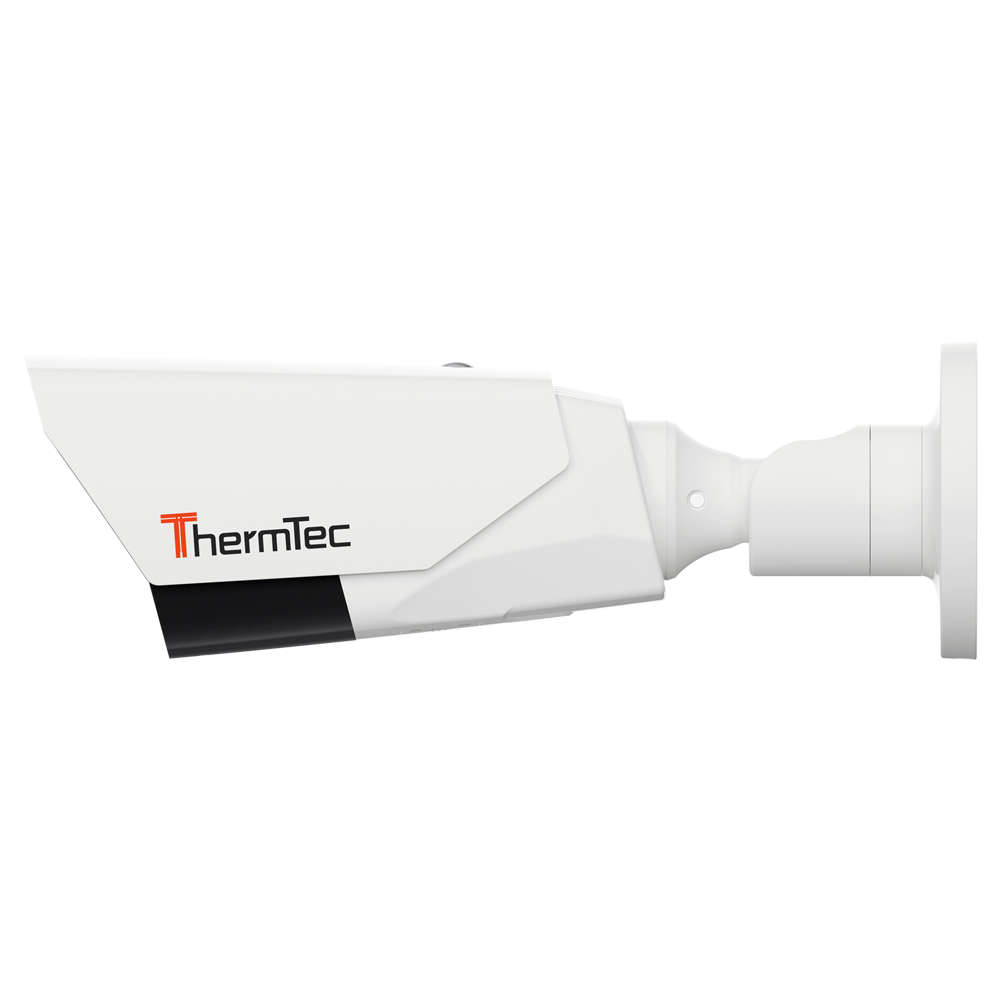

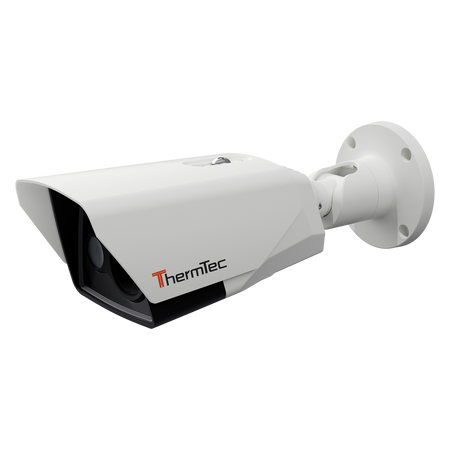

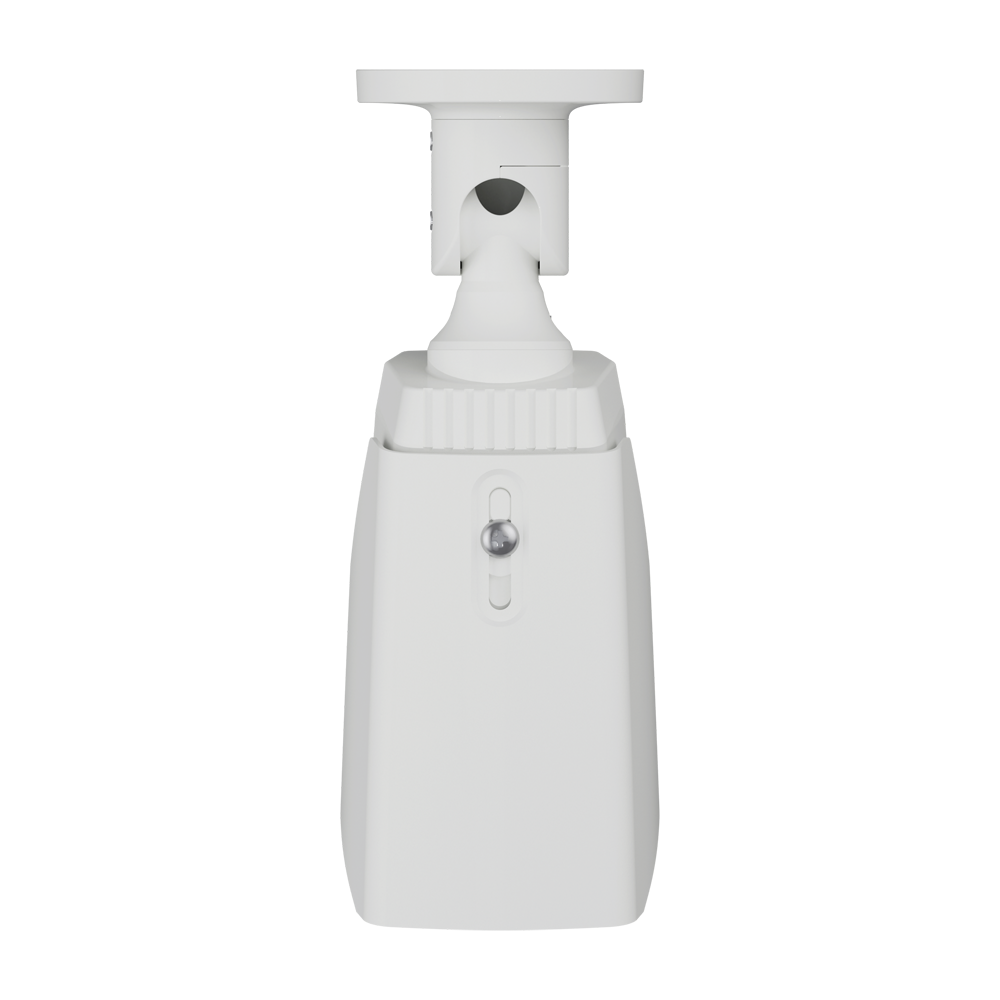

Thermtec bispectral bullet IP camera - 384x288 pix thermal sensor, 12µm, 17mm lens

ThermTec bispectral bullet IP camera - Thermal sensor 384x288 pix, 12µm, 17mm lens - Visible sensor 2592x1536 pix, 1/2.8", 12mm lens - NETD ≤25mK (25°C, F1.0) - EIS, dual privacy mask - Includes junction box

📋 SPECIFICATIONS:
• Sensor type: Uncooled VOx FPA
• Sensor resolution: 384x288 pixels
• Pixel size: 12µm
• Thermal sensitivity (NETD): ≤25mK @(25°C, F1.0)
• Spectral range: LWIR (8 - 14µm)
• Focus method: Motorized, auto/manual
• Focal length: 17mm
• Field of view: 15.4º x 11.6º
• Image adjustment: Contrast, brightness, and sharpness
• Uniformity correction: Auto/manual shutter, background correction
• Image sensor: 1/2.8" CMOS Progressive Scan
• Resolution: 4Mpx (2592x1536 pixels)
• Focal length: 12mm
• Field of view: 28º x 23.9º
• Thermal image processing: AGC, IDE, 3D DNR, HDR
• Image enhancement: Real-time super resolution
• Image fusion: Supported
• Color palettes: 9 options (white hot, black hot, iron, rainbow, etc.)
• Electronic Image Stabilization (EIS): Mutually exclusive with all intelligent functions, except VCA function on the thermal channel.
• Privacy masking: Configurable on thermal sensor and visible sensor
• Intelligent functions (VCA): 4 types (motion, line crossing, intrusion, area entry/exit)
• Fire detection: Supported
• Temperature measurement: 3 types (point, line, area)
• Temperature measurement range: -20°C ~ +135°C
• Temperature accuracy: ±8°C
• Alarms: 2 inputs / 2 outputs
• Audio: 1 input (35KΩ) / 1 output (600Ω)
• Communication interface: RJ45 10M/100M self-adaptive Ethernet
• Local storage: Supports MicroSD up to 512GB
• Power supply: DC 12V / PoE
• Power consumption: <5W (without IR or heater)
• Operating temperature: -20°C to +60°C (Customizable to -40°C)
• Operating humidity: <90% relative humidity (non-condensing)
• Environmental protection rating: IP67
• Electrical protection: TVS 6000V (lightning, surge, transients)
• Dimensions: 366mm x 116mm x 100mm
• Device weight: <2Kg
• Note: Table for reference only, performance may vary based on environmental conditions.; Optimal detection, recognition, and identification are calculated based on Johnson criteria.; Notice:; Detection range: to distinguish an object from the background.; Recognition range: to classify the object (animal, human, vehicle, etc.).; Identification range: to identify the object and describe it in detail.
• Vehicle detection range (1.4 x 4m): 1,322m
• Human detection range (1.8 x 0.5m): 472m
• Vehicle recognition range (1.4 x 4m): 331m
• Human recognition range (1.8 x 0.5m): 118m
• Vehicle identification range (1.4 x 4m): 165m
• Human identification range (1.8 x 0.5m): 59m

📦 INCLUDED:
• 1x ThermTec TH-HM3X Series Camera
• 1x Junction box
• 1x Installation kit and waterproof connectors
