JADEBIRD EN54-21 transmission module
Regular price
€625,00
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
JADEBIRD - EN54-21 transmission module - Communication channels: IP / GPRS / Dual Path - 24 VDC (supplied by the control panel) - Supervised alarm and fault inputs - Configuration via management software
📋 SPECIFICATIONS:
• Device Type: Fire Alarm Transmission Equipment (ATE)
• Network Protocol: Native integration with Jade Bird buses
• Communication Channels: [Specific according to version: IP / GPRS / Dual Path]
• Power Supply: 24 V DC (supplied by the control panel)
• Line Control: Continuous monitoring of the communication link
• Inputs / Outputs: Supervised alarm and fault inputs
• Configuration: Remotely or on-site via management software
• Dimensions (H x W x D): 148 mm x 105 mm x 35 mm
• Net Weight: 220 g (approx., without antenna/cables)
• Housing Material: Flame-retardant ABS / Metal base depending on batch
• Mounting Type: Internal DIN rail or screw mounting to the control panel chassis
• IP Rating: IP30 (Designed for inside a certified enclosure)
📦 INCLUDED:

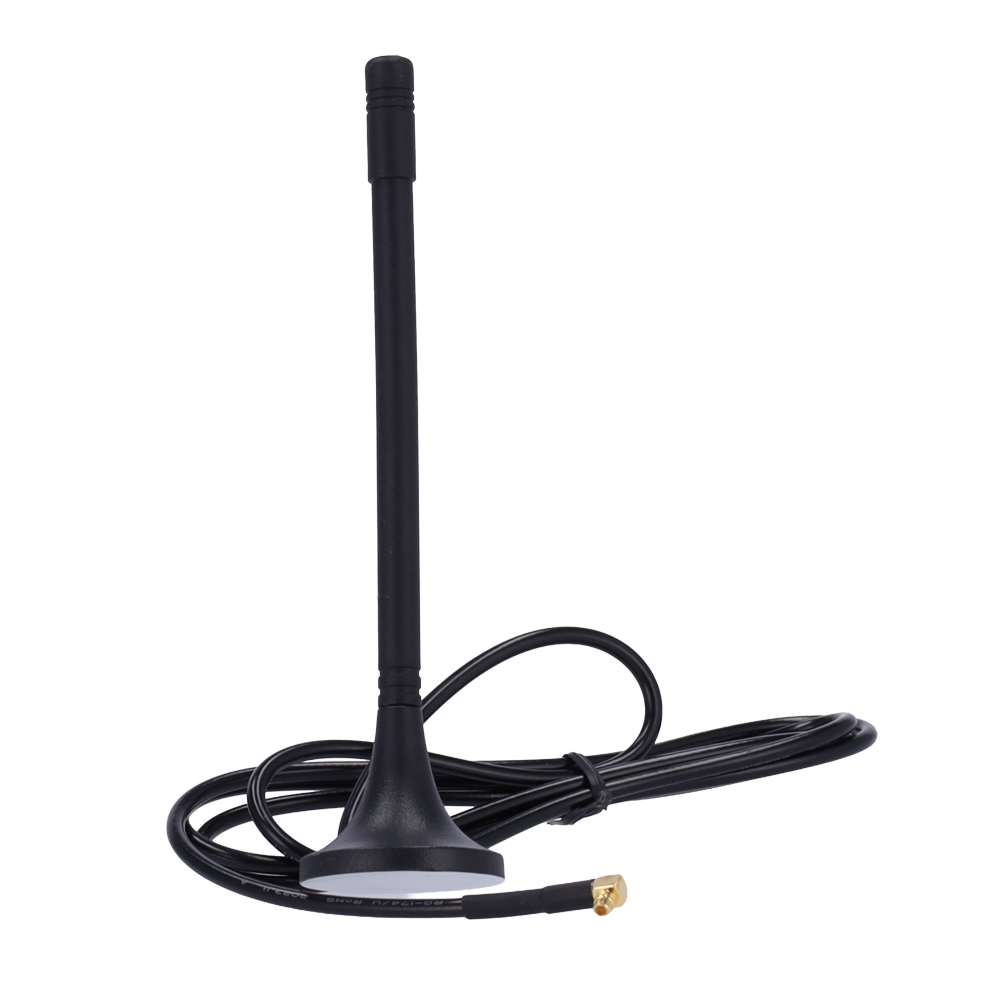

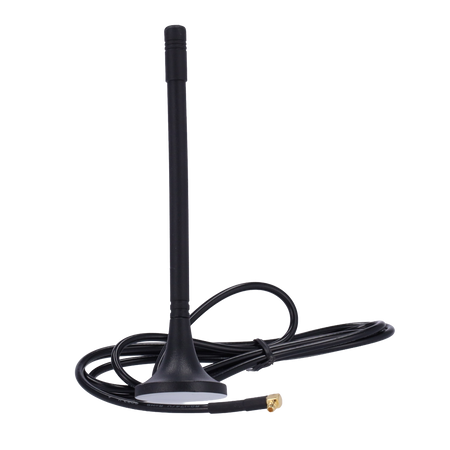

• TC-JBE transmitter module• High-gain antenna (GPRS/4G versions)• Data connection cable• 24V power cable• Screw and spacer kit• Quick Installation Guide• End-of-Line (EOL) resistors
| Device Type | Fire Alarm Transmission Equipment (ATE) |
|---|---|
| Network Protocol | Native integration with Jade Bird buses |
| Communication Channels | [Specify based on version: IP / GPRS / Dual Path] |
| Power Supply | 24 V DC (supplied by the control panel) |
| Line Control | Continuous monitoring of the communication link |
| Inputs / Outputs | Supervised inputs for alarm and fault conditions |
| Configuration | Remotely or on-site via management software |
| Dimensions (H x W x D) | 148 mm x 105 mm x 35 mm |
| Net Weight | 220 g (approx., excluding antenna/cables) |
| Housing Material | Flame-retardant ABS / Metal base depending on the batch |
| Mounting Type | Internal DIN rail or screw-fastened to the control panel chassis |
| IP Protection Rating | IP30 (Designed for inside a certified enclosure) |
- User manual Link
