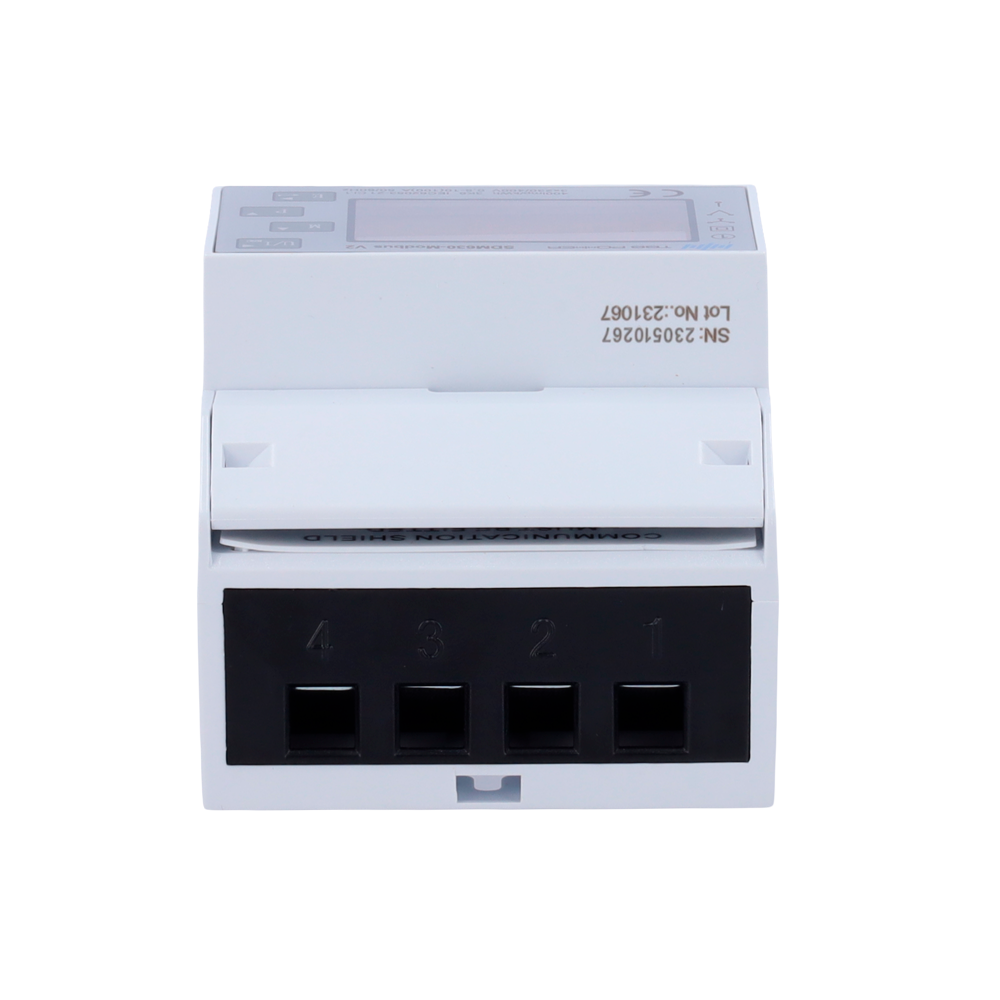

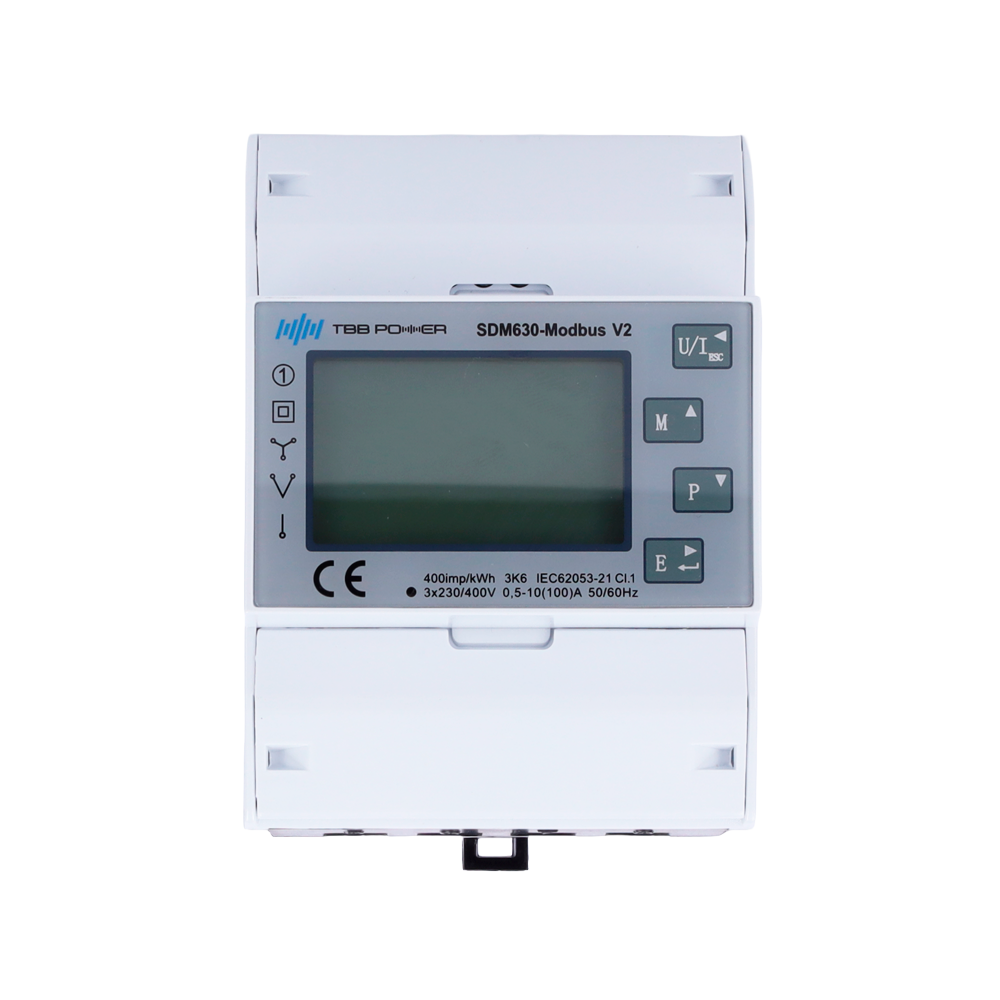

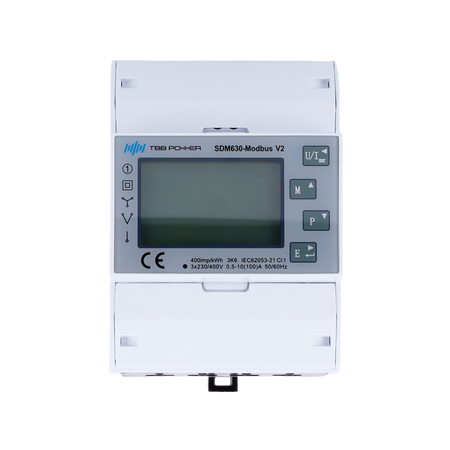

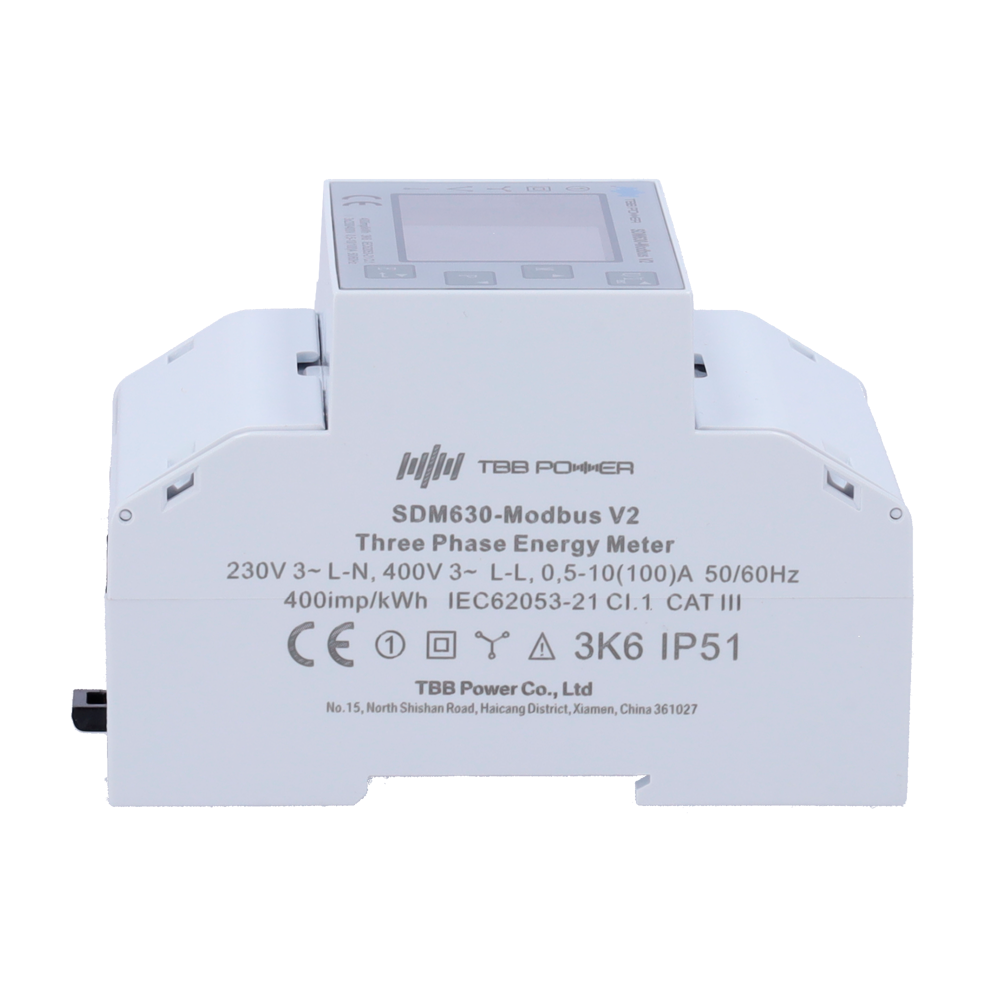

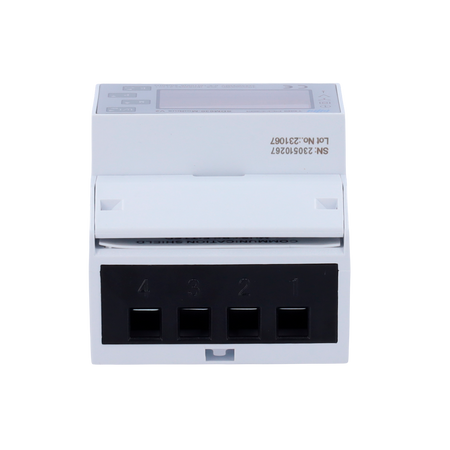

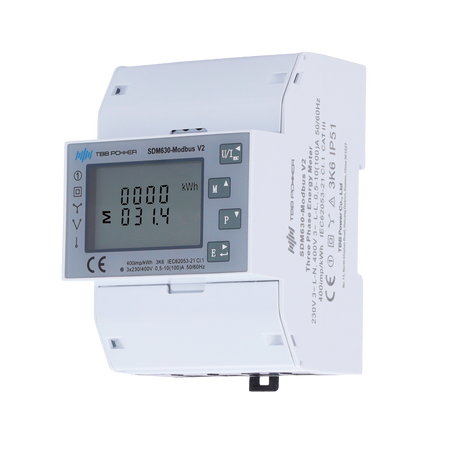

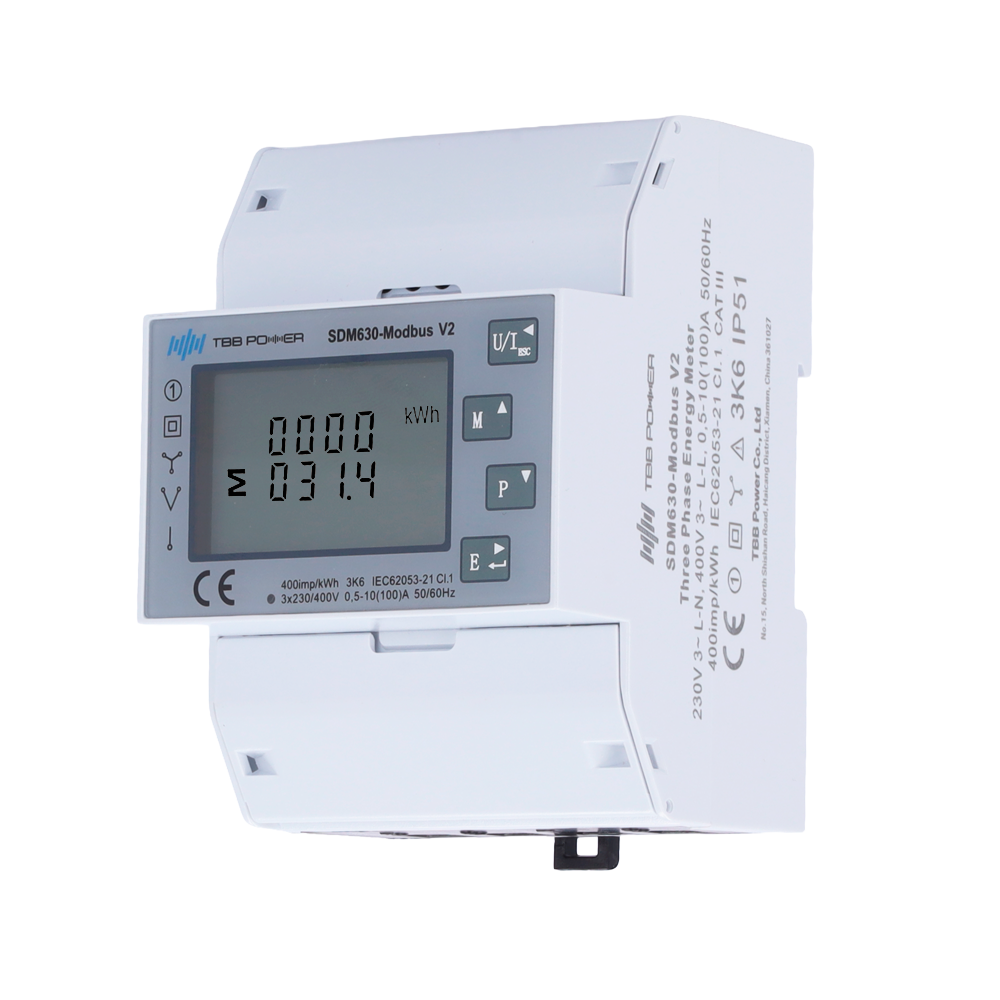

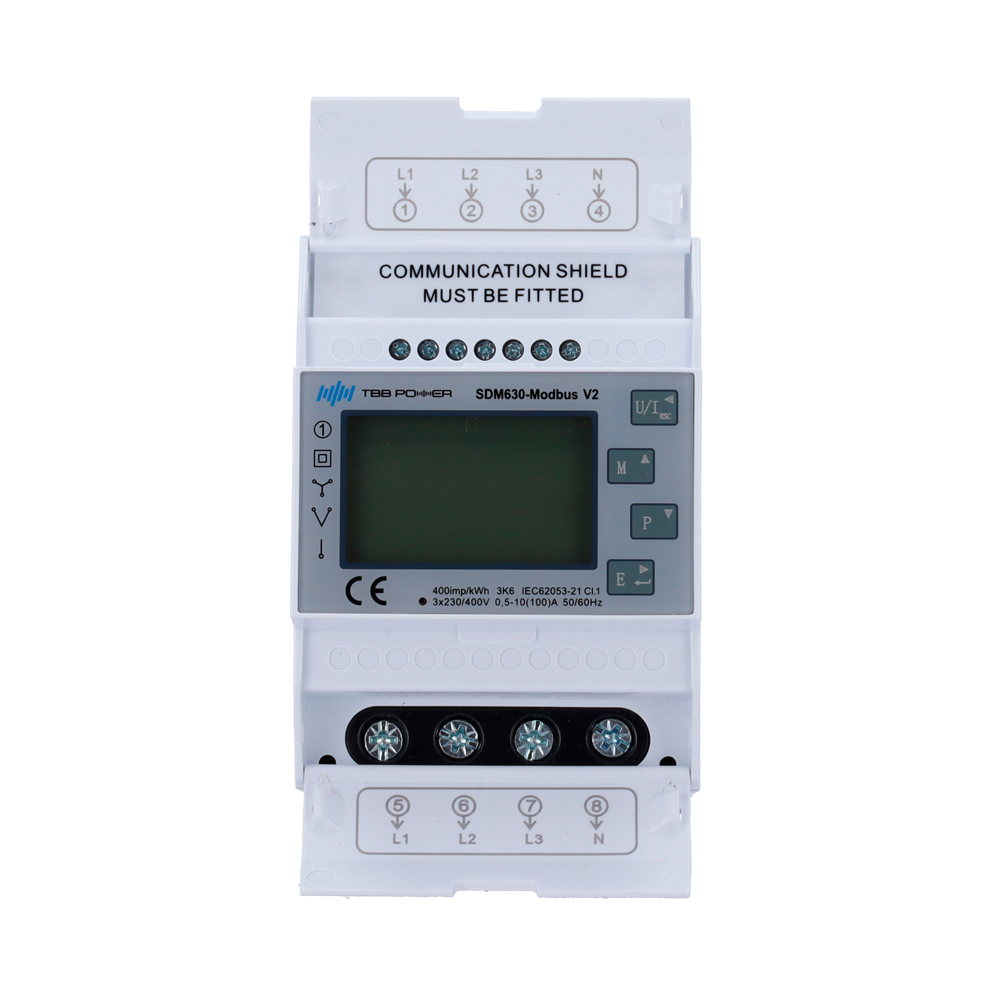

Three-phase TBB Smart Meter
Regular price
€225,96
Final price
Regular price
-6%
€240,00
Sale price
€225,96
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

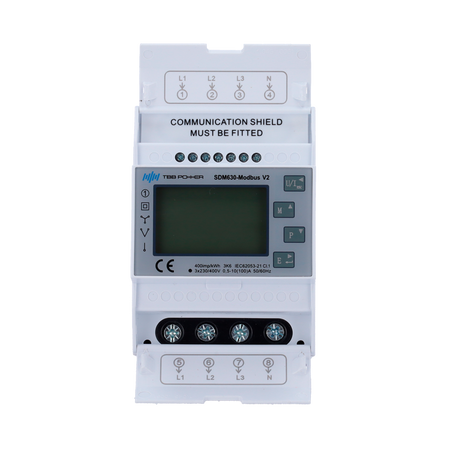

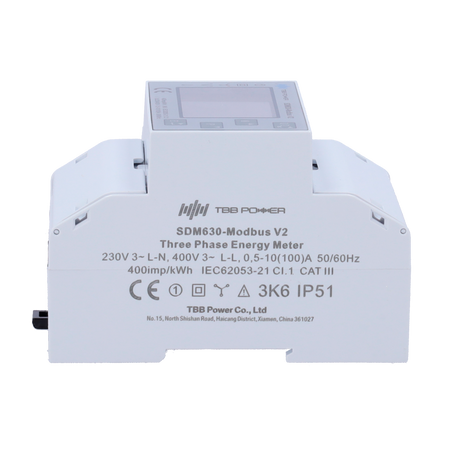

TBB Smart Meter - Three-phase | Bidirectional - Compatible with Riio SUN II inverter - DIN rail mounting - For three-phase grid-tied systems
📋 SPECIFICATIONS:
• Brand: TBB
• Type: Smart Meter
• Mounting: DIN rail
• Rated voltage: 3 x 230 / 400 Vac
• Voltage range (between phases): 147 - 280 Vac
• Voltage range (between phase and neutral): 85 - 480 Vac
• Maximum current: 100A
• Standby consumption: <2W / 10VA
• Frequency: 50/60 Hz
• Display: LCD
• Communication interface: RS485
• Operating temperature range: -25ºC - +55 ºC
• Relative humidity range: 0% - 90%
• Accuracy class: Class 1 (active power); Class 2 (reactive power)
• Dimensions: 72 × 100 × 66 mm
• Weight: 0.42 kg
• Protection degree: IP51
📦 INCLUDED:
• TBB Smart Meter
| Type | Smart Meter |
|---|---|
| Mounting | DIN Rail |
| Rated voltage | 3 x 230 / 400 Vac |
| Voltage range (between phases) | 147 - 280 Vac |
| Voltage range (between phase and neutral) | 85 - 480 Vac |
| Maximum current | 100A |
| Standby consumption | <2W / 10VA |
| Frequency | 50/60 Hz |
| Display | LCD |
| Communication interface | RS485 |
| Operating temperature range | -25ºC - +55 ºC |
| Relative humidity range | 0% - 90% |
| Accuracy class | Class 1 (active power) Class 2 (reactive power) |
| Dimensions | 72 × 100 × 66 mm |
| Weight | 0.42 kg |
| Protection degree | IP51 |
Same-day shipping if you order before 12:00 PM! In most cases, we rely on couriers with 24-hour service so your order arrives on time.
For orders under €200, the shipping fee is €15.90. For deliveries to remote areas or islands, couriers apply a surcharge to cover transport costs.
The legal warranty lasts 2 years for private individuals (consumers) and 1 year for VAT holders (professionals or companies)
