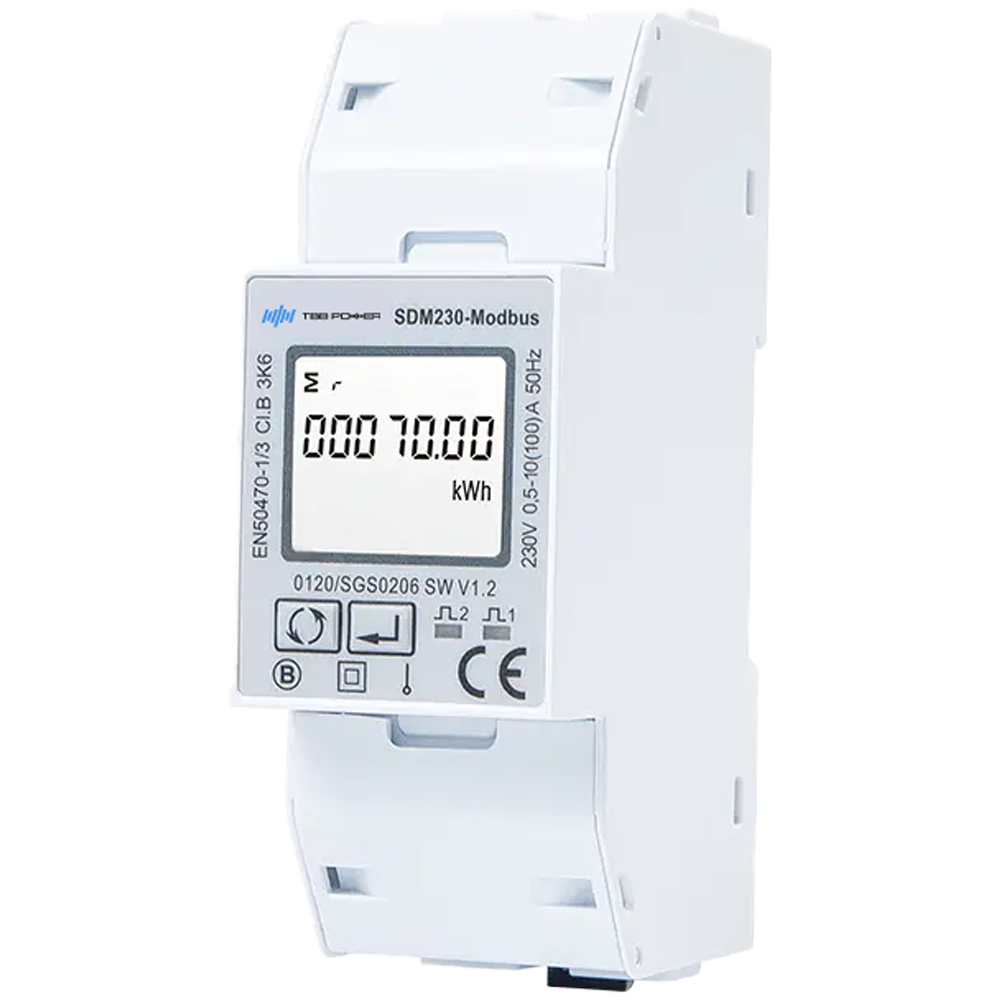

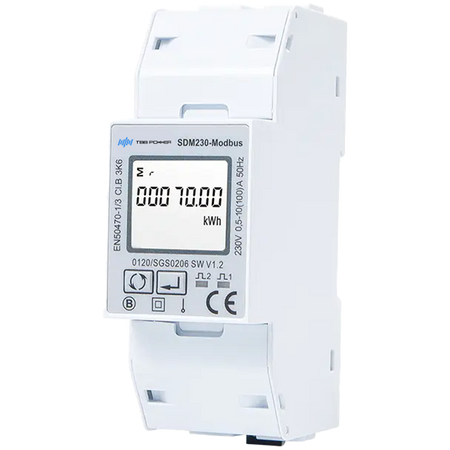

TBB Smart Meter - Single-phase | Bidirectional - Compatible with Riio SUN II inverter - DIN rail mounting - For grid-tied systems
📋 SPECIFICATIONS:
• Brand: TBB
• Type: Smart Meter
• Mounting: DIN rail
• Rated voltage: 230Vac
• Voltage range: 176 - 276 Vac
• Rated current: 10A
• Maximum current: 100A
• Minimum current: 0.5A
• Standby consumption: <2W
• Frequency: 50/60 Hz
• AC voltage withstand: 4KV 1min
• Impulse voltage withstand: 6KV 1µs
• Overcurrent withstand: 3000A 0.01s
• Display: LCD
• Maximum reading: 999999.9Kwh
• Accuracy: 0.5% in voltage range; 0.5% at rated current; 0.2% in frequency; 1% in maximum active power range; 1% in maximum reactive power range; 1% in maximum apparent power range
• Operating temperature range: -25ºC - +55 ºC
• Storage temperature range: -40ºC - +70 ºC
• Reference temperature: 23 +; 2ºC
• Relative humidity range: 0% - 95%
• Installation category: CAT II
• Mechanical environment: M1
• Electromagnetic environment: E2
• Pollution degree: 2
📦 INCLUDED:
• TBB Smart Meter
| Type | Smart Meter |
|---|---|
| Mounting | DIN Rail |
| Rated voltage | 230Vac |
| Voltage range | 176 - 276 Vac |
| Rated current | 10A |
| Maximum current | 100A |
| Minimum current | 0.5A |
| Standby consumption | <2W |
| Frequency | 50/60 Hz |
| AC voltage withstand | 4KV 1min |
| Impulse voltage withstand | 6KV 1µs |
| Overcurrent withstand | 3000A 0.01s |
| Display | LCD |
| Maximum reading | 999999.9Kwh |
| Accuracy | 0.5% in voltage range 0.5% in rated current 0.2% in frequency 1% in maximum active power range 1% in maximum reactive power range 1% in maximum apparent power range |
| Operating temperature range | -25ºC - +55 ºC |
| Storage temperature range | -40ºC - +70 ºC |
| Reference temperature | 23 +- 2ºC |
| Relative humidity range | 0% - 95% |
| Installation category | CAT II |
| Mechanical environment | M1 |
| Electromagnetic environment | E2 |
| Pollution degree | 2 |
