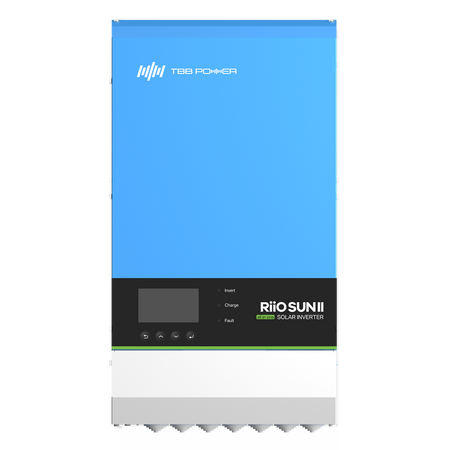

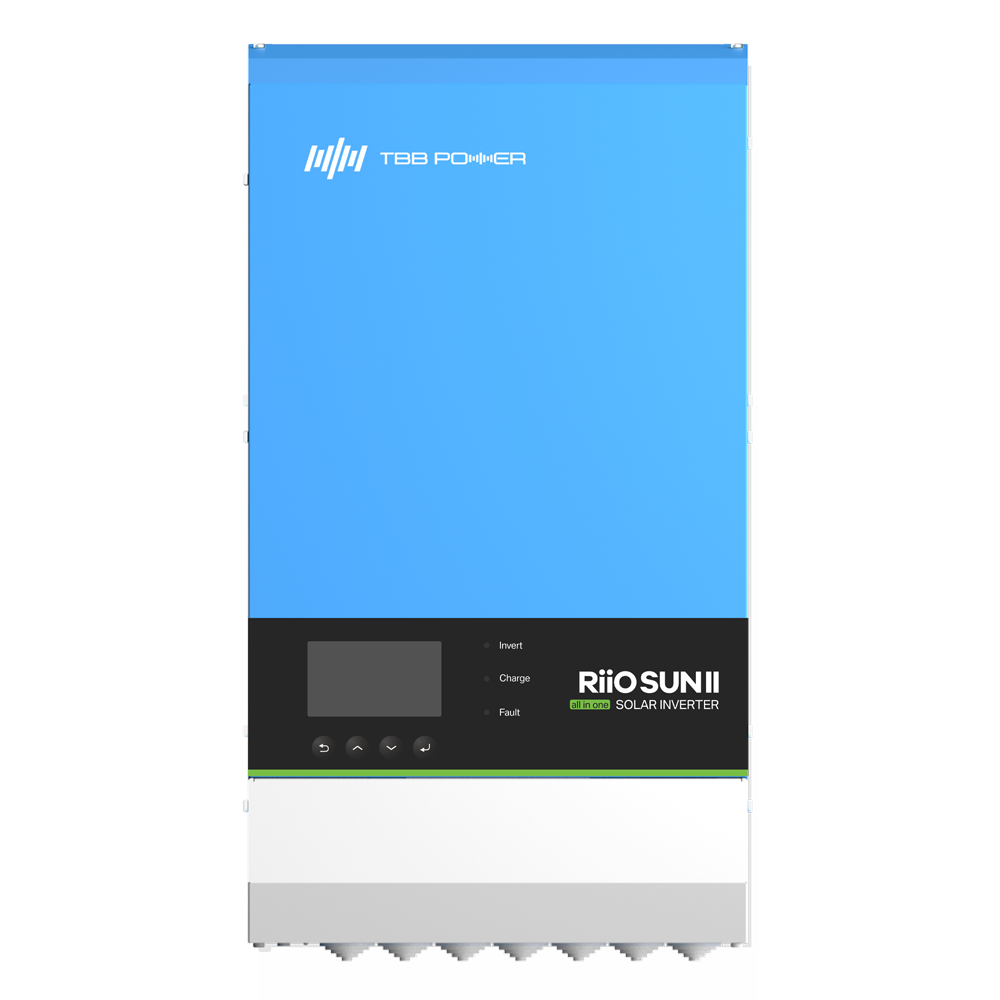

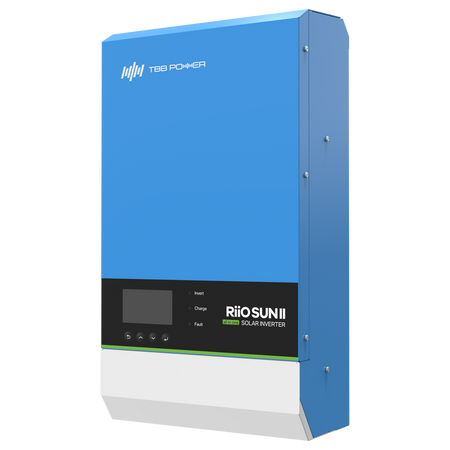

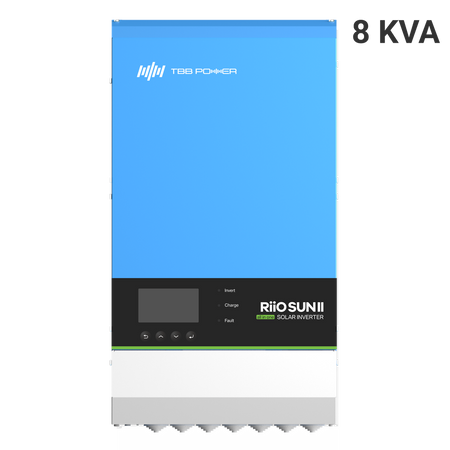

TBB All-in-One single-phase inverter - 8000W power
Regular price
€2.029,10
Final price
Regular price
-7%
€2.180,00
Sale price
€2.029,10
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!

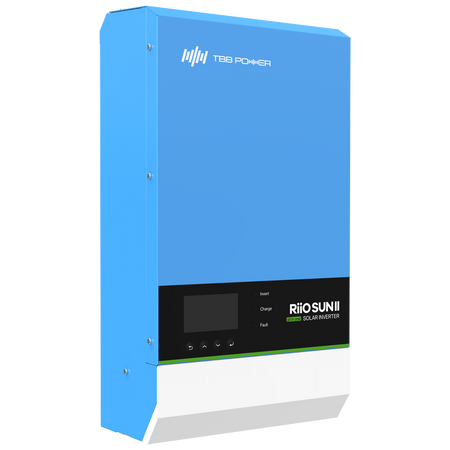

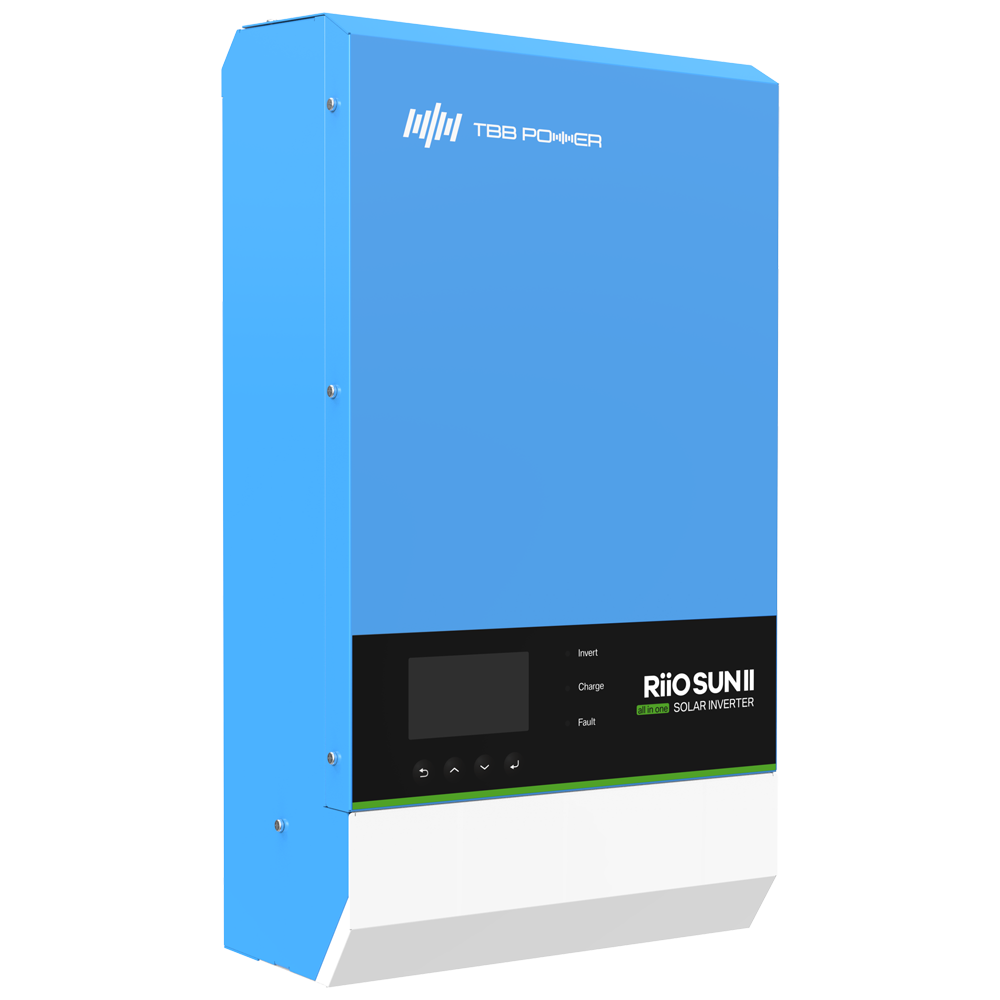

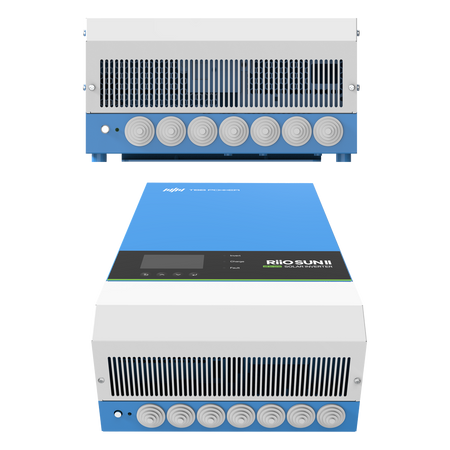

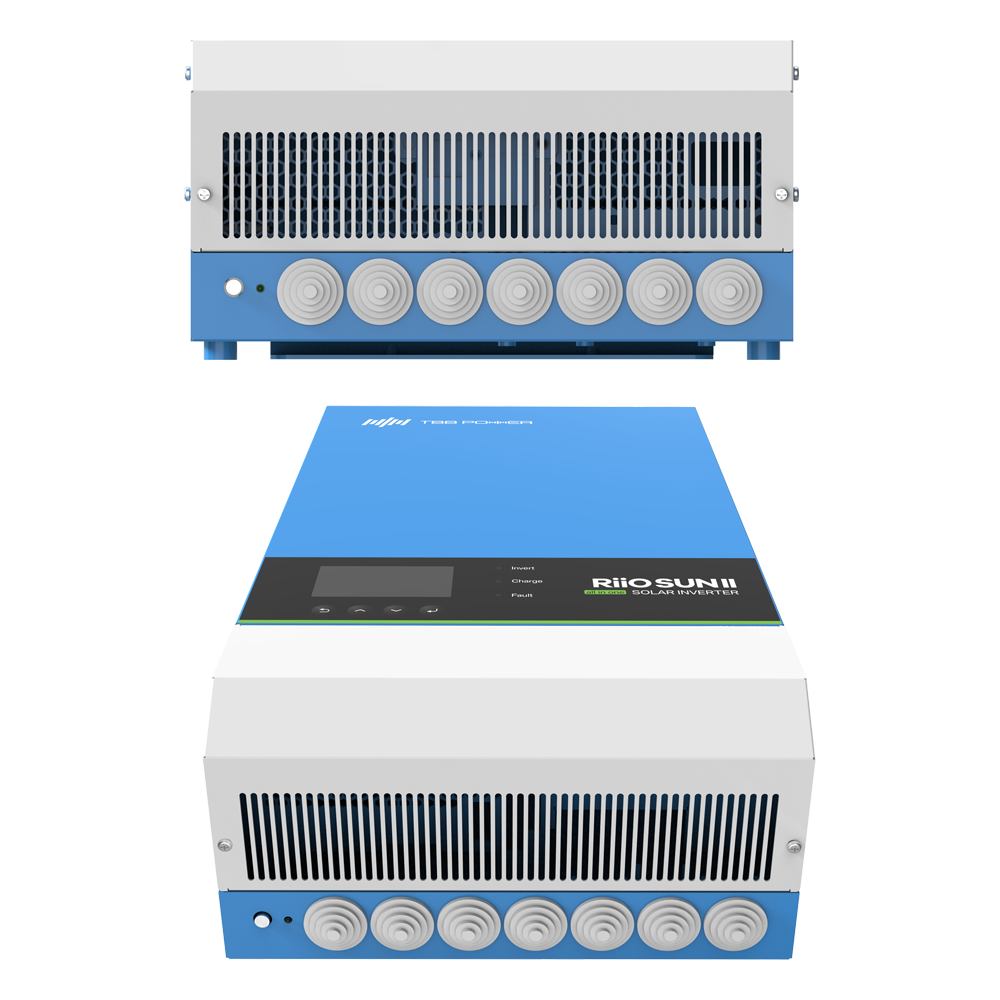

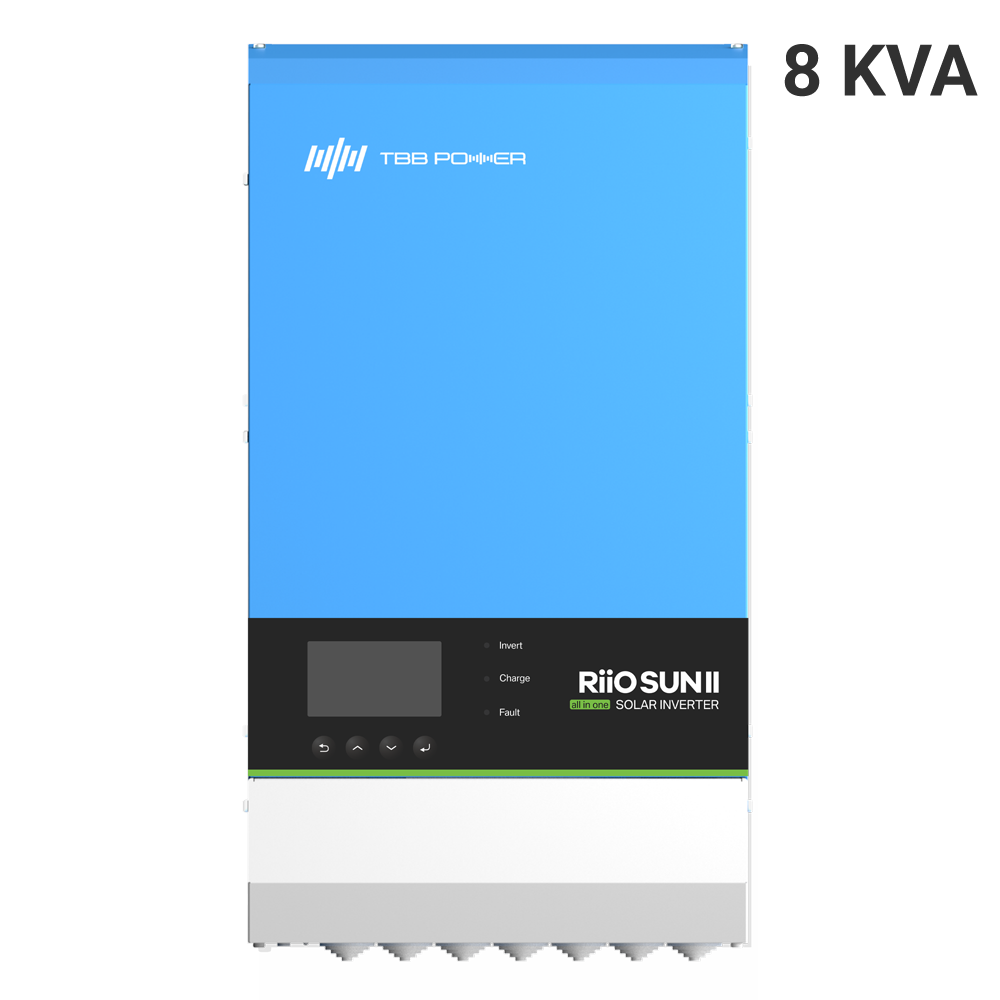

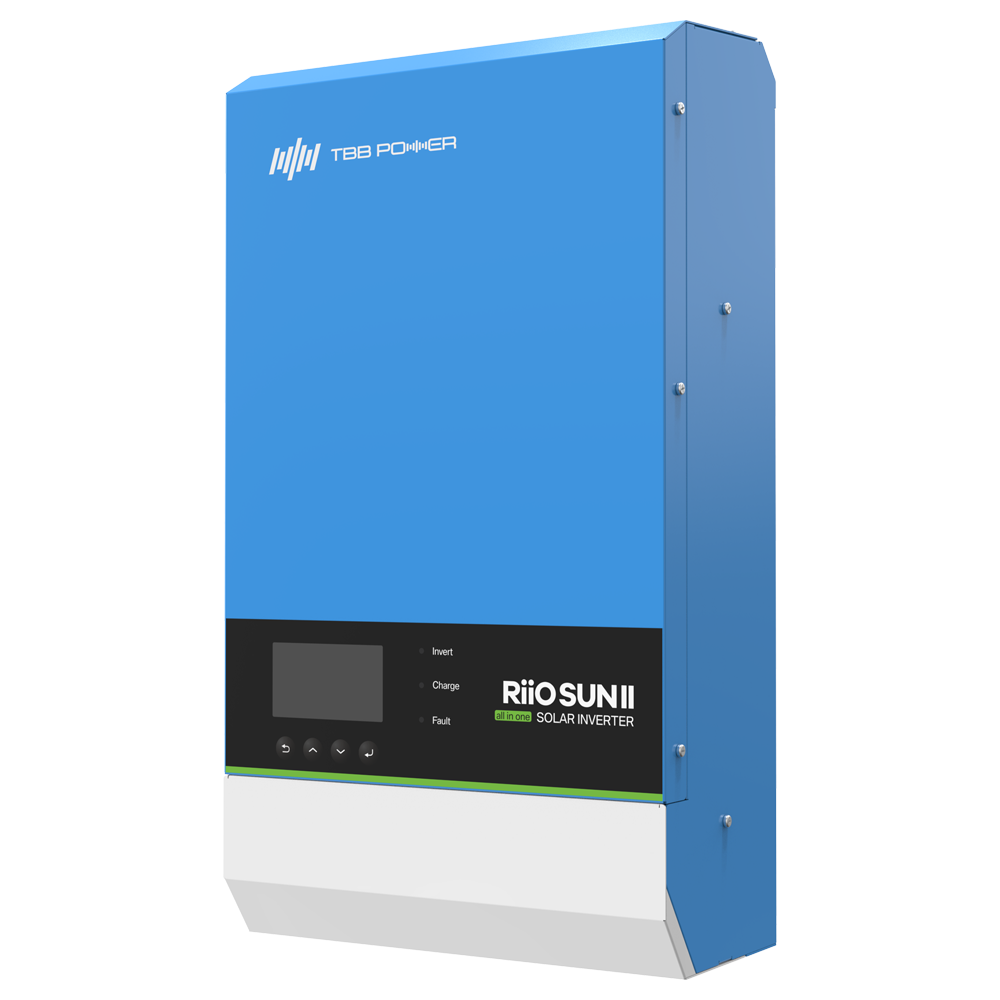

TBB all-in-one single-phase inverter - 8000W power - 2 MPPT inputs - Inverter, charger and controller - Battery compatible - Wi-Fi communication module
📋 SPECIFICATIONS:
• Brand: TBB
• AC input voltage range: 175-265 Vac
• Input frequency range: 45-65 Hz
• Maximum AC input current: 50A
• AC output current Out 1: 50A
• AC output current Out 2 / Smart Port: 50A
• Transfer time: 4 ms (15 ms in weak AC mode)
• Protections included: Short circuit / Overload / Battery overvoltage / Battery undervoltage / Overtemperature / Solar panel overvoltage / Fan block / Excessive input voltage ripple
• General purpose communication port: RS485
• Configurable relay: 30Vdc/3A or 250Vac/3A
• Operating temperature range: -20ºC - +65ºC
• Operating relative humidity: 95% non-condensing
• Maximum altitude: 2000m
• Dimensions: 620 (W) x 320 (H) x 164 (D) mm
• Net weight: 34kg
• Cooling: Forced
• Ingress protection rating: IP21
• Certifications: Safety: EN-IEC 62477-1, EN-IEC 62109-1, EN-IEC 62109-2; EMC: EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN 61000-6-3, EN 61000-6-4; EN 61000-3-11, EN 61000-3-12; Grid: RD 1699
• Nominal battery voltage: 48V
• DC input voltage range: 42-68 V
• AC output voltage: Single-phase 220/230/240 Vac ± 2%
• Output frequency: 50/60 Hz ± 0.1%
• Harmonic distortion: <2%
• Load power factor: 1
• Continuous output power at 25ºC: 8000W; 8000VA
• Peak output power: 16000W
• Maximum efficiency: 95%
• Standby consumption: 32W
• Absorption voltage: 57.6V
• Float voltage: 55.2V
• Supported battery types: Lithium (recommended) / AGM / GEL / OPzV / Lead-carbon / Flooded / Traction
• Maximum charge current: 90A
• Temperature compensation: Yes
• Maximum output current: 120A
• Number of MPPT: 2
• Maximum open-circuit voltage / MPPT: 250 Voc
• Voltage range / MPPT: 65-245 Vdc
• Maximum input current / MPPT: 36A
• Maximum short-circuit current / MPPT: 40A
• Maximum PV power / MPPT: 5200W
• Maximum efficiency: 98%
• MPPT efficiency: >99.5%
• Protections included: Short circuit / Overload / Battery overvoltage / Battery undervoltage / Overtemperature / Solar panel overvoltage
• Surplus injection to grid: TBB-E4-MONITOR and TBB-SDM-230 required
• Inverter parallelism: TBB-E4-MONITOR required
• Three-phase connection: 3 inverters and TBB-E4-MONITOR required
• AC coupling: TBB-E4-MONITOR required
• Operation without batteries in three-phase: 3 inverters and TBB-E4-MONITOR required
📦 INCLUDED:

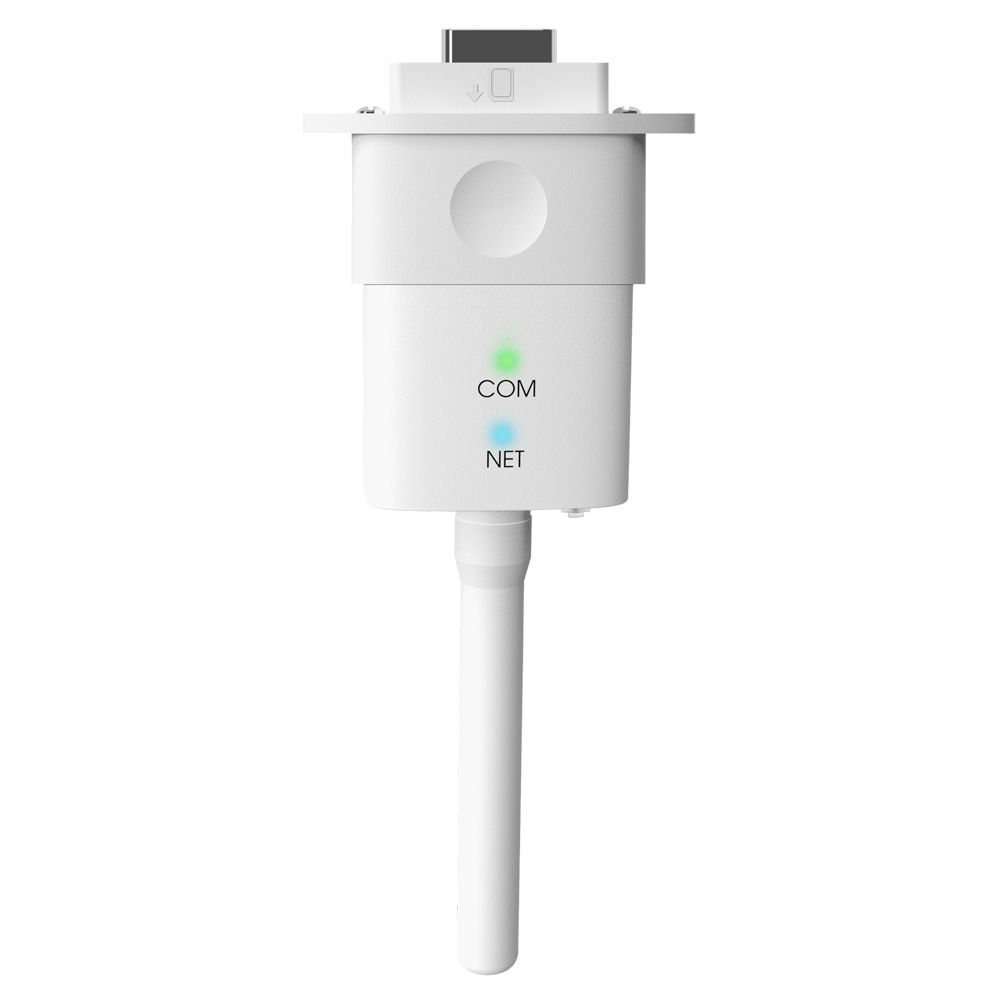

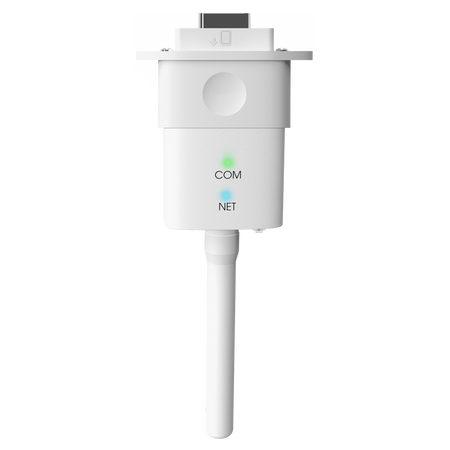

• All-in-one inverter • WiFi communication module • Ground terminal • User manual • Installation material
| AC input voltage range | 175-265 Vac |
|---|---|
| Input frequency range | 45-65 Hz |
| Maximum AC input current | 50A |
| AC output current Out 1 | 50A |
| AC output current Out 2 / Smart Port | 50A |
| Transfer time | 4 ms (15 ms in weak AC mode) |
| Protections included | Short circuit / Overload / Battery overvoltage / Battery undervoltage / Overtemperature / Solar panel overvoltage / Fan failure / Input voltage ripple too high |
| General purpose communication port | RS485 |
| Configurable relay | 30Vdc/3A or 250Vac/3A |
| Operating temperature range | -20ºC - +65ºC |
| Operating relative humidity | 95% non-condensing |
| Maximum altitude | 2000m |
| Dimensions | 620 (W) x 320 (H) x 164 (D) mm |
| Net weight | 34Kg |
| Cooling | Forced |
| Protection rating | IP21 |
| Certifications | Safety: EN-IEC 62477-1, EN-IEC 62109-1, EN-IEC 62109-2 EMC: EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN 61000-6-3, EN 61000-6-4, EN 61000-3-11, EN 61000-3-12 Grid: RD 1699 |
| Nominal battery voltage | 48V |
| DC input voltage range | 42-68 V |
| AC output voltage | Single-phase 220/230/240 Vac ± 2% |
| Output frequency | 50/60 Hz ± 0.1% |
| Harmonic distortion | <2% |
| Load power factor | 1 |
| Continuous output power at 25ºC | 8000W 8000VA |
| Peak output power | 16000W |
| Maximum efficiency | 95% |
| Standby consumption | 32W |
| Absorption voltage | 57.6V |
| Float voltage | 55.2V |
| Compatible battery types | Lithium (recommended) / AGM / GEL / OPzV / Lead-carbon / Flooded / Traction |
| Maximum charging current | 90A |
| Temperature compensation | Yes |
| Maximum output current | 120A |
| Number of MPPT | 2 |
| Maximum open circuit voltage / MPPT | 250 Voc |
| Voltage range / MPPT | 65-245 Vdc |
| Maximum input current / MPPT | 36A |
| Maximum short-circuit current / MPPT | 40A |
| Maximum PV power / MPPT | 5200W |
| Maximum efficiency | 98% |
| MPPT efficiency | >99.5% |
| Protections included | Short circuit / Overload / Battery overvoltage / Battery undervoltage / Overtemperature / Solar panel overvoltage |
| Surplus injection to grid | TBB-E4-MONITOR and TBB-SDM-230 required |
| Inverter parallelism | TBB-E4-MONITOR required |
| Three-phase connection | 3 inverters and TBB-E4-MONITOR required |
| AC coupling | TBB-E4-MONITOR required |
| Operation without batteries in three-phase | 3 inverters and TBB-E4-MONITOR required |
