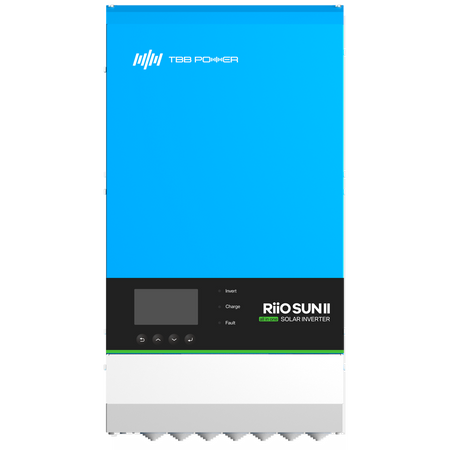

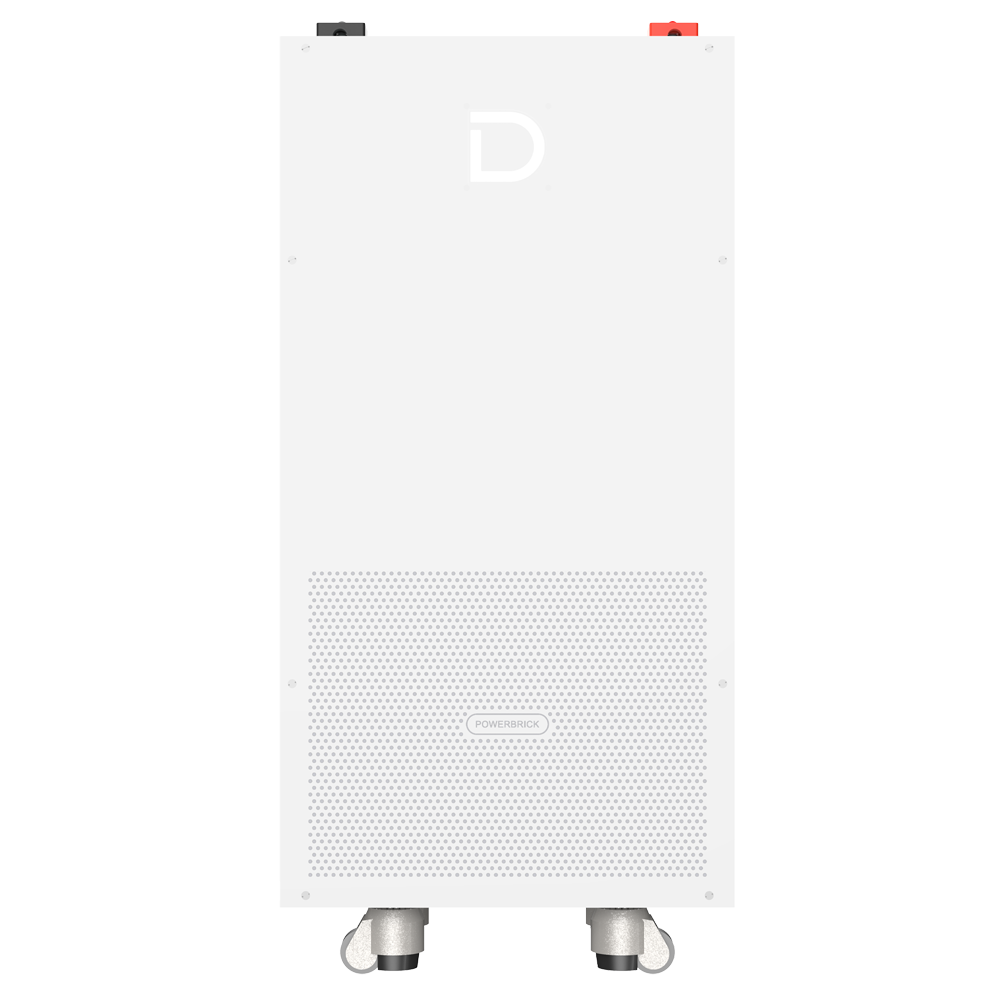

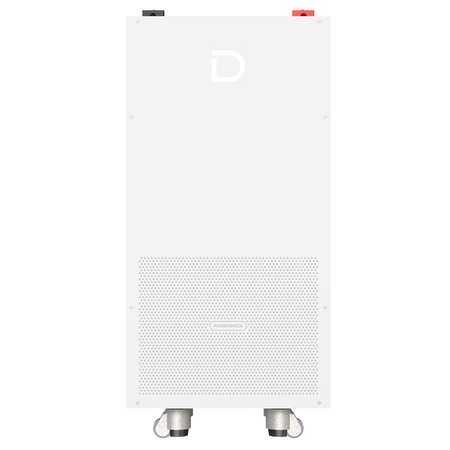

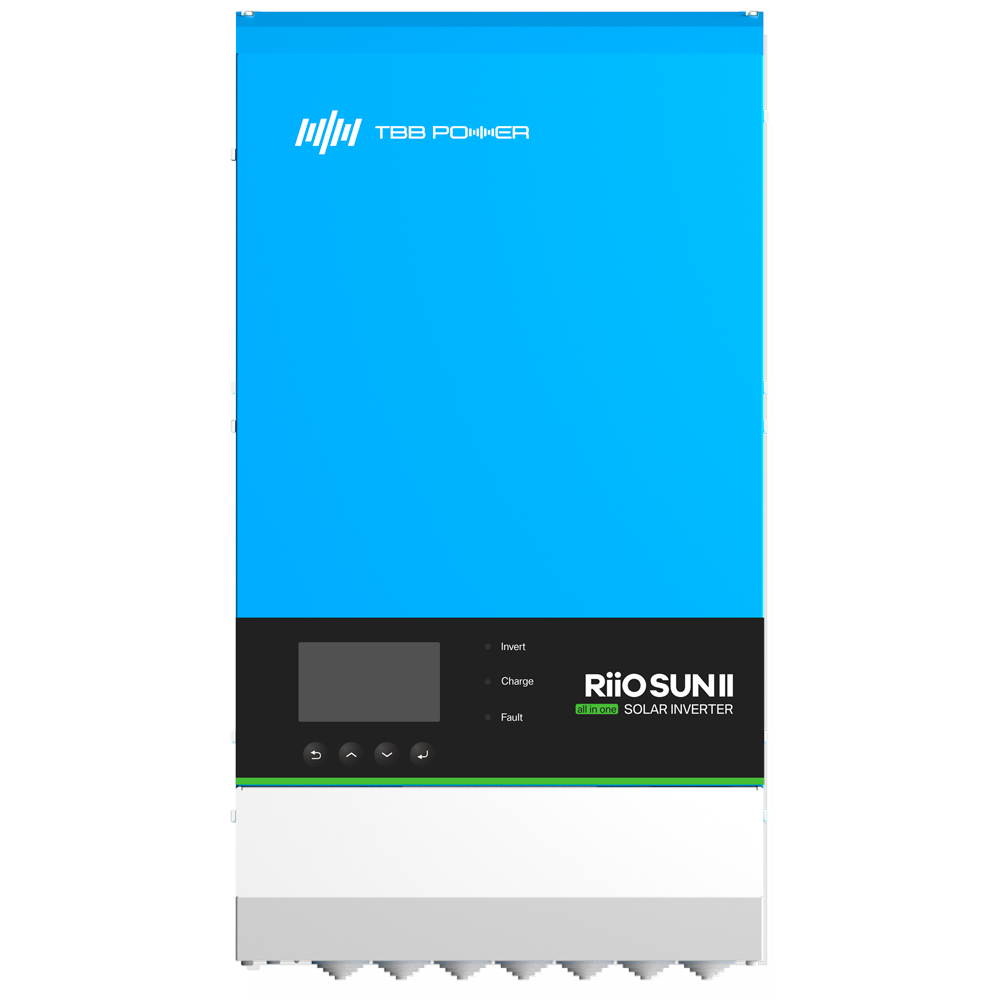

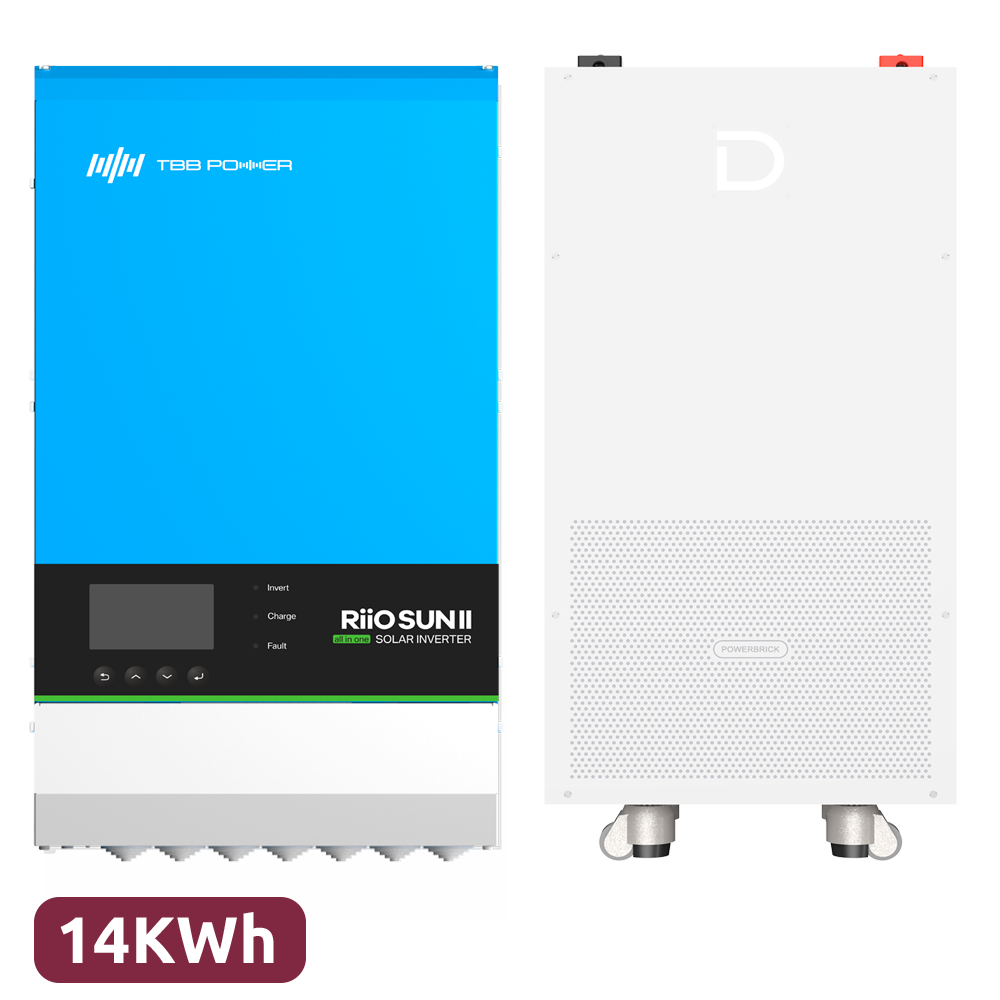

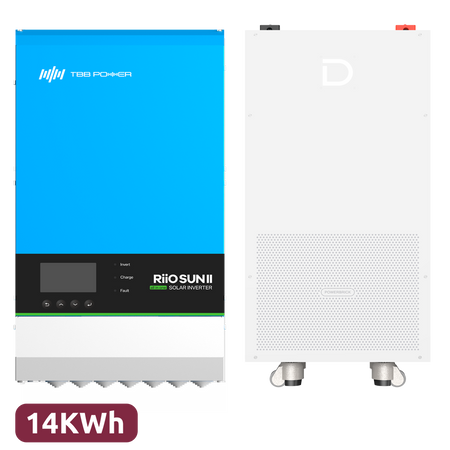

TBB Inverter + Battery Pack - Power 8000W - Battery 14336Wh

Inverter + Battery Pack - Power 8000W - 2 MPPT Inputs - Inverter, charger and controller - 14336Wh Battery - Wi-Fi communication module

📋 SPECIFICATIONS:
• Brand: Dyness
• Capacity: 14336Wh
• Nominal capacity: 280 Ah
• Battery type: LiFePO4 51.2V / 280Ah
• Nominal voltage: 51.2 V
• Recommended charge / discharge current: 140 A
• Max power charge current: 150 A
• Max power discharge current: 200 A
• Max power charge / discharge current: 210 A
• Life cycle: Unlimited (10 years)
• Rated power: 7168 W
• Maximum power: 10240 W
• Maximum peak power: 10752 W (15 s)
• Depth of discharge (DOD): 95%
• Recommended charge and discharge: 0.5C
• Operating temp. (charging): 0 - 55 ℃
• Operating temp. (discharging): -20 - 55 ℃
• Dimensions: 435 (H) x 233 (D) x 857 (W) mm
• Weight: 114 Kg
• Protection: IP20
• Communication: CAN / RS485
• Expansion: Up to 50 units in parallel
• Compatibility: SMA / Victron / Ingeteam / Delios / Goodwe / Solis / Deye / SAJ / Voltronic / Sungrow / TBB ...
• Brand: TBB
• AC input voltage range: 175-265 Vac
• Input frequency range: 45-65 Hz
• Max AC input current: 50A
• AC Out 1 output current: 50A
• AC Out 2 / Smart Port output current: 50A
• Transfer time: 4 ms (15 ms in weak AC mode)
• Included protections: Short circuit / Overload / Battery overvoltage / Battery undervoltage / Overtemperature / Solar panel overvoltage / Fan block / Input voltage ripple too high
• General purpose communication port: RS485
• Configurable relay: 30Vdc/3A or 250Vac/3A
• Operating temperature range: -20ºC - +65ºC
• Operating relative humidity: 95% non-condensing
• Max altitude: 2000m
• Dimensions: 620 (W) x 320 (H) x 164 (D) mm
• Net weight: 34Kg
• Cooling: Forced
• Protection rating: IP21
• Certifications: Safety: EN-IEC 62477-1, EN-IEC 62109-1, EN-IEC 62109-2; EMC: EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN 61000-6-3, EN 61000-6-4,; EN 61000-3-11, EN 61000-3-12; Grid: RD 1699
• Nominal battery voltage: 48V
• DC input voltage range: 42-68 V
• AC output voltage: Single-phase 220/230/240 Vac ± 2%
• Output frequency: 50/60 Hz ± 0.1%
• Harmonic distortion: <2%
• Load power factor: 1
• Continuous output power at 25ºC: 8000W; 8000VA
• Peak output power: 16000W
• Maximum efficiency: 95%
• Standby consumption: 32W
• Absorption voltage: 57.6V
• Float voltage: 55.2V
• Compatible battery types: Lithium (recommended) / AGM / GEL / OPzV / Lead-carbon / Flooded / Traction
• Maximum charging current: 90A
• Temperature compensation: Yes
• Maximum output current: 100A
• Number of MPPT: 2
• Maximum open circuit voltage / MPPT: 250 Voc
• Voltage range / MPPT: 65-245 Vdc
• Maximum input current / MPPT: 36A
• Maximum short circuit current / MPPT: 40A
• Max PV power / MPPT: 4400W
• Maximum efficiency: 98%
• MPPT efficiency: >99.5%
• Included protections: Short circuit / Overload / Battery overvoltage / Battery undervoltage / Overtemperature / Solar panel overvoltage
• Grid surplus injection: TBB-E4-MONITOR and TBB-SDM-230 required
• Inverter parallelism: TBB-E4-MONITOR required
• Three-phase connection: 3 inverters and TBB-E4-MONITOR required
• AC coupling: TBB-E4-MONITOR required
• Three-phase operation without batteries: 3 inverters and TBB-E4-MONITOR required

📦 INCLUDED:
• All-in-one inverter • WiFi communication module • Ground terminal • User manual • Installation material • Battery • Power and communication cables
