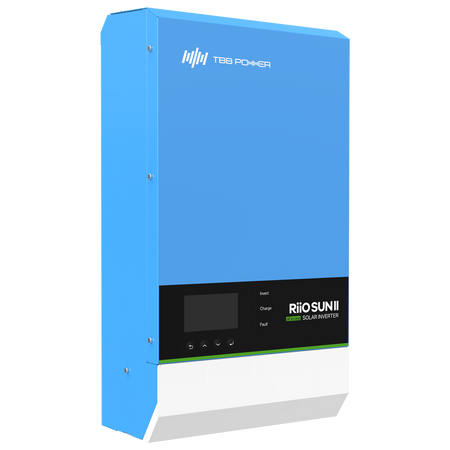

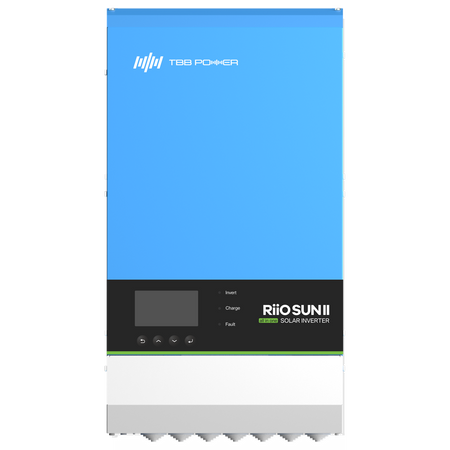

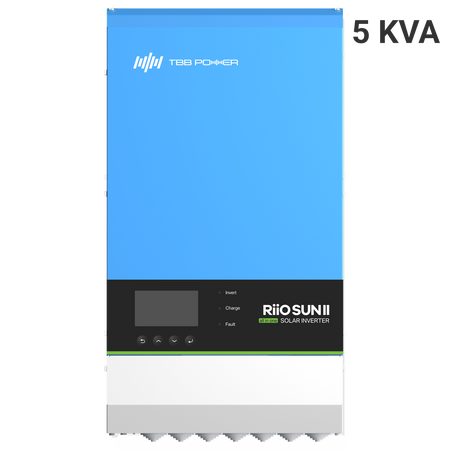

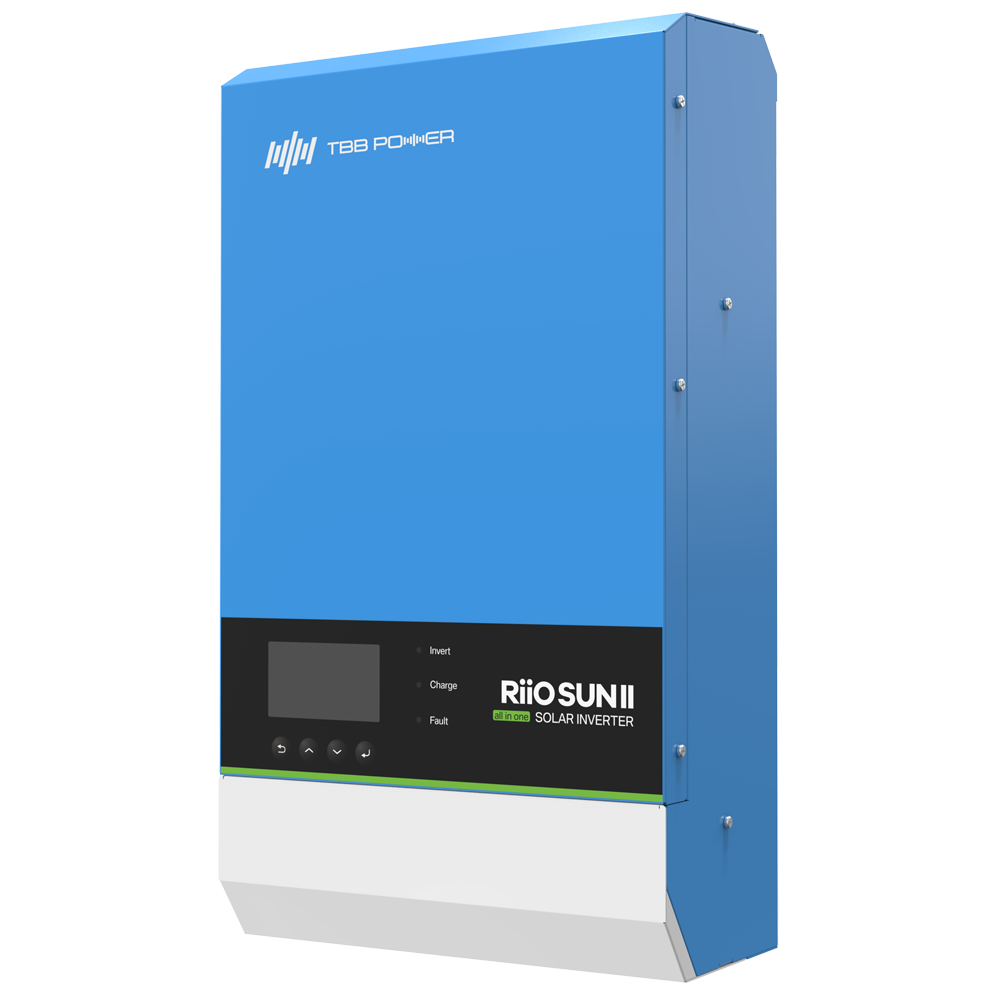

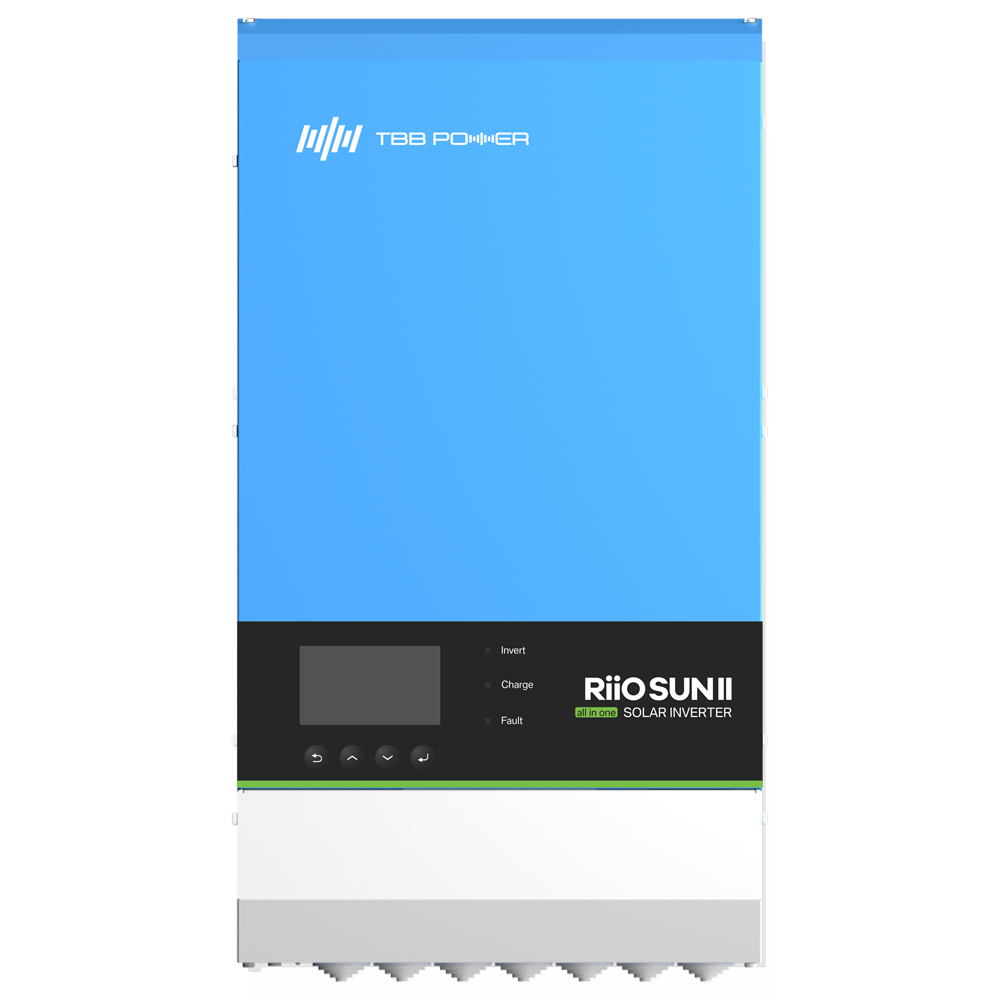

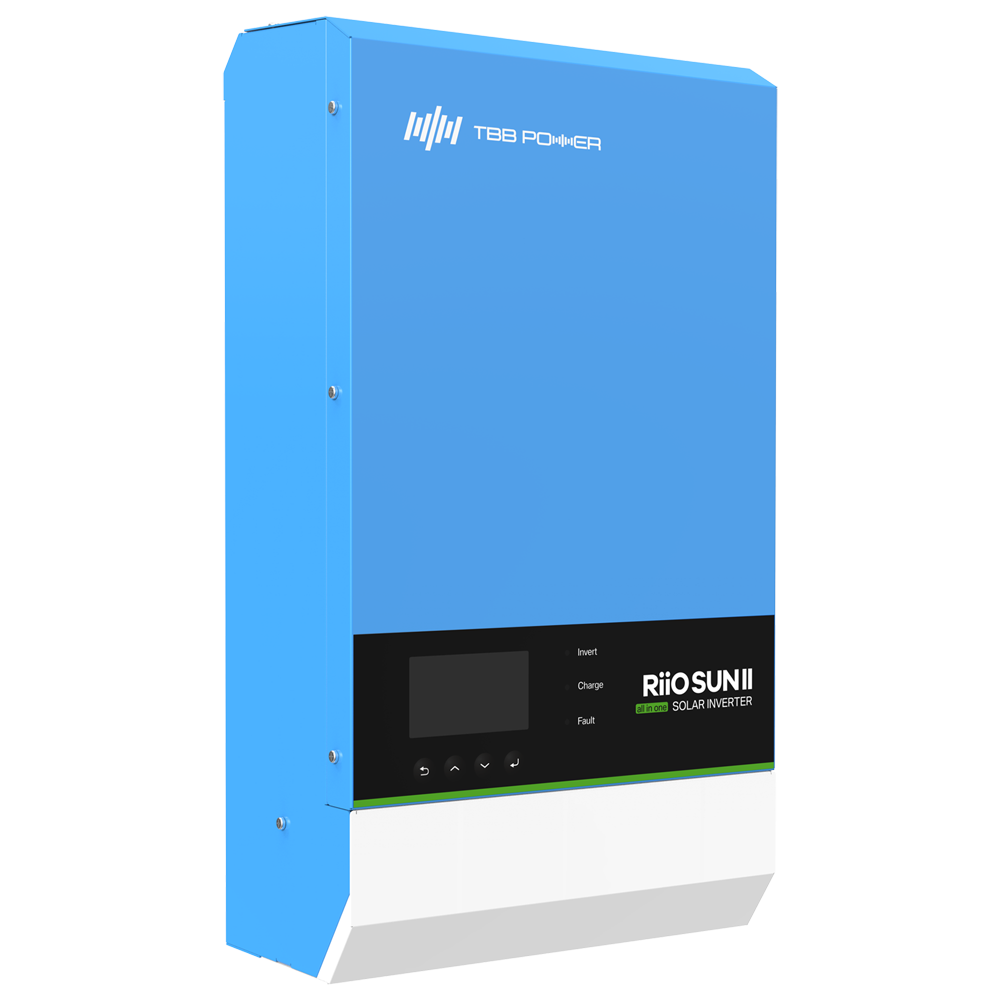

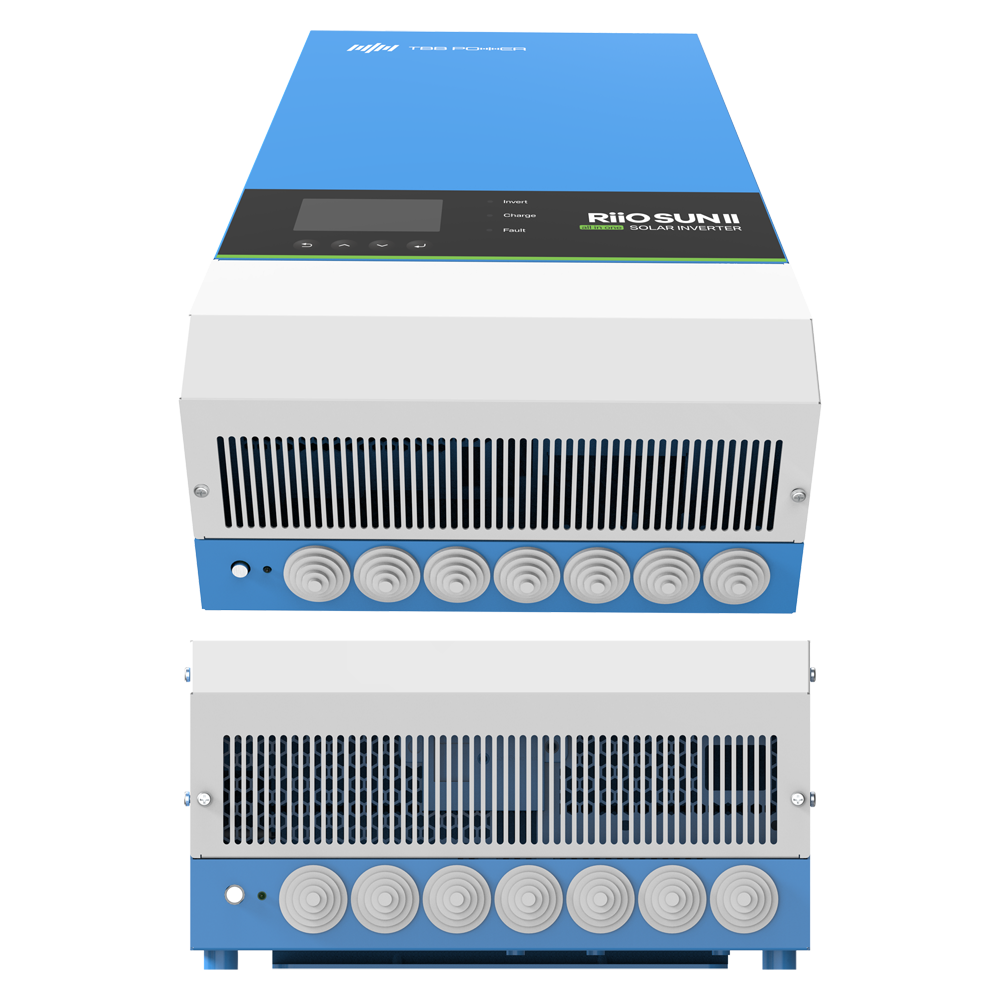

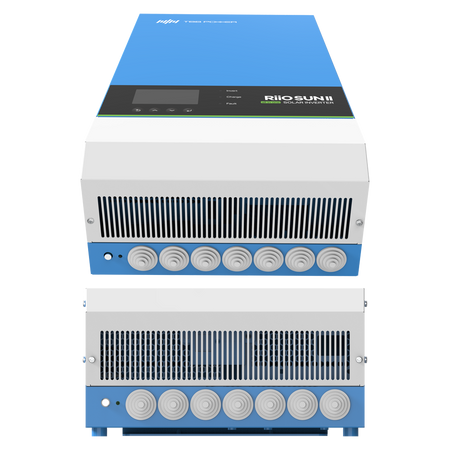

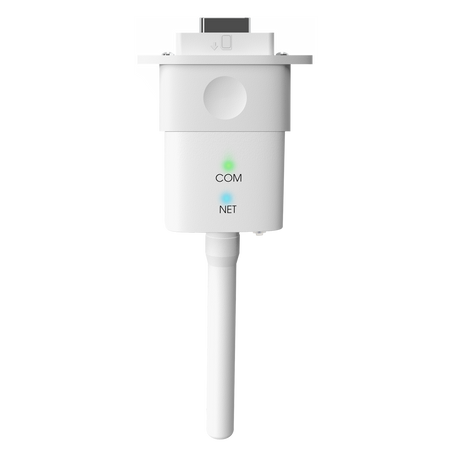

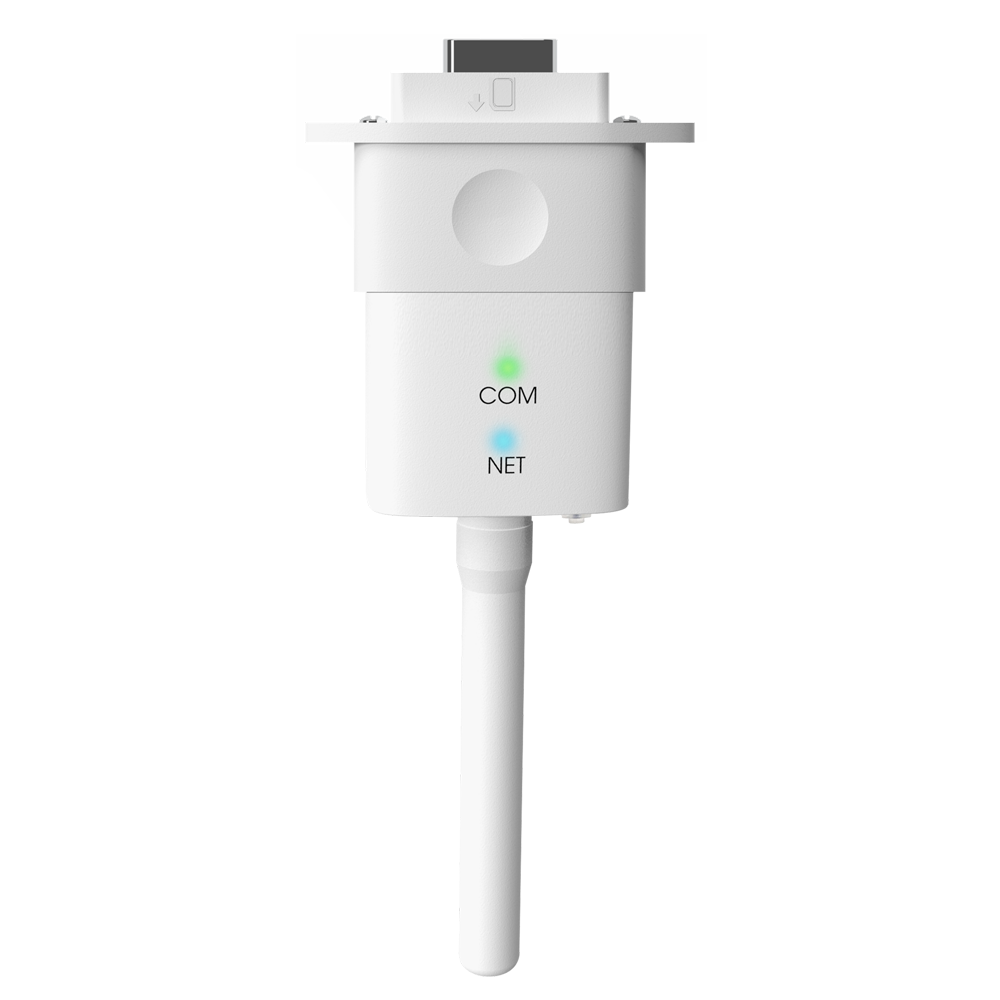

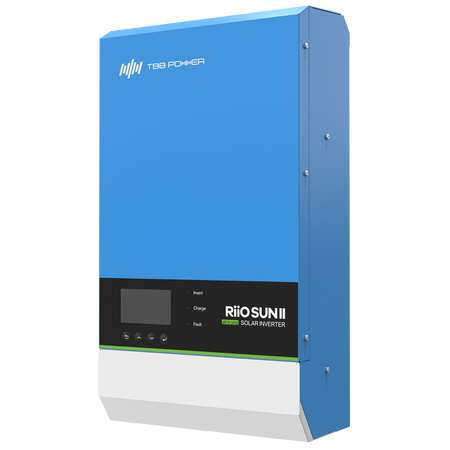

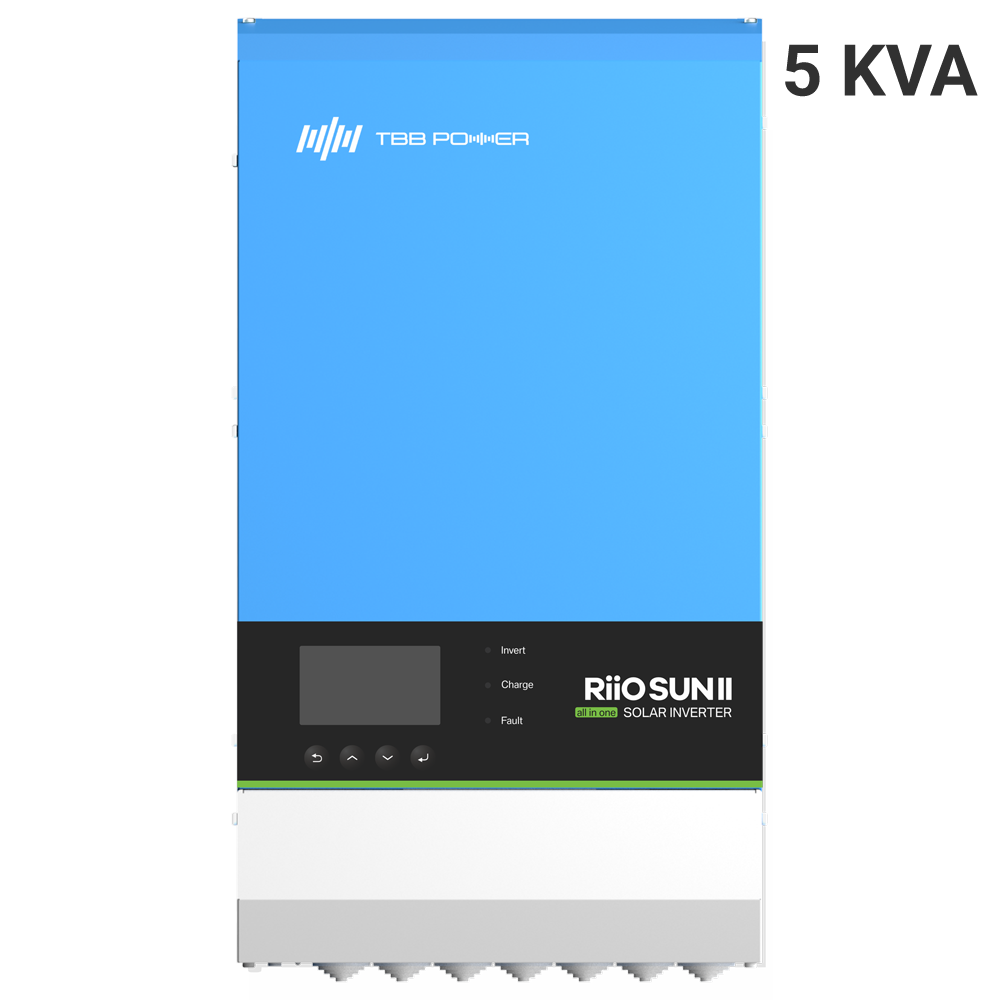

TBB All-in-one Inverter - 5000W Power - 2 MPPT Inputs - Inverter, charger and controller - Compatible with Dyness and other brand batteries - Wi-Fi communication module
📋 SPECIFICATIONS:
• Brand: TBB
• AC input voltage range: 175-265 Vac
• Input frequency range: 45-65 Hz
• Maximum AC input current: 50A
• AC Out 1 output current: 50A
• AC Out 2 / Smart Port output current: 50A
• Transfer time: 4 ms (15 ms in weak AC mode)
• Protections included: Short circuit / Overload / Battery overvoltage / Battery undervoltage / Overtemperature / Solar panel overvoltage / Fan failure / Input voltage ripple too high
• General purpose communication port: RS485
• Configurable relay: 30Vdc/3A or 250Vac/3A
• Operating temperature range: -20ºC - +65ºC
• Operating relative humidity: 95% non-condensing
• Maximum altitude: 2000m
• Dimensions: 570 (W) x 310 (H) x 154 (D) mm
• Net weight: 29kg
• Cooling: Forced
• Protection rating: IP21
• Certifications: Safety: EN-IEC 62477-1, EN-IEC 62109-1, EN-IEC 62109-2; EMC: EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN 61000-6-3, EN 61000-6-4,; EN 61000-3-11, EN 61000-3-12; Grid: RD 1699
• Nominal battery voltage: 48V
• DC input voltage range: 42-68 V
• AC output voltage: Single-phase 220/230/240 Vac ± 2%
• Output frequency: 50/60 Hz ± 0.1%
• Harmonic distortion: <2%
• Load power factor: 1
• Continuous output power at 25ºC: 5000W; 5000VA
• Peak output power: 10000W
• Maximum efficiency: 94%
• Standby consumption: 22W
• Absorption voltage: 57.6V
• Float voltage: 55.2V
• Compatible battery types: Lithium (recommended) / AGM / GEL / OPzV / Lead-carbon / Flooded / Traction
• Maximum charging current: 60A
• Temperature compensation: Yes
• Maximum output current: 100A
• Number of MPPT: 2
• Maximum open-circuit voltage / MPPT: 250 Voc
• Voltage range / MPPT: 65-245 Vdc
• Maximum input current / MPPT: 36A
• Maximum short-circuit current / MPPT: 40A
• Maximum PV power / MPPT: 4400W
• Maximum efficiency: 98%
• MPPT efficiency: >99.5%
• Protections included: Short circuit / Overload / Battery overvoltage / Battery undervoltage / Overtemperature / Solar panel overvoltage
• Surplus injection to grid: TBB-E4-MONITOR and TBB-SDM-230 required
• Inverter parallelism: TBB-E4-MONITOR required
• Three-phase connection: 3 inverters and TBB-E4-MONITOR required
• AC coupling: TBB-E4-MONITOR required
• Battery-less operation in three-phase: 3 inverters and TBB-E4-MONITOR required
📦 INCLUDED:
• All-in-one inverter• WiFi communication module• Earth terminal• User manual• Installation material
| AC input voltage range | 175-265 Vac |
|---|---|
| AC input frequency range | 45-65 Hz |
| Maximum AC input current | 50A |
| AC output current AC Out 1 | 50A |
| AC output current AC Out 2 / Smart Port | 50A |
| Transfer time | 4 ms (15 ms in weak AC mode) |
| Protections included | Short circuit / Overload / Battery overvoltage / Battery undervoltage / Overtemperature / Solar panel overvoltage / Fan failure / Input voltage ripple too high |
| General purpose communication port | RS485 |
| Configurable relay | 30Vdc/3A or 250Vac/3A |
| Operating temperature range | -20ºC - +65ºC |
| Operating relative humidity | 95% non-condensing |
| Maximum altitude | 2000m |
| Dimensions | 570 (W) x 310 (H) x 154 (D) mm |
| Net weight | 29Kg |
| Cooling | Forced |
| Protection rating | IP21 |
| Certifications | Safety: EN-IEC 62477-1, EN-IEC 62109-1, EN-IEC 62109-2 EMC: EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN 61000-6-3, EN 61000-6-4, EN 61000-3-11, EN 61000-3-12 Grid: RD 1699 |
| Nominal battery voltage | 48V |
| DC input voltage range | 42-68 V |
| AC output voltage | Single-phase 220/230/240 Vac ± 2% |
| Output frequency | 50/60 Hz ± 0.1% |
| Harmonic distortion | <2% |
| Load power factor | 1 |
| Continuous output power at 25ºC | 5000W 5000VA |
| Peak output power | 10000W |
| Maximum efficiency | 94% |
| Standby consumption | 22W |
| Absorption voltage | 57.6V |
| Float voltage | 55.2V |
| Compatible battery types | Lithium (recommended) / AGM / GEL / OPzV / Lead-carbon / Flooded / Traction |
| Maximum charging current | 60A |
| Temperature compensation | Yes |
| Maximum output current | 100A |
| Number of MPPT | 2 |
| Maximum open circuit voltage / MPPT | 250 Voc |
| Voltage range / MPPT | 65-245 Vdc |
| Maximum input current / MPPT | 36A |
| Maximum short circuit current / MPPT | 40A |
| Maximum PV power / MPPT | 4400W |
| Maximum efficiency | 98% |
| MPPT efficiency | >99.5% |
| Protections included | Short circuit / Overload / Battery overvoltage / Battery undervoltage / Overtemperature / Solar panel overvoltage |
| Grid surplus injection | TBB-E4-MONITOR and TBB-SDM-230 required |
| Inverter parallelism | TBB-E4-MONITOR is required |
| Three-phase connection | 3 inverters and TBB-E4-MONITOR are required |
| AC coupling | TBB-E4-MONITOR is required |
| Operation without batteries in three-phase | 3 inverters and TBB-E4-MONITOR are required |
