TBB Inverter + Battery Pack - 5000W Power
Couldn't load pickup availability
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Do you have any questions?
Ask an expert!

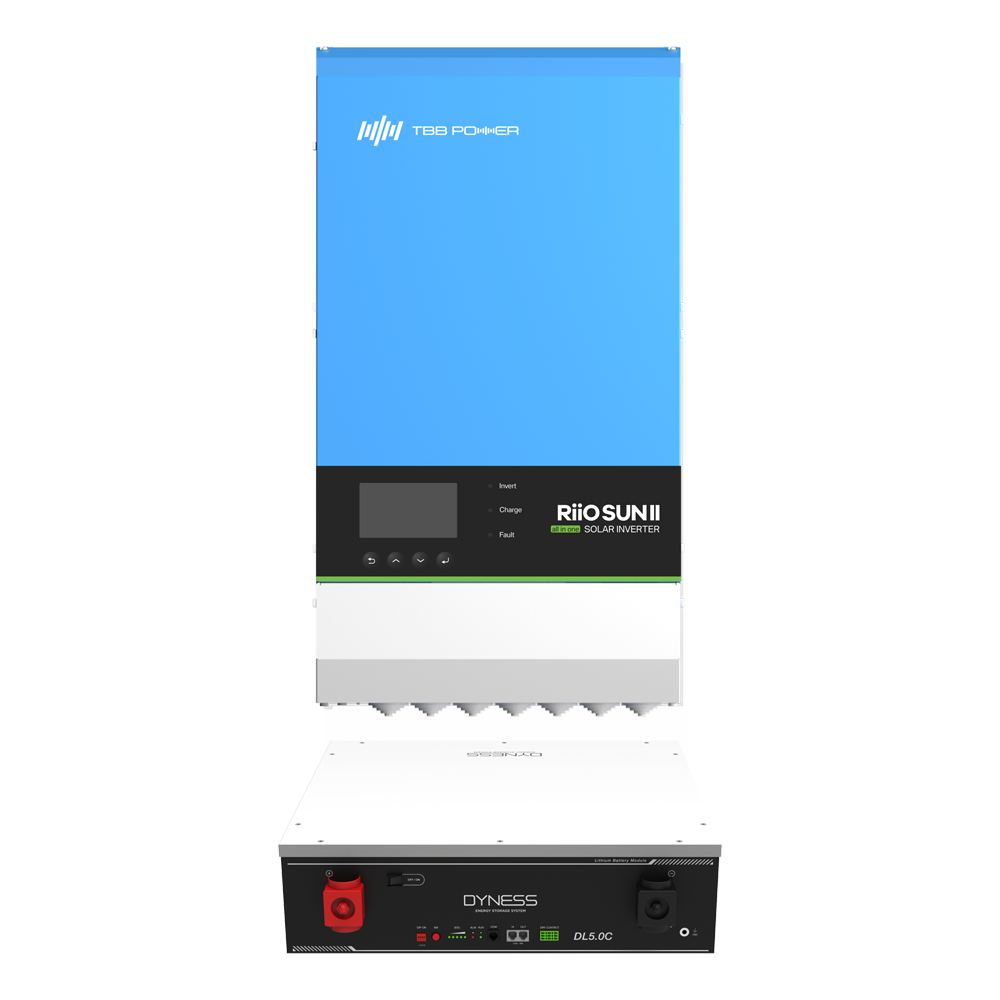

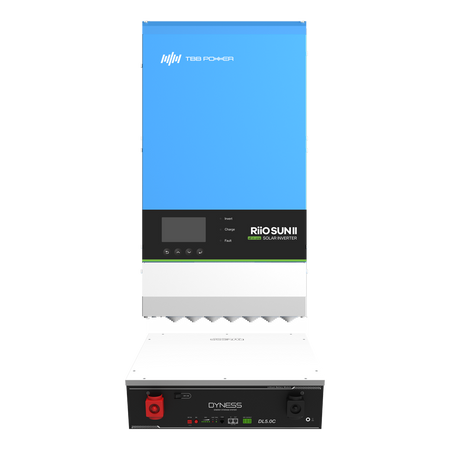

Inverter + Battery Pack - 5000W Power - 2 MPPT Inputs - Inverter, charger, and controller - 5120Wh Battery - Wi-Fi communication module
📋 SPECIFICATIONS:

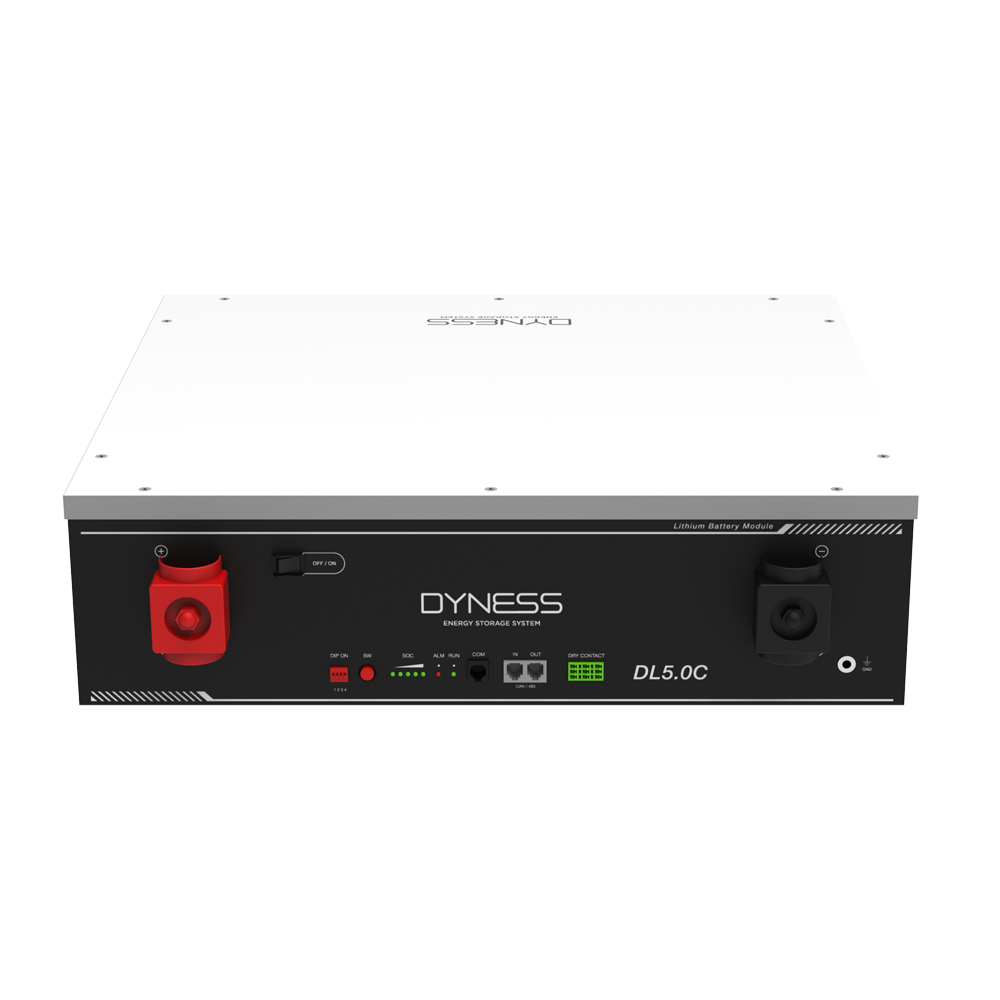

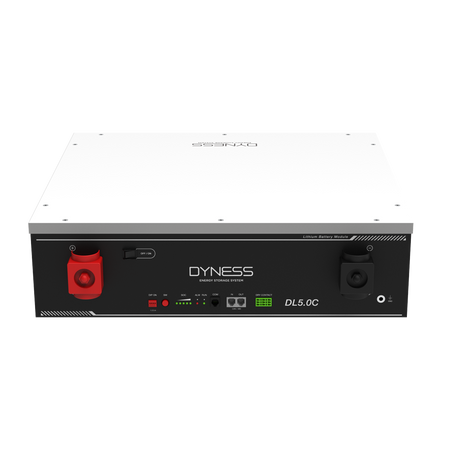

• Brand: Dyness
• Capacity: 5120Wh
• Rated capacity: 100 Ah
• Battery type: LiFePO4 51.2V / 100Ah
• Nominal voltage: 51.2 V
• Operating voltage: 44.8 ~ 57.6 V
• Recommended charge / discharge current: 50 A
• Charge current at max power: 75 A
• Discharge current at max power: 100 A
• Charge / discharge current at max power: 110 A (15 s)
• Lifecycle: +6000
• Rated power: 2560 W
• Maximum power: 4320 W
• Maximum peak power: 5760 W (15 s)
• Depth of discharge (DOD): 90%
• Recommended charge and discharge: 0.5C
• Maximum discharge: 1C
• Operating temp. (charging): 0 - 55 ℃
• Operating temp. (discharging): -20 - 55 ℃
• Dimensions: 558 (H) x 545 (D) x 150 (W) mm
• Weight: 54 Kg
• Protection: IP20
• Communication: CAN / RS485 / RS232
• Expansion: Up to 50 units in parallel
• Compatibility: SMA / Victron / Ingeteam / Delios / Goodwe / Solis / Deye / SAJ / Voltronic / Sungrow / TBB ...

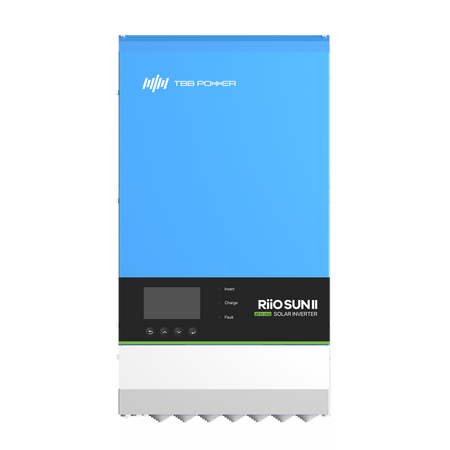

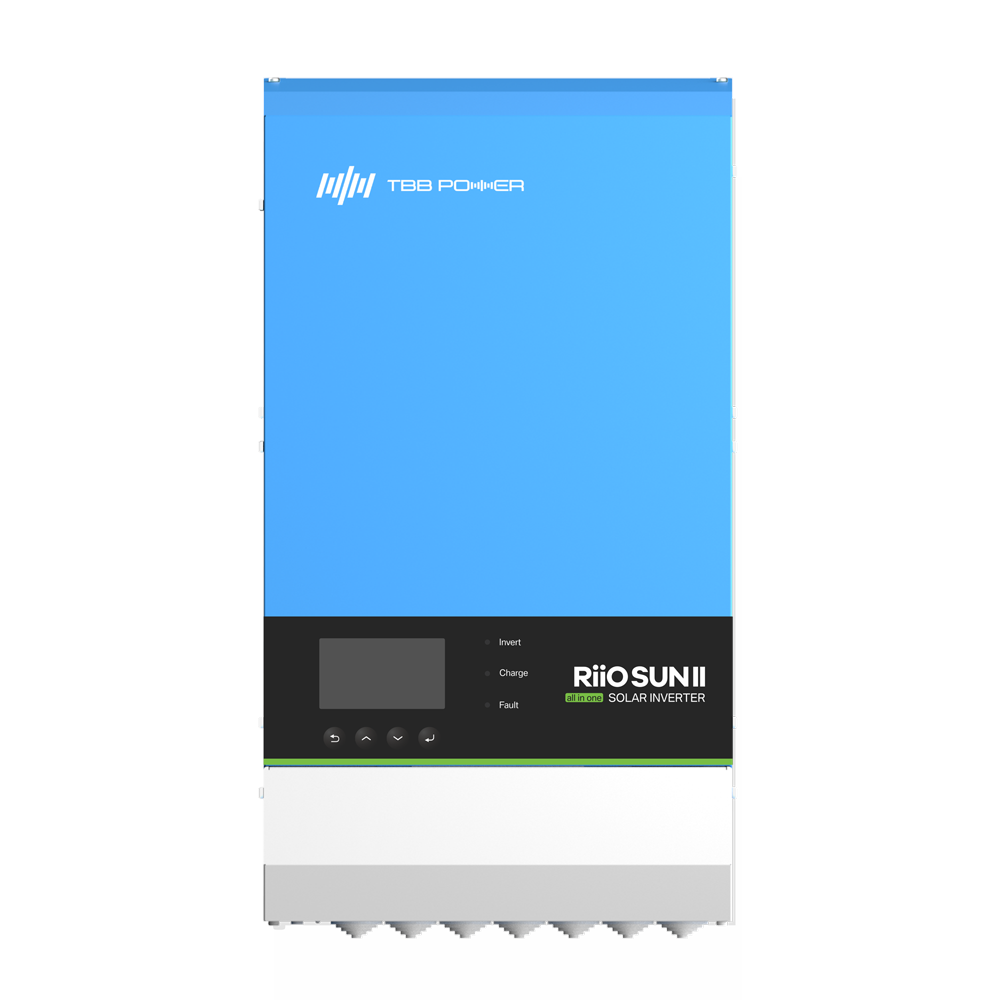

• Brand: TBB
• AC input voltage range: 175-265 Vac
• Input frequency range: 45-65 Hz
• Maximum AC input current: 50A
• AC Output 1 current: 50A
• AC Output 2 / Smart Port current: 50A
• Transfer time: 4 ms (15 ms in weak AC mode)
• Protections included: Short circuit / Overload / Battery overvoltage / Battery undervoltage / Overtemperature / Solar panel overvoltage / Fan block / Input voltage ripple too high
• General purpose communication port: RS485
• Configurable relay: 30Vdc/3A or 250Vac/3A
• Operating temperature range: -20ºC - +65ºC
• Operating relative humidity: 95% non-condensing
• Maximum altitude: 2000m
• Dimensions: 570 (W) x 310 (H) x 154 (D) mm
• Net weight: 29Kg
• Cooling: Forced
• Protection rating: IP21
• Certifications: Safety: EN-IEC 62477-1, EN-IEC 62109-1, EN-IEC 62109-2; EMC: EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN 61000-6-3, EN 61000-6-4,; EN 61000-3-11, EN 61000-3-12; Grid: RD 1699
• Nominal battery voltage: 48V
• DC input voltage range: 42-68 V
• AC output voltage: Single-phase 220/230/240 Vac ± 2%
• Output frequency: 50/60 Hz ± 0.1%
• Harmonic distortion: <2%
• Load power factor: 1
• Continuous output power at 25ºC: 5000W; 5000VA
• Peak output power: 10000W
• Maximum efficiency: 94%
• Standby power consumption: 22W
• Absorption voltage: 57.6V
• Float voltage: 55.2V
• Compatible battery types: Lithium (recommended) / AGM / GEL / OPzV / Lead-carbon / Flooded / Traction
• Maximum charge current: 60A
• Temperature compensation: Yes
• Maximum output current: 100A
• Number of MPPT: 2
• Maximum open circuit voltage / MPPT: 250 Voc
• Voltage range / MPPT: 65-245 Vdc
• Maximum input current / MPPT: 36A
• Maximum short circuit current / MPPT: 40A
• Maximum PV power / MPPT: 4400W
• Maximum efficiency: 98%
• MPPT efficiency: >99.5%
• Protections included: Short circuit / Overload / Battery overvoltage / Battery undervoltage / Overtemperature / Solar panel overvoltage
• Surplus injection to grid: Requires TBB-E4-MONITOR and TBB-SDM-230
• Inverter parallelism: TBB-E4-MONITOR required
• Three-phase connection: 3 inverters and TBB-E4-MONITOR required
• AC coupling: TBB-E4-MONITOR required
• Operation without batteries in three-phase: 3 inverters and TBB-E4-MONITOR required
📦 INCLUDED:
• All-in-one inverter• WiFi communication module• Ground terminal• Battery• Power and communication cables• User manual• Installation material
| Capacity | 5120Wh |
|---|---|
| Nominal capacity | 100 Ah |
| Battery type | LiFePO4 51.2V / 100Ah |
| Nominal voltage | 51.2 V |
| Operating voltage | 44.8 ~ 57.6 V |
| Recommended charge / discharge current | 50 A |
| Max power charge current | 75 A |
| Max power discharge current | 100 A |
| Max power charge / discharge current | 110 A (15 s) |
| Cycle life | +6000 |
| Nominal power | 2560 W |
| Maximum power | 4320 W |
| Maximum peak power | 5760 W (15 s) |
| Depth of Discharge (DOD) | 90% |
| Recommended charge and discharge | 0.5C |
| Maximum discharge | 1C |
| Operating Temp. (charge) | 0 - 55 ℃ |
| Operating Temp. (discharge) | -20 - 55 ℃ |
| Dimensions | 558 (H) x 545 (D) x 150 (W) mm |
| Weight | 54 Kg |
| Protection | IP20 |
| Communication | CAN / RS485 / RS232 |
| Expansion | Up to 50 units in parallel |
| Compatibility | SMA / Victron / Ingeteam / Delios / Goodwe / Solis / Deye / SAJ / Voltronic / Sungrow / TBB ... |
| AC input voltage range | 175-265 Vac |
| Input frequency range | 45-65 Hz |
| Max AC input current | 50A |
| AC Out 1 output current | 50A |
| AC Out 2 / Smart Port output current | 50A |
| Transfer time | 4 ms (15 ms in weak AC mode) |
| Protections included | Short circuit / Overload / Battery overvoltage / Battery undervoltage / Overtemperature / Solar panel overvoltage / Fan block / Input voltage ripple too high |
| General purpose communication port | RS485 |
| Configurable relay | 30Vdc/3A or 250Vac/3A |
| Operating temperature range | -20ºC - +65ºC |
| Operating relative humidity | 95% non-condensing |
| Maximum altitude | 2000m |
| Dimensions | 570 (W) x 310 (H) x 154 (D) mm |
| Net weight | 29Kg |
| Cooling | Forced |
| Protection index | IP21 |
| Certifications | Safety: EN-IEC 62477-1, EN-IEC 62109-1, EN-IEC 62109-2 EMC: EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN 61000-6-3, EN 61000-6-4, EN 61000-3-11, EN 61000-3-12 Grid: RD 1699 |
| Nominal battery voltage | 48V |
| DC input voltage range | 42-68 V |
| AC output voltage | Single phase 220/230/240 Vac ± 2% |
| Output frequency | 50/60 Hz ± 0.1% |
| Harmonic distortion | <2% |
| Load power factor | 1 |
| Continuous output power at 25ºC | 5000W 5000VA |
| Peak output power | 10000W |
| Maximum efficiency | 94% |
| Standby consumption | 22W |
| Absorption voltage | 57.6V |
| Float voltage | 55.2V |
| Compatible battery types | Lithium (recommended) / AGM / GEL / OPzV / Lead-carbon / Flooded / Traction |
| Maximum charging current | 60A |
| Temperature compensation | Yes |
| Maximum output current | 100A |
| Number of MPPTs | 2 |
| Maximum open circuit voltage / MPPT | 250 Voc |
| Voltage range / MPPT | 65-245 Vdc |
| Maximum input current / MPPT | 36A |
| Maximum short-circuit current / MPPT | 40A |
| Maximum PV power / MPPT | 4400W |
| Maximum efficiency | 98% |
| MPPT efficiency | >99.5% |
| Protections included | Short circuit / Overload / Battery overvoltage / Battery undervoltage / Overtemperature / Solar panel overvoltage |
| Surplus injection to grid | TBB-E4-MONITOR and TBB-SDM-230 required |
| Inverter parallelism | TBB-E4-MONITOR required |
| Three-phase connection | 3 inverters and TBB-E4-MONITOR required |
| AC coupling | TBB-E4-MONITOR required |
| Operation without batteries in three-phase | 3 inverters and TBB-E4-MONITOR required |
