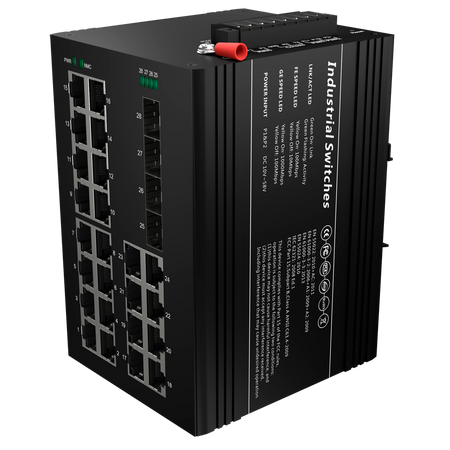

DIN-Rail Mount White Label PoE Switch - 24 Gigabit Ports + 4 Gigabit SFP
DIN-Rail Mount White Label PoE Switch - 24 Gigabit Ports + 4 Gigabit SFP
Regular price
€922,32
Final price
Regular price
-11%
€1.040,00
Sale price
€922,32
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
White Label PoE Switch - DIN Rail Mounting - 24 Gigabit Ports + 4 Gigabit SFP - 90W ports 1-2 & 23-24/30W ports 3-22 /Max 360W - IEEE802.3af/at/bt | PoE/PoE+/Hi-PoE - VLAN/STP/RSTP/MSTP/ERPS/SNMP/ACL - Static LAG/IGMP Snooping/DHCP Snoop/802.1x
📋 SPECIFICATIONS:

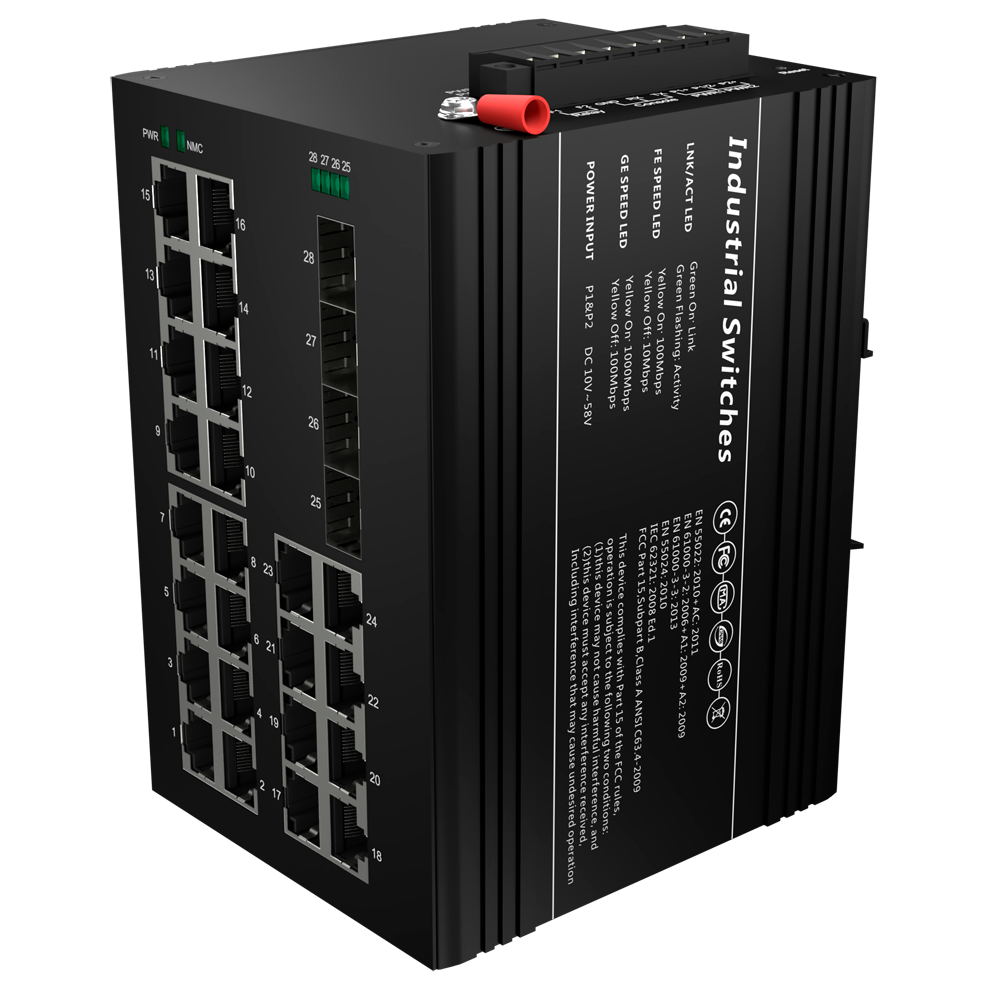

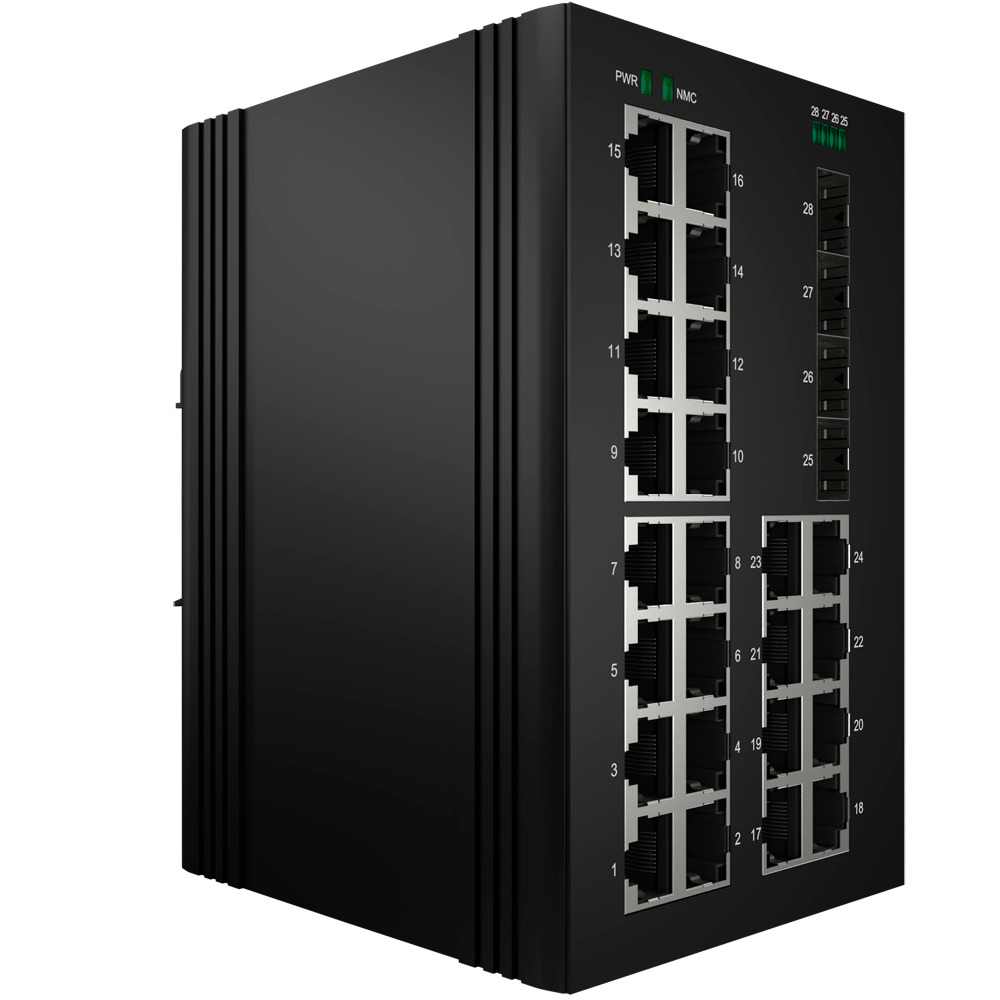

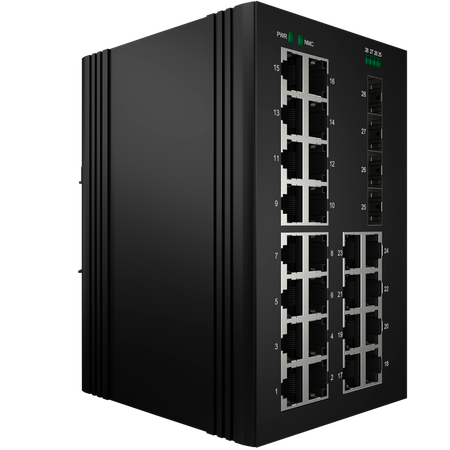

• Interface: 24 Gigabit RJ45 Ports + 4 Gigabit SFP Ports
• PoE Features: Up to 90W ports 1-2 and 23-24 IEEE802.3bt Hi-PoE; Up to 30W ports 3-22 IEEE802.3af/at PoE/PoE+; Maximum 360W
• Supported Topologies: Ring / Star / Bus / Tree
• L1 Protocols: MDI/MDIX/Flow Control
• Network Protocols: VLAN/STP/RSTP/MST/ERPS/SNMP/IGMP Snooping/802.1x/Port Isolation/QinQ
• Management Protocols: SNMP/CLI/Console/WebUI/SSH/Telnet/Rmon
• Quality of Service: Priority selection and mapping; Supports SP and WRR algorithms; Rate limiting; QoS criteria
• Link Aggregation: Up to 12 groups
• Jumbo Frame: 10Kbytes
• ACL: Supports 500 standard and extended ACLs
• Switching Capacity: 68Gbps
• MAC Table: 16K
• Packet Forwarding Rate: 50.59Mbps
• Buffer: 12M
• Installation: DIN Rail

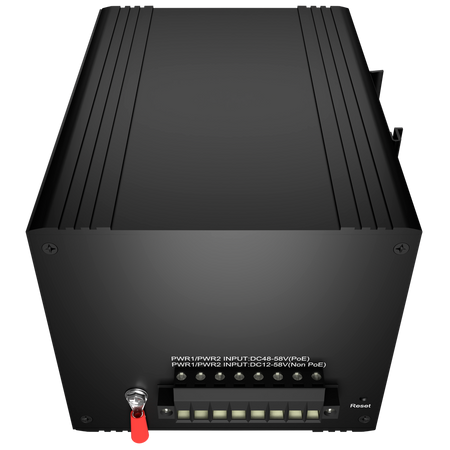

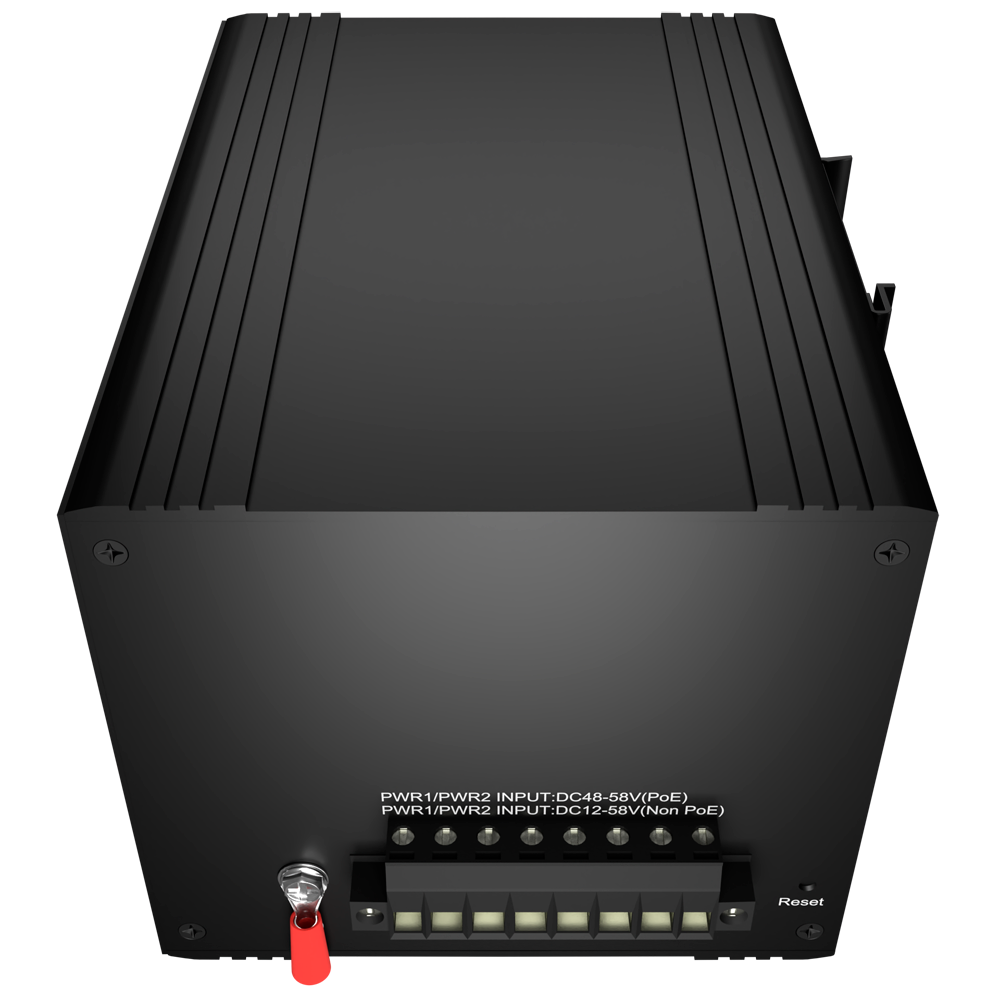

• Power Supply: DC 48 V ~ 58 V; The equipment does not include a power supply. We recommend the following references:; DC48V5A-DIN
• Operating Temperature: -40º C ~ 75º C
• Cooling System: Passive natural convection design (Fanless)
• Dimensions: 108 (D) x 104 (W) x 143 (H) mm
• Weight: 1.3 Kg

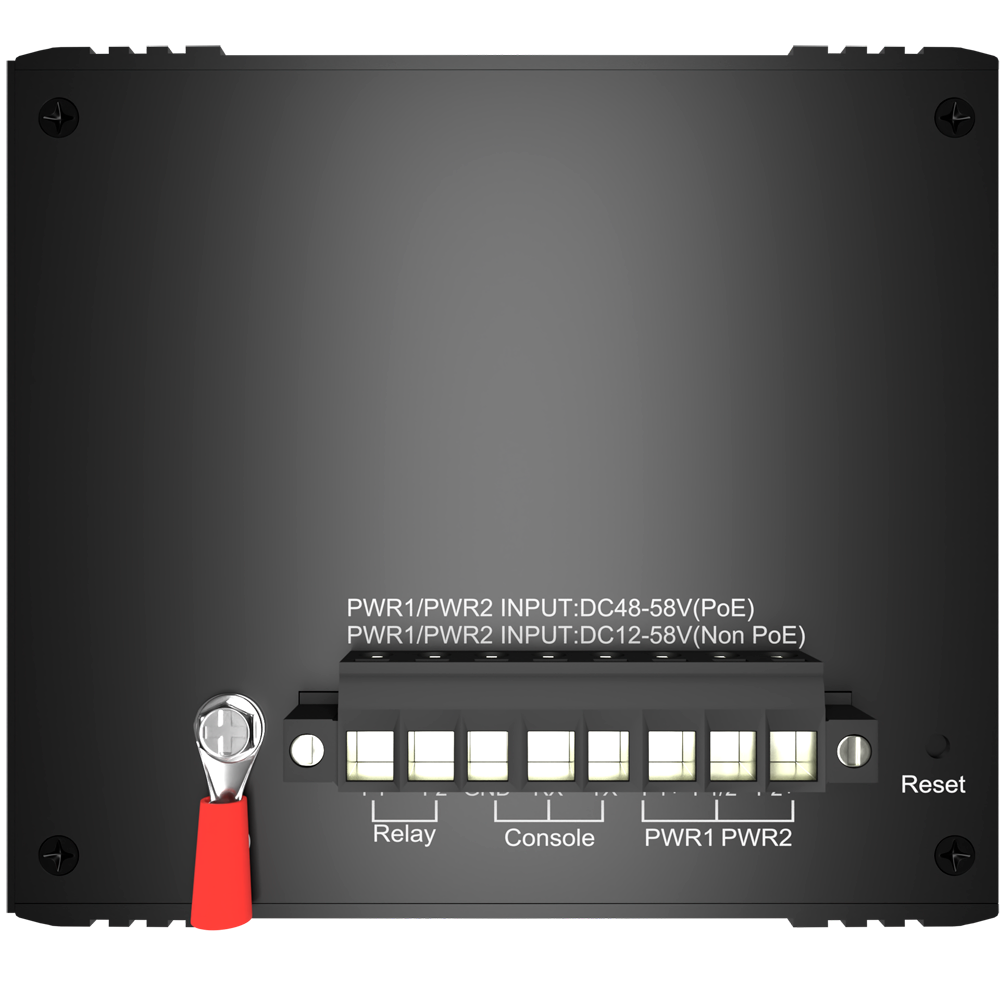

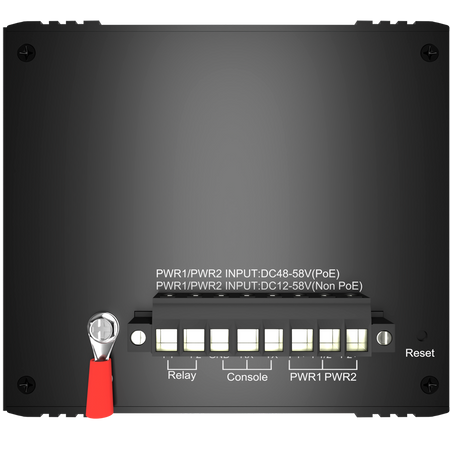

• Relay Output: Switch failure is notified via relay. The relay output can be connected to a buzzer, or other monitoring devices, to trigger an alarm when the device is not active. When the switch is powered off, RELAY1 and RELAY2 will change their state, causing the buzzer to sound and the monitoring devices to detect the switch failure and report errors to the data center. This output cannot be configured via software.
📦 INCLUDED:
• White Label PoE Switch• User manual
| Interface | 24 Gigabit RJ45 ports + 4 Gigabit SFP ports |
|---|---|
| PoE Features | Up to 90W on ports 1-2 and 23-24 IEEE802.3bt Hi-PoE Up to 30W on ports 3-22 IEEE802.3af/at PoE/PoE+ Maximum 360W |
| Supported Topologies | Ring / Star / Bus / Tree |
| L1 Protocols | MDI/MDIX/Flow Control |
| Network Protocols | VLAN/STP/RSTP/MST/ERPS/SNMP/IGMP Snooping/802.1x/Port Isolation/QinQ |
| Management Protocols | SNMP/CLI/Console/WebUI/SSH/Telnet/Rmon |
| Quality of Service | Priority selection and mapping Support for SP and WRR algorithms Rate limiting QoS policies |
| Link Aggregation | Up to 12 groups |
| Jumbo Frame | 10Kbytes |
| ACL | Supports 500 standard and extended ACLs |
| Switching Capacity | 68Gbps |
| MAC Table | 16K |
| Packet Forwarding Rate | 50.59Mbps |
| Buffer | 12M |
| Installation | DIN rail |
| Power Supply | DC 48 V ~ 58 V - The equipment does not include the power supply. The following references are recommended: - DC48V5A-DIN |
| Operating Temperature | -40º C ~ 75º C |
| Cooling System | Passive natural convection design (Fanless) |
| Dimensions | 108 (D) x 104 (W) x 143 (H) mm |
| Weight | 1.3 Kg |
| Relay Output | Switch failure is notified via relay. The relay output can be connected to a buzzer or other monitoring devices to trigger an alarm when the device is inactive. When the switch is powered off, RELAY1 and RELAY2 will change their state, causing the buzzer to sound and the monitoring devices to detect the switch failure and report errors to the data center. This output cannot be configured via software. |
