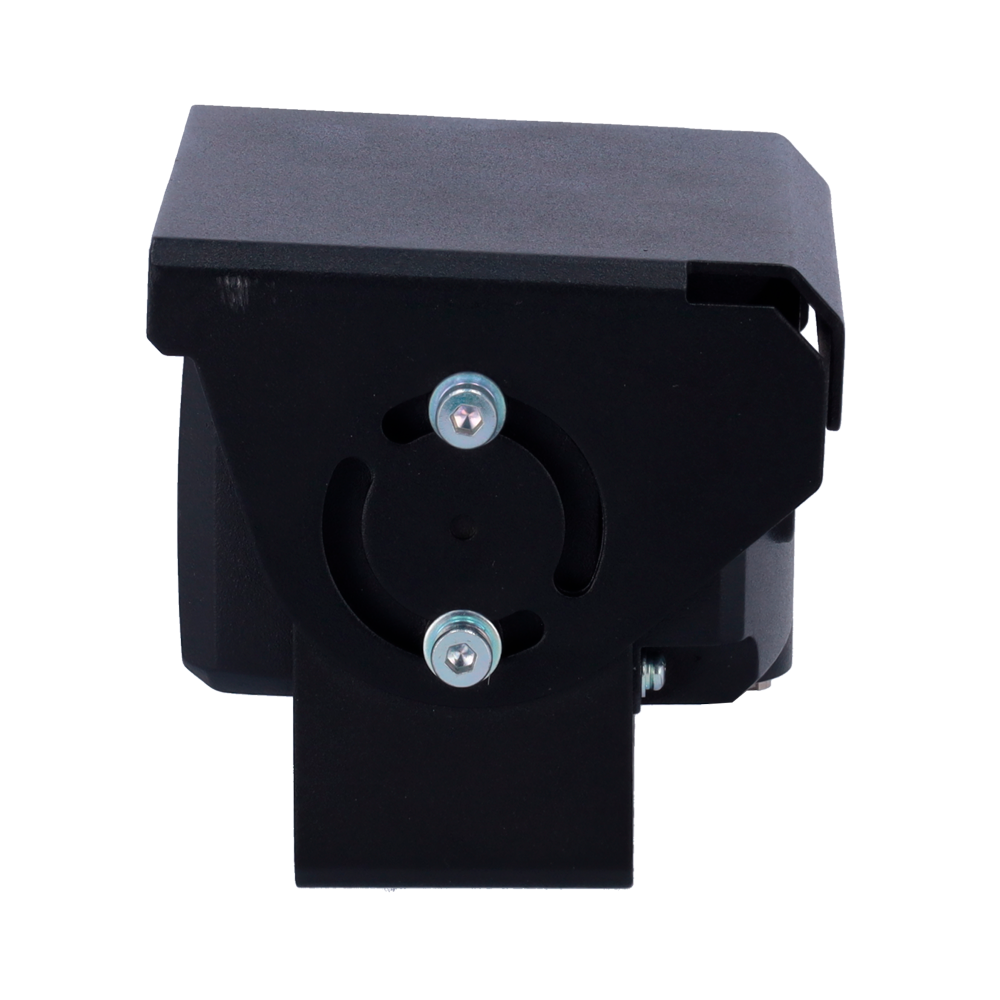

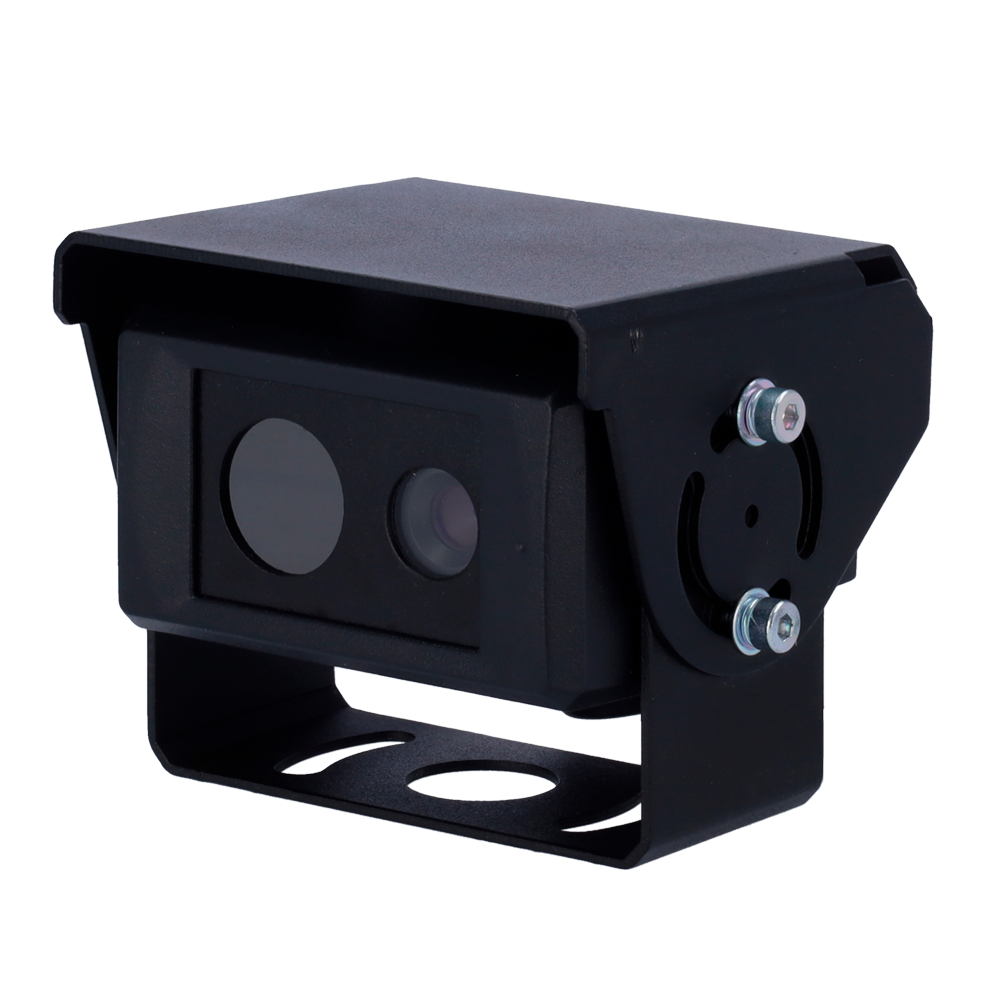

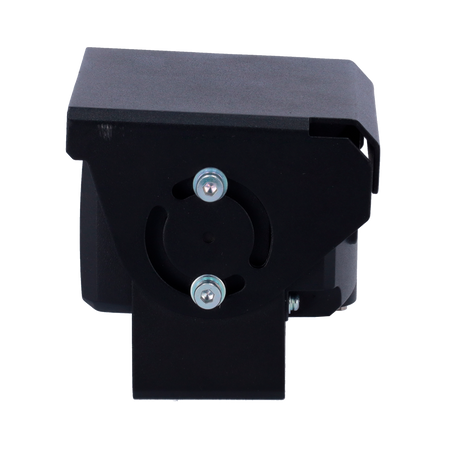

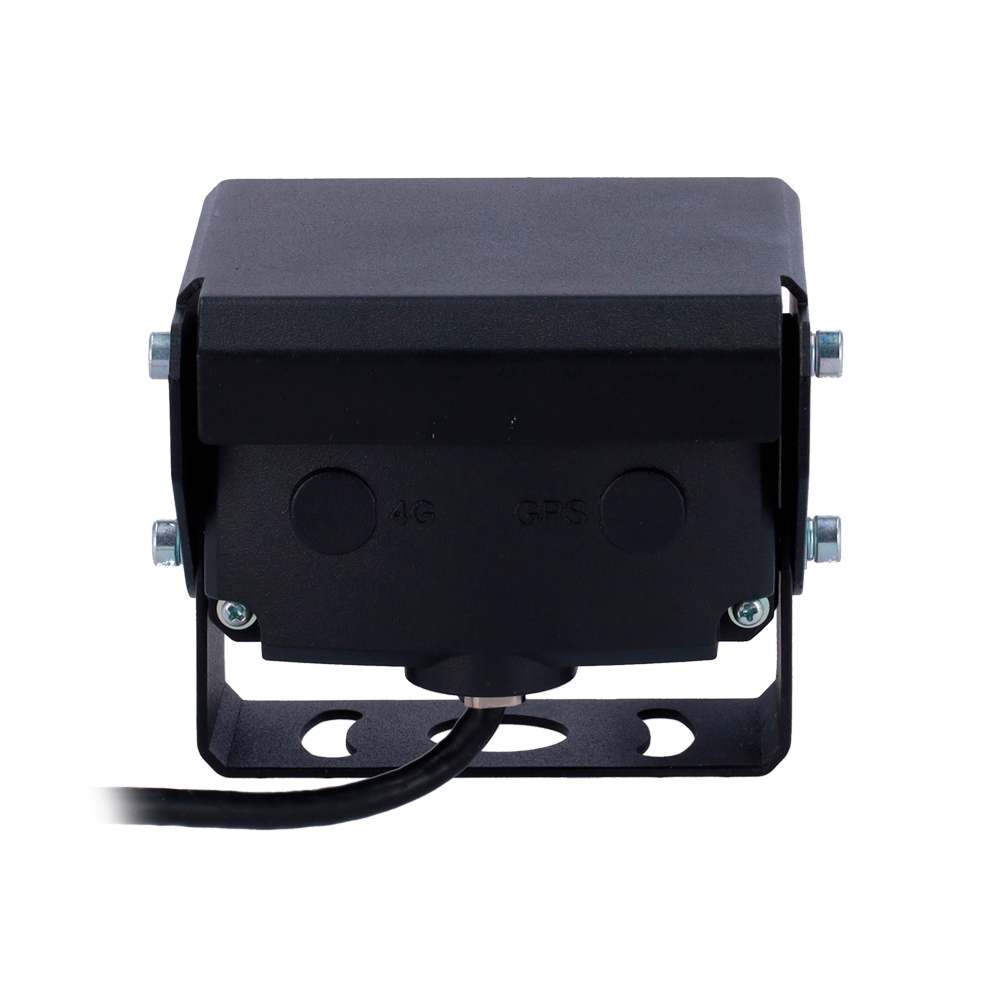

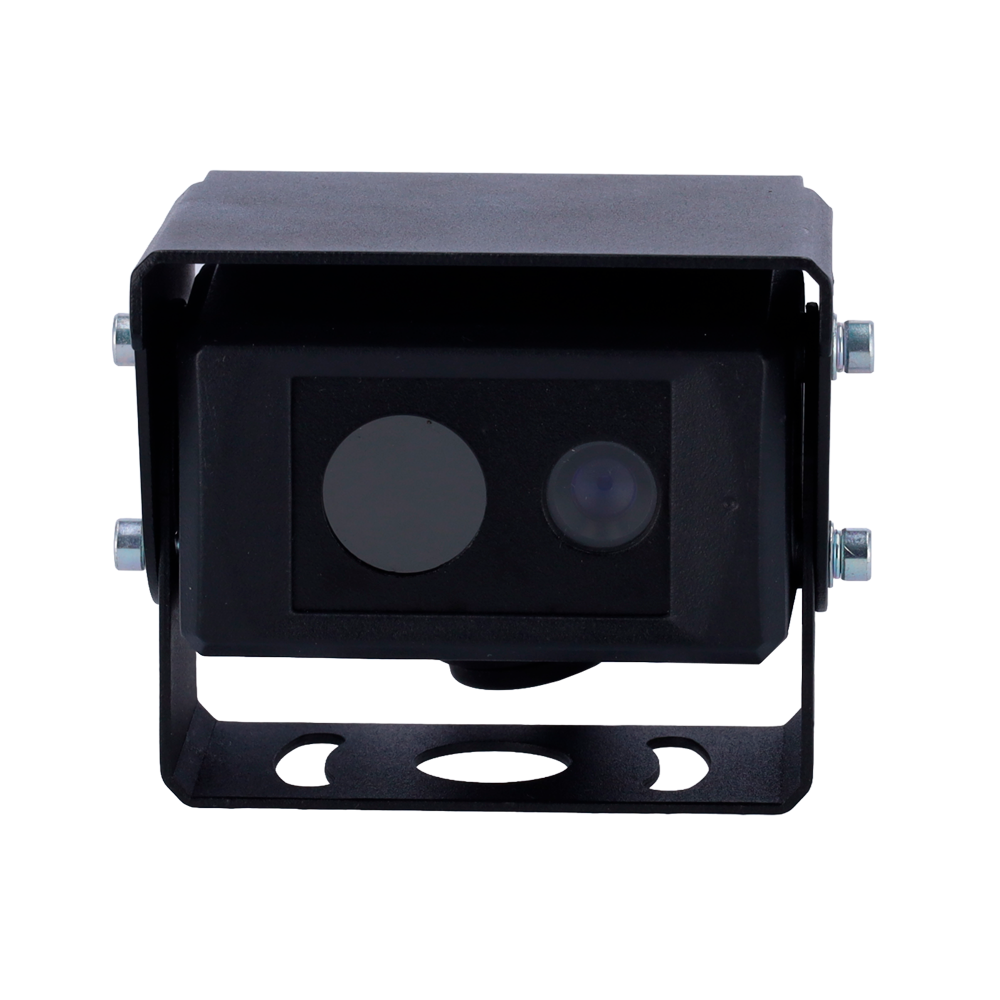

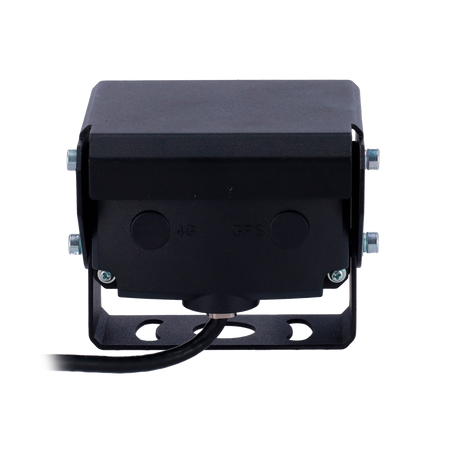

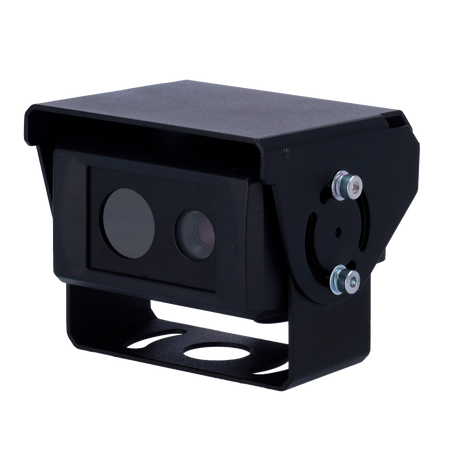

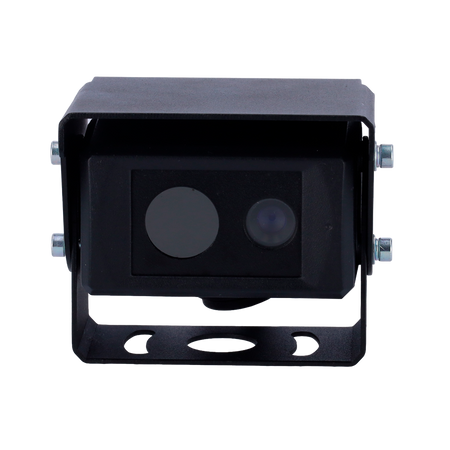

Thermal camera with collision detection
Regular price
€3.389,53
Final price
Regular price
-5%
€3.572,00
Sale price
€3.389,53
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Thermal camera with collision detection - Thermal detection range 50m - IP69K waterproof - Dual lens visible and thermal camera - 4-pin M12 connector
📋 SPECIFICATIONS:
• Protection: IP69K
• Analysis: Collision detection between people and vehicles
• Detection range: 50 meters
• Viewing angle: 28º in thermal mode; 40º in visible mode
• Frame rate: 25 FPS
• Resolution: 384x288/25f (thermal module); 1920x1080p/30f (AI module)
• Video output: 2MPx AHD 4-pin M12 connector
• Dimensions: 98 x 73 x 74(mm)
• Weight: 576g
• Audio output: Alarm output via monitor or MDVR
• USB: Port for STK-AC575 calibration tool
• Operating temperature: –20℃ ~ 70℃, RH95%MAX.
• Storage temperature: –30℃ ~ 80℃, RH95%MAX
• Power supply: DC10~32V
• Lens: 9.1mm (thermal); 8mm (Visible AI)
📦 INCLUDED:

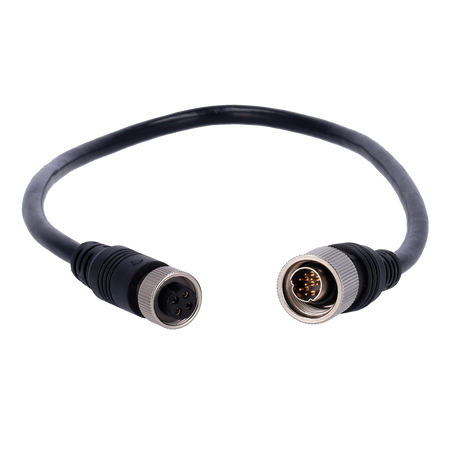

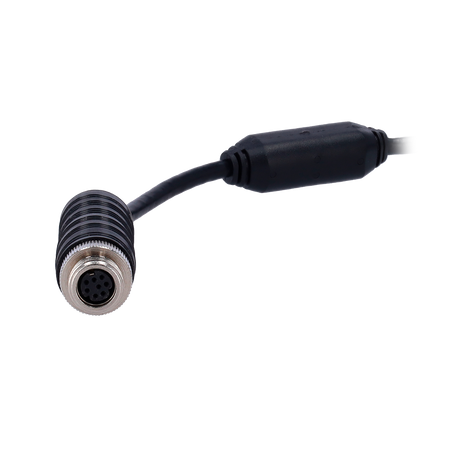

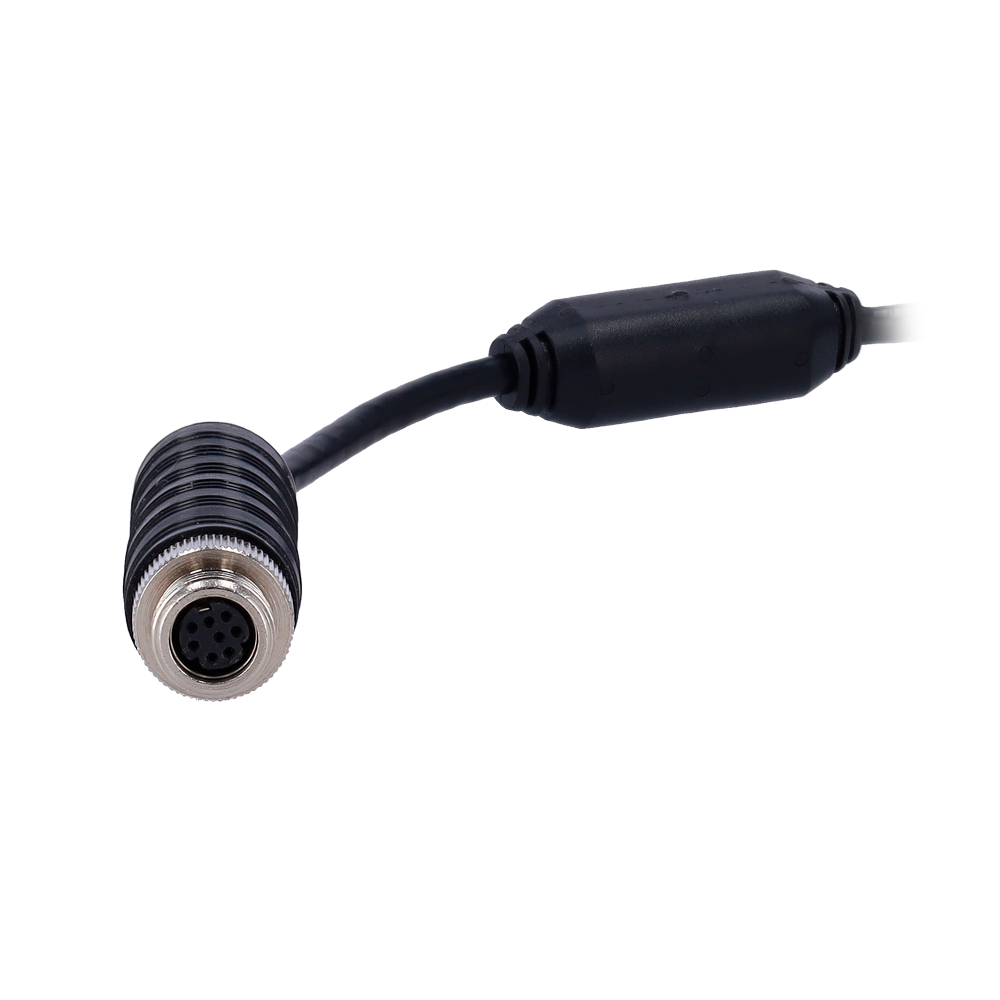

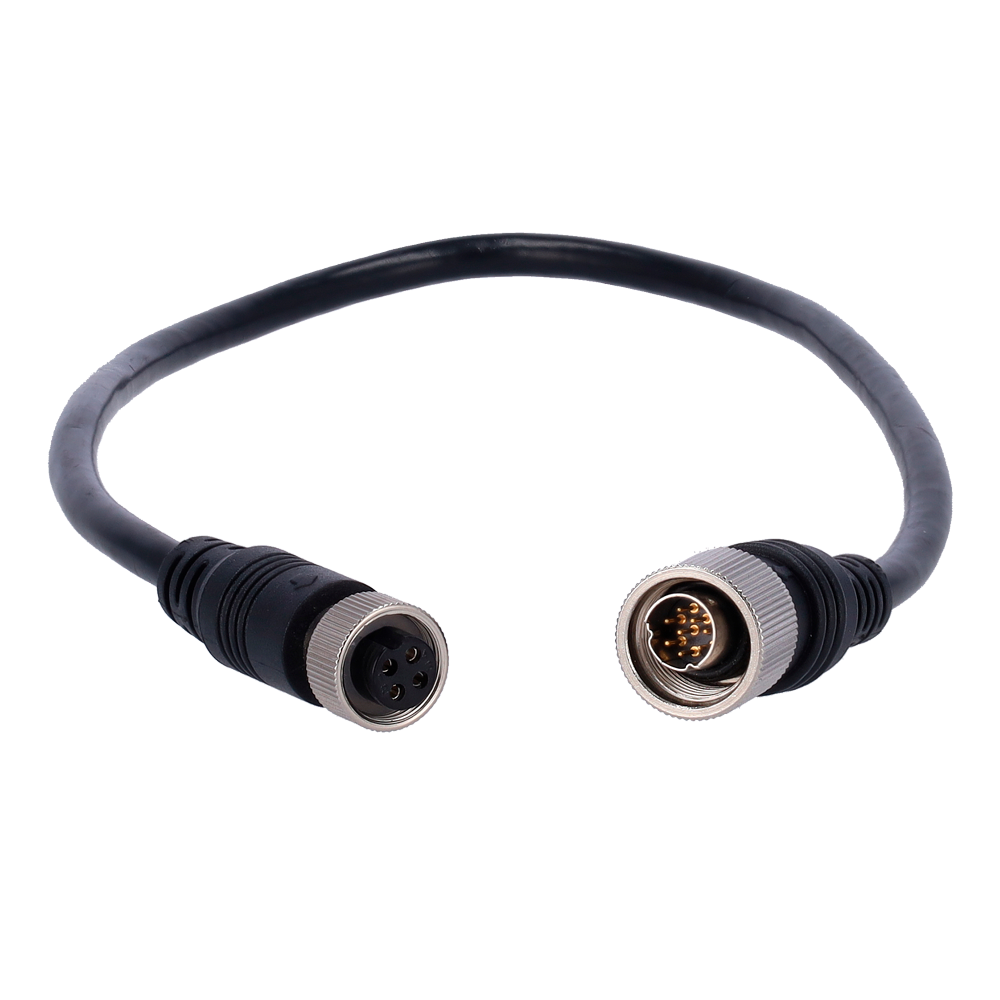

• Camera• 4-pin converter cable• screws
| Protection | IP69K |
|---|---|
| Analysis | Collision detection between people and vehicles |
| Detection range | 50 meters |
| Viewing angle | 28º in thermal mode, 40º in visible mode |
| Frame rate | 25 FPS |
| Resolution | 384x288/25f (thermal module), 1920x1080p/30f (AI module) |
| Video output | 2MPx AHD 4-pin M12 connector |
| Dimensions | 98 x 73 x 74(mm) |
| Weight | 576g |
| Audio output | alarm output via monitor or MDVR |
| USB | Port for STK-AC575 calibration tool |
| Operating temperature | –20℃ ~ 70℃, RH95%MAX. |
| Storage temperature | –30℃ ~ 80℃, RH95%MAX |
| Power supply | DC10~32V |
| Lens | 9.1mm (thermal), 8mm (AI visible) |
