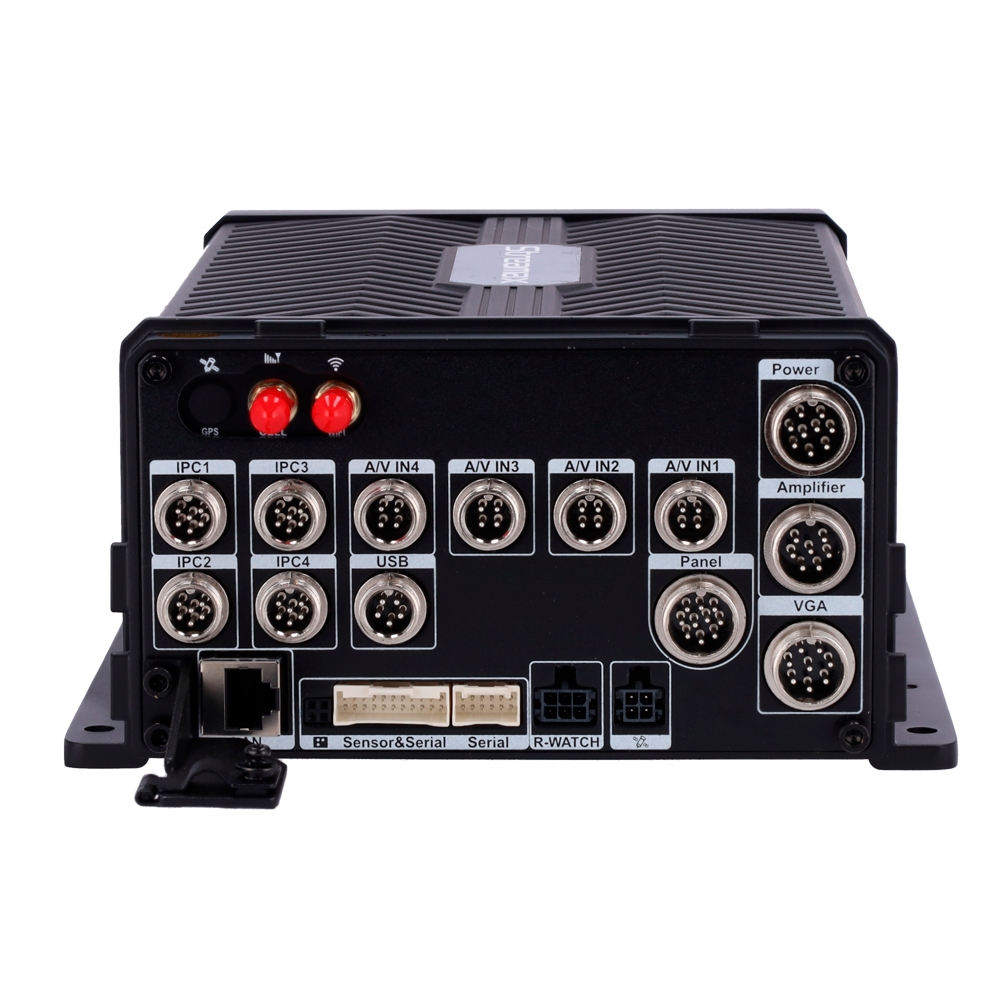

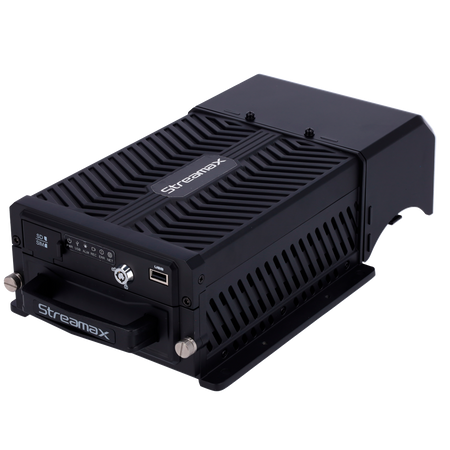

Streamax In-Vehicle NVR Video Recorder - 4 CH AHD & 4 CH IP / H.265/H.264 Compression
Streamax In-Vehicle NVR Video Recorder - 4 CH AHD & 4 CH IP / H.265/H.264 Compression
Regular price
€1.268,19
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Streamax - In-vehicle NVR Video Recorder - 4 CH AHD and 4 CH IP / H.265/H.264 compression - Maximum resolution 1080p - 4G communication | GPS | Alarms - Supports 1 x 2.5" HD
📋 SPECIFICATIONS:
• Brand: Streamax
• Channels: 4 CH AHD and 1 CH IP
• Power supply: 4 x 4-pin ports for AHD cameras; 4 x 6-pin ports for IP PON camera; M12 connectors
• Video compression format: Video: H.265 / H.264; Audio: ADPCM,G.711U,G.711A
• Display resolution: AHD: 1080p (1920 × 1080), 720p (1280 × 720), WD1 (928 × 576), WHD1 (928 × 288), WCIF (464 × 288), D1 (704 × 576), HD1 (704 × 288), CIF (352 × 288); IP: 1080p (1920 × 1080), 720p (1280 × 720)
• Image quality: Adjustable levels 1–8 (preferably Level 1)
• Audio: 8 CH
• Video output: Output: 1 x CVBS + 1 x VGA
• Artificial intelligence: Addition of ST-CA29M (DSM) and ST-CA20S (ADAS) cameras
• Screen division: 1 / 4 / 9
• Recording method: Startup/Manual/Scheduled/Alarm event log
• Alarm: Pre-alarm recording: 0-60 min; Post-recording: 0-30 min
• External backup: USB memory / USB HDD / USB CD-RW / USB DVR-RW
• Internal memory: 1 x 2.5" SATA HD or SSD up to 1TB
• Communication: 3G/4G: EVDO/TD-SCDMA/WCDMA/TDD-LTE/FDD-LTE

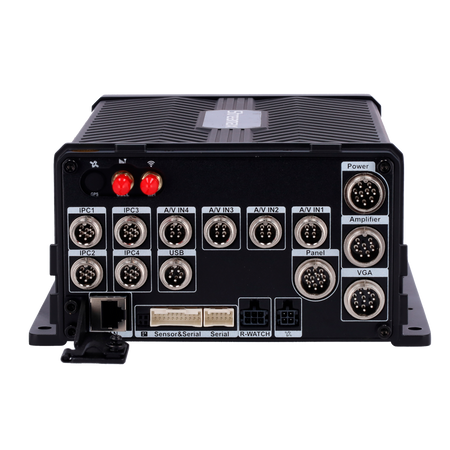

• Ports: 1 x SIM slot; 2 x RS232; 2 x RS485; 1 x CAN; 1 x MIC
• Alarms: 8 Inputs and 2 Outputs
• Compatible display: ST-DISPLAY-CP4, ST-DISPLAY-CP5
• GPS: Positioning, speed detection and time synchronization
• Power supply: Input DC 8-36V; Output 5V@500 mA
• Power consumption: 50 W
• Operating temperature: -40°C~70°C
• Dimensions / Weight: 92.8 (H) x 167 (W) x 281 (D) mm / 2.4 Kg (with hard drive)

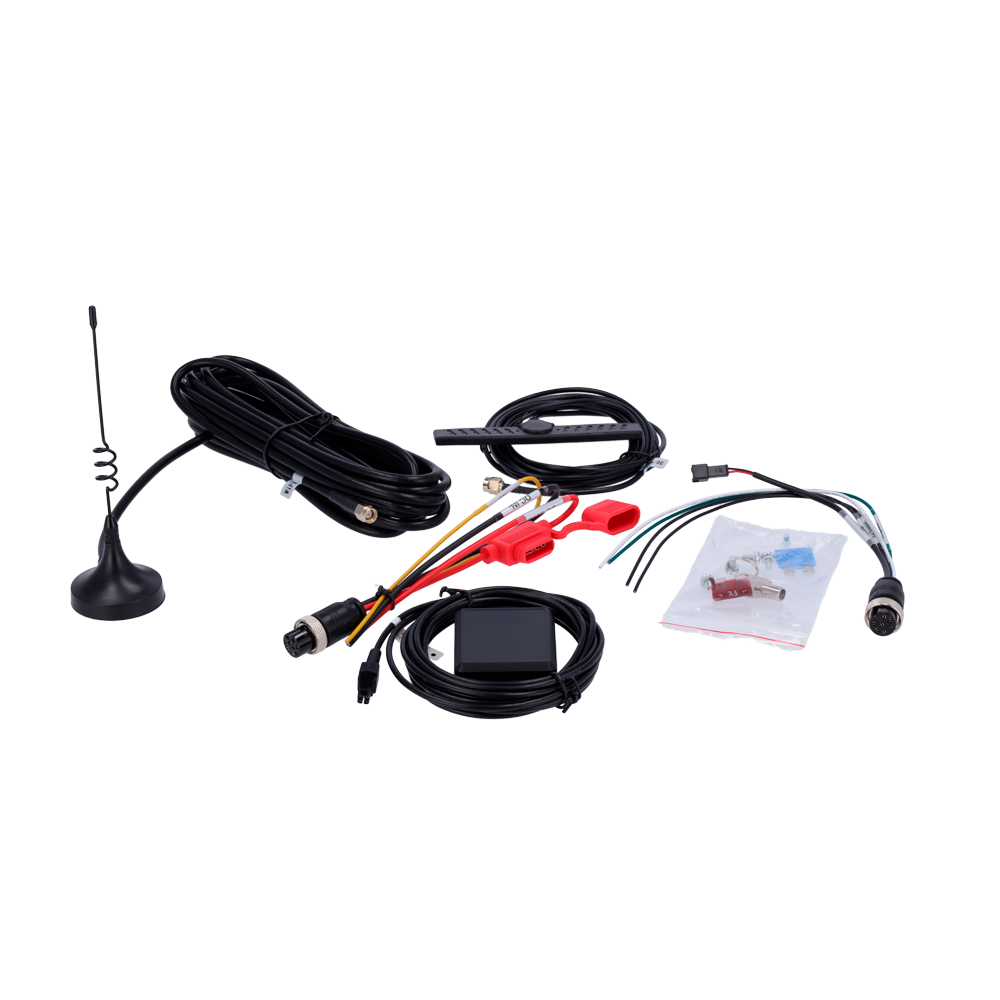

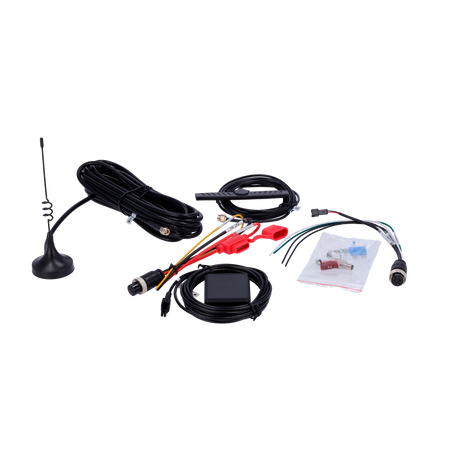

📦 INCLUDED:
• Streamax NVR video recorder • Power cable
| Channels | 4 CH AHD and 1 CH IP |
|---|---|
| Power supply | 4 x 4-pin ports for AHD cameras, 4 x 6-pin ports for IP PON cameras, M12 connectors |
| Video compression format | Video: H.265 / H.264 Audio: ADPCM,G.711U,G.711A |
| Display resolution | AHD: 1080p (1920 × 1080), 720p (1280 × 720), WD1 (928 × 576), WHD1 (928 × 288), WCIF (464 × 288), D1 (704 × 576), HD1 (704 × 288), CIF (352 × 288) IP: 1080p (1920 × 1080), 720p (1280 × 720) |
| Image quality | Levels 1–8 adjustable (preferably Level 1) |
| Audio | 8 CH |
| Video output | Output: 1 x CVBS + 1xVGA |
| Artificial intelligence | Support for ST-CA29M (DSM) and ST-CA20S (ADAS) cameras |
| Screen divisions | 1 / 4 / 9 |
| Recording method | Startup/Manual/Scheduled/Alarm event log |
| Alarm | Alarm pre-recording: 0-60 min Post-recording: 0-30 min |
| External backup | USB memory / USB HDD / USB CD-RW / USB DVR-RW |
| Internal memory | 1 SATA 2.5" HD or SSD up to 1TB |
| Communication | 3G/4G: EVDO/TD-SCDMA/WCDMA/TDD-LTE/FDD-LTE |
| Ports | 1 x SIM slot, 2 x RS232, 2 x RS485, 1 x CAN, 1 x MIC |
| Alarms | 8 Inputs and 2 Outputs |
| Compatible display | ST-DISPLAY-CP4, ST-DISPLAY-CP5 |
| GPS | Positioning, speed detection and time synchronization |
| Power supply | DC input 8-36V, 5V@500 mA output |
| Power consumption | 50 W |
| Operating temp. | -40°C~70°C |
| Dimensions / Weight | 92.8 (H) x 167 (W) x 281 (D) mm / 2.4 kg (with hard disk) |
