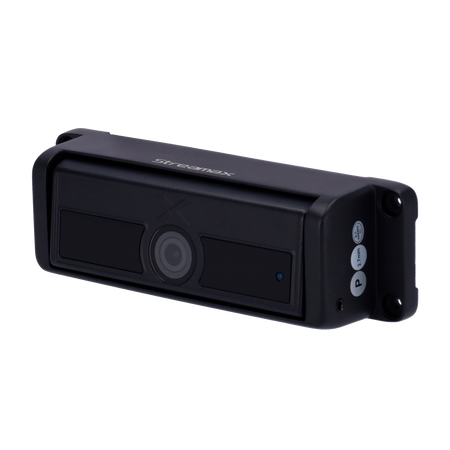

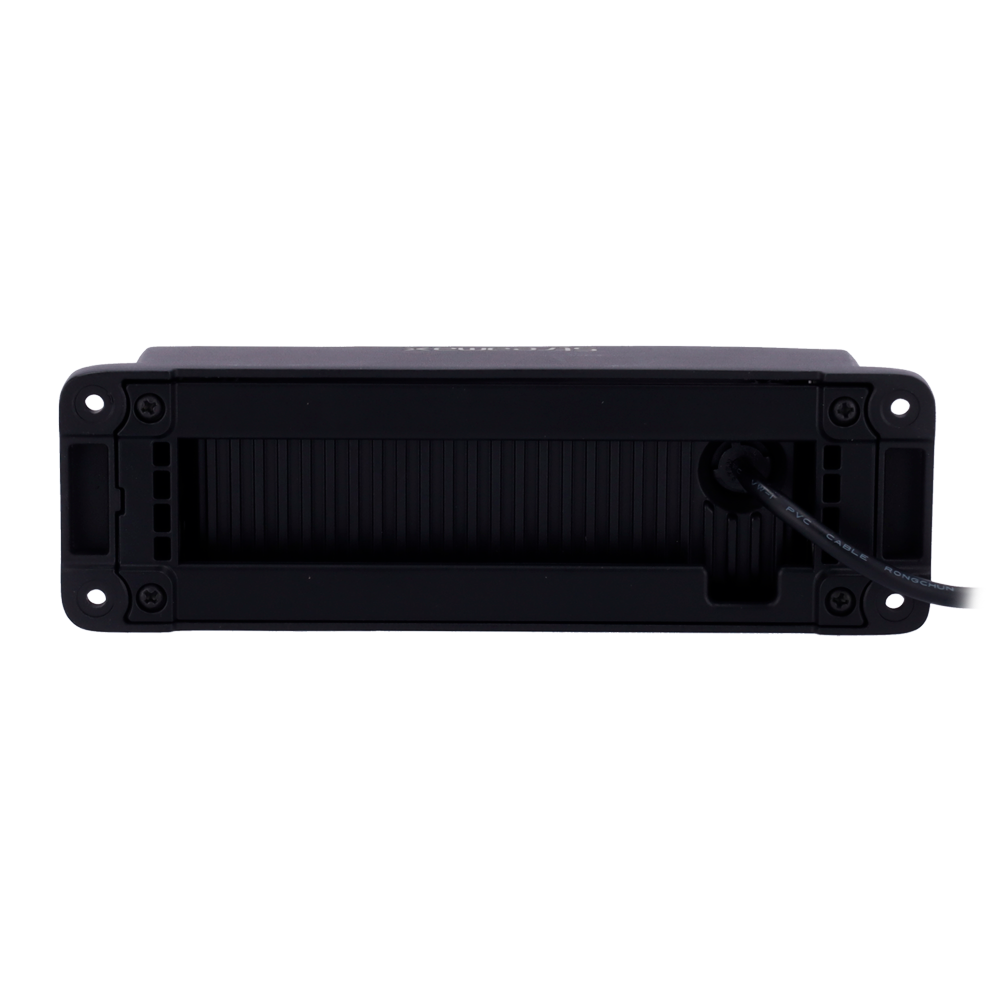

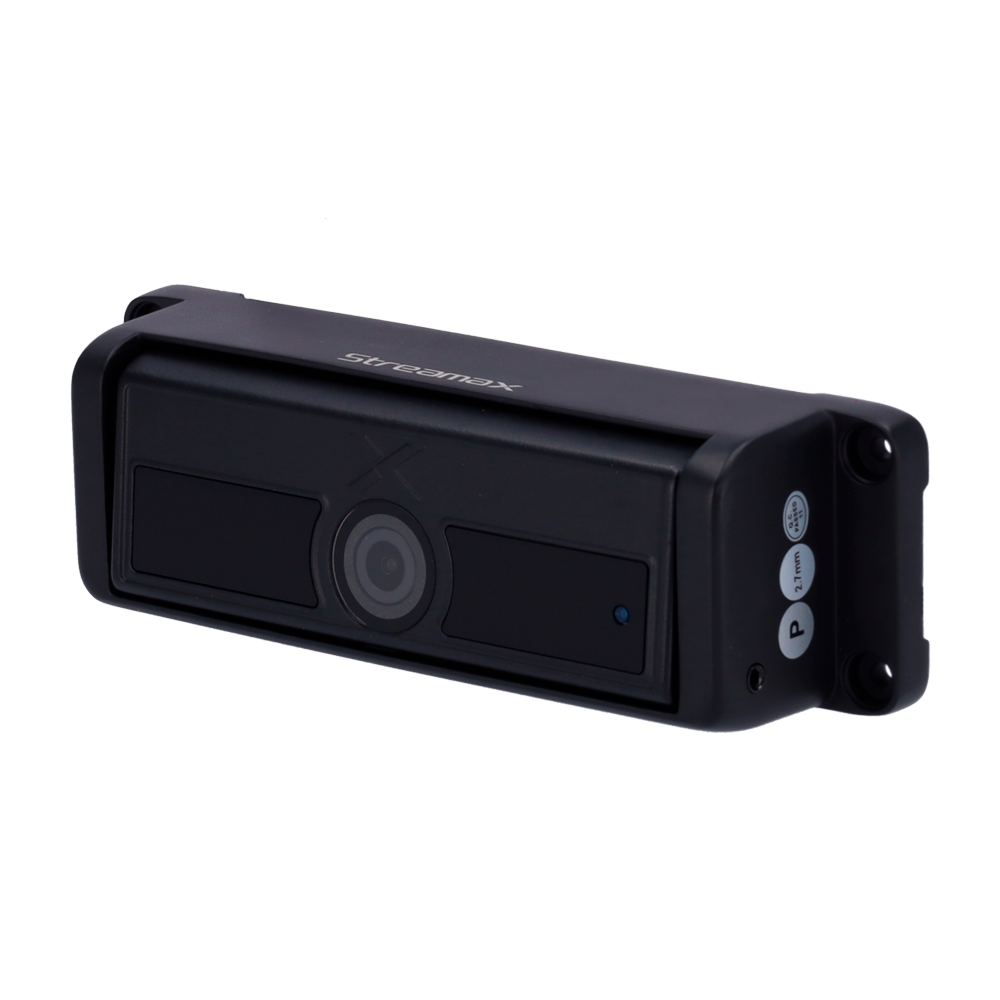

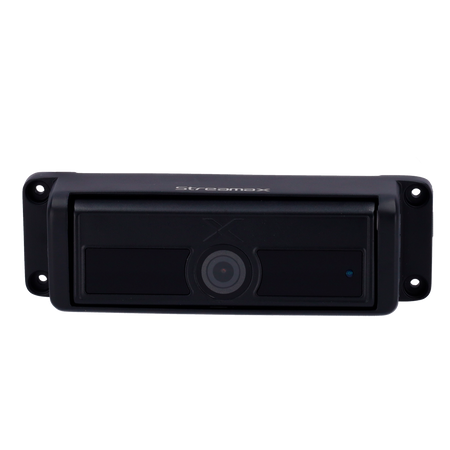

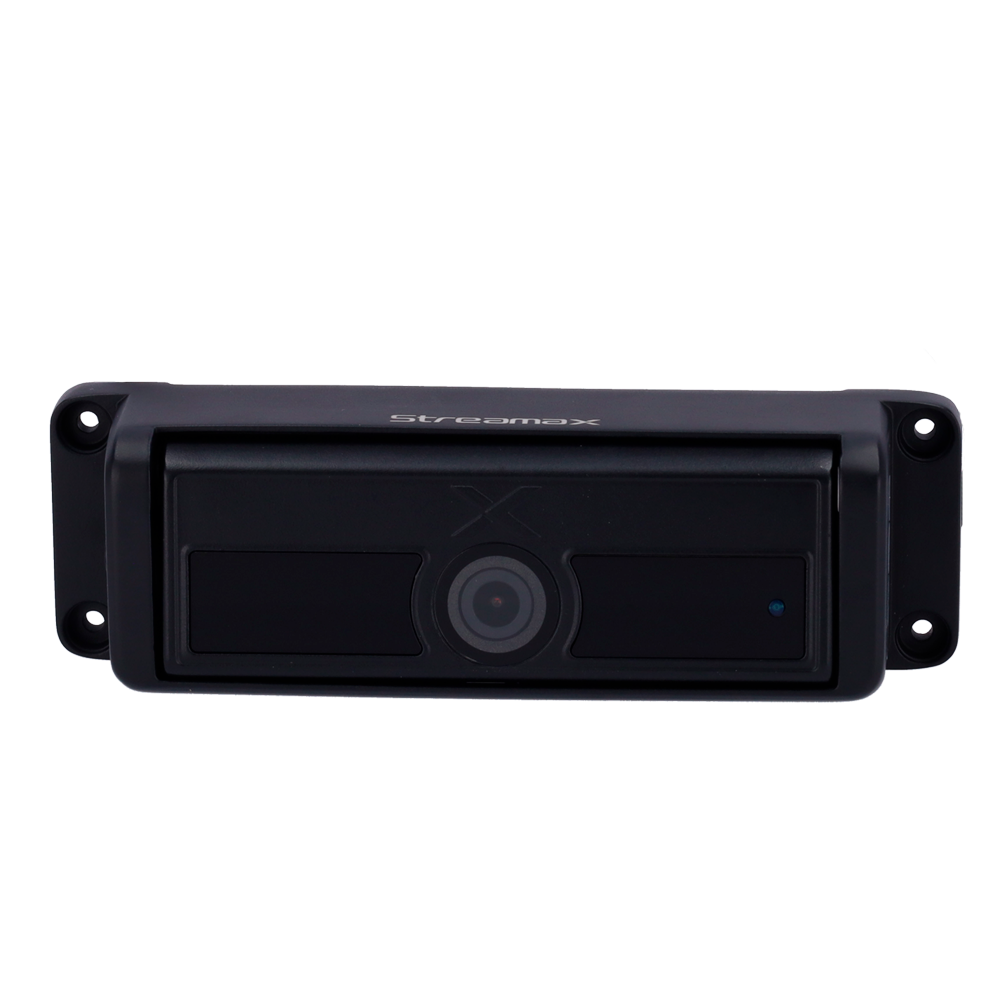

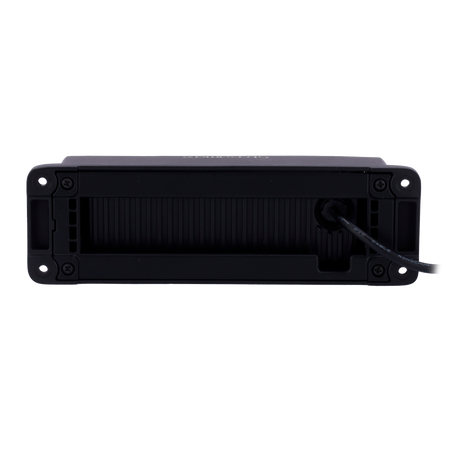

Streamax AHD Slave camera for passenger counting - IR range up to 15m - SM v2
Couldn't load pickup availability
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Do you have any questions?
Ask an expert!
Streamax - AHD Slave Camera for people counting - 1/2.8" 1080P CMOS - 2.8mm Lens - IR range up to 15m - 4-pin aviation connector
📋 SPECIFICATIONS:
• Sensor: 1/2.8" CMOS
• Resolution: 1080p (1920 x 1080)
• Lens: 2.8 mm (H: 103º, V: 56º, D: 121º)
• Electronic Shutter: 1/25 ~ 1/25,000s (automatic)
• Image Enhancement: DWDR, BLC, ATW, AWB, Automatic Gain Control, 3D DNR
• S/N Ratio: >50dB
• Minimum Illumination: 0.01 Lux (IR OFF), 0 Lux (IR ON)
• Infrared illumination: 10 - 15 m

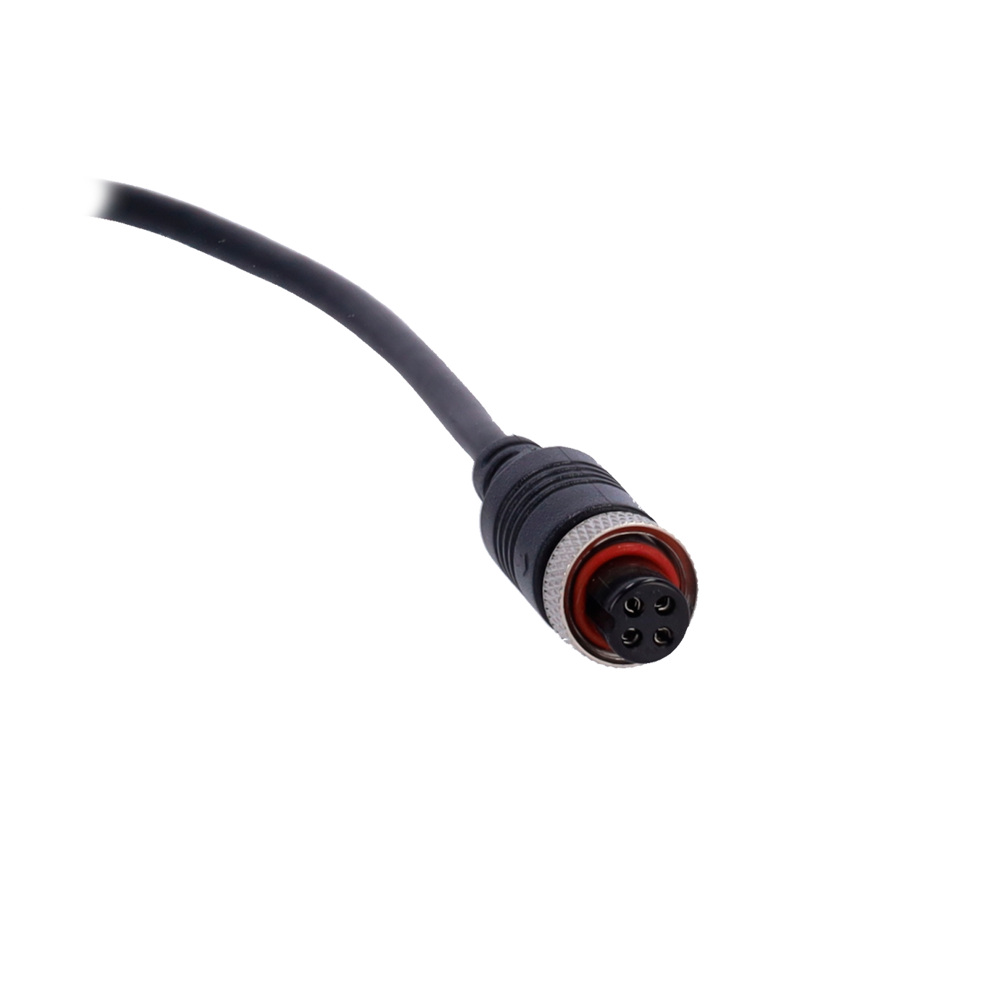

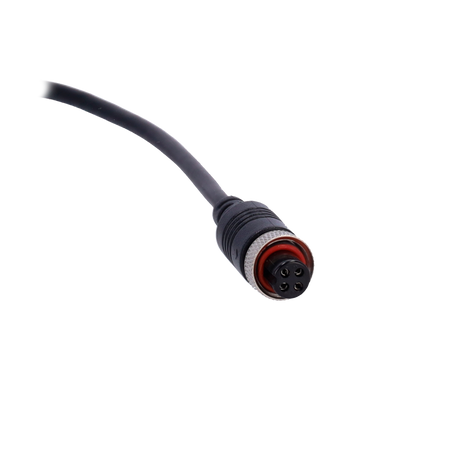

• Connection Interface: 4-pin aviation connector
• Day / Night: ICR IR Filter
• Lens Adjustment: Up: 15°, Down: 107°
• Audio: Built-in microphone up to 5m
• Power Supply: 12V DC, 200mA, 2.4W
• Operating Temperature: -40ºC ~ 70ºC
• Dimensions: 47.5(D) x 61(W) x 58(H) mm
• Weight: 125 g
• Functionality and operation: Connects to a Host counting camera to enable people counting on the second bus door; * If the bus is equipped with a third door, the camera on this door must be a Host; ** Cannot perform people counting on its own, it always requires a P3 people counting camera
• Installation: Ceiling-mounted
📦 INCLUDED:
• 1080P AHD camera • Installation hardware • Quick installation guide
| Sensor | 1/2.8" CMOS |
|---|---|
| Resolution | 1080p (1920 x 1080) |
| Lens | 2.8 mm (H: 103º, V: 56º, D: 121º) |
| Electronic Shutter | 1/25 ~ 1/25,000s (automatic) |
| Image enhancement | DWDR, BLC, ATW, AWB, Automatic Gain, 3D DNR |
| S/N | >50dB |
| Minimum Illumination | 0.01 Lux (IR OFF), 0 Lux (IR ON) |
| Infrared illumination | 10 - 15 m |
| Connection interface | 4-Pin aviation connector |
| Day / Night | ICR IR Filter |
| Lens adjustment | Up: 15°, Down: 107° |
| Audio | Integrated microphone up to 5m |
| Power supply | 12V DC, 200mA, 2.4W |
| Operating temperature | -40ºC ~ 70ºC |
| Dimensions | 47.5 (D) x 61 (W) x 58 (H) mm |
| Weight | 125 g |
| Functionality and operation | Connects to a Host counting camera to allow people counting on the second bus door * If the bus is equipped with a third door, the camera on this door must be the Host ** Cannot perform people counting on its own, it always requires a P3 people counting camera |
| Installation | On the roof |
