Streamax AHD Slave People Counting Camera - 15m IR Range | 4-pin Aviation Connector
Couldn't load pickup availability
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Do you have any questions?
Ask an expert!

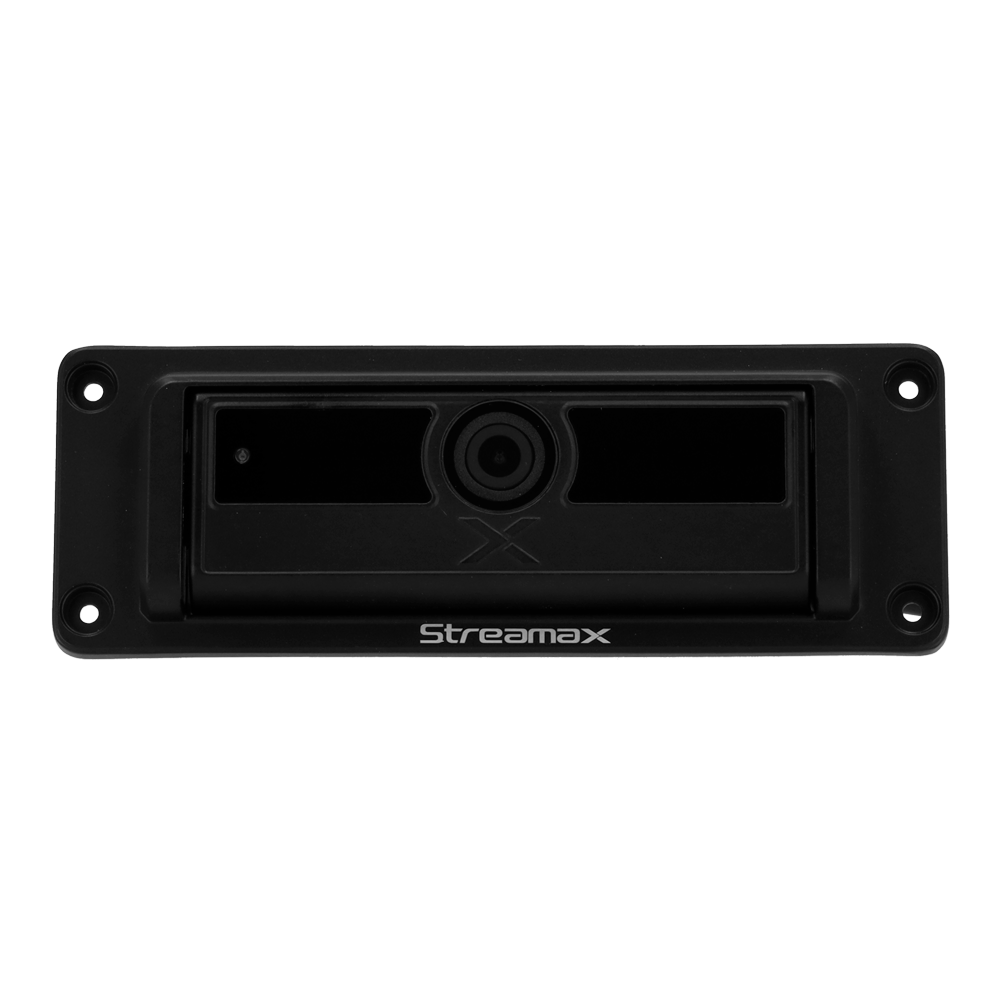

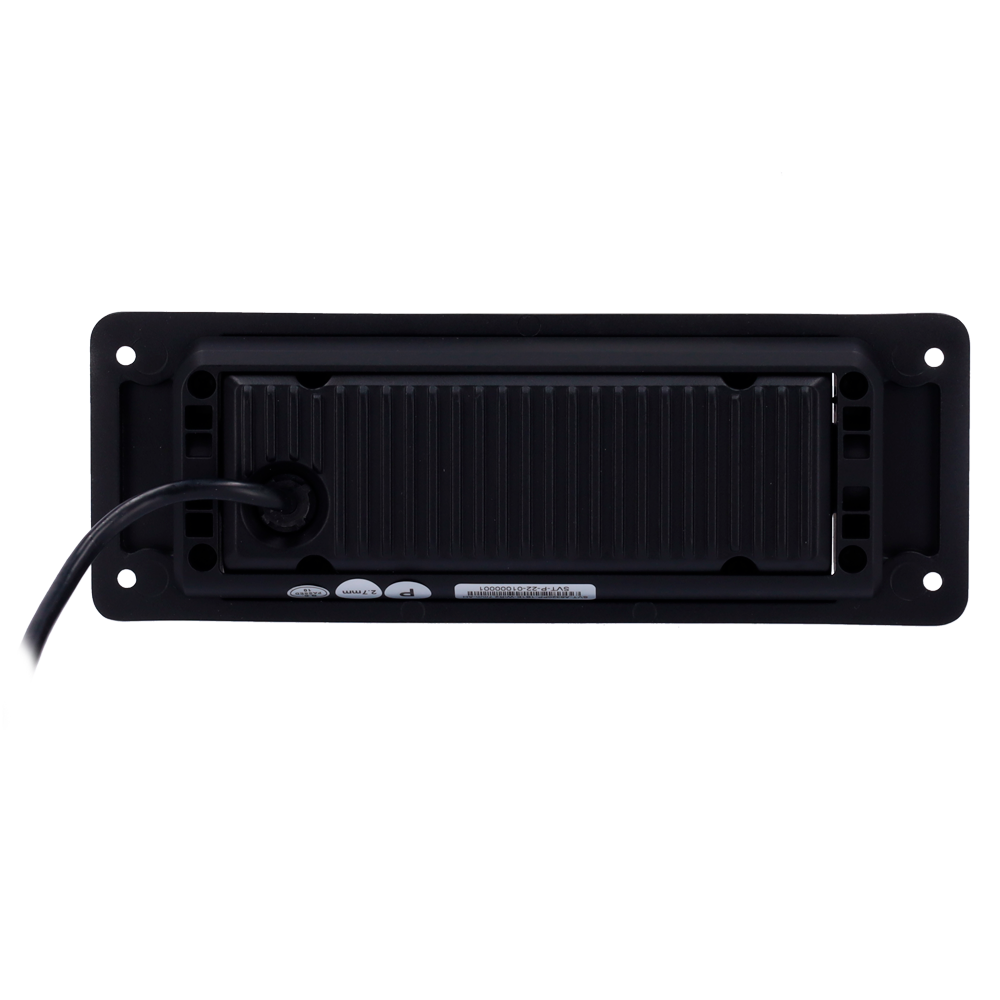

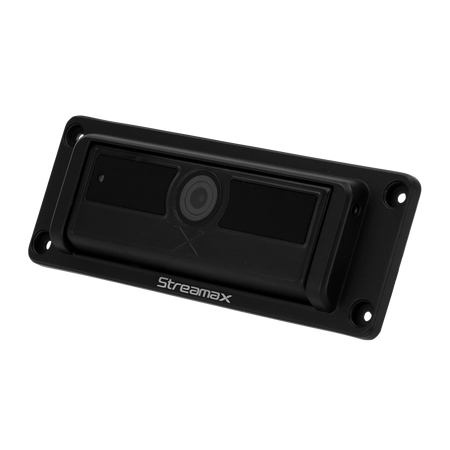

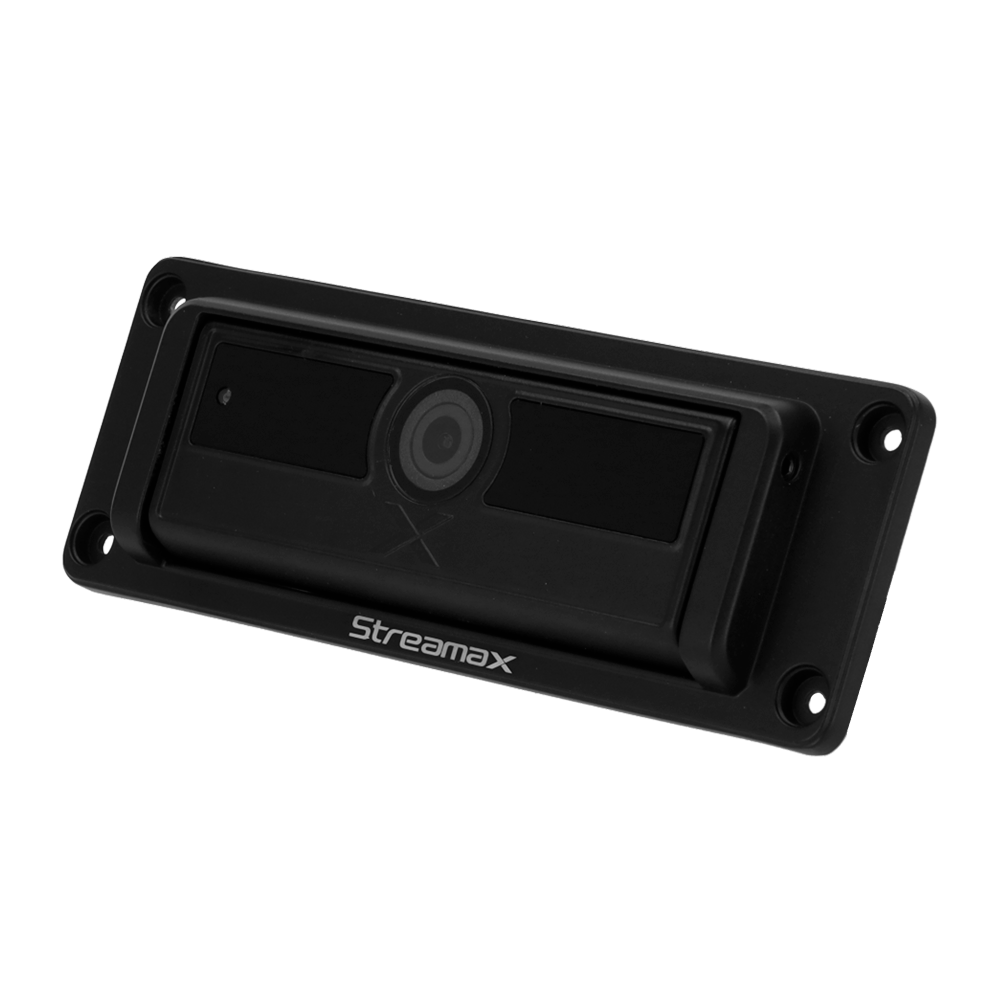

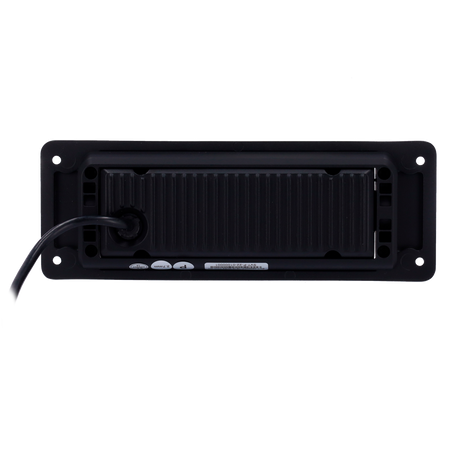

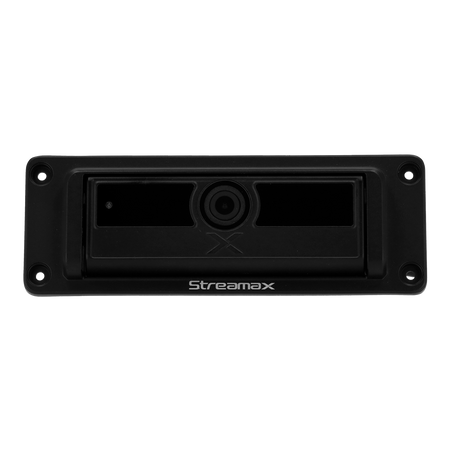

Streamax - AHD Slave camera for people counting - 1/2.8" CMOS 1080P - 2.8mm lens - 15m IR range | 4-pin aviation connector - Recessed roof mounting
📋 SPECIFICATIONS:
• Sensor: 1/2.8" CMOS
• Resolution: 1080p (1920 x 1080)
• Lens: 2.8 mm (H: 103º, V: 56º, D: 121º)
• Electronic Shutter: 1/25 ~ 1/25,000s (automatic)
• Image Enhancement: DWDR, BLC, ATW, AWB, Automatic Gain, 3D DNR
• S/N Ratio: >50dB
• Minimum Illumination: 0.01 Lux (IR OFF), 0 Lux (IR ON)
• Infrared illumination: 10 - 15 m

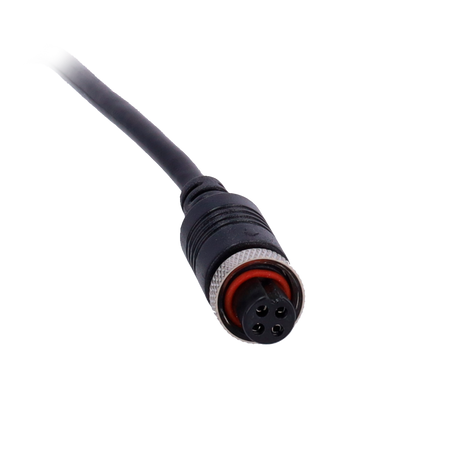

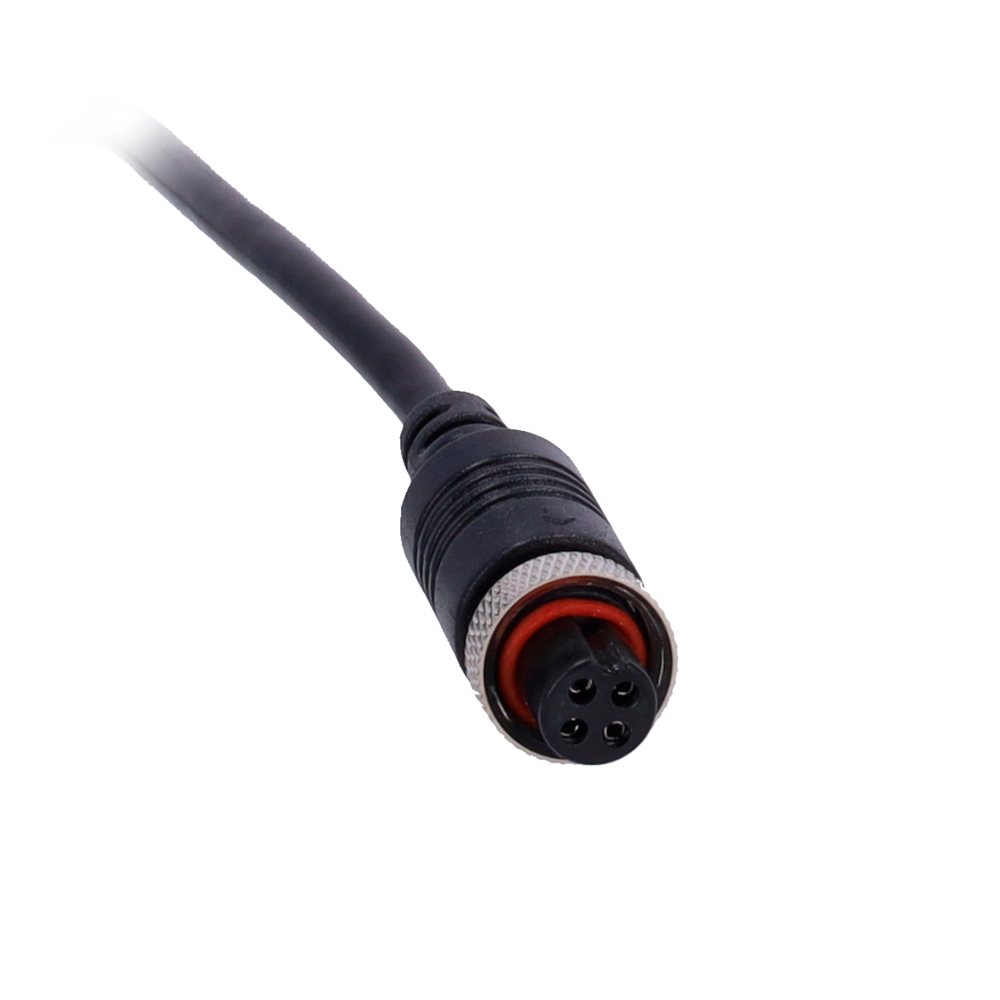

• Connection Interface: 4-Pin aviation connector
• Day / Night: IR Cut filter (ICR)
• Lens Adjustment: Up: 15° , Down: 107°
• Audio: Built-in microphone up to 5m
• Power Supply: 12V DC, 200mA. 2.4W
• Operating Temperature: -40ºC ~ 70ºC
• Dimensions: 47.5(D) x 61 (W) x 58 (H) mm
• Weight: 125 g
• Operation and compatibility: Connects to a Host counting camera to allow people counting on the second bus door; * If the bus is equipped with a third door, the camera on this door must be a Host; ** It cannot perform people counting on its own, it always requires a P3 people counting camera
• Installation: Recessed roof mounting
📦 INCLUDED:
• 1080P AHD camera• Installation hardware• Quick installation guide
| Sensor | 1/2.8" CMOS |
|---|---|
| Resolution | 1080p (1920 x 1080) |
| Lens | 2.8 mm (H: 103º, V: 56º, D: 121º) |
| Electronic Shutter | 1/25 ~ 1/25.000s (automatic) |
| Image enhancement | DWDR, BLC, ATW, AWB, Automatic Gain, 3D DNR |
| S/N | >50dB |
| Minimum illumination | 0.01 Lux (IR OFF), 0 Lux (IR ON) |
| Infrared lighting | 10 - 15 m |
| Connection interface | 4-Pin aviation connector |
| Day / Night | ICR IR Filter |
| Lens adjustment | Up: 15°, Down: 107° |
| Audio | Integrated microphone up to 5m |
| Power supply | 12V DC, 200mA. 2.4W |
| Operating temperature | -40ºC ~ 70ºC |
| Dimensions | 47.5(D) x 61 (W) x 58 (H) mm |
| Weight | 125 g |
| Operation and compatibility | Connects to a Host counting camera to enable people counting on the bus's second door * If the bus is equipped with a third door, the camera on this door must be Host ** Cannot perform people counting alone, it always requires a P3 people counting camera |
| Installation | Recessed ceiling mount |
