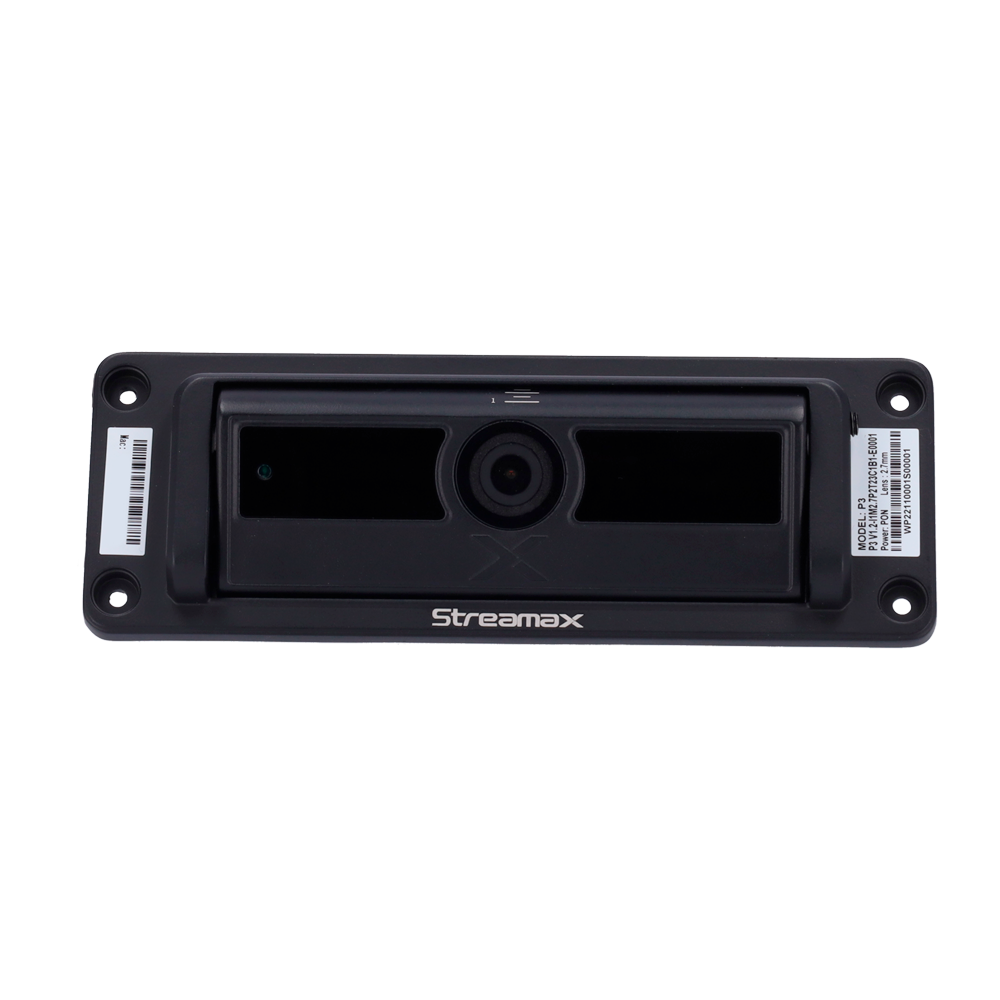

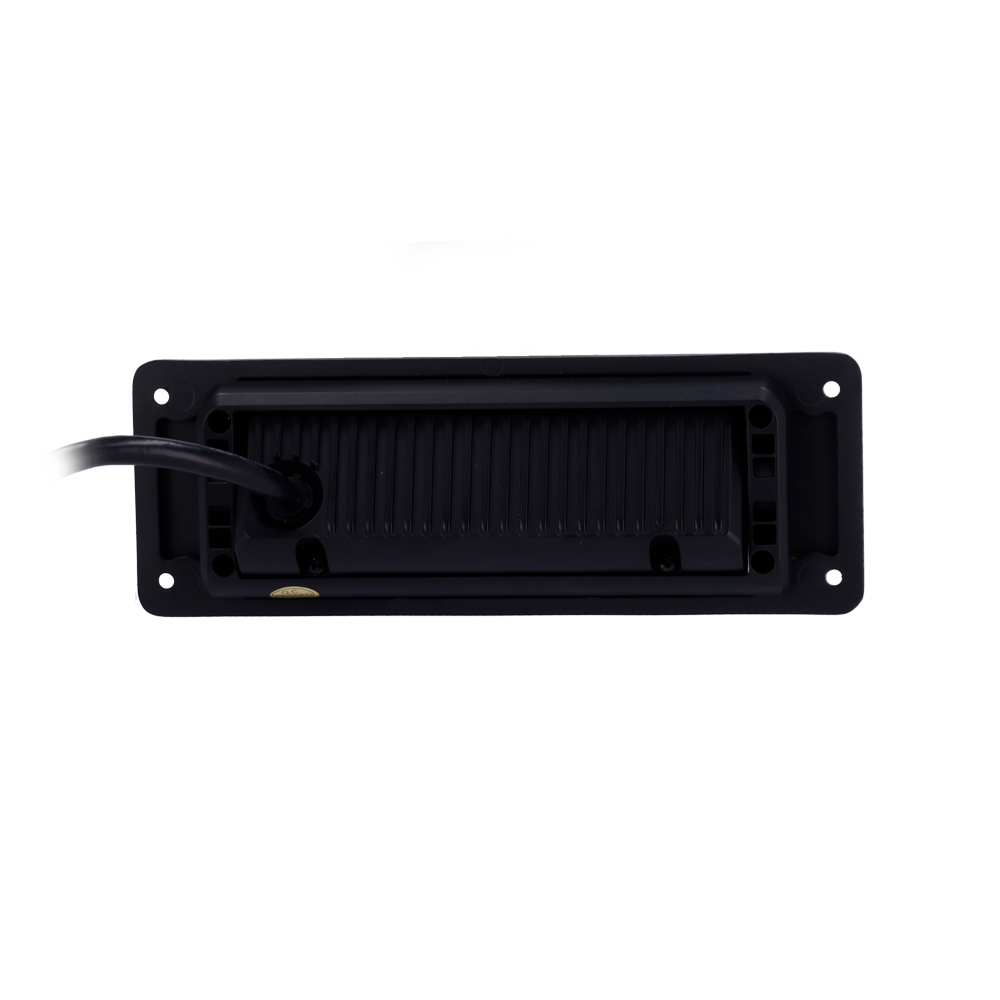

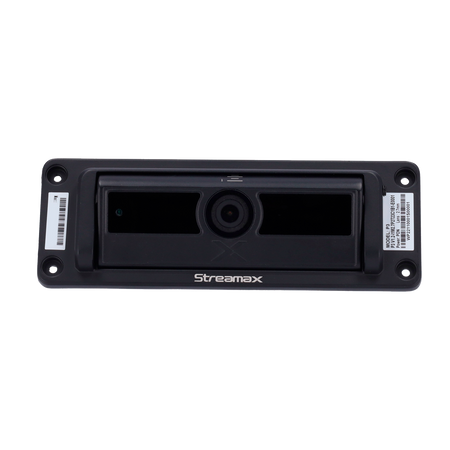

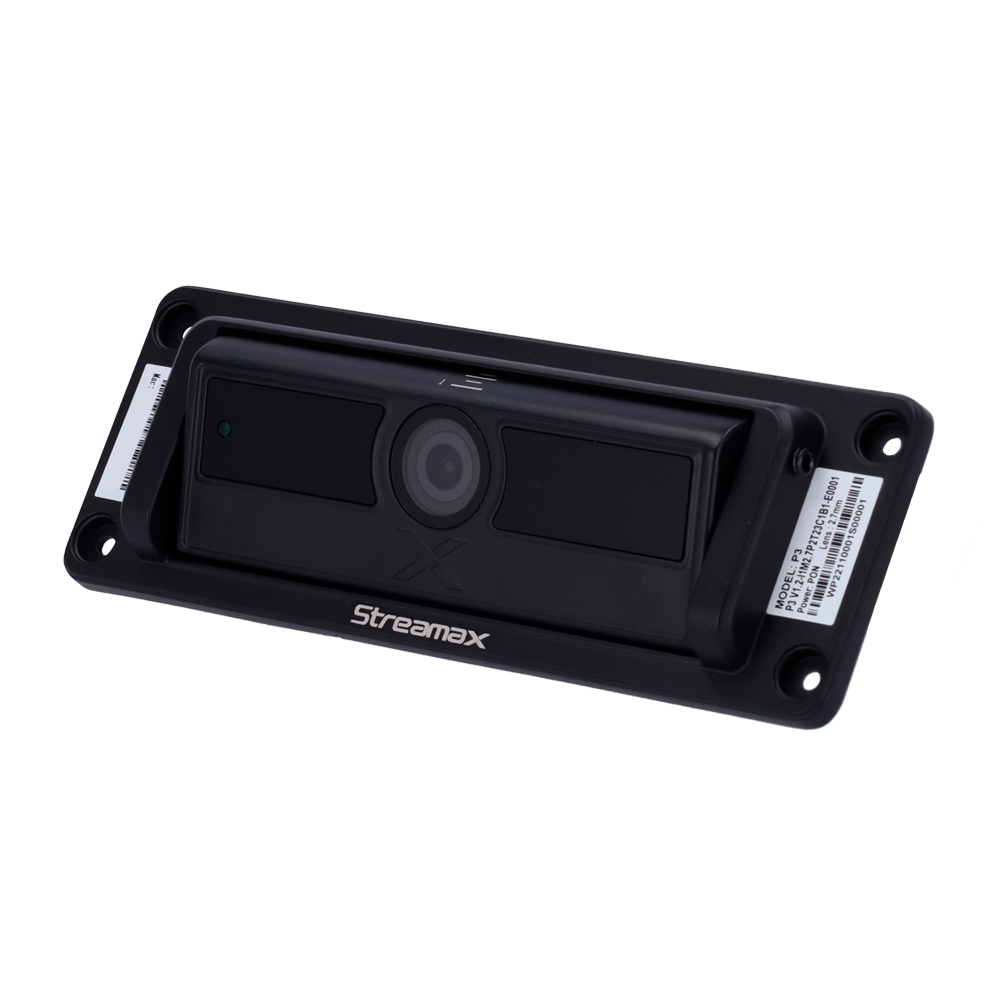

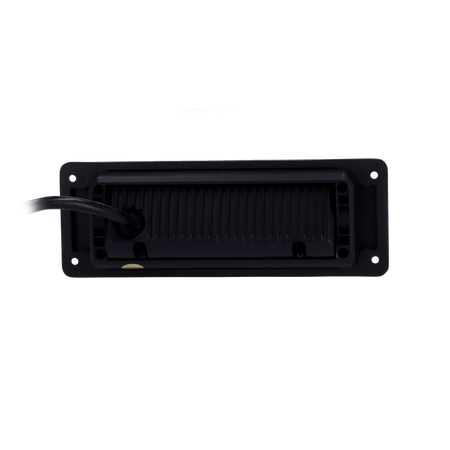

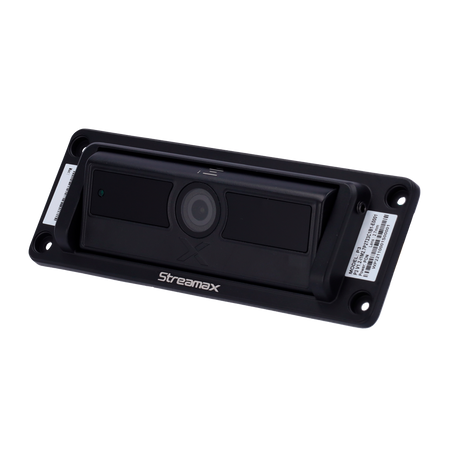

Streamax Passenger Counting Camera Master - BM
Couldn't load pickup availability
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Do you have any questions?
Ask an expert!
Streamax - Master people counter camera - 1/2.8" 1080P CMOS - 2.8mm lens - IR range up to 15m - 6-pin aviation connector
📋 SPECIFICATIONS:
• Sensor: 1/2.8" CMOS
• Resolution: 1080p (1920 x 1080)
• Lens: 2.8 mm (H: 103º, V: 56º, D: 121º)
• Electronic Shutter: 1/25 ~ 1/25,000s (automatic)
• Image Enhancement: DWDR, BLC, ATW, AWB, Auto Gain, 3D DNR
• S/N ratio: >50dB
• Minimum Illumination: 0.01 Lux (IR OFF), 0 Lux (IR ON)
• Infrared lighting: 10 - 15 m

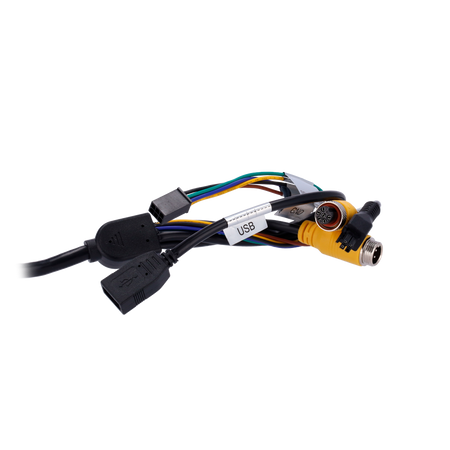

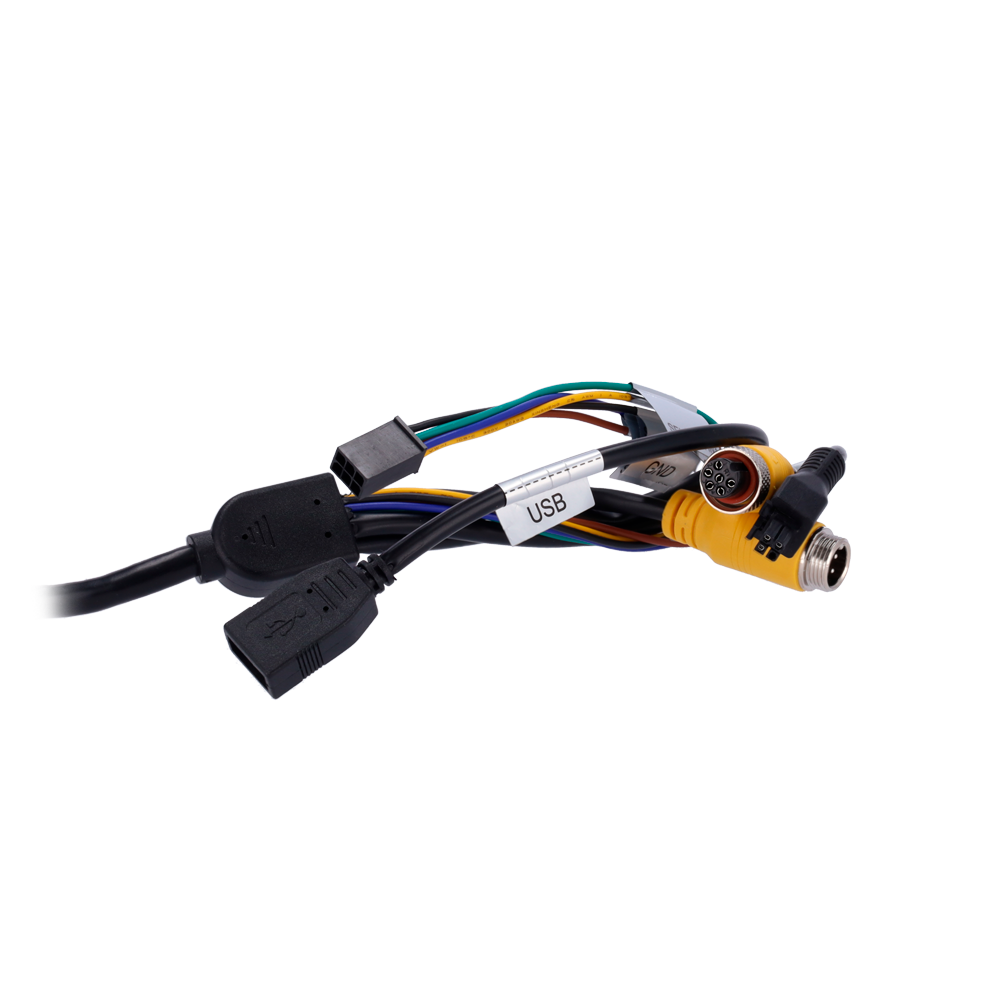

• Connection interface: 6-pin aviation connector
• Day / Night: ICR IR filter
• Lens adjustment: Up: 15° , Down: 107°
• Audio: Integrated microphone up to 5m
• Power supply: 12V DC, 200mA. 2.4W / PON
• Operating temperature: -40ºC ~ 70ºC
• Dimensions: 47.5(D) x 61 (W) x 58 (H) mm
• Weight: 125 g
• Functionality and connection: AI-based people counting; * Can perform people counting autonomously; ** If the bus has a second door, a P3 Slave counting camera can be connected
• Installation: Flush mount on the ceiling
📦 INCLUDED:
• 1080P AHD camera• Installation material• Quick installation guide
| Sensor | 1/2.8" CMOS |
|---|---|
| Resolution | 1080p (1920 x 1080) |
| Lens | 2.8 mm (H: 103º, V: 56º, D: 121º) |
| Electronic Shutter | 1/25 ~ 1/25,000s (automatic) |
| Image Enhancement | DWDR, BLC, ATW, AWB, Automatic Gain, 3D DNR |
| S/N | >50dB |
| Minimum Illumination | 0.01 Lux (IR OFF), 0 Lux (IR ON) |
| Infrared Illumination | 10 -15 m |
| Connection Interface | 6-pin aviation connector |
| Day / Night | ICR IR Filter |
| Lens Adjustment | Up: 15°, Down: 107° |
| Audio | Integrated microphone up to 5m |
| Power Supply | 12V DC, 200mA. 2.4W / PON |
| Operating Temperature | -40ºC ~ 70ºC |
| Dimensions | 47.5(D) x 61 (W) x 58 (H) mm |
| Weight | 125 g |
| Features and connection | AI-based people counting * Can perform people counting autonomously ** If the bus has a second door, it is possible to connect a P3 Slave counting camera |
| Installation | Recessed ceiling mount |
