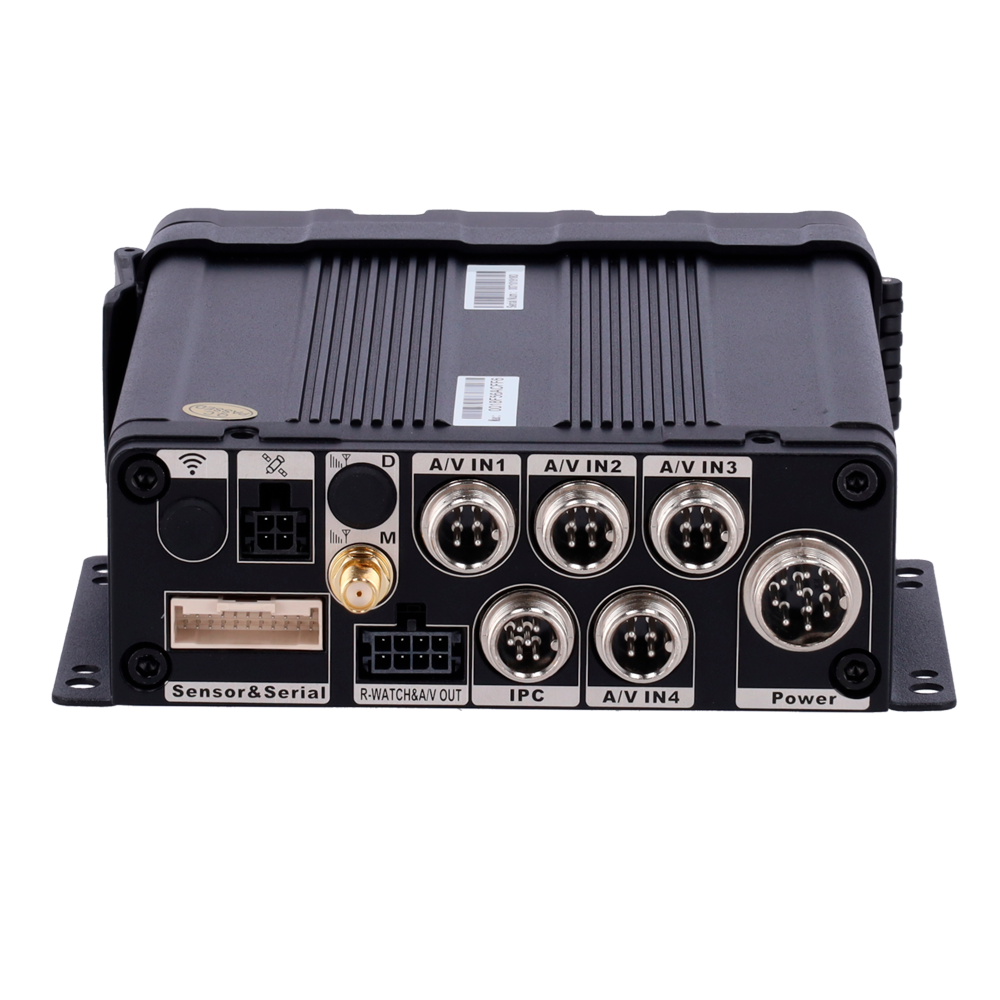

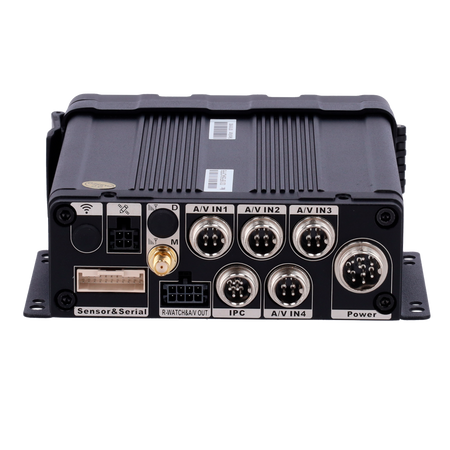

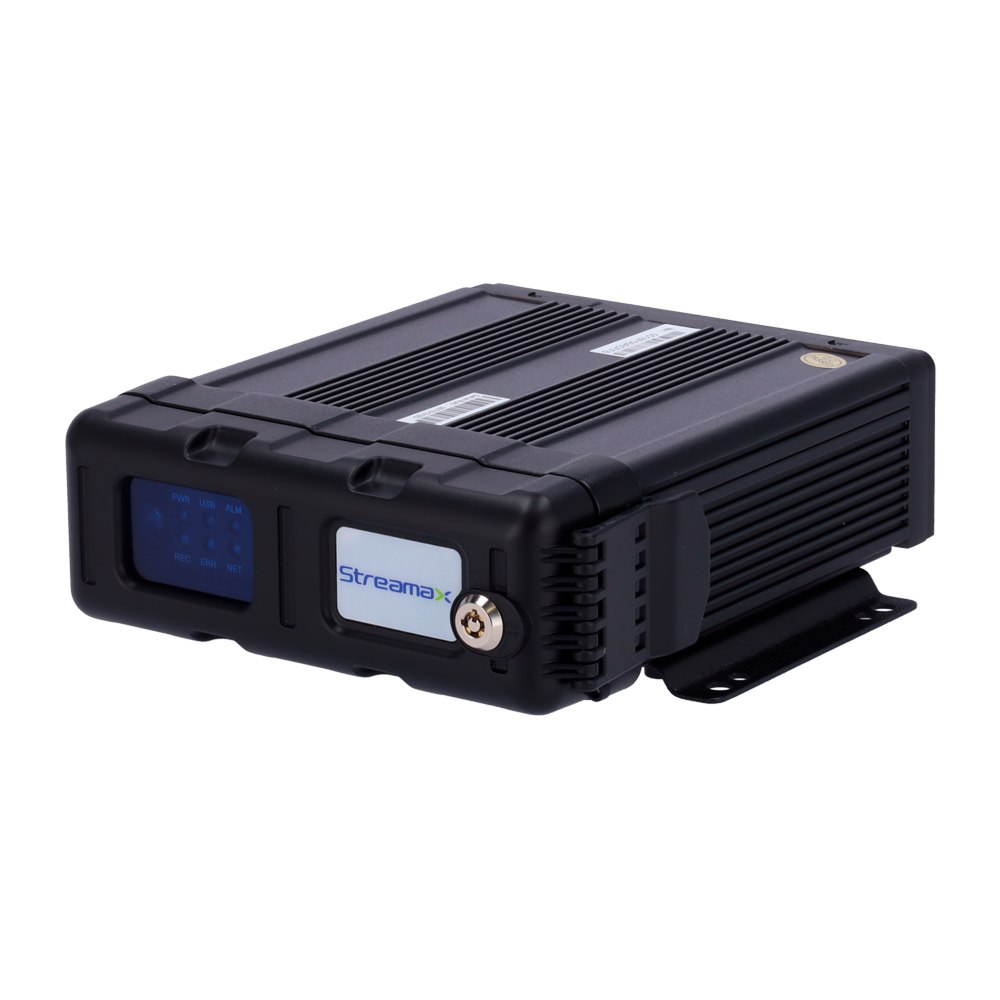

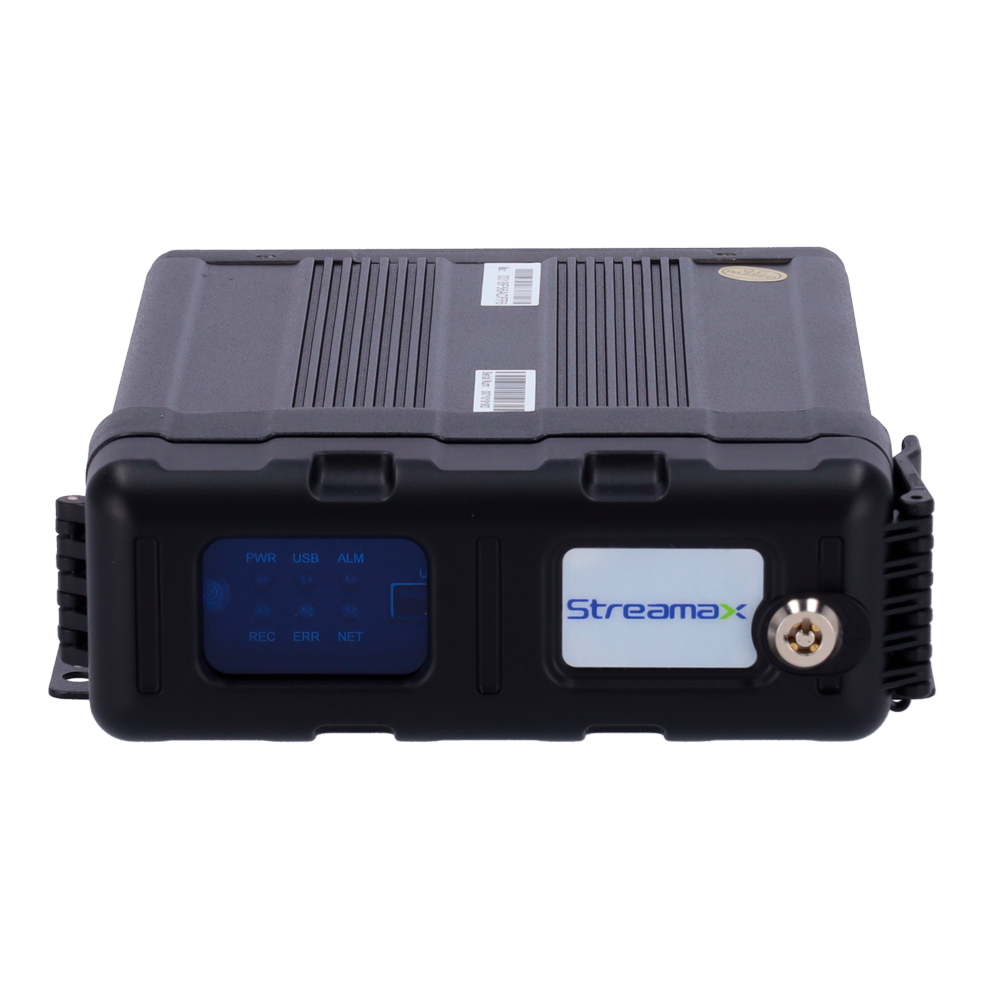

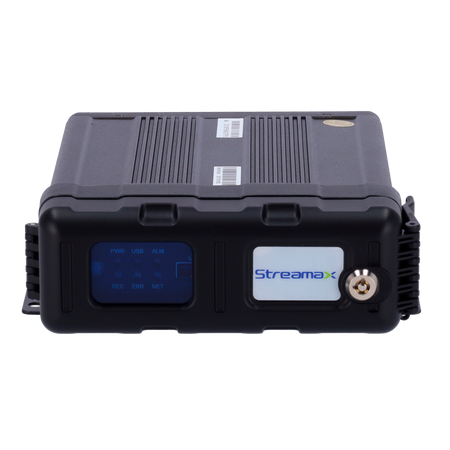

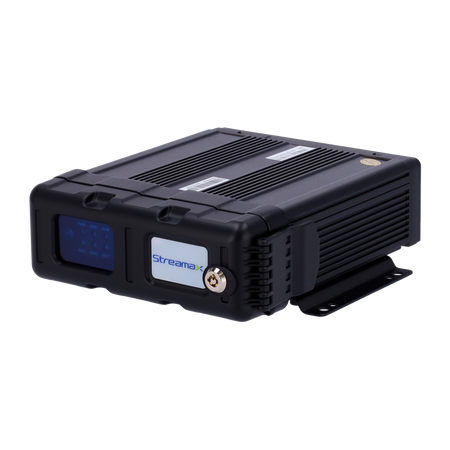

Streamax 4CH AHD + 1CH IP Video Recorder
Regular price
€749,39
Final price
Regular price
-19%
€920,00
Sale price
€749,39
Final price
Couldn't load pickup availability
Ready to use
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Free shipping on orders over €200
100% Secure Payments
Industry-leading quality
Do you have any questions?
Ask an expert!
Streamax - 4CH AHD + 1CH IP Video Recorder - Resolution up to 1080P - Two-way audio - GPS positioning - 4G and WiFi communication
📋 SPECIFICATIONS:
• Video inputs: 4CH AHD + 1CH IP
• Input resolution: 4 × 1080p @ 10 FPS (PAL); 4 × 720p @ 25 FPS (PAL)
• Audio: Recording of:; 4CH AHD + 1CH IP
• Compression: Video H.264/H.265; Audio ADPCM, G.711U, G.711A
• Recording resolution: AHD; Main stream: 1080p (1920 × 1080), 720p (1280 × 720), WD1 (928 × 576), WHD1 (928 × 288), WCIF (464 × 288), D1 (704 × 576), HD1 (704 × 288), CIF (352 × 288);; IPC:; 1080p (1920 × 1080), 720p (1280 × 720);; Sub-stream: 4 × CIF@30 FPS
• Function summary: Live view, video recording, video playback, network streaming and GPS positioning
• 4G communication: LTE FDD: B1/B3/B7/B8/B20/B28A; LTE TDD: B38/B40/B41; WCDMA: B1/B8; GSM: B3/B8
• Wi-Fi communication: 2.4 GHz
• Positioning: GPS
• Ethernet interface: 1 × 6-pin aviation connector (100 Mbit/s, Power-PON)
• Alarms: 8 Inputs / 2 Outputs
• CAN Bus: Not supported
• Network protocols: HTTP, TCP, ARP, UDP, FTP, DHCP, DNS, IPV4, NTP
• Storage: 2x SD card slots up to 256GB per slot
• Management software: Centralized server
• Temperature range: -40ºC to 70ºC
• Power supply: DC 8-36V, Max. 29W; Output: DC 5V, 500mA
• Interface: 1x SIM slot, 1x USB-A 2.0, 1x RS232, 1x RS485
• Certificates: Emark, CE-RED, FCC-ID, EN50155-EMC, UKCA, EN50155, ROHS, REACH, PTCRB, AT&T, Verizon
• Dimensions: 167.3 (W) × 146.3 (D) × 54.1 (H) mm
• Weight: 0.83 Kg
📦 INCLUDED:

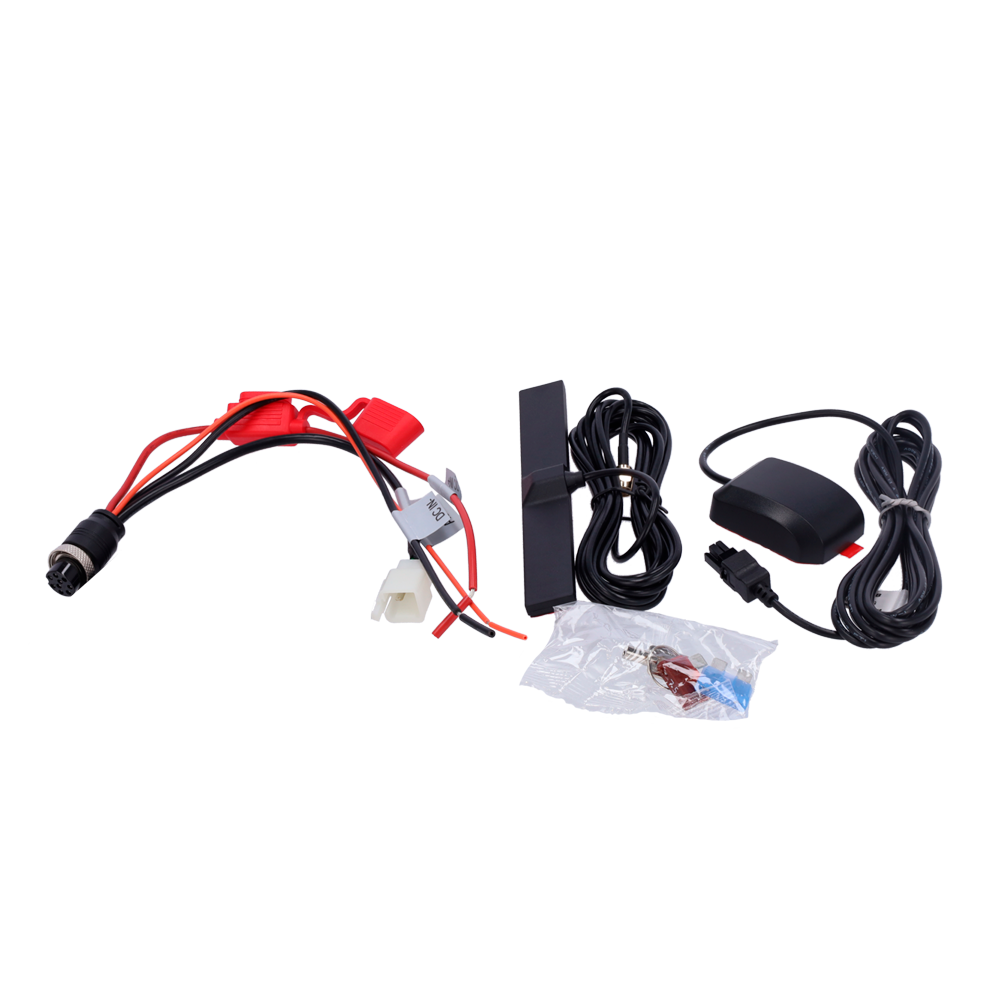

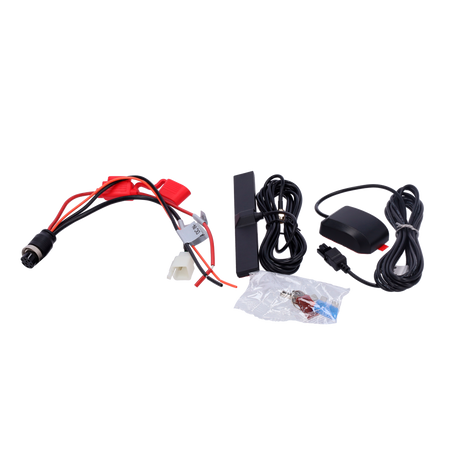

• ST-M1N-TKH0401 Video Recorder• Installation accessories• Quick installation guide• Protection fuses• WiFi, GPS and 4G antennas
| Video inputs | 4CH AHD + 1CH IP |
|---|---|
| Input resolution | 4 × 1080p @ 10 FPS (PAL) 4 × 720p @ 25 FPS (PAL) |
| Audio | Recording of: 4CH AHD + 1CH IP |
| Compression | Video H.264/H.265 Audio ADPCM,G.711U,G.711A |
| Recording resolution | AHD Main stream: 1080p (1920 × 1080), 720p (1280 × 720), WD1 (928 × 576), WHD1 (928 × 288), WCIF (464 × 288), D1 (704 × 576), HD1 (704 × 288), CIF (352 × 288); IPC: 1080p (1920 × 1080), 720p (1280 × 720); Sub-stream: 4 × CIF@30 FPS |
| Feature summary | Live view, video recording, video playback, network streaming and GPS positioning |
| 4G Communication | LTE FDD: B1/B3/B7/B8/B20/B28A LTE TDD: B38/B40/B41 WCDMA: B1/B8 GSM: B3/B8 |
| Wi-Fi Communication | 2.4 GHz |
| Positioning | GPS |
| Ethernet Interface | 1 × 6-pin aviation connector (100 Mbit/s, PON power) |
| Alarms | 8 Inputs / 2 Outputs |
| CAN Bus | Not supported |
| Network Protocols | HTTP, TCP, ARP, UDP, FTP, DHCP, DNS, IPV4, NTP |
| Storage | 2x SD card slots up to 256GB per slot |
| Management Software | Centralized server |
| Temperature range | -40ºC to 70ºC |
| Power supply | DC 8-36V, Max. 29W Output: DC 5V, 500mA |
| Interface | 1x SIM slot, 1x USB-A 2.0, 1xRS232, 1xRS485 |
| Certificates | Emark, CE-RED, FCC-ID, EN50155-EMC, UKCA, EN50155, ROHS, REACH, PTCRB, AT&T, Verizon |
| Dimensions | 167.3 (W) × 146.3 (D) × 54.1 (H) mm |
| Weight | 0.83 Kg |
Same-day shipping if you order before 12:00 PM! In most cases, we rely on couriers with 24-hour service so your order arrives on time.
For orders under €200, the shipping fee is €15.90. For deliveries to remote areas or islands, couriers apply a surcharge to cover transport costs.
The legal warranty lasts 2 years for private individuals (consumers) and 1 year for VAT holders (professionals or companies)
