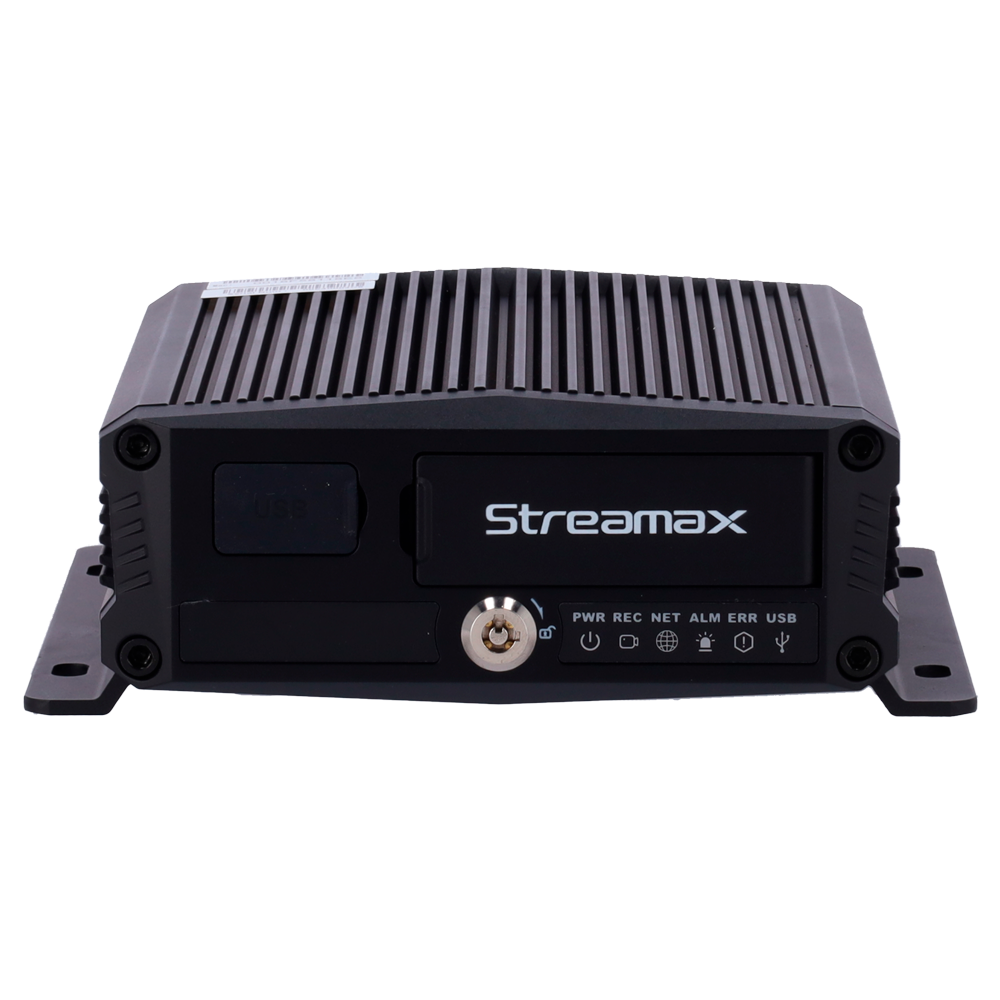

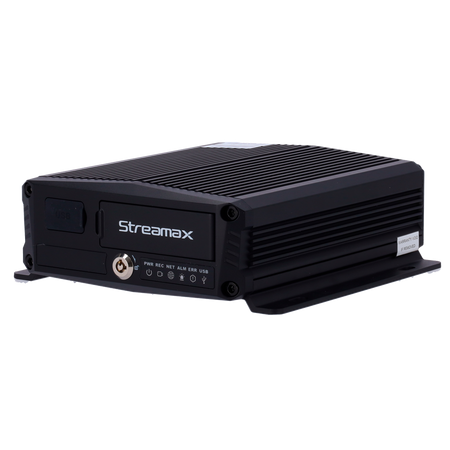

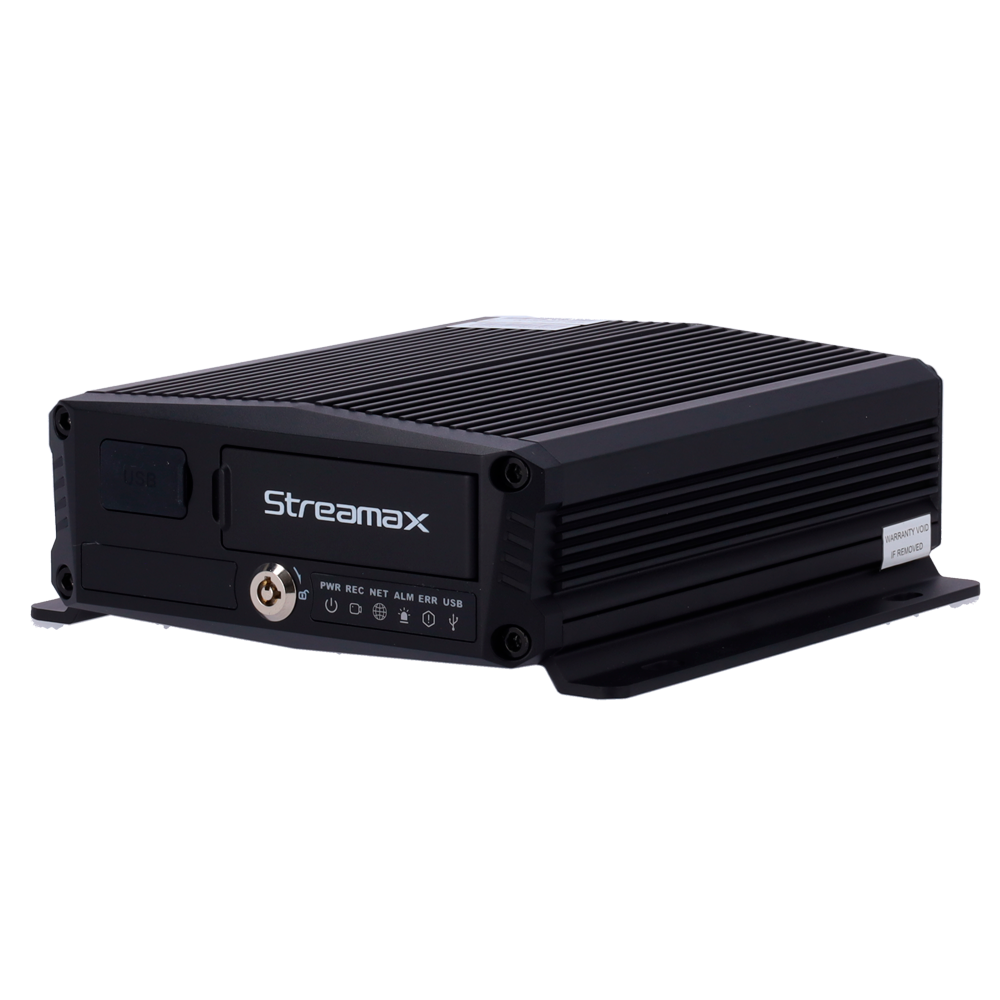

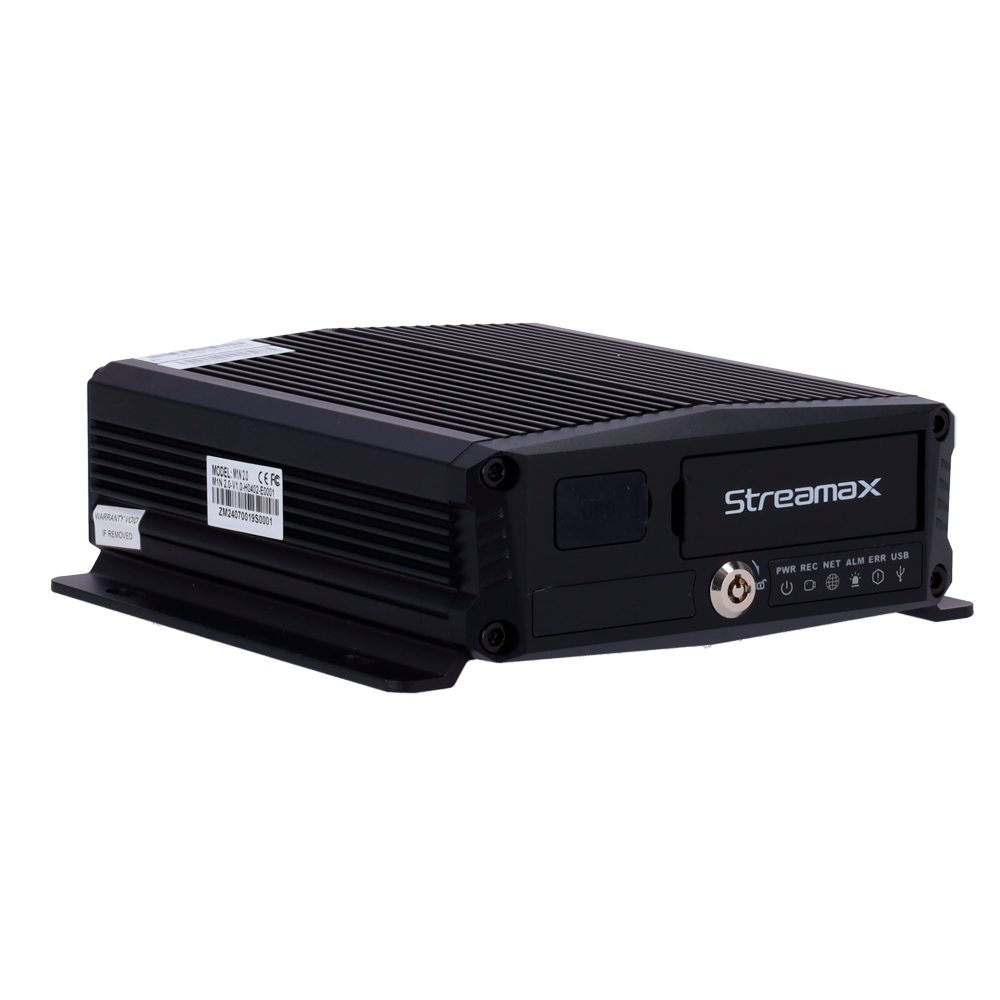

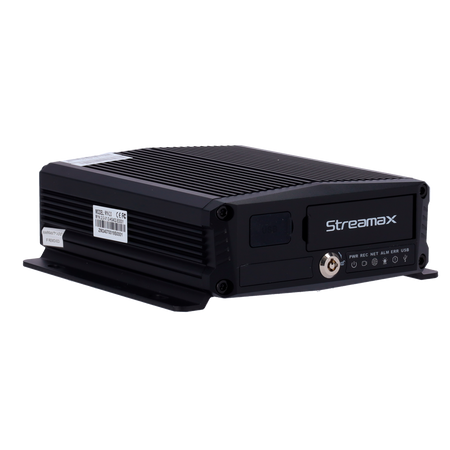

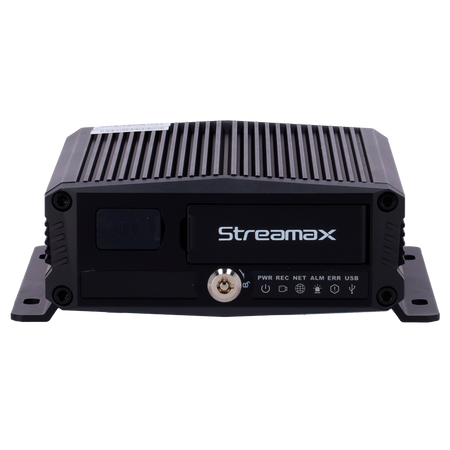

Streamax - Vehicle MDVR video recorder - 4 CH AHD and 1 CH IP / H.265/H.264 compression - Maximum resolution 1080p - 4G communication | GPS | WiFi | Alarms - Space for 1 M.2 HDD and x2 512GB Micro SD cards
📋 SPECIFICATIONS:
• Brand: Streamax
• Channels: 4 CH AHD and 2 CH IP
• Power supply: 4 x 4-pin ports for AHD cameras; 1 x 6-pin port for IP camera; M12 connectors
• Video compression format: Video: H.265 / H.264; Audio: ADPCM, G.711U, G.711A
• Display resolution: AHD: 1080p (1920 × 1080), 720p (1280 × 720), WD1 (928 × 576), WHD1 (928 × 288), WCIF (464 × 288), D1 (704 × 576), HD1 (704 × 288), CIF (352 × 288); IP: 1080p (1920 × 1080), 720p (1280 × 720)
• Image quality: Adjustable levels 1–8 (preferably Level 1)
• Audio: 1 CH
• Video output: Output: 1 x CVBS
• Artificial intelligence: Addition of cameras from ST-CA29M (DSM) and ST-CA20S (ADAS)
• Screen layouts: 1 / 4 / 9
• Recording method: Startup/Manual/Scheduled/Alarm event log
• Alarm: Alarm pre-recording: 0-60 min; Post-recording: 0-30 min
• External backup: USB memory / USB HDD / USB CD-RW / USB DVR-RW
• Internal storage: 1 M.2 HDD up to 2TB and 2 Micro SD cards up to 512GB
• Communication: TDD-LTE/FDD-LTE/EVDO/TD-SCDMA/WCDMA; Extended support for main and diversity antennas; Supports WIFI5, compatible with 802.11b/g/n/ac (optional)

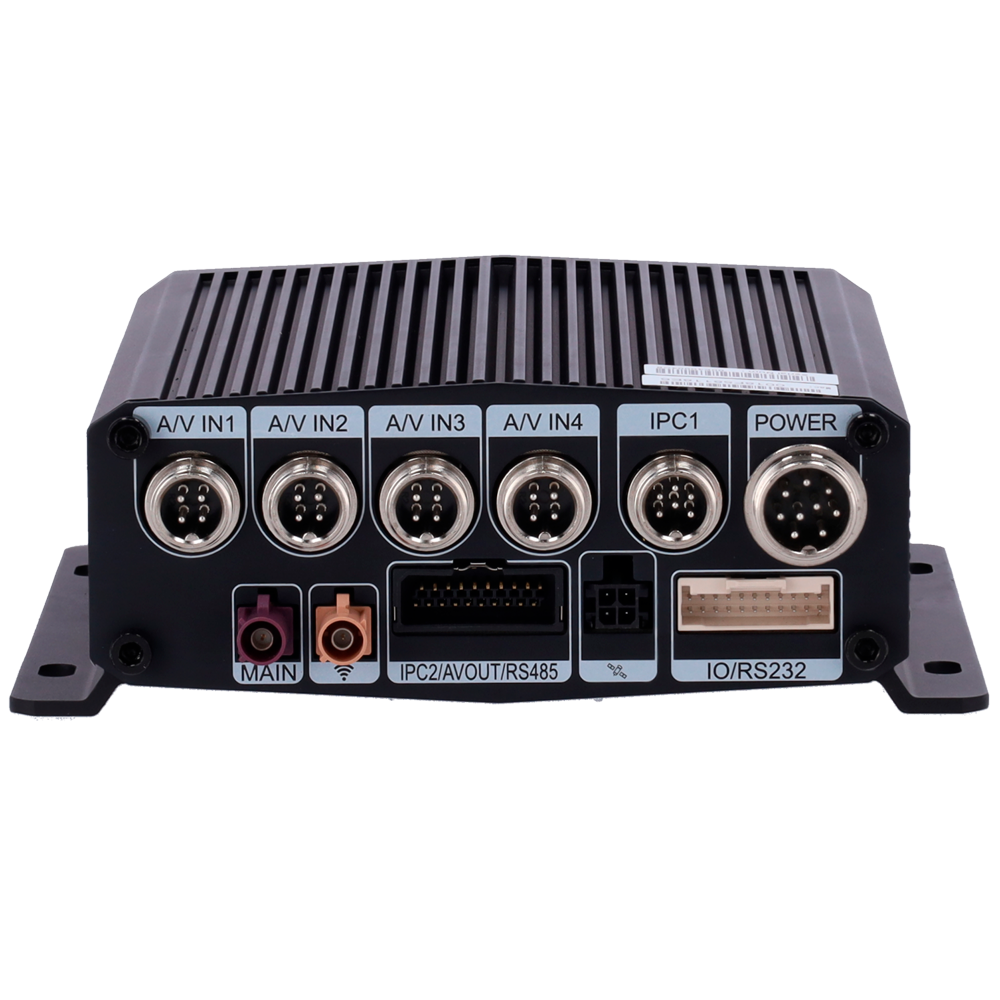

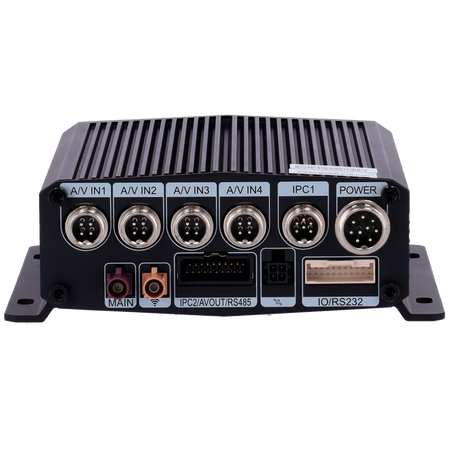

• Ports: 1 x physical SIM card slot, optional eSIM digital SIM card support; 2 x RS232; 1 x RS485; 2 x CAN_FD; 1 x MIC
• Alarms: 8 Inputs and 2 Outputs
• Compatible display: ST-DISPLAY-CP4
• GPS: Positioning, speed detection and time synchronization
• Power supply: DC 9-36V input
• Power consumption: 40 W
• Operating temp.: -40℃～+70℃
• Dimensions / Weight: 154mm x 151mm x 52mm; 1.7Kg
📦 INCLUDED:
• Streamax MDVR video recorder • Mouse • Power cable
| Channels | 4 CH AHD and 2 CH IP |
|---|---|
| Power supply | 4 x 4-pin ports for AHD cameras, 1 x 6-pin port for IP camera, M12 connectors |
| Video compression format | Video: H.265 / H.264 Audio: ADPCM,G.711U,G.711A |
| Display resolution | AHD: 1080p (1920 × 1080), 720p (1280 × 720), WD1 (928 × 576), WHD1 (928 × 288), WCIF (464 × 288), D1 (704 × 576), HD1 (704 × 288), CIF (352 × 288) IP: 1080p (1920 × 1080), 720p (1280 × 720) |
| Image quality | Adjustable levels 1–8 (Level 1 preferred) |
| Audio | 1 CH |
| Video output | 1 x CVBS |
| Artificial Intelligence | Addition of ST-CA29M (DSM) and ST-CA20S (ADAS) cameras |
| Screen divisions | 1 / 4 / 9 |
| Recording method | Start-up/Manual/Scheduled/Alarm event log |
| Alarm | Alarm pre-recording: 0-60 min Post-recording: 0-30 min |
| External backup | USB memory / USB HDD / USB CD-RW / USB DVR-RW |
| Internal memory | 1 x M.2 HDD up to 2TB and 2 x Micro SD cards up to 512GB |
| Communication | TDD-LTE/FDD-LTE/EVDO/TD-SCDMA/WCDMA Extended support for main and diversity antennas Supports WIFI5, compatible with 802.11b/g/n/ac (optional) |
| Ports | 1 x physical SIM card slot, support for optional digital eSIM, 2 x RS232, 1 x RS485, 2 x CAN_FD, 1 x MIC |
| Alarms | 8 Inputs and 2 Outputs |
| Compatible display | ST-DISPLAY-CP4 |
| GPS | Positioning, speed detection, and time synchronization |
| Power supply | Input DC 9-36V |
| Power consumption | 40 W |
| Operating temp. | -40℃～+70℃ |
| Dimensions / Weight | 154mm x 151mm x 52mm 1.7Kg |
