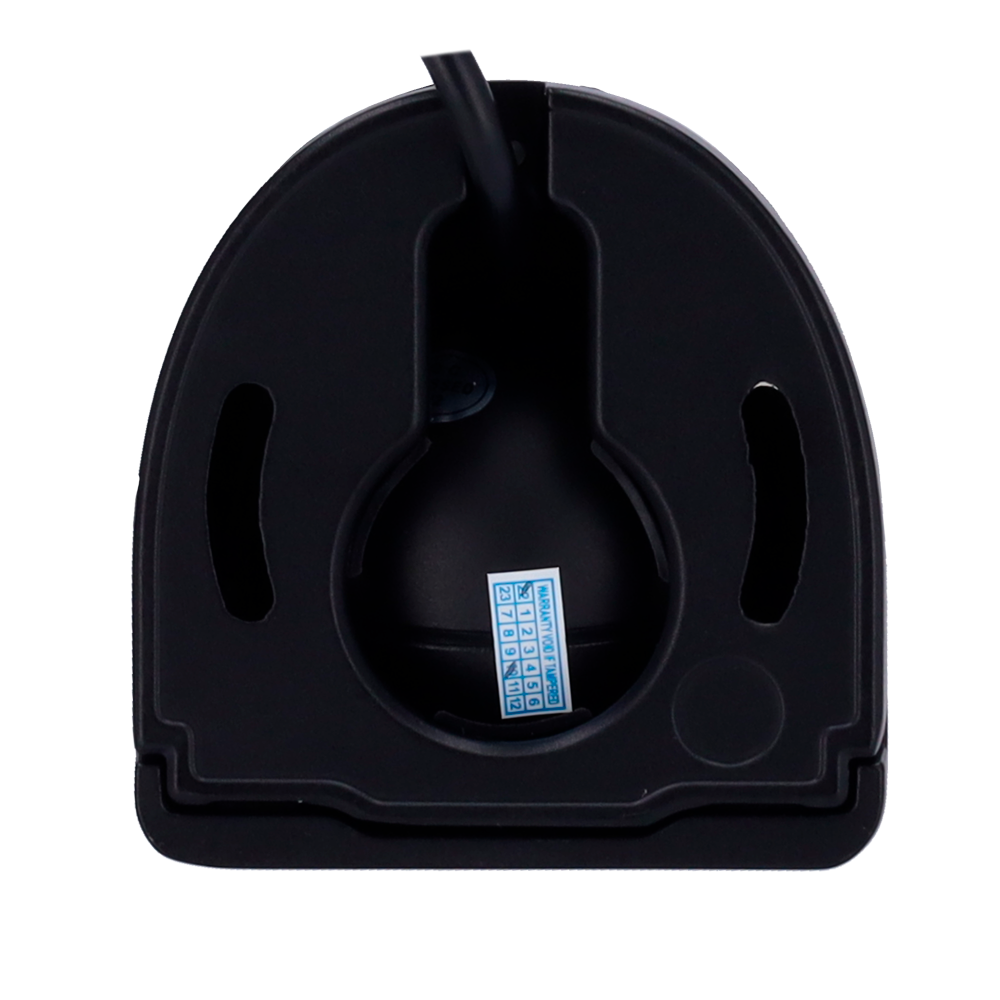

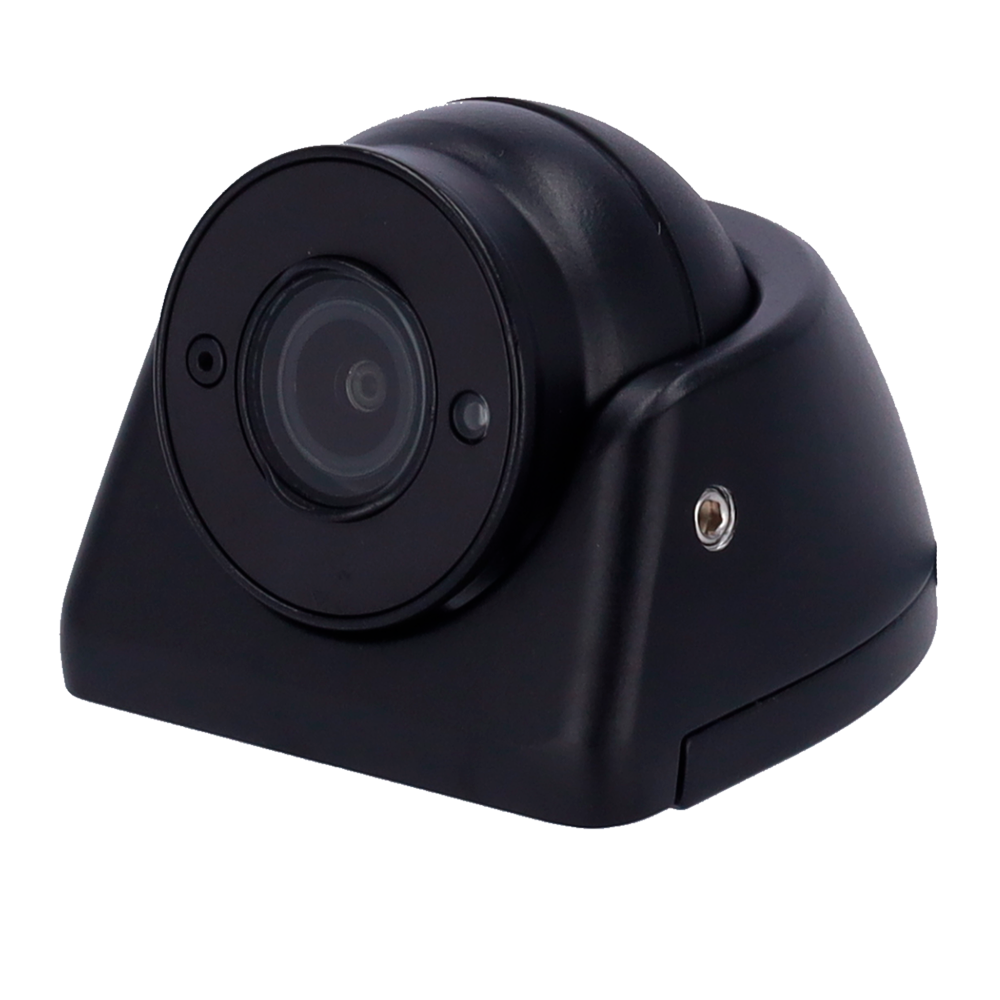

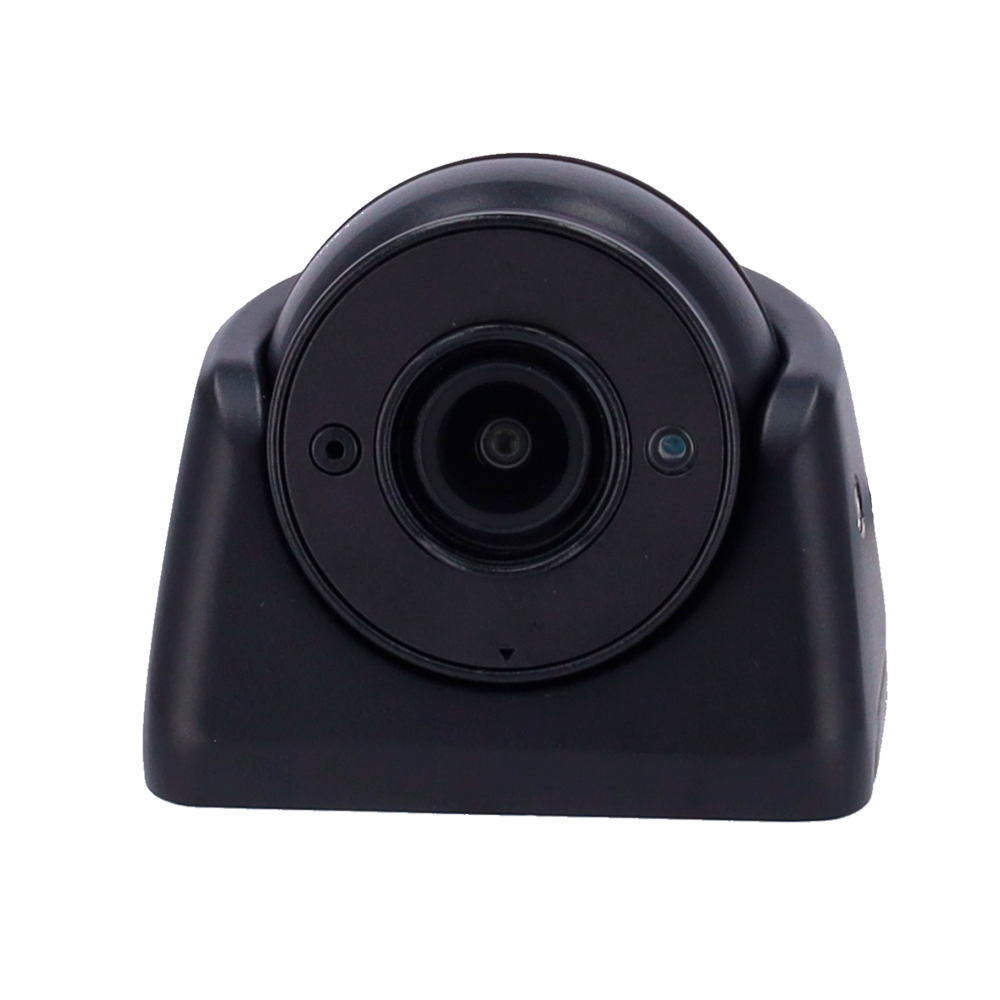

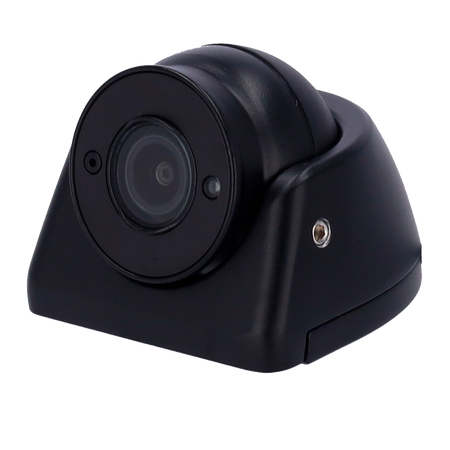

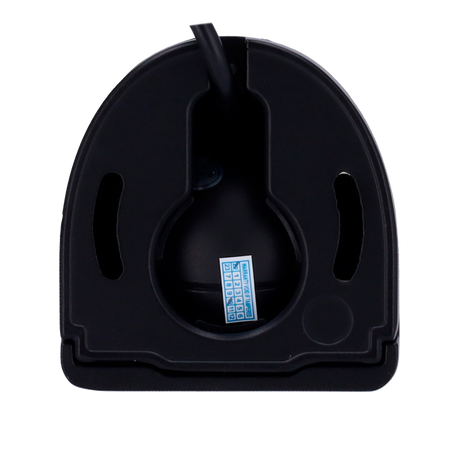

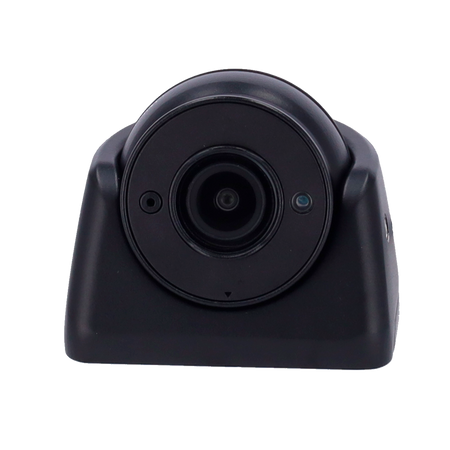

Streamax AHD turret camera - 2.2mm lens
Couldn't load pickup availability
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Do you have any questions?
Ask an expert!
Streamax - AHD turret camera - 1/2.8" CMOS 1080P - 2.2mm lens - IR range up to 15m - 4-pin aviation connector
📋 SPECIFICATIONS:
• Sensor: 1/2.8" CMOS
• Resolution: 1080p (1920 x 1080)
• Lens: 2.2 mm (H: 152º, V: 83º, D: 180º)
• Electronic Shutter: 1/25 ~ 1/25,000s (automatic)
• Image Enhancement: DWDR, BLC, ATW, AWB, Automatic Gain Control, 3D DNR
• S/N Ratio: >50dB
• Minimum Illumination: 0.01 Lux (IR OFF), 0 Lux (IR ON)
• Infrared Illumination: 10 - 15 m
• Video Output: AHD

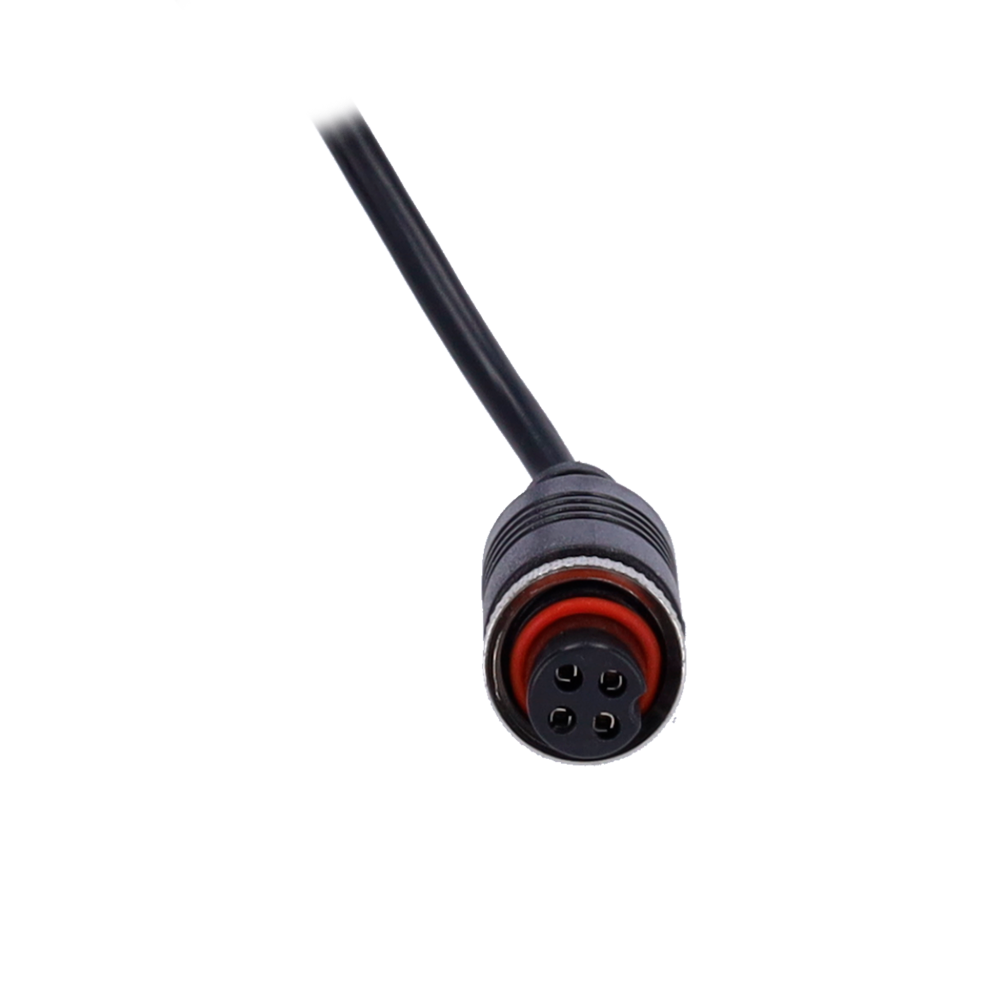

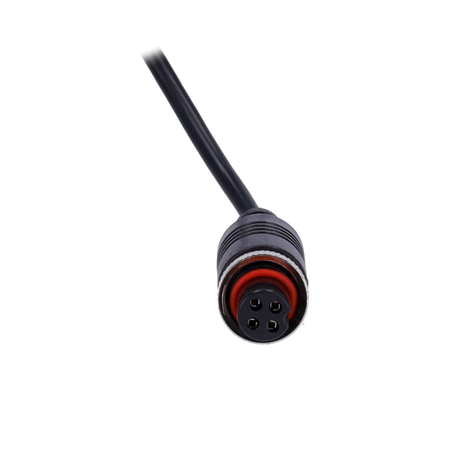

• Connection Interface: 4-pin aviation connector
• Day/Night: ICR IR Filter
• Lens Adjustment: Up: 15° , Down: 107°
• Audio: Built-in microphone up to 5m
• Power Supply: 12V DC, 200mA. 2.4W
• Operating Temperature: -40ºC ~ 70ºC
• Relative Humidity: <90% (non-condensing)
• Dimensions: 47.5(D) x 61 (W) x 58 (H) mm
• Weight: 125 g
📦 INCLUDED:
• 1080P AHD camera • Installation material • Quick installation guide
| Sensor | 1/2.8" CMOS |
|---|---|
| Resolution | 1080p (1920 x 1080) |
| Lens | 2.2 mm (H: 152º, V: 83º, D: 180º) |
| Electronic Shutter | 1/25 ~ 1/25,000s (automatic) |
| Image Enhancement | DWDR, BLC, ATW, AWB, Automatic Gain, 3D DNR |
| S/N | >50dB |
| Minimum Illumination | 0.01 Lux (IR OFF), 0 Lux (IR ON) |
| Infrared Illumination | 10 - 15 m |
| Video Output | AHD |
| Connection Interface | 4-Pin Aviation Connector |
| Day / Night | ICR IR Filter |
| Lens Adjustment | Up: 15°, Down: 107° |
| Audio | Integrated microphone up to 5m |
| Power Supply | 12V DC, 200mA. 2.4W |
| Operating Temperature | -40ºC ~ 70ºC |
| Relative Humidity | <90% (non-condensing) |
| Dimensions | 47.5 (D) x 61 (W) x 58 (H) mm |
| Weight | 125 g |
