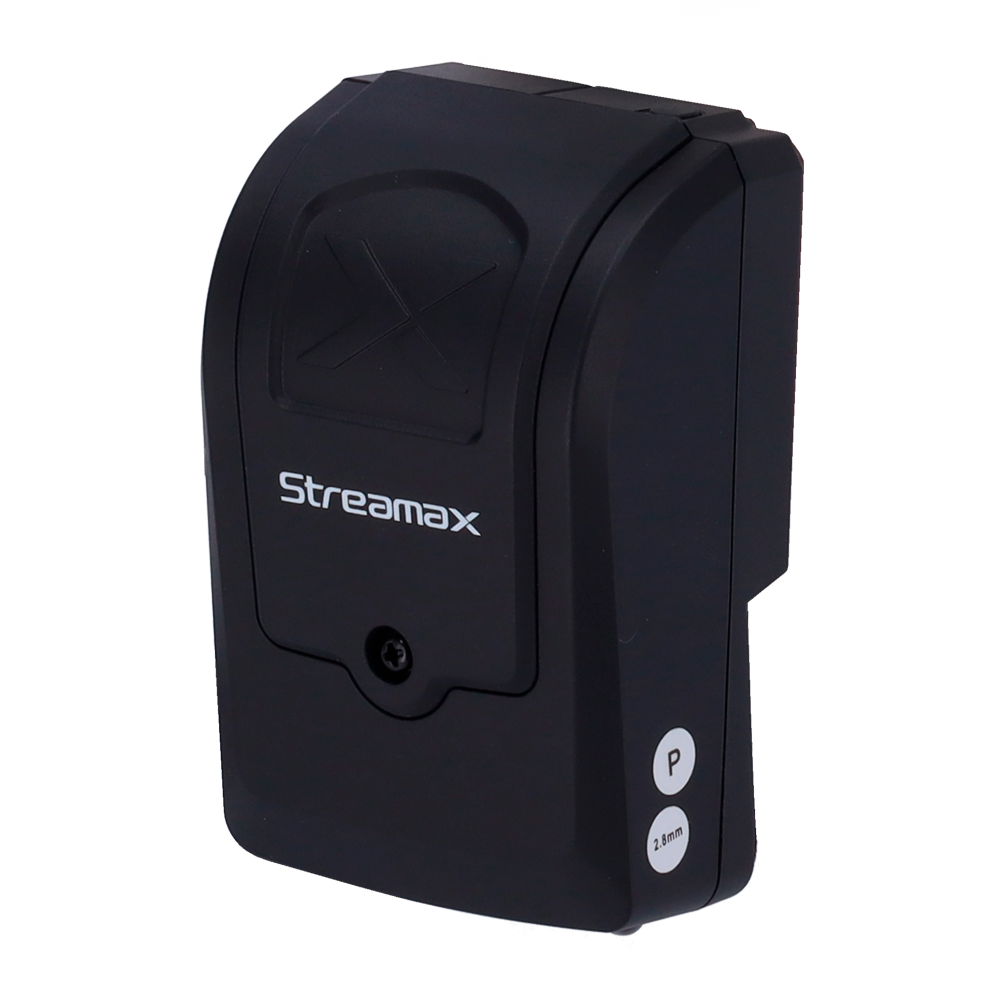

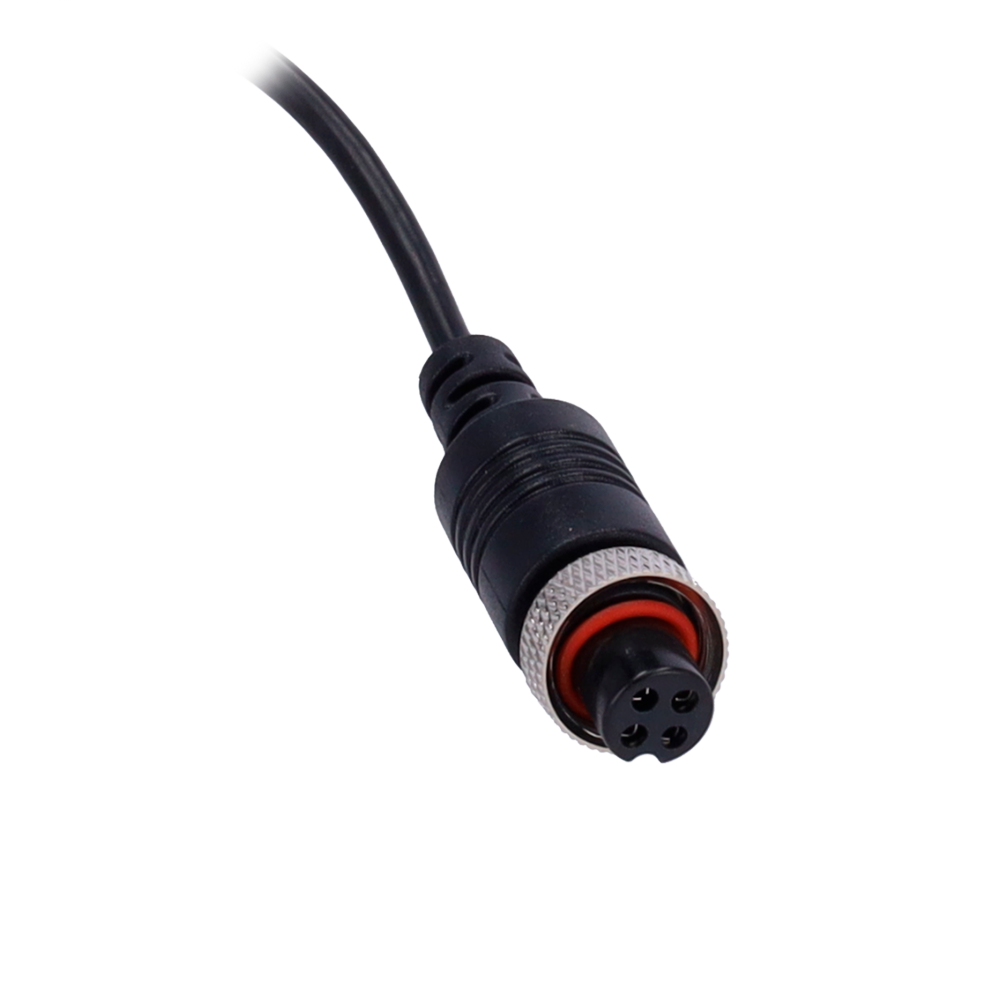

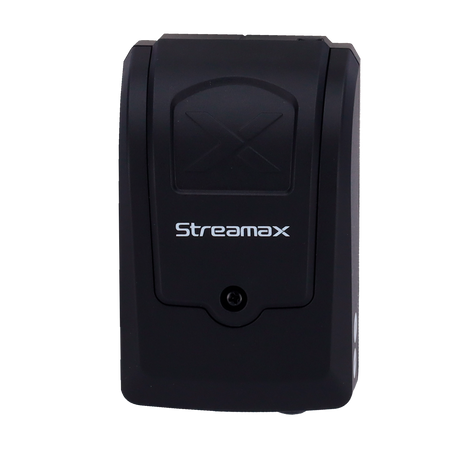

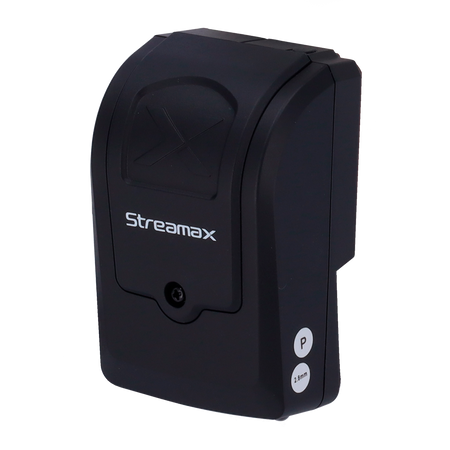

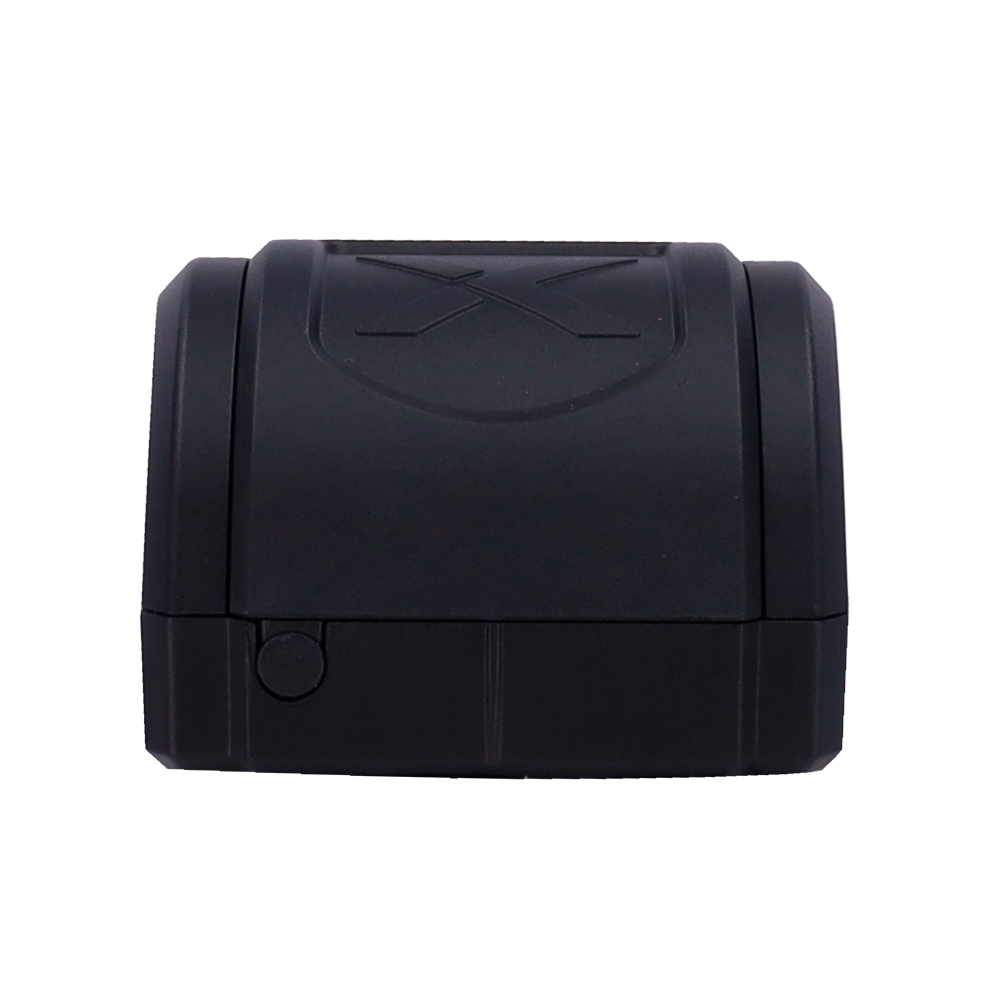

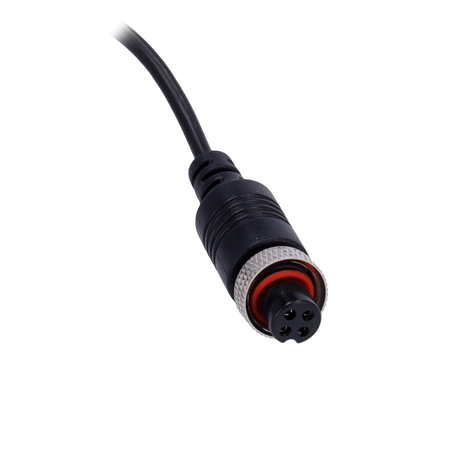

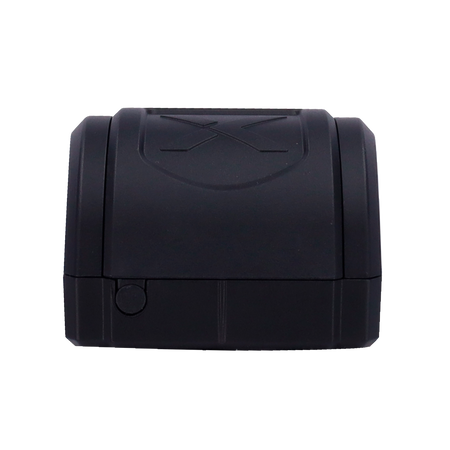

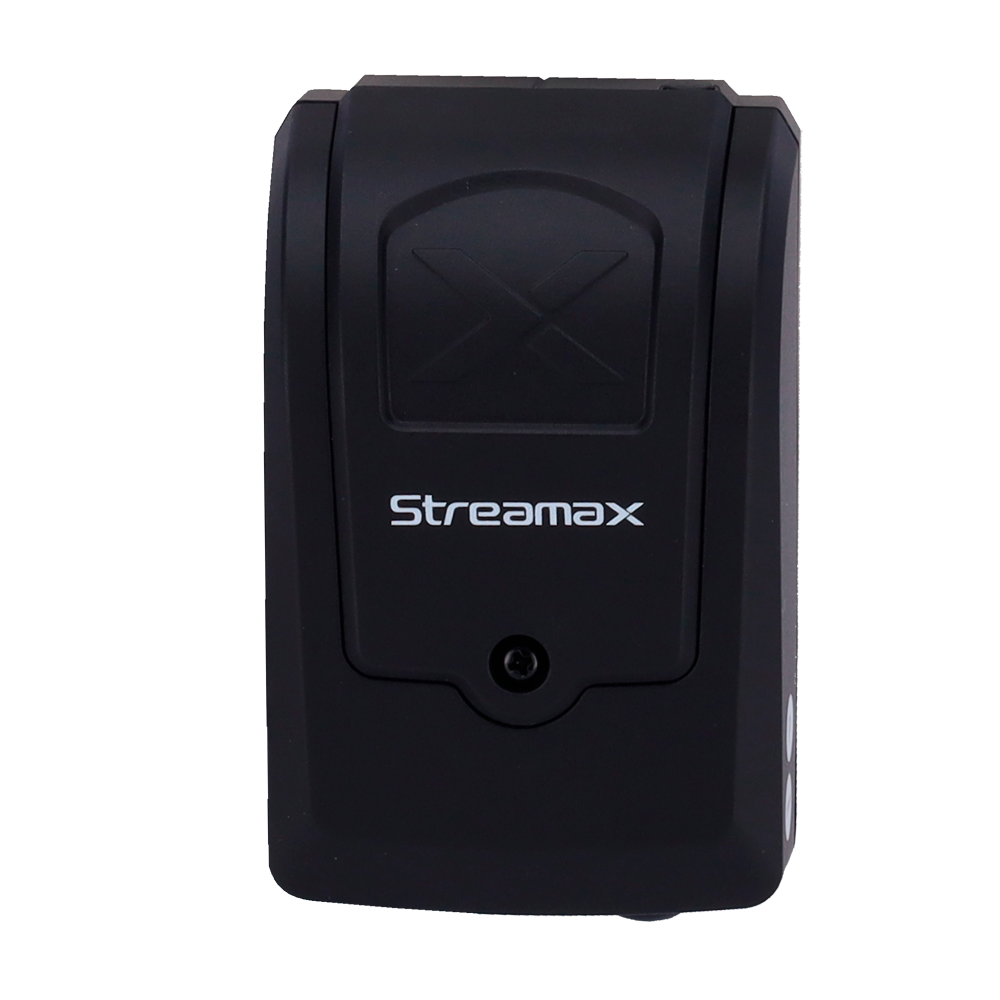

Streamax - ADAS Camera - 1/2.8" Progressive Scan CMOS 1080P - 2.8 mm Lens - 4-pin aviation connector - Windshield mount
📋 SPECIFICATIONS:
• Brand: Streamax
• Camera type: ADAS
• Optical sensor: 1/2.8" Progressive Scan CMOS sensor
• Resolution: 1080p (1920x1080)
• Lens: 2.8 mm (HFOV: 42º, VFOV: 24º)
• Minimum illumination: 0.05Lux (Color)
• Lens adjustment: HFOV: 42º, VFOV: 24º
• Day / Night: Color, BW (Black and White) (ICR)
• Electronic Shutter: Auto
• Image enhancements: 3D-DNR, AGC, BLC, DWDR, AWB
• Exposure mode: Auto
• Audio: Not available
• Intelligent functions: Lane departure warning, forward collision warning, headway monitoring; *Requires AI BOX for intelligent functions
• Power supply: DC 12 V, 90 mA
• Installation: Vehicle windshield
• Operating temp.: -40º C ~ +70º C
• Dimensions: 39 (D) × 54.5 (W) × 87 (H) mm
• Weight: 100 g
📦 INCLUDED:
• ST-CA20S camera• Installation hardware• Quick installation guide
| Camera type | ADAS |
|---|---|
| Optical sensor | 1/2.8" Progressive Scan CMOS sensor |
| Resolution | 1080p (1920x1080) |
| Lens | 2.8 mm (HFOV: 42º, VFOV: 24º) |
| Minimum illumination | 0.05Lux (Color) |
| Lens adjustment | HFOV: 42º, VFOV: 24º |
| Day / Night | Color, B&W (Black and white) (ICR) |
| Electronic Shutter | Auto |
| Image enhancements | 3D-DNR, AGC, BLC, DWDR, AWB |
| Exposure mode | Auto |
| Audio | Not available |
| Intelligent functions | Lane departure warning, forward collision warning, vehicle distance detection *Requires AI BOX for intelligent functions |
| Power supply | DC 12 V, 90 mA |
| Installation | On vehicle windshield |
| Operating temp. | -40º C ~ +70º C |
| Dimensions | 39 (D) × 54.5 (W) × 87 (H) mm |
| Weight | 100 g |
