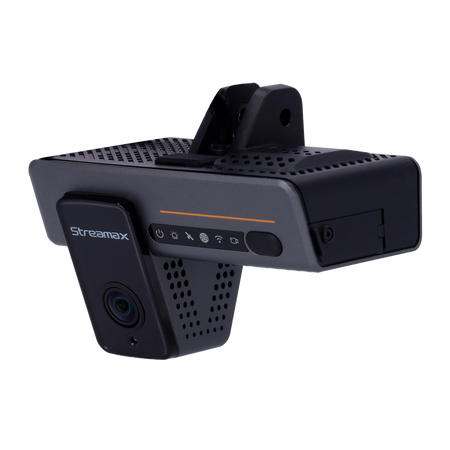

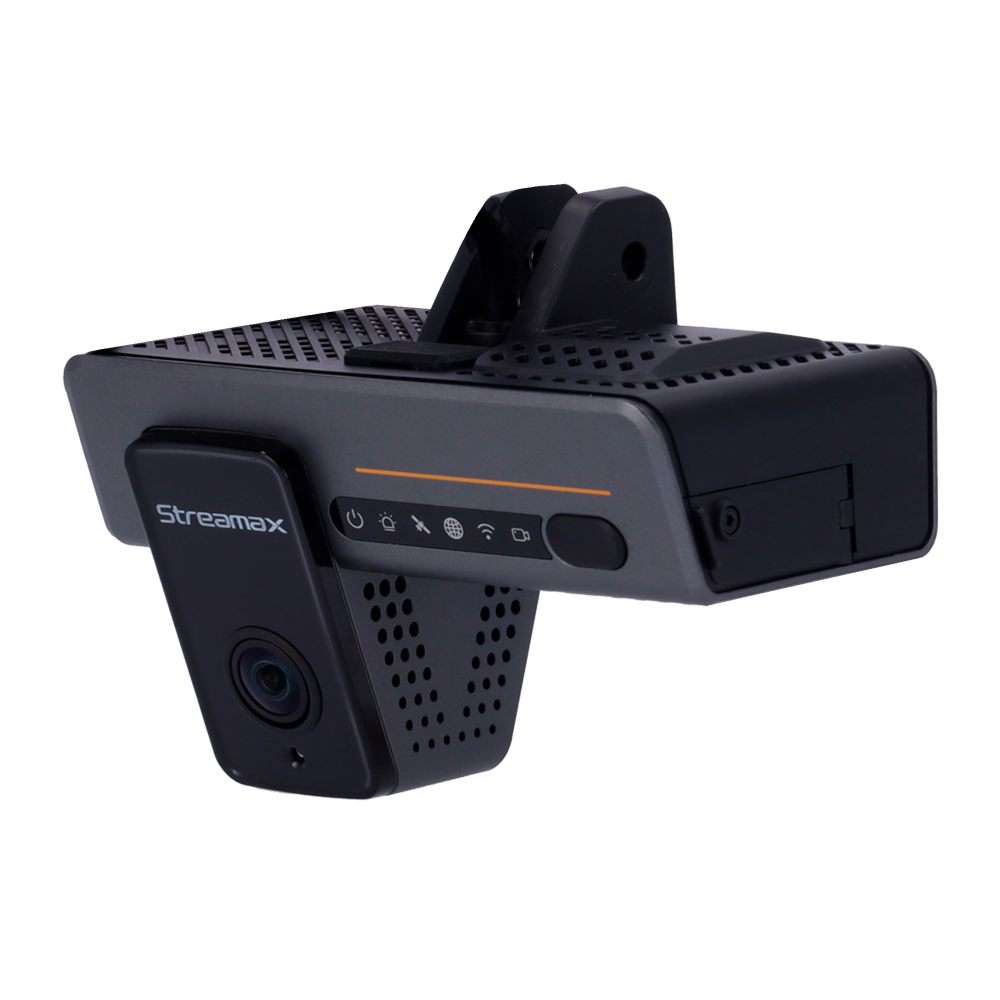

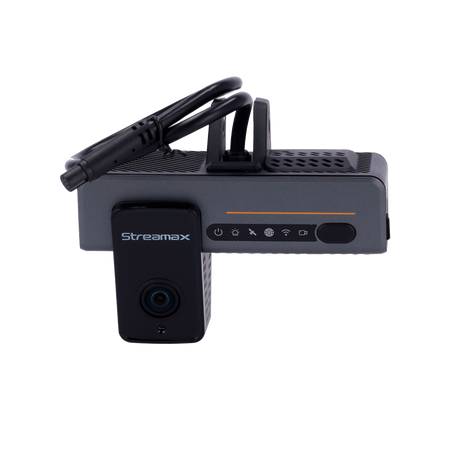

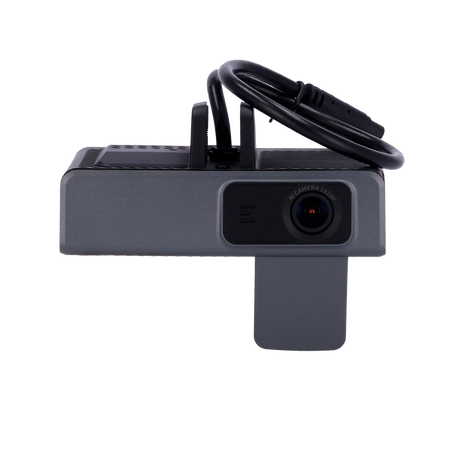

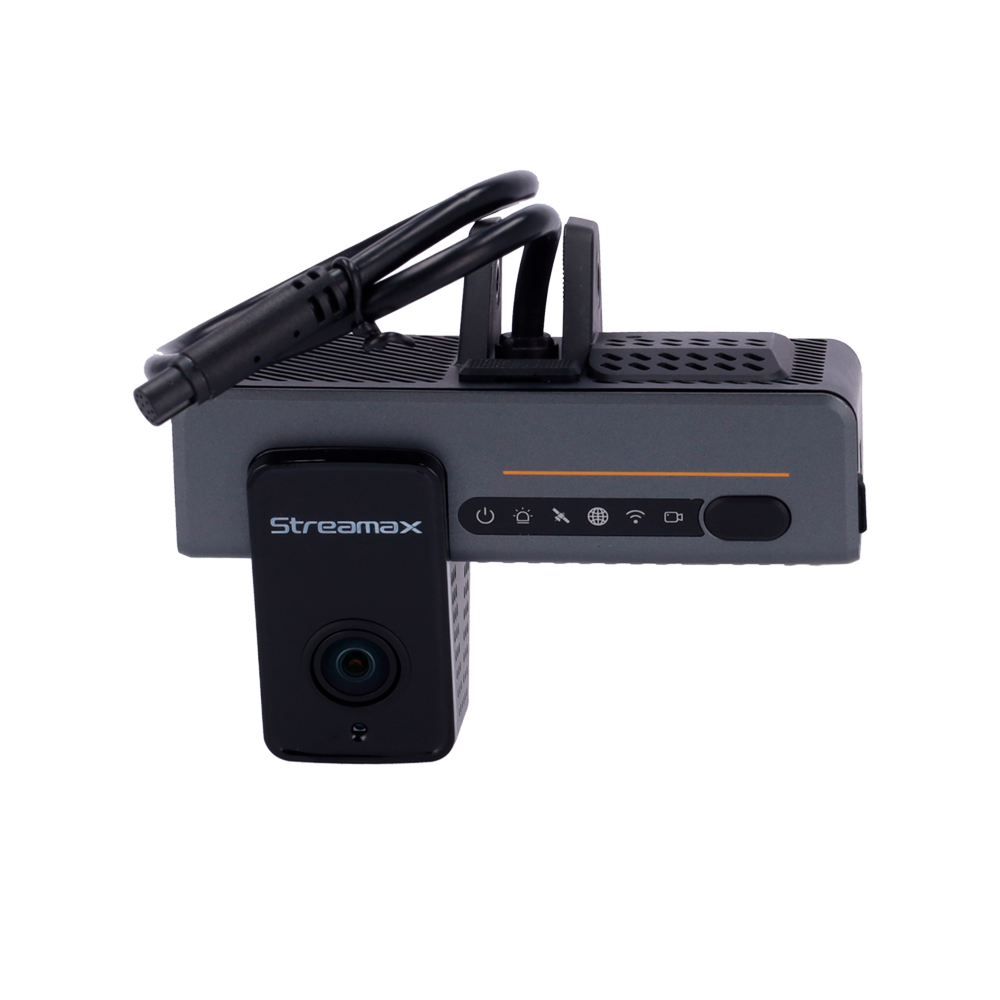

Streamax in-cabin dashcam with DSM and ADAS
Couldn't load pickup availability
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Do you have any questions?
Ask an expert!
Streamax - In-cabin dashcam with DSM and ADAS - Resolution up to 1080p - Two-way audio - 4G communication and GPS positioning
📋 SPECIFICATIONS:
• Video: 2 CH: Dashcam + DSM, in-cabin camera (integrated)
• Operating system: Embedded Linux
• Languages: Chinese, English, Spanish, Portuguese, French, Russian, Japanese
• Encryption: AES256
• Data transmission: TLS1.3
• Sensor: Dashcam: 1/2.9" CMOS; In-cabin: 1/2.9" CMOS
• Resolution: Dashcam: 2 Mpx; In-cabin: 2 Mpx
• Audio: Microphone and speaker with noise cancellation for two-way communication; 3W speaker power
• Input resolution: Dashcam: 1080P @ 20FPS; In-cabin: 1080P @ 20FPS
• Recording resolution: Main stream: 1080P@20 FPS (Dashcam) + 1080P@20 FPS (In-cabin); Sub-stream: 2 × CIF@30 FPS
• Audio compression: ADPCM/G.711/G.726
• Lens: Dashcam: 4 mm (H: 89º, V: 46º); In-cabin: 2.2 mm (H: 151º, V: 84º)
• Illumination: Dashcam - Color: 0.05Lux/F1.2 with BLC Signal-to-noise ratio >48dB; In-cabin - WDR with BLC Signal-to-noise ratio >45dB integrated IR
• Summary of functions: Live view, video recording, video playback, network streaming, and GPS positioning. ADAS and DSM functions.
• ADAS: LDW (lane departure without turn signal); HMW (proximity to vehicle ahead); FCW (collision)
• DSM: Camera obstruction; Fatigue (yawning); Mobile phone use; Smoking; Distraction; Driverless while vehicle is moving; No seatbelt
• 4G communication: 1x SIM slot: SIM card slot; LTE FDD: B1/B3/B7/B8/B20/B28A; LTE TDD: B38/B40/B41; WCDMA: B1/B8; GSM: B3/B8
• Wi-Fi communication: 2.4 GHz (IEEE Std.802.11a/IEEE Std.802.11b/ IEEE Std.802.11g; /IEEE Std.802.11n)
• Bluetooth communication: Supported
• Image enhancement: Brightness, Chromaticity, Contrast, Saturation, Sharpness, BLC and DWDR settings
• Video compression: H.265 / H.264
• Positioning: GPS L1 1575.42MHz; GALILEO E1B/C1; GLONASS L1OF 1602MHz; SBAS: WAAS, EGNOS, MSAS, GAGAN
• Sensors: Accelerometer: 6-axis (Detection of collisions, sharp turns, and sudden braking); Twilight sensor for day/night switching of the dashcam; 1x RS232; 1x CAN
• Alarms: 2 Inputs, 1 output
• CAN Bus: Supported
• USB: x1 mini USB connector
• Button: Press twice to switch from client mode to AP mode
• Network protocols: HTTP, TCP, ARP, UDP, FTP, DHCP, DNS, IPV4, NTP

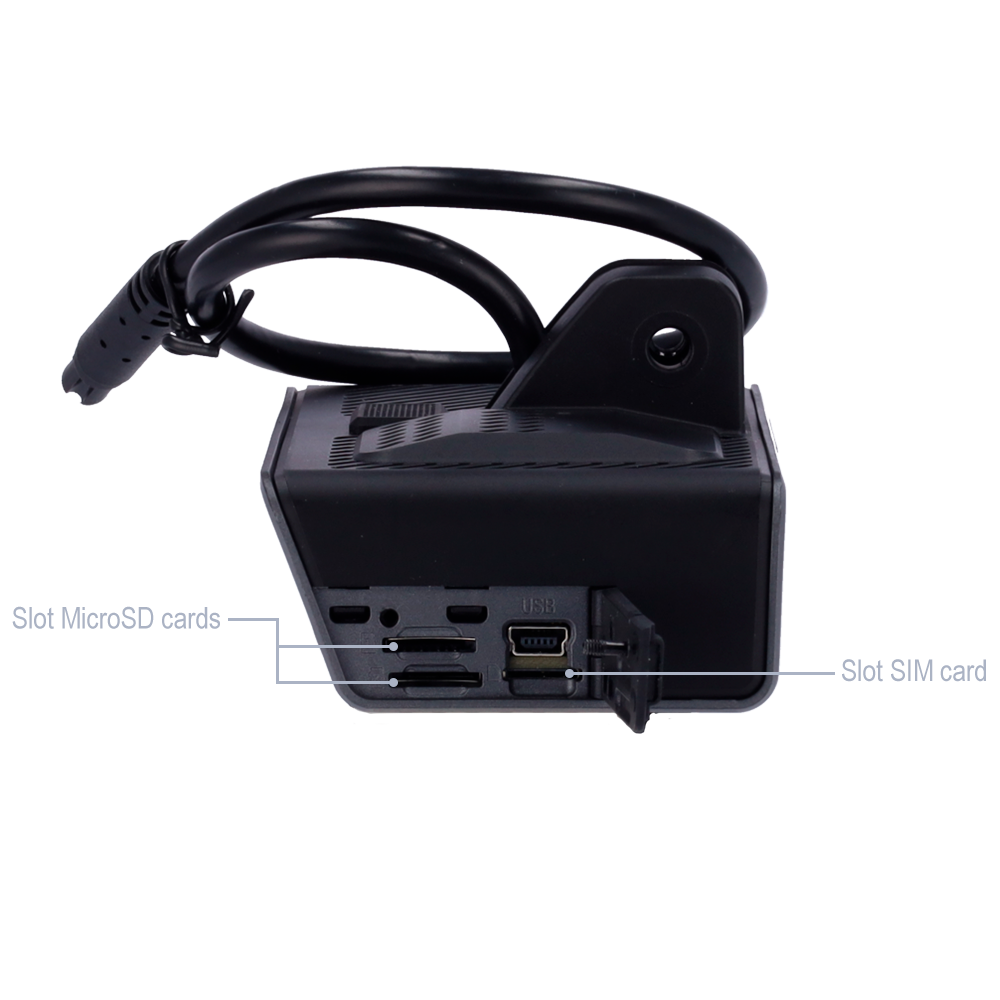

• Storage: 2x MicroSD card slots up to 512GB per slot, requires class 10
• Management software: CEIBA II centralized server or FTCLOUD
• Operating temperature: -40ºC to 70ºC
• Storage temperature: -40℃~+85℃
• Relative humidity: 15% - 95% non-condensing
• Protection: IP30
• Power supply: DC 9-24V, Max. 11.5W
• Certificates: Emark, CE-RED, FCC-ID, EN50155-EMC, UKCA, EN50155, ROHS, REACH, PTCRB, AT&T, Verizon
• Installation: On the windshield
• LED indicators: Power; Alarm indicator; GPS indicator; Network indicator; Wifi indicator; Recording indicator
• Dimensions: 116.5 × 67.8 × 110.42
• Weight: 313g
📦 INCLUDED:
• C6-Lite-V2 Dashcam camera • Installation bracket • Fixing screw • Power cable
| Video | 2 CH: Dashcam+ DSM, driver-facing camera (integrated) |
|---|---|
| Operating system | Embedded Linux |
| Languages | Chinese, English, Spanish, Portuguese, French, Russian, Japanese |
| Encryption | AES256 |
| Data transmission | TLS1.3 |
| Sensor | Dashcam: 1/2.9" CMOS Cabin: 1/2.9" CMOS |
| Resolution | Dashcam: 2 Mpx Cabin: 2 Mpx |
| Audio | Microphone and speaker with noise cancellation for two-way communication Speaker power 3W |
| Input resolution | Dashcam: 1080P @ 20FPS Cabin: 1080P @ 20FPS |
| Recording resolution | Main stream: 1080P@20 FPS(Dashcam)+1080P@20 FPS(Cabin) Sub-stream: 2 × CIF@30 FPS |
| Audio compression | ADPCM/G.711/G.726 |
| Lens | Dashcam: 4 mm (H: 89º, V: 46º) Cabin: 2.2 mm (H: 151º, V: 84º) |
| Lighting | Dashcam - Color: 0.05Lux/F1.2 with BLC Signal-to-noise ratio >48dB Cabin - WDR with BLC Signal-to-noise ratio >45dB Integrated IR |
| Function summary | Live view, video recording, video playback, network streaming and GPS positioning. ADAS and DSM functions. |
| ADAS | LDW (lane departure without turn signal) HMW (headway monitoring warning) FCW (forward collision warning) |
| DSM | Camera obstruction Fatigue (yawning) Mobile phone usage Smoking Distraction Driver absence with moving vehicle No seatbelt |
| 4G communication | 1x SIM Slot: SIM card slot LTE FDD: B1/B3/B7/B8/B20/B28A LTE TDD: B38/B40/B41 WCDMA: B1/B8 GSM: B3/B8 |
| Wi-Fi communication | 2.4 GHz (IEEE Std.802.11a/IEEE Std.802.11b/ IEEE Std.802.11g /IEEE Std.802.11n) |
| Bluetooth communication | Supported |
| Image enhancement | Brightness, Chromaticity, Contrast, Saturation, Sharpness, BLC and DWDR setting |
| Video compression | H.265 / H.264 |
| Positioning | GPS L1 1575.42MHz GALILEO E1B/C1 GLONASS L1OF 1602MHz SBAS: WAAS, EGNOS, MSAS, GAGAN |
| Sensors | Accelerometer: 6-axis (Detection of collisions, sharp turns and braking) Twilight sensor for day/night switching of the dashcam 1x RS232 1x CAN |
| Alarms | 2 Inputs, 1 output |
| CAN Bus | Supported |
| USB | x1 mini USB connector |
| Button | Press twice to switch from client mode to AP mode |
| Network protocols | HTTP, TCP, ARP, UDP, FTP, DHCP, DNS, IPV4, NTP |
| Storage | 2x MicroSD card slots up to 512GB per slot, requires Class 10 |
| Management software | CEIBA II or FTCLOUD centralized server |
| Operating temperature | -40ºC to 70ºC |
| Storage temperature | -40℃~+85℃ |
| Relative humidity | 15% - 95% non-condensing |
| Protection | IP30 |
| Power supply | DC 9-24V, Max. 11.5W |
| Certificates | Emark, CE-RED, FCC-ID, EN50155-EMC, UKCA, EN50155, ROHS, REACH, PTCRB, AT&T, Verizon |
| Installation | On the windshield |
| LED indicators | Power Alarm indicator GPS indicator Network indicator Wifi indicator Recording indicator |
| Dimensions | 116.5 × 67.8 × 110.42 |
| Weight | 313g |
