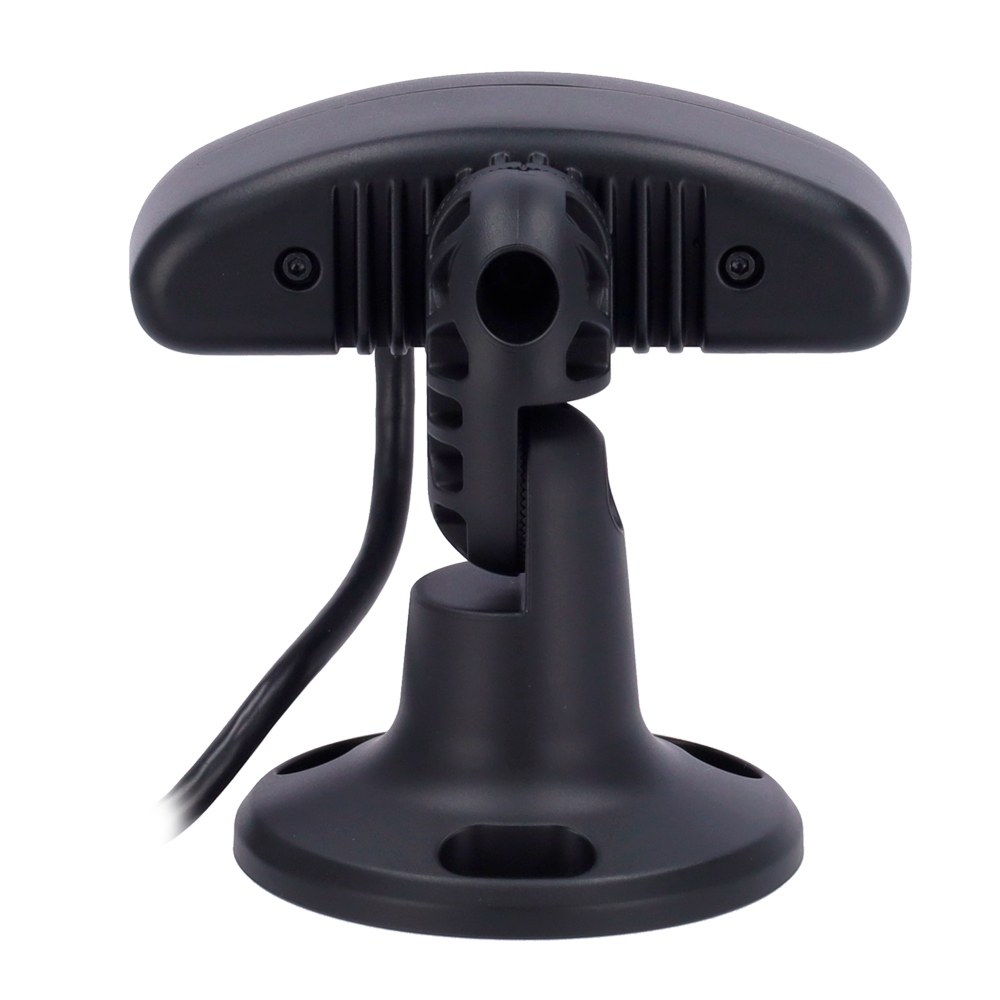

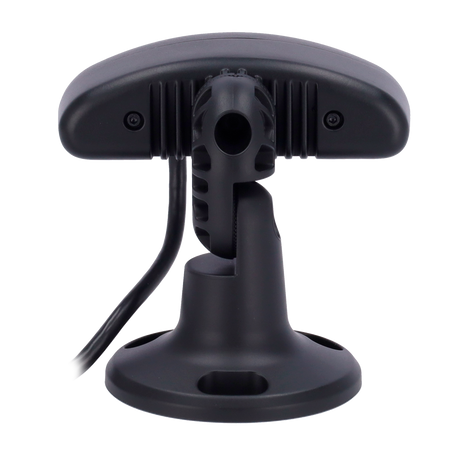

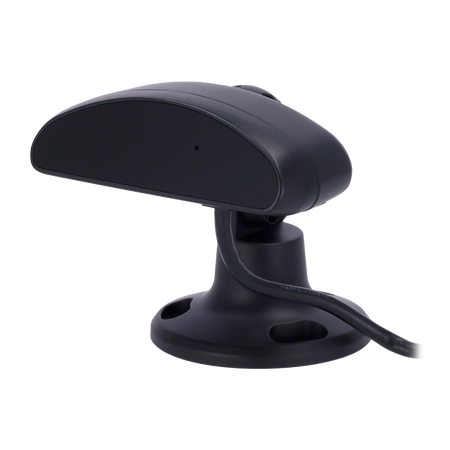

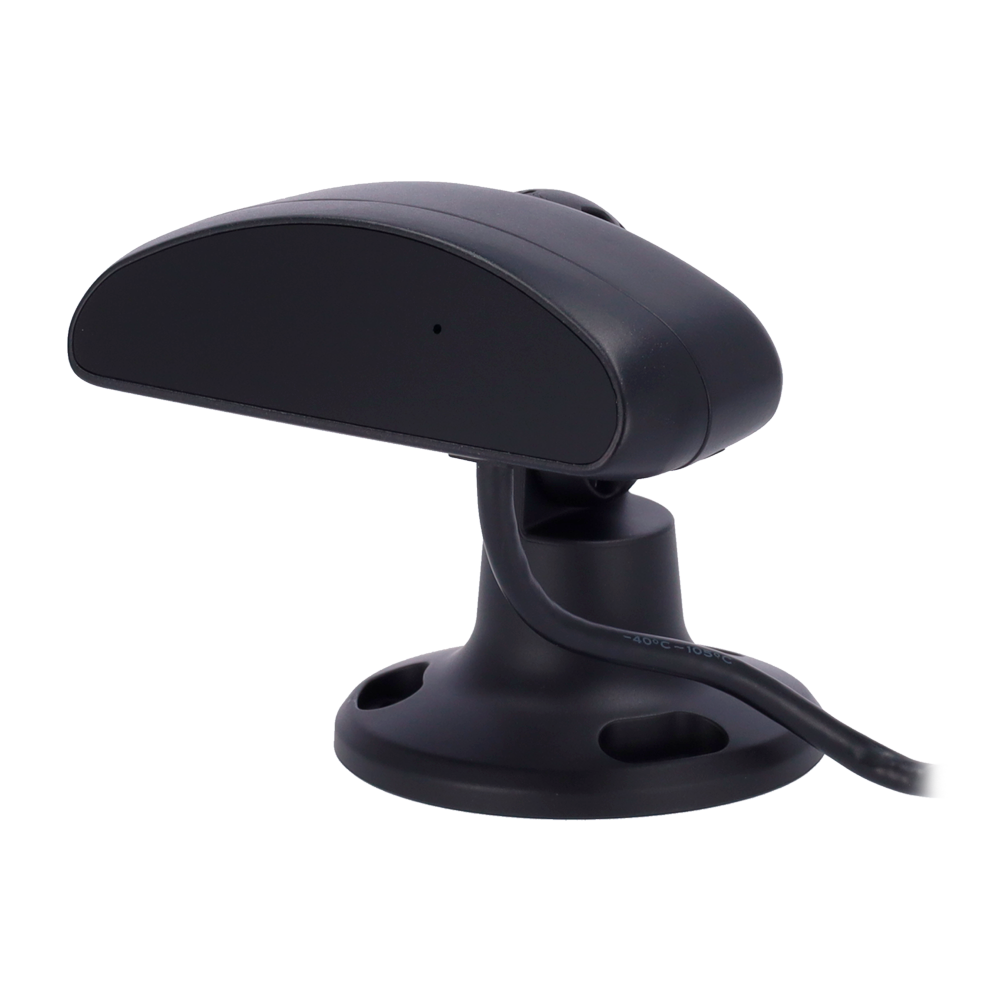

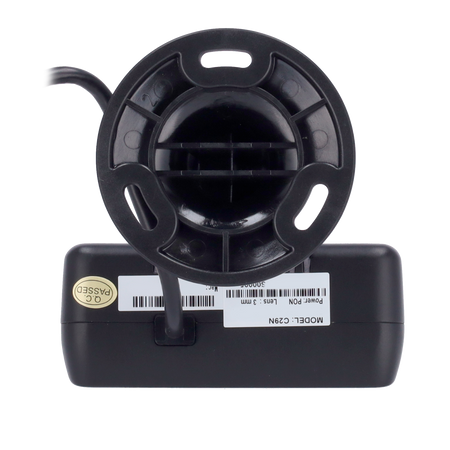

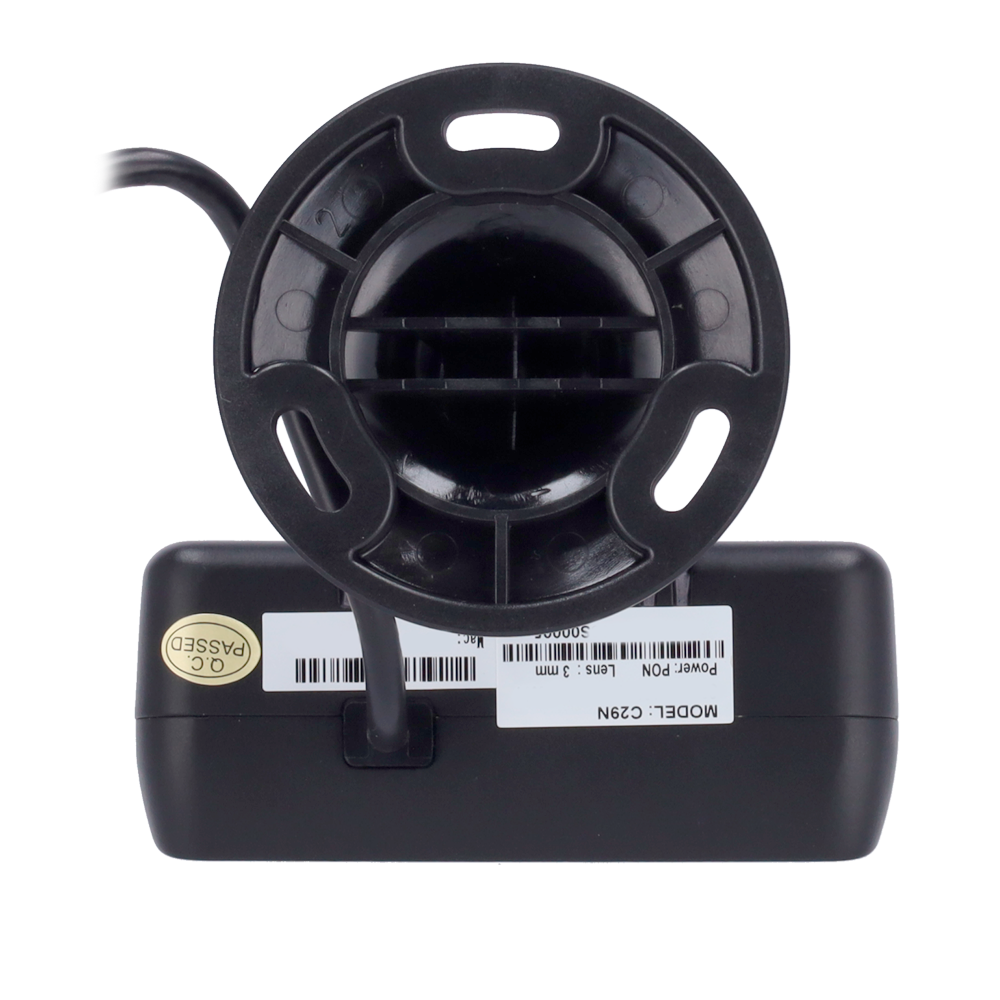

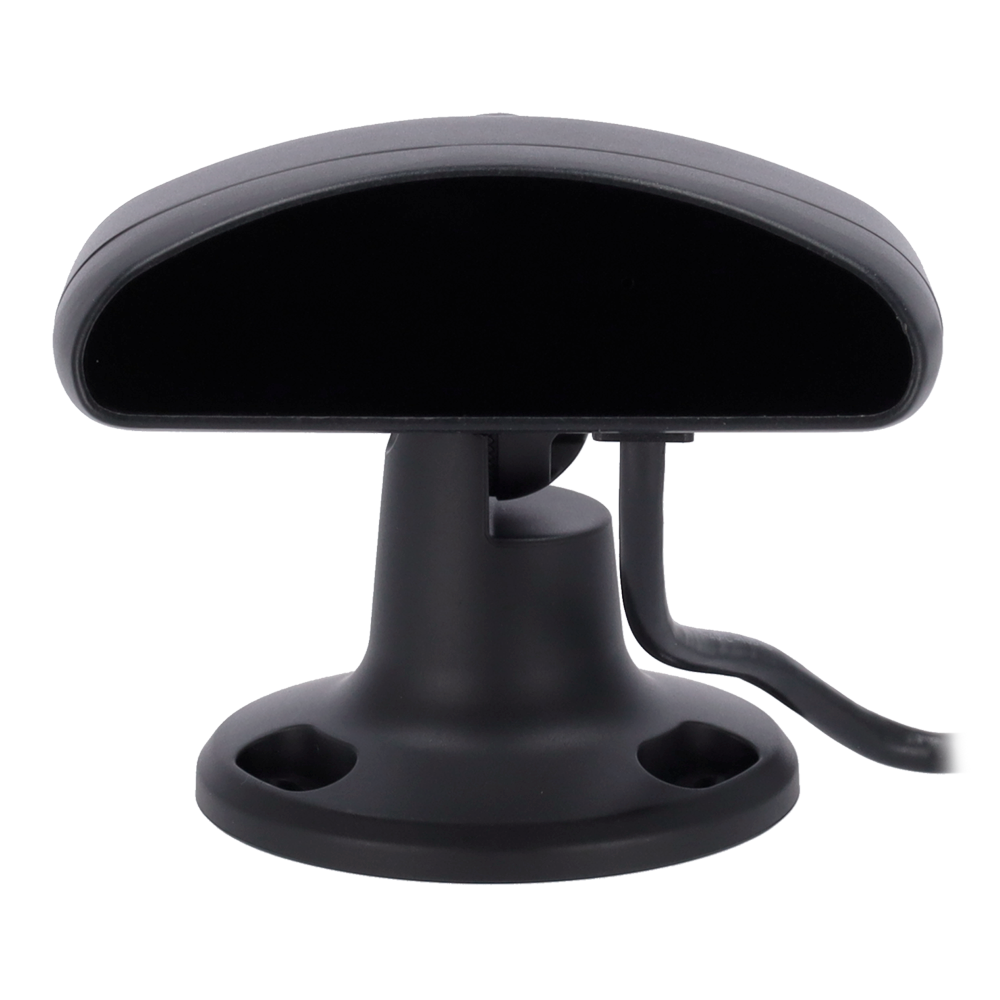

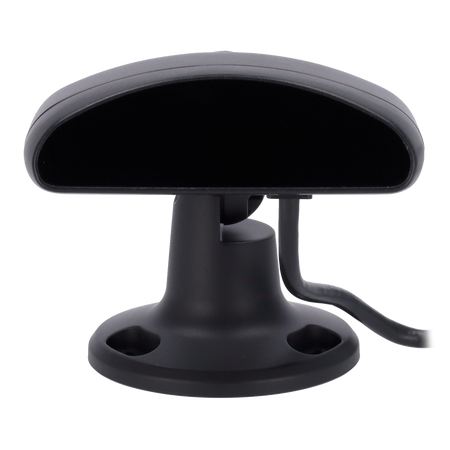

Streamax IP Driver Status Monitor (DSM) Camera - IR range up to 20m
Couldn't load pickup availability
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Do you have any questions?
Ask an expert!
Streamax - IP camera for Driver State Monitoring (DSM) - IR range up to 20m - Suitable for vehicle mounting - Vertical installation on the dashboard - IP67 exterior
📋 SPECIFICATIONS:
• Brand: Streamax
• Intelligence: DSM: Driver State Monitoring; Detection of fatigue, drowsiness, mobile phone use, and smoking
• Sensor: 1/4" Global Shutter sensor
• Resolution: 1280x800
• Lens: 3 mm (H: 76º, V: 44º)
• Shutter: 1/30 ~ 1/5,000s (automatic)
• Compression: H.265 / H.264
• Image enhancement: DWDR, BLC, ATW, AWB, Automatic Gain Control, 3D DNR
• S/N: >50dB
• Minimum illumination: 0.1 Lux@F1.4 (IR OFF), 0 Lux (IR ON)
• Day / Night: ICR IR filter
• IR range: 20 m
• Video output: 1.0 Vp-p AHD

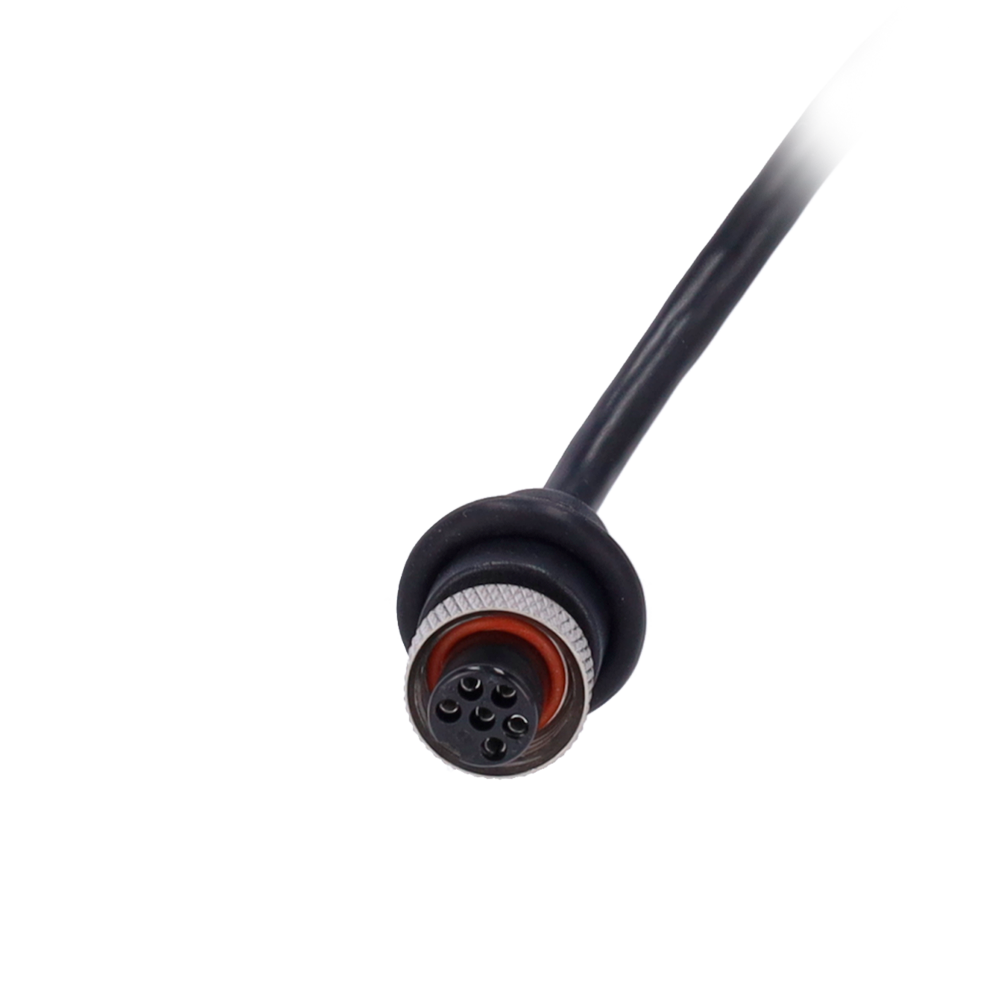

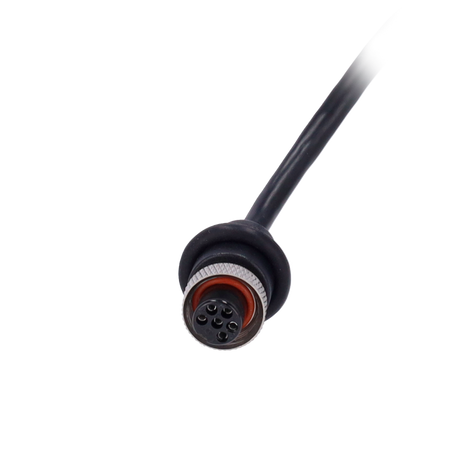

• Connection interface: M12 6-pin aviation connector
• Installation: On the side pillar
• Compatibility: ADPLUS, AIBOX 5.0 and video recorders
• Power supply: 12V DC, 230mA. <2.76W
• Operating temperature: -40ºC ~ 70ºC, <95%
• Protection rating: IP67
• Dimensions: 95.6 (D) x 57.8 (W) x 50.8 (H) mm
• Weight: 410g
📦 INCLUDED:
• DSM IP camera• Installation material• Quick installation guide
| Intelligence | DSM: Driver state monitoring Fatigue, drowsiness, mobile phone and smoking detection |
|---|---|
| Sensor | 1/4" Global Shutter Sensor |
| Resolution | 1280x800 |
| Lens | 3 mm (H: 76º, V: 44º) |
| Shutter | 1/30 ~ 1/5,000s (automatic) |
| Compression | H.265 / H.264 |
| Image enhancement | DWDR, BLC, ATW, AWB, Auto Gain, 3D DNR |
| S/N | >50dB |
| Minimum illumination | 0.1 Lux@F1.4 (IR OFF), 0 Lux (IR ON) |
| Day / Night | ICR IR filter |
| IR range | 20 m |
| Video output | 1.0 Vp-p AHD |
| Connection interface | 6-Pin M12 aviation connector |
| Installation | A-pillar |
| Compatibility | ADPLUS, AIBOX 5.0 and video recorders |
| Power supply | 12V DC, 230mA. <2.76W |
| Operating temperature | -40ºC ~ 70ºC, <95% |
| Protection rating | IP67 |
| Dimensions | 95.6 (D) x 57.8 (W) x 50.8 (H) mm |
| Weight | 410g |
