Streamax Driver State Monitoring (DSM) IP Camera - IR range up to 20m - 40ºC ~ 70ºC, < 95%
Couldn't load pickup availability
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Do you have any questions?
Ask an expert!

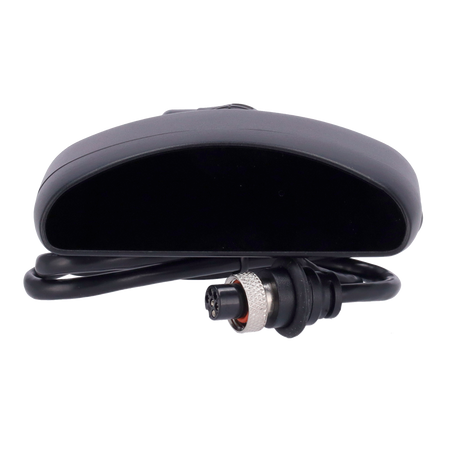

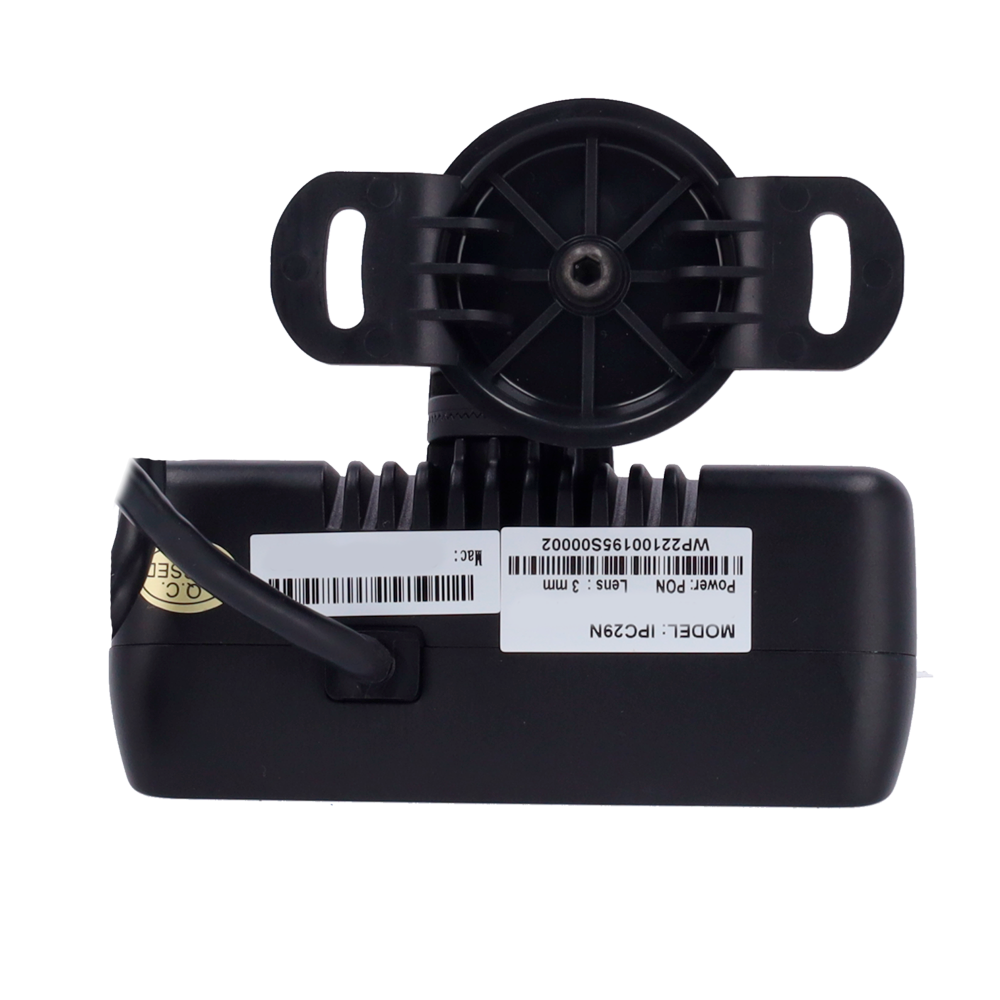

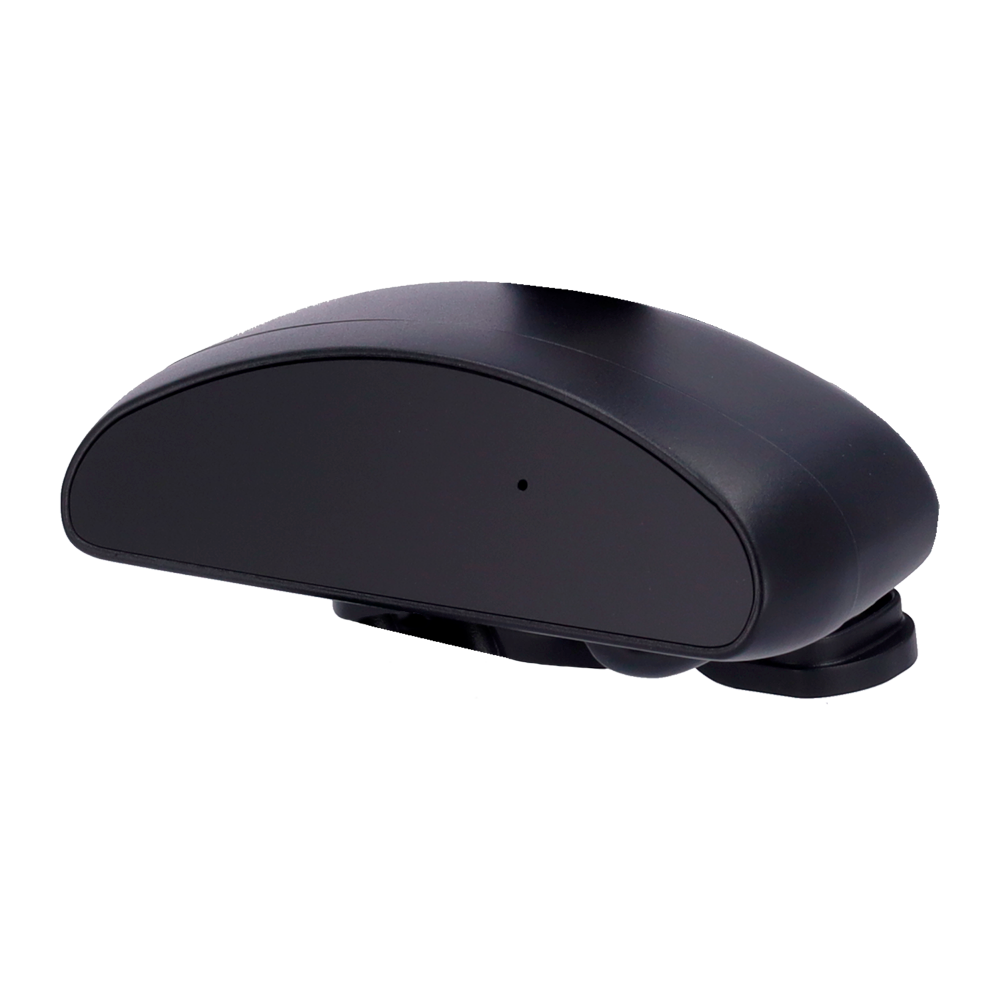

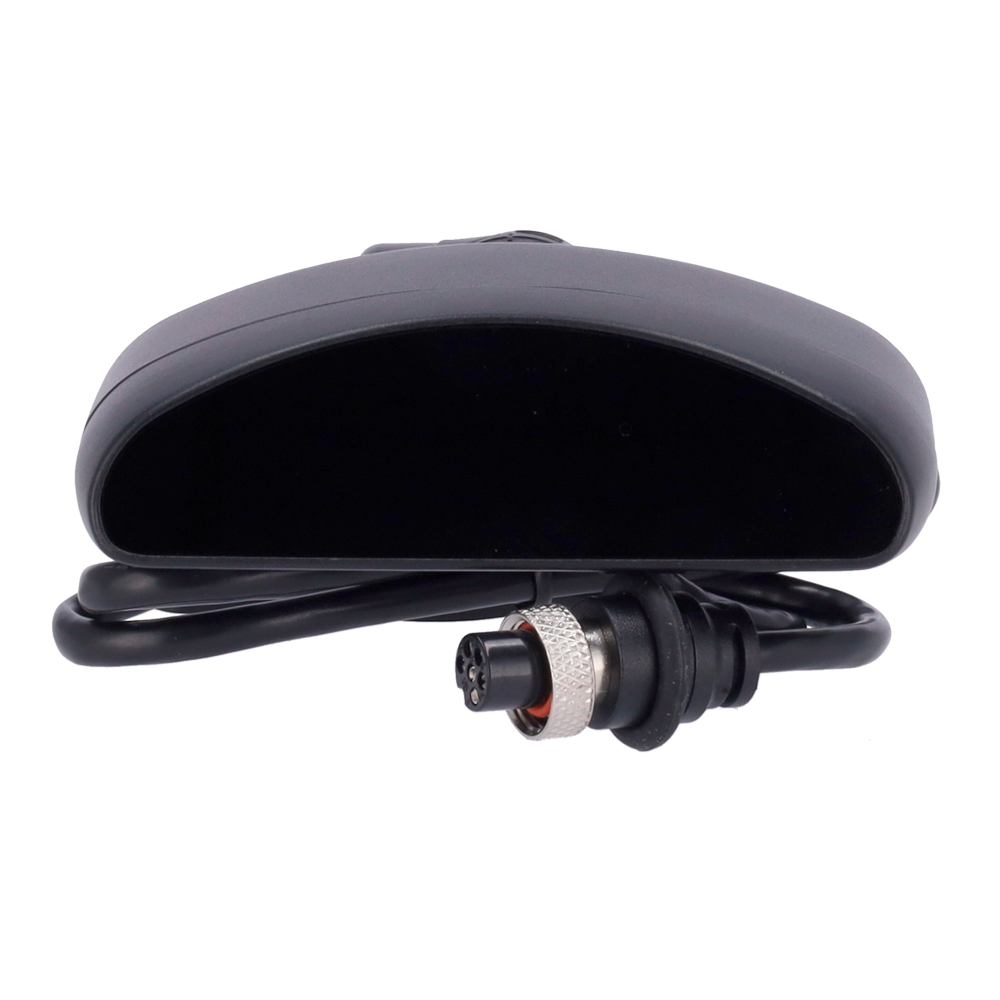

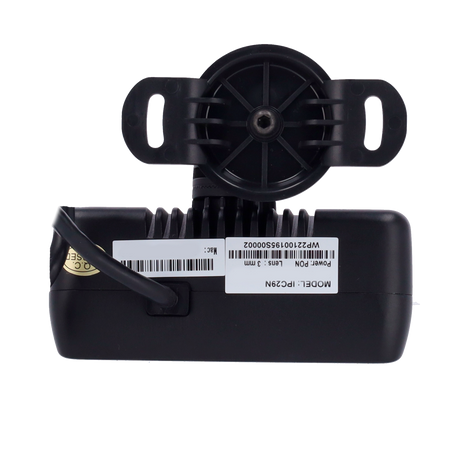

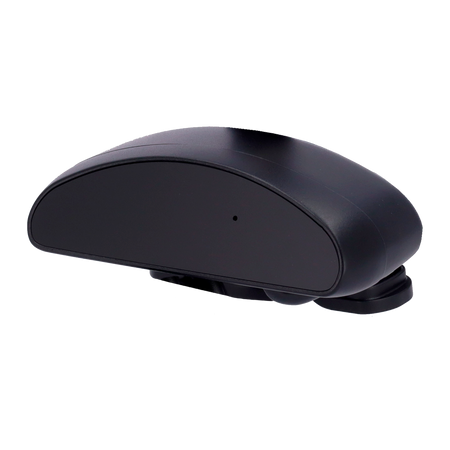

Streamax - IP camera for Driver State Monitoring (DSM) - IR range up to 20m - Suitable for vehicle mounting - A-pillar installation - IP67 outdoor
📋 SPECIFICATIONS:
• Brand: Streamax
• Intelligence: DSM: Driver State Monitoring; Detection of fatigue, drowsiness, mobile phone use, and smoking
• Sensor: 1/4" Global Shutter Sensor
• Resolution: 1280x800
• Lens: 3 mm (H: 76º, V: 44º)
• Shutter: 1/30 ~ 1/5,000s (automatic)
• Compression: H.265 / H.264
• Image enhancement: DWDR, BLC, ATW, AWB, Automatic Gain, 3D DNR
• S/N ratio: > 50dB
• Minimum illumination: 0.1 Lux@F1.4 (IR OFF), 0 Lux (IR ON)
• Day / Night: ICR IR filter
• IR range: 20 m
• Video output: 1.0 Vp-p AHD

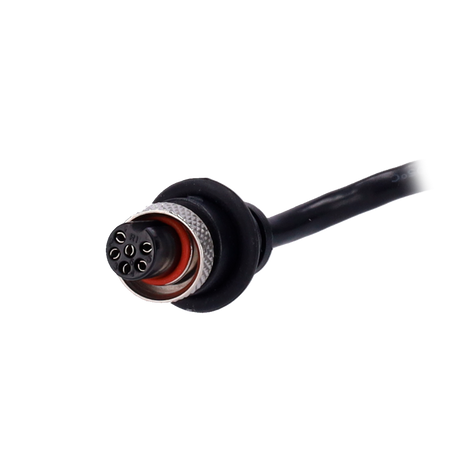

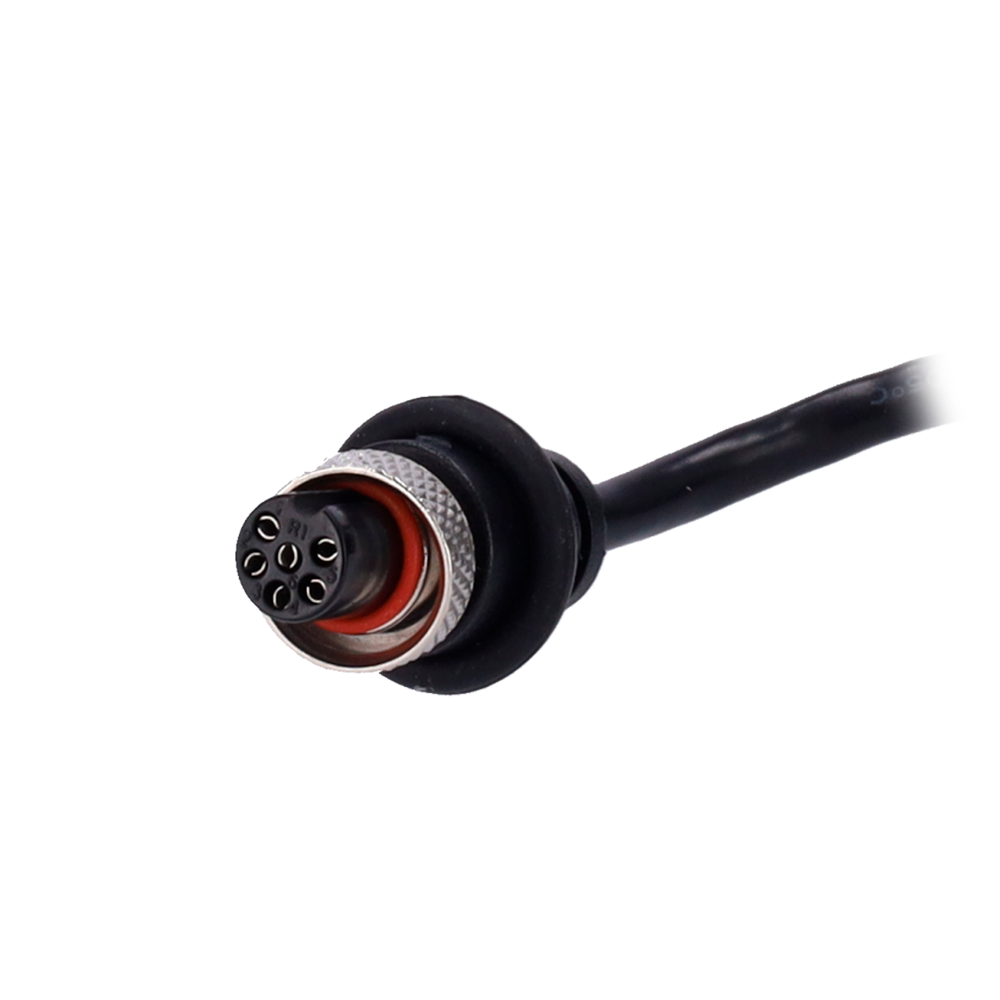

• Connection interface: 6-Pin M12 aviation connector
• Installation: On A-pillar
• Compatibility: ADPLUS, AIBOX 5.0 and video recorders
• Power supply: 12V DC, 230mA. < 2.76W
• Operating temperature: -40ºC ~ 70ºC, < 95%
• Protection rating: IP67
• Dimensions: 95.6 (D) x 57.8 (H) x 50.8 (W) mm
• Weight: 410g
📦 INCLUDED:
• DSM IP camera • Installation material • Quick installation guide
| Intelligence | DSM: Driver Status Monitoring Detection of fatigue, drowsiness, mobile phone use, and smoking |
|---|---|
| Sensor | 1/4" Global Shutter Sensor |
| Resolution | 1280x800 |
| Lens | 3 mm (H: 76º, V: 44º) |
| Shutter | 1/30 ~ 1/5,000s (automatic) |
| Compression | H.265 / H.264 |
| Image Enhancement | DWDR, BLC, ATW, AWB, Automatic Gain, 3D DNR |
| S/N Ratio | > 50dB |
| Minimum Illumination | 0.1 Lux@F1.4 (IR OFF), 0 Lux (IR ON) |
| Day / Night | ICR IR Filter |
| IR Range | 20 m |
| Video Output | 1.0 Vp-p AHD |
| Connection Interface | 6-Pin M12 aviation connector |
| Installation | On the side pillar |
| Compatibility | ADPLUS, AIBOX 5.0, and video recorders |
| Power Supply | 12V DC, 230mA. < 2.76W |
| Operating Temperature | -40ºC ~ 70ºC, < 95% |
| Protection Rating | IP67 |
| Dimensions | 95.6 (D) x 57.8 (H) x 50.8 (W) mm |
| Weight | 410g |
