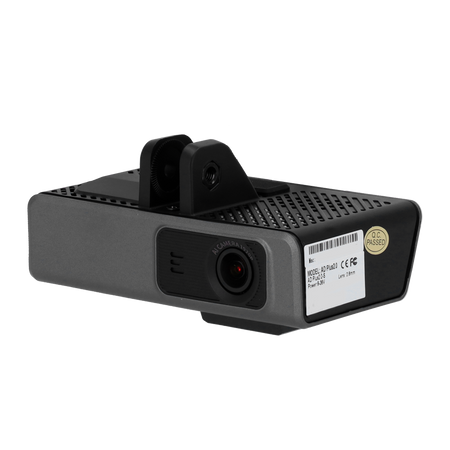

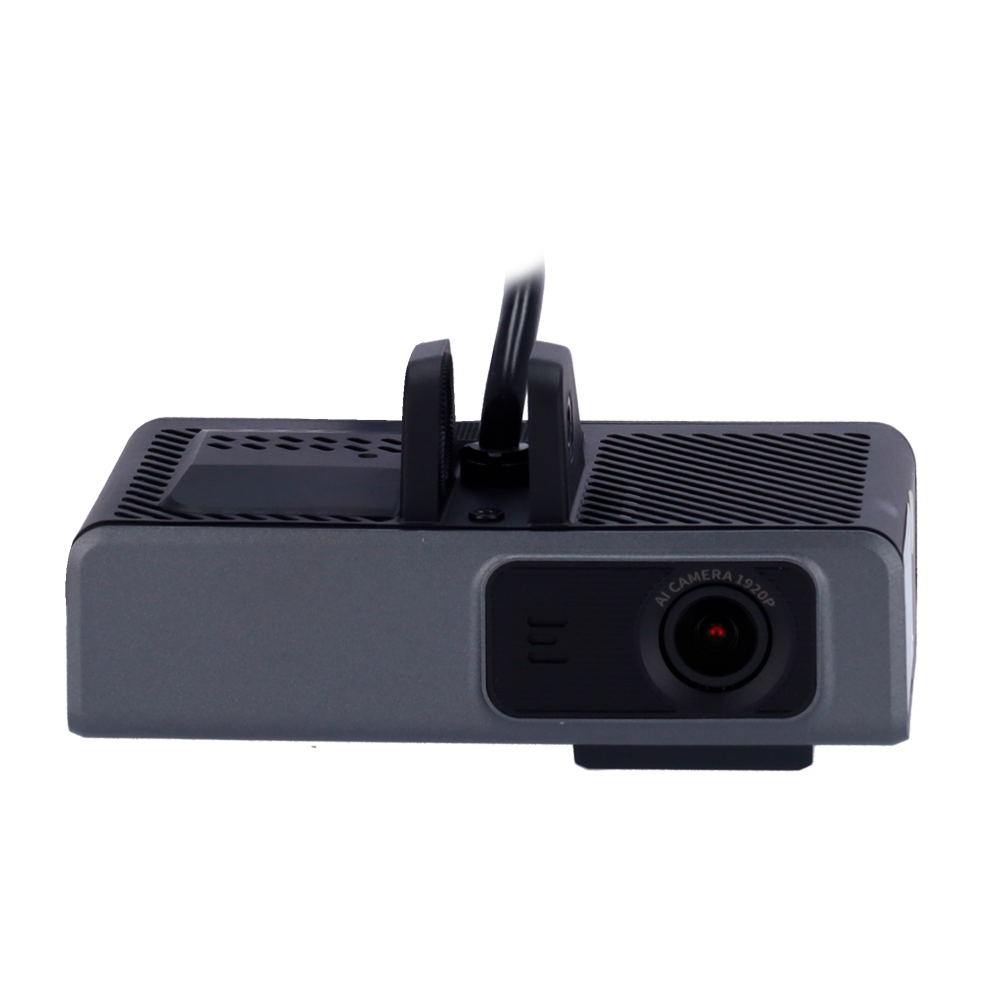

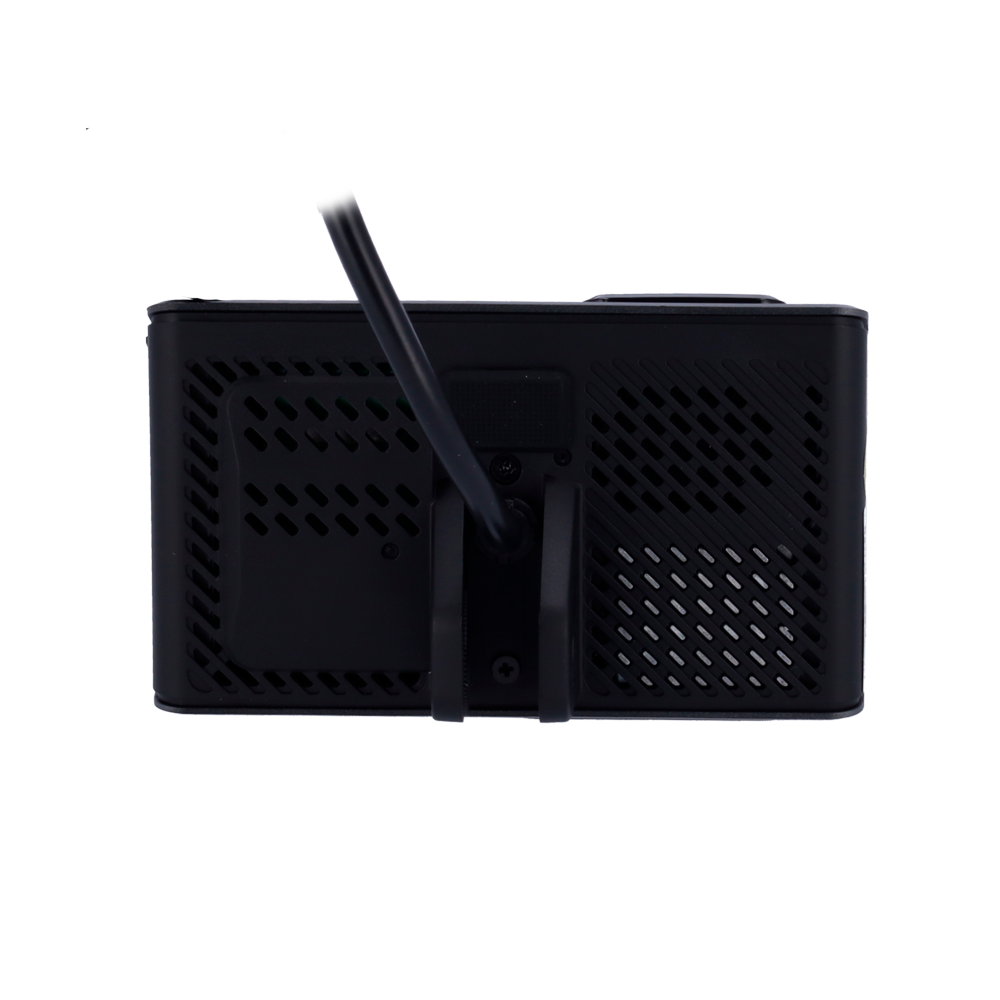

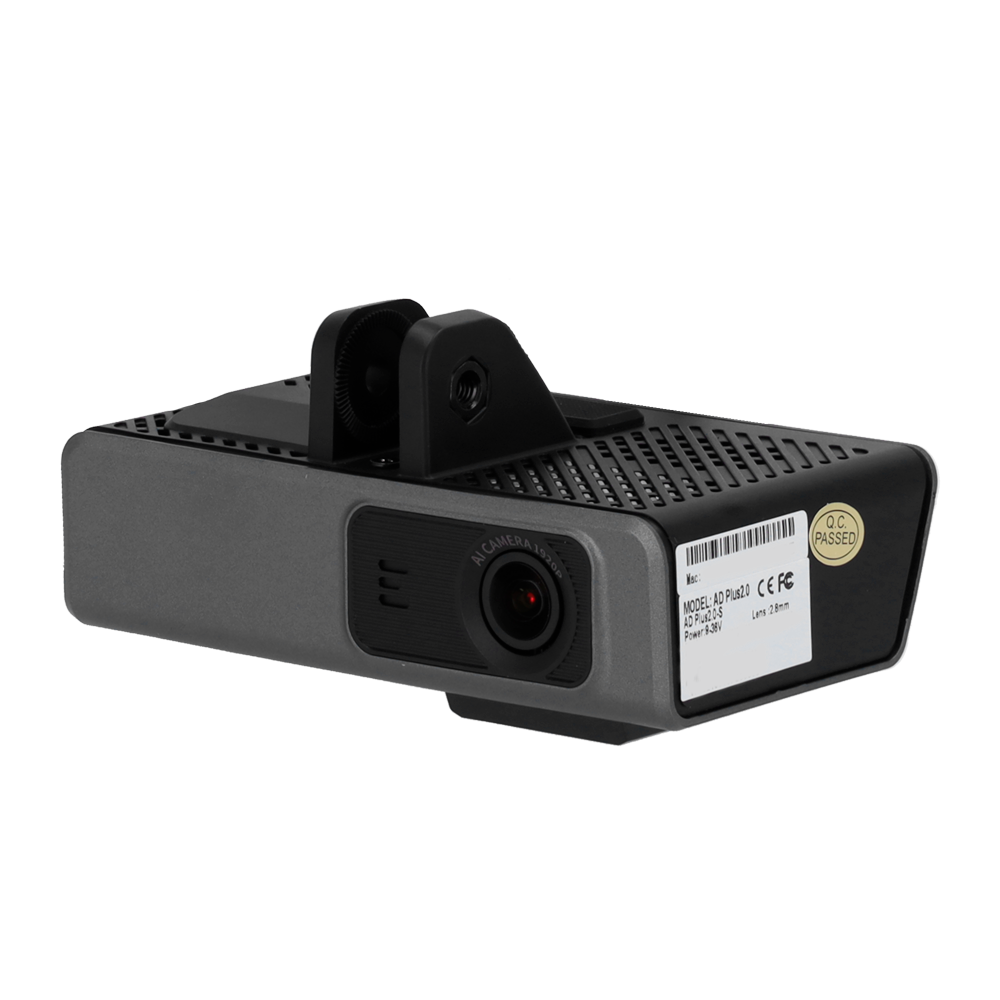

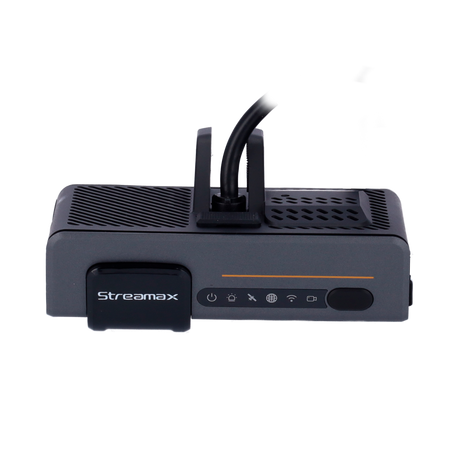

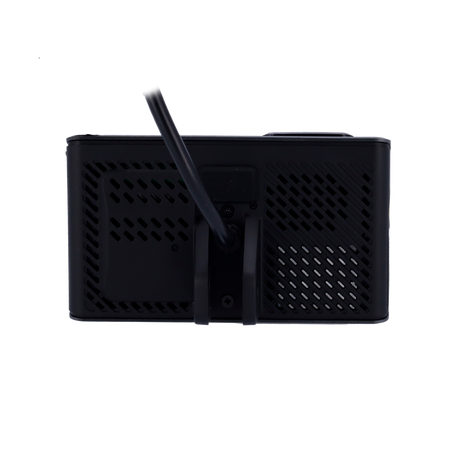

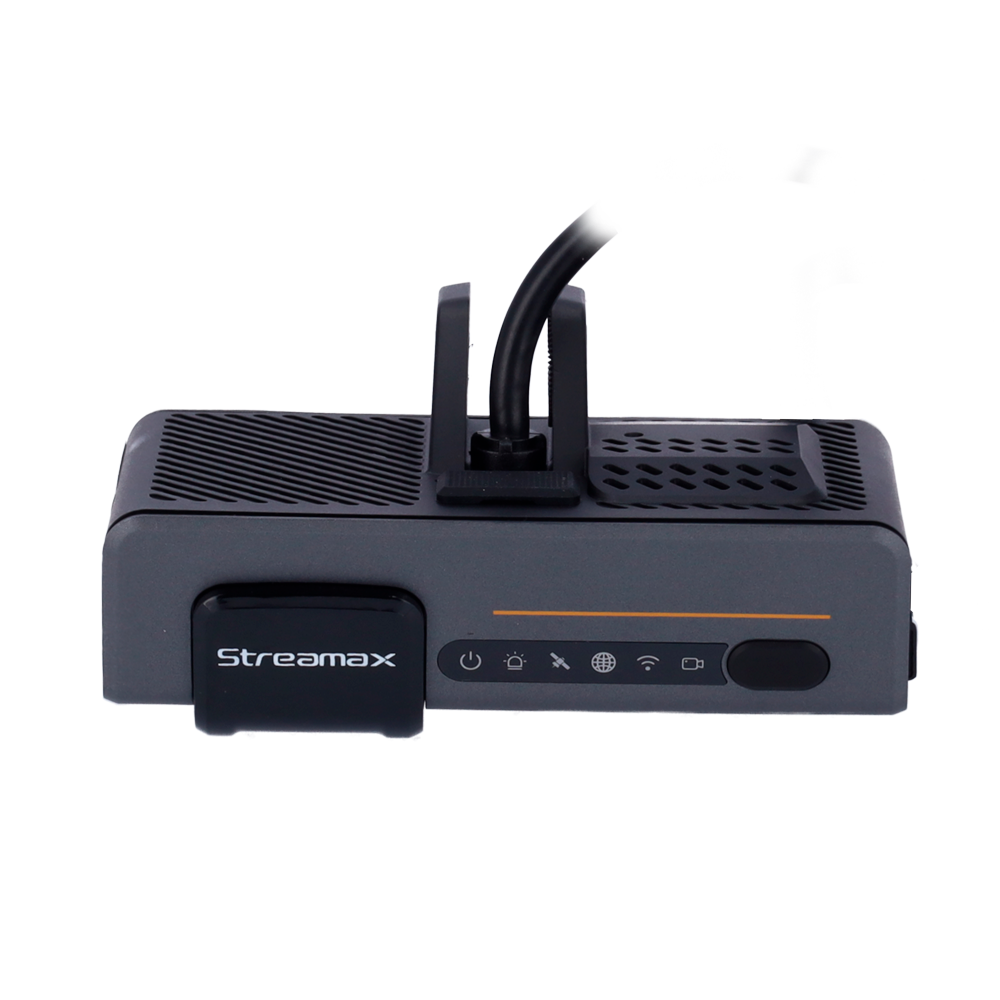

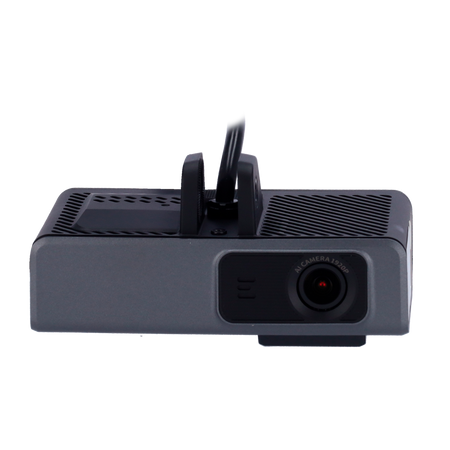

Streamax dashcam with ADAS
Couldn't load pickup availability
Each product is delivered with the essential accessories and installation instructions. Open the package and you are ready to go.
Do you have any questions?
Ask an expert!
Streamax - Dashboard dashcam with ADAS - Resolution up to 5Mpx - Advanced road event detection - Two-way audio - 4G, WiFi communication and GPS positioning
📋 SPECIFICATIONS:
• Video: 1 CH: ADAS Camera (Integrated)
• Video inputs: 2 additional CH (1 AHD + 1 IP); *For a total of 3CH
• Video output: 1 Video OUT
• Sensor: ADAS: 1/2.7" CMOS
• Resolution: ADAS: 5 Mpx
• Audio: Microphone and Speaker
• Input resolution: ADAS: 5MP @ 20FPS
• Recording resolution: Main stream: 5MP@20 FPS(ADAS)+1080P@20 FPS(DSC)+1080P@20 FPS(AHD) + 1080P@20 FPS(IPC); Sub-stream: 4 × CIF@30 FPS
• Audio compression: APCM/G.711/G.726
• Lens: ADAS: 2.8 mm (H: 103º, V: 71º); DSC: 2.1 mm (H: 148º, V: 82º)
• S/N: > 48dB
• Camera type: ADAS: Lane departure; Pedestrian crossing; Collision risk; Front vehicle safety distance
• Function summary: Live view, video recording, video playback, network streaming and GPS positioning
• 4G communication: LTE FDD: B1/B3/B7/B8/B20/B28A; LTE TDD: B38/B40/B41; WCDMA: B1/B8; GSM: B3/B8
• Wi-Fi communication: 2.4 GHz
• Bluetooth communication: Supported
• Image enhancement: Brightness, Chromaticity, Contrast, Saturation, Sharpness, BLC and DWDR settings
• Video compression: H.265 / H.264
• Positioning: GPS
• Sensors: Accelerometer: 6-axis (Detection of collisions, sharp turns and harsh braking); SIM: SIM card slot; 1x RS232; 1x CAN
• Alarms: 2 Inputs
• CAN Bus: Supported
• Network protocols: HTTP, TCP, ARP, UDP, FTP, DHCP, DNS, IPV4, NTP
• Storage: 2x MicroSD card slots up to 256GB per slot
• Management software: CEIBA II Centralized Server
• Temperature range: -40ºC to 70ºC
• Power supply: DC 9-36V, Max. 11.5W
• Certificates: Emark, CE-RED, FCC-ID, EN50155-EMC, UKCA, EN50155, ROHS, REACH, PTCRB, AT&T, Verizon
• Installation: On the windshield
📦 INCLUDED:

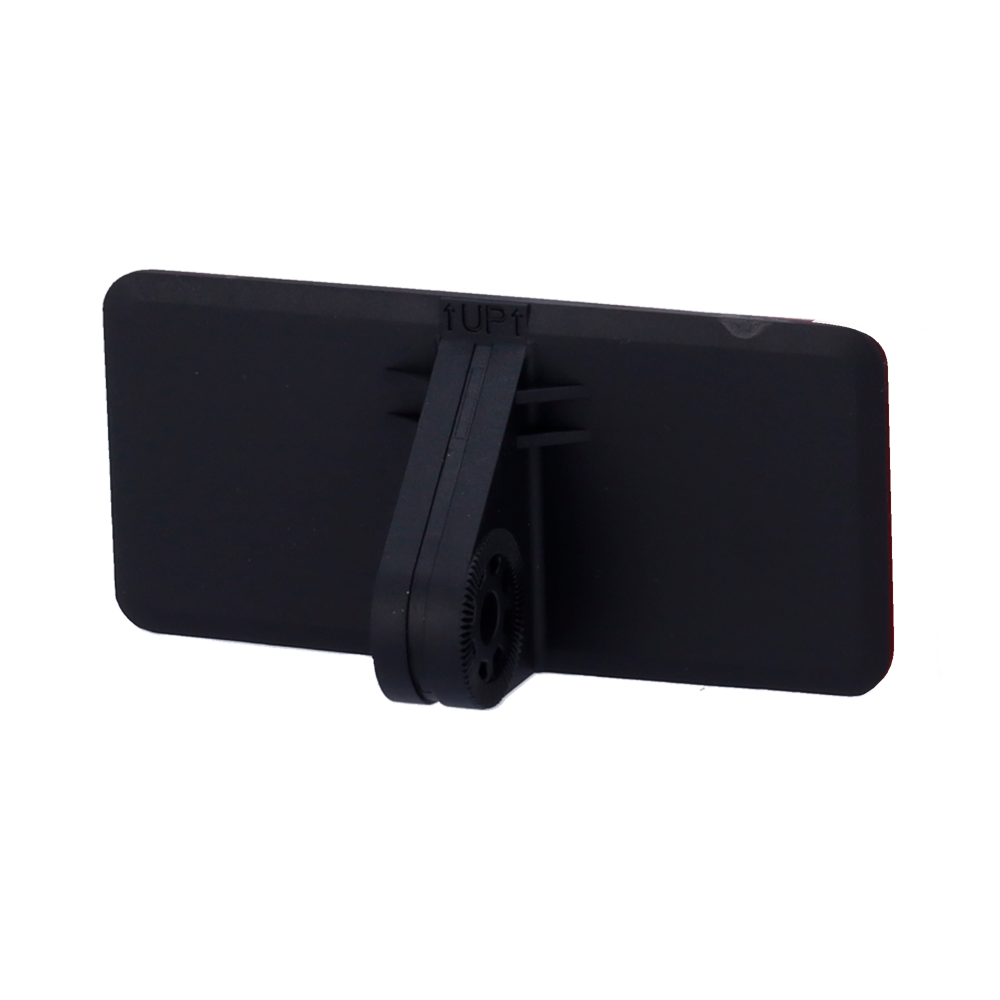

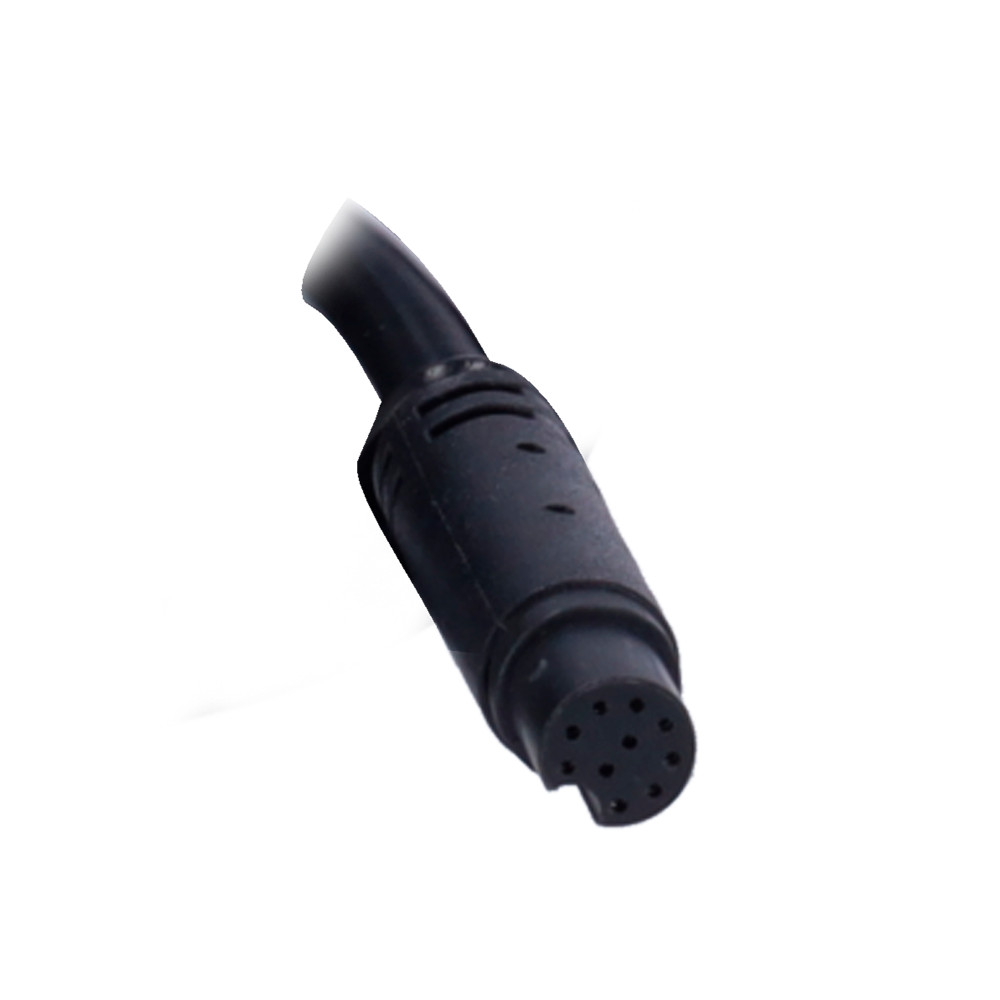

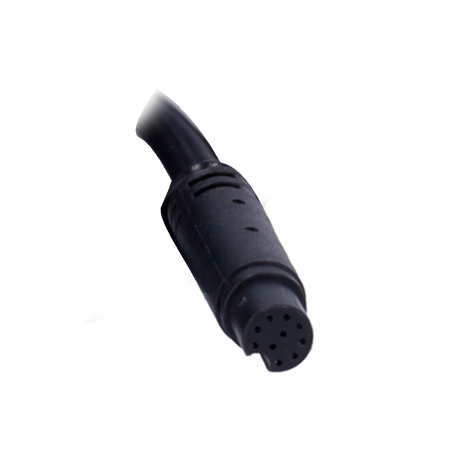

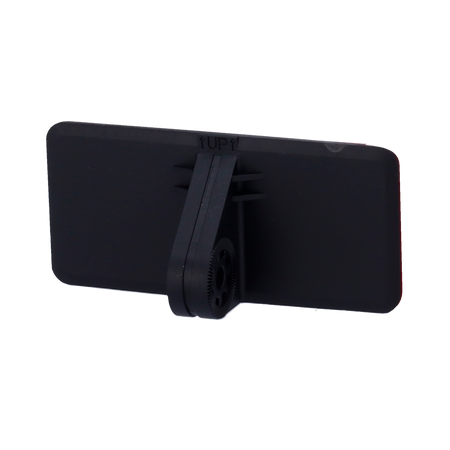

• ADPLUS 2.0 Private ADAS Camera• Installation bracket• Fixing screw• Power cable
| Video | 1 CH: ADAS Camera (Integrated) |
|---|---|
| Video inputs | 2 additional CH (1 AHD + 1 IP) *For a total of 3CH |
| Video output | 1 Video OUT |
| Sensor | ADAS: 1/2.7" CMOS |
| Resolution | ADAS: 5 Mpx |
| Audio | Microphone and speakers |
| Input resolution | ADAS: 5MP @ 20FPS |
| Recording resolution | Main stream: 5MP@20 FPS(ADAS)+1080P@20 FPS(DSC)+1080P@20 FPS(AHD) + 1080P@20 FPS(IPC) Sub-stream: 4 × CIF@30 FPS |
| Audio compression | APCM/G.711/G.726 |
| Lens | ADAS: 2.8 mm (H: 103º, V: 71º) DSC: 2.1 mm (H: 148º, V: 82º) |
| S/N | > 48dB |
| Camera type | ADAS: Lane departure, Pedestrian detection, Collision warning, Front vehicle safety distance |
| Function summary | Live view, video recording, video playback, network streaming and GPS positioning |
| 4G Communication | LTE FDD: B1/B3/B7/B8/B20/B28A LTE TDD: B38/B40/B41 WCDMA: B1/B8 GSM: B3/B8 |
| Wi-Fi communication | 2.4 GHz |
| Bluetooth communication | Supported |
| Image enhancement | Brightness, Chromaticity, Contrast, Saturation, Sharpness, BLC and DWDR settings |
| Video compression | H.265 / H.264 |
| Positioning | GPS |
| Sensors | Accelerometer: 6-axis (Detection of collisions, sharp turns and sudden braking) SIM: 1x SIM card slot 1x RS232 1x CAN |
| Alarms | 2 Inputs |
| CAN Bus | Supported |
| Network Protocols | HTTP, TCP, ARP, UDP, FTP, DHCP, DNS, IPV4, NTP |
| Storage | 2x MicroSD card slots up to 256GB per slot |
| Management Software | CEIBA II Centralized Server |
| Temperature range | -40ºC to 70ºC |
| Power supply | DC 9-36V, Max. 11.5W |
| Certificates | Emark, CE-RED, FCC-ID, EN50155-EMC, UKCA, EN50155, ROHS, REACH, PTCRB, AT&T, Verizon |
| Installation | On the windshield |
